Interested in filtering your homebrew? Well you've come to the right place! With either our 10" cartridge filter or plate filter, you'll have clearer, cleaner tasting beer in no time! We also have a water filter kit which helps to remove chlorine and chloramines from your brewing water.
Lenticular filters employ a filtering process similar to plate filters but are significantly easier to use
A sealed system ensures there is no dripping/leakage, unlike what occurs with plate filters
Filters are stacked within cartridges, making loading and replacement much simpler than a plate filter
Housings can be loaded with as few as one filter cartridge with the use of optional center posts
BevBright Lenticular Filter Housings streamline the filtration process, making it as effective as traditional plate filters but with greater ease of use. Their user-friendly design ensures that anyone, from experienced professionals to beginners, can operate them effortlessly. The setup is straightforward and without the complexities associated with plate filters.
One of the key benefits of lenticular filters is their sealed system. This design prevents dripping and leakage, guaranteeing airtight integrity and ensuring that your liquids remain protected and uncontaminated.
Filters stack neatly within the housing, and loading or replacing them is simple. There are no intricate assemblies required. Whether performing maintenance or adjusting filtration levels, the process is seamless and hassle-free.
Optional center posts allow the housings to accommodate as few as one filter cartridge, providing flexibility for various filtration needs, from large-scale production to small-batch operations.
Choose BevBright stainless steel lenticular filter housings for a filtration solution that is efficient, reliable, and easy to use. Each unit comes complete with hardware and instructions, ready for immediate use.
Made from 304 Stainless Steel
Polish: Ra<0.4um
Hardware Included:
(2) 1.5" T.C. Pressure Gauges
(2) 1.5" T.C. Butterfly Valves
(1) 1.5" T.C. Tee
(1) Top Relief Valve
(1) 1.5" T.C. Drain Valve
Clamps & Gaskets
Please Note: Example images of the 12" / 3 High Lenticular Housing shown here. Updated images coming soon.

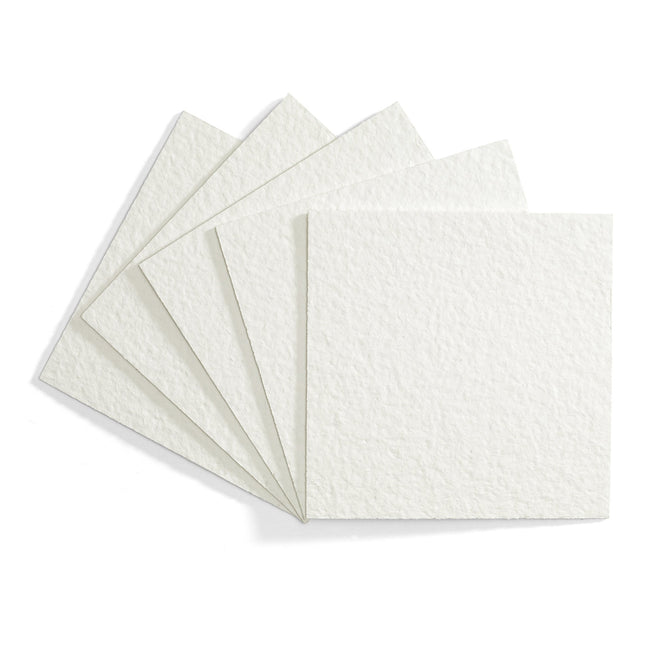

20 cm x 20 cm filter pads fit all standard 20x20 plate filters, which are typically used by home winemakers
0.7 Micron for ultra-fine polishing of wine or for preparing hard to filter wines to go through a sterile cartridge filter
Easily sterilizable via heat or steam
Manufactured by Filtrox, the world's leading producer of high-quality filtration media
20cm x 20cm filter pads made for 20x20 plate filters. 0.7 micron pads are for ultra-fine polishing of the wine, or for preparing hard to filter wines to go through a sterile cartridge filter. Please note that all pad filters are rated 'nominal', meaning that about 90-95% of all particulate matter at the micron rating will be filtered out. There will always be a little bit of smaller material that is also filtered out, as well as some larger material that will make it through.
The filters can be sterilized by in-line steam, auto-claving, dry heat, hot water or chemical methods. We choose to run Saniclean solution through the pads followed by sterile water or a small amount of wine that is then discarded. After the solution is run through the pads, and the pads have softened, the filter will need to be re-tightened.
Each pad has an entry side and an exit side, distinguishable by their different textures. The entry side is a billowy type texture, frequently called the "rough" side; and the exit side has a crosshatch pattern and is commonly called the "smooth" side. For more information on how to load filter sheets into your plate and frame filter, see our Guide to Plate Filtering.
Filtrox Group is a producer of filter sheets for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter sheets are manufactured of specially selected raw materials and conform to FDA and FCC regulations.
Micron Rating: 0.5 - 0.8
Micron Mid Point: 0.7
Versafix XE 104 Filter Sheets
Designed for exceptional clarity and stability in beverage production, Filtrox 30" filter cartridges offer a high-performance solution for small to large-scale operations. Engineered with a large filtration surface area and robust construction, these cartridges are ideal for critical stages like pre-filtration and polishing of wine, beer, spirits, juices, and more. Filtrox cartridges ensure the removal of haze-forming particles and yeast, leading to a sparkling final product with a longer shelf life and maintained flavor integrity.
Specs:
Clarox® PL 50
Retention Rate: 5.0 Micron
Efficiency: 99.98%
Maximum Pressure Differential: 72.5 psi (5 Bar) @ 77°F (25°C)
Maximum Continuous Operating Temperature: 149°F (65°C)
Typical Flow Rate:
Beer: 400 gal/h/30" (1,514 L/hr/30")
Wine: 530 gal/h/30" (2,006 L/hr/30")
Water: 920 gal/h/30" (3,482 L/hr/30")
Designed for exceptional clarity and stability in beverage production, Filtrox 30" filter cartridges offer a high-performance solution for small to large-scale operations. Engineered with a large filtration surface area and robust construction, these cartridges are ideal for critical stages like pre-filtration and polishing of wine, beer, spirits, juices, and more. Filtrox cartridges ensure the removal of haze-forming particles and yeast, leading to a sparkling final product with a longer shelf life and maintained flavor integrity.
Specs:
Clarox® MP/W 06
Retention Rate: 0.65 Micron
Bacterial Retention: >1.0 × 1011/cm2
Saccharomyces cerevisiae
Maximum Pressure Differential: 72.5 psi (5 Bar) @ 77°F (25°C)
Maximum Continuous Operating Temperature: 149°F (65°C)
Typical Flow Rate: 198-277 gal/h/30" (750-1050 L/h/30")
Designed for exceptional clarity and stability in beverage production, Filtrox 30" filter cartridges offer a high-performance solution for small to large-scale operations. Engineered with a large filtration surface area and robust construction, these cartridges are ideal for critical stages like pre-filtration and polishing of wine, beer, spirits, juices, and more. Filtrox cartridges ensure the removal of haze-forming particles and yeast, leading to a sparkling final product with a longer shelf life and maintained flavor integrity.
What is the PES Layer?
The Polyethersulfone (PES) layer is a high-performance membrane designed to deliver absolute filtration and exceptional product clarity.
Key Benefits for Beverage Production
Absolute Filtration: The PES layer provides a precise and reliable barrier, capturing 99.99% of haze-forming particles, yeast, and bacteria to guarantee a consistent, sparkling final product.
Maintains Quality: With its low protein-binding properties, the PES membrane ensures that the color, flavor, and aroma of your beverage remain unchanged.
Durable & Efficient: Resistant to high temperatures and chemicals, this layer is built for demanding production environments. Its high flow rate and large dirt-holding capacity extend the life of each cartridge, reducing downtime and replacement costs.
Specs:
Clarox® MP/W 04
Retention Rate: 0.45 Micron
Bacterial Retention: >1.0 × 1010/cm2
Leuconostoc oenos
Maximum Pressure Differential: 72.5 psi (5 Bar) @ 77°F (25°C)
Maximum Continuous Operating Temperature: 149°F (65°C)
Typical Flow Rate: 198 gal/h/30" (750 L/h/30")

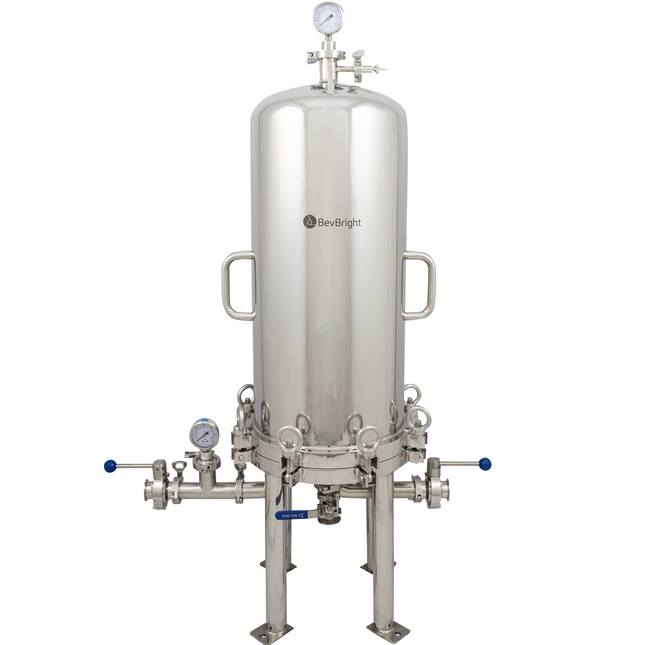

Lenticular filters employ a filtering process similar to plate filters but are significantly easier to use
A sealed system ensures there is no dripping/leakage, unlike what occurs with plate filters
Filters are stacked within cartridges, making loading and replacement much simpler than a plate filter
Housings can be loaded with as few as one filter cartridge with the use of optional center posts
BevBright Lenticular Filter Housings streamline the filtration process, making it as effective as traditional plate filters but with greater ease of use. Their user-friendly design ensures that anyone, from experienced professionals to beginners, can operate them effortlessly. The setup is straightforward and without the complexities associated with plate filters.
One of the key benefits of lenticular filters is their sealed system. This design prevents dripping and leakage, guaranteeing airtight integrity and ensuring that your liquids remain protected and uncontaminated.
Filters stack neatly within the housing, and loading or replacing them is simple. There are no intricate assemblies required. Whether performing maintenance or adjusting filtration levels, the process is seamless and hassle-free.
Optional center posts allow the housings to accommodate as few as one filter cartridge, providing flexibility for various filtration needs, from large-scale production to small-batch operations.
Choose BevBright stainless steel lenticular filter housings for a filtration solution that is efficient, reliable, and easy to use. Each unit comes complete with hardware and instructions, ready for immediate use.
Made from 304 Stainless Steel
Polish: Ra<0.4um
Hardware Included:
(2) 1.5" T.C. Pressure Gauges
(2) 1.5" T.C. Butterfly Valves
(1) 1.5" T.C. Tee
(1) Top Relief Valve
(1) 1.5" T.C. Drain Valve
Clamps & Gaskets

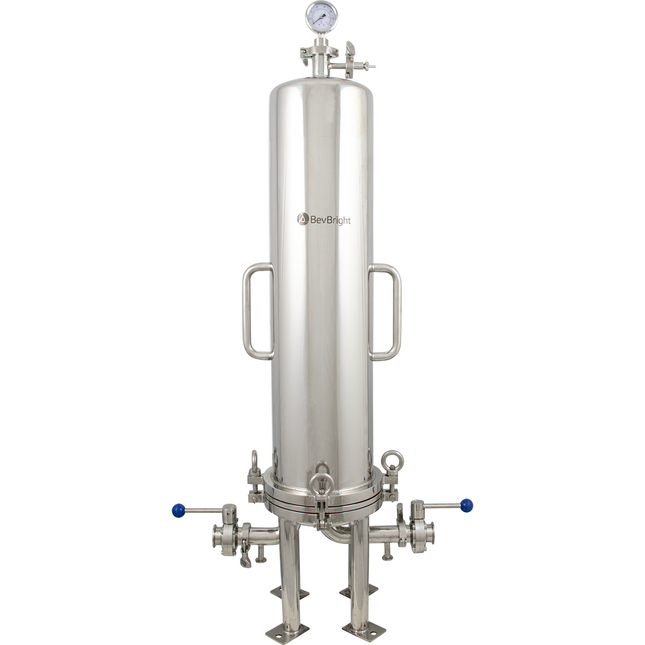

Premium 316 stainless steel construction ensures durability and corrosion resistance, ideal for demanding beverage production environments
Wide compatibility with a range of filter cartridges offers adaptability and customization for optimal filtration results in beverage making processes
Multiple housings easily work in tandem for sequential filtration with cartridges of different micron ratings, ensuring thorough removal of bacteria for pristine final products
The BevBright 30" Stainless Cartridge Filter Housings are designed to streamline your beverage production with unmatched purity and efficiency.
Made from premium electropolished 316 stainless steel, these filter housings protect against contamination, ensuring your final product meets the highest standards of quality and taste. Engineered to resist corrosion in challenging environments, they offer durability and reliability.
These stainless steel filter housings are essential for precision filtration in beverage production. When used with a sterile filter cartridge, they effectively remove yeast and bacteria, delivering pure, pristine liquid. Tri-clamp ports ensure easy integration into your setup, and the option to daisy-chain filters allows for efficient multi-stage filtration, prolonging the life of your sterile cartridges.
BevBright filter housings are compatible with a wide range of filter cartridges, providing the flexibility to meet your specific filtration needs, from standard to sterile filtration.
Each unit comes complete with hardware and ready for immediate use. Trust BevBright 30" Stainless Cartridge Filter Housings to maintain the purity and excellence of your beverage from start to finish.
Made from 316 Stainless Steel
Polish: Ra<0.4um
Hardware Included:
(2) 1.5" T.C. Pressure Gauges
(2) 1.5" T.C. Butterfly Valves
(1) 1.5" T.C. Tee
(1) Top Relief Valve
(2) 1/2" T.C. Drain Valves
Clamps & Gaskets
Compatible with Scott Labs' ScottCart Code 7: 226 Twist & Lock 30" Cartridges
Example images shown. The Filter Housing also includes a 1.5" T.C. Tee & Pressure Gauge and 1/2" T.C.Drain Valves that are not pictured.

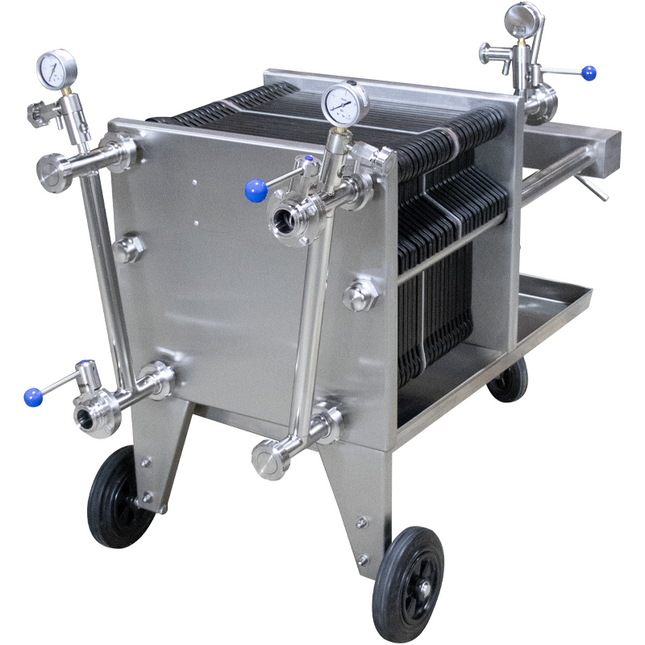

Rolling cart plate filter for wine, beer, cider, and distilling
Plates made of high temperature Noryl plastic capable of being steam sterilized
Double filtration kit included as standard
Built-in pressure gauges, sight glasses, and sample valves
1.5" tri-clamp inlet/outlet w/ butterfly valves
(40) 40cm x 40cm plates
4,000L/h filtering capacity
The BevBright commercial plate filter features external stainless steel piping with built-in pressure gauges, sight glasses, and sample valves. Easily connect hoses to the included 1.5" tri-clamp butterfly valves. Double filtration kit comes standard.
Features:
304 Stainless Steel Construction
Up to 4,000L (1,056 gal) flow rate per hour
Rolling casters for easy movement
Drip collection tray
40 plates included
Double filtration kit included
(2) Built-in pressure gauges, sight glasses, and sample valves
1.5" Tri-Clamp inlet and outlet
67.7" x 26" x x 35.5"
518 lbs
Pads should be placed in the machine rough-smooth-smooth-rough
CE Compliant
Please note: This unit comes with white plates rather than black plates as seen in the example photo. Updated images coming soon.
Warning: You will need to remove the unit from the shipping pallet using a forklift and straps. Do not use a fork lift to directly lift from the bottom of the unit. Doing so may damage the bottom tray.

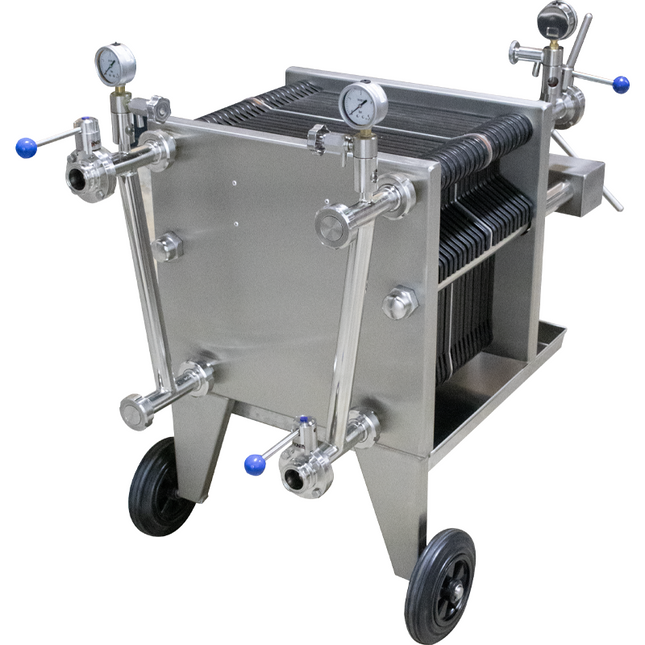

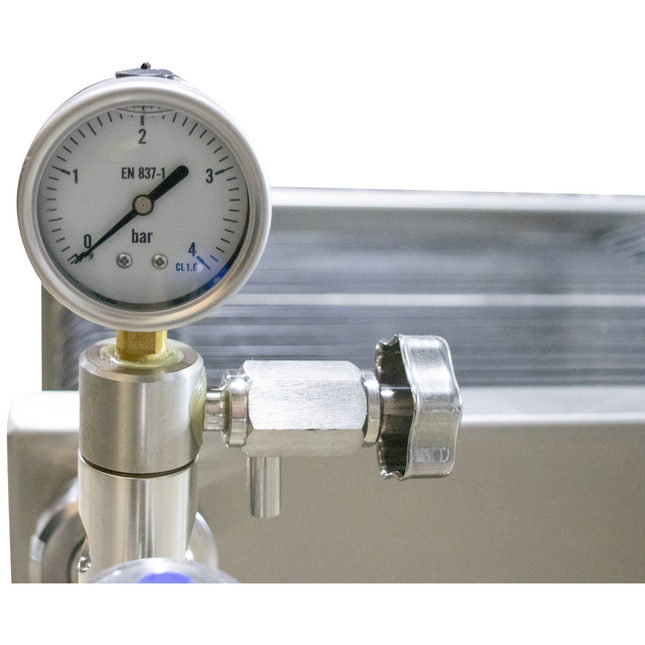

Rolling cart plate filter for wine, beer, cider, and distilling
Plates made of high temperature Noryl plastic capable of being steam sterilized
Double filtration kit included as standard
Built-in pressure gauges, sight glasses, and sample valves
1.5" tri-clamp inlet/outlet w/ butterfly valves
(20) 40cm x 40cm plates
2,000L/h filtering capacity
The BevBright commercial plate filter features external stainless steel piping with built-in pressure gauges, sight glasses, and sample valves. Easily connect hoses to the included 1.5" tri-clamp butterfly valves. Double filtration kit comes standard.
Features:
304 Stainless Steel Construction
Up to 2,000L (528 gal) flow rate per hour
Rolling casters for easy movement
Drip collection tray
20 plates included
Double filtration kit included
(2) Built-in pressure gauges, sight glasses, and sample valves
1.5" Tri-Clamp inlet and outlet
47.5" x 26" x 35.5"
363 lbs
Pads should be placed in the machine rough-smooth-smooth-rough
CE compliant
Please note: This unit comes with white plates rather than black plates as seen in the example photo. Updated images coming soon.

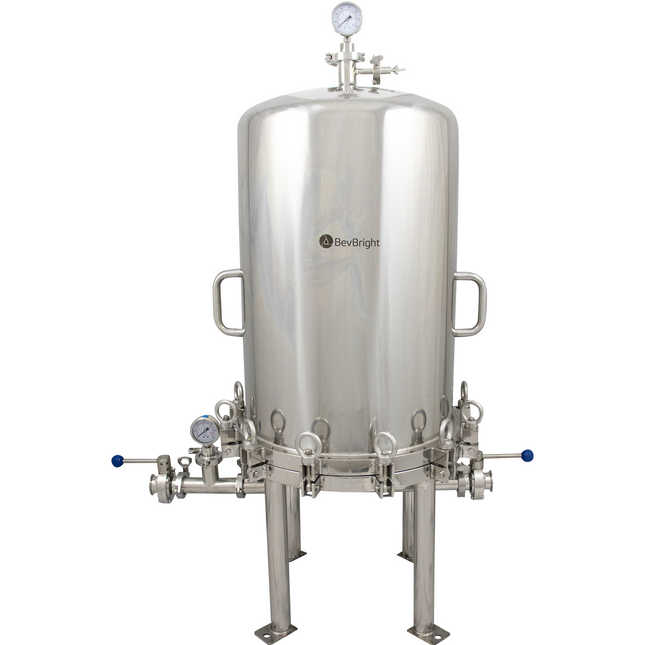

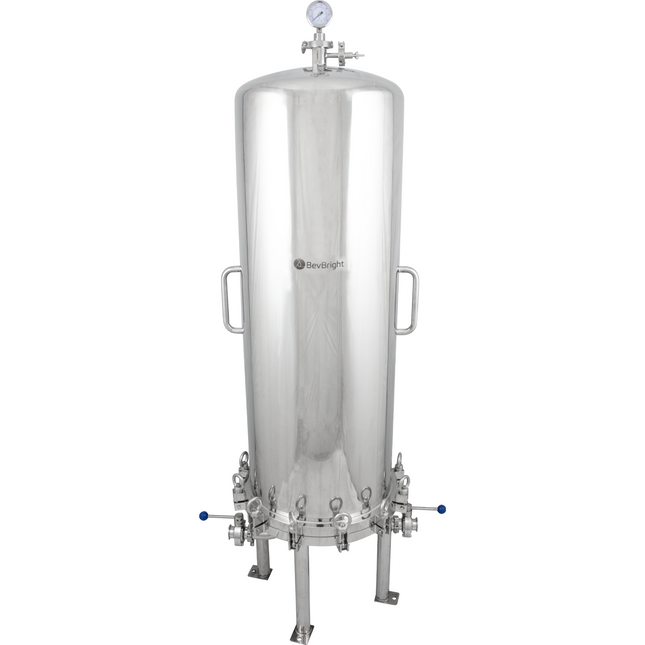

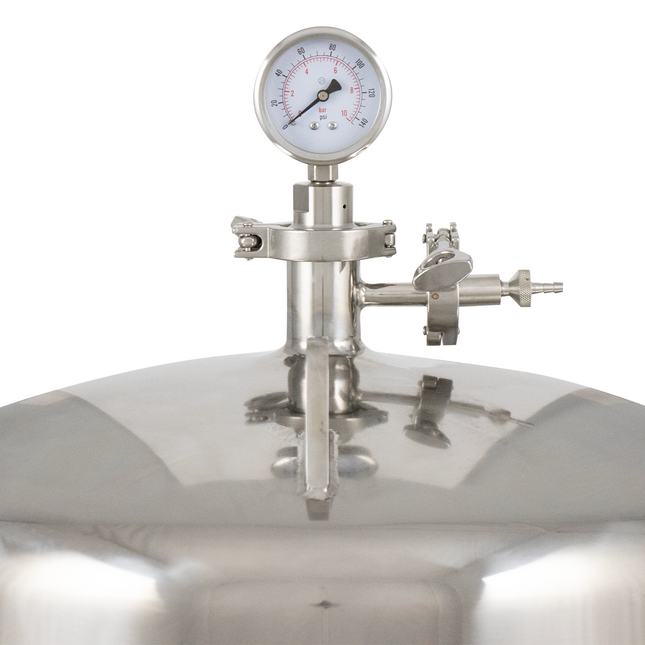

Lenticular filters employ a filtering process similar to plate filters but are significantly easier to use
A sealed system ensures there is no dripping/leakage, unlike what occurs with plate filters
Filters are stacked within cartridges, making loading and replacement much simpler than a plate filter
Housings can be loaded with as few as one filter cartridge with the use of optional center posts
BevBright Lenticular Filter Housings streamline the filtration process, making it as effective as traditional plate filters but with greater ease of use. Their user-friendly design ensures that anyone, from experienced professionals to beginners, can operate them effortlessly. The setup is straightforward and without the complexities associated with plate filters.
One of the key benefits of lenticular filters is their sealed system. This design prevents dripping and leakage, guaranteeing airtight integrity and ensuring that your liquids remain protected and uncontaminated.
Filters stack neatly within the housing, and loading or replacing them is simple. There are no intricate assemblies required. Whether performing maintenance or adjusting filtration levels, the process is seamless and hassle-free.
Optional center posts allow the housings to accommodate as few as one filter cartridge, providing flexibility for various filtration needs, from large-scale production to small-batch operations.
Choose BevBright stainless steel lenticular filter housings for a filtration solution that is efficient, reliable, and easy to use. Each unit comes complete with hardware and instructions, ready for immediate use.
Made from 304 Stainless Steel
Polish: Ra<0.4um
Hardware Included:
(2) 1.5" T.C. Pressure Gauges
(2) 1.5" T.C. Butterfly Valves
(1) 1.5" T.C. Tee
(1) Top Relief Valve
(1) 1.5" T.C. Drain Valve
Clamps & Gaskets

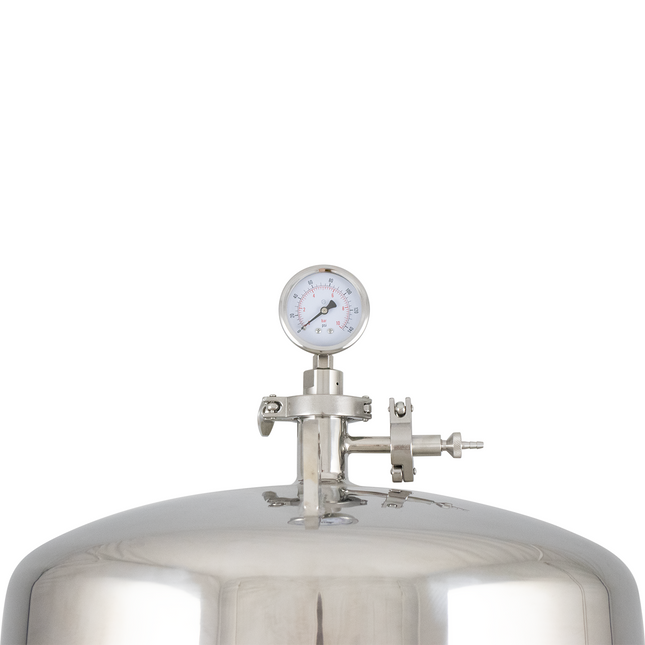

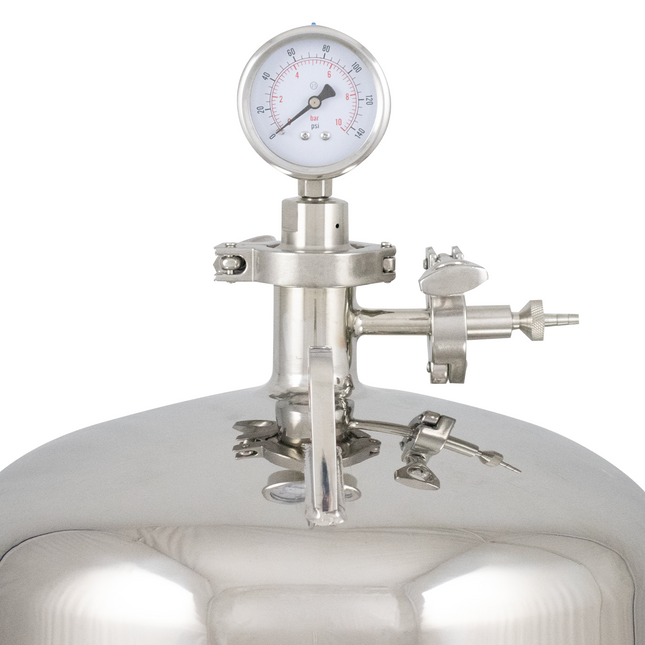

Lenticular filters employ a filtering process similar to plate filters but are significantly easier to use
A sealed system ensures there is no dripping/leakage, unlike what occurs with plate filters
Filters are stacked within cartridges, making loading and replacement much simpler than a plate filter
Housings can be loaded with as few as one filter cartridge with the use of optional center posts
BevBright Lenticular Filter Housings streamline the filtration process, making it as effective as traditional plate filters but with greater ease of use. Their user-friendly design ensures that anyone, from experienced professionals to beginners, can operate them effortlessly. The setup is straightforward and without the complexities associated with plate filters.
One of the key benefits of lenticular filters is their sealed system. This design prevents dripping and leakage, guaranteeing airtight integrity and ensuring that your liquids remain protected and uncontaminated.
Filters stack neatly within the housing, and loading or replacing them is simple. There are no intricate assemblies required. Whether performing maintenance or adjusting filtration levels, the process is seamless and hassle-free.
Optional center posts allow the housings to accommodate as few as one filter cartridge, providing flexibility for various filtration needs, from large-scale production to small-batch operations.
Choose BevBright stainless steel lenticular filter housings for a filtration solution that is efficient, reliable, and easy to use. Each unit comes complete with hardware and instructions, ready for immediate use.
Made from 304 Stainless Steel
Polish: Ra<0.4um
Hardware Included:
(2) 1.5" T.C. Pressure Gauges
(2) 1.5" T.C. Butterfly Valves
(1) 1.5" T.C. Tee
(1) Top Relief Valve
(1) 1.5" T.C. Drain Valve
Clamps & Gaskets
Please Note: Example images of the 12" / 3 High Lenticular Housing shown here. Updated images coming soon.
40 cm x 40 cm filter pads fit all standard 40x40 plate filters, which are typically used in professional applications
0.7 Micron for ultra-fine polishing of beverages or for preparing hard to filter beverages to go through a sterile cartridge filter
Easily sterilizable via heat or steam
Manufactured by Filtrox, the world's leading producer of high-quality filtration media
40cm x 40cm filter pads made for 40x40 plate filters. 0.7 micron pads are for ultra-fine polishing of the beverage, or for preparing hard to filter beverages to go through a sterile cartridge filter. Please note that all pad filters are rated 'nominal', meaning that about 90-95% of all particulate matter at the micron rating will be filtered out. There will always be a little bit of smaller material that is also filtered out, as well as some larger material that will make it through.
The filters can be sterilized by in-line steam, auto-claving, dry heat, hot water or chemical methods. We choose to run Saniclean solution through the pads followed by sterile water or a small amount of beverage that is then discarded. After the solution is run through the pads, and the pads have softened, the filter will need to be re-tightened.
Each pad has an entry side and an exit side, distinguishable by their different textures. The entry side is a billowy type texture, frequently called the "rough" side; and the exit side has a crosshatch pattern and is commonly called the "smooth" side. For more information on how to load filter sheets into your plate and frame filter, see our Guide to Plate Filtering.
Filtrox Group is a producer of filter sheets for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter sheets are manufactured of specially selected raw materials and conform to FDA and FCC regulations.
Micron Rating: 0.5 - 0.8
Micron Mid Point: 0.7
Versafix XE 104 Filter Sheets
Wine
Use: Ultra-fine polishing
Max. Recommended Flow Rate: 15 gal/hr (56 L/hr)
Max. Recommended Pressure Differential: 17 psi (1.2 Bar)
Cold Brew Coffee
Use: Very fine filtration
Max. Recommended Flow Rate: 15 gal/hr (56 L/hr)
Max. Recommended Pressure Differential: 36 psi (2.5 Bar)

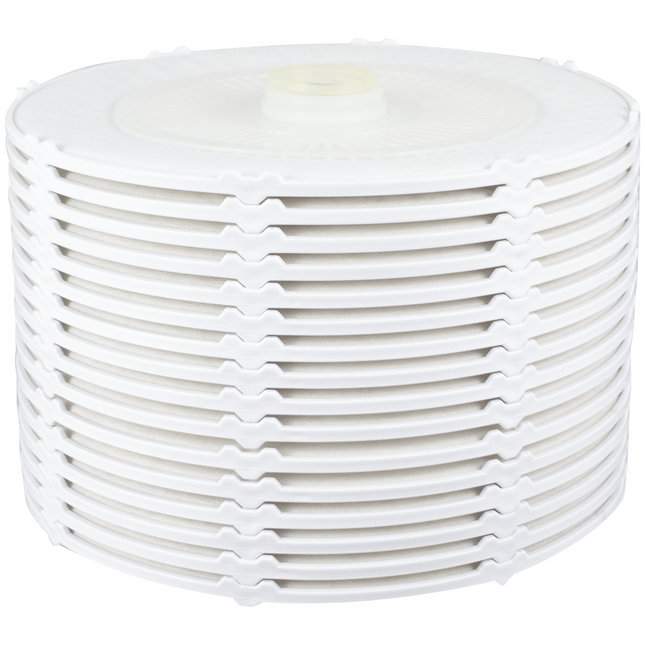

16" filter module for use with 16" stainless steel lenticular filter housings
Back flushable module
1 Micron for fine filtration of wine, spirits, and beer
Manufactured by Filtrox, the world's leading producer of high-quality filtration media
Filtrox filter modules are high-performance filtration solutions designed for use with stainless steel lenticular filter housings. These modules deliver reliable, efficient filtration for a wide range of liquids in food and beverage production including wine, beer, cider, spirits, cold brew coffee, and more.
Compared to plate filters and filter sheets, lenticular filter housings and filter modules offers an airtight, sealed system with no dripping or leakage, ensuring your liquid remains protected and uncontaminated.
Filter modules are easy to install and provide consistent results, making them ideal for demanding filtration applications.
Filtrox Group is a producer of filter media for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter modules are manufactured of specially selected raw materials and conform to FDA and FCC regulations.
Micron Rating: 0.5 - 1.5
Micron Mid Point: 1
Filtration Area: 38.7 ft² (3.6 m²)
Number of Lenses: 16
Back Flushable
Max. Backflow Pressure Differential: 7 psi (0.5 Bar) at 77°F (25°C)
Fibradisc AF 101 Plus2 Filter Module
Wine
Use: Fine filtration
Max. Recommended Flow Rate: 478 gal/hr (1,800 L/hr)
Max. Recommended Pressure Differential: 22 - 29 psi (1.5 - 2.0 Bar)
Spirits
Use: Fine filtration of cognac and whiskey chill haze removal
Max. Recommended Flow Rate: 478 gal/hr (1,800 L/hr)
Max. Recommended Pressure Differential: 22 psi (1.5 Bar)
Beer
Use: Very fine filtration, for long shelf life
Max. Recommended Flow Rate: 142 gal/hr (540 L/hr)
Max. Recommended Pressure Differential: 17 psi (1.2 Bar)

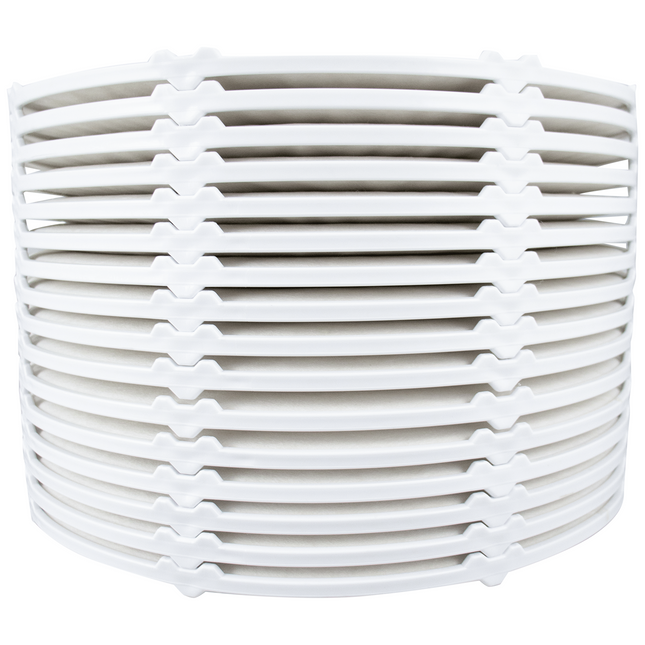

16" filter module for use with 16" stainless steel lenticular filter housings
Back flushable module
2 Micron rating are for general clarifying of wine and fine filtration of beer, seltzer and cold brew
Manufactured by Filtrox, the world's leading producer of high-quality filtration media
Filtrox filter modules are high-performance filtration solutions designed for use with stainless steel lenticular filter housings. These modules deliver reliable, efficient filtration for a wide range of liquids in food and beverage production including wine, beer, cider, spirits, cold brew coffee, and more.
Compared to plate filters and filter sheets, lenticular filter housings and filter modules offers an airtight, sealed system with no dripping or leakage, ensuring your liquid remains protected and uncontaminated.
Filter modules are easy to install and provide consistent results, making them ideal for demanding filtration applications.
Filtrox Group is a producer of filter media for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter modules are manufactured of specially selected raw materials and conform to FDA and FCC regulations.
Micron Rating: 1.5 - 3
Micron Mid Point: 2
Filtration Area: 38.7 ft² (3.6 m²)
Number of Lenses: 16
Back Flushable
Max. Backflow Pressure Differential: 7 psi (0.5 Bar) at 77°F (25°C)
Fibradisc AF 71 Plus2 Filter Module
Wine
Use: Clarifying filtration
Max. Recommended Flow Rate: 572 gal/hr (2,160 L/hr)
Max. Recommended Pressure Differential: 29 - 36 psi (2.0 - 2.5 Bar)
Spirits
Use: Fine filtration of cognac and whiskey chill haze removal
Max. Recommended Flow Rate: 478 gal/hr (1,800 L/hr)
Max. Recommended Pressure Differential: 22 psi (1.5 Bar)
Beer
Use: Fine filtration, with fewer yeast cells
Max. Recommended Flow Rate: 142 gal/hr (540 L/hr)
Max. Recommended Pressure Differential: 22 psi (1.5 Bar)
Seltzer
Use: Fine filtration of seltzer base
Max. Recommended Flow Rate: 668 gal/hr (2,520 L/hr)
Max. Recommended Pressure Differential: 36 psi (2.5 Bar)
Cold Brew Coffee
Use: Fine filtration
Max. Recommended Flow Rate: 478 gal/hr (1,800 L/hr)
Max. Recommended Pressure Differential: 29 psi (2.0 Bar)
16" filter module for use with 16" stainless steel lenticular filter housings
Back flushable module
6 Micron rating provides a rough filtration that removes large particulates, often followed by finer filtration
Rough filtration is necessary on beverages with heavy sedimentation as the finer modules may clog without prefiltering
Manufactured by Filtrox, the world's leading producer of high-quality filtration media
Filtrox filter modules are high-performance filtration solutions designed for use with stainless steel lenticular filter housings. These modules deliver reliable, efficient filtration for a wide range of liquids in food and beverage production including wine, beer, cider, spirits, cold brew coffee, and more.
Compared to plate filters and filter sheets, lenticular filter housings and filter modules offers an airtight, sealed system with no dripping or leakage, ensuring your liquid remains protected and uncontaminated.
Filter modules are easy to install and provide consistent results, making them ideal for demanding filtration applications.
Filtrox Group is a producer of filter media for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter modules are manufactured of specially selected raw materials and conform to FDA and FCC regulations.
Micron Rating: 4 - 9
Micron Mid Point: 6
Filtration Area: 38.7 ft² (3.6 m²)
Number of Lenses: 16
Back Flushable
Max. Backflow Pressure Differential: 7 psi (0.5 Bar) at 77°F (25°C)
Fibradisc AF 41 Plus2 Filter Module
Wine
Use: Clarifying filtration
Max. Recommended Flow Rate: 572 gal/hr (2,160 L/hr)
Max. Recommended Pressure Differential: 29 - 36 psi (2.0 - 2.5 Bar)
Fruit Wine or Fruit Juice
Use: Clarifying filtration
Max. Recommended Flow Rate: 478 gal/hr (1,800 L/hr)
Max. Recommended Pressure Differential: 22 - 36 psi (1.5 - 2.5 Bar)
Beer
Use: Middle fine filtration, with only a few yeast
Max. Recommended Flow Rate: 190 gal/hr (720 L/hr)
Max. Recommended Pressure Differential: 22 psi (1.5 Bar)
16" filter module for use with 16" stainless steel lenticular filter housings
Back flushable module
8 Micron rating provides a rough filtration that removes large particulates, often followed by finer filtration
Rough filtration is necessary on beverages with heavy sedimentation as the finer modules may clog without prefiltering
Manufactured by Filtrox, the world's leading producer of high-quality filtration media
Filtrox filter modules are high-performance filtration solutions designed for use with stainless steel lenticular filter housings. These modules deliver reliable, efficient filtration for a wide range of liquids in food and beverage production including wine, beer, cider, spirits, cold brew coffee, and more.
Compared to plate filters and filter sheets, lenticular filter housings and filter modules offers an airtight, sealed system with no dripping or leakage, ensuring your liquid remains protected and uncontaminated.
Filter modules are easy to install and provide consistent results, making them ideal for demanding filtration applications.
Filtrox Group is a producer of filter media for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter modules are manufactured of specially selected raw materials and conform to FDA and FCC regulations.
Micron Rating: 5 - 12
Micron Mid Point: 8
Filtration Area: 38.7 ft² (3.6 m²)
Number of Lenses: 16
Back Flushable
Max. Backflow Pressure Differential: 7 psi (0.5 Bar) at 77°F (25°C)
Fibradisc AF 31 Plus2 Filter Module
Wine
Use: Clarifying filtration
Max. Recommended Flow Rate: 572 gal/hr (2,160 L/hr)
Max. Recommended Pressure Differential: 29 - 36 psi (2.0 - 2.5 Bar)
Fruit Wine or Fruit Juice
Use: Clarifying filtration
Max. Recommended Flow Rate: 478 gal/hr (1,800 L/hr)
Max. Recommended Pressure Differential: 22 - 36 psi (1.5 - 2.5 Bar)
Beer
Use: Clarifying filtration of beer, visually clear
Max. Recommended Flow Rate: 286 - 334 gal/hr (1,080 - 1,260 L/hr)
Max. Recommended Pressure Differential: 22 psi (1.5 Bar)
Cold Brew Coffee
Use: Clarifying filtration
Max. Recommended Flow Rate: 478 gal/hr (1,800 L/hr)
Max. Recommended Pressure Differential: 29 psi (2.0 Bar)
16" filter module for use with 16" stainless steel lenticular filter housings
Back flushable module
10 Micron rating provides a rough filtration that removes large particulates, often followed by finer filtration
Rough filtration is necessary on beverages with heavy sedimentation as the finer modules may clog without prefiltering
Manufactured by Filtrox, the world's leading producer of high-quality filtration media
Filtrox filter modules are high-performance filtration solutions designed for use with stainless steel lenticular filter housings. These modules deliver reliable, efficient filtration for a wide range of liquids in food and beverage production including wine, beer, cider, spirits, cold brew coffee, and more.
Compared to plate filters and filter sheets, lenticular filter housings and filter modules offers an airtight, sealed system with no dripping or leakage, ensuring your liquid remains protected and uncontaminated.
Filter modules are easy to install and provide consistent results, making them ideal for demanding filtration applications.
Filtrox Group is a producer of filter media for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter modules are manufactured of specially selected raw materials and conform to FDA and FCC regulations.
Micron Rating: 6 - 15
Micron Mid Point: 10
Filtration Area: 38.7 ft² (3.6 m²)
Number of Lenses: 16
Back Flushable
Max. Backflow Pressure Differential: 7 psi (0.5 Bar) at 77°F (25°C)
Fibradisc AF 21 Plus2 Filter Module
Wine
Use: Prefiltration
Max. Recommended Flow Rate: 668 gal/hr (2,520 L/hr)
Max. Recommended Pressure Differential: 36 psi (2.5 Bar)
Fruit Wine or Fruit Juice
Use: Prefiltration
Max. Recommended Flow Rate: 668 gal/hr (2,520 L/hr)
Max. Recommended Pressure Differential: 36 psi (2.5 Bar)
Spirits
Use: Coarse filtration of liquors, spirits
Max. Recommended Flow Rate: 478 - 668 gal/hr (1,800 - 2,520 L/hr)
Max. Recommended Pressure Differential: 36 psi (2.5 Bar)
16" filter module for use with 16" stainless steel lenticular filter housings
0.45 Micron pads remove 99.999% of bacteria to promote sterility in the bottle
Manufactured by Filtrox, the world's leading producer of high-quality filtration media
Filtrox filter modules are high-performance filtration solutions designed for use with stainless steel lenticular filter housings. These modules deliver reliable, efficient filtration for a wide range of liquids in food and beverage production including wine, beer, cider, spirits, cold brew coffee, and more.
Compared to plate filters and filter sheets, lenticular filter housings and filter modules offers an airtight, sealed system with no dripping or leakage, ensuring your liquid remains protected and uncontaminated.
Filter modules are easy to install and provide consistent results, making them ideal for demanding filtration applications.
Filtrox Group is a producer of filter media for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter modules are manufactured of specially selected raw materials and conform to FDA and FCC regulations.
Micron Rating: 0.4 - 0.6
Micron Mid Point: 0.5
Filtration Area: 38.7 ft² (3.6 m²)
Number of Lenses: 16
Fibradisc AF 130 Filter Module
Wine
Use: General sterile filtration
Max. Recommended Flow Rate: 334 gal/hr (1,260 L/hr)
Max. Recommended Pressure Differential: 17 psi (1.2 Bar)
Fruit Wine or Fruit Juice
Use: Cold sterile filtration
Max. Recommended Flow Rate: 334 gal/hr (1,260 L/hr)
Max. Recommended Pressure Differential: 17 psi (1.2 Bar)
Beer
Use: Yeast and bacteria removal
Max. Recommended Flow Rate: 114 gal/hr (432 L/hr)
Max. Recommended Pressure Differential: 15 psi (1.0 Bar)
Please Note: The filter module, lacking a PES layer, is for clarification purposes only and does not provide sterile filtration for 100% bacteria removal.
16" filter module for use with 16" stainless steel lenticular filter housings
4 Micron rating are for general clarifying of beverages that do not need to be sterile filtered
Manufactured by Filtrox, the world's leading producer of high-quality filtration media
Filtrox filter modules are high-performance filtration solutions designed for use with stainless steel lenticular filter housings. These modules deliver reliable, efficient filtration for a wide range of liquids in food and beverage production including wine, beer, cider, spirits, cold brew coffee, and more.
Compared to plate filters and filter sheets, lenticular filter housings and filter modules offers an airtight, sealed system with no dripping or leakage, ensuring your liquid remains protected and uncontaminated.
Filter modules are easy to install and provide consistent results, making them ideal for demanding filtration applications.
Filtrox Group is a producer of filter media for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter modules are manufactured of specially selected raw materials and conform to FDA and FCC regulations.
Micron Rating: 3 - 6
Micron Mid Point: 4
Filtration Area: 38.7 ft² (3.6 m²)
Number of Lenses: 16
Versadisc XE 44 Filter Module
Wine
Use: Clarifying filtration
Max. Recommended Flow Rate: 572 gal/hr (2,160 L/hr)
Max. Recommended Pressure Differential: 29 - 36 psi (2.0 - 2.5 Bar)
Fruit Wine or Fruit Juice
Use: Clarifying filtration
Max. Recommended Flow Rate: 478 gal/hr (1,800 L/hr)
Max. Recommended Pressure Differential: 22 - 36 psi (1.5 - 2.5 Bar)
Beer
Use: Middle fine filtration, with only a few yeast
Max. Recommended Flow Rate: 190 gal/hr (720 L/hr)
Max. Recommended Pressure Differential: 22 psi (1.5 Bar)
16" filter module for use with 16" stainless steel lenticular filter housings
6 Micron rating provides a rough filtration that removes large particulates, often followed by a finer filtration
Rough filtration is necessary on wines with heavy sedimentation as the finer pads will clog without prefiltering
Manufactured by Filtrox, the world's leading producer of high-quality filtration media
Filtrox filter modules are high-performance filtration solutions designed for use with stainless steel lenticular filter housings. These modules deliver reliable, efficient filtration for a wide range of liquids in food and beverage production including wine, beer, cider, spirits, cold brew coffee, and more.
Compared to plate filters and filter sheets, lenticular filter housings and filter modules offers an airtight, sealed system with no dripping or leakage, ensuring your liquid remains protected and uncontaminated.
Filter modules are easy to install and provide consistent results, making them ideal for demanding filtration applications.
Filtrox Group is a producer of filter media for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter modules are manufactured of specially selected raw materials and conform to FDA and FCC regulations.
Micron Rating: 4 - 9
Micron Mid Point: 6
Filtration Area: 38.7 ft² (3.6 m²)
Number of Lenses: 16
Versadisc XE 34 Filter Module
Wine
Use: Clarifying filtration
Max. Recommended Flow Rate: 572 gal/hr (2,160 L/hr)
Max. Recommended Pressure Differential: 29 - 36 psi (2.0 - 2.5 Bar)
Fruit Wine or Fruit Juice
Use: Clarifying filtration
Max. Recommended Flow Rate: 478 gal/hr (1,800 L/hr)
Max. Recommended Pressure Differential: 22 - 36 psi (1.5 - 2.5 Bar)
Beer
Use: Clarifying filtration of beer, visually clear
Max. Recommended Flow Rate: 286 - 334 gal/hr (1,080 - 1,260 L/hr)
Max. Recommended Pressure Differential: 22 psi (1.5 Bar)
Cold Brew Coffee
Use: Clarifying filtration
Max. Recommended Flow Rate: 478 gal/hr (1,800 L/hr)
Max. Recommended Pressure Differential: 29 psi (2.0 Bar)
16" filter module for use with 16" stainless steel lenticular filter housings
10 Micron rating provides a rough filtration that removes large particulates, often followed by finer filtration
Rough filtration is necessary on beverages with heavy sedimentation as the finer modules may clog without prefiltering
Manufactured by Filtrox, the world's leading producer of high-quality filtration media
Filtrox filter modules are high-performance filtration solutions designed for use with stainless steel lenticular filter housings. These modules deliver reliable, efficient filtration for a wide range of liquids in food and beverage production including wine, beer, cider, spirits, cold brew coffee, and more.
Compared to plate filters and filter sheets, lenticular filter housings and filter modules offers an airtight, sealed system with no dripping or leakage, ensuring your liquid remains protected and uncontaminated.
Filter modules are easy to install and provide consistent results, making them ideal for demanding filtration applications.
Filtrox Group is a producer of filter media for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter modules are manufactured of specially selected raw materials and conform to FDA and FCC regulations.
Micron Rating: 6 - 15
Micron Mid Point: 10
Filtration Area: 38.7 ft² (3.6 m²)
Number of Lenses: 16
Versadisc XE 24 Filter Module
Wine
Use: Prefiltration
Max. Recommended Flow Rate: 668 gal/hr (2,520 L/hr)
Max. Recommended Pressure Differential: 36 psi (2.5 Bar)
Fruit Wine or Fruit Juice
Use: Prefiltration
Max. Recommended Flow Rate: 668 gal/hr (2,520 L/hr)
Max. Recommended Pressure Differential: 36 psi (2.5 Bar)
Spirits
Use: Coarse filtration of liquors, spirits
Max. Recommended Flow Rate: 478 - 668 gal/hr (1,800 - 2,520 L/hr)
Max. Recommended Pressure Differential: 36 psi (2.5 Bar)
12" filter module for use with 12" stainless steel lenticular filter housings
10 Micron rating provides a rough filtration that removes large particulates, often followed by finer filtration
Rough filtration is necessary on beverages with heavy sedimentation as the finer modules may clog without prefiltering
Manufactured by Filtrox, the world's leading producer of high-quality filtration media
Filtrox filter modules are high-performance filtration solutions designed for use with stainless steel lenticular filter housings. These modules deliver reliable, efficient filtration for a wide range of liquids in food and beverage production including wine, beer, cider, spirits, cold brew coffee, and more.
Compared to plate filters and filter sheets, lenticular filter housings and filter modules offers an airtight, sealed system with no dripping or leakage, ensuring your liquid remains protected and uncontaminated.
Filter modules are easy to install and provide consistent results, making them ideal for demanding filtration applications.
Filtrox Group is a producer of filter media for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter modules are manufactured of specially selected raw materials and conform to FDA and FCC regulations.
Micron Rating: 6 - 15
Micron Mid Point: 10
Filtration Area: 19.3 ft² (1.8 m²)
Number of Lenses: 16
Versadisc XE 24 Filter Module
Wine
Use: Prefiltration
Max. Recommended Flow Rate: 334 gal/hr (1,260 L/hr)
Max. Recommended Pressure Differential: 36 psi (2.5 Bar)
Fruit Wine or Fruit Juice
Use: Prefiltration
Max. Recommended Flow Rate: 334 gal/hr (1,260 L/hr)
Max. Recommended Pressure Differential: 36 psi (2.5 Bar)
Spirits
Use: Coarse filtration of liquors, spirits
Max. Recommended Flow Rate: 239 - 334 gal/hr (900 - 1,260 L/hr)
Max. Recommended Pressure Differential: 36 psi (2.5 Bar)
