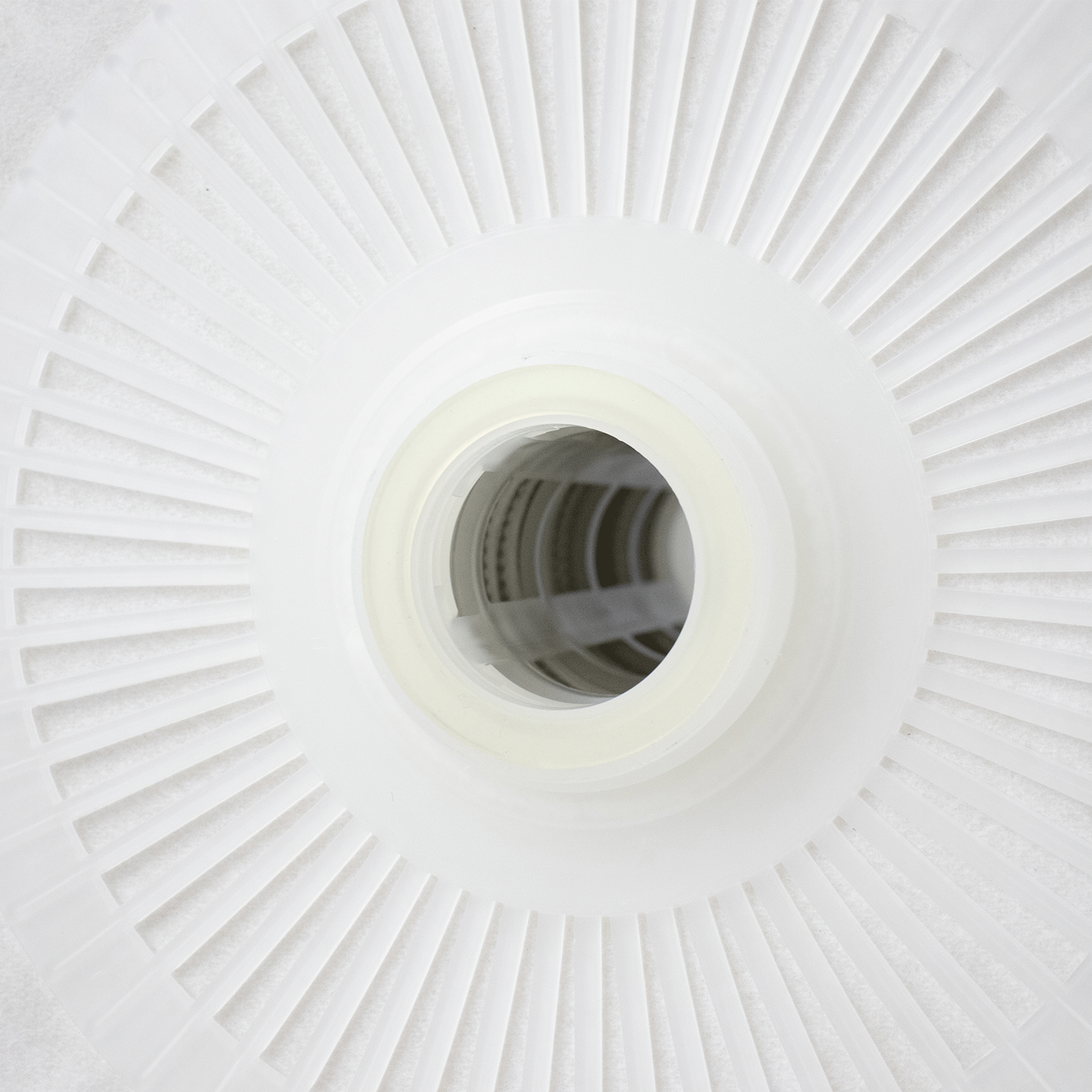

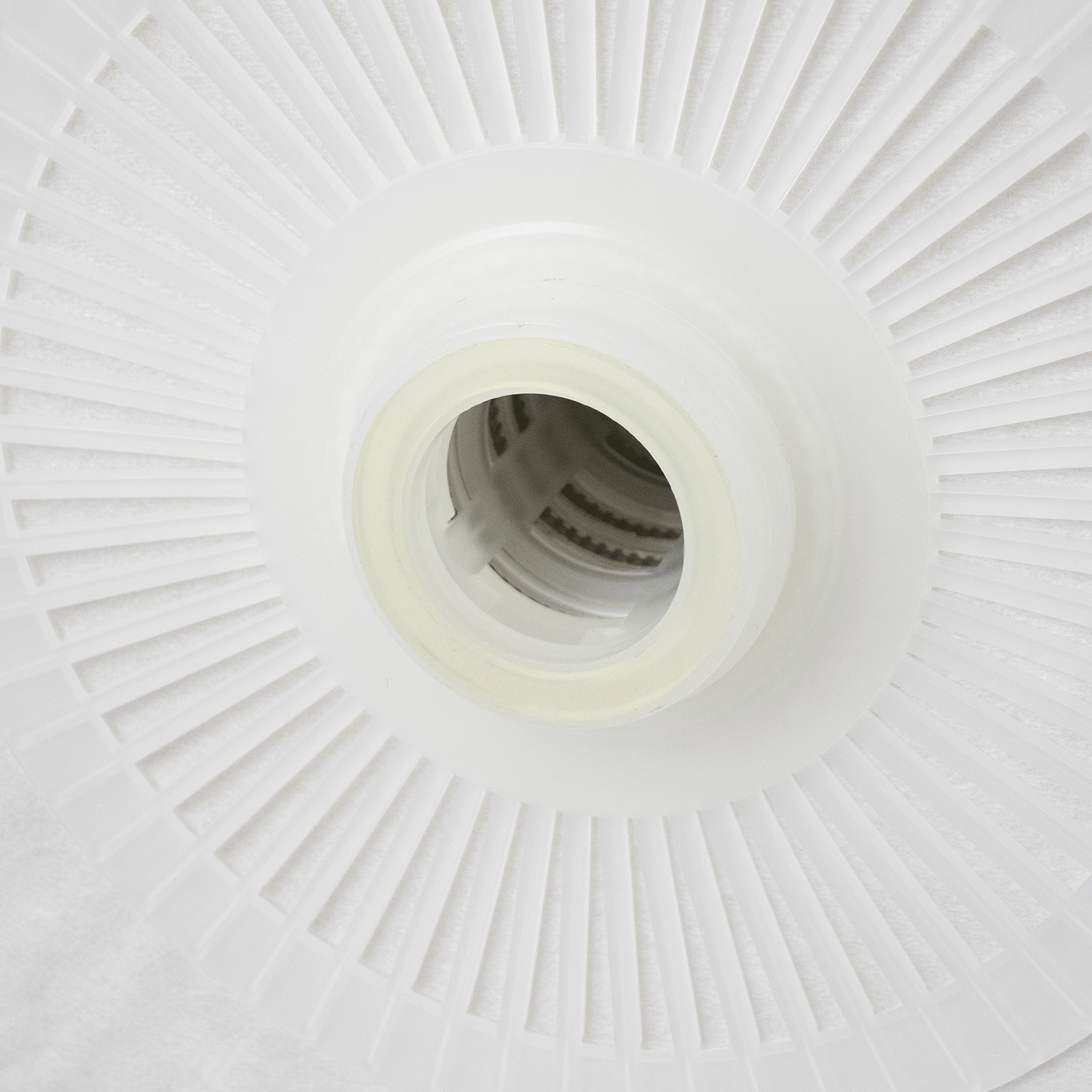

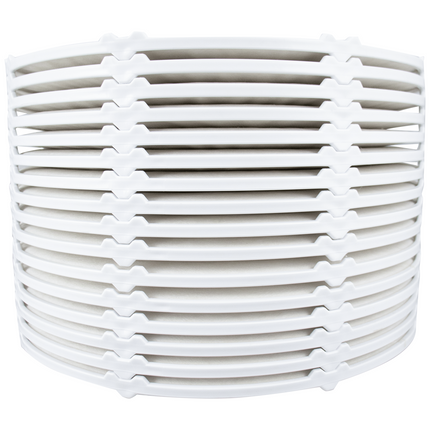

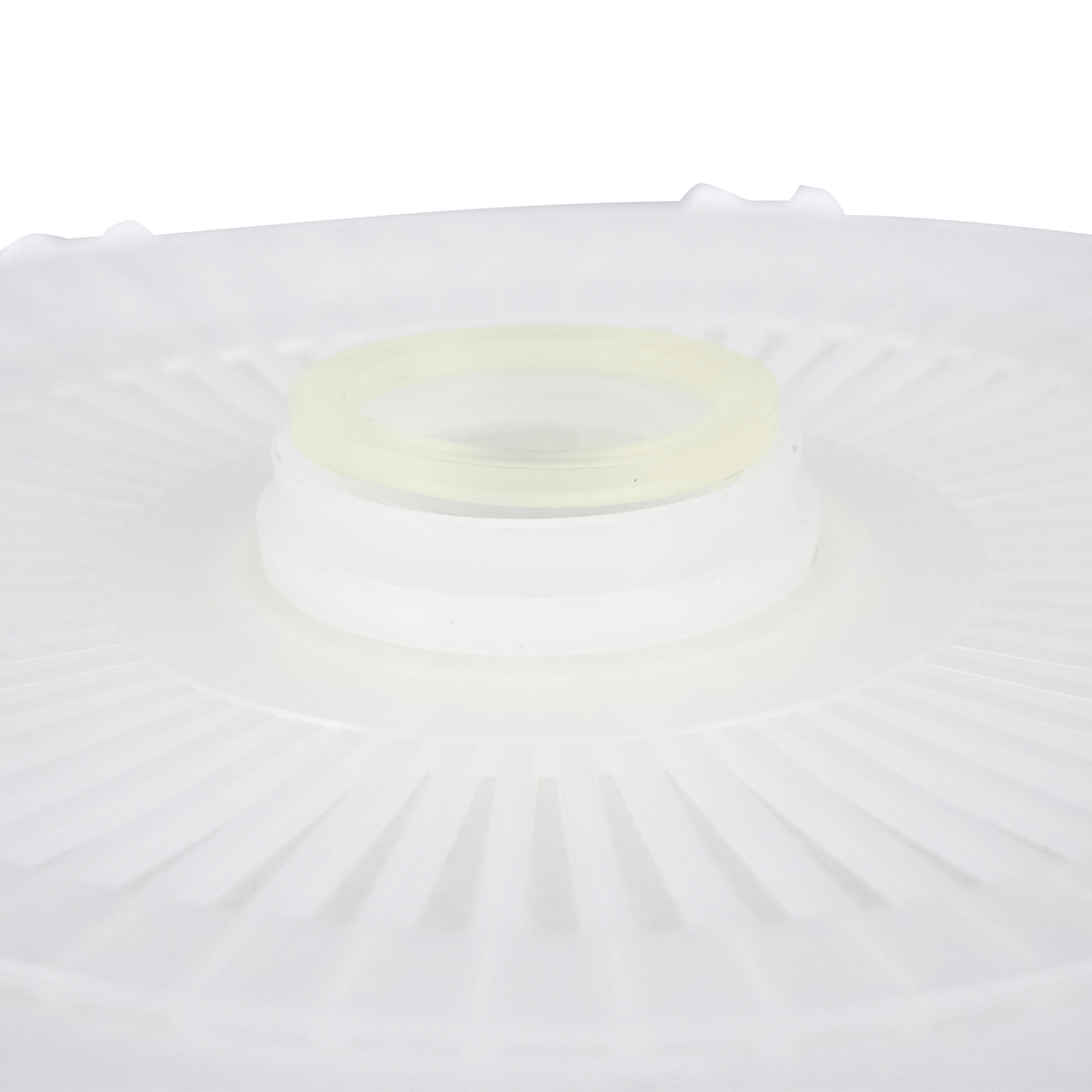

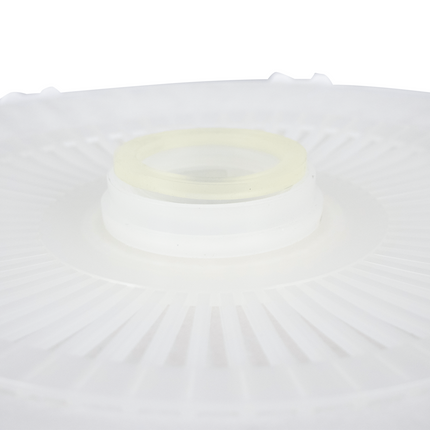

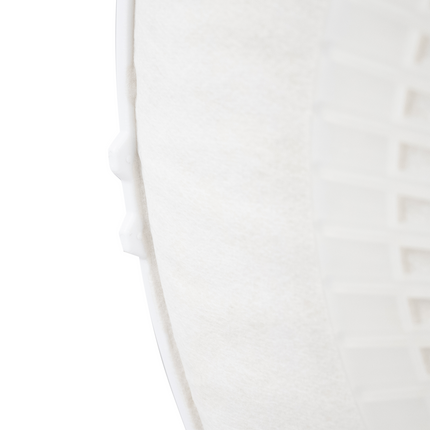

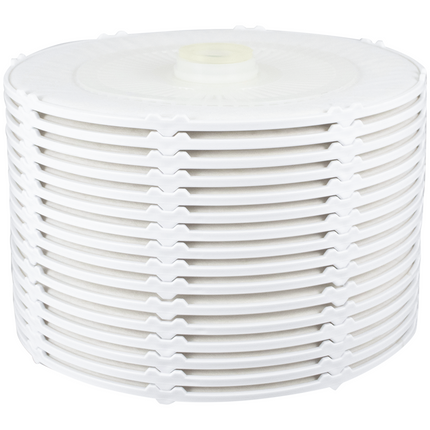

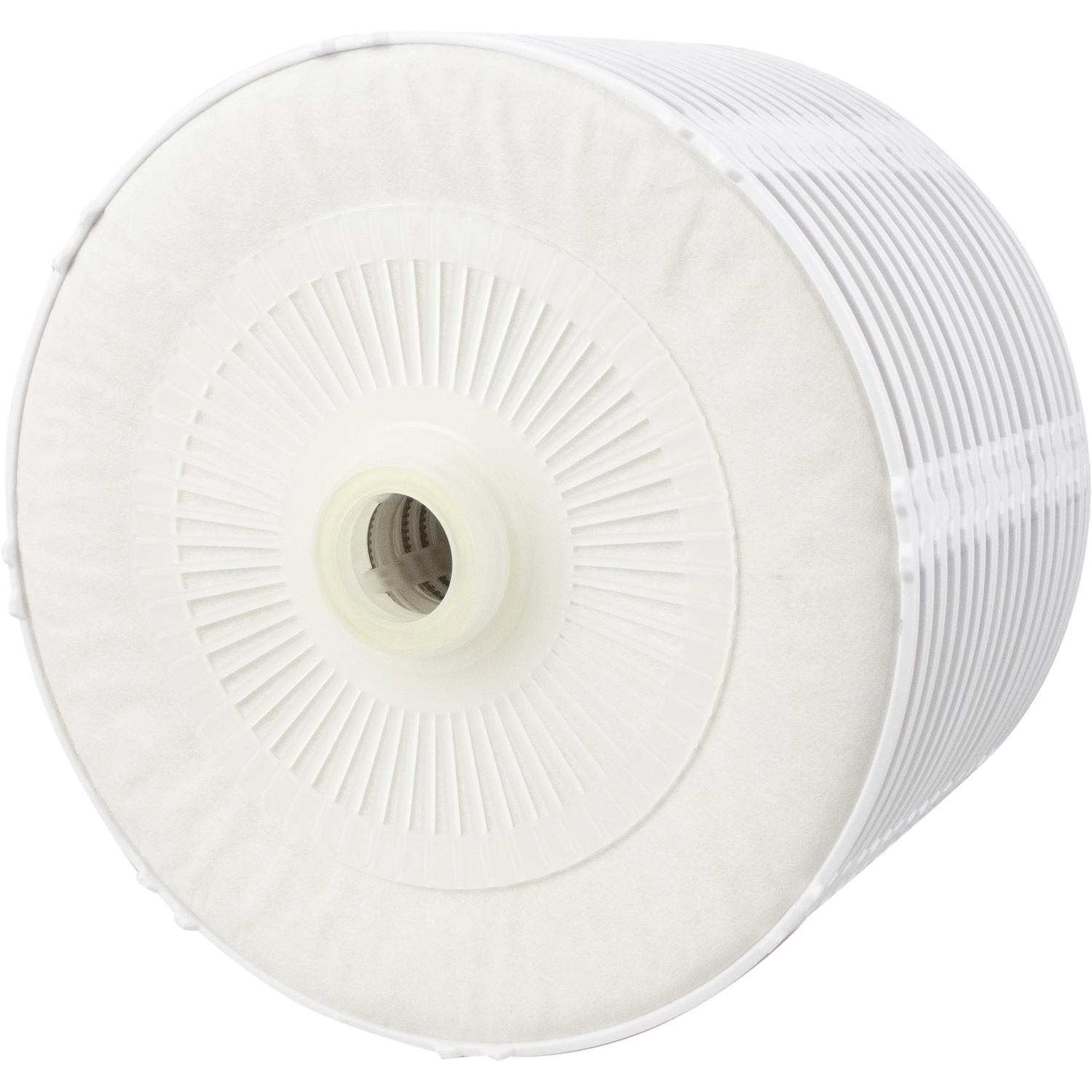

Filtrox Lenticular Filter Module | Back Flushable | 16" | 2 Micron

    Description

    • 16" filter module for use with 16" stainless steel lenticular filter housings
    • Back flushable module
    • 2 Micron rating are for general clarifying of wine and fine filtration of beer, seltzer and cold brew
    • Manufactured by Filtrox, the world's leading producer of high-quality filtration media

    Filtrox filter modules are high-performance filtration solutions designed for use with stainless steel lenticular filter housings. These modules deliver reliable, efficient filtration for a wide range of liquids in food and beverage production including wine, beer, cider, spirits, cold brew coffee, and more.

    Compared to plate filters and filter sheets, lenticular filter housings and filter modules offers an airtight, sealed system with no dripping or leakage, ensuring your liquid remains protected and uncontaminated.

    Filter modules are easy to install and provide consistent results, making them ideal for demanding filtration applications.

    Filtrox Group is a producer of filter media for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter modules are manufactured of specially selected raw materials and conform to FDA and FCC regulations.

    • Micron Rating: 1.5 - 3
    • Micron Mid Point: 2
    • Filtration Area: 38.7 ft² (3.6 m²)
    • Number of Lenses: 16
    • Back Flushable
      • Max. Backflow Pressure Differential: 7 psi (0.5 Bar) at 77°F (25°C)
    • Fibradisc AF 71 Plus2 Filter Module
    • Wine
      • Use: Clarifying filtration
      • Max. Recommended Flow Rate: 572 gal/hr (2,160 L/hr)
      • Max. Recommended Pressure Differential: 29 - 36 psi (2.0 - 2.5 Bar)
    • Spirits
      • Use: Fine filtration of cognac and whiskey chill haze removal
      • Max. Recommended Flow Rate: 478 gal/hr (1,800 L/hr)
      • Max. Recommended Pressure Differential: 22 psi (1.5 Bar)
    • Beer
      • Use: Fine filtration, with fewer yeast cells
      • Max. Recommended Flow Rate: 142 gal/hr (540 L/hr)
      • Max. Recommended Pressure Differential: 22 psi (1.5 Bar)
    • Seltzer
      • Use: Fine filtration of seltzer base
      • Max. Recommended Flow Rate: 668 gal/hr (2,520 L/hr)
      • Max. Recommended Pressure Differential: 36 psi (2.5 Bar)
    • Cold Brew Coffee
      • Use: Fine filtration
      • Max. Recommended Flow Rate: 478 gal/hr (1,800 L/hr)
      • Max. Recommended Pressure Differential: 29 psi (2.0 Bar)

    Filtrox Lenticular Filter Module | Back Flushable | 16" | 2 Micron

      Product form

      SKU: FIL0172

      $499.99

      Calculating shipping time...
      Shipping
      Free Shipping*
      Shipping
      Paid Shipping
      Drop Ship
      Drop Ship
      Discount Exclusion
      Discount Exclusion
      Freight
      Freight Only
      Pre-book
      Pre Order

        Description

        • 16" filter module for use with 16" stainless steel lenticular filter housings
        • Back flushable module
        • 2 Micron rating are for general clarifying of wine and fine filtration of beer, seltzer and cold brew
        • Manufactured by Filtrox, the world's leading producer of high-quality filtration media

        Filtrox filter modules are high-performance filtration solutions designed for use with stainless steel lenticular filter housings. These modules deliver reliable, efficient filtration for a wide range of liquids in food and beverage production including wine, beer, cider, spirits, cold brew coffee, and more.

        Compared to plate filters and filter sheets, lenticular filter housings and filter modules offers an airtight, sealed system with no dripping or leakage, ensuring your liquid remains protected and uncontaminated.

        Filter modules are easy to install and provide consistent results, making them ideal for demanding filtration applications.

        Filtrox Group is a producer of filter media for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter modules are manufactured of specially selected raw materials and conform to FDA and FCC regulations.

        • Micron Rating: 1.5 - 3
        • Micron Mid Point: 2
        • Filtration Area: 38.7 ft² (3.6 m²)
        • Number of Lenses: 16
        • Back Flushable
          • Max. Backflow Pressure Differential: 7 psi (0.5 Bar) at 77°F (25°C)
        • Fibradisc AF 71 Plus2 Filter Module
        • Wine
          • Use: Clarifying filtration
          • Max. Recommended Flow Rate: 572 gal/hr (2,160 L/hr)
          • Max. Recommended Pressure Differential: 29 - 36 psi (2.0 - 2.5 Bar)
        • Spirits
          • Use: Fine filtration of cognac and whiskey chill haze removal
          • Max. Recommended Flow Rate: 478 gal/hr (1,800 L/hr)
          • Max. Recommended Pressure Differential: 22 psi (1.5 Bar)
        • Beer
          • Use: Fine filtration, with fewer yeast cells
          • Max. Recommended Flow Rate: 142 gal/hr (540 L/hr)
          • Max. Recommended Pressure Differential: 22 psi (1.5 Bar)
        • Seltzer
          • Use: Fine filtration of seltzer base
          • Max. Recommended Flow Rate: 668 gal/hr (2,520 L/hr)
          • Max. Recommended Pressure Differential: 36 psi (2.5 Bar)
        • Cold Brew Coffee
          • Use: Fine filtration
          • Max. Recommended Flow Rate: 478 gal/hr (1,800 L/hr)
          • Max. Recommended Pressure Differential: 29 psi (2.0 Bar)
        Documents
        TDS_FIBRADISC_AF_4.0
