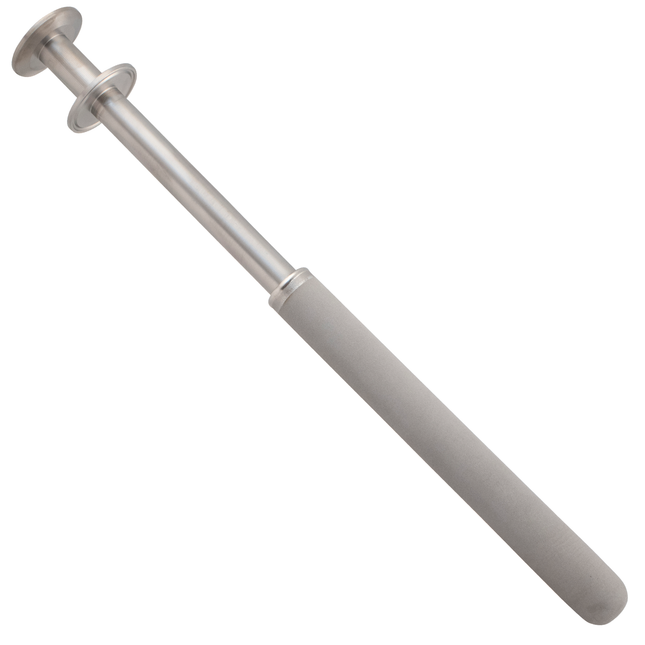

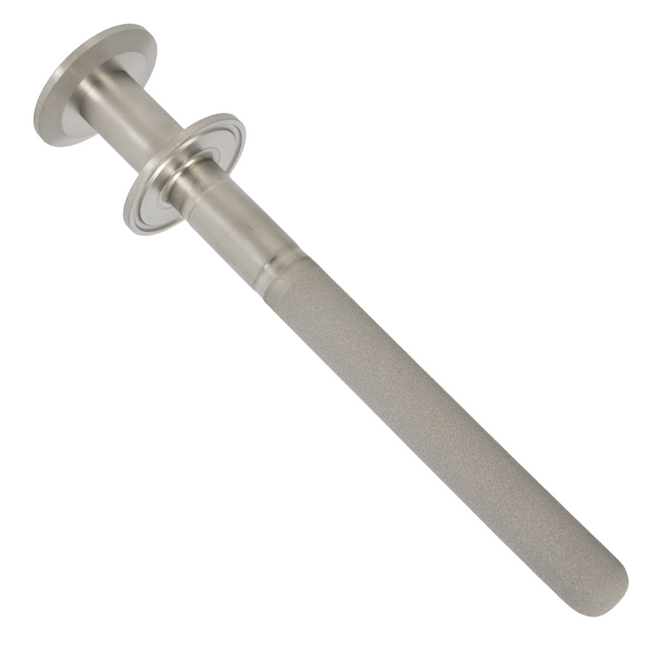

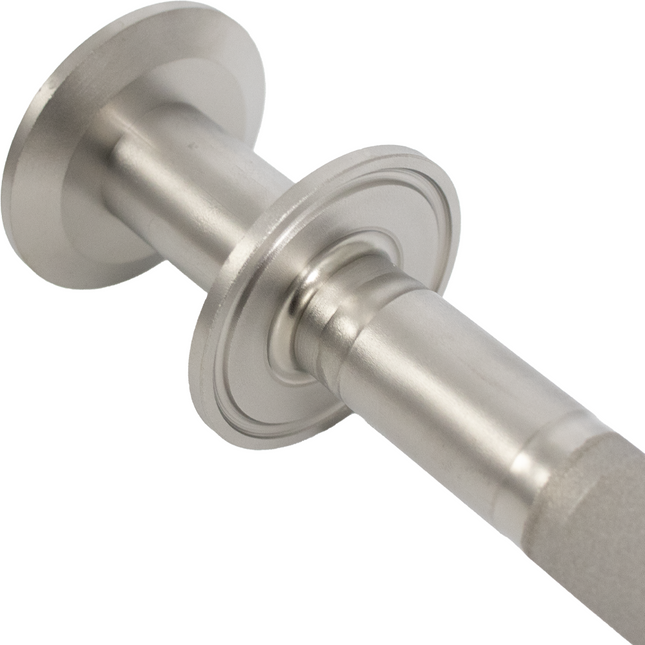

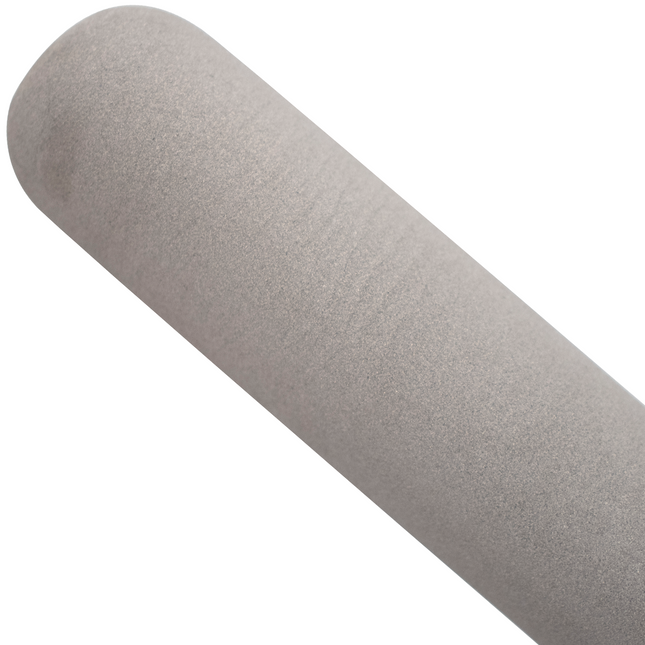

Replacement 1.5" T.C. carbonation stone for MB conical fermenters and brite tanks.
Specifications:
2 micron
Overall Length: 17.7"
Stone Length: 9.8"
Single-piece design
Made from Titanium
Please Note: As the stone is made from titanium, it is intended for carbonation only and should not be used for oxygenation. Use with oxygen can make the titanium become brittle and prone to cracking.

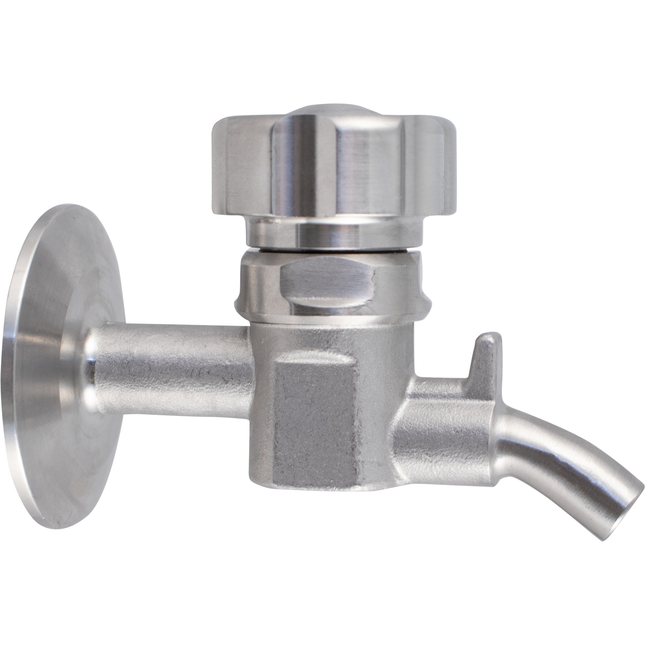

Sanitary sample valve ideal for active fermentations as it has no pockets to trap fermenting wort
Easy twist-to-open handle is much easier to operate than standard plunger style sample valves
Disassembles quickly for cleaning between uses
Direct replacement for MB conical fermenters & brite tanks and compatible with any fermenter with 1.5" T.C. port

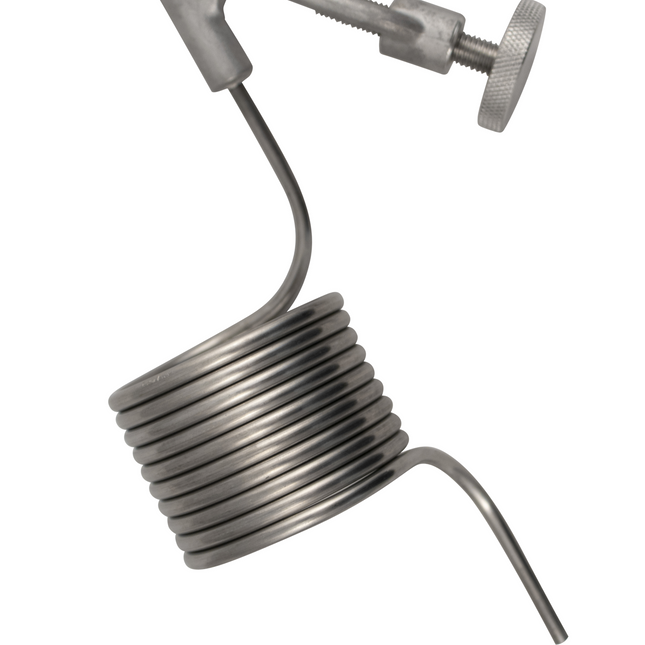

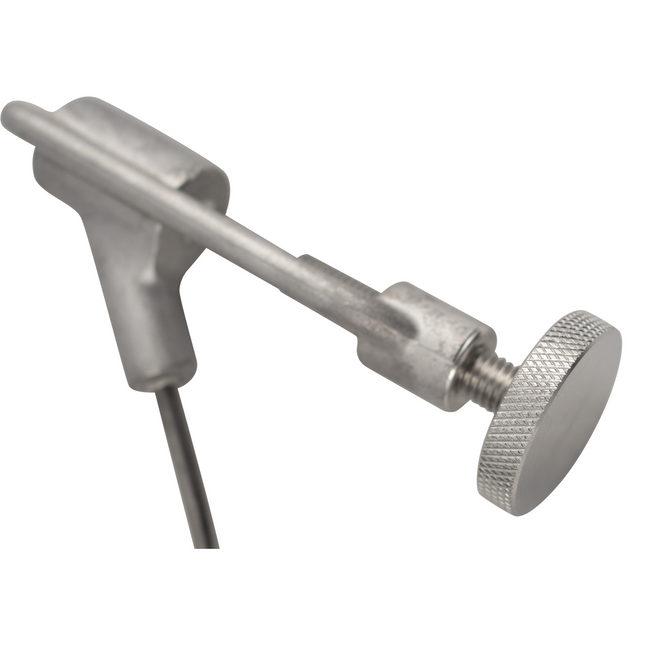

Nozzle mount for use with a pigtail sample coil to pour samples of carbonated beer
Look no further, this is a perfectly engineered 1.5" TC sample valve! With an easy twist to open handle and quick diassembly, this valve provides ease and convenience. Can be used on any fermenters 1.5" TC port.
This 304 stainless steel valve is perfect for active fermentations. It has no pockets to trap fermenting wort. It is very easy to disassemble and clean. It features a mount for a pigtail or a CO2 checker.
This is the recommended replacement sample valve for MB conical fermenters and brite tanks.

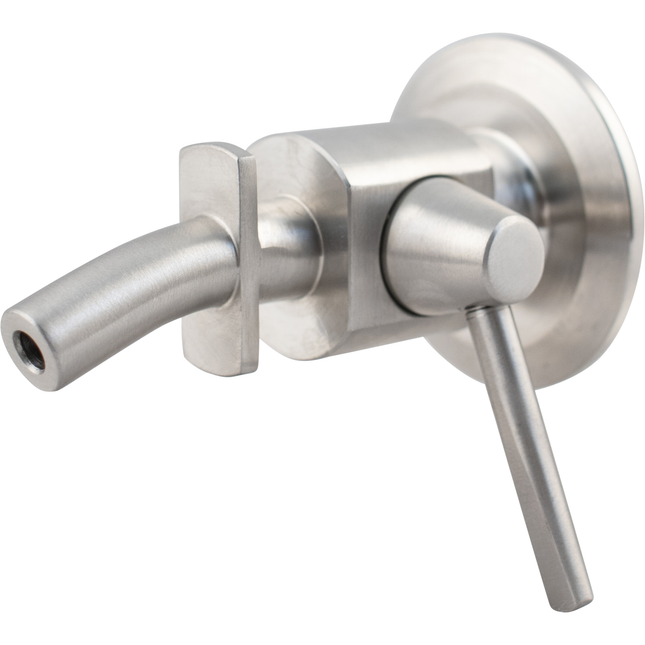

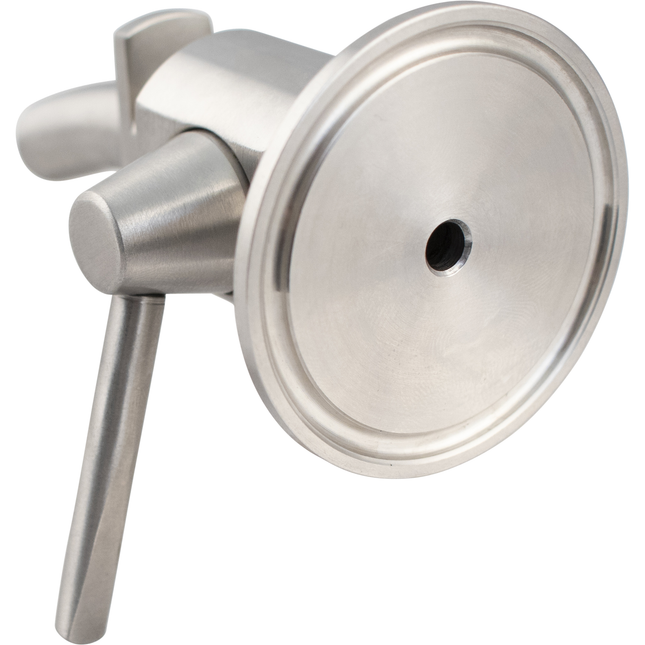

This is the modern copy of the old 1/4" Turn Valves (Zwickle). It has a ledge to attach a pigtail or a CO2 checker. The valve is designed to clean in place as long as the valve remains open for the cleaning cycle.
Note: The valve has a small pocket in the moving part that traps wort when closed so we don't recomend these for active fermentations.
This is a replacement option for the sample valve for MB conical fermenters and brite tanks.

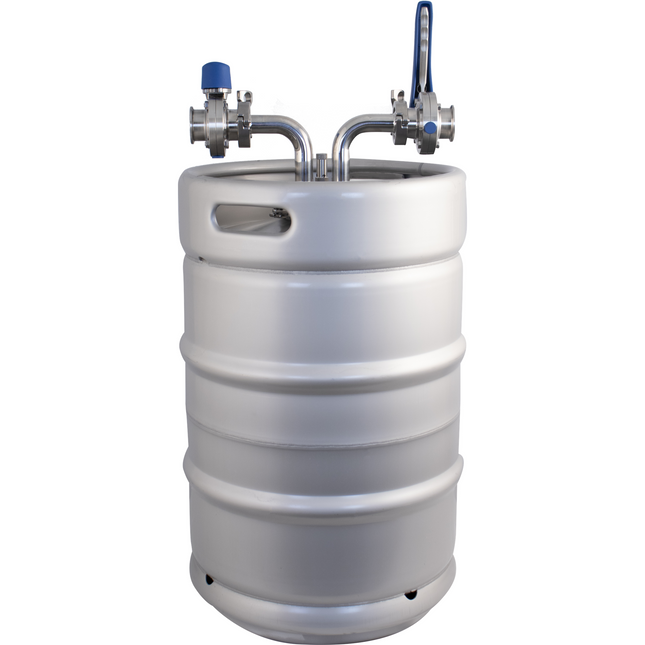

Made from a brand new 15.5 gal. keg with a 4" tri-clamp opening 1" yeast piping for easily moving dense yeast Includes two 1.5" tri-clamp butterfly valves at the inlet and outlet Adjustable PRV for lowering pressure for long term storage 15.5 gal size, perfect for up to 10 bbl batches The MoreBeer! Pro Yeast Brink is made with pro brewers in mind brewing up to 10 barrel batches. The yeast piping gives you a 1" passage to the bottom of a keg to make moving even the thickest yeasts a breeze. There is an adjustable PRV in case you need to lower the pressure for long term storage. The yeast piping is welded into the keg 4" TC keg lid, making for quick and easy inspecting and cleaning. The dip tube is about an inch from the bottom of the keg to help keep non-yeast solids that separate out from transferring with your repitch. 1/2 bbl is perfect for up to a 10 bbl batch with most yeasts. Also available in 1/4 bbl size for up to 5 bbl batches and 1 bbl size for up to 20 bbl batches. Pro tip: If you align one valve handle 90 degrees to the other you won't forget which side is IN or OUT. If you do forget, with the PRV on the back side, the left side is the IN and the right side is the OUT.

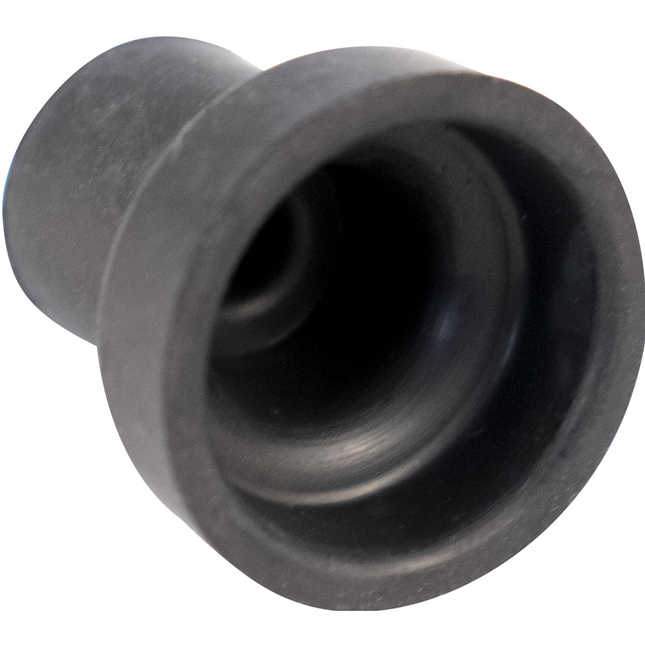

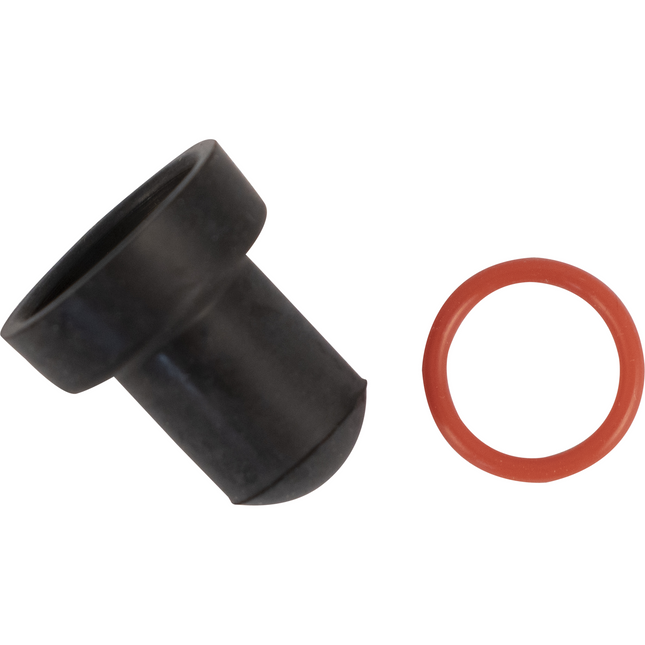

Replacement cup gasket is for the ForgeFit® Sanitary Sample Valve.
This is the recommended replacement part for the sample valve on MB conical fermenters and brite tanks.
Material: EPDM

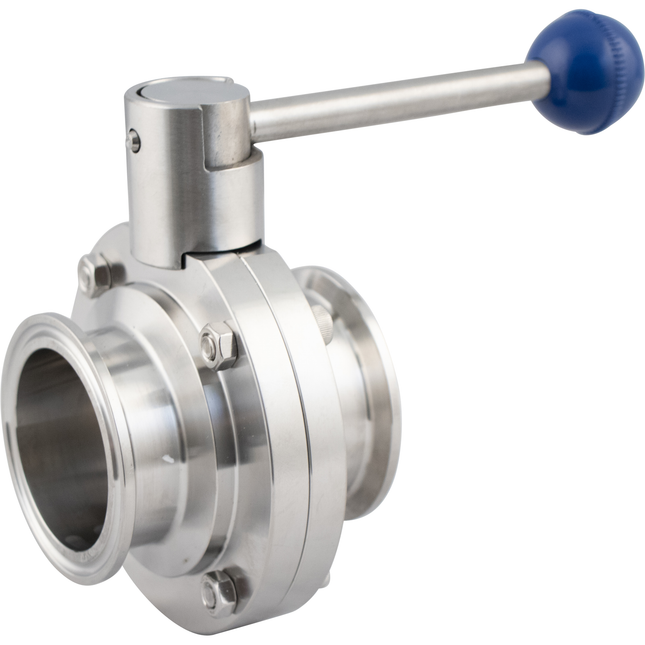

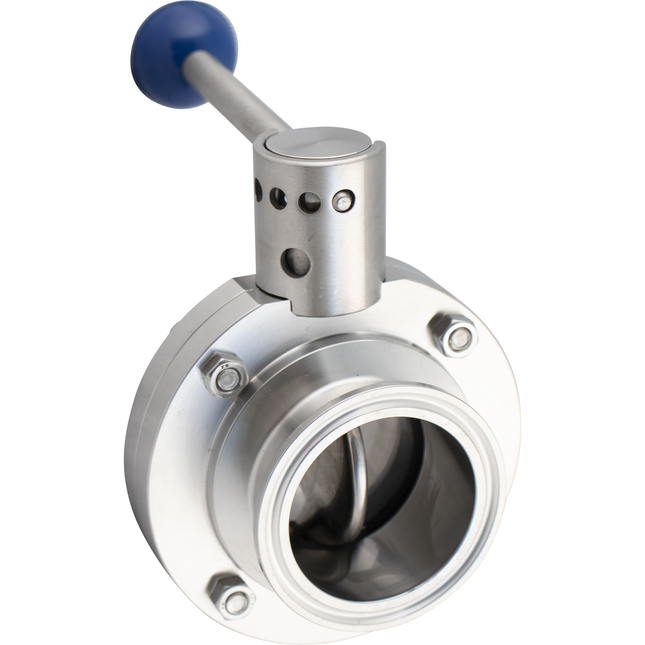

Butterfly valves have the distinct advantage over ball valves in that they won't trap wort inside. They are the most sanitary valve you can ask for and are easy to clean in place. 2" tri-clamp.
These valves are a direct replacement of the butteryfly valves that come on MB conical fermenters and brite tanks.

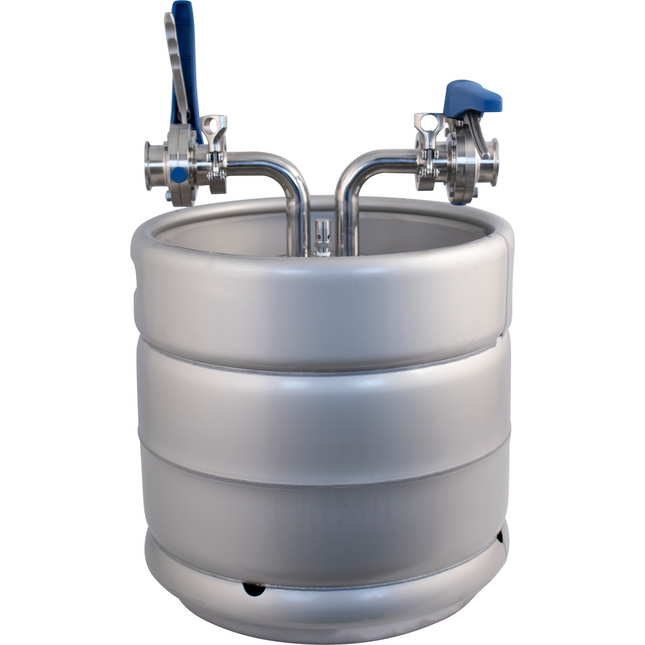

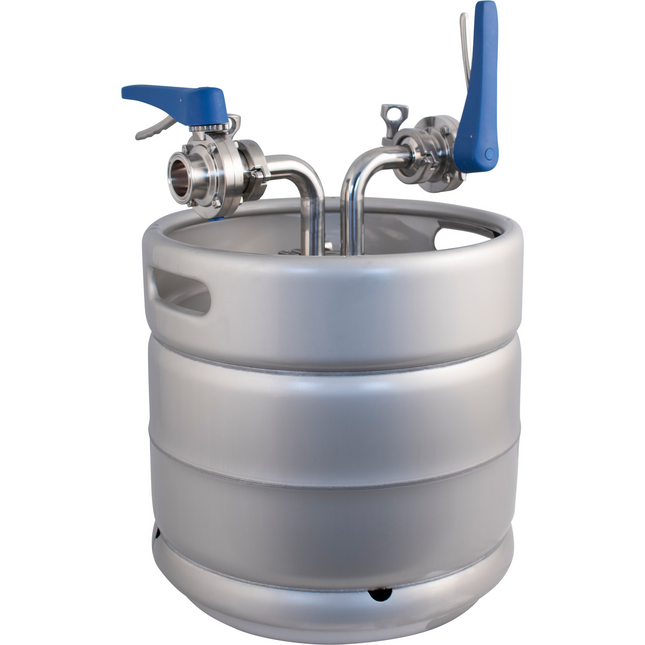

Made from a brand new 7.75 gal. keg with a 4" tri-clamp opening 1" yeast piping for easily moving dense yeast Includes two 1.5" tri-clamp butterfly valves at the inlet and outlet Adjustable PRV for lowering pressure for long term storage 7.75 gal size, perfect for up to 5 bbl batches The MoreBeer! Pro Yeast Brink is made with pro brewers in mind brewing up to 5 barrel batches. The yeast piping gives you a 1" passage to the bottom of a keg to make moving even the thickest yeasts a breeze. There is an adjustable PRV in case you need to lower the pressure for long term storage. The yeast piping is welded into the keg 4" TC keg lid, making for quick and easy inspecting and cleaning. The dip tube is about an inch from the bottom of the keg to help keep non-yeast solids that separate out from transferring with your repitch. 1/4 bbl is perfect for up to a 5 bbl batch with most yeasts. Also available in 1/2 bbl size for up to 10 bbl batches and 1 bbl size for up to 20 bbl batches. Pro tip: If you align one valve handle 90 degrees to the other you won't forget which side is IN or OUT. If you do forget, with the PRV on the back side, the left side is the IN and the right side is the OUT.

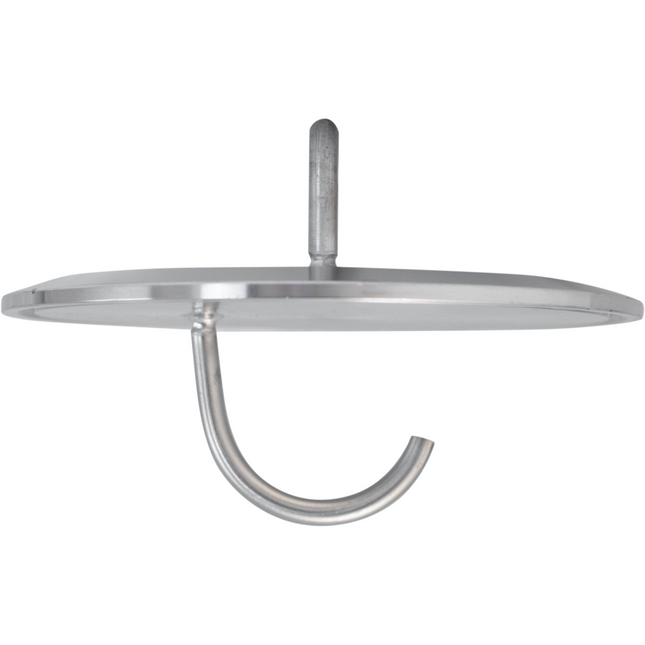

This hop port cover is intended for use with MB conical fermenters. Features a welded hook on the underside to hang bagged flavoring additions and a welded handle on top for easy removal.
Made from 304 stainless steel.

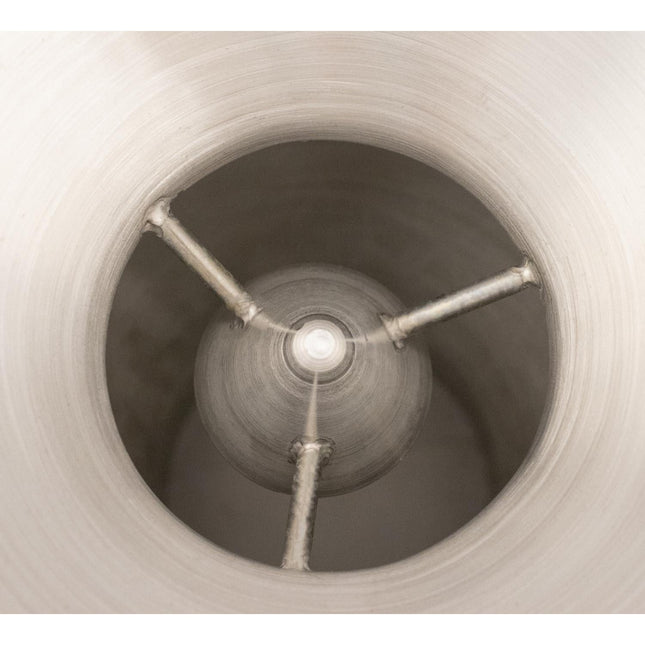

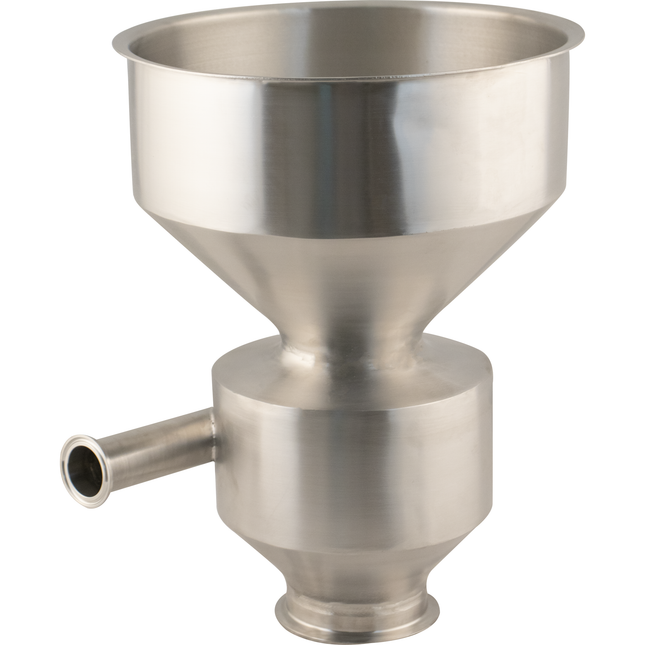

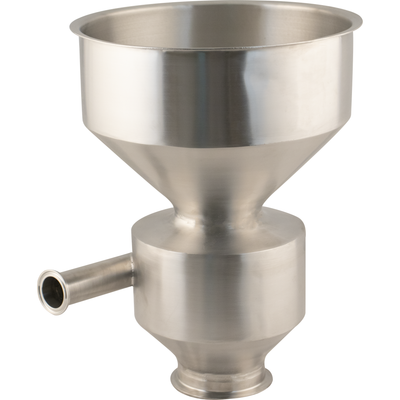

This hydrator features a grain input port on the top and a tangential Hot Liquor input. It provides a good initial mix but does not eliminate the need to stir.
Hot Liquor input: 1.5” tri-clamp
Output: 4" tri-clamp
Recommended for 5 to 15 bbl mash tuns

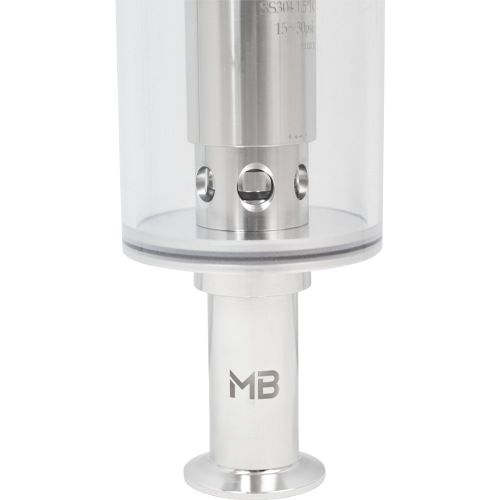

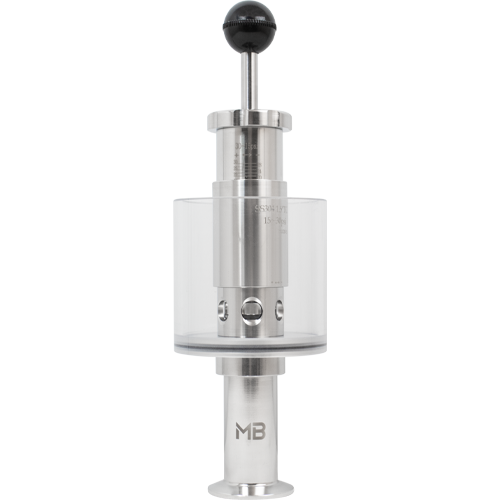

Ferment under pressure with precisely tuned pressure settings
Pressure fermentations help to suppress unwanted esters
Make clean lagers faster and at higher temperatures
Easy-to-read etched pressure scale from 15 to 30 psi
Hand adjustable—turn clockwise or counterclockwise to raise or lower your setting
Made from 304 stainless steel with polycarbonate cylinder
MB is a brand dedicated to crafting and sourcing high-quality, professional-level brewing supplies

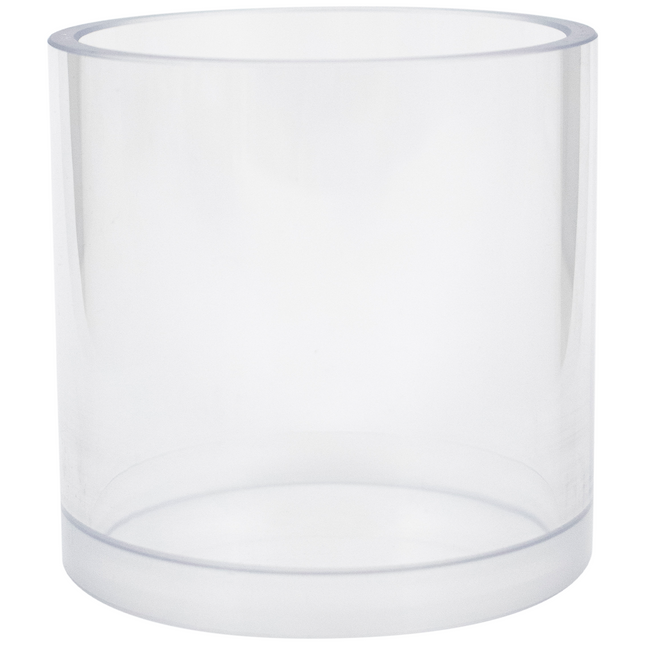

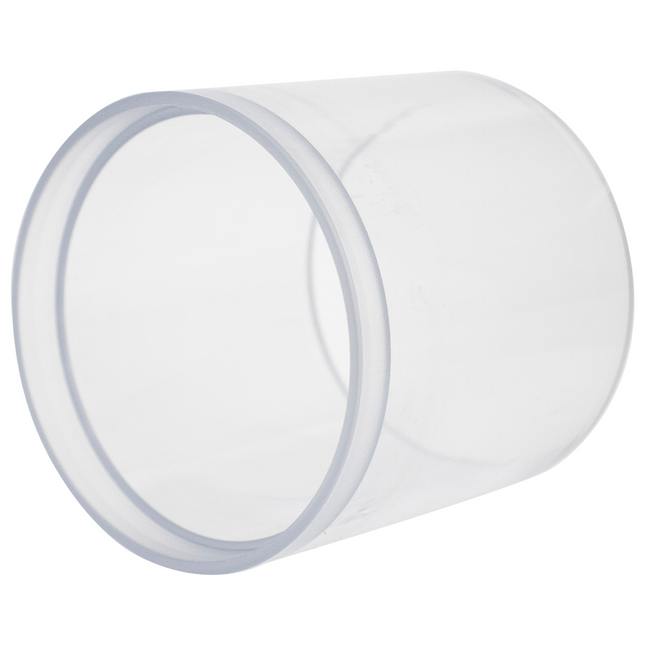

The MB T.C. spunding valve will give you the highest level of accuracy when fermenting under pressure. Designed for use with any pressurizable stainless steel conical with 1.5" T.C. top ports. For larger units, the spunding valve can also be integrated into the blowoff pipework and used with a pressure gauge and tri-clamp tee. The polycarbonate cylinder that surrounds the spunding valve can be filled with water or sanitizer to keep your tank 100% sanitary throughout the fermentation process.
Adjustable from 15-30 psi
Made from 304 stainless steel
11.75" H x 4" Ø
For Your Safety: Never exceed the maximum rater working pressure of your vessel at any time during operation. The fixed-pressure PRV on your conical should always remain in place while using this spunding valve.

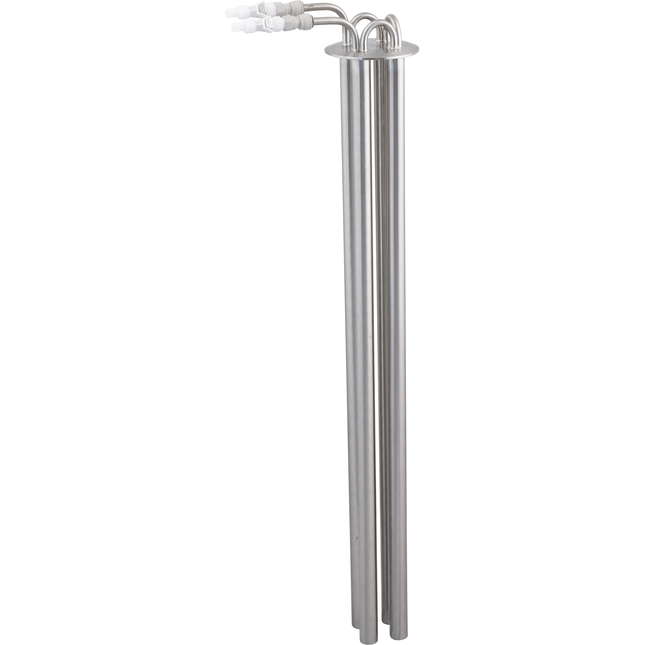

This Reactor Rod was custom built to be used with the 1 bbl MoreBeer! Pro Conical Fermenter, but can easily be integrated to other vessels with a 4" tri-clamp top port. Unlike other in-solution cooling coils on the market, the Reactor Rod utilizes a straight vertical design. Without all the curves and bends of a cooling coil, it is easier to scrub and sanitize the unit prior to setup and after use. The four cooling rods are 32" long measured from the bottom of the T.C. fitting.

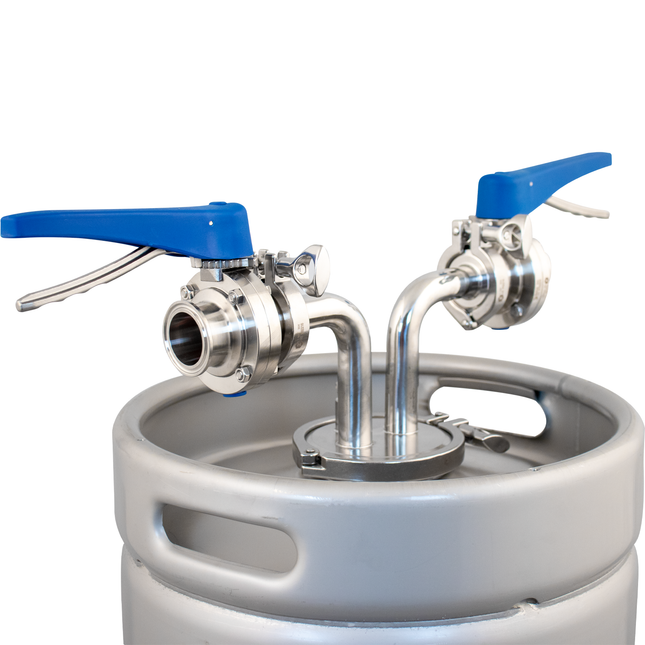

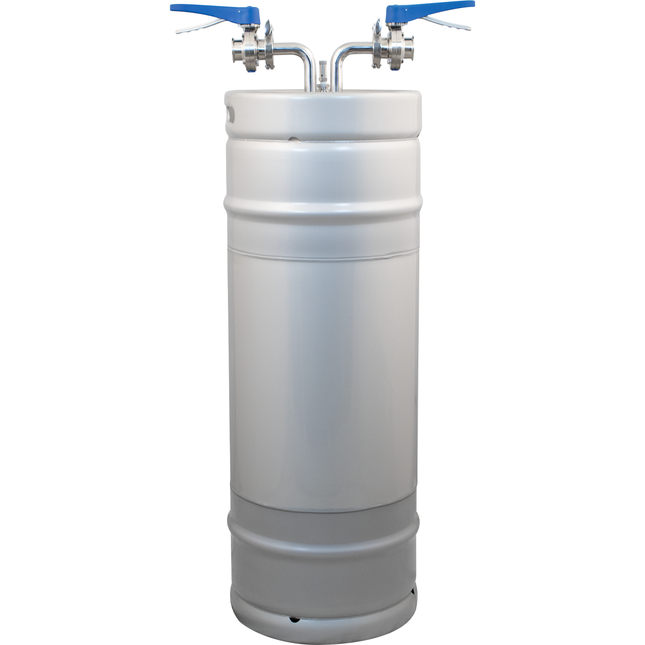

Made from a brand new 1 bbl keg with a 4" tri-clamp opening 1" yeast piping for easily moving dense yeast Includes two 1.5" tri-clamp butterfly valves at the inlet and outlet Adjustable PRV for lowering pressure for long term storage 1 bbl size, perfect for up to 20 bbl batches The MoreBeer! Pro Yeast Brink is made with pro brewers in mind brewing up to 20 barrel batches. The yeast piping gives you a 1" passage to the bottom of a keg to make moving even the thickest yeasts a breeze. There is an adjustable PRV in case you need to lower the pressure for long term storage. The yeast piping is welded into the keg 4" TC keg lid, making for quick and easy inspecting and cleaning. The dip tube is about an inch from the bottom of the keg to help keep non-yeast solids that separate out from transferring with your repitch. To make it easier to move the yeast brink around the brewery consider a keg cart. Also available in 1/4 bbl size for up to 5 bbl batches and 1/2 bbl size for up to 10 bbl batches. Pro tip: If you align one valve handle 90 degrees to the other you won't forget which side is IN or OUT. If you do forget, with the PRV on the back side, the left side is the IN and the right side is the OUT.

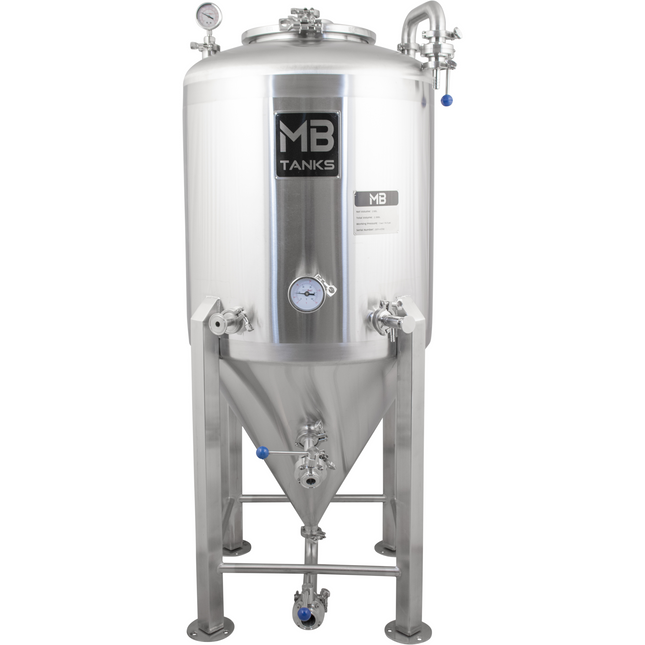

Designed by MB's in-house engineers with a focus on cleanability, ease of use, and durability Made from 304 stainless steel throughout with passivated 2B polished finished on the interior Sanitary tri-clamp connections from top to bottom with dedicated CIP port, hopping port, and blowoff—all fittings included! 20% extra headspace with a working volume of 2 bbl and max volume of 2.4 bbl 2mm thick single shell design—See related product for the 2 bbl Jacketed Conical

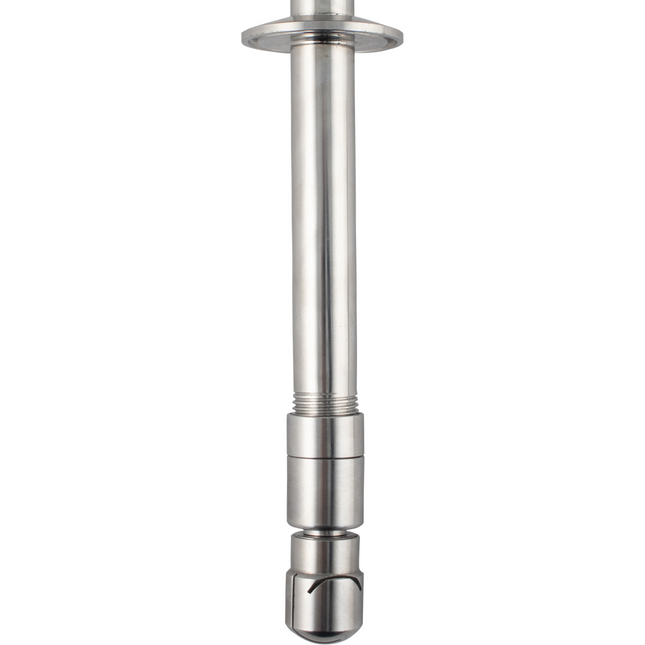

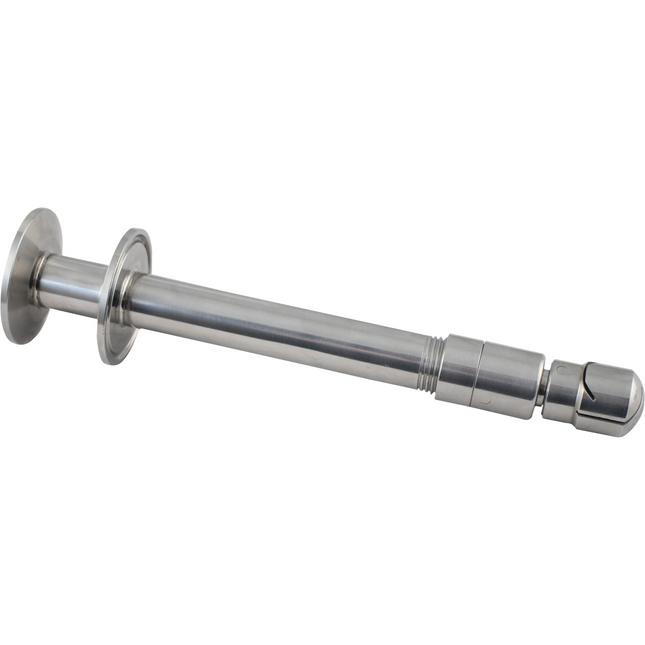

Ships domestically from within the contiguous United States These heavy-duty Beer Tanks are purpose built for longevity, quality, and cost effectiveness, and boast a hefty list of quality features to ease the brewing process. Starting with High Quality 304 grade stainless steel, the tank features a 2 mm thick single shell design. Large 12" T.C. dome top port allows easy access for cleaning and sanitizing, and on top of that, a 1.5" T.C. port allows for the attachment of a CIP spray ball. Useful features such as Blowoff Pipe, Hop Ports and Rotating Racking Arms keep you brewing and fermenting at top efficiency. The 1 & 2 bbl MB Conicals feature a sealed pressure gauge, as well as plunger style sample port to protect against infection. Great Quality from MB MB is a brand that we dedicate to crafting and sourcing the equipment pro brewers need to make an exceptional product efficiently and consistently. Our conicals between 1 and 120 bbl are designed by our in-house team of engineers with decades of professional brewing experience. Focusing on cleanability, ease of use, and durability, we’ve made sure our fermenters have the features that modern brewers expect when purchasing a new tank. While some discount dealers chase down bargain priced tanks from a string of manufacturers, we have maintained a long running relationship with a single manufacturer that ensures the quality of our products never wavers. Great Value from MoreBeer! Pro If you used MoreBeer! as a homebrewer, you may not know that MoreBeer! & MoreBeer! Pro combined is one of the largest brewing supply companies in the world with over 250,000 customers. We’ve seen countless homebrewers turn pro, and there’s nothing that makes us happier than being a part of that transition. As a privately owned brewing supply company that's been in business for over 25 years, we’ve established relationships with suppliers and manufacturers around the world and at every level of the industry. We get a great price and we pass that on to you. Features: 304 stainless steel construction Single shell design, inner surface is 2B finish and passivated Oversized for 20% headspace Pressure/Vacuum relief valve 1 Bar / 15 PSI 60° conical bottom Sample valve Rotating racking arm Analog temperature gauge Yeast dump port Hop port CIP port Carb stone Separate blow-off pipe with 1.5" T.C. x 3/4" barb Specifications: Grade 304 Stainless Steel 2mm think single shell design Internal Finish: #2B Total Height w/ Blowoff Pipe: 62" Tank Diameter: 26" Empty Weight: 152 lbs Working Volume: 2 bbls Max Volume: 2.4 bbls Working Pressure: 1 Bar (14.5 psi) All ports are 1.5" TC except for 12" TC Dome Port and 4" TC Hop Port Please Contact our Customer Service department at 1-800-600-0033 to assess shipment costs and place an order.
