The ultimate control & precision of your fermentation process. Equipped with two built-in temperature controllers and pumps, this advanced chiller enables you to independently regulate the temperature of two separate fermentation vessels simultaneously, ensuring optimal conditions for different batches or styles of beer, making it a game-changer for homebrewers.
2 built-in submersible pumps with independent digital controllers
Control multiple fermentation temperatures independently
Fill with 20% glycol solution for optimal chilling performance
Cold crash with good insulation
Perfect complement to BrewBuilt X-Series Conicals
The IceMaster Max 2 is designed to cool fermentations in small vessels. It features 2 built-in submersible pumps with independent digital temperature controllers and can be used with any vessel that has a glycol jacket or submersed cooling coil/rod. Each controller includes a temperature probe that should be inserted into a thermowell in your vessel or can be taped to the outside of the vessel if you don't have a thermowell. The digital controller then measures the temperature of your tank and turns the submersible pump on or off to cool to your desired set temperature. Up to two tanks can be controlled separately with one IceMaster Max 2.
The Max 2 is the perfect unit for brewers with 1 or 2 fermentation vessels. The IceMaster 100 and IceMaster Max 4 are terrific chillers, but for they have far more cooling capacity than the average homebrewer needs. The Max 2 is the most affordable glycol chiller we offer, and thanks to the built-in submersible pumps and controllers, there's no need to purchase additional pump kits to use with your cooling system(s).
Compatibility
The IceMaster can be used with any fermenter that has a built-in cooling jacket, added CoolStix, or a submersed cooling coil. It works well as the cooling source for the following sytems and fermenters.
BrewBuilt Jacketed Uni Conical - we recommend one Insulated Tubing Kit for each tank. These kits feature "dry break" quick disconnects that prevent glycol loss and the insulated tubing will increase chilling efficiency and eliminate line sweating from condensation.
CoolStix - CoolStix can be added to a wide range of carboys, fermenters, and tanks and the IceMaster works really well in combination. Each CoolStix is available with or without a pump kit; for use with the IceMaster Max 2 you will only need the CoolStix and some tubing to connect it to the chiller.
Ss Brewtech Fermenters and Brites - Ss BME Chronicals, BME Brites, and Unitanks come with cooling coils and neoprene as standard. The optional chilling FTSs will not be needed for use with the Max 2.
Spike Conical with Optional Cooling Coil - the cooling coil for Spike CF series conicals is available for purchase independently from the TC-100 cooling system. For use with the Max 2 you will only need the the coil and some tubing to connect it to the chiller.
Speidel Tanks with Optional Cooling Jackets - You will need two lengths of tubing to connect the chiller to each tank.
Grainfather Fermenters - Grainfather fermenters have standard cooling jackets. You will need two lengths of tubing for each fermenter.
Blichmann Fermenators with Optional Cooling Coil - You will need two lengths of tubing for each Fermenator.
Capacity
It is always difficult to determine exactly how many tanks can be chilled at one time as it depends on what is happening in each tank, if the tank is insulated, and what the ambient temperature is. Cold crashing always requires the most energy and requires tank insulation. We have experimented with capacities and can provide this general guide based on a 75°F ambient and neoprene insulation. Neoprene provides a modest amount of insulation so you would obtain better results using Armaflex or a higher R rated insulation.
At 75°F ambient temperature with neoprene insulation, the Max 2 can cold crash one 1 BBL BrewBuilt Jacketed Uni or two Jacketed Unis up to 15 gallons in size at one time to 38°F.
Set Up
In order to hook up the IceMaster to your fermenter or tank's cooling system, you will need 2 lengths of tubing per vessel. All tubing connections should be secured with hose clamps.
Length 1: Barb of 1st bulkhead (IN) to cooling system outlet
Length 2: Barb of 2nd bulkhead (OUT) to cooling system inlet
Specifications:
2 built-in submersible pumps with independent digital controllers
Pump controller reads in °F / °C
Temperature controller reads in °C
Labeled IN and OUT stainless bulkheads with 3/8" OD barbs
Tank Capacity: 17 L / 4.5 Gal. Water Capacity
Compressor: 3/8 HP
Cooling Capacity: 500 Watt/1700btu/0.14 tons
Refrigerant: R600a
Voltage: 110V
Dimensions: 19" x 12" x 17.5"
Wheels not included
CE Certified
Note: The new model includes a sightglass that is connected via two plastic Duotight tees. The tees can be attached onto the push tubes on the front of the unit. The sight glass can be fitted between the two tees and plugs need to be inserted on the outward facing openings.
Warning: Do not set the reservoir temperature controller lower than 28°F (-2ºC). Running the unit below this temperature may negatively affect the unit's efficiency and has the potential to freeze beer which may impact the finished beer's flavor.

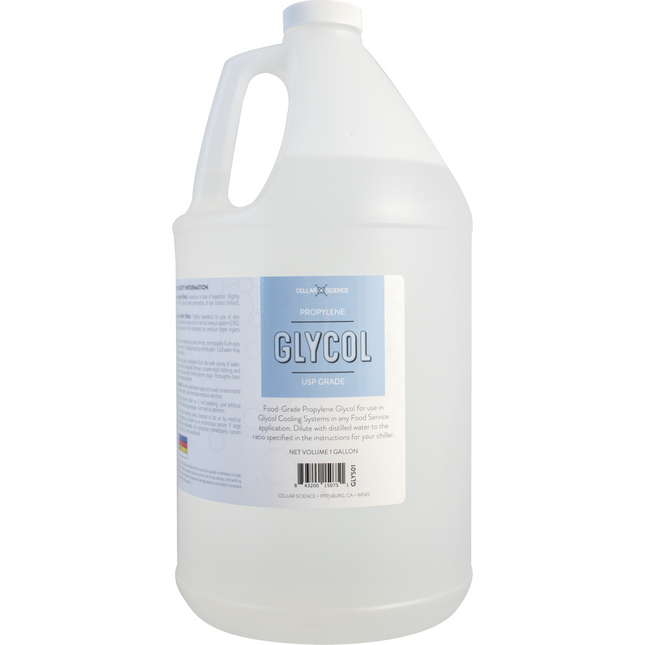

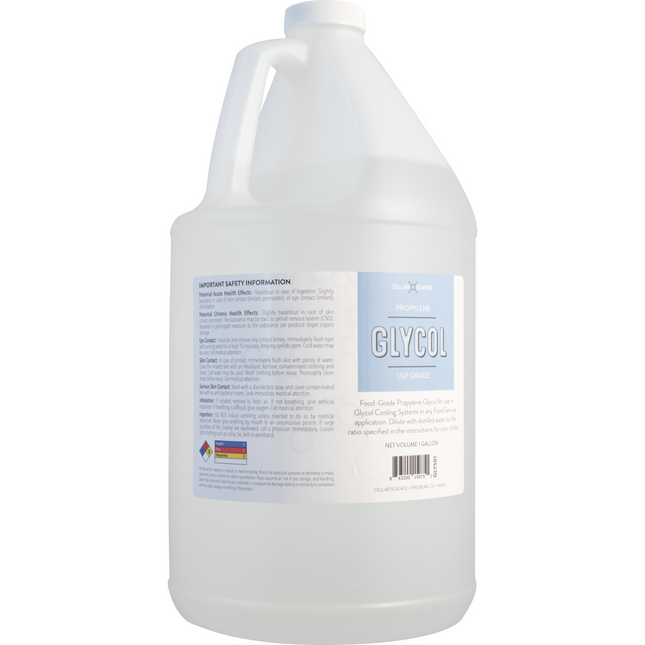

Certified Food-Grade Propylene Glycol Inhibited Coolant 100% Concentrate for use in Glycol Cooling Systems in any Food Service application. Dilute with distilled water to the ratio specified in the instructions for your chiller.
NSF Certified, food-grade inhibited propylene glycol fluid which is intended for use in antifreeze and heat transfer applications where contact with food may occur, such as wineries, micro-breweries, meatpackers, and other food-related industries. Formulated with propylene glycol and an inhibitor system which is effective at preventing rust and corrosion in aluminum, brass, cast iron, copper, solder and steel-containing systems.
Operating Range:
-50°F to 325°F (-46°C to 163°C)
Application:
HVAC system freeze/burst/corrosion protection
Immersion freezing
Cooling liquid foods
Packaging carbonated beverages
Fermentation cooling
Refrigeration coil defrosting
Cold room dehumidifying
Conveyor roller defrosting
Process cooling
Process heating
Waste heat recovery
PLEASE NOTE: While Propylene Glycol is considered food grade this is not meant to suggest that it is safe for consumption. Always test your heat exchangers with water to check for pinhole leaks. In case of consumption please contact your local Poison Control Center immediately.

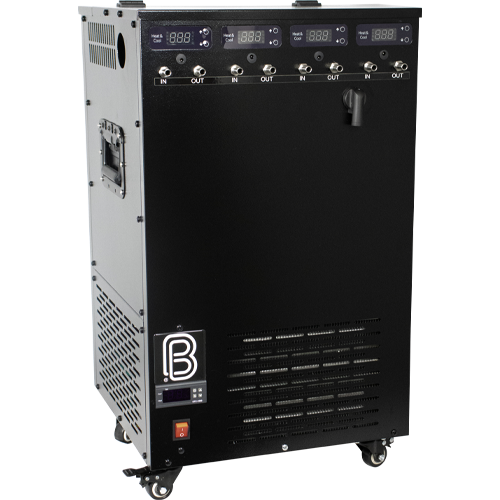

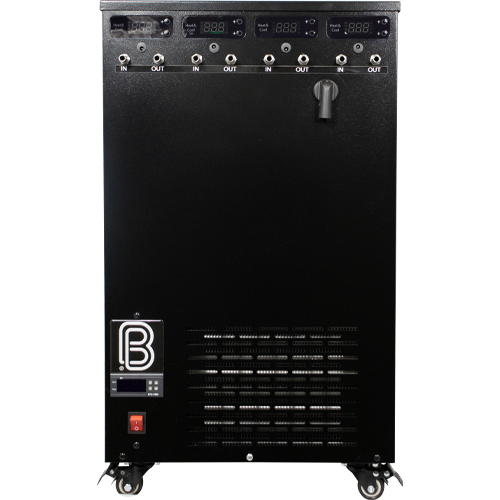

The ultimate control & precision of your fermentation process. Equipped with four built-in temperature controllers and pumps, this advanced chiller enables you to independently regulate the temperature of multiple separate fermentation vessels simultaneously, ensuring optimal conditions for different batches or styles of beer, making it a game-changer for homebrewers.
4 Built-in pumps and digital controllers
Control multiple fermentation temperatures independently
Fill with 20% glycol solution for optimal chilling performance
Cold crash with good insulation
Perfect complement to BrewBuilt X-Series Conicals
The IceMaster Max 4 is designed to cool fermentations in small vessels. It features 4 built-in submersible pumps with independent digital temperature controllers and can be used with any vessel that has a glycol jacket or submersed cooling coil/rod. Each controller includes a temperature probe that should be inserted into a thermowell in your vessel or can be taped to the outside of the vessel if you don't have a thermowell. The digital controller then measures the temperature of your tank and turns the submersible pump on or off to cool to your desired set temperature. Up to four tanks can be controlled separately with one IceMaster Max 4.
Compatibility
The IceMaster can be used with any fermenter that has a built-in cooling jacket, added CoolStix, or a submersed cooling coil. It works well as the cooling source for the following systems and fermenters.
BrewBuilt Jacketed Uni Conical - we recommend one Insulated Tubing Kit for each tank. These kits feature "dry break" quick disconnects that prevent glycol loss and the insulated tubing will increase chilling efficiency and eliminate line sweating from condensation.
CoolStix - CoolStix can be added to a wide range of carboys, fermenters, and tanks and the IceMaster works really well in combination. Each CoolStix is available with or without a pump kit; for use with the IceMaster Max 4 you will only need the CoolStix and some tubing to connect it to the chiller.
Ss Brewtech Fermenters and Brites - Ss BME Chronicals, BME Brites, and Unitanks come with cooling coils and neoprene as standard. The optional chilling FTSs will not be needed for use with the Max 4. The cooling coil for standard Ss Chronicals and Brew Buckets are not sold a la carte and must be purchased with a submersible pump, which is not needed for the Max 4. For standard Chronicals and Brew Buckets you might consider the IceMaster 100 for cost savings.
Spike Conical with Optional Cooling Coil - the cooling coil for Spike CF series conicals is available for purchase independently from the TC-100 cooling system. For use with the Max 4 you will only need the coil and some tubing to connect it to the chiller.
Speidel Tanks with Optional Cooling Jackets - You will need two lengths of tubing to connect the chiller to each tank.
Grainfather Fermenters - Grainfather fermenters have standard cooling jackets. You will need two lengths of tubing for each fermenter.
Blichmann Fermenators with Optional Cooling Coil - You will need two lengths of tubing for each Fermenator.
Capacity
It is always difficult to determine exactly how many tanks can be chilled at one time as it depends on what is happening in each tank, if the tank is insulated, and what the ambient temperature is. Cold crashing always requires the most energy and requires tank insulation. We have experimented with capacities and can provide this general guide based on a 75°F ambient and neoprene insulation. Neoprene provides a modest amount of insulation so you would obtain better results using Armaflex or a higher R rated insulation.
Capacity calculated at cold crashing to a target temperature of 38°F while the ambient temperature is 75°F with neoprene insulation (double tank capacity for ale fermentation temperature control):
2 - 1BBL (31 Gallon) Jacketed Tank
2 - 1/2BBL (15-20 Gallon) Tanks
3 - 10-14 Gallon Tanks
4 - 5-7 Gallon Tanks
Set Up
In order to hook up the IceMaster to your fermenter or tank's cooling system, you will need 2 lengths of tubing per vessel. All tubing connections should be secured with hose clamps.
Length 1: Barb of 1st bulkhead (IN) to cooling system outlet
Length 2: Barb of 2nd bulkhead (OUT) to cooling system inlet
Specifications:
4 built-in submersible pumps with independent digital controllers
Pump controllers read in °F/°C
Temperature controller reads in °C
Labeled IN and OUT stainless bulkheads with 3/8" OD barbs
Tank Capacity: 30L/8 Gal. Water Capacity
Compressor: 3/8 HP
Cooling Capacity: 780 Watt/2600btu/0.26 ton
Refrigerant: R134a
Voltage: 110V (3.6 amps)
Dimensions: 16.1" x 16.1" x 26"
Wheels included
CE Certified
Max Head: 21.3 ft (6.5 m)
Warning: Do not set the reservoir temperature controller lower than 28°F (-2ºC). Running the unit below this temperature may negatively affect the unit's efficiency and has the potential to freeze beer which may impact the finished beer's flavor.
Brand-new stainless steel beer keg with US-standard MicroMatic D System Spear
Sixth Barrel Keg holds 55x 12 oz beers or 41x 16 oz pints
Compact and easy to fit multiple kegs in home kegerators or keezers
Commercial quality construction—produced and tested in an ISO 9001 Certified facility
Supply your brewery with the best kegs on the market with these 5.16 gallon 1/6 Barrel US Sanke Kegs. Our kegs are produced and tested for quality in an ISO 9001 Certified facility, abiding by strict quality control standards. Each keg is constructed entirely of Stainless Steel, ensuring a long serving life for your brewery.
The sixth barrel keg, commonly referred to as a sixtel keg, is a great option for bars and restaurants that want to offer a variety of beers but don't have the space for multiple full size kegs. They're also a great option for kegerators, as two or three sixtels will fit inside depending on the model.
Holds 55 x 12 oz beers (41 x 16 oz pints).
Features:
5.16 gal (1/6 bbl) US Sanke keg
304 Stainless Steel Construction
23" Height, 9.25" Diameter
MicroMatic D System (U.S. Sankey) Spear
Working pressure is 43.51 psi (3.0bar)

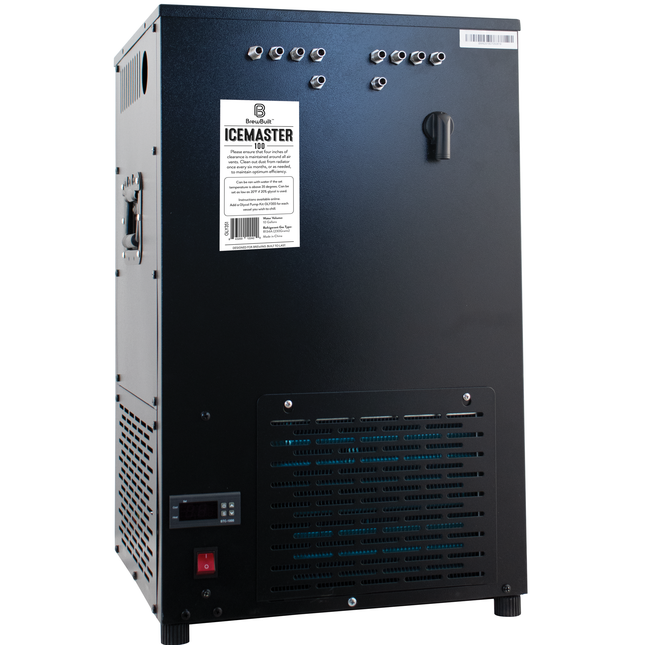

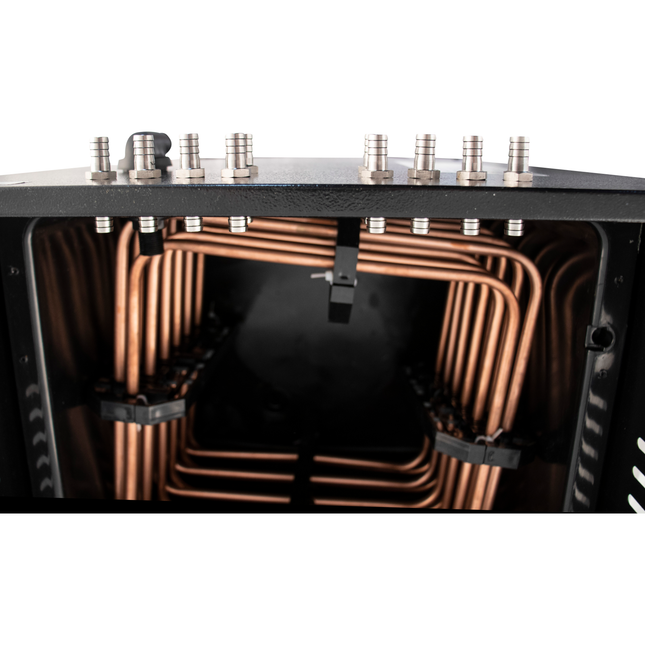

The IceMaster 100 is a powerful and efficient glycol system that provides precise temperature control of multiple Fermenters, but allows you to expand your capacity as needed!
Temp Control & Cold Crash up to 4 - 5-7 Gallon Jacketed Tanks!
Tank Capacity: 30L/8 Gal. Water Capacity
Cooling Capacity: 780 Watt/2600btu/0.26 ton
Power: 110V (3.6 amps)
The IceMaster 100 is designed to cool fermentations in small vessels. It can be used with any vessel that has a glycol jacket or submersed cooling coil/rod. For each vessel you want to cool you will need to buy one of our BrewBuilt Chilling Pump Kits. Each tank is able to be separately temperature controlled. Each Glycol Pump Kit includes a submersible pump that is placed in the cool bath of this chiller along with a digital controller. The digital controller includes a thermal probe that should be inserted into a thermal well in your vessel or can be taped to the outside of the vessel if you don't have a thermal well. The digital controller then measures the temperature of your tank and turns the submersible pump on or off to cool to your desired set temperature. Up to four tanks can be controlled separately with one IceMaster and four BrewBuilt Chilling Pump Kit (GLY355).
Compatibility
The IceMaster can be used with any fermenter that has a built in cooling jacket, added Coolstix, or a submersed cooling coil. It works well as the cooling source for the following sytems and fermenters.
BrewBuilt Jacketed Uni Conical - You will need one Glycol Pump Kit for each tank.
Coolstix - Coolstix can be added to a wide range of carboys, fermenters, and tanks and the IceMaster works really well in combination. Each Coostix Complete Kit comes with a pump kit and controller.
Ss Brewtech Fermenters and Brites with optional FTS Temperature Control Systems - Because FTS systems include a pump and controller you will not need to buy a separate Glycol Pump Kit.
Spike Conical with Optional Cooling Package - Because the optional Spike cooling system includes a pump and controller you will not need to buy a separate Glycol Pump Kit.
Speidel Tanks with Optional Cooling Jackets - You will need one Glycol Pump Kit for each tank.
Grainfather Fermenters - Grainfather fermenters have standard cooling jackets. You will need one Glycol Pump Kit for each fermenter
Blichmann Fermenators with Optional Cooling Coil - You will need one Glycol Pump Kit for each Fermenator.
Capacity
It is always difficult to determine exactly how many tanks can be chilled at one time as it depends on what is happening in each tank, if the tank is insulated, and what the ambient temperature is. Cold crashing always requires the most energy and requires tank insulation. We have experimented with capacities and can provide this general guide based on a 75°F ambient and neoprene insulation. Neoprene a modest amount of insulation so you would obtain better results using Armaflex or a higher R rated insulation. If only controlling fermentation temps the capacity would be higher. Four BrewBuilt Chilling Pump Kits (GLY355) is the maximum that will fit in the IceMaster. We are working on smaller glycol pump kits, where the pumps have smaller footprints, so the IceMaster right now has the capacity to use 5 pumps through the bulkhead fittings.
Capacity calculated at cold crashing to 38°F at 75°F ambient with neoprene insulation (double for fermentation temperature control):
2 - 1BBL (31 Gallon) Jacketed Tanks
2 - 1/2BBL (15-20 Gallon) Tanks
3 - 10-14 Gallon Tanks
4 - 5-7 Gallon Tanks
Set Up
In order to hook up the IceMaster to your fermenter or tank's cooling system, you will need 4 lengths of tubing. All tubing connections should be secured with hose clamps.
Length 1: Submersible pump outlet to inner barb of 1st bulkhead
Length 2: Outer barb of 1st bulkhead to cooling system inlet
Length 3: Cooling system outlet to outer barb of 2nd bulkhead
Length 4: Inner barb of 2nd bulkhead to IceMaster resevoir (should drain freely, no connection necessary)
Specifications:
Tank Capacity: 30L/8 Gal. Water Capacity
Compressor: 3/8 HP
Cooling Capacity: 780 Watt/2600btu/0.26 ton
Refrigerant: r134a
Voltage: 110V (3.6 amps)
Dimensions: 410mm x 410mm x 660mm
Includes 10 stainless bulkheads with 3/8" OD barbs
Wheels included
CE Certified
Warning: Do not set the reservoir temperature controller lower than 28°F (-2ºC). Running the unit below this temperature may negatively affect the unit's efficiency and has the potential to freeze beer which may impact the finished beer's flavor.
Replacement 1.5" T.C. carbonation stone for MB conical fermenters and brite tanks.
Specifications:
2 micron
Overall Length: 17.7"
Stone Length: 9.8"
Single-piece design
Made from Titanium
Please Note: As the stone is made from titanium, it is intended for carbonation only and should not be used for oxygenation. Use with oxygen can make the titanium become brittle and prone to cracking.
Sanitary sample valve ideal for active fermentations as it has no pockets to trap fermenting wort
Easy twist-to-open handle is much easier to operate than standard plunger style sample valves
Disassembles quickly for cleaning between uses
Direct replacement for MB conical fermenters & brite tanks and compatible with any fermenter with 1.5" T.C. port
Nozzle mount for use with a pigtail sample coil to pour samples of carbonated beer
Look no further, this is a perfectly engineered 1.5" TC sample valve! With an easy twist to open handle and quick diassembly, this valve provides ease and convenience. Can be used on any fermenters 1.5" TC port.
This 304 stainless steel valve is perfect for active fermentations. It has no pockets to trap fermenting wort. It is very easy to disassemble and clean. It features a mount for a pigtail or a CO2 checker.
This is the recommended replacement sample valve for MB conical fermenters and brite tanks.
Brand-new stainless steel beer keg with US-standard MicroMatic D System Spear
Half Barrel Keg holds 165x 12 oz beers or 124x 16 oz pints
Ideal for large-batch brewers where you want to clean and sanitize as few kegs as possible
Commercial quality construction—produced and tested in an ISO 9001 Certified facility
Supply your brewery with the best kegs on the market with these Full Size 15.5 gallon Half Barrel US Sanke Kegs. Our kegs are produced and tested for quality in an ISO 9001 Certified facility, abiding by strict quality control standards. Each 15.5 gal keg is constructed entirely of Stainless Steel, ensuring a long serving life for your brewery.
Holds 165 x 12 oz beers (124 x 16 oz pints).
Features:
Full Size 15.5 gal (1/2 bbl) US Sanke keg
304 Stainless Steel Construction
23.25" Height, 16.8" Diameter
Produced in an ISO 9001 Certified Facility
Drop In spears produced by MicroMatic
Working pressure is 43.51 psi (3.0bar)
Single station manual keg filler assembly makes a simple solution for small volume keg filling runs
Reinforced silicone tubing on the beer-out side offers more protection when cleaning and sanitizing the system with hot solution
Clear vinyl on the gas-out side operates as a sight glass to let you know what's happening in the keg
Easily fill Sanke kegs with the MB Keg Filler. Simply connect to your brite tank and purge with beer. The high-quality stainless steel keg couplers have had the check valves removed so beer and CO2 can flow backwards when needed. Reinforced silicone tubing on the beer-out side offers more protection when cleaning and sanitizing the system with hot solution. Clear vinyl on the gas-out side operates as a sight glass to let you know what's happening in the keg—foam in the tubing indicates you're filling too quickly, while beer in the tubing indicates the keg is full.
Stainless Steel D-style sanke couplers
Reinforced silicone tubing on beer side
Clear vinyl tubing on gas side
Brand-new stainless steel beer keg with US-standard MicroMatic D System Spear
Slim Quarter Keg holds 82x 12 oz beers or 62x 16 oz pints
A good middle-ground size with high-capacity but small enough to fit multiple kegs in larger kegerators or keezers
Commercial quality construction—produced and tested in an ISO 9001 Certified facility
Supply your brewery with the best kegs on the market with these 7.75 gallon 1/4 Barrel US Sanke Kegs. Our kegs are produced and tested for quality in an ISO 9001 Certified facility, abiding by strict quality control standards. Each keg is contructed entirely of Stainless Steel, ensuring a long serving life for your brewery.
The quarter barrel keg, commonly referred to as a slim quarter or tall quarter keg, is a great option for bars and restaurants that want to offer a variety of beers but don't have the space for multiple full size kegs.
Holds 82 x 12 oz beers (62 x 16 oz pints).
Features:
7.75 gal (1/4 bbl) US Sanke keg
304 Stainless Steel Construction
23" Height, 11.5" Diameter
MicroMatic D System (U.S. Sankey) Spear
Working pressure is 43.51 psi (3.0bar)
Tanking samples of carbonated beer from carbonated tanks oftern results in a foamy mess. A pigtail sampling coil provides the necessary restriction in order to pour a clean, accurate sample. This sample valve accessory is perfect for taste testing for proper carbonation levels and dry hop status.
Compatible with the MB 1/4-Turn Sample Valve and the ForgeFit® Sanitary Sample Valve.
The ideal vessel for serving pre-mixed cocktails and other concoctions on draft
Easily pour in your beverage of choice through the wide corny-style lid opening without needing to remove the spear
Doubles as a line cleaning keg
Rolled handles for a comfortable grip
Low2 lid O-ring reduces oxygen ingress by 96% compared to silicone O-rings when measured in a keg!
Made by an ISO certified commercial keg manufacturer with high-quality laser welded seams
The Torpedo Cocktail Keg is the ideal vessel for serving pre-mixed cocktails and other concoctions on draft. The corny keg style lid makes it easy to pour in your beverage of choice without having to fuss with removing the spear like with standard commercial sanke kegs. Hook up a D-Style keg coupler to begin carbonating the beverage from the bottom up. These kegs provide the added advantage of fully carbonating the entire cocktail. When making drinks on the fly, carbonation is lost quickly since you're mixing carbonated and still ingredients together. But when served from a fully carbonated keg, you can enjoy the bubbles in your glass for longer!
Draft lines needing some love? The Torpedo Cocktail keg easily doubles as a line cleaning keg. Simply fill with a batch of LLC or BLC to give your bev lines a little TLC.
Low2 Keg Lid O-ring
Give your beverage the absolute best protection from oxygen staling with the Low2 keg lid O-ring. Even the most perfectly sealed keg is susceptible to oxygen ingress through the hatch O-ring—yes, even if the keg is under constant pressure with CO2! Even a leak-free, pressurized keg will release CO2 molecules as they pass through the lid O-ring itself, and conversely, Oxygen molecules will permeate through the O-ring and diffuse into the keg when they reach the surface area on the other side. The level of permeability is wide ranging and highly dependent on what material the O-ring is made from. Rather than the usual EPDM or Silicone, Low2 gaskets are made from a unique composition of Synthetic M-Class and Cross-Link Elastomers. This special blend has superior oxygen barrier properties that results in your beverage staying fresher for longer.
Specifications:
Max Pressure: 130 psi
PRV Rating: 85 psi
High Quality Laser Welded Seams
ISO9001 Quality Assurance
Made from 304 Stainless Steel
Dimensions:
Height (in.)
Diameter (in.)
1.5 Gal
10
9 3/8
2.5 Gal
13 1/4
9 3/8
Due to high demand, this item is currently out of stock. Be the first to receive your items by placing a pre-order today. We will automatically ship this item to you when we receive more in mid February.
2" tri-clamp pressure relief valve. Calibrated to blow off at 2 BAR or 29 PSI.
This is the modern copy of the old 1/4" Turn Valves (Zwickle). It has a ledge to attach a pigtail or a CO2 checker. The valve is designed to clean in place as long as the valve remains open for the cleaning cycle.
Note: The valve has a small pocket in the moving part that traps wort when closed so we don't recomend these for active fermentations.
This is a replacement option for the sample valve for MB conical fermenters and brite tanks.
Made from a brand new 15.5 gal. keg with a 4" tri-clamp opening
1" yeast piping for easily moving dense yeast
Includes two 1.5" tri-clamp butterfly valves at the inlet and outlet
Adjustable PRV for lowering pressure for long term storage
15.5 gal size, perfect for up to 10 bbl batches
The MoreBeer! Pro Yeast Brink is made with pro brewers in mind brewing up to 10 barrel batches. The yeast piping gives you a 1" passage to the bottom of a keg to make moving even the thickest yeasts a breeze. There is an adjustable PRV in case you need to lower the pressure for long term storage. The yeast piping is welded into the keg 4" TC keg lid, making for quick and easy inspecting and cleaning. The dip tube is about an inch from the bottom of the keg to help keep non-yeast solids that separate out from transferring with your repitch.
1/2 bbl is perfect for up to a 10 bbl batch with most yeasts. Also available in 1/4 bbl size for up to 5 bbl batches and 1 bbl size for up to 20 bbl batches.
Pro tip: If you align one valve handle 90 degrees to the other you won't forget which side is IN or OUT. If you do forget, with the PRV on the back side, the left side is the IN and the right side is the OUT.
Replacement cup gasket is for the ForgeFit® Sanitary Sample Valve.
This is the recommended replacement part for the sample valve on MB conical fermenters and brite tanks.
Material: EPDM
Make quick work of transferring finished beer from fermenter to kegs with the easy-to-operate four station manual keg filler
Optional Keg Filling FOBs stop flow automatically once the keg is full, eliminating waste and making it even easier for a single person to operate the filler
Sight glass at the inlet allows you to monitor beer flow from the fermenter—check if you're pulling yeast or breaking CO2 out of solution
Elevated sample port for purging air from the system before filling runs
Made from high-quality Stainless Steel tri-clamp fittings, custom-welded stand, and reinforced silicone tubing
Shorten the time it takes to do your least favorite task with the MB Keg Filler. Our Keg Filler was designed by renowned brewmaster Colin Kaminski to make filling kegs a simple process that can be completed quickly. Connect your tank to the keg filler via the 1.5" butterfly valve inlet, which will enable you to shut off flow if you run into any issues. Monitor flow with the sight glass to see if you're pulling yeast, if there's air present in the system, or if CO2 is breaking out of solution because you're filling too quickly. The highest point in the filler is a plunger-style sample valve sitting at the opposite end, allowing you purge air out of the system and minimize oxidation. The high-quality stainless steel keg couplers have had the check valves removed so beer and CO2 can flow backwards when needed. Reinforced silicone tubing on the beer-out side offers more protection when cleaning and sanitizing the system with hot solution. Clear vinyl on the gas-out side operates as a sight glass to let you know what's happening in the keg—foam in the tubing indicates you're filling too quickly, while beer in the tubing indicates the keg is full.
The Manual Keg Filler is available with or without a Keg Filler FOB on each filling line. See the instructions below for operating the keg filling FOBs.
4-Head Keg Filling Station
Stainless Steel D-style sanke couplers
Reinforced silicone tubing on beer side
Clear vinyl tubing on gas side
Custom-welded compact stainless steel stand
Butterfly valves have the distinct advantage over ball valves in that they won't trap wort inside. They are the most sanitary valve you can ask for and are easy to clean in place. 2" tri-clamp.
These valves are a direct replacement of the butteryfly valves that come on MB conical fermenters and brite tanks.
Made from a brand new 7.75 gal. keg with a 4" tri-clamp opening
1" yeast piping for easily moving dense yeast
Includes two 1.5" tri-clamp butterfly valves at the inlet and outlet
Adjustable PRV for lowering pressure for long term storage
7.75 gal size, perfect for up to 5 bbl batches
The MoreBeer! Pro Yeast Brink is made with pro brewers in mind brewing up to 5 barrel batches. The yeast piping gives you a 1" passage to the bottom of a keg to make moving even the thickest yeasts a breeze. There is an adjustable PRV in case you need to lower the pressure for long term storage. The yeast piping is welded into the keg 4" TC keg lid, making for quick and easy inspecting and cleaning. The dip tube is about an inch from the bottom of the keg to help keep non-yeast solids that separate out from transferring with your repitch.
1/4 bbl is perfect for up to a 5 bbl batch with most yeasts. Also available in 1/2 bbl size for up to 10 bbl batches and 1 bbl size for up to 20 bbl batches.
Pro tip: If you align one valve handle 90 degrees to the other you won't forget which side is IN or OUT. If you do forget, with the PRV on the back side, the left side is the IN and the right side is the OUT.

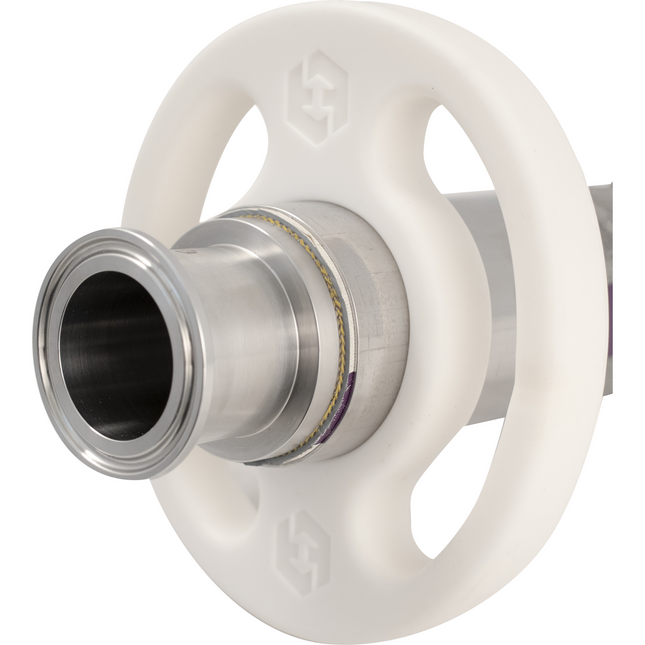

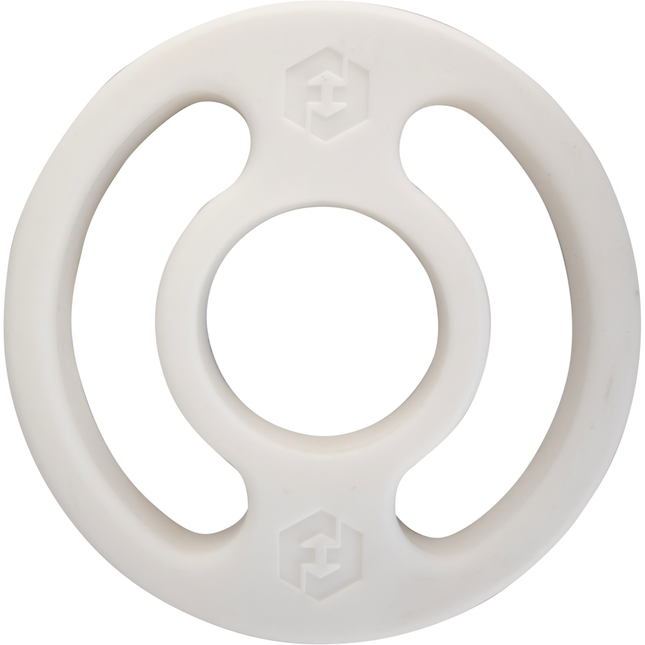

ForgeFit's rubber hose bumper is the ideal choice for brewery hose ends. Rather than being made from rigid plastic, the soft silicone is designed to absorb impact and help protect hose end fittings that are being continuously picked up and dropped to the floor. The bumper will also keep the hose ends raised off the floor to keep the fittings sanitized and avoid contamination. The two large handles allow you to pick up a hot hose without grabbing onto it directly.
2" ID will stretch over most 1.5" brewery hoses.
Kink and crush resistant suction & discharge rubber hose, designed for demanding applications that require high temperature and chemical resistance
ForgeFit barbed connector and crimp sleeve system are designed to provide a long life and easy to clean hose connection
Hose barb skips the first barb to provide a gapless and smooth transition to the tubing
Our sleeves are machined from pipe to meet sanitary standards, avoiding the uneven compression and hard points caused by welding, and offering a superior surface finish that is both more hygienic and visually appealing
Novaflex Connoisseurs Beverage Hose Meets 3-A (cert# 1803), FDA & USDA standards

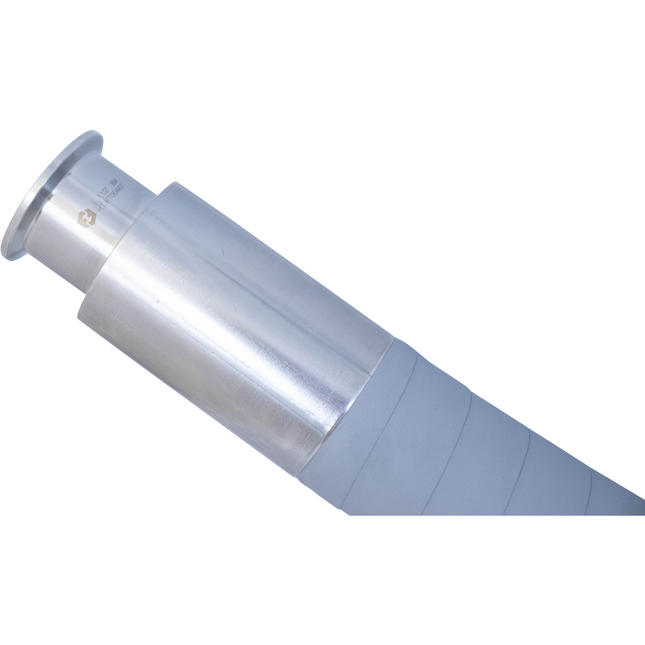

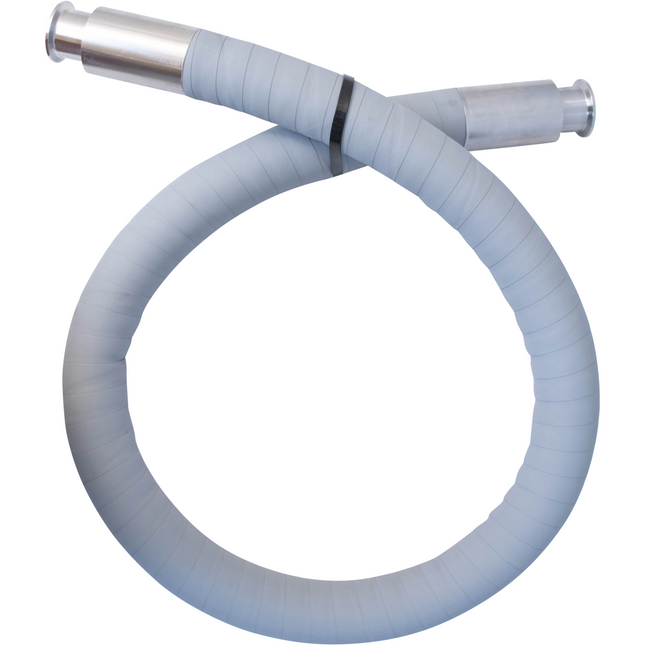

Tubing sets made from ForgeFit fittings and Novaflex Connoisseurs food & beverage tubing that are assembled in the MoreBeer! Pro metal shop in Pittsburg, California. The options above are already assembled and ready to ship. If these options do not suit your needs, custom lengths can also be made to order.
Novaflex is a special kink and crush resistant suction & discharge rubber hose, designed for those more demanding applications requiring a product that meets 3-A (cert# 1803), FDA & USDA standards. This tube is for non-oily applications. Designed to meet the temperatures and chemical resistance associated with “cleaning in place” systems. This ultra smooth microbe resistant tube is built on special stainless steel mandrels for cleanliness.
The ForgeFit barbed connector and crimp sleeve system is designed to provide a long life and easy to clean hose connection. The long barb and the long sleeve provide a secure crimp without crushing the hose. Triple banding can slip or damage the hose during installation and has sharp edges. The ForgeFit® hose barb skips the first barb to provide a gapless and smooth transition to the tubing to make it easier to keep clean. Our barb has a stop to ensure the hose does not creep closer to the clamp in service.
Don't forget to add hose bumpers to your order to protect your investment! The ForgeFit® Silicone Hose Bumper is designed to protect your hose ends by absorbing the impact of the hose end hitting the floor when it's dropped. The unique built in handle makes it easier to grab and saves your back.
Novaflex Construction:
Tube: White Chlorobutyl
Reinforcement: Multiple plies of polyester tire cord & dual monofilament helix
Cover: Gray EPDM abrasion resistant
Temperature Range: -40° to 240°F (CIP to 248°F)
Not for continuous steam service
in.
mm
ID
1.5
38.1
OD
2.14
54.35
Bend Radius
4.5
114
This hop port cover is intended for use with MB conical fermenters. Features a welded hook on the underside to hang bagged flavoring additions and a welded handle on top for easy removal.
Made from 304 stainless steel.

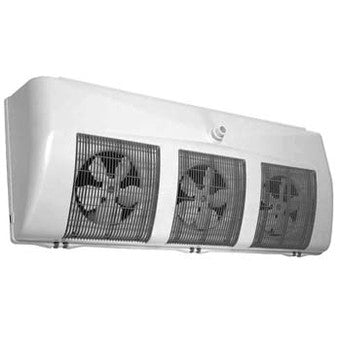

Use your existing glycol system to cool your cellar
Eliminates the need to purchase an entirely separate refrigeration system
MR series fan units offer quieter operation compared to the SD-S units
Sized for well-insulated rooms up to 1,750 ft³
Made in Germany by Kreyer
Cool your cellar using your existing glycol system. Save energy and money! These units work under the same principles as standard refrigeration but use cooled glycol that you already have instead of cooled refrigerant gas, eliminating the need to have a separate refrigeration system. It is a fantastic use of your glycol system for a majority of the year when typically glycol systems are on but are being sporadically called upon. Glycol systems do need to be sized to accommodate both these fan units and peak duty during the crush to be able to accommodate all tasks at once.
Glycol from your main glycol chiller is recirculated through these fan units. Aluminum fins act as heat exchangers drawing heat out of your room as the fins are cooled by the glycol. If you have a Kreyer chiller/heater you can even heat a space in cold weather environments.
The heat exchangers inside the units are made from corrugated aluminum fins and internally grooved copper tubes. The white ABS casing looks great. Because of its rounded corners it has no water retaining areas favorable to germ development. Units are outfitted with stainless steel screws and show no sharp, cutting edges.
The MR series is quieter than the SD series but not as robust in construction.
Fan Unit Temp Control Upgrades:
1/2 in. Solenoid Valve - Allows or blocks flow of glycol through the fan unit. Needs to be connected to a Controller to function. A filter is recommended to protect the solenoid.
1/2 in. Solenoid Filter - protects the solenoid valve from any particulate or sediment.
Glycol Fan Control Unit - Set a specific temperature on this controller and it will open and close the solenoid valve.
Solenoid Connection Cable - This 2 meter long cable is required to connect the Solenoid Valve & Control unit.
Specifications of MR75:
Will cool well insulated spaces up to 1750 cubic feet while drawing 1/3 Ton of cooling power
Single Fan Unit (pictured is 3 fan unit)
220V connection required to run fan
You will need to connect to your existing glycol system
Inlet and Outlet: 3/8" OD bare copper pipe
