The German made 2/3 horse power MB Chiller is an ideal solution for nano breweries looking to chill up to 4 fermenters at once.
The idea of the MiniChilly is that for each fermenter you want to a chill a pump kit is added. A pump kit (GLY355) includes a submersible pump that is placed in the cold bath of the Mini Chilly along with a digital controller that is placed next to your fermenter. Silicone tubing is included to make the connections. The digital controller includes a thermal probe that should be inserted into a thermal well in your vessel or can be taped to the outside of the vessel if you don't have a thermal well. The digital controller then measures the temperature of your tank and turns the submersible pump on or off to cool the liquid in your vessel to the desired set temperature. In this way each tank can be set at different temperatures.
The MiniChilly is made by Quantor/Kreyer of Germany who is the largest manufacturer of glycol systems for breweries and wineries in the world. Made with high quality manufacturing and components, the MiniChilly is a durable system for many years of problem-free brewing.
The unit features a stainless steel case with stainless 3/8" barbs in the top that allow for a clean connection of the silicone tubing that will run from each pump to each tank. The MiniChilly is able to chill its reservoir down to 21°F when a 30% glycol solution is used. The compact size and included casters make it easy to move around the brewery when needed.
Applications:
Cooling of Fermentation
Cold Crashing for Brite Tanks
Maintain Lagering Temperatures
Compatibility:
The MiniChilly can be used with any fermenter that has a built-in cooling jacket or a submersed cooling coil. It works well as the cooling source for the following systems and fermenters.
Ss Brewtech Fermenters and Brites with optional FTS Temperature Control Systems: Because FTS systems include a pump and controller you will not need to buy a separate Glycol Pump Kit.
Spike Conical with Optional Cooling Package - Because the optional Spike cooling system includes a pump and controller you will not need to buy a separate Glycol Pump Kit.
Speidel Tanks with Optional Cooling Jackets - You will need one Glycol Pump Kit for each tank.
Grainfather Fermenters - Grainfather fermenters have standard cooling jackets. You will need one Glycol Pump Kit for each fermenter
Blichmann Fermenators with Optional Cooling Coil - You will need one Glycol Pump Kit for each Fermenator.
Capacity:
Many chiller ratings are based on the theoretical power of the compressor, while the cooling capacity of the MiniChilly is rated at a realistic ambient temperature. This is much more useful for predicting the MiniChilly’s performance in real world applications. Of course, you could cool a greater number of smaller tanks but you’re ultimately limited to the 3 connections. Actual cooling capacities will vary based on the insulation of the tank. For the examples below we assume neoprene or better.
Cooling Capacity Example:
Up to 5 1bbl (31 Gallon) tanks fermenting at 68°F in 80°F ambient temperature. For every fermenter you want to cold crash remove 4 fermenting fermenters from the capacity. Note there is only hooks ups for 4 fermenters.
Set Up:
In order to hook up the MiniChilly to your fermenter or tank's cooling system, you will need 4 lengths of tubing per pump. All tubing connections should be secured with hose clamps.
Length 1: Submersible pump outlet to inner barb of 1st bulkhead
Length 2: Outer barb of 1st bulkhead to cooling system inlet
Length 3: Cooling system outlet to outer barb of 2nd bulkhead
Length 4: Inner barb of 2nd bulkhead to MiniChilly reservoir (should drain freely, no connection necessary)
Technical Characteristics:
Power: 110V-1Ph/50-60Hz
Compressor Power: 2/3hp / 0.5 kw
Cooling Capacity at 32°F glycol temp and 90°F Ambient Temp: 0.38 KW/380 Watts (60Hz 110V)
Cooling Capacity at 60°F glycol temp and 90°F Ambient Temp: 0.65 KW/650 Watts (60Hz 110V)
Stainless Steel case
Water Temperature Range: 21°F - 86°F (-6°C - 30°C)
Ambient Temperature Range: 50°F - 90°F (10°C - 32°C)
Refrigerant R134a
Free Glycol Water-Bath for Mini-Pumps
Fittings 3/8" for Plastic Tubes of Individual Pumps
Solid Wheels w/ Brakes for Easy Mobility
Universal C19 Plug
On/Off Switch
Water-Level Sight-Tube
Grooves for Individual Pump Cables
Safety Inner Separation Water Side from Electric Side
Tank Capacity: 7.13 gal. (27 L)
Dimensions: 27.5"L x 14.5"W x 19.5"H
Weight: 79.5 lbs
Made in Germany
CE Certified
This Reactor Rod was custom built to be used with the 2 bbl MB Conical Fermenter, but can easily be integrated to other vessels with a 4" tri-clamp top port. Unlike other in-solution cooling coils on the market, the Reactor Rod utilizes a straight vertical design. Without all the curves and bends of a cooling coil, it is easier to scrub and sanitize the unit prior to setup and after use. The four cooling rods are 41" long measured from the bottom of the T.C. fitting.
This is a premium black neoprene jacket, tailor-made for the 1 bbl MB Conical Fermenter. Made from 6mm neoprene with black fabric on both sides. Perfect for insulating the conical and using alongside our Reactor Rods.
Due to high demand, this item is currently out of stock. Be the first to receive your items by placing a pre-order today. We will automatically ship this item to you when we receive more in mid February.
Extra-large carbonation stone sized for 60 bbl fermenters and above
Quickly carbonate finished beer in any stainless fermenter or brite tank with 3" tri-clamp connection
Welded 1/2" FPT connection point feeds CO2 through the 17.75" long stone
Made from stainless steel
The MB carbonation stone can connect to any stainless fermenter or brite tank with 3" T.C. connection. The ferrule has a 1/2" female pipe thread connection point for your gas line. The overall length from the T.C. ferrule to the tip of the stone is 27.5" long with the stone section itself being approximately 17.75" in length.
Specifications:
2 micron
Overall Length: 27.5"
Stone Length: 17.75"
Single-piece design
Made from Stainless Steel
This professional level two stage heat exchanger is designed to handle chilling for up to 15 bbl batches. Tap water is run through the first stage for the initial temperature drop and then glycol is recirculated through the second stage to lower the wort temp further. The chiller comes with 37 plates and provides 3 m² or 32.2 ft² of cooling area.
When chilling, expect to use your batch size worth of tap water and your batch size worth of chilled liquor.
MB may have developed these chillers with brewers in mind, but heat exchangers are commonly used in a wide range of food production and industrial applications.
Food & Drink Manufacturing:
Beer: beer, wort
Wine: rice wine, wine, etc.
Dairy: milk, milk powder, milk beverages, yogurt, etc.
Vegetable protein beverages: peanut milk, milk tea, soy milk, soy milk drinks, etc.
Fruit drinks: fresh juice, juice tea, etc.
Tea drinks: beverages of tea, aloes, fruit & vegetables, etc.
Seasonings: soy sauce, rice vinegar, tomato juice, sweet and pungent sauces, etc.
Pasteurization
Industrial Liquids Processing:
Pharmaceutical production
Dyeing
HVAC thermal exchange
Chemical industry
Power stations, heating for swimming and bathing
Petroleum
Metallurgy
Domestic hot water
Shipbuilding
Machinery
Paper-making
Textile
Geothermal utilization
Environmental protection
Refrigeration, etc.
The German made 1.2 horse power MB Chiller is an ideal solution for nano breweries looking to chill up to 10 fermenters at once.
The idea of the MiniChilly is that for each fermenter you want to a chill a pump kit is added. A pump kit (GLY355) includes a submersible pump that is placed in the cold bath of the Mini Chilly along with a digital controller that is placed next to your fermenter. Silicone tubing is included to make the connections. The digital controller includes a thermal probe that should be inserted into a thermal well in your vessel or can be taped to the outside of the vessel if you don't have a thermal well. The digital controller then measures the temperature of your tank and turns the submersible pump on or off to cool the liquid in your vessel to the desired set temperature. In this way each tank can be set at different temperatures.
The MiniChilly is made by Quantor/Kreyer of Germany who is the largest manufacturer of glycol systems for breweries and wineries in the world. Made with high quality manufacturing and components, the MiniChilly is a durable system for many years of problem-free brewing. It is German made and we guarantee you will appreciate the build quality when compared to other chillers on the market.
The unit features a stainless steel case with stainless 3/8" barbs in the top that allow for a clean connection of the silicone tubing that will run from each pump to each tank. The MiniChilly is able to chill its reservoir down to 21°F when a 30% glycol solution is used. The compact size and included casters make it easy to move around the brewery when needed.
Applications:
Cooling of Fermentation
Cold Crashing for Brite Tanks
Maintain Lagering Temperatures
Compatibility:
The MiniChilly can be used with any fermenter that has a built-in cooling jacket or a submersed cooling coil. It works well as the cooling source for the following systems and fermenters.
BrewBuilt Jacketed Uni Conical - You will need one Glycol Pump Kit for each tank.
Ss Brewtech Fermenters and Brites with optional FTS Temperature Control Systems: Because FTS systems include a pump and controller you will not need to buy a separate Glycol Pump Kit.
Spike Conical with Optional Cooling Package - Because the optional Spike cooling system includes a pump and controller you will not need to buy a separate Glycol Pump Kit.
Speidel Tanks with Optional Cooling Jackets - You will need one Glycol Pump Kit for each tank.
Grainfather Fermenters - Grainfather fermenters have standard cooling jackets. You will need one Glycol Pump Kit for each fermenter
Blichmann Fermenators with Optional Cooling Coil - You will need one Glycol Pump Kit for each Fermenator.
Capacity:
Many chiller ratings are based on the theoretical power of the compressor, while the cooling capacity of the MiniChilly is rated at a realistic ambient temperature. This is much more useful for predicting the MiniChilly’s performance in real world applications. Of course, you could cool a greater number of smaller tanks but you’re ultimately limited to the 10 connections. Actual cooling capacities will vary based on the insulation of the tank. For the examples below we assume neoprene or better.
Cooling Capacity Example:
Up to 10 1BBL (31 Gallon) well-insulated tanks fermenting at 68°F in 80°F ambient temperature. For every fermenter you want to cold crash remove 4 fermenting fermenters from the capacity.
Set Up:
In order to hook up the MiniChilly to your fermenter or tank's cooling system, you will need 4 lengths of tubing per pump. All tubing connections should be secured with hose clamps.
Length 1: Submersible pump outlet to inner barb of 1st bulkhead
Length 2: Outer barb of 1st bulkhead to cooling system inlet
Length 3: Cooling system outlet to outer barb of 2nd bulkhead
Length 4: Inner barb of 2nd bulkhead to MiniChilly reservoir (should drain freely, no connection necessary)
Technical Characteristics:
Power: 110V-1Ph/50-60Hz
Compressor Power: 1.2hp/900watts
Cooling Capacity at 32°F glycol temp and 90°F Ambient Temp: 1.05 KW/1050 Watts (60Hz 110V)
Cooling Capacity at 60°F glycol temp and 90°F Ambient Temp: 1.92 KW/1920 Watts (60Hz 110V)
Stainless Steel Unit
Water Temperature Range: 21°F - 86°F (-6°C - 30°C)
Ambient Temperature Range: 50°F - 90°F (10°C - 32°C)
Refrigerant R134a
Free Glycol Water-Bath for Mini-Pumps
Fittings 3/8" for Plastic Tubes of Individual Pumps
Solid Wheels w/ Breaks for Easy Mobility
Universal C19 Plug
On/Off Switch
Water-Level Sight-Tube
Grooves for Individual Pump Cables
Safety Inner Separation Water Side from Electric Side
Tank Capacity: 12.68 gal. (48 L)
Dimensions: 29.5"L x 15.75"W x 21.75"H
Weight: 112.5 lbs
Made in Germany
CE Certified
This is a premium black neoprene jacket, tailor-made for the 2 bbl MB Conical Fermenter. Made from 6mm neoprene with black fabric on both sides. Perfect for insulating the conical and using alongside our Reactor Rods.
Dual headed can filler compatible with carbonated and still beverages
Programmable fill height accurate to +/- 1mm for consistent fills with every operation
Timed CO2 purging takes place automatically to remove oxygen before each fill
The only filler model in this price range that can be set on a table and includes a drip tray
Hardware included to mount the filler to your wall if preferred
Set up takes only a few minutes with a simple push-button programming interface
Adjustable height—designed to fill cans of any size up to 32 oz Crowlers
Stainless steel construction throughout with self-draining drip tray
Just like the two-headed dog of Greek mythology, Orthos, this dual-headed can filler will perform like a beast in your canning line, doubling your fill rate and taking the stress out of canning day.
Operation
Programming the fill height and CO2 purge time is quick & easy and only requires pushing a single button to program your settings on either fill head. Once your settings are locked in, the LED ring will give you the green light to procced and filling and purging will execute automatically with a single push of the button. The Orthos Dual Head Can Filler utilizes an aero-grade pressure sensor to measure the height of the fill and is accurate to +/- 1mm for remarkably consistent fills each and every time.
Construction
We have designed the Orthos Filler to be a showcase for your taproom or home brewery, featuring a heavy stainless steel case and the necessary hardware for wall mounting or table use. The Orthos can be easily adjusted to fill any size can up to 32 oz Crowlers, and if need be, you can have two different style cans filling at the same time. The drip tray will help catch any potential spills throughout the filling process and features a drain that can be routed to a collection bucket or floor drain.
Cleaning
The cleaning process is just as easy as the filling process! Just attach a keg of water or beer line cleaner and run a fill cycle to clean out the product from the machine. The beer flows seamlessly through pinch valves, eliminating any internal cavities that need to be cleaned. The drip tray is conveniently removable for a quick wash after each use. When it's time for maintenance, simply swap out the beer tubing!
Includes:
Fittings / tubing to connect to 8mm Duotight inputs
(1) 8mm Duotight Tee Fitting (DUO1090)
(3) 8mm Duotight Elbow Fitting (DUO128)
(3) 5.5 ft. Length of 8mm OD EVABarrier Tubing (D1717A)
Duotight In-line Regulator (D1047)
Wall Mount & Feet
Drip tray
You May Also Need:
A keg of beer and connections for sanke or ball lock
Sanke: (2) 8mm Duotight Beer Thread Adapters (DUO104)
Ball Lock: 8mm Gas In & Bev Out Duotight Ball Lock QDs (DUO150 / DUO151)
8mm OD EVABarrier Tubing (D1717)
Dual Body CO2 Regulator (D1083)
OR
(2) Single Body CO2 Regulators (D1077)
Two pressure settings are needed. One to set the fill speed and the other to set the purge speed
Exceeding 3 PSI makes the purge turbulent and will mix air back into your can
We recommend KOMOS Regulators which include 8mm Duotight adapters for the output
Features:
Dual heads to fill two cans simultaneously
Stainless steel case
Consistent Fills
Drip tray, wall mount, & feet included
High fill accuracy
Easy programming
Fills still or carbonated products
Timed purging
Beer and CO2 inputs are 8mm Duotight
Specs:
Wall Mounted: 14-3/4" H x 7-7/8" W x 3" D
Table Mounted:
12 oz can: 15-3/4" H
32 oz Crowler: 17-3/4" H
7-7/8" W x 8" D
18V Power Supply

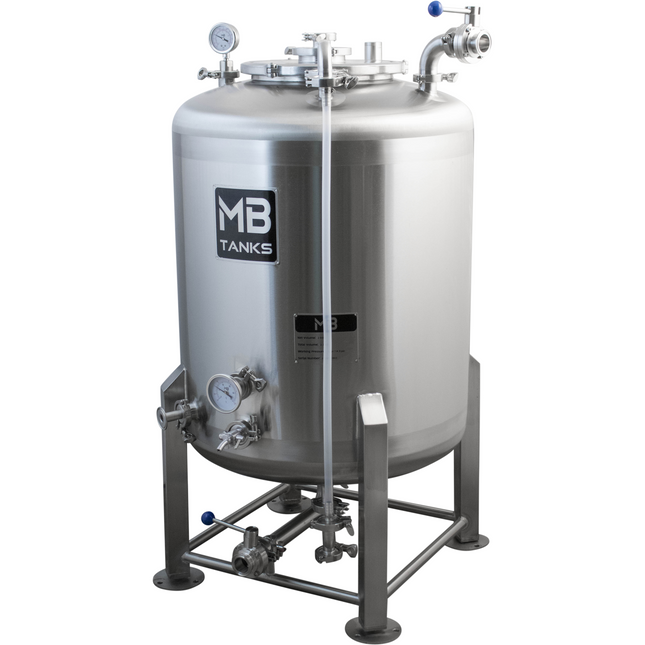

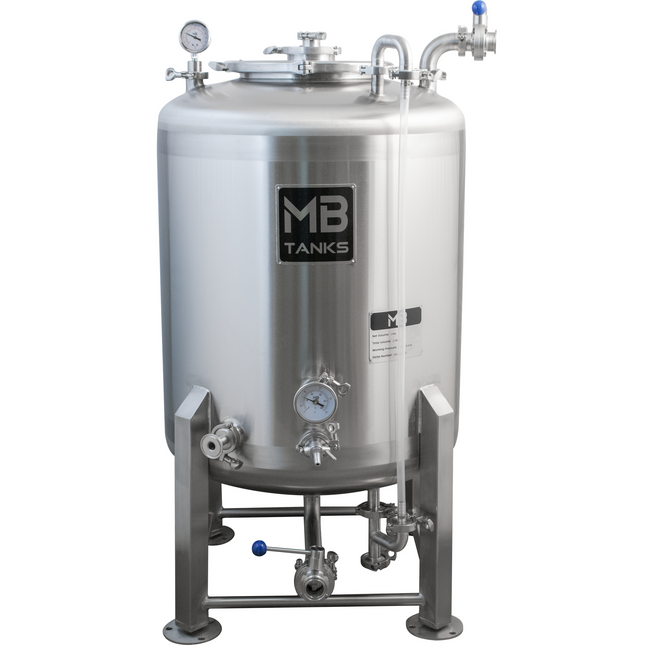

Designed by MB's in-house engineers with a focus on cleanability, ease of use, and durability
Made from 304 stainless steel throughout with passivated 2B polished finished on the interior
Sanitary tri-clamp connections from top to bottom with centered bottom drain, top vent/CO2 port with butterfly valve, and 4" hopping port—all fittings included!
15% extra headspace with a working volume of 2 bbl and max volume of 2.3 bbl
True domed top and bottom with full length site gauge with sediment trap

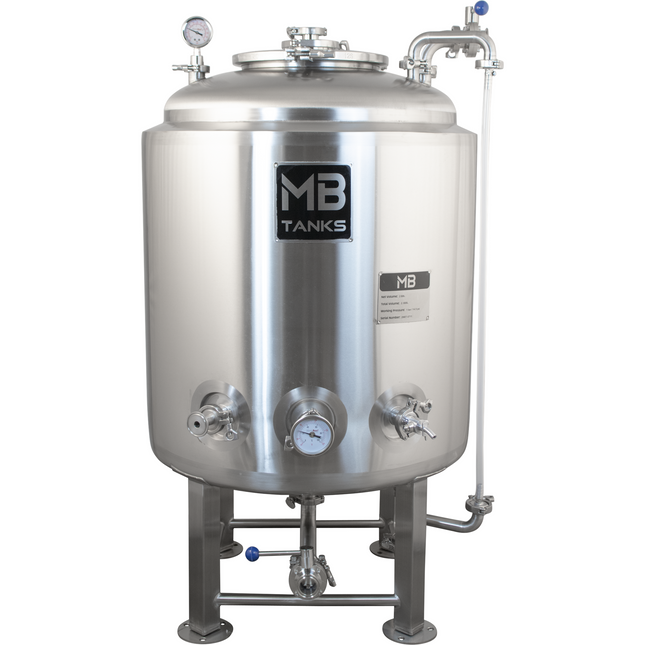

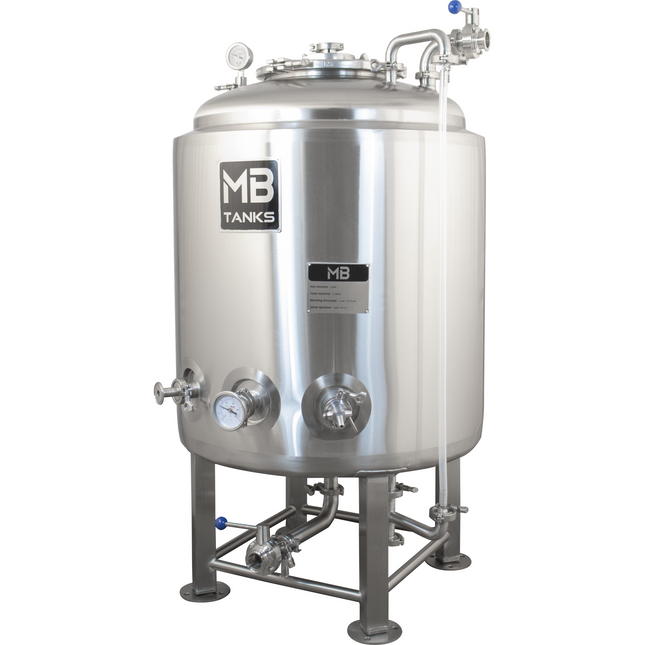

2mm thick single shell design—click here for the 2 bbl Jacketed Brite
Ships domestically from within the contiguous United States
Available Ludicrous Coil for glycol-supplied temperature control
MB brite tanks are made from 304 stainless steel and built to high quality standards. All of our brite tanks are pressured tested at the factory, feature 100% sanitary welds, and are backed by our one year warranty. Every brite tank features an average 15% headspace not stated in the volume, so for example, a 10 bbl brite really has 11.5 bbl of volume.
The standard 1 & 2 bbl MB Brites feature a single shell design, sealed pressure gauge, and plunger-style sample valve to protect against infection. They also feature full length site gauges that extend below the bottom of the tank. This allows you to see when the tank is down to its last couple of pints, rather than its last couple of gallons.
Please note: these units do not have a built-in cooling jacket and are intended to be used in a walk-in cold room for temperature control.
Great Quality from MB
MB is a brand that we dedicate to crafting and sourcing the equipment pro brewers need to make an exceptional product efficiently and consistently. Our brite tanks between 1 and 60 bbl are designed by our in-house team of engineers with decades of professional brewing experience. Focusing on cleanability, ease of use, and durability, we’ve made sure our tanks have the features that modern brewers expect when purchasing a new tank. While some discount dealers chase down bargain priced tanks from a string of manufacturers, we have maintained a long running relationship with a single manufacturer that ensures the quality of our products never wavers.
Great Value from MoreBeer! Pro
If you used MoreBeer! as a homebrewer, you may not know that MoreBeer! & MoreBeer! Pro combined is one of the largest brewing supply companies in the world with over 250,000 customers. We’ve seen countless homebrewers turn pro, and there’s nothing that makes us happier than being a part of that transition. As a privately owned brewing supply company that's been in business for over 25 years, we’ve established relationships with suppliers and manufacturers around the world and at every level of the industry. We get a great price and we pass that on to you.
Features Include:
304 stainless steel construction
True domed top and bottom
Full length site gauge with sediment trap
Pressure/Vacuum relief valve 1 Bar / 15 PSI
Carbonation stone
Sealed pressure gauge
Analog temperature gauge
Sample valve
Center bottom tri-clamp drain
Top vent/CO2 port with butterfly valve
Pt100 Thermocouple interface
Specifications:
Grade 304 Stainless Steel
2mm thick single shell design
Internal Finish: #2B
Tank Height w/ Blowoff Pipe: 48.5"
Tank Diameter w/ Fittings: 31"
Empty Weight: 154 lbs
Working Volume: 2 bbl
Max Volume: 2.3 bbl
Working Pressure: 1 Bar (14.5)
All ports are 1.5" TC except 12" TC Dome Port and 4" TC Hopping Port
Please Contact our Customer Service department at 1-800-600-0033 to assess shipment costs and place an order.
This clever device allows you to back fill your tank with an inert gas while cold crashing to avoid the ingress of O2 through the vacuum relief. It is normally used on a tee with a normal PRV/Vacuum Breaker. The NPT port is hooked up to a regulator and set to a low pressure. The exact setting used will depend on the volume of your head space and your regulator. Start at 2 PSI and adjust from there. A pin spanner is required for disassembly.
1.5" tri-clamp
1/2" female NPT port
Get your brew day started faster with the MB commercial grain mill—process an entire pallet of malt in an hour!
Differential roller speed applies enough force to open the grain kernels as they pass through the rollers without damaging the husk, improving efficiency and lauter performance
Slotted rollers more effectively expose the starchy endosperm inside the kernel compared to knurled rollers
Rollers made from steel alloy which is harder and longer lasting than stainless steel
0.4mm to 2mm mill gap is easily dialed in with large, handled adjustment wheels
Professional quality grain mill with stainless steel construction throughout
Unleash this beast in your brewery and you'll be ready to mash in no time flat. The MB commercial-grade mill can process upwards of 2,000 lbs of grain per hour and features large diameter slotted stainless steel rollers for an excellent crush and long life. This mill can easily power through whatever you throw at it, including barley, wheat, rye, and corn.
Differential Roller Speed
Rotating the rollers at different speeds is the key to a superior crush. Standard grain mills rotate the rollers at the same speed, creating a pinch point between them where the grain kernels are cracked open. Although effective, this can often lead to an excess of flour and damaged grain husks. The MB pro mill drives the rollers at different speeds to apply enough force to open the grain kernels as they pass through the rollers without damaging the husk. This action results in a better crush that will improve efficiency and lauter performance.
Slotted Rollers
Many grain mills feature hardened steel knurled rollers due to the lower cost, but they don't provide the best crush possible. Rather than pounding the grain into submission, slotted rollers (also known as fluted rollers) are more effective at shearing the grain husk to expose the endosperm while leaving the hull intact. The rollers are made from steel alloy which are harder and longer lasting than stainless steel.
Professional Quality
The MB pro mill is an industrial workhorse and the best value for a commercial mill on the market. The hopper capacity is 45 lbs of grain and large adjustment wheels make for easy gap adjustments. Stainless steel construction throughout, and anchor holes in the feet allow the unit to be bolted to the ground.
Specifications:
Processing Speed: 1,700–2,200 lbs/hr
Hopper Capacity: 45 lbs
Voltage: 208V/220V 3-phase motor
Power: 4 HP
Amperage: 13.6 amps
Mill Gap: 0.4mm - 2mm
Mill Roller Size: 155mm diameter, 110mm long
Please note: the unit will arrive bare without a power cord, plug, or controls to power the motor on or off. You will need an electrician to wire the appropriate power cord and controls to the motor.
Please Note: This unit REQUIRES 220V Three Phase power and will not function on anything else. Please confirm that you have the proper power for this unit before purchasing, and plan to have a qualified electrician wire the necessary plug to the cord.
1.5" T.C. carbonation stone for 1 & 2 bbl MB Pro conical fermenters and brite tanks.
Specifications:
2 micron
Overall Length: 7"
Single-piece design
Made from Stainless Steel
This professional level two stage heat exchanger is designed to handle chilling for up to 30 bbl batches. Tap water is run through the first stage for the initial temperature drop and then glycol is recirculated through the second stage to lower the wort temp further. Provides 6 m² or 64.5 ft² of cooling area.
Expect to use your batch size worth of tap water and your batch size worth of chilled liquor.
MB may have developed these chillers with brewers in mind, but heat exchangers are commonly used in a wide range of food production and industrial applications.
Food & Drink Manufacturing:
Beer: beer, wort
Wine: rice wine, wine, etc.
Dairy: milk, milk powder, milk beverages, yogurt, etc.
Vegetable protein beverages: peanut milk, milk tea, soy milk, soy milk drinks, etc.
Fruit drinks: fresh juice, juice tea, etc.
Tea drinks: beverages of tea, aloes, fruit & vegetables, etc.
Seasonings: soy sauce, rice vinegar, tomato juice, sweet and pungent sauces, etc.
Pasteurization
Industrial Liquids Processing:
Pharmaceutical production
Dyeing
HVAC thermal exchange
Chemical industry
Power stations, heating for swimming and bathing
Petroleum
Metallurgy
Domestic hot water
Shipbuilding
Machinery
Paper-making
Textile
Geothermal utilization
Environmental protection
Refrigeration, etc.
Designed by MB's in-house engineers with a focus on cleanability, ease of use, and durability
Made from 304 stainless steel throughout with passivated 2B polished finished on the interior
Sanitary tri-clamp connections from top to bottom with dedicated CIP port, hopping port, and blowoff—all fittings included!
20% extra headspace with a working volume of 1 bbl and max volume of 1.2 bbl
2mm thick single shell design—click here for the 1 bbl Jacketed Conical
Ships domestically from within the contiguous United States
These heavy-duty Beer Tanks are purpose built for longevity, quality, and cost effectiveness, and boast a hefty list of quality features to ease the brewing process. Starting with High Quality 304 grade stainless steel, the tank features a 2 mm thick single shell design. Large 10" T.C. dome top port allows easy access for cleaning and sanitizing, and on top of that, a 1.5" T.C. port allows for the attachment of a CIP spray ball. Useful features such as Blowoff Pipe, Hop Ports and Rotating Racking Arms keep you brewing and fermenting at top efficiency.
The 1 & 2 bbl Conicals feature a sealed pressure gauge, as well as plunger style sample port to protect against infection.
Great Quality from MB
MB is a brand that we dedicate to crafting and sourcing the equipment pro brewers need to make an exceptional product efficiently and consistently. Our conicals between 1 and 120 bbl are designed by our in-house team of engineers with decades of professional brewing experience. Focusing on cleanability, ease of use, and durability, we’ve made sure our fermenters have the features that modern brewers expect when purchasing a new tank. While some discount dealers chase down bargain priced tanks from a string of manufacturers, we have maintained a long running relationship with a single manufacturer that ensures the quality of our products never wavers.
Great Value from MoreBeer! Pro
If you used MoreBeer! as a homebrewer, you may not know that MoreBeer! & MoreBeer! Pro combined is one of the largest brewing supply companies in the world with over 250,000 customers. We’ve seen countless homebrewers turn pro, and there’s nothing that makes us happier than being a part of that transition. As a privately owned brewing supply company that's been in business for over 25 years, we’ve established relationships with suppliers and manufacturers around the world and at every level of the industry. We get a great price and we pass that on to you.
Features:
304 stainless steel construction
Single shell design, inner surface is 2B finish and passivated
Oversized for 20% headspace
Pressure/Vacuum relief valve 1 Bar / 15 PSI
60° conical bottom
Sample valve
Rotating racking arm
Analog temperature gauge
Yeast dump port
Hop port
CIP port
Carb stone
Separate blow-off pipe
Specifications:
Grade 304 Stainless Steel
2mm thick single shell design
Internal Finish: #2B
Total Height w/ Blowoff Pipe: 53"
Tank Diameter: 19.75"
Empty Weight: 110 lbs
Working Volume: 1 bbl
Max Volume: 1.2 bbls
Working Pressure: 1 Bar (14.5 psi)
All ports are 1.5" TC except for 10" TC Dome Port and 4" TC Hopping Port
Please Contact our Customer Service department at 1-800-600-0033 to assess shipment costs and place an order.
2 bbl example photo shown.
Replacement tank manway locking handle for 3.5 bbl MB Conical Unitank Fermenter.
Please Note: This replacement part is intended for unitanks produced after 2021. The diameter of the threads are M18.
MB Variable Speed Pumps are an ideal tool in the brewhouse. These pumps feature a variable frequency drive that allows the pump to be supplied with 110V power. Using the built-in potentiometer speed control, run the pump at slow speeds for moving product with laminar flow or increase the speed to make the flow turbulent for efficient tube and pipe cleaning. This pump is designed to have very low shear loading to protect your product.
Built on a robust stainless cart, with a stainless control panel, and a stainless motor guard. Moves quickly and easily around the brewhouse.
The pump is also available by itself without the trolley cart and control panel (PMP650P).
Features:
1.5" TC connections
On/Off switch
Emergency Shut Off Button
Stainless Cart
Stainless Motor Guard
Stainless Control Panel
GPM: 13.2
Max Head: 54'
1 HP
Temperature Rating: 212°F
Power:
Input Power Required: 110-120V, 1ph, 60hz
Amperage Draw: 8 amps
Nema 5-15P plug
Pumping off the mash tun is the easiest way to collapse the screens. It is recommended that you either put a tee and a vacuum breaker ahead of the pump or run the wort into a grant and pump off the grant. Controlling the pump with restriction, a VFD, or a dual level float switch is ideal.
This tall cylindrical grant has three 1.5" tri-clamp ports and a silicone tube for a sight glass. The narrow design helps to reduce surface area and hot side aeration. The inlet and outlet side ports are raised a few inches above the conical dish bottom dump, which helps to separate grain sediment from the wort.
40L / 10.5 gal
Made from 304 stainless steel
Ships without valves
Designed by MB's in-house engineers with a focus on cleanability, ease of use, and durability
Made from 304 stainless steel throughout with passivated 2B polished finished on the interior
Sanitary tri-clamp connections from top to bottom with centered bottom drain, sight glass, and dedicated CIP pipe system—all fittings included!
Over 20% extra headspace with a working volume of 3.5 bbl and max volume of 4.25 bbl
Double walled with 80 mm thick polyurethane insulation and 1.5 mm thick dual cooling zone glycol jacket
Ships domestically from within the contiguous United States
MB offers a full range of professional level conical fermenters and brite tanks. Our stainless steel tanks represent an amazing overall value, boasting exquisite construction and a very impressive feature set.
MB jacketed brite tanks are made from 304 stainless steel and built to high quality standards. All of our brite tanks are pressured tested at the factory, feature 100% sanitary welds, and are backed by our one year warranty. Every brite tank features an average 15% headspace not stated in the volume, so for example, a 10 bbl brite really has 11.5 bbl of volume.
Great Quality from MB
MB is a brand that we dedicate to crafting and sourcing the equipment pro brewers need to make an exceptional product efficiently and consistently. Our brite tanks between 1 and 60 bbl are designed by our in-house team of engineers with decades of professional brewing experience. Focusing on cleanability, ease of use, and durability, we’ve made sure our tanks have the features that modern brewers expect when purchasing a new tank. While some discount dealers chase down bargain priced tanks from a string of manufacturers, we have maintained a long running relationship with a single manufacturer that ensures the quality of our products never wavers.
Great Value from MoreBeer! Pro
If you used MoreBeer! as a homebrewer, you may not know that MoreBeer! & MoreBeer! Pro combined is one of the largest brewing supply companies in the world with over 250,000 customers. We’ve seen countless homebrewers turn pro, and there’s nothing that makes us happier than being a part of that transition. As a privately owned brewing supply company that's been in business for over 25 years, we’ve established relationships with suppliers and manufacturers around the world and at every level of the industry. We get a great price and we pass that on to you.
Features Include:
15 PSI (1 bar) working pressure
Side manway door for cleaning
1.5" Tri-clamp carbonation stone
1.5" Tri-clamp pressure gauge
1.5" Tri-clamp dial face bi-metal, easy-read analog thermometer
1.5" Tri-clamp Perlick-style sample valve
2" Tri-clamp pressure/vacuum relief
2" Center bottom tri-clamp drain
4" Hopping Port
Sight-glass for reading volumes
Dedicated pipe system with 4" Tri-clamp center top opening and 1.5" tri-clamp rotating CIP spray ball for easy cleaning
3/4" NPT glycol ports
PT100 Thermocouple interface
Construction:
304 stainless steel construction
Double walled with 80 mm thick polyurethane insulation
External Shell: 2 mm thick with brushed finish
Internal tank: 3 mm thick with smooth ground welds, 2B finish and passivated
Glycol Jacket: dual cooling zone, 1.5mm thick
Specifications:
Tank Height: 61"
Tank Diameter: 40"
Empty Weight: 463 lbs
Working Volume: 3.5 bbl
Total Volume: 4.25 bbl
Jacket Surface Area: 2,024 in² (1.306 m²)
Please Contact our Customer Service department at 1-800-600-0033 to assess shipment costs and place an order.
Butterfly valves have the distinct advantage over ball valves in that they won't trap wort inside. They are the most sanitary valve you can ask for and are easy to clean in place. 1.5" tri-clamp.
These valves are a direct replacement of the butteryfly valves that come on MB conical fermenters and brite tanks.
Designed by MB's in-house engineers with a focus on cleanability, ease of use, and durability
Made from 304 stainless steel throughout with passivated 2B polished finished on the interior
Sanitary tri-clamp connections from top to bottom with centered bottom drain, top vent/CO2 port with butterfly valve, and 4" hopping port—all fittings included!
15% extra headspace with a working volume of 2 bbl and max volume of 2.3 bbl
True domed top and bottom with full length site gauge with sediment trap
1.5 mm thick dimple welded cooling jacket—click here for the 2 bbl Single Shell Brite
Ships domestically from within the contiguous United States
These heavy-duty Beer Tanks are purpose built for longevity, quality, and cost effectiveness, and boast a hefty list of quality features to ease the brewing process. MB brite tanks are made from 304 stainless steel and built to high quality standards. All of our brite tanks are pressured tested at the factory, feature 100% sanitary welds, and are backed by our one year warranty. Every brite tank features an average 15% headspace not stated in the volume, so for example, a 10 bbl brite really has 11.5 bbl of volume.
The 1 & 2 bbl Jacketed Brites feature sealed pressure gauge, and plunger-style sample valve to protect against infection. They also feature full length site gauges that extend below the bottom of the tank. This allows you to see when the tank is down to its last couple of pints, rather than its last couple of gallons.
Great Quality from MB
MB is a brand that we dedicate to crafting and sourcing the equipment pro brewers need to make an exceptional product efficiently and consistently. Our brite tanks between 1 and 60 bbl are designed by our in-house team of engineers with decades of professional brewing experience. Focusing on cleanability, ease of use, and durability, we’ve made sure our tanks have the features that modern brewers expect when purchasing a new tank. While some discount dealers chase down bargain priced tanks from a string of manufacturers, we have maintained a long running relationship with a single manufacturer that ensures the quality of our products never wavers.
Great Value from MoreBeer! Pro
If you used MoreBeer! as a homebrewer, you may not know that MoreBeer! & MoreBeer! Pro combined is one of the largest brewing supply companies in the world with over 250,000 customers. We’ve seen countless homebrewers turn pro, and there’s nothing that makes us happier than being a part of that transition. As a privately owned brewing supply company that's been in business for over 25 years, we’ve established relationships with suppliers and manufacturers around the world and at every level of the industry. We get a great price and we pass that on to you.
Features Include:
304 stainless steel construction
Includes a glycol jacket which is dimple welded and 1.5 mm thick
True domed top and bottom
Full length site gauge with sediment trap
Pressure/Vacuum relief valve 1 Bar / 15 PSI
Carbonation stone
Sealed pressure gauge
Analog temperature gauge
Sample valve
Center bottom tri-clamp drain
Top vent/CO2 port with butterfly valve
Pt100 Thermocouple interface
Specifications:
Grade 304 Stainless Steel
Internal Finish: #2B
Tank Height w/ Fittings: 53.5"
Tank Diameter: 29.5"
Empty Weight: 265 lbs
Working Volume: 2 bbl
Max Volume: 2.3 bbl
Working Pressure: 1 Bar (14.5)
All ports are 1.5" TC except for 12" TC Dome Port and 4" TC Hopping Port and 1/2" NPT Glycol Ports
Please Contact our Customer Service department at 1-800-600-0033 to assess shipment costs and place an order.
Commercial quality in a size that's perfect for nano breweries and homebrew shops!
Differential roller speed applies enough force to open the grain kernels as they pass through the rollers without damaging the husk, improving efficiency and lauter performance
Slotted rollers more effectively expose the starchy endosperm inside the kernel compared to knurled rollers
Rollers made from steel alloy which is harder and longer lasting than stainless steel
0.4mm to 2mm mill gap is easily dialed in with large, handled adjustment wheels
Professional quality grain mill with stainless steel construction throughout
Spend less time waiting and more time brewing! Our commercial-grade mill can process upwards of 650 lbs of grain per hour and features large diameter slotted stainless steel rollers for an excellent crush and long life. The MB Small Commercial Mill brings professional level quality and performance at an affordable price, perfect for nano breweries and homebrew shops that want to offer on-site milling. This mill can easily power through whatever you throw at it, including barley, wheat, rye, and corn.
Differential Roller Speed
Rotating the rollers at different speeds is the key to a superior crush. Standard grain mills rotate the rollers at the same speed, creating a pinch point between them where the grain kernels are cracked open. Although effective, this can often lead to an excess of flour and damaged grain husks. The MB pro mill drives the rollers at different speeds to apply enough force to open the grain kernels as they pass through the rollers without damaging the husk. This action results in a better crush that will improve efficiency and lauter performance.
Slotted Rollers
Many grain mills feature hardened steel knurled rollers due to the lower cost, but they don't provide the best crush possible. Rather than pounding the grain into submission, slotted rollers (also known as fluted rollers) are more effective at shearing the grain husk to expose the endosperm while leaving the hull intact. The rollers are made from steel alloy which are harder and longer lasting than stainless steel.
Professional Quality
The MB Small Commercial Mill is built to last and represents the best value for a commercial mill on the market. The grain chute can hold up to 22.5 lbs of grain and large adjustment wheels make for easy gap adjustments. Stainless steel construction throughout, and anchor holes in the feet allow the unit to be bolted to the ground.
Specifications:
Processing Speed: 330–660 lbs/hr
Hopper Capacity: 22.5 lbs
Voltage: 220V 3-phase motor
Power: 1.4 HP
Amperage: 5 amps
Mill Gap: 0.4mm - 2mm
Mill Roller Size: 155m diameter, 110mm long
Rollers spin at slightly different speeds
Please note: the unit will arrive bare without a power cord, plug, or controls to power the motor on or off. You will need an electrician to wire the appropriate power cord and controls to the motor.
Please Note: This unit REQUIRES 220V Three Phase power and will not function on anything else. Please confirm that you have the proper power for this unit before purchasing, and plan to have a qualified electrician wire the necessary plug to the cord.
Designed by MB's in-house engineers with a focus on cleanability, ease of use, and durability
Made from 304 stainless steel throughout with passivated 2B polished finished on the interior
Sanitary tri-clamp connections from top to bottom with dedicated CIP port, hopping port, and blowoff—all fittings included!
20% extra headspace with a working volume of 2 bbl and max volume of 2.4 bbl
Glycol ready with 2" insulated cooling jacket—click here for the 2 bbl Single Shell Conical
Ships domestically from within the contiguous United States
These heavy-duty Beer Tanks are purpose built for longevity, quality, and cost effectiveness, and boast a hefty list of quality features to ease the brewing process. Starting with High Quality 304 grade stainless steel, this jacketed tank comes ready for glycol cooling. Large 10" T.C. dome top port allows easy access for cleaning and sanitizing, and on top of that, a 1.5" T.C. port allows for the attachment of a CIP spray ball. Useful features such as Blowoff Pipe, Hop Ports and Rotating Racking Arms keep you brewing and fermenting at top efficiency.
The 1 & 2 bbl MB Conicals feature a sealed pressure gauge, as well as plunger-style sample valve to protect against infection.
Great Quality from MB
MB is a brand that we dedicate to crafting and sourcing the equipment pro brewers need to make an exceptional product efficiently and consistently. Our conicals between 1 and 120 bbl are designed by our in-house team of engineers with decades of professional brewing experience. Focusing on cleanability, ease of use, and durability, we’ve made sure our fermenters have the features that modern brewers expect when purchasing a new tank. While some discount dealers chase down bargain priced tanks from a string of manufacturers, we have maintained a long running relationship with a single manufacturer that ensures the quality of our products never wavers.
Great Value from MoreBeer! Pro
If you used MoreBeer! as a homebrewer, you may not know that MoreBeer! & MoreBeer! Pro combined is one of the largest brewing supply companies in the world with over 250,000 customers. We’ve seen countless homebrewers turn pro, and there’s nothing that makes us happier than being a part of that transition. As a privately owned brewing supply company that's been in business for over 25 years, we’ve established relationships with suppliers and manufacturers around the world and at every level of the industry. We get a great price and we pass that on to you.
Features:
304 stainless steel construction
The outer shell is 2 mm thick with a brushed finish
The inner wall is 3 mm thick with smooth ground welds, 2B finish and passivated
Includes a glycol jacket which is dimple welded and 1.5 mm thick
2" of internal insulation between tank and outer jacket
Oversized for 20% headspace
Pressure/Vacuum relief valve 1 Bar / 15 PSI
Pt100 Thermocouple interface
60° conical bottom
Sample valve
Rotating racking arm
Analog temperature gauge
Yeast dump port
Hop port
CIP port
Carb stone
Separate blow-off pipe
Specifications:
Grade 304 Stainless Steel
Internal Finish: #2B
Total Height w/ Blowoff Pipe: 64"
Tank Diameter w/ Fittings: 39"
Empty Weight: 397 lbs
Working Volume: 2 bbl
Max Volume: 2.4 bbls
Working Pressure: 1 Bar (14.5 psi)
Jacket Surface area: 1,188 in² (0.767 m²)
All ports are 1.5" TC except for 12" TC Dome Port, 4" TC Hopping Port, 2" TC Racking Arm, and 1/2" NPT Glycol Ports
Please Contact our Customer Service department at 1-800-600-0033 to assess shipment costs and place an order.
