MB Brewing Systems

This hydrator features a grain input port on the top and a tangential Hot Liquor input. It provides a good initial mix but does not eliminate the need to stir. Hot Liquor input: 1.5” tri-clamp Output: 4" tri-clamp Recommended for 5 to 15 bbl mash tuns

Read more less

Used – Refurbished This unit is used. It has been restored to working order. It will have cosmetic defects and show signs of previous use. It is still covered by our No Hassle Return Policy and 1 Year Warranty Policy. Pumping off the mash tun is the easiest way to collapse the screens. It is recommended that you either put a tee and a vacuum breaker ahead of the pump or run the wort into a grant and pump off the grant. Controlling the pump with restriction, a VFD, or a dual level float switch is ideal. This tall cylindrical grant has three 1.5" tri-clamp ports and a silicone tube for a sight glass. The narrow design helps to reduce surface area and hot side aeration. The inlet and outlet side ports are raised a few inches above the conical dish bottom dump, which helps to separate grain sediment from the wort. 40L / 10.5 gal Made from 304 stainless steel Ships without valves

Read more less

Provides an extra layer of filtration for clearer cold brew Tilting design allows for easy removal of sediment and simplifies cleaning Mobile stainless steel cart with locking wheels for convenient movement The optional filter tank is designed for seamless integration with the MB Cold Brew Coffee System. This unit provides an additional stage of filtration as liquid is transferred from the brewing system to a fermenter or holding tank. It features a removable 6.5-micron filter screen for effective particulate removal. The tank's tiltable design facilitates efficient solid removal and simplifies post-use cleaning. Integrated components include a pressure gauge for monitoring filtration pressure and a tri-clamp sight glass for visual clarity assessment. The filter tank is mounted on a robust stainless steel cart frame equipped with four locking casters, ensuring ease of mobility within your facility. Features: Tiltable filter tank 3mm thick tank body 6.5-micron filter mesh Pressure gauge Sight glass Rolling casters with brakes Tri-clamp fittings included

Read more less

Large infusion basket allows for easy addition of whole hops, fruit, or other flavorings Side outlet port separates sediment, ensuring a cleaner final product Fine mesh screen within the perforated basket maximizes infusion efficiency Infusing hops or fruit has never been easier. This 100L tank has a large basket to hold whole hops, pellet hops, fruit or anything else you need to infuse into your beer. There is a side outlet port above the bottom dump so any sediment is separated. The basket is made from perforated plate with a fine mesh screen. The basket measures 15 Ø x 17.5 tall and holds 13.4 gallons (50L). Specs: Made from 304 stainless steel 26.4 gal (100L) 1.5" tri-clamp ports Fittings included (3) 1.5" Butterfly Valves w/ clamps & gaskets (1) 1.5" T.C. PRV (1 BAR) Please Note: The Hop Back Tank now comes with pull handle butterfly valves rather than the blue plastic trigger handle valves show in the photos.

Read more less

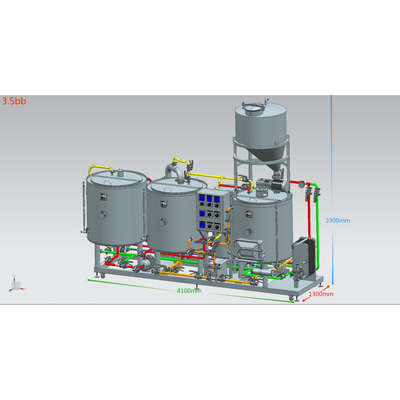

Oil-based brewing system that closely mimics a large-scale steam-powered system Heated oil is circulated around jacketed tanks to heat with a large surface area. All the benefits of steam without the complexity of a steam generator Lower electrical requirement for installation compared to electric brewhouses with immersion elements Insulated vessels for high heating efficiency Compact brewing system with no need for additional electrical controllers, components, or extensive wiring. All pumps, piping, and fittings included No heating elements in direct contact with wort. Zero risk of scorching and easy to clean 1 bbl to 3.5 bbl systems available with or without mash rake. 5 bbl and above come with mash rake as standard 7 bbl systems and above feature a brew deck and CIP ring below the mash tun to clean the underside of the mash screen 2 Vessel systems that do not include an HLT are perfect as a pilot system for larger breweries with hot water readily on hand 208V, 3-phase power is the standard configuration for all systems. Customized power configurations available upon request (see below) For detailed power specs, dimensions, and shipping quotes contact our MoreBeer! Pro sales representatives today! Compared to the traditional steam heating brewhouse, the creative new-tech thermal oil heating avoids the installation of a dangerous and high-maintenance steam boiler. Steam offers more surface area than gas fired, but it requires a generator to create steam, collect it, and reheat it again. Oil heated brewhouses, on the other hand, use a simple oil heater and pump to circulate oil through the tank jackets. Compared to gas fired systems where all heat is directed to the very bottom of the kettle, this system heats from the sides and the bottom rather than the bottom alone. This offers not only greater surface area but faster thermal response. By controlling the oil temperature, you also have more precise boil vigor control and evaporation rate control. For these reasons and more, the Oil Heated Brewhouse makes for an ideal pilot batch system. Control Panel Our control panel features 4 PID controllers for precise control of the Mash, Boil Kettle and Oil temperature. The control panel also features a delayed start timer, allowing you to preheat your HLT overnight so your strike water will be ready when you arrive on brew day. Hard Piped Distribution Manifold With the distribution manifold, the entire brewing process can be completed by simply opening and closing valves. There’s no need to lug around brewery hoses and swap connections from vessel to vessel. This hard piped system is completely self contained with a dedicated pump to move wort from tank to tank as needed. Every step of the brew day is a simple valve turn away. The only hose required is from the brewing system to your fermenter. Once the brew is completed this same piping system is used for CIP and rinsing. Installation The systems are delivered on a skid. Simply, move the skid into place, hook up power and water and a drain and you are ready to clean and brew. Our systems also feature rolling casters for easy installation in your brewery, product pump for recirculation and sparging, hard piped manifold, grain out door on the mash tun, and mounted plate chiller. NOTE: you will also need a separate vessel to feed hot water into the system. The hard plumbed system is very easy to clean and only one hose is required for the whole process. Design Features: Compact design and easy installation Built-in wort pump Built-in 2-stage heat exchanger Hard piped distribution manifold Built-in control panel PID controls for kettle temperatures and oil temperature Slotted Mash Screen Tangential kettle return for whirlpool Built-in CIP Water inlet & hot water drain in 1.5" T.C. Insulated tanks for heat retention and heating efficiency Boil kettle features steam collector which eliminates the need to install a flue in your brewery Hot oil vessel can operate at higher temperatures, that means 25% higher heating efficiency: Oil temperature set at 302°F (150℃) [available up to 572°F (300℃)] from 82°F to 140°F (28°C to 60℃), heat-up time: 20 min from 140°F to 176°F (60°C to 80℃), heat-up time: 20 min from 176°F to 212°F (80°C to 100℃), heat-up time: 30 min Higher heating efficiency compared to steam heating Simultaneous heating of mash tun and kettle to save time 100% 304 Stainless Steel TIG welded tanks Laser welded dimple jacket and tank bottom Manufactured in strictly controlled ISO9001 certified facility 208V, 3-phase power* *MB Stainless offers custom voltage oil systems. 240V single-phase systems available up to 5bbl. MB also produces 480V 3-phase systems in all sizes. Contact our sales representatives for pricing, lead time and delivery information. Food-grade thermal oil not included. We recommend PARATHERM™ MR HTF or an equivalent low odor, food grade, thermal transfer fluid.

Read more less

  The MB Pro Brewhouse features an Electric Boil Kettle, Electric Hot Liquor Tank, and Insulated Mash Tun—all perfectly sized for 7 bbl batches. MB Pro Brewing Systems are very well constructed and represent an amazing overall value. They also boast a very impressive feature set. Great Quality from MB Our brewing systems are made at a family owned manufacturer in the Ningbo region of China. Ningbo is where most premium beer tanks and brewing vessels come from and represents a known style and level of quality when compared to other areas of China. Our professional brewhouse equipment is designed by our in-house R&D designer Colin Kaminski, a former brewmaster for 15 years. Cleanability, ease of use, and durability are our primary design criteria. Our manufacturing partner in China is a father/son team that takes great pride in what they do. Some discount dealers buy from different manufacturers who offer one-off deals. That can be fine one time but not the next. Great Value from MoreBeer! Pro If you used MoreBeer! as a homebrewer, you may not know that MoreBeer! & MoreBeer! Pro combined is one of the largest brewing supply companies in the world with over 250,000 customers. We’ve seen countless homebrewers turn pro, and there’s nothing that makes us happier than being a part of that transition. As a privately owned brewing supply company that's been in business for over 25 years, we’ve established relationships with suppliers and manufacturers around the world and at every level of the industry. We get a great price and we pass that on to you. Please Note: the electric boil kettle and hot liquor tank are supplied without controls for the electric elements. Electric Boil Kettle Our Pro Electric Boil Kettle features three 15,000W heating elements, dedicated tangential whirlpool port, condensation ring, and a host of other key features guaranteed to satisfy the expectations of today's pro brewer. Boil Kettle Features: Insulated walls for safety and energy efficiency Condensation ring to keep flue condensation from entering the boil (Myrcene Ring) Tangential port for whirlpool Side drain with hop dam for easy whirlpooling and good trub separation Dished bottom with 2" center drain for easy trub clean up Fill Port for adding dilution water Float Switch to protect the electric elements from running dry (wiring required) Powered by (3) 15,000-watt 3-phase 208V elements Total Amperage Draw: 125 amps at 3ph 208V The kettle must be grounded PT100 Temp Sender Analog Temp Gauge for quick reading CIP Ball Glass Manway Door Internal LED Light Boil Kettle Specifications: Grade 304 Stainless Steel Internal Finish: #2B Tank Height: 71" Tank Diameter: 50" Empty Weight: 705 lbs Working Volume: 7 bbl Max Volume: 9.9 bbl All ports are 1.5" TC except for DN400 Manway, DN219 Vent Port, DN80 LED Light Port, 2" TC Drain Outlet, 2" TC Element Ports Electric Hot Liquor Tank Our Pro Electric Hot Liquor Tank features three 15,000W heating elements, insulated walls for energy efficiency, condensation ring, and a host of other key features guaranteed to satisfy the expectations of today's pro brewer. A float switch is pre-installed just above the heating elements, which is intended to protect your elements from running dry. The device comes unwired and needs to be included in a circuit in order to function. HLT Features: Oversized to allow mashing and sparging without having to top off Insulated walls for safety and energy efficiency Condensation Trap so no flue is used Sight Gauge to check volume Fill Port Tapered Bottom w/ Center Drain Float Switch to protect the electric elements from running dry (wiring required) Powered by (3) 15,000-watt 3-phase 208V elements Total Amperage Draw: 125 amps at 3ph 208V The kettle must be grounded PT100 Temp Sender Analog Temp Gauge for quick reading Internal LED Light HLT Specifications: Grade 304 Stainless Steel Internal Finish: #2B Tank Height: 83" Tank Diameter: 48" Empty Weight: 660 lbs Working Volume: 9 bbl Max Volume: 10.4 bbl All ports are 1.5" TC except for DN350 Manway, DN19 Condensation Pipe, 4" TC CIP Port, 2" TC Element Ports, 4" Welded Vent Insulated Mash Tun Our Pro Insulated Mash Tun features slotted 3-piece false bottom, adjustable-height sparge arm, 4" TC port for optional grist hydrator, and a host of other key features guaranteed to satisfy the expectations of today's pro brewer. The mash tun has a slotted plate screen with a large grain out port on the side. The optional hydrator allows you to mix grain with hot liquor if you have your mill or grist case above the mash tun. There is a large top access for manual stirring. The walls of the mash tun are insulated to provide stable mashing temperatures. While intended for a single infusion mash, step mashing can be performed by recirculating through a heat exchanger. The sparge arm is adjustable in height and it is intended to have an inch of water above the grain and have the bottom of the diverted plate resting on top of the grain for low oxygen pickup during recirculating and sparging. We recommend that you use a grant to avoid creating suction on the bottom of the mash screen. It is possible to pull 23,000 lbs of force on the screen with a pump and a fully stuck mash and even partial vacuums can produce significant force. Alternatively, you can install a vacuum breaker ahead of the pump. Replacement screens are available for special order. Mash Tun Features: Insulated for low heat loss Slotted 3 pieces false bottom Large side grain out door Removable grain out chute 4" TC grain inlet port for optional grist hydrator Adjustable Height Sparge Arm for better HSA performance Sparge Arm has two inlets, HLT and Recirculation. Large top lid for easy stirring PT100 Probe Analog Temp Gauge 450+ lbs Grain Capacity Internal LED Light A 115V Circuit is required for the Mash Rake Notes Regarding Mash Rake & Plow System The motor comes un-wired. We recommend having an electrician install a reversing motor control in a remote location Raise the plow blade before mashing When it is time to grain out the blade is released onto the top of the mash and allowed to scrape from the top down to the false bottom The rakes are reversed for mashing out The CIP back flush under the screens is accessed by pumping into the inner ring under the mash. This should be closed while mashing The center pipe and outer ring are for wort collection and should be connected to the wort receiver There is a wort return port for recirculation There is a non-adjustable sparge ring for sparge/lauter For more information regarding setup, click here. Mash Tun Specifications: Grade 304 Stainless Steel Internal Finish: #2B Tank Height: 59" Height w/ Hydrator: 75" Tank Diameter: 50" Empty Weight: 925 lbs Working Volume: 7 bbl Max Volume: 9 bbl Manway: 20.8" x 16.9" All ports are 1.5" TC except for 4" TC Sparge Arm Port, 4" TC Grist Hydrator Port, DN80 LED Light Port Please note: the primary image shows the mash tun with optional grist hydrator (sold separately). Power requirements listed represent actual amperage draw.  Please consult a licensed electrician to determine what amperage breaker is required based on your local codes. Please Note: This item requires a professional electrician for installation.  Please Contact our Customer Service department at 1-800-600-0033 to assess shipment costs and place an order.

Read more less

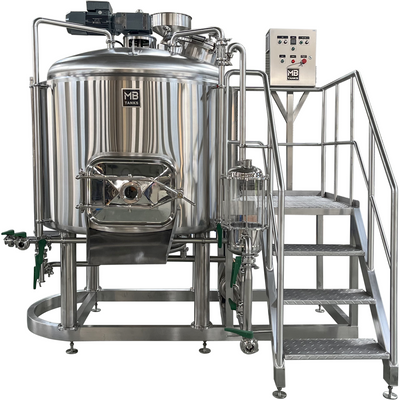

Complete electric brewhouse with electric boil kettle & hot liquor tank and insulated mash tun Boil kettle features a tangential whirlpool port, myrcene ring to keep flue condensation from entering the boil, glass manway door, and insulated walls for heating efficiency Oversized HLT large enough for mashing and sparging without needing to top off. Features sight gauge and tapered bottom with center drain Insulated mash tun features a slotted 3-piece false bottom, adjustable height sparge arm, and large grain out manway door with removable chute All tanks ship domestically from within the contiguous United States The MB Pro Brewhouse features an Electric Boil Kettle, Electric Hot Liquor Tank, and Insulated Mash Tun—all perfectly sized for 7 bbl batches. MB Pro Brewing Systems are very well constructed and represent an amazing overall value. They also boast a very impressive feature set. Great Quality from MB Our brewing systems are made at a family owned manufacturer in the Ningbo region of China. Ningbo is where most premium beer tanks and brewing vessels come from and represents a known style and level of quality when compared to other areas of China. Our professional brewhouse equipment is designed by our in-house R&D designer Colin Kaminski, a former brewmaster for 15 years. Cleanability, ease of use, and durability are our primary design criteria. Our manufacturing partner in China is a father/son team that takes great pride in what they do. Some discount dealers buy from different manufacturers who offer one-off deals. That can be fine one time but not the next. Great Value from MoreBeer! Pro If you used MoreBeer! as a homebrewer, you may not know that MoreBeer! & MoreBeer! Pro combined is one of the largest brewing supply companies in the world with over 250,000 customers. We’ve seen countless homebrewers turn pro, and there’s nothing that makes us happier than being a part of that transition. As a privately owned brewing supply company that's been in business for over 25 years, we’ve established relationships with suppliers and manufacturers around the world and at every level of the industry. We get a great price and we pass that on to you. Please Note: the electric boil kettle and hot liquor tank are supplied without controls for the electric elements. You will need to supply your own control panel. Electric Boil Kettle Our Pro Electric Boil Kettle features three 15,000W heating elements, dedicated tangential whirlpool port, condensation ring, and a host of other key features guaranteed to satisfy the expectations of today's pro brewer. Boil Kettle Features: Insulated walls for safety and energy efficiency Condensation ring to keep flue condensation from entering the boil (Myrcene Ring) Tangential port for whirlpool Side drain with hop dam for easy whirlpooling and good trub separation Dished bottom with 2" center drain for easy trub clean up Fill Port for adding dilution water Float Switch to protect the electric elements from running dry (wiring required) Powered by (3) 15,000-watt 3-phase 208V elements Total Amperage Draw: 125 amps at 3ph 208V The kettle must be grounded PT100 Temp Sender Analog Temp Gauge for quick reading CIP Ball Glass Manway Door Internal LED Light Boil Kettle Specifications: Grade 304 Stainless Steel Internal Finish: #2B Tank Height: 71" Tank Diameter: 50" Empty Weight: 705 lbs Working Volume: 7 bbl Max Volume: 9.9 bbl All ports are 1.5" TC except for DN400 Manway, DN219 Vent Port, DN80 LED Light Port, 2" TC Drain Outlet, 2" TC Element Ports Electric Hot Liquor Tank Our Pro Electric Hot Liquor Tank features three 15,000W heating elements, insulated walls for energy efficiency, condensation ring, and a host of other key features guaranteed to satisfy the expectations of today's pro brewer. A float switch is pre-installed just above the heating elements, which is intended to protect your elements from running dry. The device comes unwired and needs to be included in a circuit in order to function. HLT Features: Oversized to allow mashing and sparging without having to top off Insulated walls for safety and energy efficiency Condensation Trap so no flue is used Sight Gauge to check volume Fill Port Tapered Bottom w/ Center Drain Float Switch to protect the electric elements from running dry (wiring required) Powered by (3) 15,000-watt 3-phase 208V elements Total Amperage Draw: 125 amps at 3ph 208V The kettle must be grounded PT100 Temp Sender Analog Temp Gauge for quick reading Internal LED Light HLT Specifications: Grade 304 Stainless Steel Internal Finish: #2B Tank Height: 83" Tank Diameter: 48" Empty Weight: 660 lbs Working Volume: 9 bbl Max Volume: 10.4 bbl All ports are 1.5" TC except for DN350 Manway, DN19 Condensation Pipe, 4" TC CIP Port, 2" TC Element Ports, 4" Welded Vent Insulated Mash Tun Our Pro Insulated Mash Tun features slotted 3-piece false bottom, adjustable-height sparge arm, 4" TC port for optional grist hydrator, and a host of other key features guaranteed to satisfy the expectations of today's pro brewer. The mash tun has a slotted plate screen with a large grain out port on the side. The optional hydrator allows you to mix grain with hot liquor if you have your mill or grist case above the mash tun. There is a large top access for manual stirring. The walls of the mash tun are insulated to provide stable mashing temperatures. While intended for a single infusion mash, step mashing can be performed by recirculating through a heat exchanger. The sparge arm is adjustable in height and it is intended to have an inch of water above the grain and have the bottom of the diverted plate resting on top of the grain for low oxygen pickup during recirculating and sparging. We recommend that you use a grant to avoid creating suction on the bottom of the mash screen. It is possible to pull 23,000 lbs of force on the screen with a pump and a fully stuck mash and even partial vacuums can produce significant force. Alternatively, you can install a vacuum breaker ahead of the pump. Replacement screens are available for special order. Mash Tun Features: Insulated for low heat loss Slotted 3 pieces false bottom Large side grain out door Removable grain out chute 4" TC grain inlet port for optional grist hydrator Adjustable Height Sparge Arm for better HSA performance Sparge Arm has two inlets, HLT and Recirculation. Large top lid for easy stirring PT100 Probe Analog Temp Gauge 450+ lbs Grain Capacity Internal LED Light Mash Tun Specifications: Grade 304 Stainless Steel Internal Finish: #2B Tank Height: 59" Height w/ Hydrator: 75" Tank Diameter: 50" Empty Weight: 925 lbs Working Volume: 7 bbl Max Volume: 9 bbl Manway: 20.8" x 16.9" All ports are 1.5" TC except for 4" TC Sparge Arm Port, 4" TC Grist Hydrator Port, DN80 LED Light Port Please note: the primary image shows the mash tun with optional grist hydrator (sold separately). Power requirements listed represent actual amperage draw.  Please consult a licensed electrician to determine what amperage breaker is required based on your local codes. Please Note: This item requires a professional electrician for installation.  Please Contact our Customer Service department at 1-800-600-0033 to assess shipment costs and place an order.

Read more less

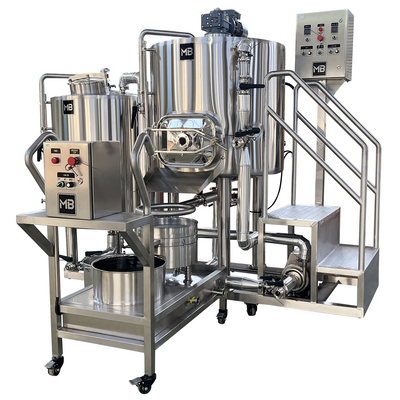

Complete electric brewhouse with electric boil kettle & hot liquor tank and insulated mash tun Boil kettle features a tangential whirlpool port, myrcene ring to keep flue condensation from entering the boil, glass manway door, and insulated walls for heating efficiency Oversized HLT large enough for mashing and sparging without needing to top off. Features sight gauge and tapered bottom with center drain Insulated mash tun features a slotted 3-piece false bottom, adjustable height sparge arm, and large grain out manway door with removable chute All tanks ship domestically from within the contiguous United States The MB Pro Brewhouse features an Electric Boil Kettle, Electric Hot Liquor Tank, and Insulated Mash Tun—all perfectly sized for 3.5 bbl batches. MB Pro Brewing Systems are very well constructed and represent an amazing overall value. They also boast a very impressive feature set. Great Quality from MB Our brewing systems are made at a family owned manufacturer in the Ningbo region of China. Ningbo is where most premium beer tanks and brewing vessels come from and represents a known style and level of quality when compared to other areas of China. Our professional brewhouse equipment is designed by our in-house R&D designer Colin Kaminski, a former brewmaster for 15 years. Cleanability, ease of use, and durability are our primary design criteria. Our manufacturing partner in China is a father/son team that takes great pride in what they do. Some discount dealers buy from different manufacturers who offer one-off deals. That can be fine one time but not the next. Great Value from MoreBeer! Pro If you used MoreBeer! as a homebrewer, you may not know that MoreBeer! & MoreBeer! Pro combined is one of the largest brewing supply companies in the world with over 250,000 customers. We’ve seen countless homebrewers turn pro, and there’s nothing that makes us happier than being a part of that transition. As a privately owned brewing supply company that's been in business for over 25 years, we’ve established relationships with suppliers and manufacturers around the world and at every level of the industry. We get a great price and we pass that on to you. Please Note: the electric boil kettle and hot liquor tank are supplied without controls for the electric elements. You will need to supply your own control panel. Electric Boil Kettle Our Pro Electric Boil Kettle features three 9,000W heating elements, dedicated tangential whirlpool port, condensation ring, and a host of other key features guaranteed to satisfy the expectations of today's pro brewer. Boil Kettle Features: Insulated walls for safety and energy efficiency Condensation ring to keep flue condensation from entering the boil (Myrcene Ring) Tangential port for whirlpool Side drain with hop dam for easy whirlpooling and good trub separation Dished bottom with 2" center drain for easy trub clean up Fill Port for adding dilution water Float Switch to protect the electric elements from running dry (wiring required) Powered by (3) 9,000-watt 3-phase 208V elements Total Amperage Draw: 75 amps at 3ph 208V The kettle must be grounded PT100 Temp Sender Analog Temp Gauge for quick reading CIP Ball Glass Manway Door Internal LED Light Boil Kettle Specifications: Grade 304 Stainless Steel Internal Finish: #2B Tank Height: 54" Tank Diameter: 41" Empty Weight: 360 lbs Working Volume: 3.5 bbl Max Volume: 5.1 bbl All ports are 1.5" TC except for DN350 Manway, DN219 Vent Port, DN80 LED Light Port, 2" TC Drain Outlet, 2" TC Element Ports Electric Hot Liquor Tank Our Pro Electric Hot Liquor Tank features three 9,000W heating elements, insulated walls for energy efficiency, condensation ring, and a host of other key features guaranteed to satisfy the expectations of today's pro brewer. A float switch is pre-installed just above the heating elements, which is intended to protect your elements from running dry. The device comes unwired and needs to be included in a circuit in order to function. HLT Features: Oversized to allow mashing and sparging without having to top off Insulated walls for safety and energy efficiency Condensation Trap so no flue is used Sight Gauge to check volume Fill Port Tapered Bottom w/ Center Drain Float Switch to protect the electric elements from running dry (wiring required) Powered by (3) 9,000-watt 3-phase 208V elements Total Amperage Draw: 75 amps at 3ph 208V The kettle must be grounded PT100 Temp Sender Analog Temp Gauge for quick reading Internal LED Light HLT Specifications: Grade 304 Stainless Steel Internal Finish: #2B Tank Height: 61" Tank Diameter: 47" Empty Weight: 375 lb Working Volume: 4.5 bbl Max Volume: 5.1 bbl All ports are 1.5" TC except for DN350 Manway, DN19 Condensation Pipe, 4" TC CIP Port, 2" TC Element Ports, 4" Welded Vent Insulated Mash Tun Our Pro Insulated Mash Tun features slotted 3-piece false bottom, adjustable-height sparge arm, 4" TC port for optional grist hydrator, and a host of other key features guaranteed to satisfy the expectations of today's pro brewer. The mash tun has a slotted plate screen with a large grain out port on the side. The optional hydrator allows you to mix grain with hot liquor if you have your mill or grist case above the mash tun. There is a large top access for manual stirring. The walls of the mash tun are insulated to provide stable mashing temperatures. While intended for a single infusion mash, step mashing can be performed by recirculating through a heat exchanger. The sparge arm is adjustable in height and it is intended to have an inch of water above the grain and have the bottom of the diverted plate resting on top of the grain for low oxygen pickup during recirculating and sparging. We recommend that you use a grant to avoid creating suction on the bottom of the mash screen. It is possible to pull 23,000 lbs of force on the screen with a pump and a fully stuck mash and even partial vacuums can produce significant force. Alternatively, you can install a vacuum breaker ahead of the pump. Replacement screens are available for special order. Mash Tun Features: Insulated for low heat loss Slotted 3 pieces false bottom Large side grain out door Removable grain out chute 4" TC grain inlet port for optional grist hydrator Adjustable Height Sparge Arm for better HSA performance Sparge Arm has two inlets, HLT and Recirculation. Large top lid for easy stirring PT100 Probe Analog Temp Gauge 250+ lbs Grain Capacity Internal LED Light Mash Tun Specifications: Grade 304 Stainless Steel Internal Finish: #2B Tank Height: 56" Height w/ Hydrator: 72" Tank Diameter: 41" Empty Weight: 360 lbs Working Volume: 3.5 bbl Max Volume: 4.6 bbl Manway: 20.8" x 16.9" All ports are 1.5" TC except for 4" TC Sparge Arm Port, 4" TC Grist Hydrator Port, DN80 LED Light Port Please note: the primary image shows the mash tun with optional grist hydrator (sold separately). Power requirements listed represent actual amperage draw.  Please consult a licensed electrician to determine what amperage breaker is required based on your local codes. Please Note: This item requires a professional electrician for installation.  Please Contact our Customer Service department at 1-800-600-0033 to assess shipment costs and place an order.
