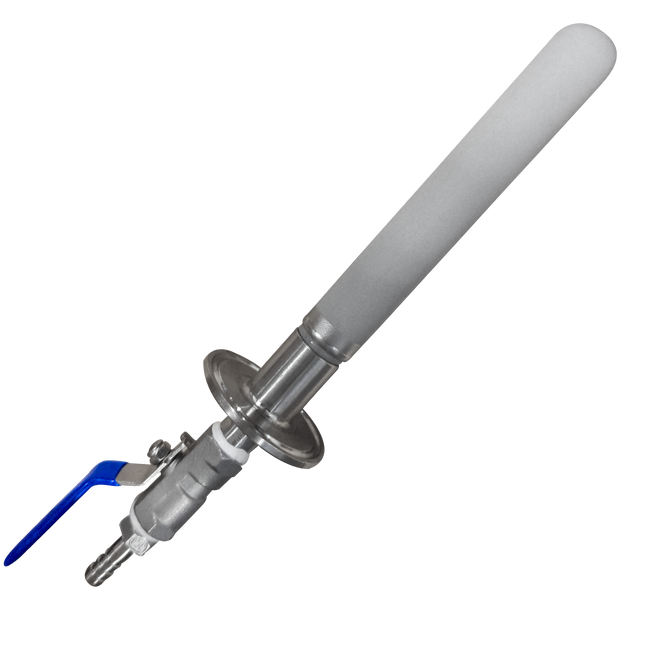

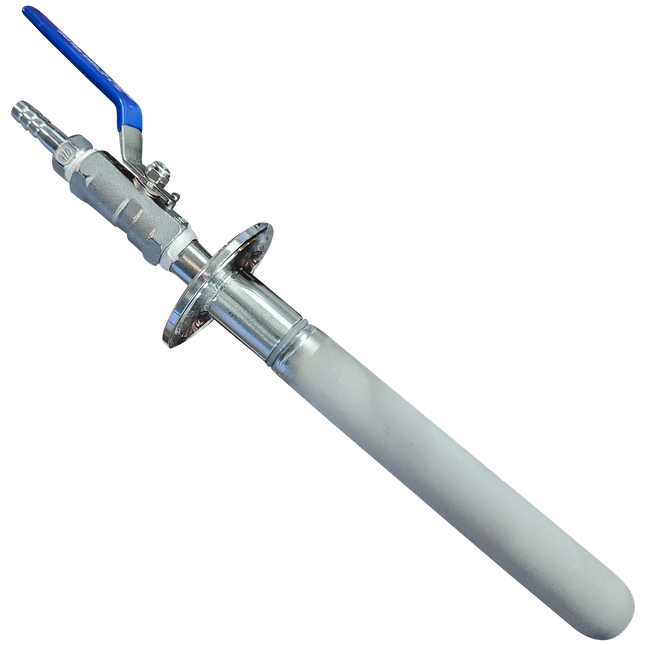

Replacement 1.5" T.C. carbonation stone for MB conical fermenters and brite tanks.
Specifications:
2 micron
Overall Length: 17.7"
Stone Length: 9.8"
Single-piece design
Made from Titanium
Please Note: As the stone is made from titanium, it is intended for carbonation only and should not be used for oxygenation. Use with oxygen can make the titanium become brittle and prone to cracking.
Sanitary sample valve ideal for active fermentations as it has no pockets to trap fermenting wort
Easy twist-to-open handle is much easier to operate than standard plunger style sample valves
Disassembles quickly for cleaning between uses
Direct replacement for MB conical fermenters & brite tanks and compatible with any fermenter with 1.5" T.C. port
Nozzle mount for use with a pigtail sample coil to pour samples of carbonated beer
Look no further, this is a perfectly engineered 1.5" TC sample valve! With an easy twist to open handle and quick diassembly, this valve provides ease and convenience. Can be used on any fermenters 1.5" TC port.
This 304 stainless steel valve is perfect for active fermentations. It has no pockets to trap fermenting wort. It is very easy to disassemble and clean. It features a mount for a pigtail or a CO2 checker.
This is the recommended replacement sample valve for MB conical fermenters and brite tanks.
This is the modern copy of the old 1/4" Turn Valves (Zwickle). It has a ledge to attach a pigtail or a CO2 checker. The valve is designed to clean in place as long as the valve remains open for the cleaning cycle.
Note: The valve has a small pocket in the moving part that traps wort when closed so we don't recomend these for active fermentations.
This is a replacement option for the sample valve for MB conical fermenters and brite tanks.
Made from a brand new 15.5 gal. keg with a 4" tri-clamp opening 1" yeast piping for easily moving dense yeast Includes two 1.5" tri-clamp butterfly valves at the inlet and outlet Adjustable PRV for lowering pressure for long term storage 15.5 gal size, perfect for up to 10 bbl batches The MoreBeer! Pro Yeast Brink is made with pro brewers in mind brewing up to 10 barrel batches. The yeast piping gives you a 1" passage to the bottom of a keg to make moving even the thickest yeasts a breeze. There is an adjustable PRV in case you need to lower the pressure for long term storage. The yeast piping is welded into the keg 4" TC keg lid, making for quick and easy inspecting and cleaning. The dip tube is about an inch from the bottom of the keg to help keep non-yeast solids that separate out from transferring with your repitch. 1/2 bbl is perfect for up to a 10 bbl batch with most yeasts. Also available in 1/4 bbl size for up to 5 bbl batches and 1 bbl size for up to 20 bbl batches. Pro tip: If you align one valve handle 90 degrees to the other you won't forget which side is IN or OUT. If you do forget, with the PRV on the back side, the left side is the IN and the right side is the OUT.
Replacement cup gasket is for the ForgeFit® Sanitary Sample Valve.
This is the recommended replacement part for the sample valve on MB conical fermenters and brite tanks.
Material: EPDM
Butterfly valves have the distinct advantage over ball valves in that they won't trap wort inside. They are the most sanitary valve you can ask for and are easy to clean in place. 2" tri-clamp.
These valves are a direct replacement of the butteryfly valves that come on MB conical fermenters and brite tanks.
Made from a brand new 7.75 gal. keg with a 4" tri-clamp opening 1" yeast piping for easily moving dense yeast Includes two 1.5" tri-clamp butterfly valves at the inlet and outlet Adjustable PRV for lowering pressure for long term storage 7.75 gal size, perfect for up to 5 bbl batches The MoreBeer! Pro Yeast Brink is made with pro brewers in mind brewing up to 5 barrel batches. The yeast piping gives you a 1" passage to the bottom of a keg to make moving even the thickest yeasts a breeze. There is an adjustable PRV in case you need to lower the pressure for long term storage. The yeast piping is welded into the keg 4" TC keg lid, making for quick and easy inspecting and cleaning. The dip tube is about an inch from the bottom of the keg to help keep non-yeast solids that separate out from transferring with your repitch. 1/4 bbl is perfect for up to a 5 bbl batch with most yeasts. Also available in 1/2 bbl size for up to 10 bbl batches and 1 bbl size for up to 20 bbl batches. Pro tip: If you align one valve handle 90 degrees to the other you won't forget which side is IN or OUT. If you do forget, with the PRV on the back side, the left side is the IN and the right side is the OUT.
This hop port cover is intended for use with MB conical fermenters. Features a welded hook on the underside to hang bagged flavoring additions and a welded handle on top for easy removal.
Made from 304 stainless steel.
This hydrator features a grain input port on the top and a tangential Hot Liquor input. It provides a good initial mix but does not eliminate the need to stir.
Hot Liquor input: 1.5” tri-clamp
Output: 4" tri-clamp
Recommended for 5 to 15 bbl mash tuns
This Reactor Rod was custom built to be used with the 1 bbl MoreBeer! Pro Conical Fermenter, but can easily be integrated to other vessels with a 4" tri-clamp top port. Unlike other in-solution cooling coils on the market, the Reactor Rod utilizes a straight vertical design. Without all the curves and bends of a cooling coil, it is easier to scrub and sanitize the unit prior to setup and after use. The four cooling rods are 32" long measured from the bottom of the T.C. fitting.
Made from a brand new 1 bbl keg with a 4" tri-clamp opening 1" yeast piping for easily moving dense yeast Includes two 1.5" tri-clamp butterfly valves at the inlet and outlet Adjustable PRV for lowering pressure for long term storage 1 bbl size, perfect for up to 20 bbl batches The MoreBeer! Pro Yeast Brink is made with pro brewers in mind brewing up to 20 barrel batches. The yeast piping gives you a 1" passage to the bottom of a keg to make moving even the thickest yeasts a breeze. There is an adjustable PRV in case you need to lower the pressure for long term storage. The yeast piping is welded into the keg 4" TC keg lid, making for quick and easy inspecting and cleaning. The dip tube is about an inch from the bottom of the keg to help keep non-yeast solids that separate out from transferring with your repitch. To make it easier to move the yeast brink around the brewery consider a keg cart. Also available in 1/4 bbl size for up to 5 bbl batches and 1/2 bbl size for up to 10 bbl batches. Pro tip: If you align one valve handle 90 degrees to the other you won't forget which side is IN or OUT. If you do forget, with the PRV on the back side, the left side is the IN and the right side is the OUT.
This Reactor Rod was custom built to be used with the 2 bbl MB Conical Fermenter, but can easily be integrated to other vessels with a 4" tri-clamp top port. Unlike other in-solution cooling coils on the market, the Reactor Rod utilizes a straight vertical design. Without all the curves and bends of a cooling coil, it is easier to scrub and sanitize the unit prior to setup and after use. The four cooling rods are 41" long measured from the bottom of the T.C. fitting.

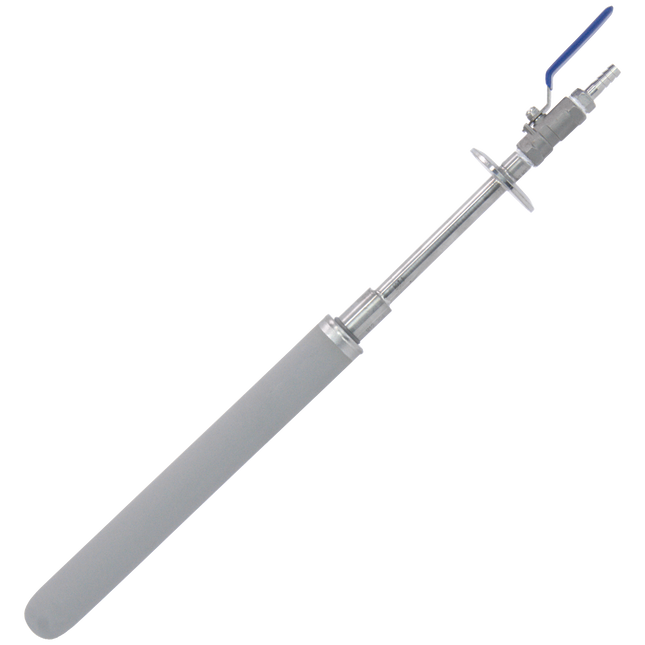

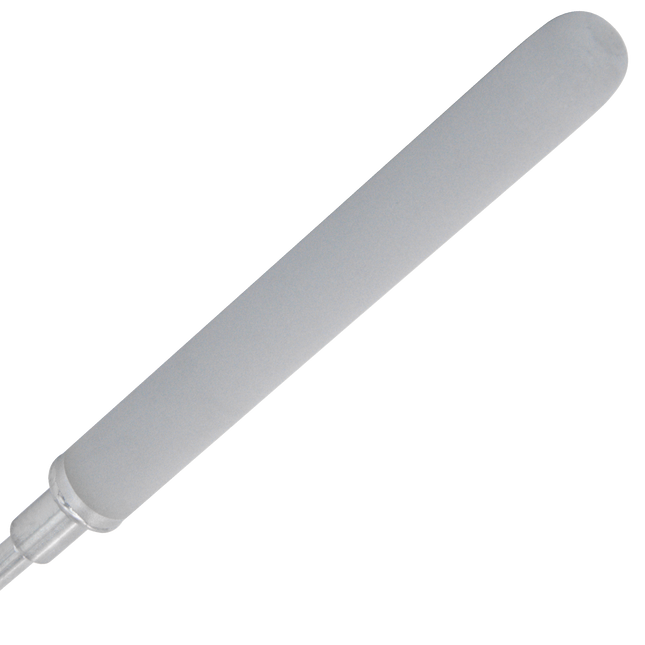

Extra-large carbonation stone sized for 60 bbl fermenters and above
Quickly carbonate finished beer in any stainless fermenter or brite tank with 3" tri-clamp connection
Welded 1/2" FPT connection point feeds CO2 through the 17.75" long stone
Made from stainless steel
The MB carbonation stone can connect to any stainless fermenter or brite tank with 3" T.C. connection. The ferrule has a 1/2" female pipe thread connection point for your gas line. The overall length from the T.C. ferrule to the tip of the stone is 27.5" long with the stone section itself being approximately 17.75" in length.
Specifications:
2 micron
Overall Length: 27.5"
Stone Length: 17.75"
Single-piece design
Made from Stainless Steel
