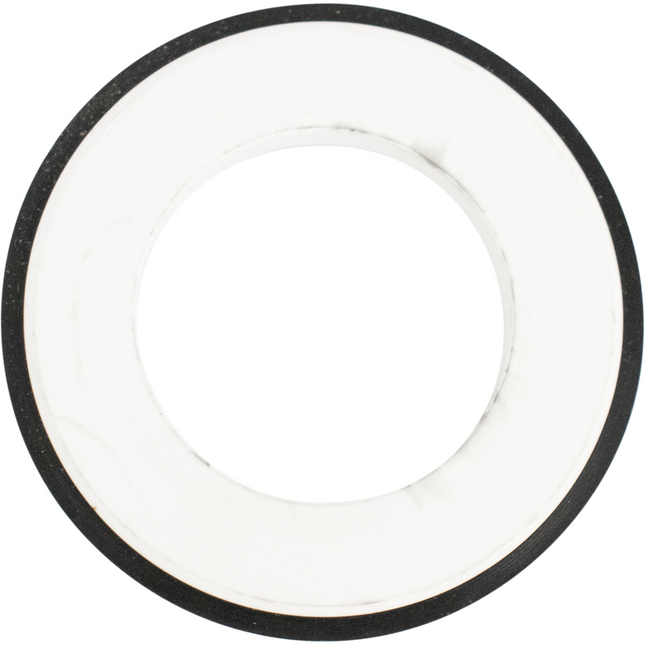

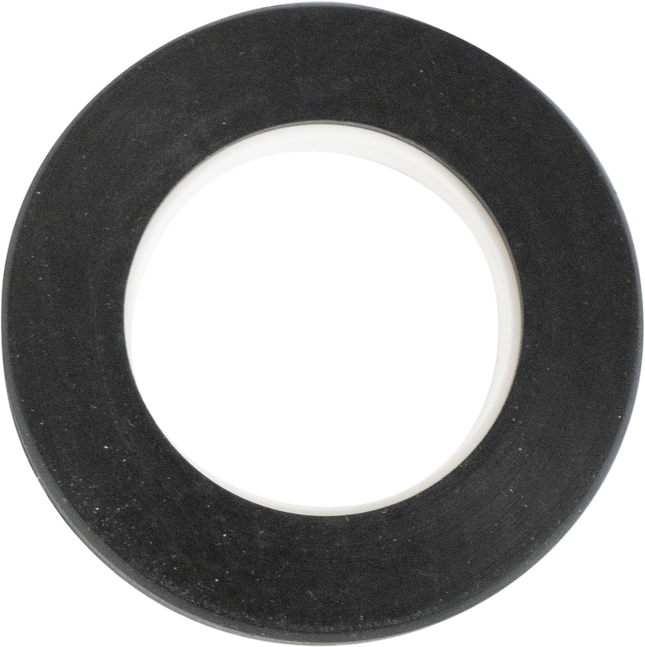

Set of Body Seal and Mechanical Seal needed to completely rebuild the pump head. We recommend changing these out at the same time you change your impeller (PMP200A).
Connect these pumps up to an air compressor and you get a gentle transfer solution at a very reasonable price. Flow rates are variable by regulating the inlet air pressure at the compressor and/or by applying back pressure with a ball valve.
We offer two styles of this pump, with either a polypropylene body or stainless steel body. Both styles feature a food grade Santoprene diaphragm. The Polypropylene pumps are available in 3/8", 1/2" and 1" Female Pipe Thread inlet / outlet; the Stainless Steel pumps are available in 1/2" and 1". Stainless Steel adapters to common barb sizes and to Tri-Clover style fittings are available. 1" models offer a Max Flow Rate of 53gpm and a Max Inlet Pressure of 120psi (8.3bar). Please see the specs below for information on this particular model.
Manufactured by ARO. Smaller and larger sizes are available, please call 1-800-600-0033 or e-mail support@moreflavor.com for more information.
Does not include air compressor or regulator
Construction Of H367E:
Specifications:
Stainless Steel outer Body
Black Polypropylene Center
Stainless Steel Hardware
Stainless Steel Seats
Santoprene Ball & Diaphragm
Maximum Air Inlet Pressure .............. 120 p.s.i.g. (8.3 bar)
Maximum Material Inlet Pressure ....... 10 p.s.i.g. (0.69 bar)
Maximum Outlet Pressure ................ 120 p.s.i.g. (8.3 bar)
Air Consumption @ 40 p.s.i. .............. 1 c.f.m. / gallon (approx.)
Maximum Flow Rate (flooded inlet) .... 52.2 g.p.m. (197.6 L.p.m.)
Displacement / Cycle @100 p.s.i. ......... 0.232 gal (0.88 lit)
Maximum Particle Size .................... 1/8" dia. (3.2 mm)
Maximum Temperature Limits ........... 35 to 150 F (2 to 66 C)
Noise Level @ 70 p.s.i., 60 c.p.m. ...... 80.6 db(A)
Dimensions .................................... 12 11/32" W x 12 7/16" H x 11 3/32" D
Connect these pumps up to an air compressor and you get a gentle transfer solution at a very reasonable price. Flow rates are variable by regulating the inlet air pressure at the compressor and/or by applying back pressure with a ball valve.
We offer two styles of this pump, with either a polypropylene body or stainless steel body. Both models feature a Santoprene diaphragm. The Polypropylene pumps are available in 3/8", 1/2" and 1" Female Pipe Thread inlet / outlet; the Stainless Steel pumps are available in 1/2" and 1". Stainless Steel adapters to common barb sizes and to Tri-Clover style fittings are available. 1" models offer a Max Flow Rate of 53gpm and a Max Inlet Pressure of 120psi (8.3bar). Please see the specs below for information on this particular model.
Manufactured by ARO. Smaller and larger sizes are available, please call 1-800-600-0033 or e-mail support@moreflavor.com for more information.
Does not include air compressor or regulator
Specifications:
Maximum Air Inlet Pressure .............. 100 p.s.i.g. (6.9 bar)
Maximum Material Inlet Pressure ....... 10 p.s.i.g. (0.69 bar)
Maximum Outlet Pressure ................ 100 p.s.i.g. (6.9 bar)
Air Consumption @ 40 p.s.i. .............. 1 c.f.m. / gallon (approx.)
Maximum Flow Rate (flooded inlet) .... 12 g.p.m. (45.4 L.p.m.)
Displacement / Cycle @100 p.s.i. ......... 0.039 gal (0.15 lit)
Maximum Particle Size .................... 3/32" dia. (2.4 mm)
Maximum Temperature Limits ........... 35 to 150 F (2 to 66 C)
Noise Level @ 70 p.s.i., 60 c.p.m. ...... 75 db(A)
Dimensions .................................... 7 11/16" W x 11 21/32" H x 6 23/32" D
Connect these pumps up to an air compressor and you get a gentle transfer solution at a very reasonable price. Flow rates are variable by regulating the inlet air pressure at the compressor and/or by applying back pressure with a ball valve.
We offer two styles of this pump, with either a polypropylene body or stainless steel body. Both models feature a Santoprene diaphragm. The Polypropylene pumps are available in 3/8", 1/2" and 1" Female Pipe Thread inlet / outlet; the Stainless Steel pumps are available in 1/2" and 1". Stainless Steel adapters to common barb sizes and to Tri-Clover style fittings are available. 1" models offer a Max Flow Rate of 53gpm and a Max Inlet Pressure of 120psi (8.3bar). Please see the specs below for information on this particular model.
Manufactured by ARO. Smaller and larger sizes are available, please call 1-800-600-0033 or e-mail support@moreflavor.com for more information.
Does not include air compressor or regulator
Specifications:
Maximum Air Inlet Pressure .............. 100 p.s.i.g. (6.9 bar)
Maximum Material Inlet Pressure ....... 10 p.s.i.g. (0.69 bar)
Maximum Outlet Pressure ................ 100 p.s.i.g. (6.9 bar)
Air Consumption @ 40 p.s.i. .............. 1 c.f.m. / gallon (approx.)
Maximum Flow Rate (flooded inlet) .... 14.4 g.p.m. (54.5 l.p.m.)
Displacement / Cycle @100 p.s.i. ......... 0.039 gallons (0.15 lit.)
Maximum Particle Size .................... 3/32" dia. (2.4 mm)
Maximum Temperature Limits ........... 35 to 150 F (2 to 66 C)
Noise Level @ 70 p.s.i., 60 c.p.m. ...... 75.0 db(A)
Dimensions .................................... 10" W x 10 7/8" H x 6 23/32" D
