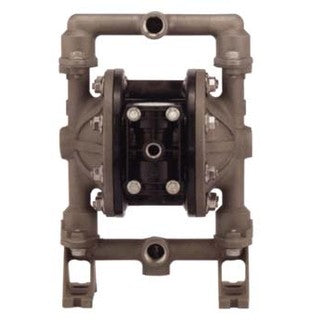

Air Driven Diaphragm Pump (1/2") Stainless Steel

    Description

    Connect these pumps up to an air compressor and you get a gentle transfer solution at a very reasonable price. Flow rates are variable by regulating the inlet air pressure at the compressor and/or by applying back pressure with a ball valve.

    We offer two styles of this pump, with either a polypropylene body or stainless steel body. Both models feature a Santoprene diaphragm. The Polypropylene pumps are available in 3/8", 1/2" and 1" Female Pipe Thread inlet / outlet; the Stainless Steel pumps are available in 1/2" and 1". Stainless Steel adapters to common barb sizes and to Tri-Clover style fittings are available. 1" models offer a Max Flow Rate of 53gpm and a Max Inlet Pressure of 120psi (8.3bar). Please see the specs below for information on this particular model.

    Manufactured by ARO. Smaller and larger sizes are available, please call 1-800-600-0033 or e-mail support@moreflavor.com for more information.

    Does not include air compressor or regulator

    Specifications:

    • Maximum Air Inlet Pressure .............. 100 p.s.i.g. (6.9 bar)
    • Maximum Material Inlet Pressure ....... 10 p.s.i.g. (0.69 bar)
    • Maximum Outlet Pressure ................ 100 p.s.i.g. (6.9 bar)
    • Air Consumption @ 40 p.s.i. .............. 1 c.f.m. / gallon (approx.)
    • Maximum Flow Rate (flooded inlet) .... 12 g.p.m. (45.4 L.p.m.)
    • Displacement / Cycle @100 p.s.i. ......... 0.039 gal (0.15 lit)
    • Maximum Particle Size .................... 3/32" dia. (2.4 mm)
    • Maximum Temperature Limits ........... 35 to 150 F (2 to 66 C)
    • Noise Level @ 70 p.s.i., 60 c.p.m. ...... 75 db(A)
    • Dimensions .................................... 7 11/16" W x 11 21/32" H x 6 23/32" D

    Air Driven Diaphragm Pump (1/2") Stainless Steel

      Product form

      SKU: PMP430

      <p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

      $2,299.99

      Shipping
      Free Shipping*
      Shipping
      Paid Shipping
      Drop Ship
      Drop Ship
      Discount Exclusion
      Discount Exclusion
      Freight
      Freight Only
      Pre-book
      Pre Order

        Prop 65 Warning WARNING : This product can expose you to chemicals including Lead and lead compounds, which is/are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.

        Description

        Connect these pumps up to an air compressor and you get a gentle transfer solution at a very reasonable price. Flow rates are variable by regulating the inlet air pressure at the compressor and/or by applying back pressure with a ball valve.

        We offer two styles of this pump, with either a polypropylene body or stainless steel body. Both models feature a Santoprene diaphragm. The Polypropylene pumps are available in 3/8", 1/2" and 1" Female Pipe Thread inlet / outlet; the Stainless Steel pumps are available in 1/2" and 1". Stainless Steel adapters to common barb sizes and to Tri-Clover style fittings are available. 1" models offer a Max Flow Rate of 53gpm and a Max Inlet Pressure of 120psi (8.3bar). Please see the specs below for information on this particular model.

        Manufactured by ARO. Smaller and larger sizes are available, please call 1-800-600-0033 or e-mail support@moreflavor.com for more information.

        Does not include air compressor or regulator

        Specifications:

        • Maximum Air Inlet Pressure .............. 100 p.s.i.g. (6.9 bar)
        • Maximum Material Inlet Pressure ....... 10 p.s.i.g. (0.69 bar)
        • Maximum Outlet Pressure ................ 100 p.s.i.g. (6.9 bar)
        • Air Consumption @ 40 p.s.i. .............. 1 c.f.m. / gallon (approx.)
        • Maximum Flow Rate (flooded inlet) .... 12 g.p.m. (45.4 L.p.m.)
        • Displacement / Cycle @100 p.s.i. ......... 0.039 gal (0.15 lit)
        • Maximum Particle Size .................... 3/32" dia. (2.4 mm)
        • Maximum Temperature Limits ........... 35 to 150 F (2 to 66 C)
        • Noise Level @ 70 p.s.i., 60 c.p.m. ...... 75 db(A)
        • Dimensions .................................... 7 11/16" W x 11 21/32" H x 6 23/32" D
