Transfer beer or wine between vessels without the hassle of starting a siphon
Place your receiving vessel side-by-side or even above the transferring vessel
Perfect for transferring between primary and secondary fermenter, or from fermenter to bottling bucket or keg
Eliminate excess oxygen exposure caused by hand-pumping or blowing into a carboy hood to start a siphon
The Super Sucker transfer pump is the quickest, most hassle-free solution to moving beer or wine between vessels. Rack from primary fermenter to secondary or from carboy to keg without the excess oxygen exposure that results from hand-pumping a siphon or blowing into a carboy hood. Simply run transfer tubing from a racking cane to the pump and then to your receiving vessel, flip the switch, and let the Super Sucker do the work while you kick back and enjoy a cold beverage.
With the Super Sucker you don't need gravity or CO2 pressure to move liquid around. Thanks to the pump's considerable max lift height, you can leave your heavy, full fermenter on the ground and place the receiving keg or carboy side-by-side or even above the fermenter on a countertop.
The 10 mm barbed inlet and outlet are perfect for use with 3/8" ID tubing. We recommend using our Racking Cane Siphon Kit plus 5 ft. of 3/8" vinyl tubing. Secure pump connections with butterfly hose clamps for easy set up and break down.
Features:
Self-Priming
10 mm Barbed Inlet/Outlet
On/Off Switch
Max Flow: 1.12 Gal/min
Suction: 5 in.
Max Lift: 150 in. (12.5 ft.)
Maximum Temperature: 140°F
Pressure: 90 psi
Voltage: 12V DC (3.5A)
Due to high demand, this item is currently out of stock. Be the first to receive your items by placing a pre-order today. We will automatically ship this item to you when we receive more in mid June.
The perfect pump for use after fermentation! Self-priming and easy to use for transfers between carboys or kegs
Included pre-filter removes solids from your liquid and features a quick disconnect design to easily remove the filter for cleaning
Adjustable flow rate from 0 to 3 gallons for gentle transfers and slowly pushing finished beer through plate filters
Diaphragm pumps are gentle on the liquid passing through them with much less turbulence and aeration compared to magnetic drive pumps
The Vintage Shop has been a pioneer in the manufacturing of products for the home wine and beer industry since 1969
Includes tubing and clamps—ready to use out of the box!
Why This is a Great Pump:
Self-Priming
Heat Tolerant materials to 212°F when used with Silicone tubing
Speed Control!
Gentle Diaphragm Design
Self Priming: This pump is capable of pumping gasses, meaning that pumping does not require priming! This makes transfers between carboys or kegs incredibly easy. Simply put both inlet and outlet hoses in a bucket of sanitizer and run the pump for a minute. You're then good to transfer your beer with your sanitized pump!
Removable Pre-Filter: This is something which is almost always necessary on diaphragm pumps, as the diaphragm itself is very delicate, and can be ruined by small solids. The pre-filter included on this pump will work to keep solids out of the pump, extending the working life of the unit. And the filter can be removed between uses for cleaning.
Heat Tolerant: All materials used in the construction of the pump tolerate temperatures up to 212°F when used with heat tolerant tubing such as silicone. Because the pump comes with vinyl tubing you would need to replace that tubing with silicone.
Speed Control: Perhaps the most unique feature is a dial control to adjust flow from 0 to 3 gallons per minute. Use it to send your wort from the kettle to the fermenter, or even after fermentation to send beer through a plate filter (such as our FIL45).
Gentle on your Beer: A diaphragm pump works by moving beer through one pulsating diaphragm into the next. It is a design that is very gentle on the liquid being pumped.
When this pump was first introduced to us, we loved the idea, but had concerns that the speed control would compromise the longevity of the motor. We've built much larger pumps and normally you need a $700 frequency drive to control motor speed. However, we've been selling this pump since the mid-2000s and it continues to perform well and receive excellent customer feedback.
This pump comes with 1/2" barbed ports for easy connectivity
Comes with 4' tubing on both sides
Heat Tolerant materials to 212°F (when used with silicone tubing)
110 Volts, 0.5 Amp, 60 Hz.
Includes everything you need to start using the Super Sucker right out of the box!
Transfer beer or wine between vessels without the hassle of starting a siphon
Place your receiving vessel side-by-side or even above the transferring vessel
Perfect for transferring between primary and secondary fermenter, or from fermenter to bottling bucket or keg
Eliminate excess oxygen exposure caused by hand-pumping or blowing into a carboy hood to start a siphon
The Super Sucker transfer pump is the quickest, most hassle-free solution to moving beer or wine between vessels. Rack from primary fermenter to secondary or from carboy to keg without the excess oxygen exposure that results from hand-pumping a siphon or blowing into a carboy hood. Simply run transfer tubing from a racking cane to the pump and then to your receiving vessel, flip the switch, and let the Super Sucker do the work while you kick back and enjoy a cold beverage.
With the Super Sucker you don't need gravity or CO2 pressure to move liquid around. Thanks to the pump's considerable max lift height, you can leave your heavy, full fermenter on the ground and place the receiving keg or carboy side-by-side or even above the fermenter on a countertop.
The Racking Cane Kit includes stainless steel racking cane, two 5 ft. lengths of vinyl transfer tubing, and two butterfly hose clamps for pump connections.
Super Sucker Features:
Self-Priming
10 mm Barbed Inlet/Outlet
On/Off Switch
Max Flow: 1.12 Gal/min
Suction: 5 in.
Max Lift: 150 in. (12.5 ft.)
Maximum Temperature: 140°F
Pressure: 90 psi
Voltage: 12V DC (3.5A)
Racking Cane Kit Includes:
3/8" OD Stainless Racking Cane (26" long)
2 x 5 ft. lengths of tubing (3/8" ID)
2 x Butterfly hose clamps
Racking cane clip
Transfer fermented, but uncarbonated, beer from carboy to carboy or from carboy to keg. For those brewers that perhaps cannot lift a carboy or have issues with siphoning this is a great solution. Self-priming (will push air) so that it can draw out of a carboy or tank. Gentle diaphragm action so as to not "beat up" the beer. Made of food-grade, NSF approved, materials polypropylene and santoprene, so no metallic interaction with the product. Pumps 3 gallons per minute.
Flow can be restricted with an inline valve positioned on the outflow side. Self-regulating motor is designed to temporarily shut down, and then turn back on, when restriction pressure exceeds pump capacity. Has a heat limitation of 125 degrees Fahrenheit so cannot be used in brewing applications.
Shurflo brand pump is equipped with 1/2" Male NPT posts on the inlet and outlet. Does not include the plastic barb fittings you will need to purchase separately. Please see the "You Might Also Need" section below for our recommendations regarding which fittings to attach to the pump.
Technical Specifications
PUMP DESIGN: Positive Displacement 3 Chamber Diaphragm Pump
CHECK VALVE: (1-Way Operation) Prevents Reverse Flow
CAM: 3.0 Degree
MOTOR: Permanent Magnet, P/N 11-195-01, Thermally Protected
VOLTAGE: 115 VAC Nominal
PRESSURE SWITCH: Factory Set @ 45 PSI Shut-Off, Turn On 25 5 PSI
LIQUID TEMPERATURE: 130 Degrees Fahrenheit (54 Degrees Centigrade) Max.
PRIME: Self-Priming Up To 9.0 Ft. Vertical, Max. Inlet Pressure 30 PSI (2.1 Bar)
PORTS: 1/2" - 14 Male Parallel Thread
Materials:
PLASTICS- Polypropylene
VALVES- Santoprene
DIAPHRAGM - Santoprene
FASTENERS- Zinc Plated Steel
NET WEIGHT: 5.3 Lbs (2.4 Kg)
APPROVALS: UL, C-UL Listed, N.S.F. Listed
This white plastic swivel fitting is made by Shurflo, manufacturers of our popular H305 Self Priming Diaphragm pump, and is designed specifically to fit with this pump. Features a 1/2" Barb x 1/2" Female Thread swivel fitting, which makes disconnecting your hoses from the pump a snap. Made from NSF Food Grade polypropylene.
A replacement or spare Pre-Filter for the H308 diaphragm pump. The redesigned pre-filter is easier to remove and reattach with the need for tools, and fully disassembles for cleaning. Fully compatible with pre-2020 Super Transfer pumps that came with the original pre-filter.
Prevent electrocution! This is the best way to plug in a pump or other brewing or winemaking equipment because it will trip the circuit when any water flows on the ground wire. 15 Amps 1875 Watts 125 VAC 60 Hz.
Due to high demand, this item is currently out of stock. Be the first to receive your items by placing a pre-order today. We will automatically ship this item to you when we receive more in mid June.
A replacement pump head for the H308 diaphragm pump, should the diaphragms become worn or get damaged by passing particulate matter through them.
Please Note: This pump head does not include the Pre-Filter or the Elbow fittings that are connected to your hoses, those will need to be transferred over from the existing pump head or purchased separately.
The redesigned quick disconnect pre-filter for the H308 Super Transfer pump now features a replaceable filter screen. Pick up a replacement or keep a spare on hand. When your filter mesh screen is past its prime, simply replace the screen rather than replace the whole pre-filter. Please note: this filter screen will only work with the current generation pre-filter. If you purchased the Super Transfer pump before 2020 and have the original pre-filter, you will need to upgrade to the newest version (H308C) to be compatible with this replacement mesh screen.
Replacement elbow fitting for the H308 diaphragm pump. This fitting is typically only used on the pump outlet, but can also be placed on the inlet in lieu of the Pre-Filter. Please note that doing so puts the pump head at increased risk of damage from particulate matter.

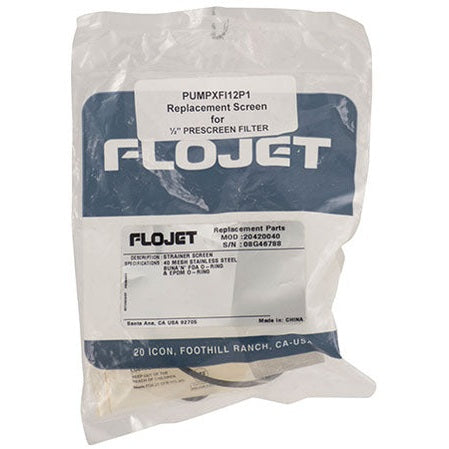

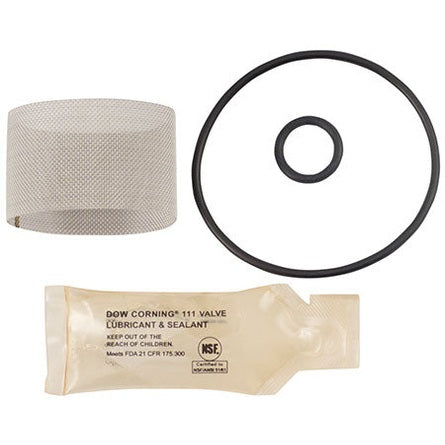

Inline mesh screen filter to pre filter liquids before passing through a pump. Will remove large particles and protect the pump mechanisms from contaminants. Features 3/4 inch barbs on the in and out sides. The clear plastic cover is removable for cleaning or replacement of the screen.

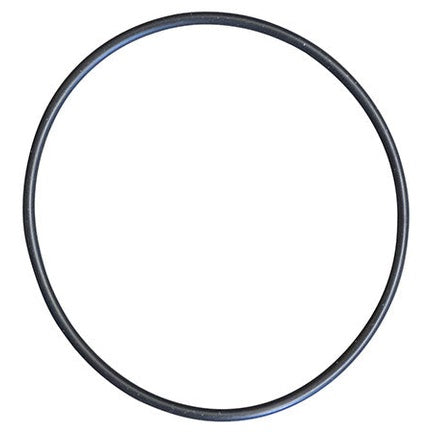

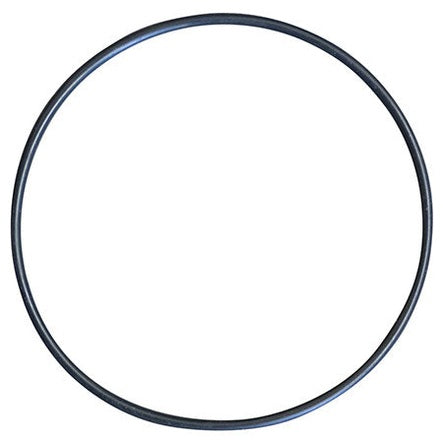

Replacement body O-ring for Euro 30 pump. This O ring is slightly smaller than the O-Ring in the head of the PMP530 & PMP535.
In Documents Tab:
Position: 6
EnoItalia Item #: G2151
This stainless steel cart makes it easy to wheel around your pump and is small enough to fit into tight spaces. Comes with pre-drilled holes for mounting. Compatible with Euro 20 and Euro 30 flexible impeller pumps.
Self-priming stainless steel impeller pump with for moving wine or beer Cast stainless pump head with 1.5" tri-clamp connections On/off switch for easy operation 11 gallons per minute reversible flow rate Made in Italy by EnoItalia Centrifugal pump with cast stainless head. 1.5" T.C. inlet and outlet. Self-Priming. Reversible direction. Stainless impeller. Best used for transferring wine or beer between tanks. Specifications 11 GPM Max Pressure: 15.9 PSI (1.1 BAR) 1.5" Tri-clamp fittings Single Speed 1400RPM 194°F Max Temp Rating 14 LBS 12.6"x9.5"x7" 110V Note: Because this product is manufactured in Europe, it will come with a European plug. You will need to re-wire for use in the USA. Please see our European Equipment Wiring Colors guide for instructions on how to convert to a domestic plug.
Flexible impeller pump for moving wine or juice Stainless steel pump head with 1.5" tri-clamp connections On/off switch for easy operation 4.4 gallons per minute flow rate Pre-wired with 110V plug Made in Italy by EnoItalia This version of the Italian-made Euro 20 features a pre-wired 110V plug. Unlike the 220V model, this pump is ready for use and does not require a plug to be wired to a bare cord. The Euro 20 is a great pump for smaller production. Featuring a SS head with 1.5” TC fittings, this flexible impeller pump is great for moving wine or juice. We have this pump set up with a forward and reverse on/off switch on the body, simplifying operation. This unit comes with mounting points for if you want to mount it to a cart or filler/filter. Features: Flow rate is 4.4 gpm Max Pressure: 46 PSI (3.2 BAR) 1.5" Tri-Clover inlet and outlet 110V single phase Pre-Wired Plug 0.5 HP motor 1.7 amps Recommended temperature range: 40 - 150°F (5 - 65°C) SS head w/ Flexible Impeller

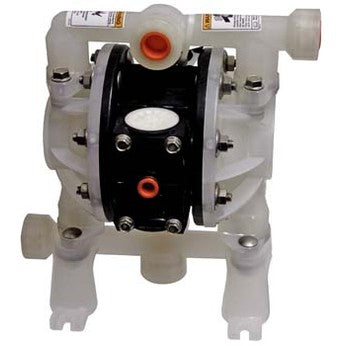

Connect these pumps up to an air compressor and you get a gentle transfer solution at a very reasonable price. Flow rates are variable by regulating the inlet air pressure at the compressor and/or by applying back pressure with a ball valve.
We offer two styles of this pump, with either a polypropylene body or stainless steel body. Both models feature a Santoprene diaphragm. The Polypropylene pumps are available in 3/8", 1/2" and 1" Female Pipe Thread inlet / outlet; the Stainless Steel pumps are available in 1/2" and 1". Stainless Steel adapters to common barb sizes and to Tri-Clover style fittings are available. 1" models offer a Max Flow Rate of 53gpm and a Max Inlet Pressure of 120psi (8.3bar). Please see the specs below for information on this particular model.
Manufactured by ARO. Smaller and larger sizes are available, please call 1-800-600-0033 or e-mail support@moreflavor.com for more information.
Does not include air compressor or regulator
Specifications:
Maximum Air Inlet Pressure .............. 100 p.s.i.g. (6.9 bar)
Maximum Material Inlet Pressure ....... 10 p.s.i.g. (0.69 bar)
Maximum Outlet Pressure ................ 100 p.s.i.g. (6.9 bar)
Air Consumption @ 40 p.s.i. .............. 1 c.f.m. / gallon (approx.)
Maximum Flow Rate (flooded inlet) .... 10.6 g.p.m. (40.1 L.p.m.)
Displacement / Cycle @100 p.s.i. ......... 0.022 gal (0.083 lit)
Maximum Particle Size .................... 1/16" dia. (1.6 mm)
Maximum Temperature Limits ........... 35 to 150 F (2 to 66 C)
Noise Level @ 70 p.s.i., 60 c.p.m. ...... 72.7 db(A)
Dimensions .................................... 7 31/32" W x 9 5/16" H x 5 23/32" D

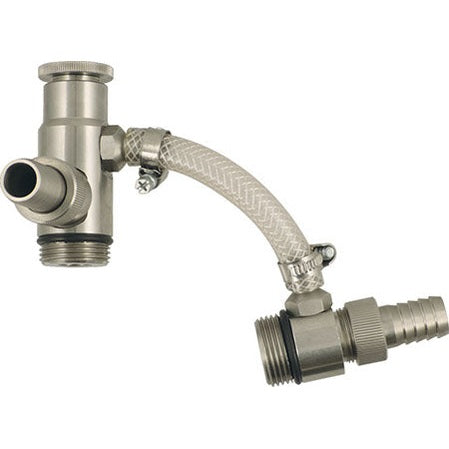

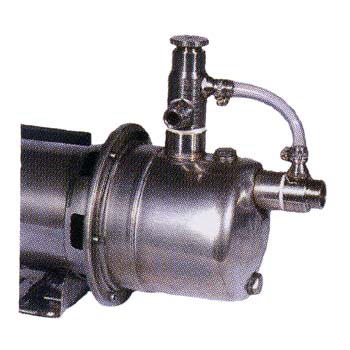

Can be added to the PMP100 to slow down flow on command. Can reduce flow by up to 25% by taking liquid from the output and redirecting it back to the input. Also good if the pump is encounterin back pressure in your particular set up. Has 1.5" TC connection on both the in and the out.
Highest quality winery pump available with lowest shear value due to the peristaltic design and the low maximum RPM of 75
Use with removable hopper under a destemmer to move destemmed grapes or must
Hopper can be removed to use pump for all other pumping applications
Two compensation chambers and automatic pressure sensor eliminate pulsing allowing it to be used for filtering - up to 45 psi of pressure.
Perfect for the gentlest transfer of wine throughout the winery
Variable Frequency Drive speed control with remote control.
The peristaltic pump is the ultimate high, quality pump for all winery purposes. This pump with removable loading hopper is suitable for use with destemmed grapes and fermented grapes.
The loading hopper is also made from stainless steel on casters and features its own motor with mechancial speed control. The level probe in the hopper turns the pump on and off as needed.
With the hopper removed an included second compensation chamber is connected to reduce pulsing, making it suitable for filtering. The motor is controlled by a variable frequency drive to control the speed and rotation of the pump from 25 RPM to Max. Wireless remote control included as standard.
The pump is connected to the grape receiving hopper by DIN fittings which provide the strongest connection. Included with the package are two adpators to convert from DIN to Tri-Clamp in order to use the pump with Tri-Clamp hose connections.
If you do not plan to use the collection hopper we can quote a lower price without. Without the hopper it is then also possible to provide the pump directly with Tri Clamp fittings welded in place.
Features:
0.55 kw motorized loading hopper with screw supply
Pump body in AISI 304 with internal tubing in EPDM
Electronic speed variator for speed control from 10 RPM to max 75 RPM; Minimum working RPM is 25 in order to sufficiently cool motor.
Electrical system with emergency stop
Automatic filling pressure switch
Automatic level probe on hopper turns off both the pump motor and receiving motor.
Max Pressure (All Models): 43.5 PSI (3 BAR)
3" tri-clamp connection
220V, 3 Phase
Wirelss remote for control up to 50 meters away (150 meters if no walls)
All the programmable benefits of the EuroFill pumps Perfectly machined stainless steel lobe rotors Ideal for pushing wine through plate and frame, lenticular, and/or cartridge filters Dry stop protection Wireless remote Available with optional motorized receiving hopper The ultimate one winery pump for all applications The Lobe Rotor pump from EnoItalia is the ultimate winery pump, representing the best of all worlds. Combines all the major benefits of the EuroFill pump, via the programmable PLC, with all the benefits of a Lobe Rotor pump. Lobe Rotor pumps can also be used for filtering applications where positive pressure is necessary to pump wine through a sheet or membrane. Lobe Rotor pumps also have some of the lowest shear values which protects skins and seeds from being macerated during the pumping process. The 'smart' component is what sets this EnoItalia pump apart from other lobe rotor pumps. The built-in programmed logic controller brain allows you to know the volume pumped during any transfer. You can also program the volume you wish to transfer. The potential applications are unlimited. Program the pump to fill a barrel. Create perfect blends. Do timed pump overs. The optional receiving hopper can be used under a destemmer crusher to collect whole destemmed, or crushed grapes. Max capacity 50,700 lbs with destemmed grape, and 44,000 lbs with fermented grape. The receiving hopper is also available for purchase separately, or the pump and hopper can be purchased together. Benefits: The only pump you will need in your winery that allows you to use if for all applications. The highest quality, lowest shear value keeps skins and seeds intact to reduce unwanted tannin. The smartest plc brain for programmed volume transfers. This is the ultimate winery pump. Positive pressure allows for use in filtering applications Motorized receiving hopper included Features: Speed control Timed and programmable volume pumping Dry stop protection - pump turns off to protect pump when dry Direction reversal Pressure switch Connection for a motorized collection buffer Wireless remote control Easy to use PLC programmable controls Low profile and easily moved Max Pressure: 58 PSI (4 BAR) 3" tri-clamp inlet/outlet 3" DIN connector for hopper included 220v 60hz 3 Phase 7.5 kW Optional receiving hopper: 220v 3 Phase 0.75 kW
Due to high demand, this item is currently out of stock. Be the first to receive your items by placing a pre-order today. We will automatically ship this to you when we receive more inventory.
Self-priming wine pump with variable flow control from 0 to 20 gallons per minute
Flexible rubber impeller gently pushes wine
Stainless steel pump head with 1.5" tri-clamp connections
Remote control operation with 40 ft. long cord
Stainless steel control box
Stainless steel rolling cart
Made in Italy by EnoItalia
This unit features a stainless steel control box not pictured in the primary image. Updated images coming soon.

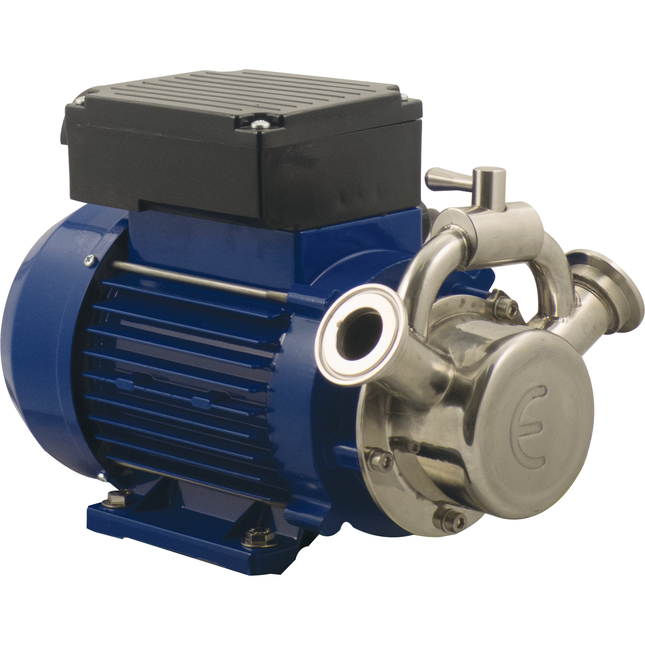

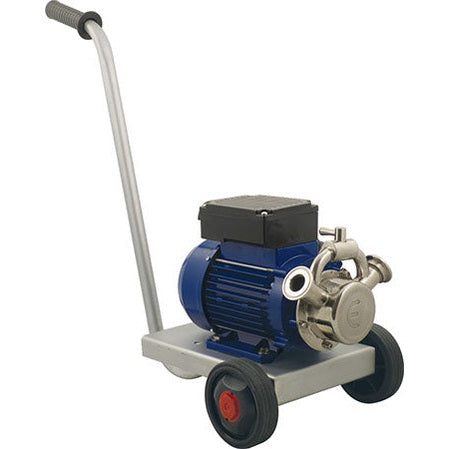

The perfect pump for moving wine from one vessel to the other. These Flexible Impeller Pumps are controlled by a Variable Frequency Drive, allowing for wine or juice transfers as fast as 20 gallons per minute, down to a complete stop. A sturdy Stainless Steel cart with nylon wheels allows for easy manueverability in the winery, and a lifetime of use. The pump can be controlled from the panel itself, or remotely via the wired controller, giving this workhorse even more flexibility.
We worked for a year to develop this particular pump with Enoitalia of Italy. The value and price are really amazing. So much that we stopped making our own line of Chunky Pumps at the end of 2016. Enoitalia has been making pumps for decades and while they are excellent at destemmer crushers and other equipment, pumps are their core specialty. We will support the pump in the USA with common spare parts but we also have the backing and support of Enoitalia if anything was to go wrong.
Although the Euro 30 is self-priming, the pump should never be run dry.
Stainless steel head with flexible rubber impeller
Remote control with 40' cord included
VFD allows for flow rate from 0 to 19.8 gpm
Max Pressure: 40 PSI (2.8 BAR)
1.5" Tri-Clover inlet and outlet
220 v single phase Input voltage required (6.5 amp draw)
1.5 HP motor
Recommended temperature range: 40 - 150°F (5 - 65°C)
Handy SS trolley cart for easy movement around the winery
The pump is reversible and can be controlled from the panel itself, or remotely via the wired controller, giving this workhorse even more flexibility.
Please Note: This pump will NOT come with fittings. It will have 1.5" Tri Clamp ferrules, and the appropriate fittings can be chosen from YMANs below.
Made to pair with the EnoItalia Lobe Rotor Pump, the optional receiving hopper can be used under a destemmer crusher to collect whole destemmed, or crushed grapes. Max capacity 50,700 lbs with destemmed grape, and 44,000 lbs with fermented grape. 220V 3 Phase 0.75 kW

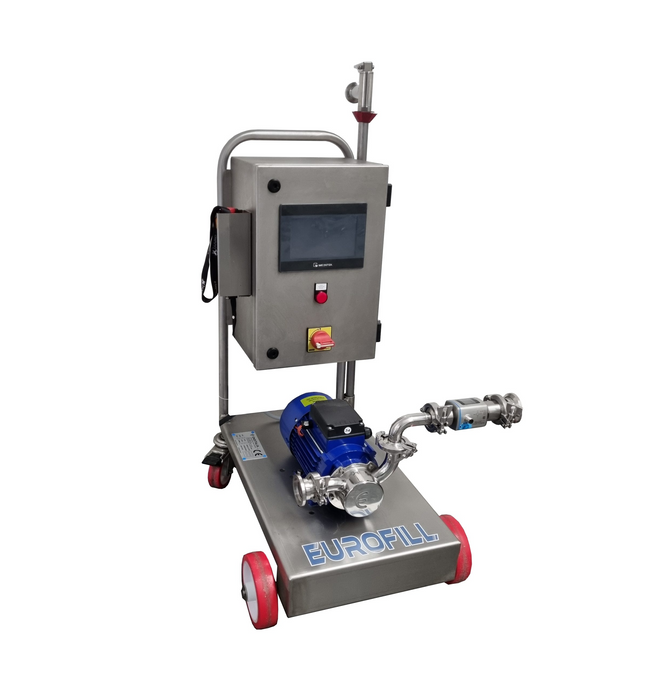

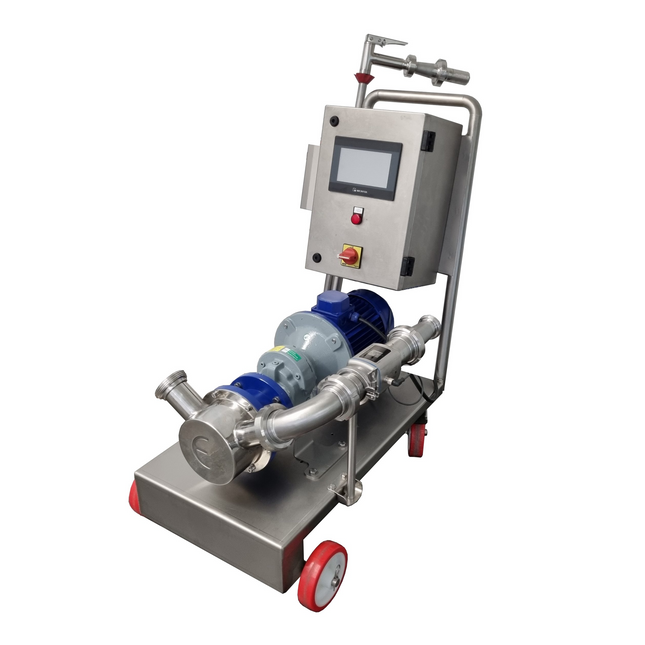

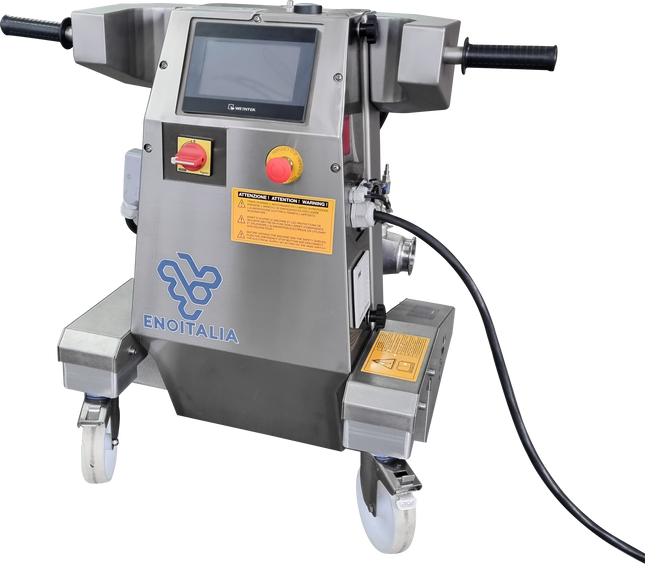

Combines all the benefits and advantages of our best-selling rubber impeller Enoitalia Euro Pumps with inline volume measurement. This is a pump with a brain! Enter in the volume of wine you would like to pump and the EuroFill turns off when that volume has been pumped. With a built-in flow meter, PLC (programmable logic controller) and a touch screen this pump will reduce human error and make your cellar life a lot easier. Filling barrels, blending exact volumes of wine, and dosing larger tanks with specialized ingredients are a few of the most useful applications. You can also control pumping by time which can be useful for pump overs and cleaning solutions.
Includes a wireless remote control. Made by Enoitala, a pump specialist, in Tuscany Italy. Sold and supported in the USA by MoreWine!.
Unique Applications:
Know the volume pump during any transfer
Program an exact volume you want pumped
Easily create perfect blends
Fill barrels by volume (and then top off)
Can be used for all general pumping application
Features:
Rubber impeller pump with electronic speed control
Programmable Logic Controller (PLC) for manual or automatic operation
Endress induction flow meter
Programmable dosing, counting, and timer
Remote control
7" Touchscreen
Stainless steel control panel and trolley
Dry run protection
Pressure switch
Specifications:
Capacity: 0-1,373 GPH (0-5,200 L/h)
Max Pressure: 40 PSI (2.8 BAR)
1.5" Tri-Clamp Inlet/Outlet
220V, Single Phase
2.2 kW
Please note: the unit will arrive bare without a power cord, plug, or controls to power the motor on or off. You will need an electrician to wire the appropriate power cord and controls to the motor.

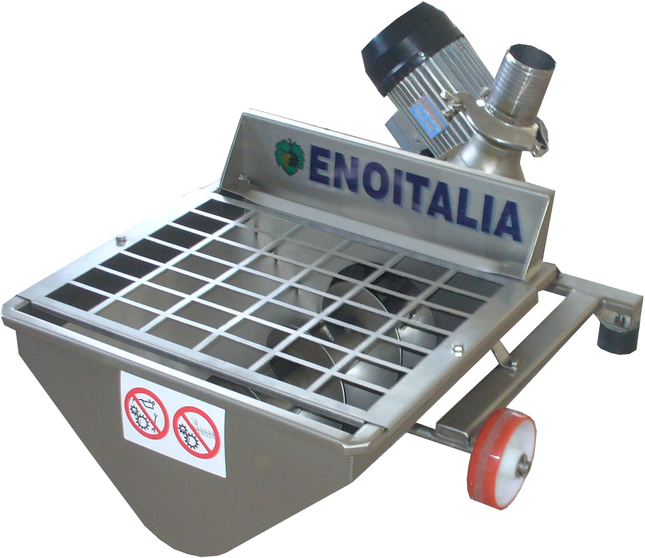

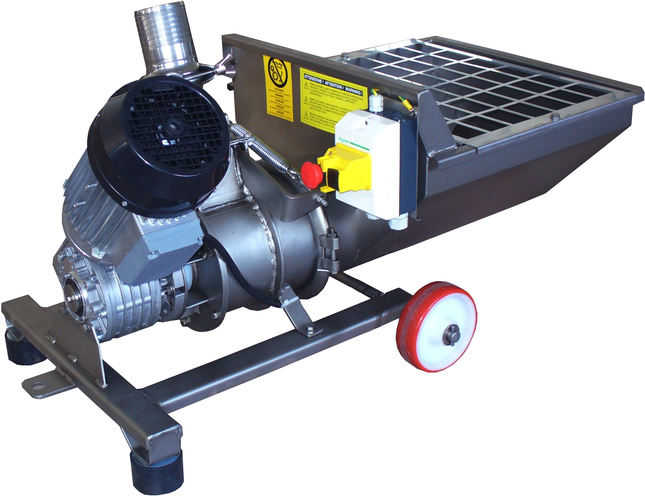

Wheeled crush pad pump rolls directly under the Jolly 40 or Jolly 60 Crusher Destemmer
Stainless steel construction throughout
Screw feed moves grapes to the elliptical must pump with 3" tri-clamp outlet
Up to 16,000 lbs per hour processing capacity
Made in Italy by EnoItalia
A 3-Phase Crush Pad Specific must pump that transfers crushed grapes from your Crusher Destemmer to your tank or bin. Entire pump is on wheels and will slide under the Jolly 40 or Jolly 60 Crusher Destemmer. Grapes would fall into the awaiting stainless hopper. Stainless screw moves grapes into the eliptical, paddle style must pump that then moves them through 3" tubing to final destination. Considered more gentle than using a rubber impeller must pump. Only available in 3 phase power.
Details:
Power: 2.5 HP Three Phase 220 v draws 4.7 amps
Capacity: 12,000 to 16,000 pounds per hour
Shaft Speed: 47-58RPM
Max Pressure: 7.2 PSI (0.5 BAR)
Out Let Barb: 3" Tri-Clamp
Max Discharge Height: 9 feet
Max Discharge Distance: 30 feet
Weight: 220 Pounds
Pump Body: Stainless Steel
Loading Hopper & Screw: Stainless Steel
Refillable automatic lubricator
Hinged discharge cone can be opened for inspection
Single speed pump
Please Note: This unit REQUIRES 220V Three Phase power and will not function on anything else. Please confirm that you have the proper power for this unit before purchasing, and plan to have a qualified electrician wire the necessary plug to the cord.

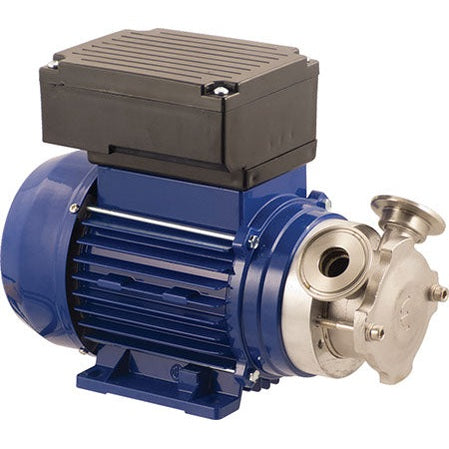

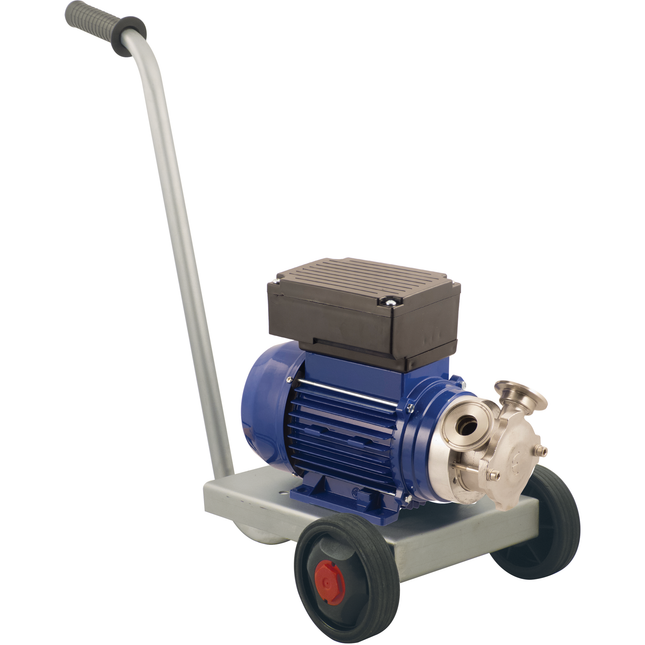

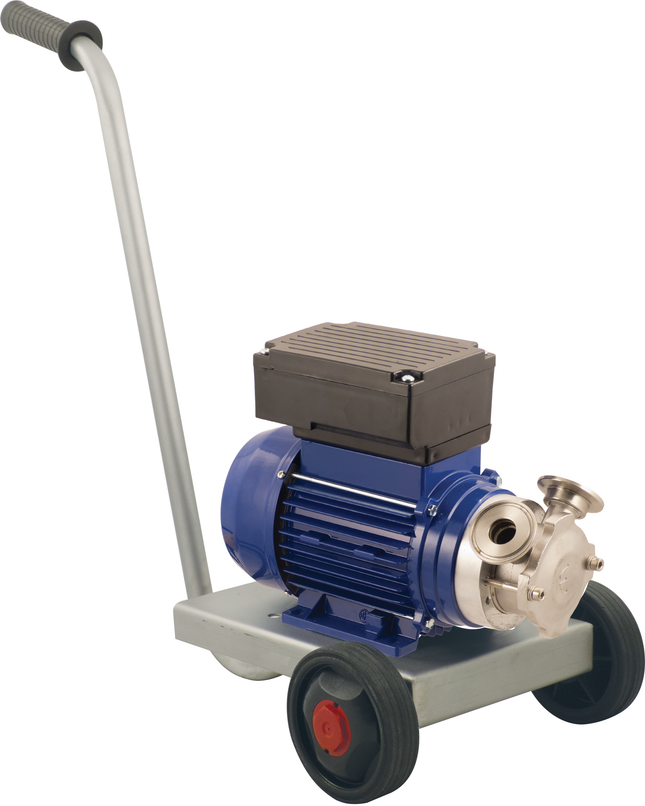

Self-priming flexible impeller pump with stainless trolley cart for moving wine or juice
Stainless steel pump head with 1.5" tri-clamp connections
On/off switch for easy operation
4.4 gallons per minute flow rate
Made in Italy by EnoItalia

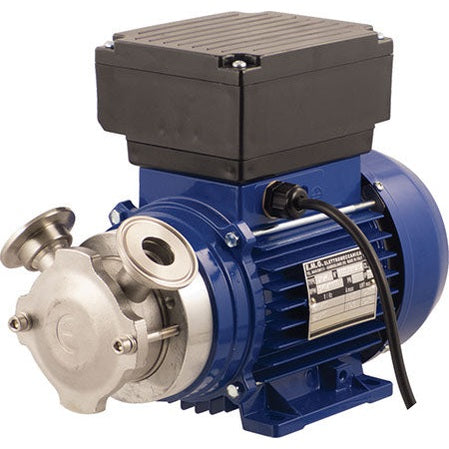

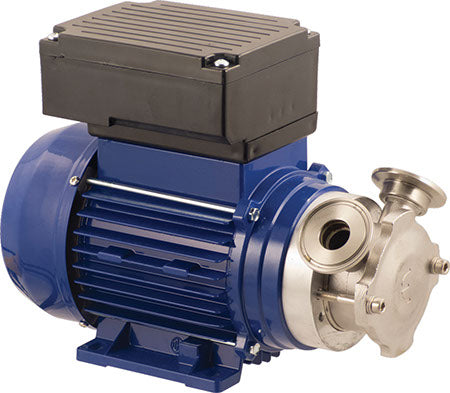

The Euro 20 is a great pump for smaller production. Featuring a SS head with 1.5” TC fittings, this flexible impeller pump is great for moving wine or juice. We have this pump set up with a forward and reverse on/off switch on the body, simplifying operation.
Features:
Flow rate is 4.4 gpm
Max Pressure: 46 PSI (3.2 BAR)
1.5" Tri-Clover inlet and outlet
220V single phase Input Voltage Required
Bare Cord for wiring with the appropriate plug
0.5 HP motor
1.7 amps
Recommended temperature range: 40 - 150°F (5 - 65°C)
SS head w/ Flexible Impeller
Please Note: This item may come with a bare cord or with a European style plug. You will need a professional electrician to wire the pump with the appropriate plug.
Ideal for pushing wine through plate and frame, lenticular, and/or cartridge filters
Ideal for moving must and wine
Dry stop protection
Wireless remote
Optional motorized receiving hopper for placement under a destemmer (shown in photo)
The ultimate one winery pump for all applications
The Lobe Rotor pump from EnoItalia is the ultimate winery pump, representing the best of all worlds. Lobe Rotor pumps can also be used for filtering applications where positive pressure is necessary to pump wine through a sheet or membrane. Lobe Rotor pumps also have some of the lowest shear values which protects skins and seeds from being macerated during the pumping process.
The stainless lobe rotos are coated in rubber to ensure that seeds to do not get marcerated in the pumping process.
Enoitalia also makes an optional receiving hopper that can be used under a destemmer crusher to collect whole destemmed, or crushed grapes. Max capacity 50,700 lbs with destemmed grape, and 44,000 lbs with fermented grape.
Benefits:
The only pump you will need in your winery that allows you to use if for all applications.
The highest quality, lowest shear value keeps skins and seeds intact to reduce unwanted tannin.
Positive pressure allows for use in filtering applications
Optional receiving hopper availlable
Features:
PLC interface
Speed control
Timed and programmable volume pumping
Dry stop protection - pump turns off to protect pump when dry
Direction reversal
Pressure switch
Connection for a motorized collection buffer
Wireless remote control
Easy to use PLC programmable controls
Low profile and easily moved
3" tri-clamp inlet/outlet
220v 60hz 3 Phase
7.5 kW
Stainless steel pump with food-grade plastic impeller with for moving wine or beer
1.5" tri-clamp connections
13 gallons per minute flow rate
Made in Italy by Marchisio
This pump features a stainless body, housing, and bracket. It utilizes an impeller made from food-grade plastic. The impeller does not push air by itself so to prime it you unthread the priming nut on top of the filter housing and fill with water or wine. Comes with 1.5" T.C. inlet and outlet. Has a .8 hp motor and moves 13 gallons per minute with no head. Will pump up to a height of 70'. 110v. Overall dimensions are 14.5" L x 7"W x 7"H. Weighs 15.4 lbs. Optional by-pass can be installed to restrict flow up to 25%. This pump can handle some small solid particulate, such as grain particles, and is food grade up to 113° F.
Please note the instruction manual references 230V for the voltage, but these pumps are custom configured by the manufacturer in 110V.
All the programmable benefits of the EuroFill pumps
Perfectly machined stainless steel lobe rotors
Ideal for pushing wine through plate and frame, lenticular, and/or cartridge filters
Dry stop protection
Wireless remote
Motorized receiving hopper included
The ultimate one winery pump for all applications
The Lobe Rotor pump from EnoItalia is the ultimate winery pump, representing the best of all worlds. Combines all the major benefits of the EuroFill pump, via the programmable PLC, with all the benefits of a Lobe Rotor pump. Lobe Rotor pumps can also be used for filtering applications where positive pressure is necessary to pump wine through a sheet or membrane. Lobe Rotor pumps also have some of the lowest shear values which protects skins and seeds from being macerated during the pumping process.
The 'smart' component is what sets this EnoItalia pump apart from other lobe rotor pumps. The built-in programmed logic controller brain allows you to know the volume pumped during any transfer. You can also program the volume you wish to transfer. The potential applications are unlimited. Program the pump to fill a barrel. Create perfect blends. Do timed pump overs.
Includes the optional receiving hopper that can be used under a destemmer crusher to collect whole destemmed, or crushed grapes. Max capacity 50,700 lbs with destemmed grape, and 44,000 lbs with fermented grape.
Benefits:
The only pump you will need in your winery that allows you to use if for all applications.
The highest quality, lowest shear value keeps skins and seeds intact to reduce unwanted tannin.
The smartest plc brain for programmed volume transfers. This is the ultimate winery pump.
Positive pressure allows for use in filtering applications
Motorized receiving hopper included
Features:
Speed control
Timed and programmable volume pumping
Dry stop protection - pump turns off to protect pump when dry
Direction reversal
Pressure switch
Connection for a motorized collection buffer
Wireless remote control
Easy to use PLC programmable controls
Low profile and easily moved
3" tri-clamp inlet/outlet
3" DIN connector for hopper included
220v 60hz 3 Phase
7.5 kW
Receiving hopper: 220v 3 Phase 0.75 kW
Combines all the benefits and advantages of our best-selling rubber impeller Enoitalia Euro Pumps with inline volume measurement. This is a pump with a brain! Enter in the volume of wine you would like to pump and the EuroFill turns off when that volume has been pumped. With a built-in flow meter, PLC (programmable logic controller) and a touch screen this pump will reduce human error and make your cellar life a lot easier. Filling barrels, blending exact volumes of wine, and dosing larger tanks with specialized ingredients are a few of the most useful applications. You can also control pumping by time which can be useful for pump overs and cleaning solutions.
Includes a wireless remote control. Made by Enoitala, a pump specialist, in Tuscany Italy. Sold and supported in the USA by MoreWine!.
Unique Applications:
Know the volume pump during any transfer
Program an exact volume you want pumped
Easily create perfect blends
Fill barrels by volume (and then top off)
Can be used for all general pumping application
Features:
Rubber impeller pump with electronic speed control
Programmable Logic Controller (PLC) for manual or automatic operation
Endress induction flow meter
Programmable dosing, counting, and timer
Remote control
7" Touchscreen
Stainless steel control panel and trolley
Dry run protection
Pressure switch
Specifications:
Capacity: 0-6,340 GPH (0-24,000 L/h)
Max Pressure: 33 PSI (2.3 BAR)
3" Tri-Clamp Inlet/Outlet
220V, Single Phase
4 kW
Please note: the unit will arrive bare without a power cord, plug, or controls to power the motor on or off. You will need an electrician to wire the appropriate power cord and controls to the motor.
Perfect for wine tanks where a built-in or top-mounted spray ball is not an option
Place the stainless steel washing slide inside your tank and connect the tank outlet to the inlet of the pump
The pump will deliver 52 gallons per minute at 36 PSI
Ideal for tanks with a maximum height of 10 feet
A simple, yet effective, high pressure washing system for wine tanks where a built-in or top-mounted spray ball is not an option. The washing system includes a high-pressure pump and a stainless steel washing slide. The washing slide is connected to the outflow of the pump and placed in the middle of the tank with the hose snaking through the manway door. Then the bottom outlet of the tank is connected to inflow of the pump to create a cleaning circuit. The stainless centrifugal pump delivers 52 gallons per minute with 2.5 BAR of pressure and features 2" T.C. outlet and 1.5" T.C. outlet.
Includes stainless steel washing slide with 1.5" T.C. connection.
Specs:
Ideal for tanks with a max height of 10 ft
Flow Rate: 52 GPM at 36 psi
Inlet: 2" tri-clamp
Outlet: 1.5" tri-clamp
Power: 220V Single Phase, 2 HP
Perfect for wine tanks where a built-in or top-mounted spray ball is not an option
Pairs with the optional the stainless steel washing slide inside your tank and connect the tank outlet to the inlet of the pump
The pump will deliver 52 gallons per minute at 36 PSI
Ideal for tanks with a maximum height of 10 feet
This high-pressure centrifugal pump is included with the EnoItalia Tank Washing System. Perfect for wine tanks where a built-in or top-mounted spray ball is not an option. Intended for use with the stainless steel washing slide, but the pump can be used on its own to create a cleaning circuit that better suits your needs. The stainless centrifugal pump delivers 52 gallons per minute with 2.5 BAR of pressure and features 2" T.C. outlet and 1.5" T.C. outlet.
Specs:
Ideal for tanks with a max height of 10 ft
Flow Rate: 52 GPM at 36 psi
Inlet: 2" tri-clamp
Outlet: 1.5" tri-clamp
Power: 220V Single Phase, 2 HP
Designed for use with the EnoItalia Tank Washing System. This stainless steel washing slide is a great option for tanks with manway doors that do not have a built-in spray ball for CIP. Place the washing slide inside your tank and snake the tubing through the maway door. Connect the washing slide to your pump's outflow and the bottom drain of the tank to the pump's inflow to create a cleaning circuit. Recommended for use with the EnoItalia High-Pressure Centrifugal Pump.
1.5" T.C. inlet connection.
Heavy-duty, elliptical rotor, roll-in crush pad pump
Ideal pump for moving must or whole berries with little to no liquid
Stainless steel pump body with 3" tri-clamp connections
Hinged stainless door for inspection and cleaning
Made in Italy by EnoItalia
Gamma pumps are heavy duty, elliptical rotor, stainless steel pumps designed to move must from your destemmer to your fermentation tanks or bins. They are often referred to as Roll-in Crush Pad Pumps because they are on wheels and slide directly under your destemmer crusher. While rubber impeller pumps can be made to work for this purpose impeller pumps are not as good in situations where there is very little liquid. Examples would be when you are trying to process whole berries or processing very small berry cabernet sauvignon. Gamma pumps are also softer on the fruit than an impeller pump.
Elliptical Crush pad pumps are professional solutions. The Gamma 80 works with either our Jolly40 or Jolly60 while the Gamma180 works with the Jolly100.
Features:
Stainless steel pump body
Stainless Receiving hopper with screw
5.5 HP/4kW Motor
Requires 3 phase, 220v, 60 Hz Power
Up to 25,000 lbs/12,000kg pumped per hour
Max Pressure: 21.7 PSI (1.5 BAR)
Shaft speed: 47/58 rpm
3 in Tri Clamp connection fitting
Up to 15 ft / 4.5 m discharge height
Up to 90 ft / 27.4 m discharge distance
Hinged stainless door for inspection, cleaning
Automatic refillable lubricator
Please Note: This unit REQUIRES 220V Three Phase power and will not function on anything else. Please confirm that you have the proper power for this unit before purchasing, and plan to have a qualified electrician wire the necessary plug to the cord.
Self-priming flexible impeller pump for moving wine or juice
Stainless steel pump head with 1.5" tri-clamp connections
On/off switch for easy operation
4.4 gallons per minute flow rate
Made in Italy by EnoItalia
The Euro 20 is a great pump for smaller production. Featuring a SS head with 1.5” TC fittings, this flexible impeller pump is great for moving wine or juice. We have this pump set up with a forward and reverse on/off switch on the body, simplifying operation.
This unit comes with mounting points for if you want to mount it to a cart or filler/filter.
Features:
Flow rate is 4.4 gpm
Max Pressure: 46 PSI (3.2 BAR)
1.5" Tri-Clover inlet and outlet
220V single phase Input Voltage Required
Bare Cord for wiring with the appropriate plug
0.5 HP motor
1.7 amps
Recommended temperature range: 40 - 150°F (5 - 65°C)
SS head w/ Flexible Impeller
Please Note: This item may come with a bare cord or with a European style plug. You will need a professional electrician to wire the pump with the appropriate plug.
Self-priming must pump with variable flow control from 0 to 100 gallons per minute
Flexible rubber impeller gently pushes must and wine
Stainless steel pump head with 3" tri-clamp connections
Remote control operation with 30 ft. long cord
Stainless steel control box
Stainless steel rolling cart
Made in Italy by EnoItalia
This unit features a stainless steel control box not pictured in the primary image. Updated images coming soon.

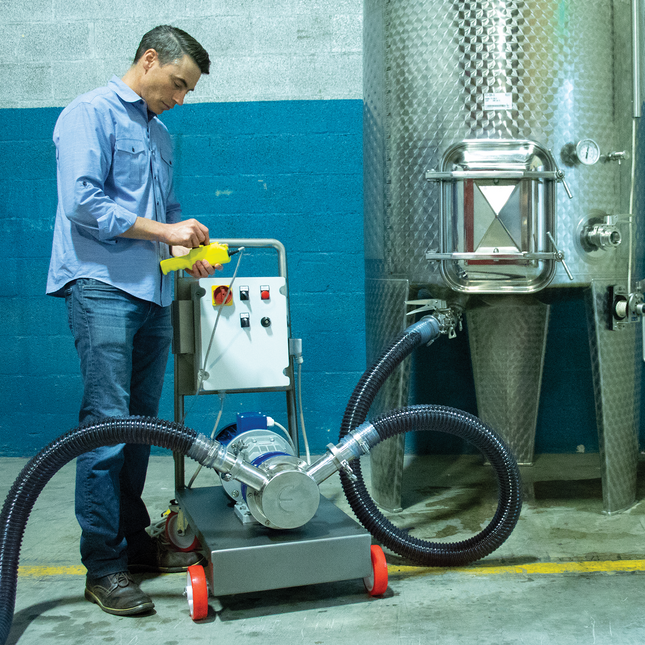

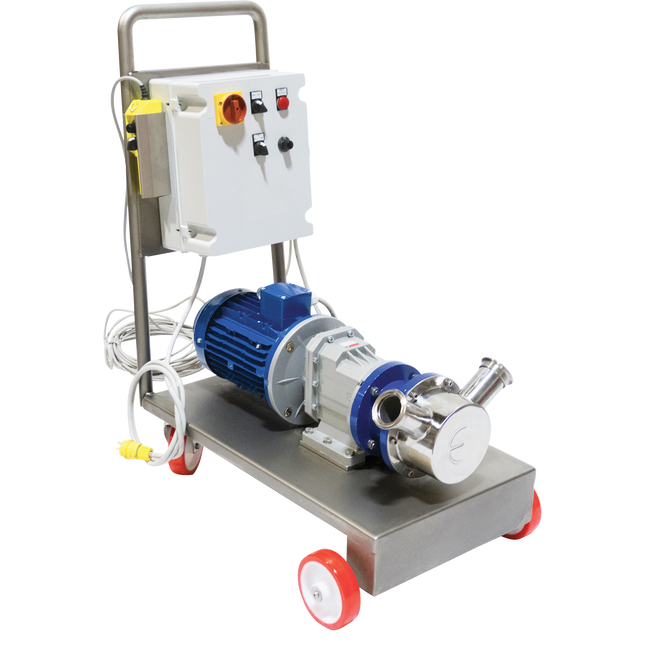

The Euro 60 Flexible Impeller pump is a 3" T.C. self-priming pump with a Stainless Steel head, controlled via a frequency inverter that allows for flow control from 0 - 100 gal / minute. These units can be controlled via the remote control on a 30' cord, or from the control panel mounted on the pump itself. Pumps are reversible, self-priming up to 15', and can be used with wine, juice, or must.
The wheeled pump cart allows for easy movement and maneuverability around the winery or crushpad, and stainless steel construction insures that it'll survive through hectic wine seasons! Completely food grade components have no impact on the quality of the wine, and a low shear value due to the larger TC fittings.
This pump is a true all around winery pump because it can be used with must and wine. If you have a commercial crush pad with a larger destemmer crusher like a Jolly40 or above, and you process small berries, you will want to consider the Gamma 80 as it works better with dry fruit (lots of skin and not as much flesh). However the Euro60 works well with most musts and then can be your work horse to move must and wine in the winery, making it a great value you can use year around.
Although the Euro 60 is self-priming, the pump should never be run dry.
Features:
Stainless steel head with flexible rubber impeller
Gear reduction for increased low speed torque
Stainless steel cart
Remote control
Flow rate from 0 to 100 gpm
Flow is reversible
Max Pressure: 33 PSI (2.3 BAR)
3" Tri-Clover inlet and outlet
4KW/5.3HP motor
Will work with 208v or 230v Single Phase Power
14 amp draw
Recommended temperature range: 40 - 150°F (5 - 65°C)
Made by Enoitalia of Europe
Please note: the unit will arrive with a bare power cord. You will need an electrician to wire the appropriate plug.
Self-priming flexible impeller pump with stainless trolley cart for moving wine or juice
Stainless steel pump head with 1.5" tri-clamp connections
On/off switch for easy operation
19.8 gallons per minute flow rate
Stainless bypass for reducing flow rate
Made in Italy by EnoItalia
The Euro 30 is a great versatile winery pump for all around cellar needs. The sanitary connections are 1.5" TC to allow for easy hook up of hoses, filters, fillers, you name it. The 2 wheeled cart can make it into tight places in the winery, and scoots out of the way when not needed. With the included SS Bypass, you can reduce flow rates up to 25%. SS head and cart mean easy maintenance, and a power switch on the body keeps all necessary controls conveniently accessible.
Although the Euro 30 is self-priming, the pump should never be run dry.
Features:
Flow rate is 19.8 gpm
Max Pressure: 40 PSI (2.8 BAR)
1.5" Tri-Clover inlet and outlet
220 v single phase Input Voltage Required (6.5 amp draw)
1.5 HP motor
Recommended temperature range: 40 - 150°F (5 - 65°C)

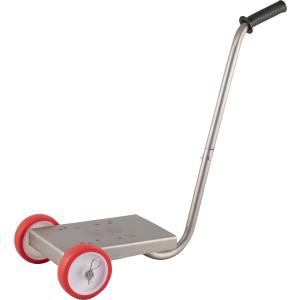

Handy SS trolley cart for easy movement around the winery
SS Bypass for reducing flow
SS head w/ flexible impeller
Light assembly required - pump is separate from cart in box
220v bare cord - You will need to wire on the appropriate 220v plug
Self-priming flexible impeller pump for moving wine or juice
Stainless steel pump head with 1.5" tri-clamp connections
On/off switch for easy operation
19.8 gallons per minute flow rate
Stainless bypass for reducing flow rate
Made in Italy by EnoItalia
The Euro 30 is a great versatile winery pump for all around cellar needs. The sanitary connections are 1.5" TC to allow for easy hook up of hoses, filters, fillers, you name it. With the included SS Bypass, you can reduce flow rates up to 25%. SS head means easy maintenance, and a power switch on the body keeps all necessary controls conveniently accessible.
Features:
Flow rate is 19.8 gpm
Max Pressure: 40 PSI (2.8 BAR)
1.5" Tri-Clover inlet and outlet
220 v single phase Input Voltage Required (6.5 amp draw)
1.5 HP motor
Self-priming
Recommended temperature range: 40 - 150°F (5 - 65°C)
SS Bypass for reducing flow
SS head w/ flexible impeller
220v bare cord - You will need to wire on the appropriate 220v plug
Please Note: This item may come with a bare cord or with a European style plug. You will need a professional electrician to wire the pump with the appropriate plug.
