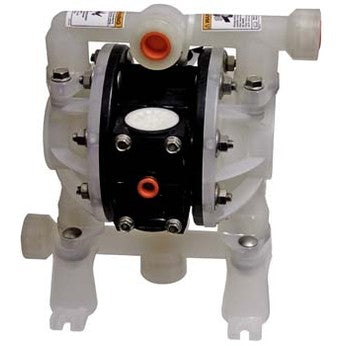

Air Driven Diaphragm Pump (1/2") Polypropylene

    Description

    Connect these pumps up to an air compressor and you get a gentle transfer solution at a very reasonable price. Flow rates are variable by regulating the inlet air pressure at the compressor and/or by applying back pressure with a ball valve.

    We offer two styles of this pump, with either a polypropylene body or stainless steel body. Both models feature a Santoprene diaphragm. The Polypropylene pumps are available in 3/8", 1/2" and 1" Female Pipe Thread inlet / outlet; the Stainless Steel pumps are available in 1/2" and 1". Stainless Steel adapters to common barb sizes and to Tri-Clover style fittings are available. 1" models offer a Max Flow Rate of 53gpm and a Max Inlet Pressure of 120psi (8.3bar). Please see the specs below for information on this particular model.

    Manufactured by ARO. Smaller and larger sizes are available, please call 1-800-600-0033 or e-mail support@moreflavor.com for more information.

    Does not include air compressor or regulator

    Specifications:

    • Maximum Air Inlet Pressure .............. 100 p.s.i.g. (6.9 bar)
    • Maximum Material Inlet Pressure ....... 10 p.s.i.g. (0.69 bar)
    • Maximum Outlet Pressure ................ 100 p.s.i.g. (6.9 bar)
    • Air Consumption @ 40 p.s.i. .............. 1 c.f.m. / gallon (approx.)
    • Maximum Flow Rate (flooded inlet) .... 14.4 g.p.m. (54.5 l.p.m.)
    • Displacement / Cycle @100 p.s.i. ......... 0.039 gallons (0.15 lit.)
    • Maximum Particle Size .................... 3/32" dia. (2.4 mm)
    • Maximum Temperature Limits ........... 35 to 150 F (2 to 66 C)
    • Noise Level @ 70 p.s.i., 60 c.p.m. ...... 75.0 db(A)
    • Dimensions .................................... 10" W x 10 7/8" H x 6 23/32" D

    Air Driven Diaphragm Pump (1/2") Polypropylene

      Product form

      SKU: PMP410

      <p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

      $999.99 $949.99

      Calculating shipping time...
      Shipping
      Free Shipping*
      Shipping
      Paid Shipping
      Drop Ship
      Drop Ship
      Discount Exclusion
      Discount Exclusion
      Freight
      Freight Only
      Pre-book
      Pre Order

        Prop 65 Warning WARNING : This product can expose you to chemicals including Nickel and Nickel Compounds, which is/are known to the State of California to cause cancer. For more information go to www.p65warnings.ca.gov.

        Description

        Connect these pumps up to an air compressor and you get a gentle transfer solution at a very reasonable price. Flow rates are variable by regulating the inlet air pressure at the compressor and/or by applying back pressure with a ball valve.

        We offer two styles of this pump, with either a polypropylene body or stainless steel body. Both models feature a Santoprene diaphragm. The Polypropylene pumps are available in 3/8", 1/2" and 1" Female Pipe Thread inlet / outlet; the Stainless Steel pumps are available in 1/2" and 1". Stainless Steel adapters to common barb sizes and to Tri-Clover style fittings are available. 1" models offer a Max Flow Rate of 53gpm and a Max Inlet Pressure of 120psi (8.3bar). Please see the specs below for information on this particular model.

        Manufactured by ARO. Smaller and larger sizes are available, please call 1-800-600-0033 or e-mail support@moreflavor.com for more information.

        Does not include air compressor or regulator

        Specifications:

        • Maximum Air Inlet Pressure .............. 100 p.s.i.g. (6.9 bar)
        • Maximum Material Inlet Pressure ....... 10 p.s.i.g. (0.69 bar)
        • Maximum Outlet Pressure ................ 100 p.s.i.g. (6.9 bar)
        • Air Consumption @ 40 p.s.i. .............. 1 c.f.m. / gallon (approx.)
        • Maximum Flow Rate (flooded inlet) .... 14.4 g.p.m. (54.5 l.p.m.)
        • Displacement / Cycle @100 p.s.i. ......... 0.039 gallons (0.15 lit.)
        • Maximum Particle Size .................... 3/32" dia. (2.4 mm)
        • Maximum Temperature Limits ........... 35 to 150 F (2 to 66 C)
        • Noise Level @ 70 p.s.i., 60 c.p.m. ...... 75.0 db(A)
        • Dimensions .................................... 10" W x 10 7/8" H x 6 23/32" D
