If you’re a serious homebrewer, you know the importance of proper pH during the brewing process. Use these calibration solutions to keep your pH meter reading accurately before each brew. Includes 4oz each of 4.00 and 7.00 buffers. We package these solutions from bulk quantities to get you the best pricing. For testing, pour buffers into a small glass. You do not want to stick the probe of the pH meter into the buffer jars directly because you will eventually sacrifice the accuracy of your buffers. Expires after 6 months if unopened. Expires after 3 months if opened. Download the PDF
Water chemistry is key to brewing the best beer possible, and that's where a pH meter becomes an essential tool Measure your strike water's pH and make informed brewing salt additions to provide the ideal environment for enzymatic activity during the mash Digital display is easy-to-read and provides instant test results—no need to do a color comparison like with pH strips Automatic Temperature Compensation adjusts the results based on the temperature of the sample so you don't need to cool the sample before taking a reading Electrode is protected by a waterproof cap so your storage solution won't evaporate and dry out the electrode The KegLand pH Meter will get you a very accurate reading with its 0.01 pH resolution. The calibration process couldn't be easier to perform, just place the probe in the buffer solution closest to pH of the sample you'll be testing and press the button! This pH meter also includes ATC (Automatic Temperature Compensation) so you don't have to get your sample all the way down to room temperature before you take your reading. 3-point calibration allows this unit to be calibrated at three different standard levels - 4.00, 6.86 or 9.18. These standards are included with the pH meter, and refill packs are also available. The pH meter features a replaceable probe in case yours is lost or damaged. Homebrewing can be a tough environment for your pH probe so we feel you shouldn't have to buy a whole new pH meter everytime your probe breaks. The cap that holds the probe storage solution has a very tight seal and should prevent your probe from drying out while not in use. Don't worry about getting this meter wet either, because the entire unit is waterproof! Features: Replaceable probe ATC (Automatic Temperature Compensation) Waterproof electrode cap Accurate to 0.01 pH Easy 3 point calibration LR4/AG13 batteries included Kegland Part Number: KL04169 NOTE: Upon first time use prior to calibration, rehydration of the electrode with MT624Bis essential to get an accurate reading for correct calibration.
This plastic syringe is perfect for measuring out acid additions or other small amounts of liquid. Perfectly suitable for multiple uses in brewing and winemaking applications.
Calibrated up to 10 ml. 1 ml is equal to 1 cc.
NOTE: The center nozzle syringe is not compatible with the Anton Paar EasyDens. You will need a syringe with offset nozzle.
Keep your KegLand pH Meter's probe in great condition by storing it in this storage solution. Letting your probe dry is the leading cause of degradation. By leaving your pH meter in this solution when not in use, you will extend the life of your probe and maintain more accurate readings.
KegLand Part Number: KL04183
For long term health of your elctrode use pH storage solution. It is a mixture of Potassium Chloride, Postassium Hydrogen Phthalate, Silver Nitrate, and Sodium Hydroxide. Volume: 230 ml Download the PDF

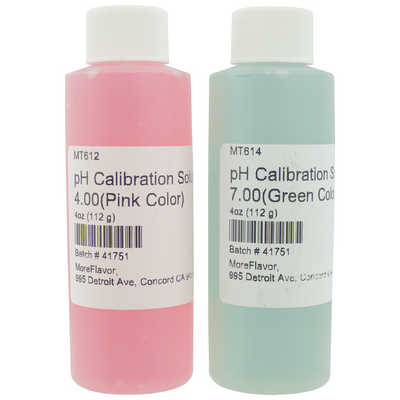

Use buffer solutions to keep your pH meter calibrated. These are the same 3 solution powders that are included with the KegLand pen-style pH meter (MT624). We would strongly recommend if you haven't used your pH meter in a while to always use a buffer solution before you start your brew. Directions:
Completely empty the powder into a clean glass jar Add 8.5 oz of deinoized water Stir until the powder has completely dissolved KegLand Part Number: KL06279
Get an extremely accurate reading with this rugged bench-top pH meter. It offers the highest accuracy meter, with ATC, featuring a separate temperature probe for temperature readings independent of the electrode. The separate temperature probe allows you to check the temperature before submersing the electrode. Even though the name says "Bench-Top" it can easily be handheld. Temperature reading is in Celsius. For long term health of your electrode, use our highly recommended pH storage solution MT618. Features include: Automatic Temperature Compensation up to 50 C (122 F) 0.01 accuracy with a 0-14 pH range Push button calibration 2 year instrument warranty from Milwaukee 6 month electrode warranty 500 hour run-time on the battery Download the PDF

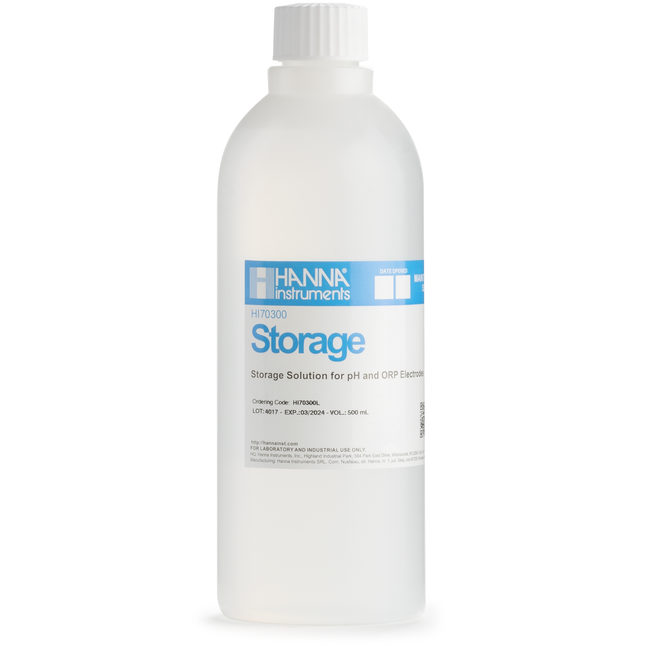

Electrode storage solution is designed specifically for maintaining pH meter electrodes in optimal condition. Before storage, add a small amount of storage solution to the cup/cover of the pH meter (enough to submerge the glass electrode). This will maintain hydration of the electrode, increasing its life and its ability to be calibrated.

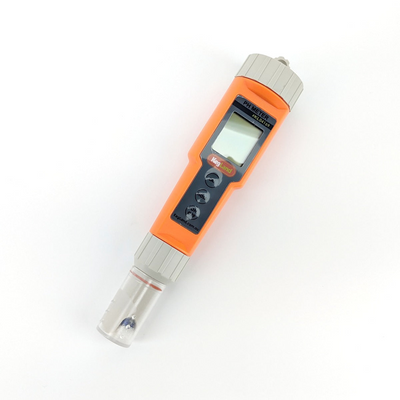

One of the great features of the KegLand pH Meter is the replaceable probe. The probes of pH meters wear out through normal use. Instead of making you buy a whole new pH meter you can just get the probe!
Kegland Part Number: KL04176
A simple, low cost pH meter eliminates the guesswork of using pH strips.
Simple 1-point calibration, accuracy to 0.1 pH units, and a pH 0-14 range make this tester incredibly easy to live with. No more guessing at your mash pH!
Includes calibration screwdriver, batteries and user manual.
Milwaukee Part Number: pH600AQ
A replacement electrode for the MT608 & MT609 pH meter. The electrode is the consumable portion of the pH meter which actually makes the measurement. All pH electrodes wear out over time and must be replaced. If your meter is having trouble calibrating or the reading drifts then a bad electrode is the likely culprit. Download the PDF Milwaukee Part Number: SE220
pH56 is a pocket pH meter with a lot of features. It has a resolution of 0.01 pH, a range of -2.00 to 16.00 pH, and an accuracy of 0.05 pH. It also reads temperature from 23.0 degrees F to 140 degrees F (-5.0-60 C), and has automatic temperature compensation. The unit is completely waterproof.
The pH56 has a stability indicator and hold function that freezes the display for easy and accurate recording. The large display also has graphic symbols to guide you through the operations. Calibration is made automatically in 1 or 2 points with memorized standard and NIST buffer sets. Auto power off saves battery power after non-use. The double-junction electrode can be replaced in a very fast and simple way! The modular design allows easy electrode and battery replacement.
Milwaukee Part Number: pH56
pH indicator strips in the range of 1-14 pH. Use these wide range strips for general determination of the pH, or to reduce the range before using a narrow range pH testing strip. A color reference chart is located inside the booklet. 80 test strips per booklet.
pH indicator strips in the range of 1-14 pH. Use these wide range strips for general determination of the pH, or to reduce the range before using a narrow range pH testing strip. Sold in a bag of 50 strips, with a color reference chart on the front of the bag.

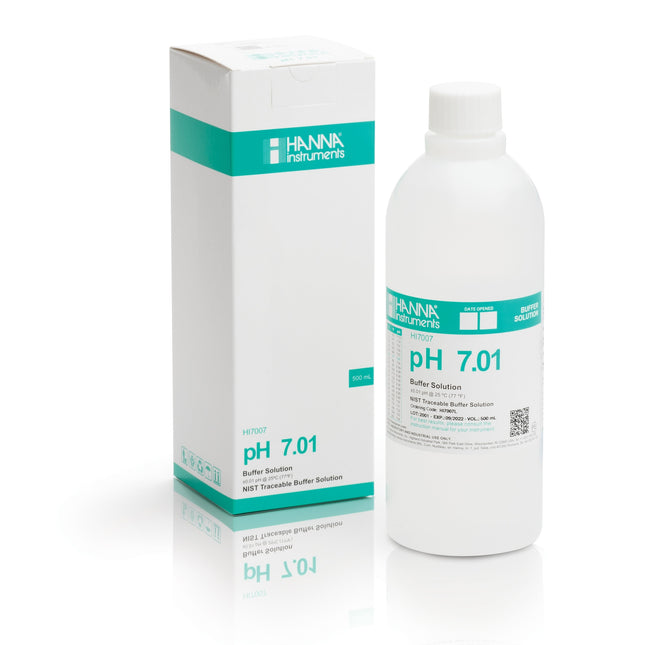

7.00 can also be used for storage when pH storage solution is not available. Expires after 6 months if unopened. Expires after 3 months if opened. Download the PDF
pH indicator strips in the range of 2.8 - 4.4 pH, the ranges typically seen in winemaking. The vial contains 100 strips, and a color reference chart for determining the pH on the outside of the vial.
A handy addition to any Home Lab, this wash bottle is great for cleaning out pipettes after use, rinsing pH electrodes and cleaning out components of your Aeration/Oxidation set. Also fun to squirt people with!

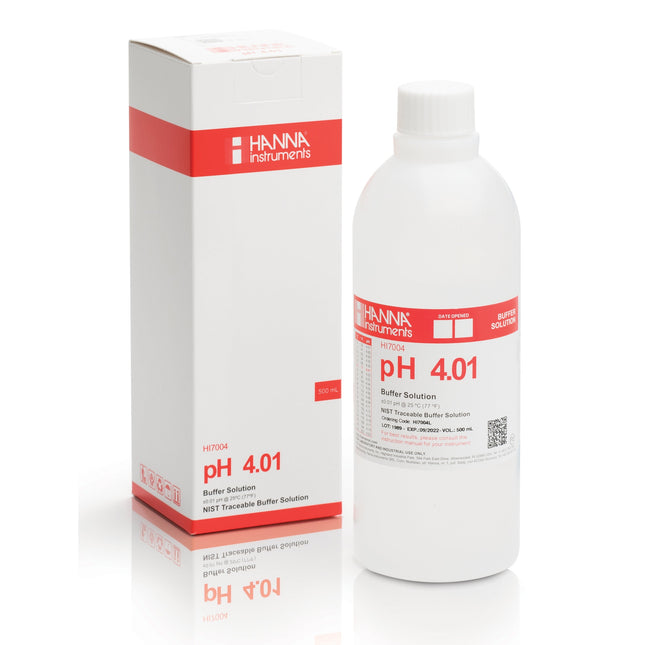

HI7004L is a premium quality pH 4.01 buffer solution.
With lot number and expiration date clearly marked on the label and an air tight, tamper-proof seal to ensure the quality of the solution, Hanna’s line of pH calibration solutions are an easy way to get great pH measurements every time.
Air tight bottle with tamper-proof seal for quality.
Color coded label for easy identification of pH buffer values.
Perfect for routine maintenance to ensure accurate readings while extending the life of the electrode.
Our pH Technical Buffer Solutions are dedicated to measurements that require extremely accurate pH monitoring, and come with a certificate of analysis prepared by comparison against NIST standards. Our pH Technical Buffer Solutions are dedicated to measurements that require extremely accurate pH monitoring, and come with a certificate of analysis prepared by comparison against NIST standards.
Air tight bottle with tamper-proof seal
Ensures quality and freshness of solution
Each bottle marked with lot number and expiration date.
Hanna buffers are specially formulated to have an expiration of 5 years from manufacture for an unopened bottle.
Color coded label for easy pH buffer value identification
Easy to identify different buffer values
Lab-Grade Precision, Portable Size: Achieve ±0.02 pH accuracy in a compact, handheld design.
Durable, Glass-Free ISFET Sensor: Eliminates fragile glass electrodes, special storage, and tedious cleaning.
IP67-Rated and Intuitive: Performs reliably in harsh, wet, and outdoor environments.
Small Sample Volume: Requires only 0.5 mL of sample for precise measurement.
Smart. Precise. Portable.
pH2Go by Anton Paar delivers lab-grade pH precision in a compact, portable handheld that can be used anywhere with ease. A glass-free, ISFET sensor sidesteps the typical pain points of traditional electrodes - no fragile glass, no special storage, no tedious cleaning. Despite its compact size, pH2Go provides ±0.02 pH accuracy from just 0.5 mL of sample. And with an intuitive, IP67-rated design, it performs reliably in harsh or outdoor environments.
Product Highlights
±0.02 pH accuracy from just 0.5 mL sample
Glass-free, durable ISFET pH sensor
Guided calibration (1 to 5 points) with ATC
Fast readings (≈2 s)
pH range 0.00–14.00; resolution 0.01 pH
Temperature accuracy ±1%
Easy to clean & store; Waterproof (IP67)
Supports DIN, NIST, JIS & custom buffers
Free app (iOS, Android & Web) for data visualization, storage & sharing
Suitable for a Broad Range of Applications
Brewing
Winemaking
Hydroponics
Agriculture
Aquariums
Pools
Water & Wastewater Treatment
Food Production
Dairies
Educational Labs
Professional Labs
Industrial Environments
Measurement Specifications
Sensor
Glass-free ISFET (Ion Sensitive Field Effect Transistor)
Measuring range
pH 0 to 14
Accuracy
±0.02 pH
Resolution
±0.01 pH
Calibration
1-, 2-, 3- and 5-point calibration
Automated temperature compensated calibration (ATC)
Yes
Buffer types
DIN, NIST, JIS, custom buffer sets
Electrolyte solution
gelled KCl
Diaphragm
porous PTFE
Temperature accuracy
1 %
Temperature resolution
0.1 °C (0.1 °F)
Sample temperature range
0 °C to 80 °C (32 °F to 176 °F)
Device Specifications
Sample volume
0.5 mL
Dimensions (L x W x H)
108 x 64 x 35 mm (4.3 in x 2.5 in 1.4 in)
Weight (incl. batteries)
125 g (0.28 lbs)
Power supply
2x AAA 1.5V batteries (included)
Enclosure rating
IP67 according IEC 60529
Operating conditions
Ambient temperature
10 °C to 40 °C (50 °F to 104 °F)
Air humidity
5% to 95% relative air humidity, non-condensing
Battery lifetime
Approx. 10 000 measurements
Storage temperature
10 °C to 40 °C (50 °F to 104 °F)
Interface
BluetoothTM Low Energy
Mobile Operating System
iOS & Android
Sample area
Sample well
PSU
Diaphragm
Porous PTFE
Sensor
ISFET
O-ring
FKM
Housing
PBT/PC
The Milwaukee MW151 MAX 3-in-1 PRO pH/ORP/Temp Bench Logging Meter is preferred by people testing all types of samples viscus or not, in a variety of applications that cause other pH meters and electrodes to fail. The logging feature allows log-on-demand and log-on-stability features that ensure all readings are accurate and not entered incorrectly. The MA917B/1 Milwaukee double junction electode is refillable and easy to clean. From brewers and wine makers to hydroponic growers, labs and water treatment, the MW151 MAX is your Bench Logging Meter for fast, accurate readings.
Accuracy
People choose the MW151 MAX 3-in-1 PRO pH/ORP/Temp Portable Logging Meter to improve the accuracy of their testing program. With up to 5 point calibration and 7 standard buffer choices (2 custom buffers also), the meter can be quickly calibrated to a higher accuracy compared with one or two point calibration. The MW151 MAX meter is accurate to ± 0.002 pH. 8 x more accurate than some alternative meters.
The meter comes with a refillable, glass, double junction pH electrode and MA831R temperature sensor allowing the meter to automatically adjust the pH reading for the effect of temperature (ATC).
The meter can also be used as a very accurate thermometer with accuracy +/-0.4°C (+/-0.8°F).
Low Maitenance
The MW151 MAX pH/OPR/Temp Bench Logging Meter comes with the Milwaukee glass, double junction MA917B/1 pH electrode. This is Milwaukee's top selling lab grade electrode for a reason. Designed to be both low maintenance (refillable) and able to withstand more challenging samples (double junction). The MA917B/1 is ideal for use in beer making, winemaking, hydroponics, laboratories and many other applications.
Features:
Fast easy-to-read results with large duel level digital LCD readout.
Extreme accuracy to ±0.002 pH | +/- 1 mV OPR | +/- 0.4°C (+/-0.8°F).
Extended pH range (-2.00 pH to 20.00 pH / -2.000 to 20.000 pH).
Lightweight, sleek design with small benchtop footprint.
Simple easy-to-use logging and USB download functions, manual or on stability up to 1,000 logs.
Electrode diagnostics feature checks and displays the condition of the pH electrode.
Easy measurement: just place the electode and temperature probe in the sample, gently stir and wait for the reading to stabilize.
Simple push button, automatic up to 5 point calibration for increased accuracy.
Up to 7 Standard calibration solutions (1.68, 4.01, 6.86,7.01, 9.18, 10.01 and 12.45) and 2 custom choices.
Refillable, glass, double junction lab grade pH electrode for low maintenance and high performance with a screw on cap to ensure proper storage.
Built-in rechargeable battery with 8 hours battery life (battery included).
Selectable Auto-off feature.
Alphanumeric LCD display messages for friendly, intuitive information, warnings and error messages.
Internal clock date to keep track of different time-dependent functions (calibration, timestamp,calibration time out).
3 feet probe cables for extra flexibility when testing.
Care and Use
pH meters usually start performing poorly because of problems with the probe. The two parts of the pH probe that cause problems are the glass sensing bulb and the reference junction.
Sensing Bulb
The glass bulb loses sensitivity with use and will eventually fail. This is true of all pH probes.
Reference Junction
The reference junction is a small hole that allows the meter to compare the sample to a reference. The reading is generated based on the electrical difference between the sample and reference. If the junction hole gets clogged, the pH electrode will no longer function.
You can extend the life of your pH electrode in the following ways.
Storage
To minimize clogging the pH probe needs to be kept hydrated. Long periods of dry storage will damage the sensitivity of the probe. Allowing the probe to dry out may also result in the junction hole getting clogged.
Storing in pH probe storage solution or pH calibration buffers will help address both these issues. Do not store in tap water and DI water. This will damage the sensitivity of the probe.
The best way to store the probe is with the probe's cap filled with storage solution or calibration buffer and the cap tightened to prevent leakage. It is also recommended that to store the electrode upright to further reduce the potential for leakage.
Cleaning and Maitenance
Residue from the sample can impact the sensitivity of the sensing bulb and clog the junction. This is especially true if the sample has a lot of organic material. We recommend regularly soaking your electrode in cleaning solution. Also:
Inspect the electotrode for damage or scratches, if present replace the electrode.
Inspect the cable. The connection cable and insulation must be intact.
Connectors should be clean and dry.
Rinse off salt deposits with water or DI water.
Calibration
The pH sensing bulbs become less sensitive over time so make sure that you are calibrating regularly to keep your PRO Plus pH meter accurate. Also, calibrate after cleaning or a long period of storage.
Specifications:
pH Range: -2.00 to 20.00 pH / -2.000 to 20.000 pH
ORP Range: ±2000.0 mV
Temp. Range: -20.0 to 120.00°C (-4.0 to 248.0°F)
Resolution: 0.01 pH / .001 pH
Resolution: 0.1mV
Resolution: 0.1°C / 0.1°F)
Accuracy: ±0.01 pH / ±0.002 pH @ 25°C / 77°F
Accuracy: ±1mV
Accuracy: ±0.4°C |±0.8°F
pH Calibration: up to 5 point automatic pH calibration | 7 standard buffers (pH 1.68, 4.01, 6.86, 7.01, 9.18, 10.01, 12.45) and two custom buffers
Temperature Compensation: Automatic, -20.0 to 120.0°C (-4.0 to 248.0°F) or manual
pH electrode: MA917B/1 glass, double junction pH electrode (supplied)
Temperature probe: MA831R (included)
Logging: Maximum 1,000 samples (stored in up to 100 lots) / on demand, 200 samples on stability, 200 samples/ Interval logging, 1000 logs
PC Connectivity: 1 USB Port, 1 micro USB port
Power supply: 12VDC, 5 VDC USB Adapter (included)
Battery life: Approx. 8 hours of use
Auto-off: Selectable 5, 10, 30, 60 min. or off
Environment: 0 to 50°C / 32 to 122°F; max RH 95%
Dimensions: 230 x 160 x 95 mm (9.0 x 6.3 x 3.7 inches)
Weight: 0.9 kg / 2.0 lbs.

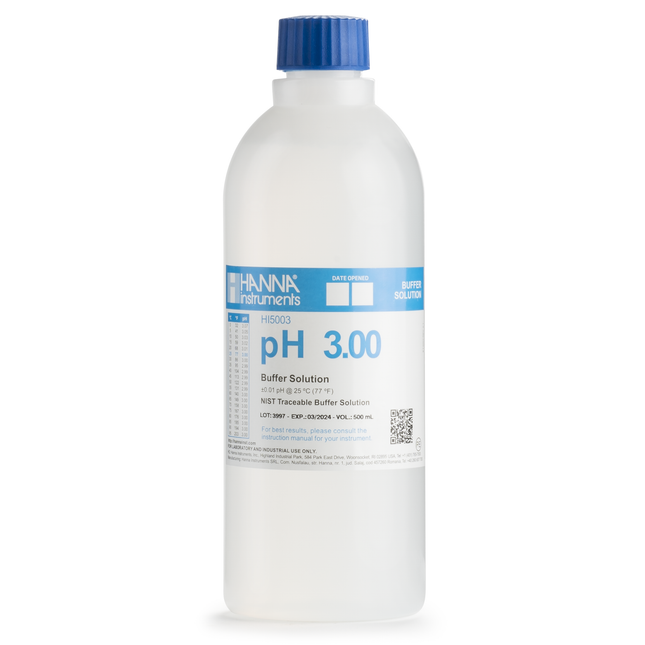

HI5003 is a premium quality pH 3.00 technical calibration buffer that is NIST traceable and supplied with a Certificate of Analysis. Hanna calibration buffers have the lot number and expiration date clearly marked on the label and are air tight with a tamper-proof seal to ensure the quality of the solution. Hanna's line of technical calibration buffers have been specially formulated to have an expiration of 5 years from the date of manufacture for an unopened bottle.
Supplied with Certificate of Analysis
Accuracy of +/- 0.01 pH @ 25°C
Temperature chart of the actual pH value at various temperatures printed on each bottle
HI5003 is a premium quality pH 3.00 technical calibration buffer produced in accordance with ISO 3696/BS3978 standards, using high purity salts, deionized water, certified weight-checked balances, and Class A glassware in a temperature controlled environment monitored with certified thermometers. Reported values are accurate to +/- 0.01 pH @ 25°C and are traceable to NIST Standard Reference Materials (SRM).
The HI5003 is supplied with certificate of Analysis
Product code
Lot number
Mean lot value
SRM’s that were used
Manufacturing date
Expiration date
Color coded label for easy pH buffer value identification
Easy to identify different buffer values
Solution does not contain any dyes that may stain the reference cell of a pH electrode.
Premium quality pH 3.00 technical calibration buffer that is NIST traceable and supplied with a COA
Accuracy of +/- 0.01 pH @ 25C
Temperature chart of the actual pH value at various temperatures printed on each bottle
Solution does not contain any dyes that may stain the reference cell of a pH electrode
Replacement pH electrode for the SC-300 Analyzers that have a manufacturing date after February 2016. Includes the pH Electrode Storage solution. The pH electrode should be properly stored in its electrode storage solution. With proper care and storage, this electrode will have a 2-3 year lifespan beginning with first use. Vinmetrica Troubleshooting Guide
Double Junction, refillable glass electrode with BNC connector and 1m cable. Replacement for the electrode that is included with the Milwaukee MW151 MAX pH/ORP/Temp Logging Bench Meter. The electrode is the consumable portion of the pH meter which actually makes the measurement. All pH electrodes wear out over time and must be replaced. If your meter is having trouble calibrating or the reading drifts then a bad electrode is the likely culprit.
Milwaukee Part Number: MA917B/1
NIST-traceable pH buffer solutions for 3-point calibration
3M KCl solution helps regenerate the reference electrode
Dropper bottles for clean filling without the risk of contamination
With the pH2Go Starter Bundle, you have everything you need to get started right away: a complete kit for 3-point calibration, plus a regeneration solution.
The pH2Go Starter Bundle includes three NIST-traceable pH buffer solutions for 3-point calibration (pH 4, pH 7, and pH 10), as well as a potassium chloride (KCl) solution. This helps condition the electrode after extended storage, supporting fast response times and stable measurement results.
The practical dropper bottles allow clean, precise dispensing directly into the sample well.
What’s included (one bundle):
pH 4 buffer, 10 mL (pH 4.00 ±0.01; 20°C)
pH 7 buffer, 10 mL (pH 7.00 ±0.01; 20°C)
pH 10 buffer, 10 mL (pH 10.00 ±0.01; 20°C)
3M KCl solution, 10 mL
.30M KCl (potassium chloride) solution for refillable pH/ORP electrodes. Fresh electrolyte solution ensures accurate calibration and measurement with your pH meter. For best results, electrolyte should be replenished or completely replaced every 3-6 months.
To Use:
Wearing Gloves, Drain existing electrolyte solution from the electrode by shaking upside down over the sink. You may need to use the tip of a small pipette or a syringe to break the surface tension of the liquid. Using the same pipette or syringe, replace the solution you just drained with a fresh lot from the bottle.
Store capped and refrigerated and out of the reach of children.

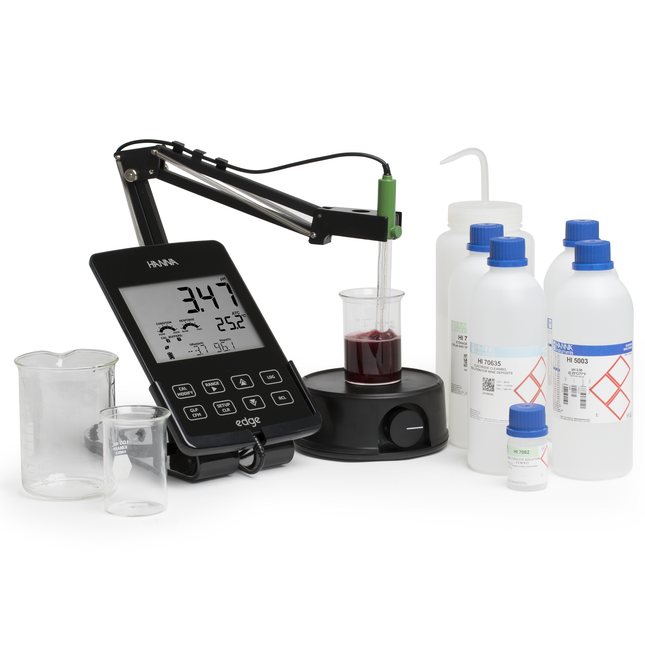

edge® digital wine pH meter kit delivers precision while offering simplicity and versatility in a sleek design.
Upgrade to the Hanna edge® wine pH kit for professional winemakers. The HI2020W allows you to add a conductivity probe and a dissolved oxygen probe to give you full versatility. Fast results, ultra-accurate, hassle-free analysis.
Complete meter kit for measuring pH in wine.
CAL Check™ feature ensures the accuracy of the meter.
Great for professional and home winemakers.
The Importance of pH in Wine Making
The pH of wine is important to determine because it will affect the quality of the final product in terms of taste, color, oxidation, chemical stability and other factors. Generally in winemaking, the higher the pH reading, the lower amount of acidity in the wine. Three important factors in determining the pH of wine include the ratio of malic acid to tartaric acid, the amount of potassium, and the total amount of acid present.
The edge HI2020W wine pH meter kit includes all the necessary supplies to determine the pH of wine must and juice accurately. The meter supplied with the HI2020W is the multiparameter edge, HI2020. The HI2020 is an advanced meter that is rich in features including using digital electrodes that can be swapped out anytime to switch to a different parameter, built in rechargeable battery, two USB ports, datalogging, automatic calibration, GLP (good laboratory practice) data for last calibrations, and Hanna’s exclusive calibration check feature that will alert the user to potential problems during calibration including when to clean the electrode and when the buffer might be contaminated. The HI2020 is a versatile pH meter for winemaking that be used as a benchtop, portable and even a wall mount to conserve space. The HI2020 is one of the most advanced meters available but the most important aspect in measuring pH is having the correct sensor for the application.
The HI2020W wine kit is packaged with the HI10480 (MT620Z) in place of the normally supplied HI11310. The HI10480 is a specially designed pH electrode that is resistant to clogging to the solids found in grape juice and must. This double junction, refillable pH electrode has a unique ground glass junction and PTFE sleeve to provide unsurpassed performance for the wine industry. A standard pH electrode will have a ceramic junction that can be easily clogged by solids. When this happens the pH readings will be erratic and drift over time before stabilizing on the actual pH value of the wine sample. The HI10480 with CPS technology will prevent the junction from clogging. The HI10480 is a digital electrode that when used with the edge HI2020 will change the default buffer set from pH 4.01and 7.01 to pH 3.00 and 7.01.
The edge HI2020W (MT620) wine pH meter (kit) includes the HI180-1 compact magnetic mini-stirrer. The use of a magnetic stirrer allows for proper mixing and the sample to be homogenous in consistency and temperature. The stirring of the sample also helps speed up the response time of a sensor in achieving a stable reading.
The edge HI2020W wine pH kit also includes all the solutions for calibration and maintenance. In order to ensure the highest of accuracy in measurement it is important to bracket the calibration buffers around the expected reading. Since the pH of wine is less than pH 4.01 it is important to calibrate at a lower pH value. For calibration the kit includes the HI5003 (MT611) pH 3.00 and the HI5007 pH 7.01 technical calibration buffer. Each bottle of buffer NIST traceable is supplied with a certificate of analysis that includes lot number, expiration date and reference materials used in production.

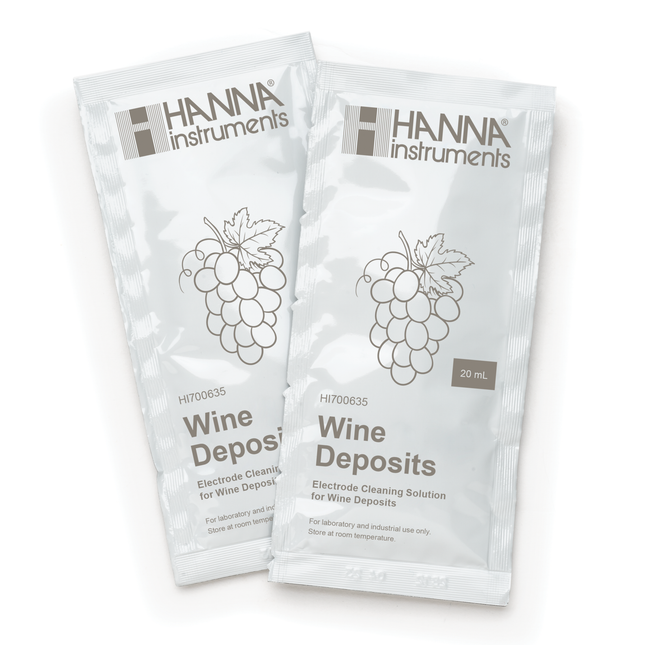

For maintenance the The HI70635L cleaning solution for wine deposits and the HI70300L (MT631)electrode storage solution. When the “clean electrode” message is displayed during the calibration of the HI2020 edge or there is a poor probe condition (i.e. less than 30%) then soak the HI10480 in the cleaning solution for 15 minutes to clean any deposits from the glass surface. After cleaning the probe should be rinsed with purified water and then allowed to soak in the storage solution for 2-3 hours. The electrode storage solution is also used when the electrode is not in use. Either place a small amount into the storage cap or into a beaker in order to maintain a properly hydrated electrode.
Importance of maintaining a clean pH electrode
The most common cause for pH measurement inaccuracies is an unclean or improperly cleaned electrode. This is very important to note, because during calibration, the instrument assumes that the electrode is clean and that the standardization curve created during the calibration process will remain a valid reference until the next calibration. pH meters on the market today will allow an offset voltage of approximately ±60 mV. The deviation from 0 mV is not unusual but ideally should be no greater than ±30 mV. The calibration process compensates for the change in offset voltage. If the mV offset continues to deviate and the meter is calibrated with a dirty electrode then inaccurate readings will result.
The Cleaning Solution Series ensures maximum efficiency and accuracy of your sensors when used for its designated application. Cleaning is a fast and effective routine that should be performed on a regular basis as a preventative measure against using a dirty electrode and to ensure that the junction is not clogged.
Benchtop
Portable, or Wall Mount versatile pH meter
Swappable digital electrodes
Built in rechargeable battery
Two USB ports
Automatic calibration,and data logging for GLP data
Large easy to read display
NOTE: The shape of the stir plate may differ from what is shown in the example photo. The function and approximate size will be the same, but it may be round or square depending on what the supplier has in stock.
The HI1048B is a glass body, refillable, sleeve junction pH electrode with a BNC connector. This electrode features a double junction reference, Hanna's Clogging Prevention System (CPS) technology and spherical glass sensing bulb made with general purpose glass. This pH electrode is ideal for wine must and juice due to their high solids content that would clog a standard general purpose pH electrode.
Clogging Prevention System (CPS™) Technology
Refillable Electrode
Double Junction Design
Hanna Instruments offers a wide variety of pH electrodes that are designed for many different applications. The type of glass used for sensing pH, bulb shape, body material, type of junction, type of reference and electrolyte used are just some of the design considerations.
The HI1048B uses general purpose (GP) glass, spherical bulb, glass body, sleeve junction with CPS™ technology, double junction and is refillable with 3.5M KCl, making it ideal for wine must, juice, and other samples with a high solids content.
General Purpose Glass Formulation
General Purpose (GP) glass, as the name implies, is a standard glass formulation that is used for general use. A pH electrode with GP glass will have a resistance of 100 megaohms at 25°C and is suited for measuring the pH of samples that are at ambient temperatures. The HI1048B is suitable to use with samples that measure from 0 to 80°C.
Spherical Glass Tip
The spherical shaped tip design allows for a wide area of contact with the measured sample. This permits a faster electrode response with a higher degree of stability.
CPS Sleeve Junction
Clogging Prevention System (CPS) technology is an innovation in for the improvement of pH measurements in samples that have a high solids content. Conventional pH electrodes use ceramic junctions that can clog quickly when used in samples that have a high solids content such as wine must or juice. When the junction is clogged, the electrode does not function. CPS technology utilizes the porousness of ground glass coupled with a PTFE sleeve to prevent clogging of the junction. The ground glass allows the proper flow of the liquid, while the PTFE sleeve repels solids. As a result, pH electrodes with CPS technology take up to 20 times longer to be fouled as compared to conventional electrodes.
Double Junction Reference
A double junction electrode has an internal compartment surrounding the reference wire. Silver ions are present in the electrolyte of the internal compartment, which houses the Ag/AgCl reference wire; the electrolyte outside this compartment is silver free. The double junction design means that virtually no silver from the electrode enters the sample. This design allows measurement in applications where silver ions in the sample are undesirable or for samples that contain sulfides that can cause the silver to precipitates and clog the junction. The clogging of the junction will result in drifty and erratic readings.
Refillable
The HI1048B is a refillable probe. Since it is a double junction pH electrode, the fill solution is the HI7082 3.5M KCl. This solution does not contain any silver as with single junction electrode fill solutions.
Glass Electrode Body
The glass body is ideal for laboratory use. The glass is resistant to many harsh chemicals and is easily cleaned. The glass body also allows for a fast transfer of heat to the internal reference electrolyte. The mV generated by the reference cell is temperature
dependent. The faster the equilibrium the steadier the reference potential.

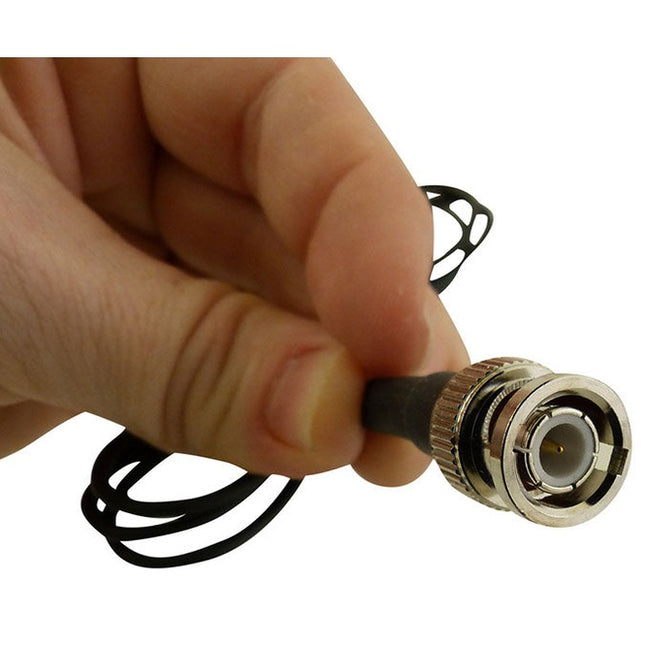

BNC Connector
The HI1048B has a BNC connector. This type of connector is universal in that it can be used on any pH meter that has a female BNC probe input. Other types of connectors include DIN, screw type, T-type, and 3.5mm to name a few. These types of connectors tend to be proprietary for a particular type of meter and are not interchangeable.
Single Junction Versus Double Junction pH Electrodes
Conventional electrodes are normally single junction. As depicted by the figure above, these electrodes have only a single junction between the internal reference wire and the external solution. Under adverse conditions, such as high pressure, high temperature, highly acidic or alkaline solutions, the positive flow of the electrolyte through the junction is often reversed resulting in the ingress of sample solution into the reference compartment. If this is left unchecked, the reference electrode can become contaminated, leading to complete electrode failure. Another potential problem with single junction electrodes is the clogging of the junction due to silver chloride (AgCl) precipitation. Silver can be easily precipitate in samples that contain Tris buffer or heavy metals. When the electrolyte solution makes contact with the sample, some AgCl will precipitate on the external face of the junction. The result is drifty readings obtained from the sensor.
Hanna’s double junction system, as the name implies, has two junctions, only one of which is in contact with the sample as shown in the figure. Under adverse conditions, the same tendency of sample ingress is evident. However, as the reference electrode system is separated physically from the intermediate electrolyte area, the contamination of the electrode is minimized. The likelihood of clogging of the junction is also reduced with a double junction electrode since the outer reference cell uses a fill solution that is “silver-free”. Since there is no silver present, there is no precipitate forming to clog the junction.
Able to measure samples 0-80C
Glass body, refillable sleeve junction
pH electrode with a BNC connector and a 0.5m cable
Clogging Prevention System (CPS) Technology
Refillable Electrode
Double Junction Design
The HI700635P is a highly effective cleaning solution that is specially formulated for use with pH electrodes that become coated with wine juice and must deposits. Electrodes can become dirty from use and will produce inaccurate results even as they read correctly in a pH buffer. Hanna's cleaning solutions eliminate impurities and residues that are left on electrode surfaces when immersed in samples during measurement and stored incorrectly. Hanna suggests cleaning the bulb and junction of your electrode on a regular basis to ensure that the probe is always clean and prevent any clogging of the junction. Each sachet has the lot number and expiration date stamped on it and is made of light block foil ensuring freshness each time one is opened. Hanna's line of cleaning solutions have been specially formulated to have an expiration of 5 years from the date of manufacture for an unopened sachet.
Specially formulated cleaning solution to remove wine deposits from a pH electrode
Convenient, one-time use sachets ensure freshness of solution
The most common cause for pH measurement inaccuracies is an unclean or improperly cleaned electrode. This is very important to note, because during calibration, the instrument assumes that the electrode is clean and that the standardization curve created during the calibration process will remain a valid reference until the next calibration. pH meters on the market today will allow an offset voltage of approximately ±60 mV. The deviation from 0 mV is not unusual but ideally should be no greater than ±30 mV. The calibration process compensates for the change in offset voltage. If the mV offset continues to deviate and the meter is calibrated with a dirty electrode then inaccurate readings will result.
The Cleaning Solution Series ensures maximum efficiency and accuracy of your sensors when used for it’s designated application. Cleaning is a fast and effective routine that should be performed on a regular basis as a preventative measure against using a dirty electrode and to ensure that the junction is not clogged. The HI700635P is a cleaning solution made specifically for the wine industry, where electrodes can become coated with wine particulates and deposits found in juice and must.and must.
Light block foil packaging
• Light-tight packet helps to prevent against degradation by UV light
One-time use sachet packets
• Ensures quality and freshness of solution
Each sachet marked with lot number and expiration date
• Hanna cleaning solutions are specially formulated to have an expiration of 5 years from manufacture for an unopened sachet.
Specially formulated cleaning solution to remove wine deposits from a pH electrode
Convenient one-time use sachets ensure freshness of solution
Light-tight packet helps to prevent against degradation by UV light
The MA911B/2 probe is lab grade, gel-filled pH probe for use with Milwaukee Monitors and Controllers.
Top Design Features:
Double Junction
The double junction junction design reduces the risk of clogging.
Spherical Glass Tip
The spherical glass tip provide the largest possible surface area for faster results.
Resin Body
The Polypropylene Resin body is tough to withstand accidental knocks and also protects the glass sensing bulb. It's high chemical resistance properties makes it ideal for Industrial applications, in-line applications and strong acids and bases.
Extended cable
Offers a 6.6' cable for increased flexibility in measuring.
Use and Care
pH meters usually start performing poorly because of problems with the probe. The two parts of the pH probe that cause problems are the glass sensing bulb and the reference junction.
Sensing bulb
The glass bulb loses sensitivity with use and will eventually fail. This is true of all pH probes.
Reference junction
The reference junction is a small hole that allows the meter to compare the sample to a reference. The reading is generated based on the electrical difference between the sample and reference. If the junction hole gets clogged, the pH probe will no longer function.
You can extend the life of your pH electrode in the following ways:
Storage
The pH probe needs to be kept hydrated. Long periods of dry storage will damage the sensitivity of the probe. Allowing the probe to dry out may also result in the junction hole getting clogged.
Storing in pH probe storage solution or pH calibration buffers will help address both these issues. Do not store in tap water or DI water. This will damage the sensitivity of the probe.
The best way to store the probe is with the probe's cap filled with storage solution or calibiration buffer and the cap tightened to prevent leakage. It is also recommended that to store the electrode upright to further reduce the potential for leakage.
Cleaning
Residue from the sample can impact the sensitivity of the sensing bulb and block the junction. This is especially true if the sample has a lot of organic material. We recommend regularly soaking your electrode in cleaning solution.
Calibration
The pH sensing bulbs become less sensitive over time so make sure that you are calibrating regularly to keep your PRO pH meter accurate. Also, calibrate after cleaning or a long period of storage.
The Milwaukee Waterproof pH55 PRO pH/Temp. Tester is one of our most accurate cost effective, well rounded, rugged and reliable testers in the market featuring dual level LCD readouts, easily replaceable probe and extended pH ranges to meet almost any application. It's simple 1 or 2 point automatic calibration is simple-to-use and offers TWO sets of memorized buffers to select. Ideal for use in aquariums, hydroponics, horticulture, education, pools, beer and many other applications.
The Milwaukee Waterproof pH55 pH/temp. tester offers:
Accuracy
The Waterproof pH55 PRO tester is accurate to ±0.1 pH & ±0.5°C (+/-1°F) and is easy to read.
With easy 2 point automatic calibration, this pH tester is quickly calibrated to an accuracy of much more expensive meters. Simple design and rugged, it brings great value for any application. Why guess at your readings using litmus paper when you can have guaranteed accurate, digital LCD results.
Long life
The tester comes with a replaceable pH probe with a double junction probe designed for longer life.
Fast response
The probe is double junction allowing quick, accurate pH readings and respose times.
Waterproof construction
No more worries about dropping your tester while measuring. The pH55 PRO is waterproof to IP65.
Light weight
At just 3.5 ounces, the pH55 PRO is easy to handle at up to half the weight of other testers.
Ease-of-use
A large Dual Level LCD screen with easy-to-read graphic symbols, makes it easy while calibrating or reading your measurement. This takes the takes the guess work out of litmus paper.
Design features
Fast easy to read results with large digital LCD readout.
Extreme pH accuracy to ±0.1 pH with an extended pH range (-2.0 pH to 16.0 pH).
Resolution to 0.1 pH.
Lightweight and portable.
Easy measurement: just place the probe in the sample, gently stir, wait for the stability indication to show a stable reading and then freeze the reading.
Is fully compensated for temperature (ATC).
Simple Automatic one or two-point calibration.
Acid Based calibrations, cleaning & storage solutions use PH-START add MA9010 (10.01 cal. buffer) or M10010B if Basic cal. required.
2 Sets of pre-memorized buffers. (pH 4.01, 7.01, 10.01 or 4.01, 6.86, 9.18)
Gel-filled, double junction pH electrode for low maintenance and high performance.
Over 300 hours of battery life (batteries included).
Fully waterproof to IP65.
Replaceable pH electrode Mi56P.
pH Range:-2.0 – 16.0 pH
Resolution:0.1 pH
Accuracy:±0.1 pH
Calibration:Automatic 1 or 2 point with 2 sets of pre-memorized buffers (pH 4.01, 7.01, 10.01) or (pH 4.01, 6.86, 9.18)
Care and Use
All pH sensors have a limited life and response time gets longer with age. Properly maintaining your pH pen tester will give you fast, accurate results for longer. So, be sure to order the Milwaukee pH Maintenance Kit code PH-Main at checkout time! This will be needed to help clean and condition the pH electrode before use!
Store the pH probe in storage solution MA9015. Only use tap water short-term if MA9015 is not immediately available and NEVER store in distilled Water (DI) or Reverse Osmosis (RO) water. This will damage the sensitivity of the probe.
Here are our top four tips.
Always store upright with the cap full of MA9015 Storage solution for BEST RESULTS.
Clean your Tester regularly by soaking in cleaning solution MA9016. Cleaning Solution for about 20 minutes.
Calibrate after cleaning and/or storage before testing to adjust for changes in the pH sensor.
Gently stir the Tester in the sample for a faster result.
Probe calibration is a simple procedure for optimal performance and should be done any time your readings become suspect. Calibration should be performed at least once a month.
MA9010 is a lab grade pH 10.01 buffer solution certified to meet the standard to an accuracy of ±0.01 pH removing the inaccuracies involved with mixing buffers.
Milwaukee solutions are designed to help you achieve reliable and repeatable pH measurements while extending the life of your electrode.
Design Features
pH 10.01 Calibration Buffer Solution (230 mL)
Fundamental for the correct use of electrodes and for obtaining the most accurate and reproducible readings
Sealed against light with air tight, tamper proof cap
Ideal for fast accurate calibration
Simply open, pour into a beaker or container and insert the tester or electrode to start the calibration process.
Probe calibration is a simple procedure for optimal performance and should be done any time your readings become suspect. Calibration should be performed at least once a month.
MA9004 is a lab grade pH 4.01 buffer solution certified to meet the standard to an accuracy of ±0.01 pH removing the inaccuracies involved with mixing buffers.
Milwaukee solutions are designed to help you achieve reliable and repeatable pH measurements while extending the life of your electrode.
Design Features
pH 4.01 Calibration Buffer Solution (230 mL)
Fundamental for the correct use of electrodes and for obtaining the most accurate and reproducible readings
Sealed against light with air tight, tamper proof cap
Ideal for fast calibration
Simply open, pour into a beaker or container and insert the tester or electrode to start the calibration process.
The Milwaukee MA905B/3 is a replacement pH Probe for any Milwaukee meter that uses a BNC connector. Using the BNC connection, the probe connects quickly and tightly with no worries of slipping off.
The MA905B/3 has a rugged body (PVC), comes with a 3 meter (9.8') cable, BNC connector, and can withstand up to 6 bar of pressure (meter(s) sold separately).
The Milwaukee MC720 PRO pH controller and pump lets you measure and adjust pH levels automatically.
Summary
The MC720US kit includes the MC122 pH controller and MP810 dosing pump to automatically monitor and fine-tune pH levels. Just set your pH parameters and let the MC720US pH Controller and pump do the rest.
The MC720US is preferred by people looking to dial in their testing program when they have an ongoing need to maintain levels. Common uses are nutrient tanks and aquariums.
Features
Accuracy
The Milwaukee PRO pH controller offers an accuracy to ±0.2 pH with two point manual calibration.
Automation
The controller provides a control range of 5.5 to 9.5 pH with alarms that activate when readings are higher or lower than set point.
Compatible dosing pump
The Milwaukee MP810 dosing pump (designed specifically for use with the MC122) is included in the kit.
Easy installation
The MC720 pH controller and pump kit comes with a complete mounting kit including a probe holder.
Design features
Fast easy to read current results with large digital LCD readout
Accurate to ±0.2 pH
Simple two-point calibration for increased accuracy with manual trimmers for easy adjustment
5.5 to 9.5 pH alarm set point range is easily accessible on the front panel
Alarm activated when reading is above or below set point
Comes with full mounting kit including probe holders
Lab grade, double junction, gel filled probe designed for low maintenance
6.5’ probe cables for extra flexibility
12 VDC power supply
Pump provides a maximum pressure of 1.5 bar or more than 50 feet of head pressure with a 0.39268 GPH / 9.5 GPD dosing flow.
Uptake & Discharge Tubing Material: Polyethylene, 4.92' / 1.5 m.
Black Pump Squeeze Tube Material: Norprene.
Use and Care
pH meters usually start performing poorly because of problems with the probe. The two parts of the pH probe that cause problems are the glass sensing bulb and the reference junction.
Sensing bulb
The glass bulb loses sensitivity with use and will eventually fail. This is true of all pH probes.
Reference junction
The reference junction is a small hole that allows the meter to compare the sample to a reference. The reading is generated based on the electrical difference between the sample and reference. If the junction hole gets clogged, the pH probe will no longer function.
You can extend the life of your pH electrode in the following ways.
Storage
The pH probe needs to be kept hydrated. Long periods of dry storage will damage the sensitivity of the probe. Allowing the probe to dry out may also result in the junction hole getting clogged.
Store the pH probe in storage solution MA9015. Only use tap water short-term if MA9015 is not immediately available and NEVER store in distilled Water (DI) or Reverse Osmosis (RO) water. This will damage the sensitivity of the probe.
This best way to store the probe is with the probe's cap filled with MA9015 Storage Solution and the cap tightened to prevent leakage. It is also recommended that to store the electrode upright to further reduce the potential for leakage.
Cleaning
Residue from the sample can impact the sensitivity of the sensing bulb and block the junction. This is especially true if the sample has a lot of organic material. We recommend regularly soaking the probe in MA9016 Cleaning Solution for about 20 minutes.
Calibration
The pH sensing bulbs become less sensitive over time so make sure that you are calibrating reguarly to keep your PRO pH controller accurate. Also, calibrate after cleaning or a long period of storage.
Accurate. Simple. Reliable. 24/7 pH Control.
The Milwaukee MC311 PRO Conductivity (EC) controller lets you measure and adjust EC levels automatically.
Summary
The MC311 EC controller automatically monitors and fine-tunes EC levels. Just set your EC parameters and let the Milwaukee EC Controller do the rest.
The MC311 is preferred by people looking to dial in their testing program when they have an ongoing need to maintain levels. Common uses are nutrient tanks and aquariums.
Features
Accuracy
The Milwaukee PRO EC controller offers an accuracy to ±2% full scale.
Automation
The controller provides a control range of 0.0 to 10.0 mS/cm with alarms that activate when readings are higher or lower than set point.
Compatible dosing pump
Milwaukee also offers the optional MP810 dosing pump
Easy installation
This EC Controller comes with a complete mounting kit including a probe holder.
Design features
Fast easy to read current results with large digital LCD readout
Accurate to ±2% full scale
Simple one-point calibration with manual trimmers for easy adjustment
0.8 to 2.8 mS alarm set point range is easily accessible on the front panel
Alarm activated when reading is above or below set point
Comes with full mounting kit including probe holders
MA812/2 hardwired EC probe
6.5’ probe cables for extra flexibility
12 VDC power supply
Accurate. Simple. Reliable. 24/7 pH Control.
The Milwaukee MC122 PRO pH controller lets you measure and adjust pH levels automatically.
The MC122 controller automatically monitors and fine-tunes the pH levels. Just set your pH parameters and let the MC122 do the rest. The controller provides a control range of 5.5 to 9.5 pH with alarms that activate when readings are higher or lower than set point.
The MC122 is preferred by people looking to dial in their testing program when they have an ongoing need to maintain levels. Common uses are nutrient tanks and aquariums.
Features
Accuracy
The Milwaukee PRO pH controller offers an accuracy to ±0.2 pH with two point manual calibration.
Automation
The controller provides a control range of 5.5 to 9.5 pH with alarms that activate when readings are higher or lower than set point.
Compatible dosing pump
Milwaukee offers the MP810 dosing pump
Easy installation
The pH Controller comes with a complete mounting kit including a probe holder.
Design features
Fast easy to read current results with large digital LCD readout
Accurate to ±0.2 pH
Simple two-point calibration for increased accuracy with manual trimmers for easy adjustment
5.5 to 9.5 pH alarm set point range is easily accessible on the front panel
Alarm activated when reading is above or below set point
Comes with full mounting kit including probe holders
Lab grade, double junction, gel filled probe designed for low maintenance
6.5’ probe cables for extra flexibility
12 VDC power supply
Small footprint of 5.9 x 3.2 x 1.35”
Lightweight monitor at approx 6.3 oz.
Use and Care
pH meters usually start performing poorly because of problems with the probe. The two parts of the pH probe that cause problems are the glass sensing bulb and the reference junction.
Sensing bulb
The glass bulb loses sensitivity with use and will eventually fail. This is true of all pH probes.
Reference junction
The reference junction is a small hole that allows the meter to compare the sample to a reference. The reading is generated based on the electrical difference between the sample and reference. If the junction hole gets clogged, the pH probe will no longer function.
You can extend the life of your pH electrode in the following ways.
Storage
The pH probe needs to be kept hydrated. Long periods of dry storage will damage the sensitivity of the probe. Allowing the probe to dry out may also result in the junction hole getting clogged.
Store the pH probe in storage solution MA9015. Only use tap water short-term if MA9015 is not immediately available and NEVER store in distilled Water (DI) or Reverse Osmosis (RO) water. This will damage the sensitivity of the probe.
This best way to store the probe is with the probe's cap filled with MA9015 Storage Solution and the cap tightened to prevent leakage. It is also recommended that to store the electrode upright to further reduce the potential for leakage.
Cleaning
Residue from the sample can impact the sensitivity of the sensing bulb and block the junction. This is especially true if the sample has a lot of organic material. We recommend regularly soaking the probe in MA9016 Cleaning Solution for about 20 minutes.
Calibration
The pH sensing bulbs become less sensitive over time so make sure that you are calibrating reguarly to keep your PRO pH controller accurate. Also, calibrate after cleaning or a long period of storage.
Accurate. Simple. Reliable. 24/7 pH/EC/Temp Monitoring.
Why Guard when you can Monitor! The Milwaukee MC811 MAX pH/EC/Temp Monitor lets you monitor your pH/EC/Temp levels 24/7 automatically.
Summary
The MC811 MAX Monitor automatically monitors and displays pH/EC/Temp levels. Just calibrate the parameters and let the Milwaukee MAX Monitor do the rest.
The Milwaukee MC811 MAX pH/EC/Temp Monitor is preferred by people looking to know 24/7 what their pH and nutrient levels are on an ongoing basis. Common uses are nutrient tanks, Hydroponics and aquariums.
The Milwaukee MAX pH/EC/Temp Monitor offers:
Accuracy
The Milwaukee MAX Monitor offers an accuracy to ± 0.2 pH with two point manual calibration, EC accuracy of ±2% Full Scale and ±0.5 °F (0.3 °C) temperature accuracy.
Automation
Just calibrate the parameters and begin to monitor 24/7!
Easy installation
The MC811 MAX pH/EC/Temp Monitor comes with with two complete probe mounting kits.
Design features
Fast, easy-to-read current results with 3 large digital backlit LCD readouts.
Simple two-point pH calibration and one-point EC, for increased accuracy with manual trimmers for easy adjustment
Gel-filled, double junction, lab grade pH electrode for low maintenance and high performance
Low maintenance fixed EC probe
6.5’ probe cables for extra flexibility when testing
12 VDC power supply
Mount above the sample to be tested or rest on a flat surface next to the sample
Compact size of only 6.3” x 4.3” x 1.4”
Weighs only 1.2 lbs
Range:0.0 - 12.0 pH | 0.00 to 5.00 mS/cm | 14.0°F to 140.0°F
Resolution:0.1 pH | 0.01 mS/cm | 0.1°F / 0.1°C
Accuracy:± 0.2 ph | ± 2% Full Scale | ±0.5°F (±0.3°C)
Calibration:pH Manual, 2 Point (trimmer) | EC, Manual 1 point | Temp. Factory Calibrated
Use and Care
pH meters usually start performing poorly because of problems with the probe. The two parts of the pH probe that cause problems are the glass sensing bulb and the reference junction.
Sensing bulb
The glass bulb loses sensitivity with use and will eventually fail. This is true of all pH probes.
Reference junction
The reference junction is a small hole that allows the meter to compare the sample to a reference. The reading is generated based on the electrical difference between the sample and reference. If the junction hole gets clogged, the pH probe will no longer function.
You can extend the life of your pH electrode in the following ways.
Storage
The pH probe needs to be kept hydrated. Long periods of dry storage will damage the sensitivity of the probe. Allowing the probe to dry out may also result in the junction hole getting clogged.
Store the pH probe in storage solution MA9015. Only use tap water short-term if MA9015 is not immediately available and NEVER store in distilled Water (DI) or Reverse Osmosis (RO) water. This will damage the sensitivity of the probe.
This best way to store the probe is with the probe's cap filled with MA9015 Storage Solution and the cap tightened to prevent leakage. It is also recommended that to store the electrode upright to further reduce the potential for leakage.
Cleaning
Residue from the sample can impact the sensitivity of the sensing bulb and block the junction. This is especially true if the sample has a lot of organic material. We recommend regularly soaking the probe in MA9016 Cleaning Solution for about 20 minutes.
Calibration
The pH sensing bulbs become less sensitive over time so make sure that you are calibrating reguarly to keep your PRO pH controller accurate. Also, calibrate after cleaning or a long period of storage.
The Milwaukee MC110 PRO pH monitor (mid-range setpoint) offers lab grade accuracy with an easily viewable continuous check on pH levels with alarms.
Design features
Fast easy to read results with large digital LCD readout
±0.2 pH accuracy with a full pH range
3.5 to 7.5 pH alarm set point range is easily accessible on the front panel
Alarm activated when reading is above or below set point
Simple manual calibration via trimmers on the front panel
Comes with full mounting kit including probe holders
Lab grade, double junction, gel filled probe designed for low maintenance
12 VDC power supply
Small footprint of 5.9 x 3.2 x 1.35”
Lightweight monitor at approx. 5.6 oz.
Range:0.0 to 14.0 pH
Resolution:0.1 pH
Milwaukee PRO pH Probe Care
pH meters usually start performing poorly because of problems with the probe. The two parts of the pH probe that cause problems are the glass sensing bulb and the reference junction.
Sensing bulb
The glass bulb loses sensitivity with use and will eventually fail. This is true of all pH probes.
Reference junction
The reference junction is a small hole that allows the meter to compare the sample to a reference. The reading is generated based on the electrical difference between the sample and reference. If the junction hole gets clogged, the pH probe will no longer function.
You can extend the life of your pH electrode in the following ways.
Storage
The pH probe needs to be kept hydrated. Long periods of dry storage will damage the sensitivity of the probe. Allowing the probe to dry out may also result in the junction hole getting clogged.
Store the pH probe in storage solution MA9015. Only use tap water short-term if MA9015 is not immediately available and NEVER store in distilled Water (DI) or Reverse Osmosis (RO) water. This will damage the sensitivity of the probe.
This best way to store the probe is with the probe's cap filled with MA9015 Storage Solution and the cap tightened to prevent leakage. It is also recommended that to store the electrode upright to further reduce the potential for leakage.
Cleaning
Residue from the sample can impact the sensitivity of the sensing bulb and block the junction. This is especially true if the sample has a lot of organic material. We recommend regularly soaking the probe in MA9016 Cleaning Solution for about 20 minutes.
Calibration
The pH sensing bulbs become less sensitive over time so make sure that you are calibrating reguarly to keep your PRO pH meter accurate. Also, calibrate after cleaning or a long period of storage.
This Milwaukee 3-in-1 Low Range combo meter allows you to measure pH, EC (conductivity) and TDS with a single meter and one single probe.
Summary
pH and TDS are critical for water conditioning and aquariums. Total Dissolved Solids in drinking water can effect clarity and taste of water. In addition, high TDS levels can effect the health of a fish in an aquarium. High concentrations of TDS can decrease clarity of water in aquariums and decrease photosynthesis in aquatic plants.
The Milwaukee MW801 PRO Low Range Combo Meter lets you easily and accurately test pH, conductivity and total dissolved solids (TDS) using a single meter and integrated probe.
Simple, portable and rugged. No more juggling multiple electrodes and wires. Automatic temperature compensaton included.
The MW801 is the ultimate solution for pH and nutrient management.
Design Features
The design of the MW801 is focused on simple operation and ruggedness. With a single probe, big screen, easy calibration, the MW801 is exceptionally simple to operate.
A tough meter build and a rugged but replaceable probe means that you can expect years of use.
The Milwaukee PRO Combo meter offers:
pH, conductivity / nutrient EC, TDS (ppm) with automatic temperature compensation.
A replaceable, integrated pH, EC, and TDS (ppm) probe with a single 3 foot cable for easy use (SE600 probe included).
A fiber junction on the pH sensor to reduce contamination when measuring fertilizer solutions.
A light weight and portable form factor at just 5.8 ounces with battery and just over 3 inches wide.
A large easy to read display.
Factory calibration with a simple, single point manual calibration for both pH and EC.
A reputation for a rugged build and long life
Specialized design for drinking water, aquaponic, and aquariums.
Care and Use
The MW801 PRO Combo Meter includes both a pH and EC sensor in the SE600 integrated probe. All pH sensors have a limited life and response time gets longer with age. EC sensors are more robust but can still be affected by residue build up. Both need maintenance. Properly maintaining your probe will give you fast, accurate results for longer. So, be sure to order the Milwaukee pH Maintenance Kit code PH-Main at checkout time! This will be needed to help clean and condition the pH/EC electrode before use!
Store the pH probe in storage solution MA9015. Only use tap water short-term if MA9015 is not immediately available and NEVER store in distilled Water (DI) or Reverse Osmosis (RO) water. This will damage the sensitivity of the probe.
Here are our top four tips.
Always store with the cap full of Storage Solution MA9015 for BEST RESULTS.
Clean your probe regularly by soaking in cleaning solution MA9016 for about 20 minutes.
Calibrate after cleaning and/or storage before testing to adjust for changes in the pH and EC sensor.
Gently stir the probe in the sample for a faster result.
Calibration
To ensure the meter's stated accuracy, be sure to order the Combo-Start Kit our BEST Value here: COMBO-START Kit. This has the MA9007 (230 mL bottle of 7.01 calibration Solution), MA9061 (230 mL bottle of 1,413 uS calibration Solution), MA9015 (230 mL bottle of Storage Solution), MA9016 (230 mL bottle of Cleaning Solution) all in one kit. For the TDS you will need MA9062.
The Milwaukee MW803 MAX Waterproof Low Range 4-in-1 pH/EC/TDS/Temp Tester is designed as an all-in-one solution for growers.
The Milwaukee MW803 MAX Waterproof 4-in-1 Tester offers:
Accuracy
The MW803 MAX 4-in-1 tester is accurate to ±0.05 pH, EC/TDS to 2% Full Scale and ±0.5°C / ±1°F for temperature.
With automatic calibration and 5 memorized calibration points, the tester can be quickly and easily be calibrated to a higher accuracy compared with manual calibration.
Long life
The tester comes with a replaceable pH probe with a double junction probe design for longer life.
Fast response
An exposed temperature probe is located close to the pH probe for fast temperature compensation.
Waterproof construction
No more worries about dropping your tester while measuring. The MW803 is fully waterproof to IP65.
Light weight
At just 3.5 ounces, the MW803 MAX is easy to handle at up to half the weight of other testers.
Ease-of-use
A large dual level LCD screen makes reading results easy while a stability indicator and hold function that freezes the display takes the guess work out.
Design features
Fast easy to read results with large digital dual LCD readout.
Extreme accuracy to ±0.05 pH, EC / TDS 2% Full Scale and Temperature ±0.5 °C / ±1 °F.
Range 0.00 – 14.00 pH | EC 0 to 3999 µS/cm | TDS 0 - 2000 ppm | Temperature: 0.0 to 50.0 °C / 32.0 to 122.0 °F.
Lightweight and portable at just 3.5 ounces.
Easy measurement: just place the probe in the sample, gently stir, wait for the stability indication to show a stable reading and then freeze the reading.
Simple push button, automatic 1 or 2 point pH calibration with 5 saved calibration points and simple 1 point EC calibration.
Acid Based calibrations, cleaning & storage solutions use PH-START add MA9010 (10.01 cal. buffer) or M10010B if Basic cal. required.
For EC calibration USE MA9061 1413 µS/cm or M10031B µS/cm.
Gel-filled, double junction pH electrode for low maintenance and high performance with exposed temp. sensor for fast readings.
Auto shut off after 8 minutes of non-use.
Mi60P Replaceable pH electrode.
Fully waterproof to IP65.
Battery life approx. 100 hour of continuous use (batteries included).
Care and Use
The MW803 PRO Tester includes both a pH and EC electrode. Both need maintenance.
All pH sensors have a limited life and response time gets longer with age. Properly maintaining your pH pen tester will give you fast, accurate results for longer. So, be sure to order the Milwaukee pH Maintenance Kit code PH-Main at checkout time! This will be needed to help clean and condition the pH electrode before use!
EC sensors are more robust but can still be affected by residue build up.
Store the pH probe in storage solution MA9015. Only use tap water short-term if MA9015 is not immediately available and NEVER store in distilled Water (DI) or Reverse Osmosis (RO) water. This will damage the sensitivity of the probe.
Here are our top four tips.
Always store upright with the cap full of MA9015 Storage solution for BEST RESULTS.
Clean your Tester regularly by soaking in cleaning solution MA9016. Cleaning Solution for about 20 minutes.
Calibrate after cleaning and/or storage before testing to adjust for changes in the pH sensor.
Gently stir the Tester in the sample for a faster result.
Probe calibration is a simple procedure for optimal performance and should be done any time your readings become suspect. Calibration should be performed at least once a month.
MA9007 is a lab grade pH 7.01 buffer solution certified to meet the standard to an accuracy of ±0.01 pH removing the inaccuracies involved with mixing buffers.
Milwaukee solutions are designed to help you achieve reliable and repeatable pH measurements while extending the life of your electrode.
Design Features
pH 7.01 Calibration Buffer Solution (230 mL)
Fundamental for the correct use of electrodes and for obtaining the most accurate and reproducible readings
Sealed against light with air tight, tamper proof cap
Ideal for fast accurate calibration
Simply open, pour into a beaker or container and insert the tester or electrode to start the calibration process.
Wine pH Meter Kit. Lab Grade. High Performance. Tough.
The Milwaukee MW102 PRO+ Wine pH Meter Kit has won fans around the world with its reliable, fast and simple operation as well as its toughness and accuracy. The MW102 Wine pH Meter Kit combines the power of the MW102 meter with the special capabilities of the MA919B/1 Direct Wine Measurement pH Probe specifically designed for wine.
Summary
The Milwaukee PRO+ pH Meter is a specialist Wine pH Meter Kit combination specifically designed for the pH analysis of Wine with a Large PTFE reference that slides up for easy electrolyte purging and is refillable!
The Milwaukee PRO pH meter offers:
Accuracy
People choose the PRO+ pH Meter to improve the accuracy of their pH testing program. With two point calibration, the meter can be quickly calibrated to a higher accuracy compared with one point calibration. The MW102 meter has accuracy to ±0.02 pH. 5x more accurate than some alternative meters.
The meter comes with both a Wine specific pH probe and temperature probe allowing the meter to automatically adjust the pH reading for the effect of temperature.
The temperature probe can also be used as a very accurate thermometer.
Toughness
The rugged meter is built to take knocks.
Specialized design for pH analysis in Wine
MA919B/1 Wine probe features include a Large PTFE Reference that helps prevent wine junction stains and clogging, sliding reference that allows the user to easily purge tainted internal electrolyte, is glass with a high impedance for faster response time and is easily refillable with a screw hole on its cap.
The PRO MW102 Wine Kit also arrives complete with the Wine Start Kit 7.01, 4.01 pH calibration solutions, the MA9016 Cleaning Solution, the MA9015 Storage Solution and MA9011 electrolyte refilling solution all designed to keep your electrode in top performing condition!
The PTFE large reference junction, unlike standard electrodes, helps reduce wine stains and clogging which increases performance and accuracy for the user.
Design Features
Fast easy to read results with large digital LCD readout
Lightweight and portable
Easy measurement: just place the probe in the sample, gently stir and wait for the reading to stabilize
Automatic Temp. Compensation (ATC)
Automatic two-point calibration for increased accuracy
Extreme accuracy to ±0.02 pH and extended range (-2.00 pH to 16.00 pH)
Wine specific electrode with an easy-to-clean, PTFE reference
Rugged stainless temperature probe
Auto shut off and low power demand
Approx. 300 hours of continuous use
Wine Start Kit included (calibration and maintenance solutions)
Arrives complete with 4.01 & 7.01 calibration Solutions, MA9016 Cleaning Solution, MA9015 Storage Solution and MA9011 Electrolyte refilling solution.
Accuracy:±0.02 pH
Temperature Compensation:
AutomaticRange:0.00 - 12.00 pH
Calibration:Automatic
Care and Use
pH meters usually start performing poorly because of problems with the probe. The two parts of the pH probe that cause problems are the glass sensing bulb and the reference junction.
Sensing bulb
The glass bulb loses sensitivity with use and will eventually fail. This is true of all pH probes.
Reference junction
The reference junction the PTFE Sliding material that allows the meter to compare the sample to a reference. The reading is generated based on the electrical difference between the sample and reference. If the junction hole gets clogged, the pH electrode will no longer function.
You can extend the life of your pH electrode in the following ways.
Cleaning and Storage
All pH sensors have a limited life and response time gets longer with age. Properly maintaining your pH pen tester will give you fast, accurate results for longer. So, be sure to order the Milwaukee pH Maintenance Kit code PH-Main at checkout time! This will be needed to help clean and condition the pH electrode before use!
Storage
The pH probe needs to be kept hydrated. Long periods of dry storage will damage the sensitivity of the probe. Allowing the probe to dry out may also result in the junction hole getting clogged.
Store the pH probe in storage solution MA9015. Only use tap water short-term if MA9015 is not immediately available and NEVER store in distilled Water (DI) or Reverse Osmosis (RO) water. This will damage the sensitivity of the probe.
The best way to store the probe is with the probe's cap filled with storage solution or calibration buffer and the cap tightened to prevent leakage. It is also recommended that to store the electrode upright to further reduce the potential for leakage.
Cleaning
Residue from the sample can impact the sensitivity of the sensing bulb and clog the junction. This is especially true if the sample has a lot of organic material. We recommend regularly soaking your electrode in cleaning solution MA9016 Cleaning Solution for about 20 minutes.
Calibration
The pH sensing bulbs become less sensitive over time so make sure that you are calibrating regularly to keep your PRO Plus pH meter accurate. Also, calibrate after cleaning or a long period of storage.
This Milwaukee MW805 MAX pH/EC/TDS/Temp. 4-in-1 combo meter allows you to measure pH, EC (conductivity), TDS and Temp. with a single meter and one single probe.
Summary
pH and conductivity are critical for growers. pH can effect plant nutrient and water uptake and reduce the efficiency of fertilizer, herbicides and pesticides. Managing conductivity helps growers pinpoint fertilizer and other needs.
The Milwaukee MW805 MAX Combo Meter lets you easily and accurately test pH, conductivity and total dissolved solids (TDS) using a single meter and integrated probe.
Simple, portable and rugged. No more juggling multiple electrodes and wires. Automatic temperature compensaton included.
The MW805 MAX is the ultimate solution for pH and nutrient management.
Design Features
The design of the MW805 MAX is focused on simple operation and ruggedness. With a single probe, big screen, easy calibration, the MW805 is exceptionally simple to operate.
A tough meter build and a rugged but replaceable probe means that you can expect years of use.
The Milwaukee Combo meter offers:
pH, conductivity / nutrient EC, TDS (ppt) with automatic temperature compensation.
Selectable TDS factors from .40 to 0.8; defaulet value 0.50.
Stability indicator prompting the user when the readings stabilize.
Dedicated GLP key to store and recall data on system status.
A replaceable, Amplified Combination pH/EC/TDS/Temp probe with a single 3 foot cable (1 meter) for easy use (MA852D/1 probe included)
A cloth junction on the pH sensor to reduce contamination when measuring fertilizer solutions. Gel filled for long lasting measurments.
A light weight and portable form factor at just 9.2 ounces (260 g) with battery and just over 3 inches wide.
A large easy to read display.
Factory calibration for Temperature and simple, highly accurate, single cell automatic, one point calibration for EC and an automatic up to 5 point calibration for pH.
IP 67 rated rugged case built for field or lab applications.
Specialized design for hydroponic, aquaponic, and greenhouse growers.
Care and Use
The MW805 MAX Combo Meter includes both a pH and EC sensor in the MA852D/1 integrated probe. Both need maintenance. Properly maintaining your probe will give you fast, accurate results for longer. All pH sensors have a limited life and response time gets longer with age. EC sensors are more robust but can still be affected by residue build up.
Range:-2.00 - 20.00 pH | 0 - 4000 µS/cm | 0 - 2000 ppm (mg/L) | -20.0 to 120.0°C (-4.0 to 248.0°F)
Resolution:0.01 pH | 1 µS/cm | 1 ppm (mg/L) | 0.1°C (0.1°F)
Accuracy:±0.01 pH | ±2% Full Scale EC/TDS | ±0.5°C (±0.9°F)
Care and Use
The MW805 MAX Combo Meter includes both a pH and EC sensor in the MA852D/1 integrated probe. Both need maintenance. Properly maintaining your probe will give you fast, accurate results for longer. All pH sensors have a limited life and response time gets longer with age. EC sensors are more robust but can still be affected by residue build up.
Store the pH probe in storage solution MA9015. Only use tap water short-term if MA9015 is not immediately available and NEVER store in distilled Water (DI) or Reverse Osmosis (RO) water. This will damage the sensitivity of the probe.
Here are our top four tips.
Always store with the cap full of MA9015 Storage Solution for BEST RESULTS.
Clean your probe regularly by soaking in cleaning solution.
Calibrate after cleaning and/or storage before testing to adjust for changes in the pH and EC sensor.
Gently stir the probe in the sample for a faster result.
Calibration
To ensure the meter's stated accuracy, be sure to order the Combo-Start Kit our BEST Value here: pH-START Kit. This has the MA9004 (230 mL bottle of 4.01 calibration Solution), MA9007 (230 mL bottle of 7.01 calibration Solution), MA9015 (230 mL bottle of Storage Solution), MA9016 (230 mL bottle of Cleaning Solution) all in one kit. For the EC/TDS you will need MA9061.
Sine the MAX MW805 can calibrate of to 5 pH points for HIGH accuracy, use Milwaukee calibration solutions.
Lab Grade. High Performance. Automated. Tough.
The Milwaukee MW150 MAX 3-in-1 pH/OPR/Temp. Bench Meter has won fans around the world with its reliable, fast, simple operation as well as a tough, sleek, lightweight design with a small lab space footprint. It is accurate to ±0.01 pH with automatic or manual temperature compensation, and built in dedicated GLP key. In addition, up to 3-point automatic calibration and 7 selectable buffer standards makes the MW150 MAX ideal for use by brewers, wine makers, growers, labs, food processing, water treatment and many other applications with challenging pH measurement needs.
Summary
The Milwaukee MW150 MAX 3-in-1 PRO pH/ORP/Temp Bench Meter is preferred by people testing all types of samples viscus or not, in a variety of applications that cause other pH meters and electrodes to fail. The MA917B/1 Milwaukee double junction electode is refillable and easy to clean. From brewers and wine makers to hydroponic growers, labs and water treatment, the MW150 MAX is your Bench Meter for fast, accurate readings.
The Milwaukee MW150 MAX pH Bench Meter offers:
Accuracy
People choose the MW150 MAX 3-in-1 pH/ORP/Temp Meter to improve the accuracy of their testing program. With up to 3 point calibration and 7 standard buffer choices, the meter can be quickly calibrated to a higher accuracy compared with 1 or 2 point calibration. The MW150 MAX Bench Meter is accurate to ± 0.01 pH. 5x more accurate than some alternative meters.
The meter comes with a double junction pH electrode (included) and temperature sensor MA831R (included) allowing the meter to automatically adjust the pH reading for the effect of temperature (ATC).
The meter can also be used as a very accurate thermometer with accuracy +/-0.4°C | +/-0.8°F.
Toughness
The rugged meter is built to take knocks and is sleek and lightweight .
Low Maintenance
The MW150 MAX pH/OPR/Temp Bench Meter comes with the Milwaukee refillable glass MA917B/1 pH electrode and has a BNC connector allowing easy interchange to any pH Milwaukee electrode. This is Milwaukee's top selling lab grade electrode for a reason. Designed to be both low maintenance (refillable) and able to withstand more challenging samples (double junction). The MA917B/1 is ideal for use in beer making, winemaking and hydroponics, environmental labs and many other applications.
Design Features
Fast easy to read results with large dual-level digital LCD readout
Extreme accuracy and extended range
Lightweight and small bench footprint
Refillable, double junction, lab grade pH electrode for low maintenance and high performance
Rugged stainless temperature probe
Automatic Temp. Compensation (ATC)
Up to three-point automatic calibration
Up to 7 selectable pH calibration buffers
Built-in rechargeable battery with 8 hours battery life (battery included)
Auto-off feature to prolong battery life
Alphanumeric LCD for intuitive information display
Internal clock and date to keep track of different time-dependent functions
Dedicated GLP key to store and recall data on system status
3’ probe cables for extra flexibility
MA917B/1 pH electrode & MA831R Included.
ORP probe sold separately.
Care and Use
pH meters usually start performing poorly because of problems with the probe. The two parts of the pH probe that cause problems are the glass sensing bulb and the reference junction.
Range:-2.00 to 20.00 pH | ±2000.0 mV | -20.0 to 120.0°C (-4.0 to 248.0°F)
Resolution:0.01pH | 0.1mV | 0.1°C (0.1°F)
Accuracy:±0.01 ph | ±1 mV | ±0.4°C |±0.8°F
Care and Use
pH meters usually start performing poorly because of problems with the probe. The two parts of the pH probe that cause problems are the glass sensing bulb and the reference junction.
Sensing bulb
The glass bulb loses sensitivity with use and will eventually fail. This is true of all pH probes.
Reference junction
The reference junction is a small hole that allows the meter to compare the sample to a reference. The reading is generated based on the electrical difference between the sample and reference. If the junction hole gets clogged, the pH electrode will no longer function.
You can extend the life of your pH electrode in the following ways.
Cleaning and Storage
All pH sensors have a limited life and response time gets longer with age. Properly maintaining your pH pen tester will give you fast, accurate results for longer. So, be sure to order the Milwaukee pH Maintenance Kit code PH-Main at checkout time! This will be needed to help clean and condition the pH electrode before use!
Storage
To minimize clogging the pH probe needs to be kept hydrated. Long periods of dry storage will damage the sensitivity of the probe. Allowing the probe to dry out may also result in the junction hole getting clogged.
Store the pH probe in storage solution MA9015. Only use tap water short-term if MA9015 is not immediately available and NEVER store in distilled Water (DI) or Reverse Osmosis (RO) water. This will damage the sensitivity of the probe.
The best way to store the probe is with the probe's cap filled with storage solution or calibration buffer and the cap tightened to prevent leakage. It is also recommended that to store the electrode upright to further reduce the potential for leakage.
Cleaning an Maintenance
Residue from the sample can impact the sensitivity of the sensing bulb and clog the junction. This is especially true if the sample has a lot of organic material. We recommend regularly soaking your electrode in cleaning solution MA9016 for about 20 minutes. Also:
Inspect the electotrode for damage or scratches, if present replace the electrode.
Inspect the cable. The connection cable and insulation must be intact.
Connectors should be clean and dry.
Rinse off salt deposits with water or DI water.
Calibration
The pH sensing bulbs become less sensitive over time so make sure that you are calibrating regularly to keep your PRO Plus Bench pH Meter accurate. Also, calibrate after cleaning or a long period of storage. For BEST value on calibration, cleaning and storage solutions order pH-START. If you need to calibrate at 10.01 point order MA9010.
