Our Ball Valves will last for years. Easy to clean. High grade 304-stainless made to last. 3/8" FPT on input and output side.
TIP: You can take a ball valve apart using two crescent wrenches. This will allow you to open up the valve to get to the ball and two gaskets that form the seal when closed.
End caps are used to close off an open tri-clamp port where a valve is not wanted or needed. Can be used to cap off a Kegmenter or the MoreWine!® Cellar Keg. For 4" tri-clamp fittings Made from 304 stainless steel ForgeFit® is a brand of rugged, high-quality fittings made from certified 304 stainless steel. Each fitting is backed by our 60-day no-hassle return policy and a one-year warranty from MoreBeer!.
Heavy-duty hose clamp suitable for 1-1/4" to 2-1/8" OD tubing
Effective and removable
Easily adjusted with a flathead screwdriver
Made from stainless steel
A heavy duty hose clamp for large OD tubing. As effective as a pre-formed clamp but without the expense or permanence.
Tri-clamp fittings are the gold standard in professional breweries and they've been widely adopted in homebrewing as T.C. kettles, fermenters, and pumps become more widely available. Tri-clamp fittings allow you to make a sanitary connection without any nooks or crannies for contaminants to hide in and they can be cleaned in place. Use anywhere you want to make a sanitary connection.
2.5" tri-clamp
Made from 304 stainless steel
ForgeFit® is a brand of rugged, high-quality fittings made from certified 304 stainless steel. Each fitting is backed by our 60-day no-hassle return policy and a one-year warranty from MoreBeer!.
Functions the same as a standard Hose Clamp, however rather than needing to find a screwdriver (or dime!) for every adjustment you can easily tighten by hand.
As an added bonus, this also has a significantly smoother inside to the clamp, which will not tear up your tubing nearly as much as a standard hose clamp!
Ideal for situations where you need to remove tubing from fittings to sanitize.
Teflon gasket with 304 stainless mesh screen for 2" tri-clamp connections. Can be used as a filter screen to trap large particulates passing through T.C. fittings. Often used for distillation to retain activated carbon for filtering neutral spirits or used in pot distillation to retain botanicals in the vapor stream.
The screen has a mesh size of 16 which will block particles larger than 1.19mm or 1190 microns. This mesh size makes this screen ideal for use in a filer setup with activated carbon.
Kegland Part Number: KL30496
EJ Beverage Ultra Barrier™ tubing from EJ Beverage is constructed of a unique compound that provides for an excellent alternative to PVC. Advantages to this unique tubing are:
PVC Free and BPA Free - containes no DEHP phthalates or other plasticizers
Environmentally friendly production - does not emit dioxins
Proven to have no significant impact on taste or flavor
Extremely low extractables/leachables
High flexibility
Remains flexible at lower temperatures
Ultra-low permeability
Superior Barrier properties
Temperature range of -40 to 125° F
Working pressure of 52 psi
Use this size for gas line applications. Also used for long draw beer lines over 25'.
Technical Specifications: 5/16" line provides .40 lbs of restriction per foot. Ideally pounds of resistance should equal pounds of applied pressure. 5/16" line holds 1/2 of an ounce per foot. PVC Free.

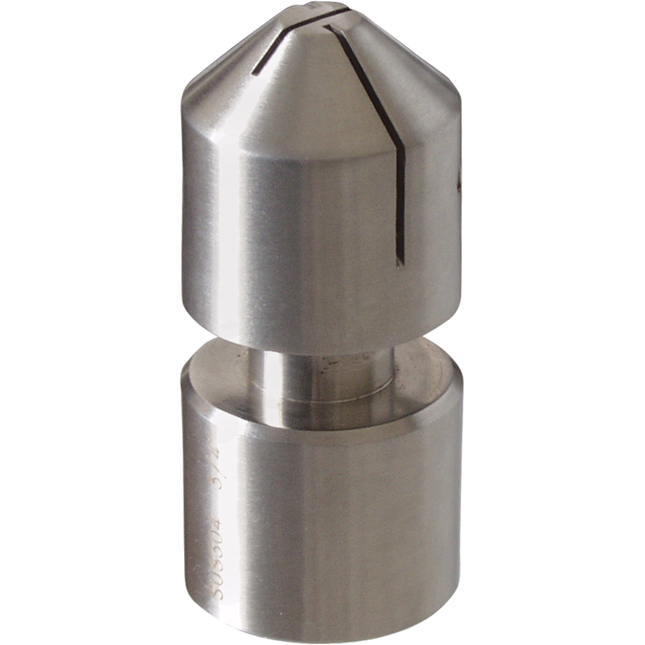

This is just the spinning spray head. We use this as part of our complete barrel washer, WE492. Some clever customers have asked for just this head so that they can fabricate their own washer. Features female 3/4" NPT threads for attachment.
Height 3". Diameter 1 3/8"
Replacement gasket for the ForgeFit® 2" butterfly valve. We recommend replacing your butterfly gasket at least every 3 years. If you wait until you have a leak, your valve has already been unsanitary for some time.
Convert 1" BSP fittings to 1.5" tri-clamp. Made from 304 stainless steel.
BSP vs. BSPP
BSP (or BSPT) fittings have a tapered thread and require teflon tape to form a seal between the male and female fitting. BSP fittings are generally intended to be used with their counterpart of the same thread type. ONLY 1/2" BSP fittings are compatible with US-standard NPT fittings of the same size. BSPP fittings, on the other hand, have a straight thread, require a gasket seated inside the female fitting to form a seal, and are not compatible with NPT.
Kegland Part Number: KL23443
EPDM gaskets have a more narrow temperature range than silicone gaskets, but they are more resistant to acids and caustic chemicals.
For 2.5" tri-clamp fittings
Made from Silicone
Temperature rated from -30°F to 300°F
ForgeFit® is a brand of rugged, high-quality fittings made from certified 304 stainless steel. Each fitting is backed by our 60-day no-hassle return policy and a one-year warranty from MoreBeer!.
This is our preferred tubing for use in Barrel Topping Systems. Because of its high elasticity this tubing is easy to attach to/detach from barbed fittings without having to cut the tubing to remove it or use hose clamps to install it (in low pressure applications). This feature allows the user to disassemble the tubing set used to deliver the top-up wine for both sanitation as well as cleaning after use. Cleans up easily and does not get stiff at low temperatures. OD is approximately 3/8"
Specs:
Working Pressure - 20 psi
Burst Pressure - 60 psi
Platinum Cured
#8.5 stopper - solid. Top diameter 1.66 inches (43 mm), bottom diameter 1.43 inches (36 mm), length 1 inch (25 mm).
BPA-free stopper made of food grade materials. Injection molded TPE for superior consistency throughout. Perfect for use with carboys, as the material sticks well to glass and PET, even when wet.
To create a solid stopper, simply use a #000 solid stopper (FE400) to plug the hole.
Max. Temperature Rating: 158 °F (70 °C).
Food-Grade, FDA approved tubing with an outer spiral reinforcement "helix" ensures a kink-free transfer every time. Nutriflex tubing is made for transferring wine or must from container to container. The inside is smooth and without any crevasses for errant material to get caught in. Small bend radius means it will hold its shape even around tight corners. Working temperature range of -15F - 158F.
Inner Diameter - 1"
Outer Diameter - 1.33"
Please Note: Made to Order lengths have a lead time of approximately 2 weeks.
Use this size for gas line applications. Also used for long draw beer lines over 25'.
Technical Specifications: 5/16" line provides .40 lbs of restriction per foot. Ideally pounds of resistance should equal pounds of applied pressure. 5/16" line holds 1/2 of an ounce per foot. Made from PVC.
Speidel 1" DIN to 1.5" TC adapter. If you have a mixture of TC and DIN fittings, there is finally an adapter to help you connect everything together. To top it all off it is made with the expert craftmanship of Speidel.
When you want to customize your own setup, it’s good to have the right fitting on hand.
This stainless steel compression fitting gives you the versatility to put your setup together in the way that works best for you.
304-Type Stainless Steel compression fitting.
1/2" Comp. x 1/2" FPT
Half Coupler with 1/2" Female Pipe Thread. Half couplers have thread for insertion from one side only. 304 stainless. Weld into place. You will need to punch a 7/8" hole to install.
This is a Stainless Steel one way Check Valve. It has 2" T.C. Fittings on either side, and releases pressure at ~1 p.s.i.
Can be used to inhibit a siphon in certain applications, or to vent gas pressure in a tank.
Use for long draw systems and as an entry line to a draft box.
Technical Specifications: 3/8" line provides .20 lbs of restriction per foot. Ideally pounds of resistance should equal pounds of applied pressure. 3/8" line holds 3/4 of an ounce per foot. Made from PVC.
Outer diameter of tubing is approximately 5/8"
Food-Grade, FDA approved tubing with an outer spiral reinforcement "helix" ensures a kink-free transfer every time. Nutriflex tubing is made for transferring wine or must from container to container. The inside is smooth and without any crevasses for errant material to get caught in. Small bend radius means it will hold its shape even around tight corners. Working temperature range of -15F - 158F.
Inner Diameter - 1.5"
Outer Diameter - 1.88"
Our Ball Valves will last for years. Easy to clean. High grade 304-stainless made to last. 1" FPT on input and output side.
TIP: You can take a ball valve apart using two crescent wrenches. This will allow you to open up the valve to get to the ball and two gaskets that form the seal when closed.
Please Note: the ball valve may be difficult to turn at first, but it will become less resistant after it is rotated back and forth a couple times.
EJ Beverage Ultra Barrier™ tubing from EJ Beverage is constructed of a unique compound that provides for an excellent alternative to PVC. Advantages to this unique tubing are:
PVC Free and BPA Free - containes no DEHP phthalates or other plasticizers
Environmentally friendly production - does not emit dioxins
Proven to have no significant impact on taste or flavor
Extremely low extractables/leachables
High flexibility
Remains flexible at lower temperatures
Ultra-low permeability
Superior Barrier properties
Temperature range of -40 to 125° F
Working pressure of 35 psi
Use for long draw systems and as an entry line to a draft box.
Technical Specifications: 3/8" line provides .20 lbs of restriction per foot. Ideally pounds of resistance should equal pounds of applied pressure. 3/8" line holds 3/4 of an ounce per foot. PVC Free.
If you want to use the absolute best style of valve available to homebrewers, the butterfly valve is the clear choice. Brewers love butterfly valves because they are far and away the most sanitary option. Regular ball valves can trap small amounts of wort inside them, which inevitably leads to an infection that can sour your beer. That's why we always recommend breaking down your ball valves and cleaning them between uses. Butterfly valves have virtually nowhere for contaminants to hide and are easily cleaned in place. They also can be taken apart for a deeper cleaning if desired, although it's rarely necessary.
This 2" Tri-Clamp Butterfly Valve features stainless steel construction and 7-position handle. The stainless steel handle can be rotated 180° for right or left hand operation.
2" tri-clamp
Stainless steel handle
7 locking positions
Squeeze trigger locking handle
Made from 304 stainless steel
ForgeFit® is a brand of rugged, high-quality fittings made from certified 304 stainless steel. Each fitting is backed by our 60-day no-hassle return policy and a one-year warranty from MoreBeer!.
Anvil Brewing Equipment ball valve is made from 304 stainless steel. This robust custom designed kettle drain valve has an integral bulkhead seal that forms an extremely rigid and leak-free joint. The convenient ½” NPT male fitting inside of the kettle allows mounting of nearly any accessory. Simple to install in any 7/8” hole and will never leak like other weldless connections! Easy to disassemble and clean. Add our dip tube for a complete draining system!
When installed, the valve O-Ring will sit in the groove on the back of the valve, on the outside of the kettle.
Commercial quality PVC free beer tubing for homebrewers!
EJ Beverage Ultra Barrier™ tubing from EJ Beverage is constructed of a unique compound that provides for an excellent alternative to PVC. Advantages to this unique tubing are:
PVC Free and BPA Free - containes no DEHP phthalates or other plasticizers
Environmentally friendly production - does not emit dioxins
Proven to have no significant impact on taste or flavor
Extremely low extractables/leachables
High flexibility
Remains flexible at lower temperatures
Ultra-low permeability
Superior Barrier properties
Temperature range of -40 to 125° F
Working pressure of 33 psi
For long draws where you want as little resistance as possible.
Technical Specifications: 1/2" line provides .025 lbs of restriction per foot. Ideally pounds of resistance should equal pounds of applied pressure. 1/2" line holds 1 1/3 of an ounce per foot. PVC Free.
#13 stopper - solid. Top diameter 2.64 inches (67 mm), bottom diameter 2.28 inches (58 mm), length 1 inch (25 mm).
BPA-free stopper made of food grade materials. Injection molded TPE for superior consistency throughout. Perfect for use with carboys, as the material sticks well to glass and PET, even when wet.
Max. Temperature Rating: 158 °F (70 °C).
Securely bung your full-size barrels with this locking bung. Great for tight bunging barrels while rolling them on their side, moving barrels from location to location, or simply for peace of mind that this bung will not accidently get knocked out of place.
A stainless plate embedded in the silicone causes the bung to expand outward when tightened. This creates considerable pressure against the bung opening, ensuring a super solid seal. Use a crescent wrench or 1/2" driver to tighten the nut on top of the bung.
Bottom of bung measures 1.5" and the top of the bung measures 2.5".
