A unique alternative to cooling plates. This tube-within-a-tube snake is used to recirculate glycol or cooled water through your wine to keep temperatures down. Can be used in a tank, macrobin, or barrel. The inner tube runs through the middle of the outer shell, but is shorter. Glycol can run through one tube and back through the other, completing the loop.
Snakes are outfitted with 1/2in. male NPT threads on both the inlet and outlet. The inlet is at 90 degrees and the outlet is straight.
.25m Square meter of Cooling Surface.
Ideal for use in an Oak Barrel or Small Tank.
Can also be used for heating.
Optional silicone sleeve for sealing.
Use this Solenoid valve to control glycol flow into a fan unit. These Solenoids should be combined with a Fan Temperature Controller and Connection Cable to set a specific temperature for your fan unit to achieve in your room.
This is a 1/2 in. FPT threaded piece for MR210 Fan Units. It can also be used with MR75 & 135 units with a 3/8" barb adapter.
We recommend purchasing a Solenoid Filter with this valve. The filter will ensure that no small particulates can get caught in the valve assembly, potentially damaging the unit.
230 v AC Solenoid with 1/2" FPT
We also sell complete control kits for Kreyer fan units:
MR75 & MR135 Control Kit
MR210 Control Kit
SD35L & SD73L Control Kit
Cool your fermenting must or wine using this weldless, easy-to-install, 304 stainless steel cooling plate that can be inserted into the lid of any Variable Volume Fermenter. Cold water or glycol is recirculated through the cooling plates thereby reducing the temperature of your ferment.
This is a stainless steel setup, ensuring no chance of off-flavor in your wine. You drill two 1-1/16" to 1-1/8" holes into the lid. We provide two gaskets and a lock nut to seal on both sides of your lid, securing the plate in place.
Plate measures 24" H x 10.6" W
Inlet and Outlet 1/2" Male BSPP thread
300 mm long tubes
Bulkheads located approx. 175 mm above the plate
0.36 Square meters of cooling surface
Made from 304 stainless steel
Defrost Kits are electric heating elements made of a set of thin metallic heating rods that are fitted into the suitable slots, under the coil of the thermo-fan. This layout simplifies the installation and guarantees homogenous dispersion of heat over the entire coil for even defrosting. The Defrost Kit melts the iced condensate, which accumulates on the airways when the fan is used for room cooling with Glycol-water set below the freezing point. Periodical defrosting enables the use of the thermo-fan for setting up cold-rooms, which are kept at low temperatures. The melted condense water drips to the fan's collection tray for drainage.
When using a Defrost Kit, it is required to use the FermFlex-Defrost controller, which controls both the fan-valve for cooling and the heating element for defrosting.
A unique alternative to cooling plates. This tube-within-a-tube snake is used to recirculate glycol or cooled water through your ferment to keep temperatures down. It can dropped directly into a tank, macrobin, or even barrel. The inner vinyl tube runs through the middle of the corrugated stainless tubing, but is shorter than the stainless tubing. Glycol can run through one tube and back through the other, completing the loop.
Snakes are outfitted with 1/2in. male NPT threads on both the inlet and outlet. The inlet is at 90 degrees and the outlet is straight.
.55 Square Meters of Cooling Surface
Can also be used for heating.
Optional silicon sleeve for sealing.

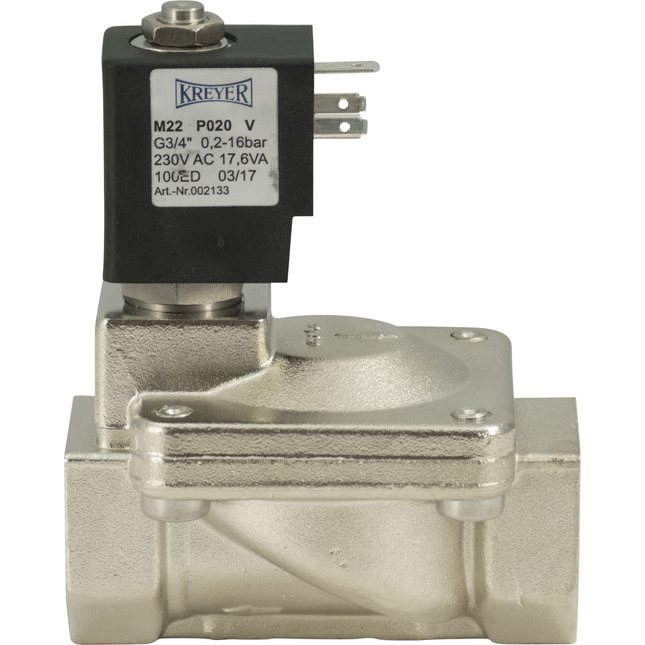

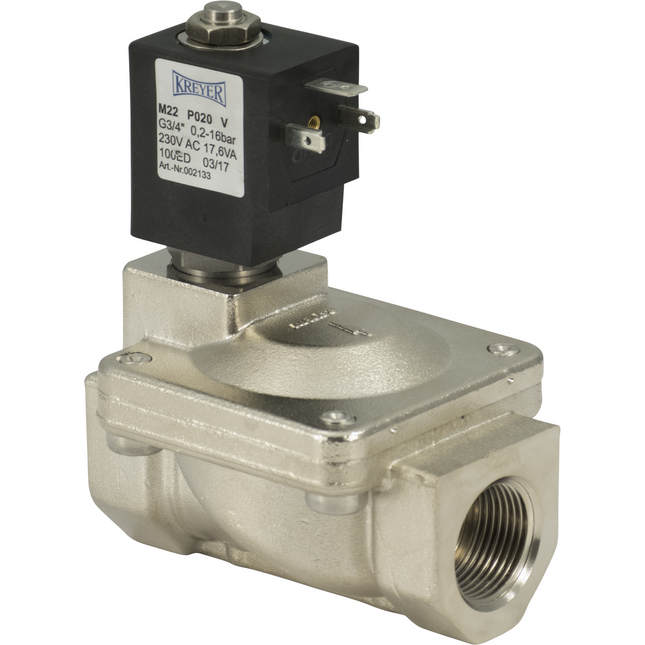

Use this Solenoid valve to control glycol flow into a fan unit. These Solenoids should be combined with a Fan Temperature Controller and Connection Cable to set a specific temperature for your fan unit to achieve in your room.
This is a 3/4 in. FPT threaded piece for SD35L & SD73L Fan Units. It can also be used with other 1" SD fans if an adapter is used.
We recommend purchasing a Solenoid Filter with this valve. The filter will ensure that no small particulates can get caught in the valve assembly, potentially damaging the unit.
230 v AC Solenoid with 3/4" FPT
We also sell complete control kits for Kreyer fan units:
MR75 & MR135 Control Kit
MR210 Control Kit
SD35L & SD73L Control Kit
Cool your fermenting must or wine using this weldless, easy-to-install, 304 stainless steel cooling plate that can be inserted into the lid of any Variable Volume Fermenter. Cold water or glycol is recirculated through the cooling plates thereby reducing the temperature of your ferment.
By threading our thermowell (FE616) into the extra 1/2" female coupler that comes on every MoreWine Variable Volume Fermenter and inserting the probe from our digital controller (FE610) you can use a digital controller to automatically control temperature. The controller turns a pump on every time the temperature rises above your set-point, sending coolant through the plate.
To build these units we take the stock cooling plates and slide, bored-out, male-threaded couplers half-way down the feed tubes and weld them in place. You drill two 1 1/16 to 1 1/8" holes into the lid. We provide two gaskets and nuts that thread on both sides of the couplers securing the plate in place.
Plate measures 22.5"W x 47.5"H
Inlet and Outlet 1/2" Male BSPP thread
300 mm long tubes
Bulkheads located approx. 175 mm above the plate
1.44 Square meters of cooling surface
Made from 304 stainless steel
A unique alternative to cooling plates. This tube-within-a-tube snake is used to recirculate glycol or cooled water through your ferment to keep temperatures down. It can be used in a tank, macrobin, or barrel. The inner vinyl tube runs through the middle of the corrugated stainless tubing, but is shorter than the stainless tubing. Glycol can run through one tube and back through the other, completing the loop.
Snakes are outfitted with 1/2in. male NPT threads on both the inlet and outlet. The inlet is at 90 degrees and the outlet is straight.
.75 Square Meters of Cooling Surface
Can also be used for heating
Optional silicon sleeve available for sealing
Use your existing glycol system to cool your cellar Eliminates the need to purchase an entirely separate refrigeration system SD-S series fan units were designed specifically for high-moisture environments like wine cellars Sized for well-insulated rooms up to 85,000 ft³ Made in Germany by Kreyer Cool your cellar using your existing glycol system. Save energy and money! These units work under the same principles as standard refrigeration but use cooled glycol that you already have instead of cooled refrigerant gas, eliminating the need to have a separate refrigeration system. It is a fantastic use of your glycol system for a majority of the year when typically glycol systems are on but are being sporadically called upon. Glycol systems do need to be sized to accommodate both these fan units and peak duty during the crush to be able to accommodate all tasks at once. Glycol from your main glycol chiller is recirculated through these fan units. Aluminum fins act as heat exchangers drawing heat out of your room as the fins are cooled by the glycol. If you have a Kreyer chiller/heater you can even heat a space in cold weather environments. The heat exchangers inside the units are made from corrugated aluminum fins and internally grooved copper tubes. The white ABS casing looks great. Because of its rounded corners it has no water retaining areas favorable to germ development. Both series are fitted with stainless steel screws and show no sharp, cutting edges. Built in defrosters help ensure the system is working at optimum efficiency The SD-S series has been designed especially for problematic environments such as wine-cellars with high moisture. The high-performance fans on the SD-S unit are lubricated for life. Fan Unit Temp Control Upgrades: 1 in. Solenoid Valve - Allows or blocks flow of glycol through the fan unit. Needs to be connected to a Controller to function. A filter is recommended to protect the solenoid. 1 in. Solenoid Filter- protects the solenoid valve from any particulate or sediment. Glycol Fan Control Unit - Set a specific temperature on this controller and it will open and close the solenoid valve. Solenoid Connection Cable - This 2 meter long cable is required to connect the Solenoid Valve & Control unit. Inlet and Outlet: 1" Male BSP The SD-S 148 is sized to: Cool a room up to 85,000 cubic feet when the ceiling and walls are well insulated. Will use approximately 5.5 tons of cooling power from your chilling system. Please be sure to consult with our Wine team for proper sizing of a fan unit. This unit features 4 fans. Product Statistics Weight: 150lbs Dimensions: 82"L x 12"W x 18"H
Cooling & heating in one premium quality unit Control fermentation temperatures, cold-stabilize insulated tanks, or heat tanks during cold weather Fill from the exterior without the need to remove covers or panels Program and monitor temperatures via the digital controller Non-Return Kit installed as standard to prevent backflow when positioned below your tank jacket, heat exchanger, or piping system Four locking casters offer ease-of-mobility when moving the unit around the winery 1.8 Ton / 21,840 Btu cooling capacity 208V, 3 Phase power Made in Germany by Kreyer Cooling and Heating in one unit! Every Winemaker can appreciate the benefits of precise temperature control during all stages of production. This mobile unit allows you to easily control your ferment temperatures, heat your tanks during winter to expedite Malo-Lactic fermentation, or cold-stabilize your white wines. This unit can be used as portable unit in a larger winery or as a fixed system supplying a glycol loop in a smaller winery. Unit is used for heating or cooling but cannot supply both at the same time. Manufactured by Kreyer, the World's leading producers of wine-cooling equipment. Uses: Cooling of must for cold soaks, slow starting ferments Heating up must after a cold soak period Cold Stabilization of tartaric crystals Controlling fermenting temperatures through cooling or heating Maintaining storage temperatures in tanks/barrels Check out these features: Cools or Heats 1.8 Tons (21,840btu) of cooling power .85 Tons of heating power Can cool glycol/water bath down to -10C/14F or up to 42C/107F 208V 60Hz 3 phase supply voltage drawing 13.1 amps Rolls on four locking casters Sheet metal housing, electrolytic galvanized high surface quality, powder-coated and abrasion-resistant casing 7 Gallon Insulated Plastic glycol/water reservoir Easy to fill from outside Evaporator coil made of stainless steel High-quality Grundfos recirculation pump Built in pressure switch shuts down recirculation pump when not needed Digital Thermostat Lifting/Crane Hooks for transport All panels remove for easy access All units pass multiple tests prior to shipment German Engineering Controlled by compact PC boards with a temperature accuracy up to 0.1 degree Celsius. 33"L x 25"W x 31.5"T Unit has 1" Male BSP w/ 3/4" Female BSP inlet / outlet 6 Month Electrical Warranty 1 Year Mechanical Warranty CE Certified Please Note: This unit REQUIRES 208 v Three Phase power and will not function on anything else. Please confirm that you have the proper power for this unit before purchasing, and plan to have a qualified electrician wire the necessary plug to the cord. Available in larger sizes. For additional product options View the resource.

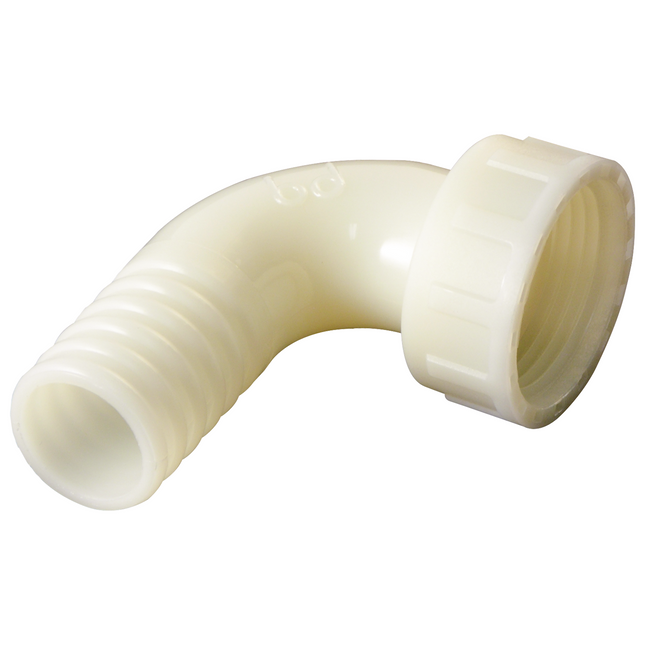

Add a barbed connection to your Weldless Wine Cooling Plate with this 90-degree hose tail elbow and threaded nut. 1/2" female threaded with 0.47" (12mm) barb.
Sold individually. You will need 2 hose tails for both inlet and outlet.
Material: Poliammide (nylon 66)

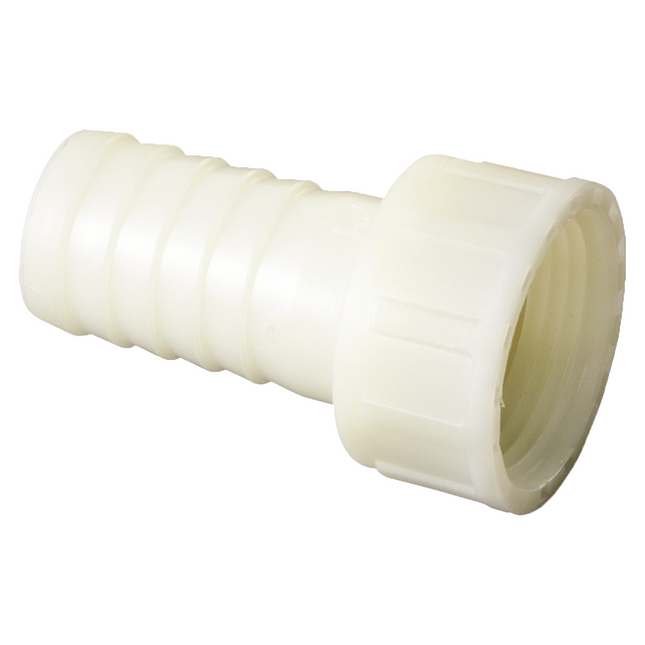

Add a barbed connection to your Weldless Wine Cooling Plate with this hose tail and threaded nut. 1/2" female threaded with 0.62" (16mm) barb.
Sold individually. You will need 2 hose tails for both inlet and outlet.
Material: Poliammide (nylon 66)
Add a barbed connection to your Weldless Wine Cooling Plate with this hose tail and threaded nut. 1/2" female threaded with 0.51" (13mm) barb.
Sold individually. You will need 2 hose tails for both inlet and outlet.
Material: Poliammide (nylon 66)
Use:
The most versatile cooling and heating tool a winery can own
Pump must or wine throught the machine | Heats or cools inline
The only practical solution for cooling or heating crushed grapes
2" ID stainless steel tube-in-tube heat exchanger allows crushed grapes to pass through
Use your choice of pumps to move product through SR chiller/heater
Made in Germany | Used for over 40 years in French and German wineries
Features:
Plenty of Power | 11.7 Tons (140,400btu) of Cooling power
Wide Temperature Range | 28F or up to 113F
Moves Where You Need It | Rolls on four locking casters
Control Temperatures with Ease | Digital Thermostat
Top Class Components
The most versatile cooling and heating tool a winery can own. Whether you want to cool crushed grapes to cold soak temperatures, heat a sluggish ferment, heat a tank for ML without having a dedicated hot water loop, or cold stabilize a tank quickly, the SR is an extremely useful machine. It often eliminates the need for a separate heating loop in your winery. It is loved for quickly doing cold stabilization on one tank at a time. It is more effective at cooling crushed grapes than trying to cool in a tank. Because it is a closed system it can be used with sparkling wine or cider without losing carbonation.
Most wineries who use an SR for cooling/heating specific tanks or vats also have a dedicated main chiller connected to their permanent cooling loop. However the SR can also act as the back up chiller in case your main chiller goes down. You can use the SR to chill a tank, such as a large HDPE tank. Connect that tank to your glycol loop and if your main chiller goes down you already have a backup plan in place.
Made in Germany, thousands of Kreyer SR chillers have been in use for over 40 years in France and Germany.
The SR is not like a regular glycol chiller where a cooled bath is pumped into the tank jackets. The SR features a large, tubular heat-exchanger that is completely insulated. Your product is pumped through the inner tube while heat or cold travels the opposite direction through the outer tube. The top half of the SR houses the compressor for cooling while heating is performed in the Heat-Pump operation mode. The SR is uniquely designed unit for changing the temperature inline of crushed grapes, wine, sparkling wine, water, cider, fruit juice and distillates.
By setting the temperature, you can rely on the SR to maintain tank temperature for as long as needed, in either heating or cooling mode.
The case of the unit as well as all parts that come in contact with the treated medium are made of stainless steel. The ventilation grills are lacquered in black. Due to its four wheels, this SR unit is easy to maneuver. This allows the user to cool or to heat single tanks or other containers, as required. For example: starting a stopped fermentation by heating the tank content. Your choice of external pump is controlled by the SR’s control panel.
The cooling units of the SR series are available in seven different sizes. This is 11.7 Ton model. Smaller and larger machines are available for quote.
Applications:
Direct cooling or heating of must at the beginning of fermentation
Tartaric stabilization of wines
Warming up wine from storage to bottling temperature
Biological reduction of acids
Regulation of fermentation temperature
Cool storage of wine until bottling
Suitable for sparkling wine and carbonated beverages (closed loop with no carbonation loss)
Cooling of liquids with particles such as unfiltered juice
Air cooling of the cellar in combination with additional equipment (thermo-fans and accessories)
Check out these features:
Cools or Heats
11.7 Tons (140,400btu) of cooling power
Can maintain temps from 23F to 113F.
230V 60Hz 3 phase supply voltage drawing 40 amps
Mobile unit with 4 casters, two locking
Sheet metal housing, electrolytic galvanized high surface quality, powder-coated and abrasion-resistant casing
Control an external cellar pump from the SR's control panel
Evaporator coil made of stainless steel
Automatic control of the wine pump according to set temperature
Digital Thermostat
Lifting/Crane Hooks for transport
Panels remove for easy access
All units pass multiple tests prior to shipment
German Engineering
Controller display shows temperature accuracy up to 0.1 degree Celsius.
41.3"L x 41.3"W x 84.6"T
Empty Weight: 992 lbs
Unit has 2" tri-clamp inlet / outlet
6 Month Electrical Warranty
1 Year Mechanical Warranty
CE Certified
Please Note: This unit REQUIRES 230 v Three Phase power and will not function on anything else. Please confirm that you have the proper power for this unit before purchasing, and plan to have a qualified electrician wire the necessary plug to the cord.
US Made industrial glycol chillers available in a wide range of tonnages. Cold Shot Chillers are some of the most dependable and economical chillers on the market. These portable air-cooled chillers are built in the USA with time-proven components, and are supported 24/7 by a network of techs in the US. These chillers are built to provide a lifetime of service, allowing precise temperature control during all aspects of the wine or beer making process. Powerful compressors combined with a large reservoir means huge cooling capacities, able to keep you running through the hottest months. Cold Shot Chillers are built with high quality components designed for trouble-free use, but should an issue occur, technical support is available at all times, and if necessary a technician familiar with your unit can come service it on site. Uses in Beer Making: Temperature control for fermentation, heating or cooling Temperature control for storage Temperature control for packaging Air conditioner Barrel rooms Cold box Uses in Winemaking: Cooling of must for cold soaks, slow starting ferments Cooling must for cold soaking or slow starting / low temp ferments Cold stabilization of wine Controlling fermentation temperatures Maintaining storage temperatures in tanks / barrels Controlling cellar or winery air temperatures with a fan unit Features: 20 tons (240,000 BTU/hr) 80 Gallon Stainless Steel Reservoir Tank with Lid This Low Temp Model has a leaving fluid temperature range of 20 - 70° F. Rated to 0°F ambient temperature* 2” MNPT Inlet and Outlet Stainless Steel 3 HP Centrifugal Pump outputs 95 GPM at 30 PSI 230 v 3 phase power (MCA 90.5) Required Casters Included (two swivel locking and two fixed) Large Reservoir easily filled from outside, and level indicated with sight gauge 1 Year Parts Warranty 5 Year Warranty on Compressor Welded steel powder coated frame and full metal cabinet with copper piping connections Digital Temperature controller with Self-Diagnostic control system Rugged Protection, while still easy to maintain and Wash Down High Flow Pump, Long Life, Dependable units! Stainless Steel Plate Evaporators Vacuum brazed with Copper Dependable Tandem Copeland Welded hermetic Scroll Compressors 88"x40"x70" 1800 lb UL Certified Please Note: This unit REQUIRES 230 v Three Phase power (MCA 90.5) and will not function on anything else. Please confirm that you have the proper power for this unit before purchasing, and plan to have a qualified electrician wire the necessary plug to the cord. *Please Note: This unit is rated for ambient temperatures as low as 0°F. If you require a subzero temperature rating, please contact our customer service department to request a special order.
US Made industrial glycol chillers available in a wide range of tonnages. Cold Shot Chillers are some of the most dependable and economical chillers on the market. These portable air-cooled chillers are built in the USA with time-proven components, and are supported 24/7 by a network of techs in the US. These chillers are built to provide a lifetime of service, allowing precise temperature control during all aspects of the wine or beer making process. Powerful compressors combined with a large reservoir means huge cooling capacities, able to keep you running through the hottest months. Cold Shot Chillers are built with high quality components designed for trouble-free use, but should an issue occur, technical support is available at all times, and if necessary a technician familiar with your unit can come service it on site. Uses in Beer Making: Temperature control for fermentation, heating or cooling Temperature control for storage Temperature control for packaging Air conditioner Barrel rooms Cold box Uses in Winemaking: Cooling of must for cold soaks, slow starting ferments Cooling must for cold soaking or slow starting / low temp ferments Cold stabilization of wine Controlling fermentation temperatures Maintaining storage temperatures in tanks / barrels Controlling cellar or winery air temperatures with a fan unit Features: 15 tons (180,000 BTU/hr) 80 Gallon Stainless Steel Reservoir Tank with Lid This Low Temp Model has a leaving fluid temperature range of 20 - 70° F. Rated to 0°F ambient temperature* 2” MNPT Inlet and Outlet Stainless Steel 3 HP Centrifugal Pump outputs 60 GPM at 30 PSI 230 v 3 phase power (MCA 71.8) Required Casters Included (two swivel locking and two fixed) Large Reservoir easily filled from outside, and level indicated with sight gauge 1 Year Parts Warranty 5 Year Warranty on Compressor Welded steel powder coated frame and full metal cabinet with copper piping connections Digital Temperature controller with Self-Diagnostic control system Rugged Protection, while still easy to maintain and Wash Down High Flow Pump, Long Life, Dependable units! Stainless Steel Plate Evaporators Vacuum brazed with Copper Dependable Copeland Welded hermetic Scroll Compressors 88"x40"x70" 1600 lb UL Certified Please Note: This unit REQUIRES 230 v Three Phase power (MCA 71.8) and will not function on anything else. Please confirm that you have the proper power for this unit before purchasing, and plan to have a qualified electrician wire the necessary plug to the cord. *Please Note: This unit is rated for ambient temperatures as low as 0°F. If you require a subzero temperature rating, please contact our customer service department to request a special order.
US Made industrial glycol chillers available in a wide range of tonnages. Cold Shot Chillers are some of the most dependable and economical chillers on the market. These portable air-cooled chillers are built in the USA with time-proven components, and are supported 24/7 by a network of techs in the US. These chillers are built to provide a lifetime of service, allowing precise temperature control during all aspects of the wine or beer making process. Powerful compressors combined with a large reservoir means huge cooling capacities, able to keep you running through the hottest months. Cold Shot Chillers are built with high quality components designed for trouble-free use, but should an issue occur, technical support is available at all times, and if necessary a technician familiar with your unit can come service it on site. Uses in Beer Making: Temperature control for fermentation, heating or cooling Temperature control for storage Temperature control for packaging Air conditioner Barrel rooms Cold box Uses in Winemaking: Cooling of must for cold soaks, slow starting ferments Cooling must for cold soaking or slow starting / low temp ferments Cold stabilization of wine Controlling fermentation temperatures Maintaining storage temperatures in tanks / barrels Controlling cellar or winery air temperatures with a fan unit Features: 12.5 tons (150,000 BTU/hr) 80 Gallon Stainless Steel Reservoir Tank with Lid This Low Temp Model has a leaving fluid temperature range of 20 - 70° F. Rated to 0°F ambient temperature* 2” MNPT Inlet and Outlet Stainless Steel 3 HP Centrifugal Pump outputs 60 GPM at 30 PSI 230 v 3 phase power (MCA 63.6) Required Casters Included (two swivel locking and two fixed) Large Reservoir easily filled from outside, and level indicated with sight gauge 1 Year Parts Warranty 5 Year Warranty on Compressor Welded steel powder coated frame and full metal cabinet with copper piping connections Digital Temperature controller with Self-Diagnostic control system Rugged Protection, while still easy to maintain and Wash Down High Flow Pump, Long Life, Dependable units! Stainless Steel Plate Evaporators Vacuum brazed with Copper Dependable Tandem Copeland Welded hermetic Scroll Compressors 73.5"x40"x70" 1500 lb UL Certified Please Note: This unit REQUIRES 230 v Three Phase power (MCA 63.6) and will not function on anything else. Please confirm that you have the proper power for this unit before purchasing, and plan to have a qualified electrician wire the necessary plug to the cord. *Please Note: This unit is rated for ambient temperatures as low as 0°F. If you require a subzero temperature rating, please contact our customer service department to request a special order.
US Made industrial glycol chillers available in a wide range of tonnages. Cold Shot Chillers are some of the most dependable and economical chillers on the market. These portable air-cooled chillers are built in the USA with time-proven components, and are supported 24/7 by a network of techs in the US. These chillers are built to provide a lifetime of service, allowing precise temperature control during all aspects of the wine or beer making process. Powerful compressors combined with a large reservoir means huge cooling capacities, able to keep you running through the hottest months. Cold Shot Chillers are built with high quality components designed for trouble-free use, but should an issue occur, technical support is available at all times, and if necessary a technician familiar with your unit can come service it on site. Uses in Beer Making: Temperature control for fermentation, heating or cooling Temperature control for storage Temperature control for packaging Air conditioner Barrel rooms Cold box Uses in Winemaking: Cooling of must for cold soaks, slow starting ferments Cooling must for cold soaking or slow starting / low temp ferments Cold stabilization of wine Controlling fermentation temperatures Maintaining storage temperatures in tanks / barrels Controlling cellar or winery air temperatures with a fan unit Features: 3 tons (36,000 BTU/hr) 25 Gallon Stainless Steel Reservoir Tank with Lid This Low Temp Model has a leaving fluid temperature range of 20 - 70° F. Rated to 0°F ambient temperature* 1” MNPT Inlet and Outlet Stainless Steel 1 HP Centrifugal Pump outputs 30 GPM at 30 PSI 230 v 1 phase power (MCA 27.1) Required Casters Included (two swivel locking and two fixed) Large Reservoir easily filled from outside, and level indicated with sight gauge 1 Year Parts Warranty 5 Year Warranty on Compressor Welded steel powder coated frame and full metal cabinet with copper piping connections Digital Temperature controller with Self-Diagnostic control system Rugged Protection, while still easy to maintain and Wash Down High Flow Pump, Long Life, Dependable units! Stainless Steel Plate Evaporators Vacuum brazed with Copper Dependable Copeland Welded hermetic Scroll Compressors 42"x32.5"x53.5" 420 lb UL Certified Please Note: This unit REQUIRES 230 v Single Phase power (MCA 27.1) and will not function on anything else. Please confirm that you have the proper power for this unit before purchasing, and plan to have a qualified electrician wire the necessary plug to the cord. *Please Note: This unit is rated for ambient temperatures as low as 0°F. If you require a subzero temperature rating, please contact our customer service department to request a special order.
