Description
.jpg)

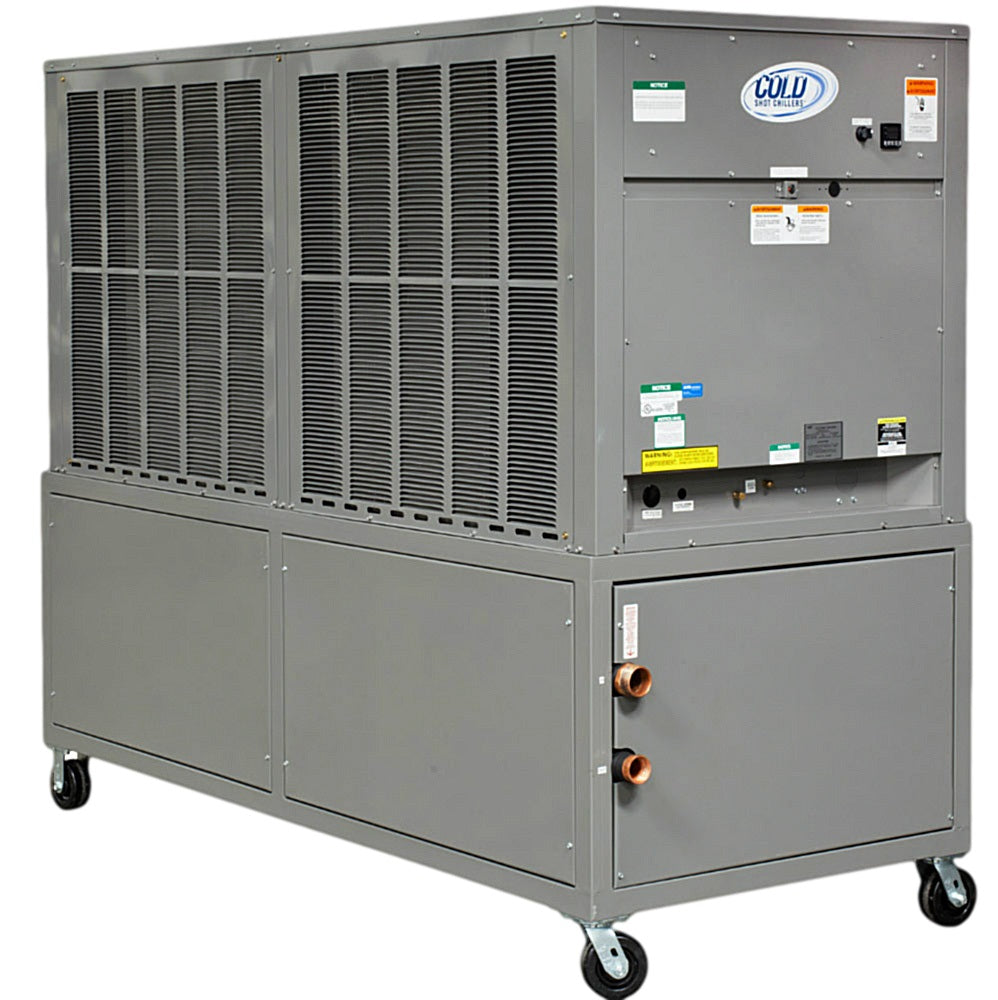

US Made industrial glycol chillers available in a wide range of tonnages.
Cold Shot Chillers are some of the most dependable and economical chillers on the market. These portable air-cooled chillers are built in the USA with time-proven components, and are supported 24/7 by a network of techs in the US.
These chillers are built to provide a lifetime of service, allowing precise temperature control during all aspects of the wine or beer making process. Powerful compressors combined with a large reservoir means huge cooling capacities, able to keep you running through the hottest months.
Cold Shot Chillers are built with high quality components designed for trouble-free use, but should an issue occur, technical support is available at all times, and if necessary a technician familiar with your unit can come service it on site.
Uses in Beer Making:
- Temperature control for fermentation, heating or cooling
- Temperature control for storage
- Temperature control for packaging
- Air conditioner
- Barrel rooms
- Cold box
Uses in Winemaking:
- Cooling of must for cold soaks, slow starting ferments
- Cooling must for cold soaking or slow starting / low temp ferments
- Cold stabilization of wine
- Controlling fermentation temperatures
- Maintaining storage temperatures in tanks / barrels
- Controlling cellar or winery air temperatures with a fan unit
Features:
- 20 tons (240,000 BTU/hr)
- 80 Gallon Stainless Steel Reservoir Tank with Lid
- This Low Temp Model has a leaving fluid temperature range of 20 - 70° F.
- Rated to 0°F ambient temperature*
- 2” MNPT Inlet and Outlet
- Stainless Steel 3 HP Centrifugal Pump outputs 95 GPM at 30 PSI
- 230 v 3 phase power (MCA 90.5) Required
- Casters Included (two swivel locking and two fixed)
- Large Reservoir easily filled from outside, and level indicated with sight gauge
- 1 Year Parts Warranty
- 5 Year Warranty on Compressor
- Welded steel powder coated frame and full metal cabinet with copper piping connections
- Digital Temperature controller with Self-Diagnostic control system
- Rugged Protection, while still easy to maintain and Wash Down
- High Flow Pump, Long Life, Dependable units!
- Stainless Steel Plate Evaporators Vacuum brazed with Copper
- Dependable Tandem Copeland Welded hermetic Scroll Compressors
- 88"x40"x70"
- 1800 lb
- UL Certified
Please Note: This unit REQUIRES 230 v Three Phase power (MCA 90.5) and will not function on anything else. Please confirm that you have the proper power for this unit before purchasing, and plan to have a qualified electrician wire the necessary plug to the cord.
*Please Note: This unit is rated for ambient temperatures as low as 0°F. If you require a subzero temperature rating, please contact our customer service department to request a special order.
This item does not qualify for free shipping.
