Pumping off the mash tun is the easiest way to collapse the screens. It is recommended that you either put a tee and a vacuum breaker ahead of the pump or run the wort into a grant and pump off the grant. Controlling the pump with restriction, a VFD, or a dual level float switch is ideal.
This tall cylindrical grant has three 1.5" tri-clamp ports and a silicone tube for a sight glass. The narrow design helps to reduce surface area and hot side aeration. The inlet and outlet side ports are raised a few inches above the conical dish bottom dump, which helps to separate grain sediment from the wort.
40L / 10.5 gal
Made from 304 stainless steel
Ships without valves

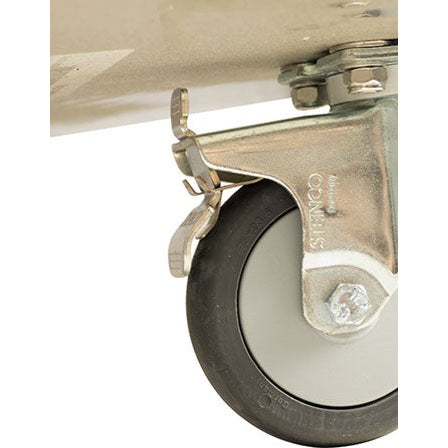

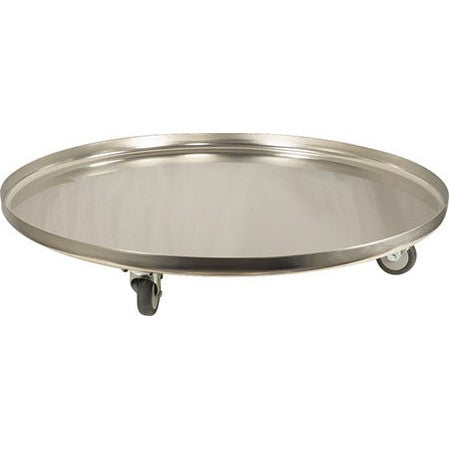

This tray is a great add-on to the 200l Braumeister, as the brewer can then use the Braus' winch to lift the mash pipe out, and once drained, simply swing to the side, and drop onto this roll pan for easy removal. Made out of stainless steel, this is the perfect size to securely hold your mash pipe full of mash while you roll it on the heavy duty castors to wherever you want!
Oil-based brewing system that closely mimics a large-scale steam-powered system
Heated oil is circulated around jacketed tanks to heat with a large surface area. All the benefits of steam without the complexity of a steam generator
Lower electrical requirement for installation compared to electric brewhouses with immersion elements
Insulated vessels for high heating efficiency
Includes grist case, foremash, and mash rake
Compact brewing system with no need for additional electrical controllers, components, or extensive wiring. All pumps, piping, and fittings included
No heating elements in direct contact with wort. Zero risk of scorching and easy to clean
3 Vessel systems are ideal for breweries that intend to use this unit as their primary brewing system
208V, 3-phase power is the standard configuration for all systems. Customized power configurations available upon request (see below)
For detailed power specs, dimensions, and shipping quotes contact our MoreBeer! Pro sales representatives today!
Compared to the traditional steam heating brewhouse, the creative new-tech thermal oil heating avoids the installation of a dangerous and high-maintenance steam boiler. Steam offers more surface area than gas fired, but it requires a generator to create steam, collect it, and reheat it again. Oil heated brewhouses, on the other hand, use a simple oil heater and pump to circulate oil through the tank jackets. Compared to gas fired systems where all heat is directed to the very bottom of the kettle, this system heats from the sides and the bottom rather than the bottom alone. This offers not only greater surface area but faster thermal response. By controlling the oil temperature, you also have more precise boil vigor control and evaporation rate control. For these reasons and more, the Oil Heated Brewhouse makes for an ideal pilot batch system.
Control Panel
Our control panel features 4 PID controllers for precise control of the HLT, Mash, Boil Kettle and Oil temperature. The control panel also features a delayed start timer, allowing you to preheat your HLT overnight so your strike water will be ready when you arrive on brew day.
Hard Piped Distribution Manifold
With the distribution manifold, the entire brewing process can be completed by simply opening and closing valves. There’s no need to lug around brewery hoses and swap connections from vessel to vessel. This hard piped system is completely self-contained with dedicated pumps to move wort and hot liquor from tank to tank as needed. Every step of the brew day is a simple valve turn away. The only hose required is from the brewing system to your fermenter. Once the brew is completed this same piping system is used for CIP and rinsing.
Installation
The systems are delivered on a skid. Simply, move the skid into place, hook up power and water and a drain and you are ready to clean and brew.
Our systems also feature rolling casters for easy installation in your brewery, product pump for recirculation and sparging, hard piped manifold, grain out door on the mash tun, and mounted plate chiller.
Design Features:
3-Vessel System with dedicated HLT, Mash Tun, and Boil Kettle
Compact design and easy installation
Mash rake ensures uniform hydration and uniform temperature throughout
Foremash achieves rapid and even hydration of grist
Grist case for temporary storage of milled grain before mashing in
Volume: 108 Gallon / 410L
Built-in wort pump
Built-in HLT pump
Built-in 2-stage heat exchanger
Hard piped distribution manifold
Built-in control panel
PID controls for kettle temperatures and oil temperature
Slotted Mash Screen
Tangential kettle return for whirlpool
Built-in CIP
Water inlet & hot water drain in 1.5" T.C.
Insulated tanks for heat retention and heating efficiency
Boil kettle features steam collector which eliminates the need to install a flue in your brewery
Hot oil vessel can operate at higher temperatures, that means 25% higher heating efficiency:
Oil temperature set at 302°F (150℃) [available up to 572°F (300℃)]
from 82°F to 140°F (28°C to 60℃), heat-up time: 20 min
from 140°F to 176°F (60°C to 80℃), heat-up time: 20 min
from 176°F to 212°F (80°C to 100℃), heat-up time: 30 min
Higher heating efficiency compared to steam heating
Simultaneous heating of HLT, mash tun and kettle to save time
100% 304 Stainless Steel
TIG welded tanks
Laser welded dimple jacket and tank bottom
Manufactured in strictly controlled ISO9001 certified facility
208V, 3-phase power*
*MB Stainless offers custom voltage oil systems. 240V single-phase systems available up to 5bbl. MB also produces 480V 3-phase systems in all sizes. Contact our sales representatives for pricing, lead time and delivery information.
Food-grade thermal oil not included. We recommend PARATHERM™ MR HTF or an equivalent low odor, food grade, thermal transfer fluid.
Increases hopping efficiency by 20–40% with its innovative design, including a wedge wire screen for optimal particle separation and clog prevention
Supports first wort hopping, hop back usage, biotransformation during fermentation, traditional dry hopping, hop charging during the boil, and fresh fruit additions
Allows for easy air purging and wort recirculation, with a straightforward setup for various stages of the brewing process
The MB Hop Gun is engineered for efficient and straightforward hop handling. Equipped with a wedge wire screen, it prevents clogging and ensures effective particle separation. The system allows for air purging and the recirculation of wort, fermenting wort, or beer, delivering a 20 to 40% increase in hopping efficiency.
Versatile in its applications, the MB Hop Gun supports first wort hopping by filtering lautered wort, functions as a hop back when positioned before or after the heat exchanger during kettle knockout, and enables hop biotransformation when used on day three of fermentation. Additionally, it facilitates traditional dry hopping post-fermentation and can even be utilized for hop charging during the boil.
The MB Hop Gun is also compatible with fresh fruit additions, broadening its utility for creative brewing applications. Note: The surface is not insulated, so caution is advised when using the device with hot wort.
Specs:
1.5" tri-clamp hardware included
Top & bottom sight glass
Pressure Gauge (0-30 psi)
PRV (working pressure 30 psi)
Bleed valve
Rolling casters w/ brakes
Made from 304 stainless steel
Size
Net Volume
Total Volume
Height
Tank Diameter*
Hop Capcity (Whole Cone)
50L
13.21 Gal
17.17 Gal
59.00"
13.77"
4 lbs
100L
26.42 Gal
36.98 Gal
84.64"
15.74"
8 lbs
150L
39.63 Gal
47.55 Gal
86.61"
17.71"
12 lbs
200L
52.83 Gal
60.76 Gal
86.61"
19.68"
16 lbs
*Tank Diameter does not account for piping and tri-clamp fittings.
Self-contained brewing system purpose-built for producing large batches of cold brew coffee
Cold brew temperature is maintained via coolant circulated around the jacketed tank
Rake system ensures all coffee grounds and water are thoroughly and evenly mixed
Built-in pump recirculates and clarifies the coffee when extraction is complete
217 Gallon system and above feature coffee ground hydrator and integrated brew deck
For detailed power specs, dimensions, and shipping quotes contact our MoreBeer! Pro sales representatives today!
The MB Cold Brew Coffee System is a self-contained electric brewhouse used for producing commercial batches of cold brew coffee. After coffee grounds and water are added to the tank, the mixing rake system ensures even distribution and full infusion of grounds and water. Program your preferred brewing temperature between 35-80°F, and the controller will automatically circulate coolant through the tank's cooling jacket to maintain your set temperature. When extraction is complete, the coffee is recirculated until it runs clear, and then passed through a filter on its way to a holding tank where it can be stored until packaging.
For additional filtration when transferring liquid to your holding tank, check out the optional Filter Tank.
Features:
Button control panel
Glass grant w/ CIP
Viewing port
Coffee ground hydrator (7 bbl & above)
Brew deck (7 bbl & above)
CIP ring below the tank to clean the underside of the screen (7 bbl & above)
Liquid level sight gauge
Built-in centrifugal pump
Pipeline sight glass
Square manway & chute
All tri-clamp butterfly valves / fittings included
208V 60Hz, 3-Phase
Required Power:
31 Gal: 1.3 kW
62 Gal: 1.5 kW
93 Gal: 1.5 kW
155 Gal: 1.85 kW
217 Gal: 1.85 kW
310 Gal: 3 kW
Approximate Dimensions:
Length (in.)
Width (in.)
Height (in.)
31 Gal
63
49
71
62 Gal
65
63
77
93 Gal
69
67
85
155 Gal
77
69
93
217 Gal
93
73
98
310 Gal
98
79
102
Get your brew day started faster with the MB commercial grain mill—process an entire pallet of malt in an hour!
Adjustable grain flow rate to slow the mill down to match your mashing speed
Differential roller speed applies enough force to open the grain kernels as they pass through the rollers without damaging the husk, improving efficiency and lauter performance
Slotted rollers more effectively expose the starchy endosperm inside the kernel compared to knurled rollers
Rollers made from steel alloy which is harder and longer lasting than stainless steel
0.4mm to 1mm (.016"-.039") mill gap is easily dialed in with handled adjustment wheels
Professional quality grain mill with stainless steel construction throughout
The MB commercial-grade mill can process upwards of 2,000 lbs of grain per hour and features large diameter slotted alloy rollers for an excellent crush and long life. This mill can easily power through whatever you throw at it, including barley, wheat, rye, and corn.
Differential Roller Speed
Rotating the rollers at different speeds is the key to a superior crush. Standard grain mills rotate the rollers at the same speed, creating a pinch point between them where the grain kernels are cracked open. Although effective, this can often lead to an excess of flour and damaged grain husks. The MB pro mill drives the rollers at different speeds to apply enough force to open the grain kernels as they pass through the rollers without damaging the husk. This action results in a better crush that will improve efficiency and lauter performance.
Slotted Rollers
Many grain mills feature hardened steel knurled rollers due to the lower cost, but they don't provide the best crush possible. Rather than shredding the grain into submission, slotted rollers (also known as fluted rollers) are more effective at shearing the grain husk to expose the endosperm while leaving the hull intact. The rollers are made from steel alloy which are harder and longer lasting than stainless steel. This roller features a 155mm diameter, which lowers the angle of attack on the kernel and allows the mill to pull grain more efficiently.
Professional Quality
The MB pro mill is an industrial workhorse and the best value for a commercial mill on the market. The hopper capacity is 55 lbs of grain and large adjustment wheels make for easy gap adjustments. Stainless steel construction throughout, and anchor holes in the feet allow the unit to be bolted to the ground.
Specifications:
Processing Speed: approx. 2,200 lbs/hr
Hopper Capacity: 55 lbs
Voltage: 208V/220V 3-phase motor
Power: 4 HP
Amperage: 8.3 amps
Mill Gap: 0.4mm - 1mm
Mill Roller Size: 155mm diameter, 110mm long
Please Note: The unit will arrive bare without a power cord, plug, or controls to power the motor on or off. You will need an electrician to wire the appropriate power cord and shutoff switch to the motor.
Please Note: This unit REQUIRES 208-220V Three Phase power and will not function on anything else. Please confirm that you have the proper power for this unit before purchasing, and plan to have a qualified electrician install a fused shutoff and wire directly to the included on/off switch.
Due to high demand, the 7 bbl and 10 bbl are currently out of stock. Be the first to receive your items by placing a pre-order today. We will automatically ship this to you when we receive more in mid April.
Oil-based brewing system that closely mimics a large-scale steam-powered system
Heated oil is circulated around jacketed tanks to heat with a large surface area. All the benefits of steam without the complexity of a steam generator
Lower electrical requirement for installation compared to electric brewhouses with immersion elements
Insulated vessels for high heating efficiency
Compact brewing system with no need for additional electrical controllers, components, or extensive wiring. All pumps, piping, and fittings included
No heating elements in direct contact with wort. Zero risk of scorching and easy to clean
1 bbl to 3.5 bbl systems available with or without mash rake. 5 bbl and above come with mash rake as standard
7 bbl systems and above feature a brew deck and CIP ring below the mash tun to clean the underside of the mash screen
3 Vessel systems are ideal for breweries that intend to use this unit as their primary brewing system
208V, 3-phase power is the standard configuration for all systems. Customized power configurations available upon request (see below)
For detailed power specs, dimensions, and shipping quotes contact our MoreBeer! Pro sales representatives today!
Compared to the traditional steam heating brewhouse, the creative new-tech thermal oil heating avoids the installation of a dangerous and high-maintenance steam boiler. Steam offers more surface area than gas fired, but it requires a generator to create steam, collect it, and reheat it again. Oil heated brewhouses, on the other hand, use a simple oil heater and pump to circulate oil through the tank jackets. Compared to gas fired systems where all heat is directed to the very bottom of the kettle, this system heats from the sides and the bottom rather than the bottom alone. This offers not only greater surface area but faster thermal response. By controlling the oil temperature, you also have more precise boil vigor control and evaporation rate control. For these reasons and more, the Oil Heated Brewhouse makes for an ideal pilot batch system.
Control Panel
Our control panel features 4 PID controllers for precise control of the HLT, Mash, Boil Kettle and Oil temperature. The control panel also features a delayed start timer, allowing you to preheat your HLT overnight so your strike water will be ready when you arrive on brew day.
Hard Piped Distribution Manifold
With the distribution manifold, the entire brewing process can be completed by simply opening and closing valves. There’s no need to lug around brewery hoses and swap connections from vessel to vessel. This hard piped system is completely self contained with dedicated pumps to move wort and hot liquor from tank to tank as needed. Every step of the brew day is a simple valve turn away. The only hose required is from the brewing system to your fermenter. Once the brew is completed this same piping system is used for CIP and rinsing.
Installation
The systems are delivered on a skid. Simply, move the skid into place, hook up power and water and a drain and you are ready to clean and brew.
Our systems also feature rolling casters for easy installation in your brewery, product pump for recirculation and sparging, hard piped manifold, grain out door on the mash tun, and mounted plate chiller.
Design Features:
3-Vessel System with dedicated HLT, Mash Tun, and Boil Kettle
Compact design and easy installation
Built-in wort pump
Built-in HLT pump
Built-in 2-stage heat exchanger
Hard piped distribution manifold
Built-in control panel
PID controls for kettle temperatures and oil temperature
Slotted Mash Screen
Tangential kettle return for whirlpool
Built-in CIP
Water inlet & hot water drain in 1.5" T.C.
Insulated tanks for heat retention and heating efficiency
Boil kettle features steam collector which eliminates the need to install a flue in your brewery
Hot oil vessel can operate at higher temperatures, that means 25% higher heating efficiency:
Oil temperature set at 302°F (150℃) [available up to 572°F (300℃)]
from 82°F to 140°F (28°C to 60℃), heat-up time: 20 min
from 140°F to 176°F (60°C to 80℃), heat-up time: 20 min
from 176°F to 212°F (80°C to 100℃), heat-up time: 30 min
Higher heating efficiency compared to steam heating
Simultaneous heating of HLT, mash tun and kettle to save time
100% 304 Stainless Steel
TIG welded tanks
Laser welded dimple jacket and tank bottom
Manufactured in strictly controlled ISO9001 certified facility
208V, 3-phase power*
*MB Stainless offers custom voltage oil systems. 240V single-phase systems available up to 5bbl. MB also produces 480V 3-phase systems in all sizes. Contact our sales representatives for pricing, lead time and delivery information.
Food-grade thermal oil not included. We recommend PARATHERM™ MR HTF or an equivalent low odor, food grade, thermal transfer fluid.
Condition: New - Cosmetic Defective
This unit is new. It is in new and good condition but has cosmetic defect(s) such as scratch(es), dent(s), and/or has damaged packaging
MB Pro Brewing Systems are very well constructed and represent an amazing overall value. They also boast a very impressive feature set.
Our 3.5 bbl Pro Electric Hot Liquor Tank features three 9,000W heating elements, insulated walls for energy efficiency, condensation ring, and a host of other key features guaranteed to satisfy the expectations of today's pro brewer.
A float switch is pre-installed just above the heating elements, which is intended to protect your elements from running dry. The device comes unwired and needs to be included in a circuit in order to function.
Great Quality from MB
Our brewing systems are made at a family owned manufacturer in the Ningbo region of China. Ningbo is where most premium beer tanks and brewing vessels come from and represents a known style and level of quality when compared to other areas of China. Our professional brewhouse equipment is designed by our in-house R&D designer Colin Kaminski, a former brewmaster for 15 years. Cleanability, ease of use, and durability are our primary design criteria. Our manufacturing partner in China is a father/son team that takes great pride in what they do. Some discount dealers buy from different manufacturers who offer one-off deals. That can be fine one time but not the next.
Great Value from MoreBeer! Pro
If you used MoreBeer! as a homebrewer, you may not know that MoreBeer! & MoreBeer! Pro combined is one of the largest brewing supply companies in the world with over 250,000 customers. We’ve seen countless homebrewers turn pro, and there’s nothing that makes us happier than being a part of that transition. As a privately owned brewing supply company that's been in business for over 25 years, we’ve established relationships with suppliers and manufacturers around the world and at every level of the industry. We get a great price and we pass that on to you.
All Features:
Oversized to allow mashing and sparging without having to top off
Insulated walls for safety and energy efficiency
Condensation Trap so no flue is used
Sight Gauge to check volume
Fill Port
Tapered Bottom w/ Center Drain
Float Switch to protect the electric elements from running dry (wiring required)
Powered by (3) 9,000-watt 3-phase 208V elements
Total Amperage Draw: 75 amps at 3ph 208V
The kettle must be grounded
PT100 Temp Sender
Analog Temp Gauge for quick reading
Internal LED Light
Specifications for 3.5 bbl HLT:
Grade 304 Stainless Steel
Internal Finish: #2B
Tank Height: 61"
Tank Diameter: 47"
Empty Weight: 375 lb
Working Volume: 4.5 bbl
Max Volume: 5.1 bbl
All ports are 1.5" TC except for DN350 Manway, DN19 Condensation Pipe, 4" TC CIP Port, 2" TC Element Ports, 4" Welded Vent
Please note: this unit is supplied without controls for the electric elements.
Power requirements listed represent actual amperage draw. Please consult a licensed electrician to determine what amperage breaker is required based on your local codes.
Please Note: This item requires a professional electrician for installation.
Please Contact our Customer Service department at 1-800-600-0033 to assess shipment costs and place an order.
Insulated walls to eliminate heat loss during mashing. Made from 304 stainless steel with passivated internal 2B polished finish
Slotted 3-piece false bottom, adjustable height sparge arm, and large grain out manway door with removable chute
Sparge arm features two inlets for HLT and recirculation
4" tri-clamp grain inlet port can be used with optional Grist Hydrator
Ships domestically from within the contiguous United States
MB Pro Brewing Systems are very well constructed and represent an amazing overall value. They also boast a very impressive feature set.
Our Pro Insulated Mash Tun features slotted 3-piece false bottom, adjustable-height sparge arm, 4" TC port for optional grist hydrator, and a host of other key features guaranteed to satisfy the expectations of today's pro brewer.
The mash tun has a slotted plate screen with a large grain out port on the side. The optional hydrator allows you to mix grain with hot liquor if you have your mill or grist case above the mash tun. There is a large top access for manual stirring. The walls of the mash tun are insulated to provide stable mashing temperatures. While intended for a single infusion mash, step mashing can be performed by recirculating through a heat exchanger. The sparge arm is adjustable in height and it is intended to have an inch of water above the grain and have the bottom of the diverted plate resting on top of the grain for low oxygen pickup during recirculating and sparging. We recommend that you use a grant to avoid creating suction on the bottom of the mash screen. It is possible to pull 23,000 lbs of force on the screen with a pump and a fully stuck mash and even partial vacuums can produce significant force. Alternatively, you can install a vacuum breaker ahead of the pump. Replacement screens are available for special order.
We strongly recommend using a Wort Grant when pumping off the mash tun to avoid the possibility of collapsing the screens.
Great Quality from MB
Our brewing systems are made at a family owned manufacturer in the Ningbo region of China. Ningbo is where most premium beer tanks and brewing vessels come from and represents a known style and level of quality when compared to other areas of China. Our professional brewhouse equipment is designed by our in-house R&D designer Colin Kaminski, a former brewmaster for 15 years. Cleanability, ease of use, and durability are our primary design criteria. Our manufacturing partner in China is a father/son team that takes great pride in what they do. Some discount dealers buy from different manufacturers who offer one-off deals. That can be fine one time but not the next.
Great Value from MoreBeer! Pro
If you used MoreBeer! as a homebrewer, you may not know that MoreBeer! & MoreBeer! Pro combined is one of the largest brewing supply companies in the world with over 250,000 customers. We’ve seen countless homebrewers turn pro, and there’s nothing that makes us happier than being a part of that transition. As a privately owned brewing supply company that's been in business for over 25 years, we’ve established relationships with suppliers and manufacturers around the world and at every level of the industry. We get a great price and we pass that on to you.
All Features:
Insulated for low heat loss
Slotted 3 pieces false bottom
Large side grain out door
Removable grain out chute
4" TC grain inlet port for optional grist hydrator
Adjustable Height Sparge Arm for better HSA performance
Sparge Arm has two inlets, HLT and Recirculation.
Large top lid for easy stirring
PT100 Probe
Analog Temp Gauge
Internal LED Light
Specifications for 3.5 bbl Mash Tun:
Grade 304 Stainless Steel
Internal Finish: #2B
Tank Height: 56"
Height w/ Hydrator: 72"
Tank Diameter: 41"
Empty Weight: 360 lbs
Working Volume: 3.5 bbl
Max Volume: 4.6 bbl
Manway: 20.8" x 16.9"
All ports are 1.5" TC except for 4" TC Sparge Arm Port, 4" TC Grist Hydrator Port, DN80 LED Light Port
Please Contact our Customer Service department at 1-800-600-0033 to assess shipment costs and place an order.
Due to high demand, this item is currently out of stock. Be the first to receive your items by placing a pre-order today. We will automatically ship this to you when we receive more inventory.
MB Pro Brewing Systems are very well constructed and represent an amazing overall value. They also boast a very impressive feature set.
Our Pro Insulated Mash Tun features slotted 3-piece false bottom, adjustable-height sparge arm, 4" TC port for optional grist hydrator, and a host of other key features guaranteed to satisfy the expectations of today's pro brewer.
The mash tun has a slotted plate screen with a large grain out port on the side. The optional hydrator allows you to mix grain with hot liquor if you have your mill or grist case above the mash tun. There is a large top access for manual stirring. The walls of the mash tun are insulated to provide stable mashing temperatures. While intended for a single infusion mash, step mashing can be performed by recirculating through a heat exchanger. The sparge arm is adjustable in height and it is intended to have an inch of water above the grain and have the bottom of the diverted plate resting on top of the grain for low oxygen pickup during recirculating and sparging. We recommend that you use a grant to avoid creating suction on the bottom of the mash screen. It is possible to pull 23,000 lbs of force on the screen with a pump and a fully stuck mash and even partial vacuums can produce significant force. Alternatively, you can install a vacuum breaker ahead of the pump. Replacement screens are available for special order.
We strongly recommend using a Wort Grant when pumping off the mash tun to avoid the possibility of collapsing the screens.
Great Quality from MB
Our brewing systems are made at a family owned manufacturer in the Ningbo region of China. Ningbo is where most premium beer tanks and brewing vessels come from and represents a known style and level of quality when compared to other areas of China. Our professional brewhouse equipment is designed by our in-house R&D designer Colin Kaminski, a former brewmaster for 15 years. Cleanability, ease of use, and durability are our primary design criteria. Our manufacturing partner in China is a father/son team that takes great pride in what they do. Some discount dealers buy from different manufacturers who offer one-off deals. That can be fine one time but not the next.
Great Value from MoreBeer! Pro
If you used MoreBeer! as a homebrewer, you may not know that MoreBeer! & MoreBeer! Pro combined is one of the largest brewing supply companies in the world with over 250,000 customers. We’ve seen countless homebrewers turn pro, and there’s nothing that makes us happier than being a part of that transition. As a privately owned brewing supply company that's been in business for over 25 years, we’ve established relationships with suppliers and manufacturers around the world and at every level of the industry. We get a great price and we pass that on to you.
All Features:
Insulated for low heat loss
Slotted 3 pieces false bottom
Large side grain out door
Removable grain out chute
4" TC grain inlet port for optional grist hydrator
Adjustable Height Sparge Arm for better HSA performance
Sparge Arm has two inlets, HLT and Recirculation.
Large top lid for easy stirring
PT100 Probe
Analog Temp Gauge
Internal LED Light
Specifications for 3.5 bbl Mash Tun:
Grade 304 Stainless Steel
Internal Finish: #2B
Tank Height: 56"
Height w/ Hydrator: 72"
Tank Diameter: 41"
Empty Weight: 360 lbs
Working Volume: 3.5 bbl
Max Volume: 4.6 bbl
Manway: 20.8" x 16.9"
All ports are 1.5" TC except for 4" TC Sparge Arm Port, 4" TC Grist Hydrator Port, DN80 LED Light Port
Please note: the primary image shows the mash tun with optional grist hydrator (sold separately).
Please Contact our Customer Service department at 1-800-600-0033 to assess shipment costs and place an order.
Insulated walls for safety and energy efficiency. Made from 304 stainless steel with passivated internal 2B polished finish
Oversized volume large enough for mashing and sparging without needing to top off. Features sight gauge and tapered bottom with center drain
Made with condensation trap to keep flue condensation out of your liquor
Internal float switch located just above the heating elements to protect the elements from running dry
Ships domestically from within the contiguous United States
MB Pro Brewing Systems are very well constructed and represent an amazing overall value. They also boast a very impressive feature set.
Our 7 bbl Pro Electric Hot Liquor Tank features three 15,000W heating elements, insulated walls for energy efficiency, condensation ring, and a host of other key features guaranteed to satisfy the expectations of today's pro brewer.
A float switch is pre-installed just above the heating elements, which is intended to protect your elements from running dry. The device comes unwired and needs to be included in a circuit in order to function.
Great Quality from MB
Our brewing systems are made at a family owned manufacturer in the Ningbo region of China. Ningbo is where most premium beer tanks and brewing vessels come from and represents a known style and level of quality when compared to other areas of China. Our professional brewhouse equipment is designed by our in-house R&D designer Colin Kaminski, a former brewmaster for 15 years. Cleanability, ease of use, and durability are our primary design criteria. Our manufacturing partner in China is a father/son team that takes great pride in what they do. Some discount dealers buy from different manufacturers who offer one-off deals. That can be fine one time but not the next.
Great Value from MoreBeer! Pro
If you used MoreBeer! as a homebrewer, you may not know that MoreBeer! & MoreBeer! Pro combined is one of the largest brewing supply companies in the world with over 250,000 customers. We’ve seen countless homebrewers turn pro, and there’s nothing that makes us happier than being a part of that transition. As a privately owned brewing supply company that's been in business for over 25 years, we’ve established relationships with suppliers and manufacturers around the world and at every level of the industry. We get a great price and we pass that on to you.
All Features:
Oversized to allow mashing and sparging without having to top off
Insulated walls for safety and energy efficiency
Condensation Trap so no flue is used
Sight Gauge to check volume
Fill Port
Tapered Bottom w/ Center Drain
Float Switch to protect the electric elements from running dry (wiring required)
Powered by (3) 15,000-watt 3-phase 208V elements
Total Amperage Draw: 125 amps at 3ph 208V
The kettle must be grounded
PT100 Temp Sender
Analog Temp Gauge for quick reading
Internal LED Light
Specifications for 7 bbl HLT:
Grade 304 Stainless Steel
Internal Finish: #2B
Tank Height: 83"
Tank Diameter: 48"
Empty Weight: 660 lbs
Working Volume: 9 bbl
Max Volume: 10.4 bbl
All ports are 1.5" TC except for DN350 Manway, DN19 Condensation Pipe, 4" TC CIP Port, 2" TC Element Ports, 4" Welded Vent
Please note: this unit is supplied without controls for the electric elements. You will need to supply your own control panel.
Power requirements listed represent actual amperage draw. Please consult a licensed electrician to determine what amperage breaker is required based on your local codes.
Please Note: This item requires a professional electrician for installation.
Please Contact our Customer Service department at 1-800-600-0033 to assess shipment costs and place an order.
Insulated walls for safety and energy efficiency. Made from 304 stainless steel with passivated internal 2B polished finish
Oversized volume large enough for mashing and sparging without needing to top off. Features sight gauge and tapered bottom with center drain
Made with condensation trap to keep flue condensation out of your liquor
Internal float switch located just above the heating elements to protect the elements from running dry
Ships domestically from within the contiguous United States
MB Pro Brewing Systems are very well constructed and represent an amazing overall value. They also boast a very impressive feature set.
Our 3.5 bbl Pro Electric Hot Liquor Tank features three 9,000W heating elements, insulated walls for energy efficiency, condensation ring, and a host of other key features guaranteed to satisfy the expectations of today's pro brewer.
A float switch is pre-installed just above the heating elements, which is intended to protect your elements from running dry. The device comes unwired and needs to be included in a circuit in order to function.
Great Quality from MB
Our brewing systems are made at a family owned manufacturer in the Ningbo region of China. Ningbo is where most premium beer tanks and brewing vessels come from and represents a known style and level of quality when compared to other areas of China. Our professional brewhouse equipment is designed by our in-house R&D designer Colin Kaminski, a former brewmaster for 15 years. Cleanability, ease of use, and durability are our primary design criteria. Our manufacturing partner in China is a father/son team that takes great pride in what they do. Some discount dealers buy from different manufacturers who offer one-off deals. That can be fine one time but not the next.
Great Value from MoreBeer! Pro
If you used MoreBeer! as a homebrewer, you may not know that MoreBeer! & MoreBeer! Pro combined is one of the largest brewing supply companies in the world with over 250,000 customers. We’ve seen countless homebrewers turn pro, and there’s nothing that makes us happier than being a part of that transition. As a privately owned brewing supply company that's been in business for over 25 years, we’ve established relationships with suppliers and manufacturers around the world and at every level of the industry. We get a great price and we pass that on to you.
All Features:
Oversized to allow mashing and sparging without having to top off
Insulated walls for safety and energy efficiency
Condensation Trap so no flue is used
Sight Gauge to check volume
Fill Port
Tapered Bottom w/ Center Drain
Float Switch to protect the electric elements from running dry (wiring required)
Powered by (3) 9,000-watt 3-phase 208V elements
Total Amperage Draw: 75 amps at 3ph 208V
The kettle must be grounded
PT100 Temp Sender
Analog Temp Gauge for quick reading
Internal LED Light
Specifications for 3.5 bbl HLT:
Grade 304 Stainless Steel
Internal Finish: #2B
Tank Height: 61"
Tank Diameter: 47"
Empty Weight: 375 lb
Working Volume: 4.5 bbl
Max Volume: 5.1 bbl
All ports are 1.5" TC except for DN350 Manway, DN19 Condensation Pipe, 4" TC CIP Port, 2" TC Element Ports, 4" Welded Vent
Please note: this unit is supplied without controls for the electric elements. You will need to supply your own control panel.
Power requirements listed represent actual amperage draw. Please consult a licensed electrician to determine what amperage breaker is required based on your local codes.
Please Note: This item requires a professional electrician for installation.
Please Contact our Customer Service department at 1-800-600-0033 to assess shipment costs and place an order.
The original all-in-one brewery still made in Germany!
5" touchscreen is easy to use and guides you through the brewing process
Brew all-grain beer inside your home—no gas burner needed
Built-in cooling jacket eliminates the need for awkward wort chillers
2R interior stainless finish with electropolished heating coil
The "Mercedes®" of brewing systems. When you want the best, this is it.
The Braumeister: A patented, electric, self-contained all-grain brewing system producing 61 gallons of wort per brew. The beauty of the Speidel Braumeister is in simplicity and small footprint. This product is not part of our free shipping policy, however we only charge actual freight from our California or Pennsylvania Warehouse to your location.
Touchscreen Control Panel
The new automatic control system brews with your own individual recipes and guides you through the brewing process. Recipes and software updates can be synced automatically with the integrated WiFi. The time and temperature are precisely maintained through all brewing phases. The new touchscreen makes it even easier to operate the Braumeister.
In addition, the large Braumeisters have integrated a new pressure sensor-controlled pump control. The pressure sensor in the pressure line which is connected with the malt pipe allows you to regulate the pump speed via the pressure. The new timer function saves time because, for example, the brewing water can be heated up early in the morning.
One Vessel
With the Braumeister you Mash, Boil and Cool all in the same vessel. All actions are controlled by the included electronic control system. Your brewing process is started in the Braumeister the same as with any other system, by mixing cracked grain with hot water. From there traditional step mashes at multiple temperatures are easy to maintain when you set your program on the controller.
Traditional Sparging Optional
Because of the constant movement of wort, the high ratio of liquid in the mash and the unique grain bed filters, the efficiency of removing sugar from the mash is good. This eliminates the need for a traditional sparge. However, when you shift from Mashing to the boil by lifting the grain bed out of the tank you can rinse the grain with hot water, performing a more traditional sparge if desired.
Boil and Cool
After the grain basket is removed with the included winch you will begin a traditional boil for 60 to 90 minutes. After the boil is over you connect to your glycol system (see our Kreyer Chilly45 GLY411) and use the built-in dimpled cooling jacket to cool the wort down. Simple.
Product Specifications:
208V Three Phase Power
Built in frequency converter allows it to run on 50 or 60hz
Designed to make approximately 61 gallons of wort, 52 gallons finished beer.
Dimensions: 54" W x 34" D x 79" T
heating spiral: 3 x 3000 Watt heating capacity
370 Watt pump
92.59 lb max qty of malt
One year warranty
Control Software:
Brewing guide—also shows quantity and kind of raw materials
Precise temperature measuring
Pump pauses are adjustable
Integrated WiFi for software updates and sync of recipes with MySpeidel
Integrated database of raw materials
Timer function with delayed start
Ferment control compatible with the Tilt Hydrometer
Control Hardware:
IP 65 water resistant
5" touchscreen
Additional connections 24V and CAN for future accessories
WiFi and Bluetooth integrated
A stainless platform designed for the full malt pipe to be lowered onto it and rolled to a point of disposal. Extremely convenient for large batches.
Specifically sized to the 500l Brau, this unit is equipped with sturdy wheels, designed to make mash disposal that much easier!

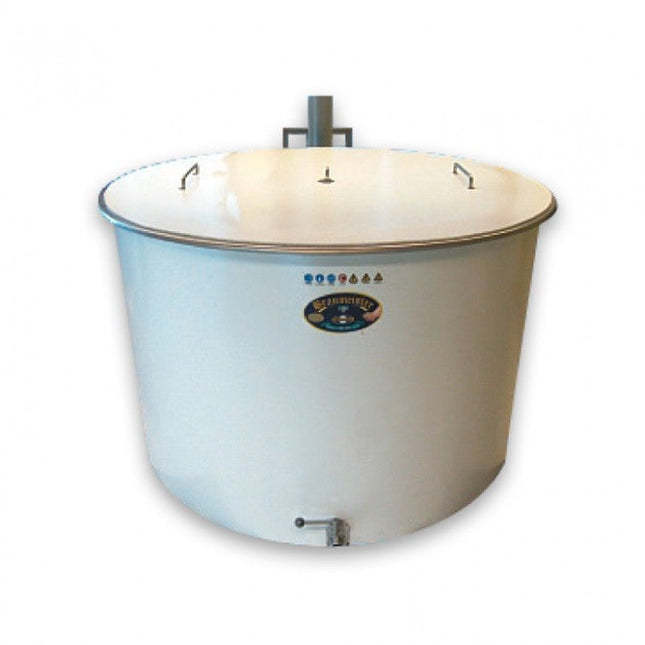

Insulating Jacket for both the body of your 500l Braumeister, and the lid. Helps to both reach and maintain temperatures, especially in cold environments.
