Gasket/Seal for the back end of the fill spouts in our WE602 and WE610 3 and 5 Spout Siphon Fillers. This is the gasket which seals the fill spout against the inner wall of the filler's reservoir when a bottle is not on the spout.
Replacement siphon starter bulb for 3-spout and 5-spout bottle fillers. This is included in our WE602 and WE605 stainless steel bottle fillers, and can be purchased as an option upgrade for the WE604 painted filler. This siphon starter will save you a lot of hassle, and allow you to start a siphon in the fillers tubes while maintaining sanitary conditions.
The siphon starter features a food grade plastic bulb and tubing, and a black rubber "boot" that fits tightly around the end of the bottle filler tubes.
To use:
Connect your bottle filler to the wine source and allow the reservoir to fill.
Sanitize the siphon starter, inside and out
Squeeze the bulb to remove most of the air.
Fit the rubber "boot' or base around the end of the bottle filler tube. The hole in the boot must line up with the hole where the wine will come out.
Gently press down on the filler tube so that the gasket is not touching the inside wall.
Slowly let go of the pressure on the bulb. The bulb will suck the air out of the tube, and wine will follow. Stop when you can hear or feel wine going into the bulb siphon starter.
Repeat for each filler tube you would like to use.
Wash, sanitize, and dry the siphon starter bulb before storage
Premium Counter-Pressure Bottle filler that is designed for the smaller craft brewer or dedicated homebrewer to help make bottling day faster and more efficient
The four separate filling heads have individual Stainless Steel 3-way control valves that allow for quick fill rates
Only requires one person to operate
A single PRV provides equal backpressure on all heads resulting in matching flow rates without adjustment
Individual purge valves on each fill head allow for nearly all oxygen removal in a bottle, ensuring that the beer stays fresh for longer
The removable drip tray is fully draining with a barbed outlet for constant filling and easy cleaning
A purge valve on the reservoir helps make sure that foam never builds up
304 Stainless Steel Construction and easy-to-use functionality, all resulting in a top-of-the-line bottle filler
Introducing the newly redesigned and updated G2 Medusa Multihead Counter Pressure Bottle Filler! This unique unit was designed in-house by the MB Pro Engineering team and purpose built for the smaller craft brewer or dedicated homebrewer. The Medusa will speed up bottling day while also reducing exposure to oxygen during the bottling process, resulting in higher quality beer with a longer shelf life.
The Medusa Multihead Counter Pressure Bottle Filler can be adjusted to cater all bottling needs. All four heads can be operated individually, and the height, back pressure, and fill speeds can be adjusted for various bottle styles. We've done our best to pack this unit with features that will handle all jobs, while keeping costs as low as possible.
Features:
3-way stainless steel valves on both inlet & back pressure sides of all fill heads.
Improved Pressure Relief Valve has higher accuracy over fill rates, and directs foam into the drip tray rather than onto your bottles.
Robust stainless steel frame stands on its own or can be easily bolted or clamped to a work surface
Stainless steel fill reservoir keeps fill rates equal & reduces foaming
Inverted fill tubes & reservoir purge means cleaner filling with even less possibility for foam.
Dual TC Fill reservoir is easier to clean & allows for upgrades down the road (as they become available).
Easily adaptable to fill from nearly any pressurized vessel.
Height is adjustable from shorty bottles to growlers.
Easy disassembly for cleaning, storage & maintenance,
Sanitary 1.5" TC inlet for beer (Clamp and Gasket sold separately)
3/8" tube connection for CO2.
Backpressure Bar allows for a single adjustment point for fill rates. No more adjusting PRVs on each fill head.
Minimum Bottle Height: 6.9"
Maximum Bottle Height: 16.5"
Maximum Working Pressure: 15 PSI
Dimensions:
Footprint: 26-3/8" L x 8" W
Drip Tray: 23-1/2" L x 5-1/2" W
Overall Height: 25-3/8"
Please Note: Filler valves include a Teflon gasket. Do not soak the valves in PBW which can corrode Teflon material after prolonged contact.
Put one feed line into this filler from your fermenter or barrel and fill three bottles at once. Unit comes included with a Siphon Bulb for conveniently starting a siphon from the holding tank to each filler spout. Each bottle fills independently of one another to allow for staggered filling (take one bottle off as another is filling). Fill is initiated when bottle is lowered onto filling spout and locked into place with built-in bottle neck clasp. The flow of liquid will stop automatically when the level of liquid in the bottle reaches the liquid level in the reservoir. The clasps around each fill head will hold the bottles in place during filling. Spouts feature a unique design that eliminates dripping when bottle is removed. A float valve keeps the wine level constant in the wine reservoir at all times. Each spout fills about two bottles per minute. Built-in drain allows for easy cleaning. All metal parts are made from 304-type stainless steel. Replacement fill spout seals are available. 15L reservoir.
Get the functionality of a 3 spout gravity filler for a fraction of the price. These fillers are a great alternative to more expensive fillers, while still allowing you to bottle at a quick rate. For a more robust model in Stainless Steel, see our WE602.
These 3 spout models have an internal float mechanism to keep the reservoir full. 3 individual nozzles allow for independent filling of bottles.
Put one feed line into this filler from your fermenter or barrel and fill three bottles at once. Unit comes included with a Siphon Bulb for conveniently starting a siphon from the holding tank to each filler spout. Each bottle fills independently of one another to allow for staggered filling (take one bottle off as another is filling). Fill is initiated when bottle is placed onto filling spout and set down on the bottle tray. The flow of liquid will stop automatically when the level of liquid in the bottle reaches the liquid level in the reservoir. The bottle will rest upon the bottle tray during filling. Spouts feature a unique design that eliminates dripping when bottle is removed. A float valve keeps the wine level constant in the wine reservoir at all times. Each spout fills about two bottles per minute. Built-in drain allows for easy cleaning. All metal parts are made from 304-type stainless steel. Replacement fill spout seals are available. 9L reservoir.
16.5" L x 16" W x 21.25" H
Nozzle diameter: 12 mm (0.472441 inch)
The ideal bottle filler for large-scale home winemakers or smaller commercial wineries
Vacuum draws liquid from up to 12 feet below the filler with minimum oxygen exposure
Fill up to 600 bottles per hour
Adjustable max fill level
Use with wine or uncarbonated cider and beer
A commercial version of the Enolmatic filler that features four filling heads and allows you to fill up to 600 bottles per hour. This is the best bottle filler for the large-scale home winemaker or a small commercial operation. Through the use of a vacuum, the Enolmaster filler automatically starts a siphon, sucks the air out of your wine bottles to preserve freshness, and automatically shuts off when each bottle is filled to the perfect height every time. Not only does the entire process take place in a nearly oxygen-free environment, preserving the freshness of your wine, the rate of fill is extremely fast allowing you to bottle up to 600 bottles per hour.
The Enolmaster creates a vacuum that sucks the wine directly from your fermenter, storage tank, or barrel, which can be located up to 12 feet below the Enolmaster. No need to start a siphon or to have to pump or move your wine above your filling machine. The vacuum simultaneously sucks the air out of your bottle allowing you to fill in a nearly oxygen-free bottle. This quality-first process helps to ensure that the delicate flavors of your wine, the flavors you worked so hard to get, are not lost in an open-air bottling process. Additionally, there are no moving parts in contact with the wine ensuring the gentlest handling possible.
Fill speed can be adjusted allowing you to bottle at your preferred pace. While the filler is in operation, wine is not allowed back into the storage tank or barrel due to a one-way valve located in the supply line. The small amount of excess wine runs into a collection reservoir. The fill height can be adjusted and can be used with any size or type of bottle.
The Enolmaster is a commercial product designed for a small winery. It has a continuous duty cycle, meaning it can run non-stop and is constructed entirely from food-grade materials. The frame is made of stainless steel as are the filling heads. Simply run water through the system to clean out the lines. The reservoir for excess overfill can be rinsed out or ran through the dishwasher.
To filter your wine and bottle fill at the same time, add the optional in-line Tandem Professional Filter Housing and Filter Cartridges.
Base and frame made from 304 stainless steel
Fill nozzels made from 316 stainless steel
Fill up to 600 x 750ml bottles per hour
Made in Italy by Tenco
Dimensions: 650m x 460mm x 450m
Weight: 25 kg (55 lbs)
Power: 110V / 60hz / 120W
Fill bottles from 180 - 350 mm (7" - 13.75") in height
Fits bottles with inner neck diameters of 16 - 28 mm (5/8"- 1.1")
Portable, benchtop gravity-style wine bottle filler
Four filling heads made from stainless steel are removable for easy cleaning
All parts that come into contact with wine are made from stainless steel
Level gauge located at the front of the 45L reservoir
Fill up to 65 cases of 750ml bottles per hour
Made in Italy by EnoItalia
The Enoitalia bottle filler is a complete, portable, gravity style bottle filler perfect for a small winery or avid home winemaker. Features four filling heads and stainless steel construction. Fill up to 65 cases of 750ml bottles per hour.
Compared to units from other Italian manufacturers, this unit has removable filling heads for easy cleaning. The air removal tubes are also larger, which speeds filling. The fill head is also easier to adjust for various bottle fill heights.
The filler can be adapted for use with high viscosity liquids like olive oil with the use of a special filling head.
This unit is also available with Electronic Level Sensor and Nitrogen Injector (WE254).
Features:
Adjustable heads are easily removed for cleaning
All parts in contact with the wine are made from 304 type stainless steel
Level gauge located at the front of the reservoir
15mm diameter filling head
Fill height is easily adjustable
Larger inner diameter fill head for faster air/gas removal from the bottle for a faster fill rate
670L per hour fill rate
45L reservoir
84 pounds
42" H x 23" W x 20" D
Please Note This filler is not equipped with a float valve in the reservoir, as the majority of our customers supply the filler via a pump, and the float valve will not stop the flow from a running pump.
Replacement Seal for the main shaft of the fill spout on our WE644 and WE645 Professional Gravity Fillers. This is the cone that the bottle seats against to seal the system during filling.(~.5" to 1.5" tapered)
hole diameter = 14mm
The Enoitalia bottle filler is a complete, portable, gravity style bottle filler perfect for a small winery. Features six filling heads and stainless steel construction. This a complete bottle filling solution that comes on cart and includes built in pump, electronic float switch, and electric valve. As the wine level drops in the reservoir the pump is turned on to refill. Electric valve keeps wine from being siphoned back out of reservoir.
Fill up to 100 cases of 750ml bottles per hour. If you do not have the human power to keep up you can use 4 heads at a time so there is no disadvantage to getting a 6 head filler vs a 4 head filler. We only offer the 6 head filler in this model because the price is very similar between 4 and 6.
Unlike units from other Italian manufacturers, this unit has removable filling heads for easy cleaning. The air removal tubes are also larger which speeds filling. The fill head is also easier to adjust for bottle fill heights.
The filler can be adapted for use with high viscosity liquids like olive oil with the use of a special filling head.
Features:
Adjustable heads are easily removed for cleaning
All parts in contact with the wine are made from 304 type stainless steel
Level gauge located on the side of the reservoir
Built-in rubber impeller pump with 1.5" T.C. inlet/outlet
Rubber impeller pump built-in
Electronic float control
Electronic shut-off valve
On 4" casters with brake
15mm diameter filling head
Fill height is easily adjustable
Larger inner diameter fill head for faster air/gasremoval from the bottle for a faster fill rate
980L per hour fill rate
55L reservoir
Can fill bottles up to 22" tall
200 pounds
71" T x 34"w x 26" D
Runs on 220V Power, and comes with a bare cord. You will need an electrician to come and wire the appropriate plug.
This is a complete set of gaskets to replace those inside the fill nozzles of the Marchisio Benchtop Wine Bottle Filler (WE644 / WE645). Contains 8 gaskets / seals.
This seal kit is intended for the updated fill nozzles with 16mm diameter.
Includes:
(1) Pos 5 / Cone
(2) Pos 19
(1) Pos 18
(1) Pos 13
(1) Pos 11
(1) Pos 10
(1) Pos 2
Due to high demand, this item is currently out of stock. Be the first to receive your items by placing a pre-order today. We will automatically ship this to you when we receive more inventory.
Adjustable filling height with automatic stop
Stainless steel base, frame, and filling nozzles
Adjustable filling level and filling speed
Vacuum gauge
The Ultrafiller 2 is built entirely in stainless steel with PYREX tank, featuring two high efficiency and precision stainless steel filling nozzles. This professional bottling machine is perfect for wine, uncarbonated beer or cider, spirits, and oils. When you place the bottle under the Ultrafiller 2, the fluid is sucked into the vacuum created inside it, without any contact between the liquid and the pumps or mechanical components.
Why Choose ILTEC
While the Enolmatic has served as a great economical option, the ILTEC offers a significant step up in overall quality and durability. The key differences speak for themselves:
Stainless Steel Construction: Unlike the Enolmatic's plastic components, the ILTEC boasts a robust stainless steel construction, ensuring long-lasting performance and easy sanitation.
Borosilicate Vacuum Chamber: The ILTEC utilizes a borosilicate vacuum chamber, a superior alternative to the plastic chamber found in the Enolmatic. Borosilicate glass is known for its exceptional resistance to thermal shock and chemical corrosion, guaranteeing a cleaner and more efficient filling process.
The ILTEC filler isn't just about superior materials; it's about delivering consistent, precise, and professional results. Whether you're bottling wine, spirits, oils, or other liquids, the ILTEC provides the performance you demand.
Specs:
Capacity: 400 x 750mL bottles per hour*
Bottle Neck Diameter: 16-34mm
Bottle Height: 7" to 13.75" (180-350mm)
Tank Alcohol Tolerance: 80% ABV
Max Temperature: 176°F (80°C)
Dimensions: 13" x 21.6" 16.5" (330 x 550 x 420mm)
Weight: 42.3 lbs
Power: 110V, 60hZ, 125W
*Capacity may change depending on liquid and bottle size.
The Enoitalia bottle filler is a complete, portable, gravity style bottle filler perfect for a small winery or avid home winemaker. Features six filling heads and stainless steel construction. Included 4" casters make this unit very easy to move around.
Fill up to 100 cases of 750ml bottles per hour. If you do not have the human power to keep up you can use 4 heads at a time so there is no disadvantage to getting a 6 head filler versus a 4 head filler. We only offer the 6 head filler in this model because the price is very similar between 4 and 6.
Compared to units from other Italian manufacturers, this unit has removable filling heads for easy cleaning. The air removal tubes are also larger, which speeds filling. The fill head is also easier to adjust for for bottle fill heights.
The filler can be adapted for use with high viscosity liquids like olive oil with the use of a special filling head.
Features:
Adjustable heads are easily removed for cleaning
All parts in contact with the wine are made from 304 type stainless steel
Level gauge located at the front of the reservoir
Included 4" casters with brake
15mm diameter filling head
Fill height is easily adjustable
Larger inner diameter fill head for faster air/gas removal from the bottle for a faster fill rate
980L per hour fill rate
55L reservoir
Can fill bottles up to 22" tall
180 pounds
71" H x 34" W x 26" D
Replacement seal for the main shaft of the fill spout on our WE670 and WE643 Professional Wine Bottle Fillers. This is the cone that the bottle opening seats against to seal the system during filling.
Eliminate oxidation in your bottling process with the XF260 volume-based filling system
Wine is pulled from your barrel or storage tank by the built-in self-priming pump
Filling volume is programmed and stops automatically with an accuracy within +/- 1.5mL
Optional gas flush system
Made to order in the United States
Help eliminate oxidation in your bottling process by using XpressFill volume-based filling system. Gravity-based systems usually involve wine being transferred to a holding tank, and unless the your bottles and holding tank are pre-flushed with inert gas, some degree of oxidation is inevitable. Xpresfill bottling systems have a closed pathway with a self-priming pump. They also have as an optional built-in sparging (pre-flushing) system that uses Nitrogen or Argon to pre-flush your bottles.
To use, place four bottles under the filling spouts, push the gas button (optional at additional cost) to flush the bottles with inert gas. Then hit the Fill button which pulls the wine from your barrel or stainless storage tank, distributes 750ml of wine to each bottle, and shuts off automatically when done. It is truly that simple. Each fill cycle lasts 20 seconds. Realistically with bottle movement (and talking and drinking!) expect to fill about 200 bottles per hour with the 2 spout and 400 bottles per hour with the 4 spout.
There is also a manual mode allowing you to top up bottles or fill odd size bottles (connect tubing and fill magnums for example.) You my have seen this system for sale before as the Vigneron. Xpressfill purchased Vigneron and redesigned the unit to be driven by a digital controller. The result is a unit that works much better. MoreWine! has tested the unit and we are happy with the performance.
The XpressFill is a volume based system that fills each bottle with a set volume of wine (usually 750ml per bottle.) The fill is accurate to within +/- 1.5ml. However, bottles themselves can vary in volume by a couple percent and when you are filling by volume this can result in different fill heights, especially if you fill into the bottle neck, where differences are exaggerated by the small diameter of the neck. Fill heights will therefore vary from bottle to bottle but differences are usually 1/2" or less.
Further protect your wine from oxidation when using an XpressFill by adding the Gas Flush option to your filler. Push the gas flush button for as long as you like prior to each fill cycle. Inert gas will be forced into the bottle displacing most air, greatly reducing oxidation during the bottling process. You will need to supply an Argon or Nitrogen tank, regulator, and section of 1/4 " tubing to connect an inert gas source to the machine.
Adjustable filling height with automatic stop
Stainless steel base, frame, and filling nozzles
Adjustable filling level and filling speed
Vacuum gauge
Removable spouts for hand filling bottles away from the platform (left-hand and right-hand spouts only)

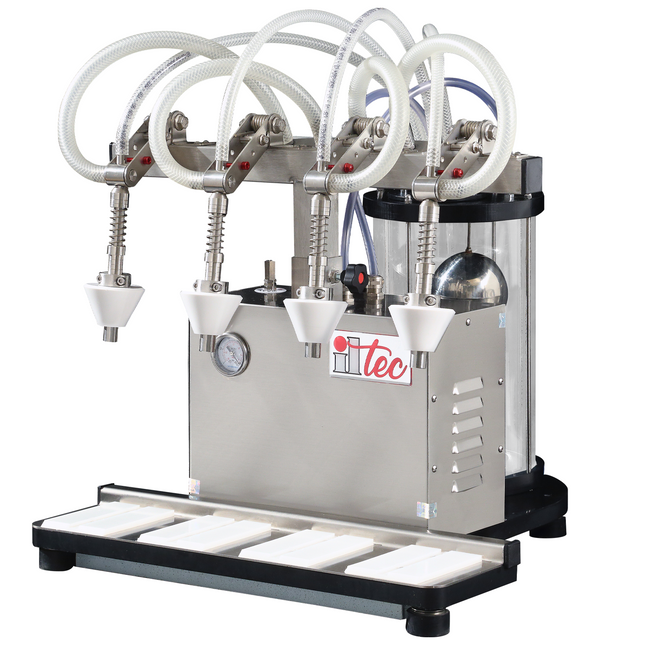

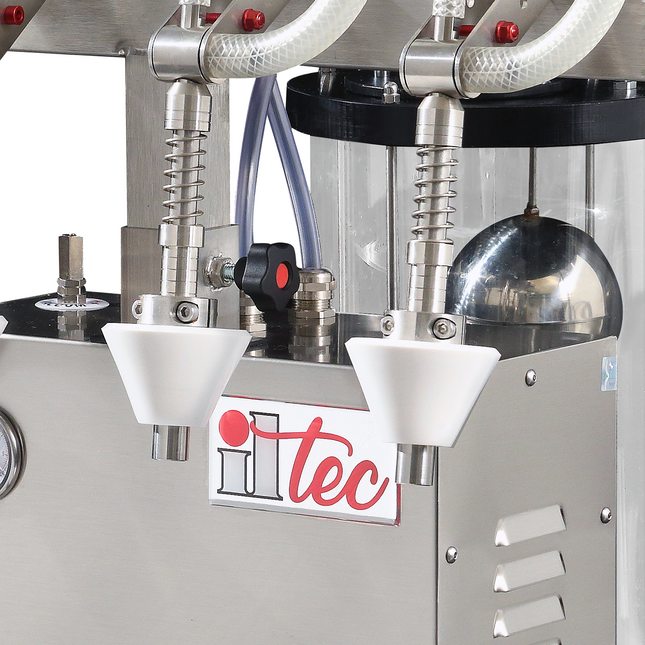

The Mixed Ultrafiller 4 combines 2 standard spouts with 2 two small spouts for the best compromise for those who bottle small batches with a great variety in bottle shapes and sizes. The spouts on the far left and right sides are removable, allowing you to hand-fill uniquely shaped bottles that don't fit on the platform.
The Ultrafiller 4 is built entirely in stainless steel with PYREX tank, featuring four high efficiency and precision stainless steel filling nozzles. This professional bottling machine is perfect for wine, uncarbonated beer or cider, spirits, and oils. When you place the bottle under the Ultrafiller 4, the fluid is sucked into the vacuum created inside it, without any contact between the liquid and the pumps or mechanical components.
Why Choose ILTEC
While the Enolmatic has served as a great economical option, the ILTEC offers a significant step up in overall quality and durability. The key differences speak for themselves:
Stainless Steel Construction: Unlike the Enolmatic's plastic components, the ILTEC boasts a robust stainless steel construction, ensuring long-lasting performance and easy sanitation.
Borosilicate Vacuum Chamber: The ILTEC utilizes a borosilicate vacuum chamber, a superior alternative to the plastic chamber found in the Enolmatic. Borosilicate glass is known for its exceptional resistance to thermal shock and chemical corrosion, guaranteeing a cleaner and more efficient filling process.
The ILTEC filler isn't just about superior materials; it's about delivering consistent, precise, and professional results. Whether you're bottling wine, spirits, oils, or other liquids, the ILTEC provides the performance you demand.
Specs:
Capacity: 500-600 bottles per hour*
Bottle Neck Diameter:
Standard Spouts: 16-34mm
Small Spouts: 9-34mm
Bottle Height:
Standard Spouts: 7" to 13.75" (180-350mm)
Small Spouts: 3.9" to 9.8" (100-250mm)
Tank Alcohol Tolerance: 80% ABV
Max Temperature: 176°F (80°C)
Dimensions: 19.6" x 21.6" 16.5" (500 x 550 x 420mm)
Weight: 55.1 lbs
Power: 110V, 60hZ, 125W
*Capacity may change depending on liquid and bottle size.
Vacuum bottle filler for use with wine, olive oil, or uncarbonated beer
Air is cleared from each bottle before filling, reducing oxygen exposure
Adjustable fill nozzles and support rack to fit your bottle size and fill level
Variable fill speed to match your bottling pace
High-quality 304 stainless steel construction
Made in Italy by EnoItalia
We like this robust vacuum filler from EnoItalia because it combines the low oxygen benefits of vacuum filling with the strong fill nozzles and frame of traditional Italian bottle fillers.
This high-quality vacuum filler is the ideal choice for bottling uncarbonated beer or wine with minimal oxygen exposure. Air from the bottle is automatically extracted through the filling head and then liquid is drawn through the system and into the bottle via a vacuum pump. This greatly reduces the oxygen exposure that occurs with other fillers. The support rack and fill nozzles are adjustable so you can adapt it for your bottle size and desired fill level. Fill speed can also be adjusted with the digital display and vacuum regulator, allowing you to quickly set the desired vacuum level for each product. After each bottle is filled, excess liquid is returned to the cylinder. When the cylinder fills up, the stainless steel float will rise and shut off the vacuum pump.
Designed entirely in stainless steel with high-quality components, this filler was designed to stand up to intensive, professional-level use.
This unit is only intended for use with still beverages. It is not compatible with carbonated beer, cider, or sparkling wine.
Features:
304 stainless steel construction
Digital adjustment display
1.5" tri-clamp for product aspiration and circuit emptying
DIN 15 connections for emptying filling nozzles
Adjustable support rack
Adjustable feet
Lifting handles
Capacity: 650 lt/h (171 gal/h)
Power: 110V / 60 hz
Please note: this unit comes with a bare cord. You will need an electrician to wire the appropriate plug.
Eliminate oxidation in your bottling process with the XF260 volume-based filling system
Wine is pulled from your barrel or storage tank by the built-in self-priming pump
Filling volume is programmed and stops automatically with an accuracy within +/- 1.5mL
Optional gas flush system
Made to order in the United States

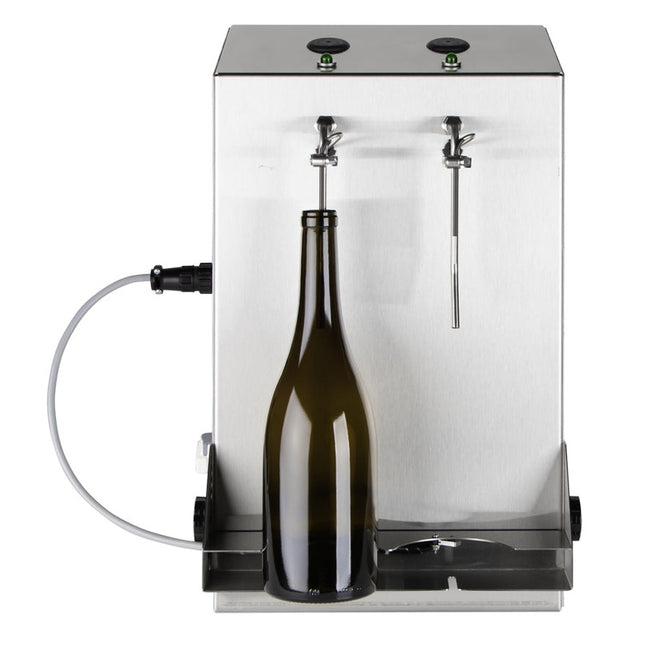

Help eliminate oxidation in your bottling process by using XpressFill volume-based filling system!
Gravity-based systems usually involve wine being transferred to a holding tank, and unless your bottles and holding tank are pre-flushed with inert gas, some degree of oxidation is inevitable. XpresFill bottling systems have a closed pathway with a self-priming pump. They also have as an optional built-in sparging (pre-flushing) system that uses Nitrogen or Argon to pre-flush your bottles.
To use, place two bottles under the filling spouts, push the gas button (optional at addtional cost) to flush the bottles with inert gas. Then hit the Fill button which pulls the wine from your barrel or stainless storage tank, distributes 750ml of wine to each bottle, and shuts off automatically when done. It is truly that simple. Each fill cycle lasts 20 seconds. Realistically with bottle movement (and talking and drinking!) expect to fill about 200 bottles per hour with the 2 spout and 400 bottles per hour with the 4 spout. There is also a manual mode allowing you to top up bottles or fill odd size bottles (connect tubing and fill magnums for example.)
You my have seen this system for sale before as the Vigneron. XpressFill purchased Vigneron and redesigned the unit to be driven by a digital controller. The result is a unit that works much better. MoreWine! has tested the unit and we are happy with the performance.
The XpressFill is a a volume based system that fills each bottle with a set volume of wine (usually 750ml per bottle.) The fill is accurate to within +/- 1.5ml. However, bottles themselves can vary in volume by a couple percent and when you are filling by volume this can result in different fill heights, especially if you fill into the bottle neck, where differences are exaggerated by the small diameter of the neck. Fill heights will therefore vary from bottle to bottle but differences are usually 1/2" or less.
The two spout filler features a 3/8" inlet.
Further protect your wine from oxidation when using an Xpress Fill by adding the Gas Flush option to your filler. Push the gas flush button for as long as you like prior to each fill cycle. Inert gas will be forced into the bottle displacing most air, greatly reducing oxidation during the bottling process. You will need to supply an Argon or Nitrogen tank, regulator, and section of 1/4 in. tubing to connect an inert gas source to the machine.
Adjustable filling height with automatic stop
Stainless steel base, frame, and filling nozzles
Adjustable filling level and filling speed
The Ultrafiller 4 is built entirely in stainless steel with PYREX tank, featuring four high efficiency and precision stainless steel filling nozzles. This professional bottling machine is perfect for wine, uncarbonated beer or cider, spirits, and oils. When you place the bottle under the Ultrafiller 4, the fluid is sucked into the vacuum created inside it, without any contact between the liquid and the pumps or mechanical components.
Why Choose ILTEC
While the Enolmatic has served as a great economical option, the ILTEC offers a significant step up in overall quality and durability. The key differences speak for themselves:
Stainless Steel Construction: Unlike the Enolmatic's plastic components, the ILTEC boasts a robust stainless steel construction, ensuring long-lasting performance and easy sanitation.
Borosilicate Vacuum Chamber: The ILTEC utilizes a borosilicate vacuum chamber, a superior alternative to the plastic chamber found in the Enolmatic. Borosilicate glass is known for its exceptional resistance to thermal shock and chemical corrosion, guaranteeing a cleaner and more efficient filling process.
The ILTEC filler isn't just about superior materials; it's about delivering consistent, precise, and professional results. Whether you're bottling wine, spirits, oils, or other liquids, the ILTEC provides the performance you demand.
Specs:
Capacity: 600 x 750mL bottles per hour*
Bottle Neck Diameter: 16-34mm
Bottle Height: 7" to 13.75" (180-350mm)
Tank Alcohol Tolerance: 80% ABV
Max Temperature: 176°F (80°C)
Dimensions: 19.6" x 21.6" 16.5" (500 x 550 x 420mm)
Weight: 55.1 lbs
Power: Compressed Air
*Capacity may change depending on liquid and bottle size.

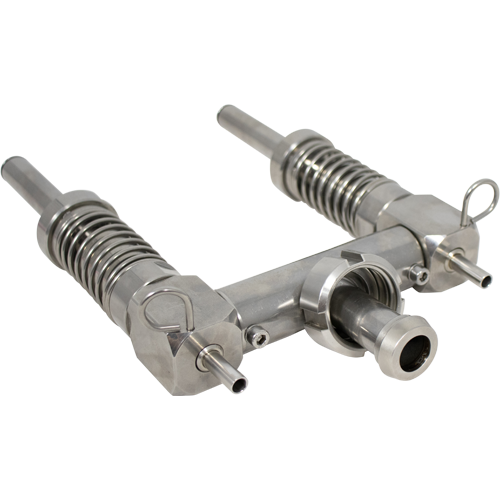

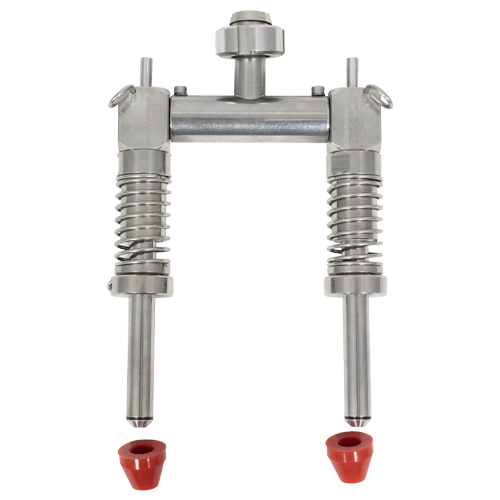

Adapt your existing EnoItalia gravity fed wine bottle filler for use with high viscosity liquids
Larger 17 mm diameter fill nozzles are designed for better flow with liquids like olive oil
Compatible with EnoItalia Benchtop, Deluxe Benchtop, and Trolley Style wine bottle fillers
The Olive Oil Filling Head can be swapped out for the standard filling head on EnoItalia gravity wine bottle fillers. It features a 17 mm Ø spout instead of the standard 15 mm Ø in order to handle more viscous liquids like olive oil.
Compatible With:
EnoItalia Benchtop Bottle Fillers
WE253, WE257
EnoItalia Deluxe Benchtop Bottle Fillers
WE254, WE258
EnoItalia Trolley Style Bottle Fillers
WE643, WE670
Completely dedicated to thicker liquids, such as tomato sauce
Adjustable filling height with automatic stop
Stainless steel base, frame, and filling nozzles
Adjustable filling level and filling speed
Vacuum gauge
This filler is the version of the Ultrafiller completely dedicated to denser liquids, such as tomato puree and other sauces. Various modifications applied to the standard machine allow bottles to be filled quickly and easily. Thanks to the larger rubber cone, it is possible to fill both bottles with crown caps and those with screw caps. The pneumatic version is the most powerful machine ever seen on the market—allowing for fast filling even with the thickest sauces.
The Ultrafiller Pomodoro is built entirely in stainless steel with PYREX tank, featuring four high efficiency and precision stainless steel filling nozzles. When you place the bottle under the Ultrafiller Pomodoro, the fluid is sucked into the vacuum created inside it, without any contact between the liquid and the pumps or mechanical components.
Why Choose ILTEC
While the Enolmatic has served as a great economical option, the ILTEC offers a significant step up in overall quality and durability. The key differences speak for themselves:
Stainless Steel Construction: Unlike the Enolmatic's plastic components, the ILTEC boasts a robust stainless steel construction, ensuring long-lasting performance and easy sanitation.
Borosilicate Vacuum Chamber: The ILTEC utilizes a borosilicate vacuum chamber, a superior alternative to the plastic chamber found in the Enolmatic. Borosilicate glass is known for its exceptional resistance to thermal shock and chemical corrosion, guaranteeing a cleaner and more efficient filling process.
The ILTEC filler isn't just about superior materials; it's about delivering consistent, precise, and professional results. Whether you're bottling wine, spirits, oils, or other liquids, the ILTEC provides the performance you demand.
Specs:
Capacity: 400 x 750mL bottles per hour*
Bottle Neck Diameter: 16-34mm
Bottle Height: 7" to 13.75" (180-350mm)
Tank Alcohol Tolerance: 80% ABV
Max Temperature: 176°F (80°C)
Dimensions: 19.6" x 21.6" 16.5" (500 x 550 x 420mm)
Weight: 55.1 lbs
Power: 110V, 60hZ, 125W
*Capacity may change depending on liquid and bottle size.
Portable, benchtop gravity-style wine bottle filler
Deluxe model with electronic level sensor and nitrogen injector valve
Six filling heads made from stainless steel are removable for easy cleaning
All parts that come into contact with wine are made from stainless steel
Level gauge located at the front of the 66L reservoir
Fill up to 100 cases of 750ml bottles per hour
Made in Italy by EnoItalia
The Enoitalia bottle filler is a complete, portable, gravity style bottle filler perfect for a small winery or avid home winemaker. Features six filling heads and stainless steel construction. Fill up to 100 cases of 750ml bottles per hour.
The Deluxe model comes with an electronic level sensor that can be wired to a pump and a manual nitrogen injector valve mounted to the side.
Compared to units from other Italian manufacturers, this unit has removable filling heads for easy cleaning. The air removal tubes are also larger, which speeds filling. The fill head is also easier to adjust for for bottle fill heights.
The filler can be adapted for use with high viscosity liquids like olive oil with the use of a special filling head.
Features:
Adjustable heads are easily removed for cleaning
All parts in contact with the wine are made from 304 type stainless steel
Level gauge located at the front of the reservoir
15mm diameter filling head
Fill height is easily adjustable
Larger inner diameter fill head for faster air/gas removal from the bottle for a faster fill rate
980L per hour fill rate
66L reservoir
110 pounds
42" H x 34" W x 20" D
Please note: the example photo shows the 4-spout version of the bottle filler.
Portable, benchtop gravity-style wine bottle filler
Six filling heads made from stainless steel are removable for easy cleaning
All parts that come into contact with wine are made from stainless steel
Level gauge located at the front of the 66L reservoir
Fill up to 100 cases of 750ml bottles per hour
Made in Italy by EnoItalia
The Enoitalia bottle filler is a complete, portable, gravity style bottle filler perfect for a small winery or avid home winemaker. Features six filling heads and stainless steel construction. Fill up to 100 cases of 750ml bottles per hour.
Compared to units from other Italian manufacturers, this unit has removable filling heads for easy cleaning. The air removal tubes are also larger, which speeds filling. The fill head is also easier to adjust for for bottle fill heights.
The filler can be adapted for use with high viscosity liquids like olive oil with the use of a special filling head.
This unit is also available with Electronic Level Sensor and Nitrogen Injector (WE258).
Features:
Adjustable heads are easily removed for cleaning
All parts in contact with the wine are made from 304 type stainless steel
Level gauge located at the front of the reservoir
15mm diameter filling head
Fill height is easily adjustable
Larger inner diameter fill head for faster air/gas removal from the bottle for a faster fill rate
980L per hour fill rate
66L reservoir
110 pounds
42" H x 34" W x 20" D
Please note: the example photo shows the 4-spout version of the bottle filler.
Please Note This filler is not equipped with a float valve in the reservoir, as the majority of our customers supply the filler via a pump, and the float valve will not stop the flow from a running pump.
Portable, benchtop gravity-style wine bottle filler
Deluxe model with electronic level sensor and nitrogen injector valve
Four filling heads made from stainless steel are removable for easy cleaning
All parts that come into contact with wine are made from stainless steel
Level gauge located at the front of the 45L reservoir
Fill up to 65 cases of 750ml bottles per hour
Made in Italy by EnoItalia
The Enoitalia bottle filler is a complete, portable, gravity style bottle filler perfect for a small winery or avid home winemaker. Features four filling heads and stainless steel construction. Fill up to 65 cases of 750ml bottles per hour.
The Deluxe model comes with an electronic level sensor that can be wired to a pump and a manual nitrogen injector valve mounted to the side.
Compared to units from other Italian manufacturers, this unit has removable filling heads for easy cleaning. The air removal tubes are also larger, which speeds filling. The fill head is also easier to adjust for for bottle fill heights.
The filler can be adapted for use with high viscosity liquids like olive oil with the use of a special filling head.
Features:
Adjustable heads are easily removed for cleaning
All parts in contact with the wine are made from 304 type stainless steel
Level gauge located at the front of the reservoir
15mm diameter filling head
Fill height is easily adjustable
Larger inner diameter fill head for faster air/gas removal from the bottle for a faster fill rate
670L per hour fill rate
45L reservoir
84 pounds
42" H x 23" W x 20" D

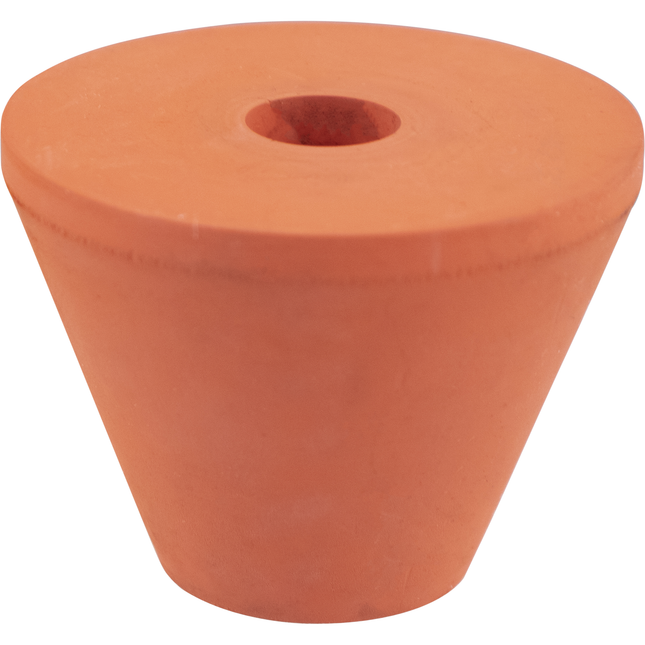

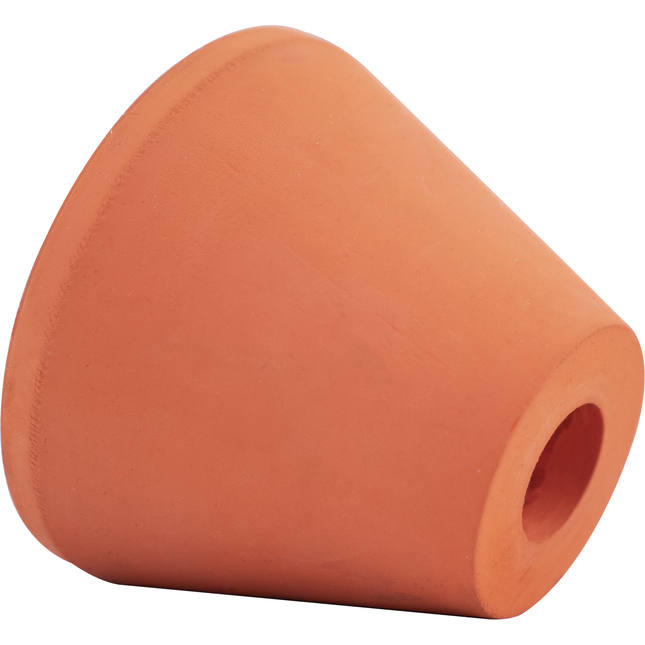

If you're filling bottles with a larger inner diameter at the neck than standard wine bottles, these bottle seating cones and be used to fill the gap and create the propper seal. Compatible with EnoItalia Professional Bottle Fillers.
WE670
WE680
WE643
WE686
Tapers from 3.375" to 1.25".

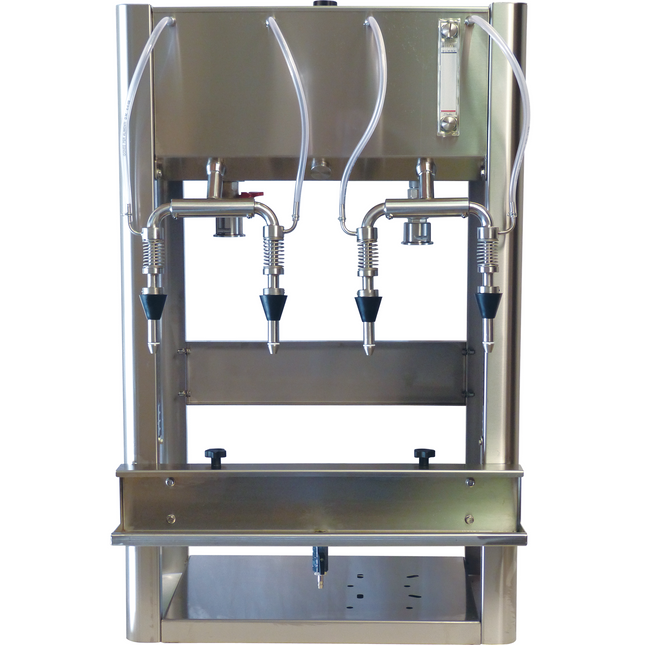

Gravity fillers are the preferred filler for achieving exactly the same fill height in every bottle. Gravity fillers fill to a height you determine and then shut off automatically. They are dependable, simple to operate, have no electrical parts, and few moving parts.
Another a nice feature of these fillers is the adjustable stainless tray that the bottles sit on can be moved up and down to account for different bottle sizes, allowing you to fill 1.5 L, 750 mL or 375 mL bottles. A favorite of small wineries, clubs, and out-of-control home winemakers.
Features:
Each fill nozzle is independently adjusted for fill height
All parts in contact with the wine are made from 304 type stainless steel
There is a drain located on the bottom for draining after use
1.5" Tri-Clamp inlet and reservoir drain
Level gauge located on the side of the reservoir
Approximately 3 bottles can be filled per minute, per nozzle.
36.5" H x 23" W x 18.5" D
Reservoir is approximately 33 liters.
Please Note This filler is not equipped with a float valve in the reservoir, as the majority of our customers supply the filler via a pump, and the float valve will not stop the flow from a running pump.

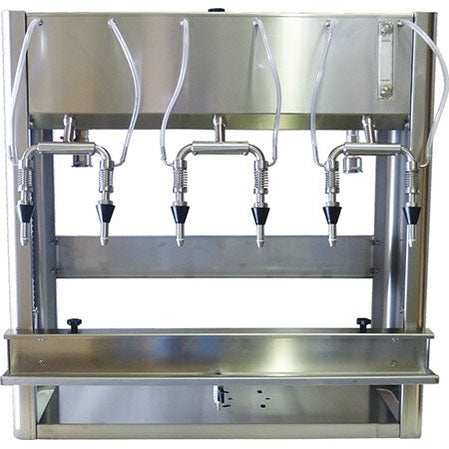

Gravity fillers are the preferred filler for achieving exactly the same fill height in every bottle. Gravity fillers fill to a height you determine and then shut off automatically. They are dependable, simple to operate, have no electrical parts, and few moving parts.
Another a nice feature of these fillers is the adjustable stainless tray that the bottles sit on can be moved up and down to account for different bottle sizes, allowing you to fill 1.5 L, 750 mL or 375 mL bottles. A favorite of small wineries, clubs, and out-of-control home winemakers.
Features:
Each fill nozzle is independently adjusted for fill height
All parts in contact with the wine are made from 304 type stainless steel
There is a drain located on the bottom for draining after use
1.5" Tri-Clamp inlet and reservoir drain
Level gauge located on the side of the reservoir
Approximately 3 bottles can be filled per minute, per nozzle.
36.5"H x 36"W x 18.5"D
Reservoir is approximately 58 liters.
Please Note This filler is not equipped with a float valve in the reservoir, as the majority of our customers supply the filler via a pump, and the float valve will not stop the flow from a running pump.
Built-in self-priming diaphragm pump is non-aerating & gentle on your wine
Flow stops automatically at the preset fill level
Adjustable shelf to accommodate a wide range of bottles
Optional gas flush system & variable flow control
Made to order in the United States
If you're looking for a fast, gentle, reliable, professional quality fill for your wine, then this is the filler for you. Hand-made to order by XpressFill in southern California, these fillers represent the very best available to home winemakers.
This filler features a built-in self-priming diaphragm pump to draw your wine from your tanks or barrels up to the filler. The action of the diaphragm pump is non-aerative and gentle, and it has the capability of pulling your wine from quite a distance away.
The nozzles on XpressFill's Level Filler are independently actuated by microswitches when a bottle is put in place for filling. Flow stops automatically at the preset fill level. This makes it easy to put half the bottles on for filling and take the other half off for corking without having down time in between. The bottle shelf is adjustable in height to accommodate a wide range of bottles.
Fills approximately 200 bottles/hr.
Add the optional Gas Flush System and the filler will automatically gas-purge your bottles prior to filling. There is no additional button to push or lever to flip, the filler handles it all!
Features:
Made to order in USA
Built-in self priming diaphragm pump
Diaphragm pump is non-aerating & gentle on your wine
Nozzles are independently actuated by micro-switches
Flow stops automatically at the preset fill level
Bottle shelf is adjustable to accommodate a wide range of bottles
Optional Gas Flush System & Filler to automatically gas-purge bottles prior to filling
2 Spout fills approximately 200 bottles per hour
Sparkling Wines: Can handle the high pressure associated with bottling sparkling wines/champagnes up to 6 bar (87 psi).
Versatile: Can also bottle all other carbonated beverages.
Automated Efficiency: PLC control automates filling, pressure, and level balancing for precise and consistent results.
Flexible Operation: Fill one to four containers simultaneously with customizable fill levels for each.
Reduced Oxidation: Integrated automatic degassing system minimizes oxygen exposure, preserving beverage quality.
Safety Features: Includes a pre-evacuation system, door-opening safety circuit, and PED-certified storage tank for secure operation.
This semiautomatic, four-head, isobaric, counter-pressure filling machine is suitable for bottling beverages at pressures up to 6 bar (87 psi), including sparkling wines and beer. Equipped with a PLC (Programmable Logic Controller) for automatic control, it precisely manages filling, pressure, and level balancing while ensuring operational safety. The PED-certified storage tank allows for direct connection to bulk storage, streamlining the bottling process.
To operate, simply input the initial liquid pressure and container capacity into the programmable controller. This system allows for customized filling levels for each container and the flexibility to fill one to four containers simultaneously.
Includes:
Pre-evacuation system with a vacuum pump that can be set to one or more cycles
Door-opening safety circuit connected to the pressure level in the bottle
Washing circuit with fixed head hydrosphere sprayer
Automatic degassing system to minimize oxidation
Stainless steel structure on wheels, with internal LED lighting
Specs:
Workable bottle volume: 0.33-1.5L (11 to 50.7 ounces)
220V, Single Phase
Variable production depending on format and temperature: approx. 200 bottles/hour (750mL)
Please Note: This item may come with a bare cord or with a European style plug. You will need a professional electrician to wire the pump with the appropriate plug.
Due to high demand, this item is currently out of stock. Be the first to receive your items by placing a pre-order today. We will automatically ship this to you when we receive more in early February.
Adjustable filling height with automatic stop
Stainless steel base, frame, and filling nozzles
Adjustable filling level and filling speed
Vacuum gauge
Removable spouts for hand filling bottles away from the platform (left-hand and right-hand spouts only)
The Mixed Ultrafiller 4 combines 2 standard spouts with 2 two small spouts for the best compromise for those who bottle small batches with a great variety in bottle shapes and sizes. The spouts on the far left and right sides are removable, allowing you to hand-fill uniquely shaped bottles that don't fit on the platform.
The Ultrafiller 4 is built entirely in stainless steel with PYREX tank, featuring four high efficiency and precision stainless steel filling nozzles. This professional bottling machine is perfect for wine, uncarbonated beer or cider, spirits, and oils. When you place the bottle under the Ultrafiller 4, the fluid is sucked into the vacuum created inside it, without any contact between the liquid and the pumps or mechanical components.
Why Choose ILTEC
While the Enolmatic has served as a great economical option, the ILTEC offers a significant step up in overall quality and durability. The key differences speak for themselves:
Stainless Steel Construction: Unlike the Enolmatic's plastic components, the ILTEC boasts a robust stainless steel construction, ensuring long-lasting performance and easy sanitation.
Borosilicate Vacuum Chamber: The ILTEC utilizes a borosilicate vacuum chamber, a superior alternative to the plastic chamber found in the Enolmatic. Borosilicate glass is known for its exceptional resistance to thermal shock and chemical corrosion, guaranteeing a cleaner and more efficient filling process.
The ILTEC filler isn't just about superior materials; it's about delivering consistent, precise, and professional results. Whether you're bottling wine, spirits, oils, or other liquids, the ILTEC provides the performance you demand.
Specs:
Capacity: 500-600 bottles per hour*
Bottle Neck Diameter:
Standard Spouts: 16-34mm
Small Spouts: 9-34mm
Bottle Height:
Standard Spouts: 7" to 13.75" (180-350mm)
Small Spouts: 3.9" to 9.8" (100-250mm)
Tank Alcohol Tolerance: 80% ABV
Max Temperature: 176°F (80°C)
Dimensions: 19.6" x 21.6" 16.5" (500 x 550 x 420mm)
Weight: 55.1 lbs
Power: Compressed Air
*Capacity may change depending on liquid and bottle size.
Completely dedicated to thicker liquids, such as tomato sauce
Adjustable filling height with automatic stop
Stainless steel base, frame, and filling nozzles
Adjustable filling level and filling speed
Vacuum gauge
This filler is the version of the Ultrafiller completely dedicated to denser liquids, such as tomato puree and other sauces. Various modifications applied to the standard machine allow bottles to be filled quickly and easily. Thanks to the larger rubber cone, it is possible to fill both bottles with crown caps and those with screw caps. This pneumatic version is the most powerful machine ever seen on the market—allowing for fast filling even with the thickest sauces.
The Ultrafiller Pomodoro is built entirely in stainless steel with PYREX tank, featuring four high efficiency and precision stainless steel filling nozzles. When you place the bottle under the Ultrafiller Pomodoro, the fluid is sucked into the vacuum created inside it, without any contact between the liquid and the pumps or mechanical components.
Why Choose ILTEC
While the Enolmatic has served as a great economical option, the ILTEC offers a significant step up in overall quality and durability. The key differences speak for themselves:
Stainless Steel Construction: Unlike the Enolmatic's plastic components, the ILTEC boasts a robust stainless steel construction, ensuring long-lasting performance and easy sanitation.
Borosilicate Vacuum Chamber: The ILTEC utilizes a borosilicate vacuum chamber, a superior alternative to the plastic chamber found in the Enolmatic. Borosilicate glass is known for its exceptional resistance to thermal shock and chemical corrosion, guaranteeing a cleaner and more efficient filling process.
The ILTEC filler isn't just about superior materials; it's about delivering consistent, precise, and professional results. Whether you're bottling wine, spirits, oils, or other liquids, the ILTEC provides the performance you demand.
Specs:
Capacity: 400 x 750mL bottles per hour*
Bottle Neck Diameter: 16-34mm
Bottle Height: 7" to 13.75" (180-350mm)
Tank Alcohol Tolerance: 80% ABV
Max Temperature: 176°F (80°C)
Dimensions: 19.6" x 21.6" 16.5" (500 x 550 x 420mm)
Weight: 55.1 lbs
Power: Compressed Air
*Capacity may change depending on liquid and bottle size.
Adjustable filling height with automatic stop
Stainless steel base, frame, and filling nozzles
Adjustable filling level and filling speed
Vacuum gauge
The Ultrafiller 4 is built entirely in stainless steel with PYREX tank, featuring four high efficiency and precision stainless steel filling nozzles. This professional bottling machine is perfect for wine, uncarbonated beer or cider, spirits, and oils. When you place the bottle under the Ultrafiller 4, the fluid is sucked into the vacuum created inside it, without any contact between the liquid and the pumps or mechanical components.
Why Choose ILTEC
While the Enolmatic has served as a great economical option, the ILTEC offers a significant step up in overall quality and durability. The key differences speak for themselves:
Stainless Steel Construction: Unlike the Enolmatic's plastic components, the ILTEC boasts a robust stainless steel construction, ensuring long-lasting performance and easy sanitation.
Borosilicate Vacuum Chamber: The ILTEC utilizes a borosilicate vacuum chamber, a superior alternative to the plastic chamber found in the Enolmatic. Borosilicate glass is known for its exceptional resistance to thermal shock and chemical corrosion, guaranteeing a cleaner and more efficient filling process.
The ILTEC filler isn't just about superior materials; it's about delivering consistent, precise, and professional results. Whether you're bottling wine, spirits, oils, or other liquids, the ILTEC provides the performance you demand.
Specs:
Capacity: 600 x 750mL bottles per hour*
Bottle Neck Diameter: 16-34mm
Bottle Height: 7" to 13.75" (180-350mm)
Tank Alcohol Tolerance: 80% ABV
Max Temperature: 176°F (80°C)
Dimensions: 19.6" x 21.6" 16.5" (500 x 550 x 420mm)
Weight: 55.1 lbs
Power: 110V, 60hZ, 125W
*Capacity may change depending on liquid and bottle size.
Adjustable filling height with automatic stop
Stainless steel base, frame, and filling nozzles
Adjustable filling level and filling speed
Vacuum gauge
The Ultrafiller 2 is built entirely in stainless steel with PYREX tank, featuring two high efficiency and precision stainless steel filling nozzles. This professional bottling machine is perfect for wine, uncarbonated beer or cider, spirits, and oils. When you place the bottle under the Ultrafiller 2, the fluid is sucked into the vacuum created inside it, without any contact between the liquid and the pumps or mechanical components.
Why Choose ILTEC
While the Enolmatic has served as a great economical option, the ILTEC offers a significant step up in overall quality and durability. The key differences speak for themselves:
Stainless Steel Construction: Unlike the Enolmatic's plastic components, the ILTEC boasts a robust stainless steel construction, ensuring long-lasting performance and easy sanitation.
Borosilicate Vacuum Chamber: The ILTEC utilizes a borosilicate vacuum chamber, a superior alternative to the plastic chamber found in the Enolmatic. Borosilicate glass is known for its exceptional resistance to thermal shock and chemical corrosion, guaranteeing a cleaner and more efficient filling process.
The ILTEC filler isn't just about superior materials; it's about delivering consistent, precise, and professional results. Whether you're bottling wine, spirits, oils, or other liquids, the ILTEC provides the performance you demand.
Specs:
Capacity: 400 x 750mL bottles per hour*
Bottle Neck Diameter: 16-34mm
Bottle Height: 7" to 13.75" (180-350mm)
Tank Alcohol Tolerance: 80% ABV
Max Temperature: 176°F (80°C)
Dimensions: 13" x 21.6" 16.5" (330 x 550 x 420mm)
Weight: 42.3 lbs
Power: Compressed Air
*Capacity may change depending on liquid and bottle size.
The Enoitalia bottle filler is a complete, portable, gravity style bottle filler perfect for a small winery. Features six filling heads and stainless steel construction. This a complete bottle filling solution that comes on cart and includes built in pump, electronic float switch, and electric valve. As the wine level drops in the reservoir the pump is turned on to refill. Electric valve keeps wine from being siphoned back out of reservoir.
Fill up to 100 cases of 750ml bottles per hour. If you do not have the human power to keep up you can use 4 heads at a time so there is no disadvantage to getting a 6 head filler vs a 4 head filler. We only offer the 6 head filler in this model because the price is very similar between 4 and 6.
Unlike units from other Italian manufacturers, this unit has removable filling heads for easy cleaning. The air removal tubes are also larger which speeds filling. The fill head is also easier to adjust for bottle fill heights.
The filler can be adapted for use with high viscosity liquids like olive oil with the use of a special filling head.
Features:
Adjustable heads are easily removed for cleaning
All parts in contact with the wine are made from 304 type stainless steel
Level gauge located on the side of the reservoir
Built-in rubber impeller pump with 1.5" T.C. inlet/outlet
Rubber impeller pump built-in
Electronic float control
Electronic shut-off valve
On 4" casters with brake
15mm diameter filling head
Fill height is easily adjustable
Larger inner diameter fill head for faster air/gasremoval from the bottle for a faster fill rate
980L per hour fill rate
55L reservoir
Can fill bottles up to 22" tall
200 pounds
71" T x 34"w x 26" D
110V
Please note: The integrated pump is hardwired into the panel. It cannot be disconnected and used separately as it appears in the photo.
Adapt your existing EnoItalia gravity fed wine bottle filler for use with larger bottle
Shorter filling heads can accomodate 3 and 5 liter bottles
Compatible with EnoItalia Benchtop, Deluxe Benchtop, and Trolley Style wine bottle fillers
The Large Format Filling Head can be swapped out for the standard filling head on EnoItalia gravity wine bottle fillers. It's compact design allows large format 3L & 5L bottles to be used with the gravity fillers.
Compatible With:
EnoItalia Benchtop Bottle Fillers
WE253, WE257
EnoItalia Deluxe Benchtop Bottle Fillers
WE254, WE258
EnoItalia Trolley Style Bottle Fillers
WE643, WE670
