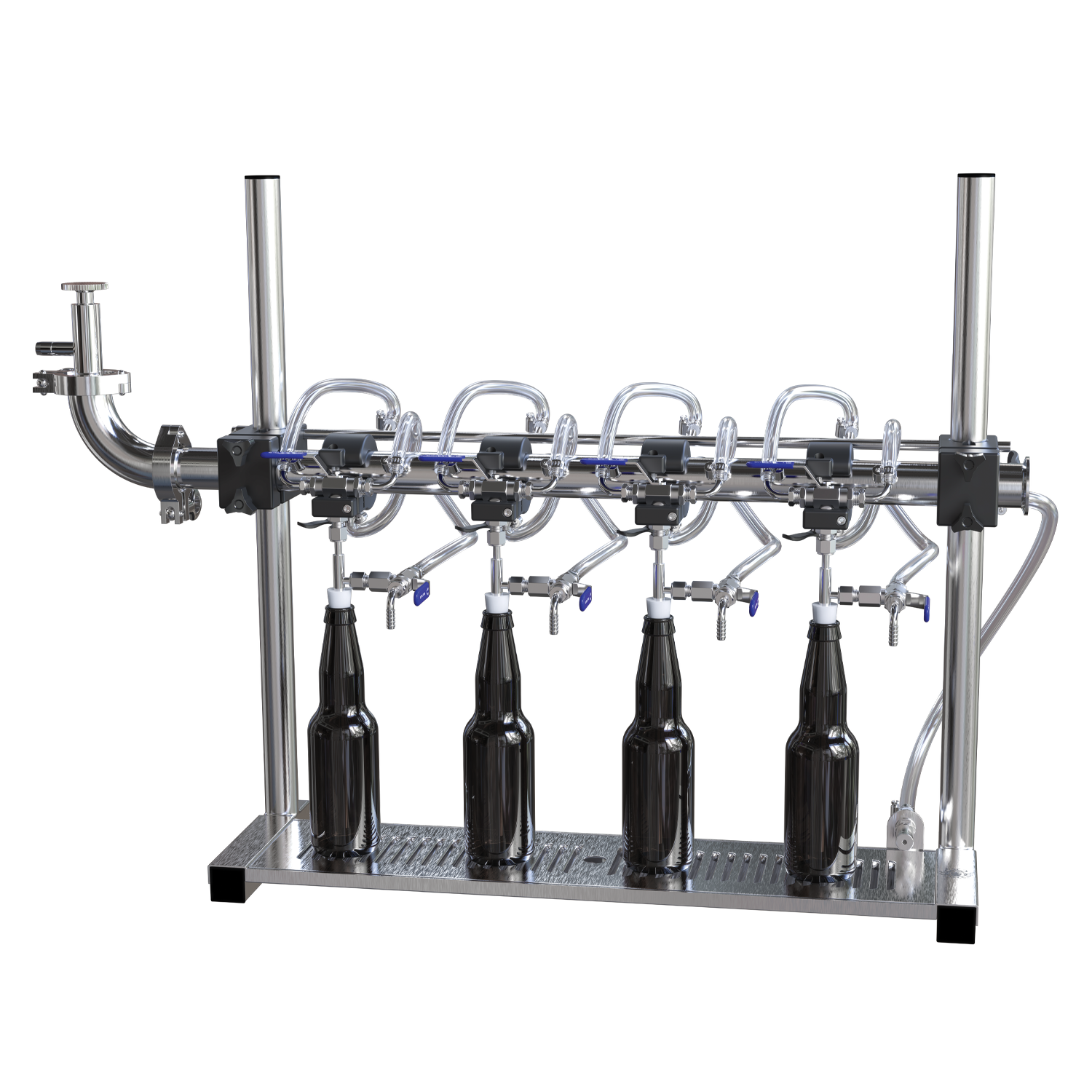

MB® Medusa™ MultiHead Counter Pressure Bottle Filler | Gen 2

    Description

    • Premium Counter-Pressure Bottle filler that is designed for the smaller craft brewer or dedicated homebrewer to help make bottling day faster and more efficient

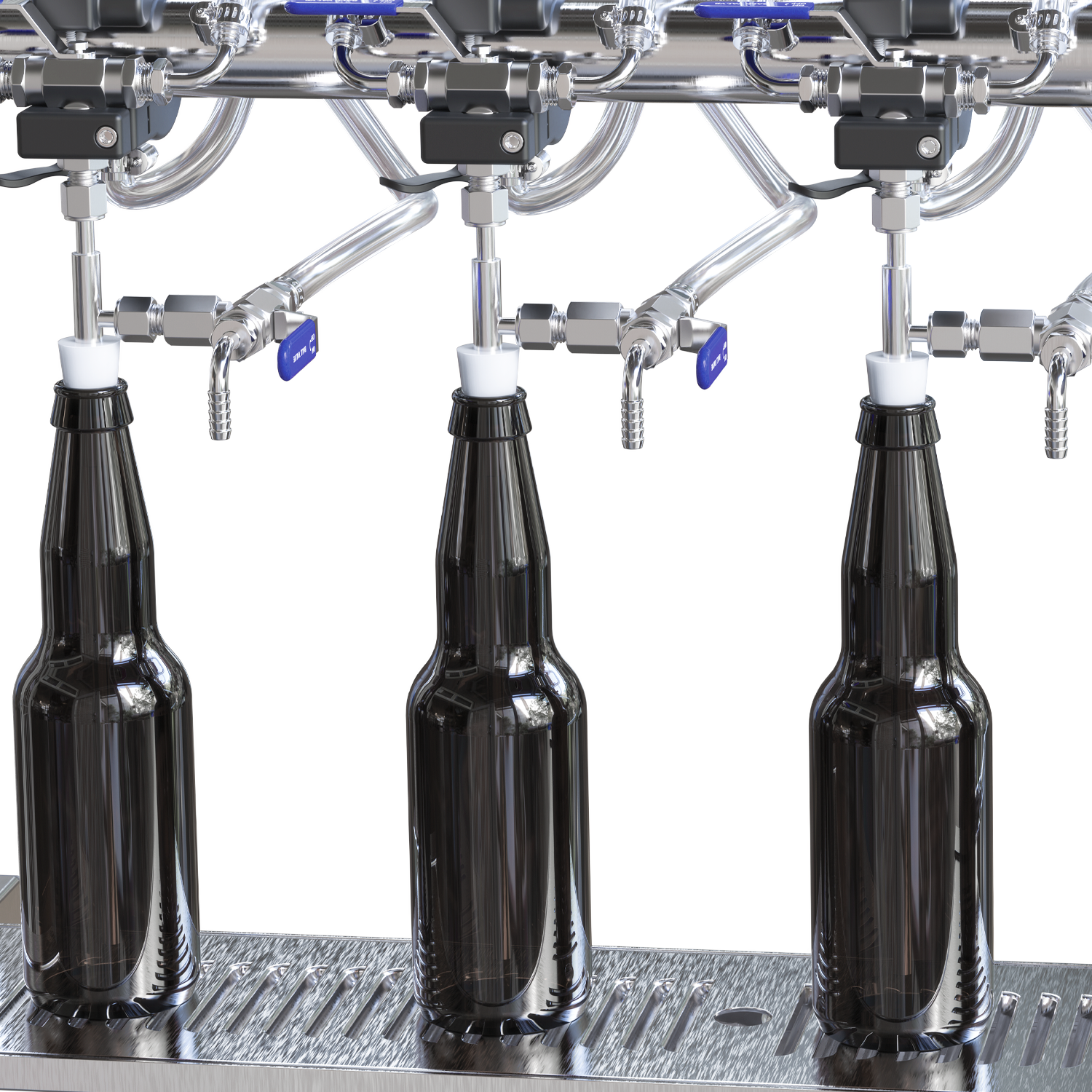

    • The four separate filling heads have individual Stainless Steel 3-way control valves that allow for quick fill rates
    • Only requires one person to operate
    • A single PRV provides equal backpressure on all heads resulting in matching flow rates without adjustment

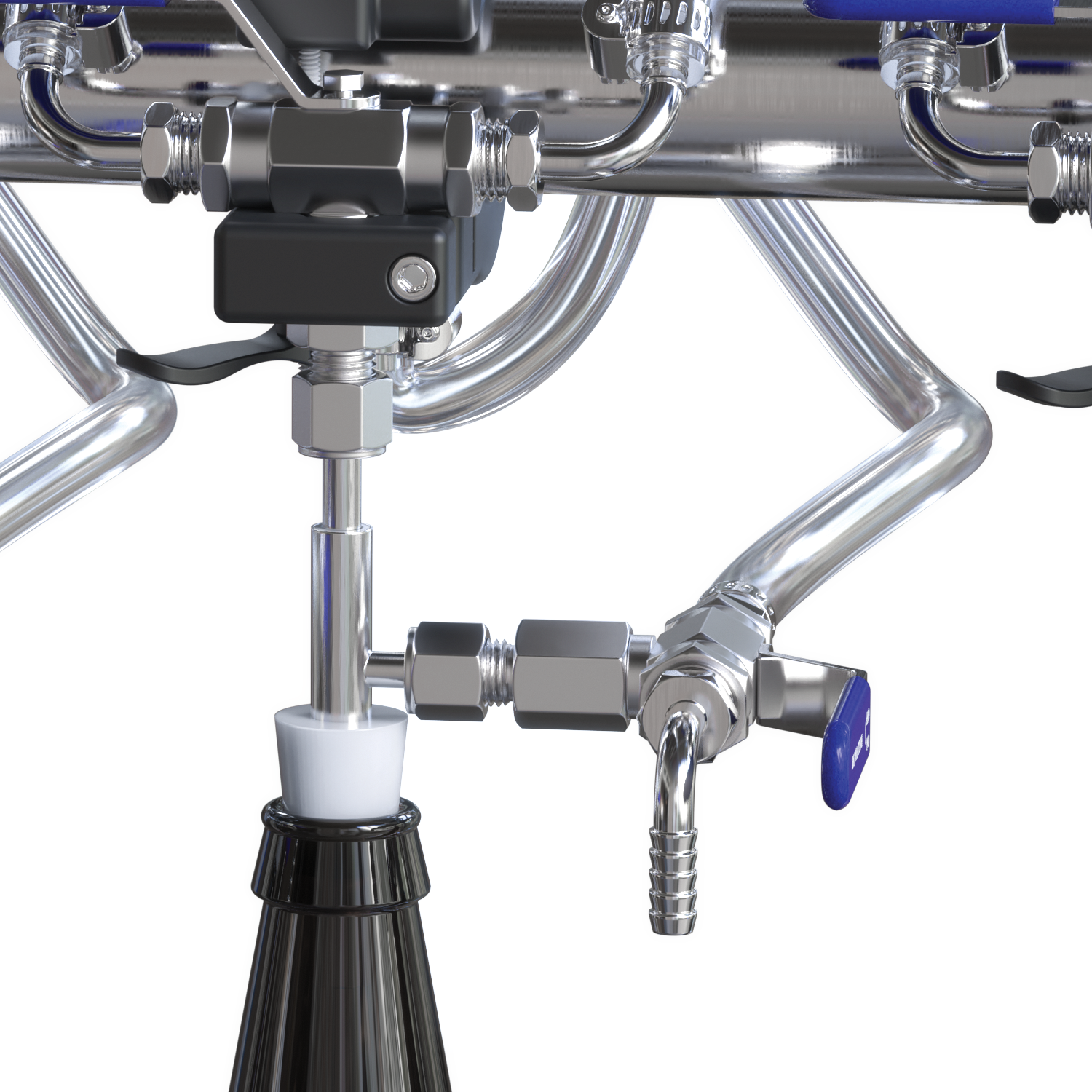

    • Individual purge valves on each fill head allow for nearly all oxygen removal in a bottle, ensuring that the beer stays fresh for longer

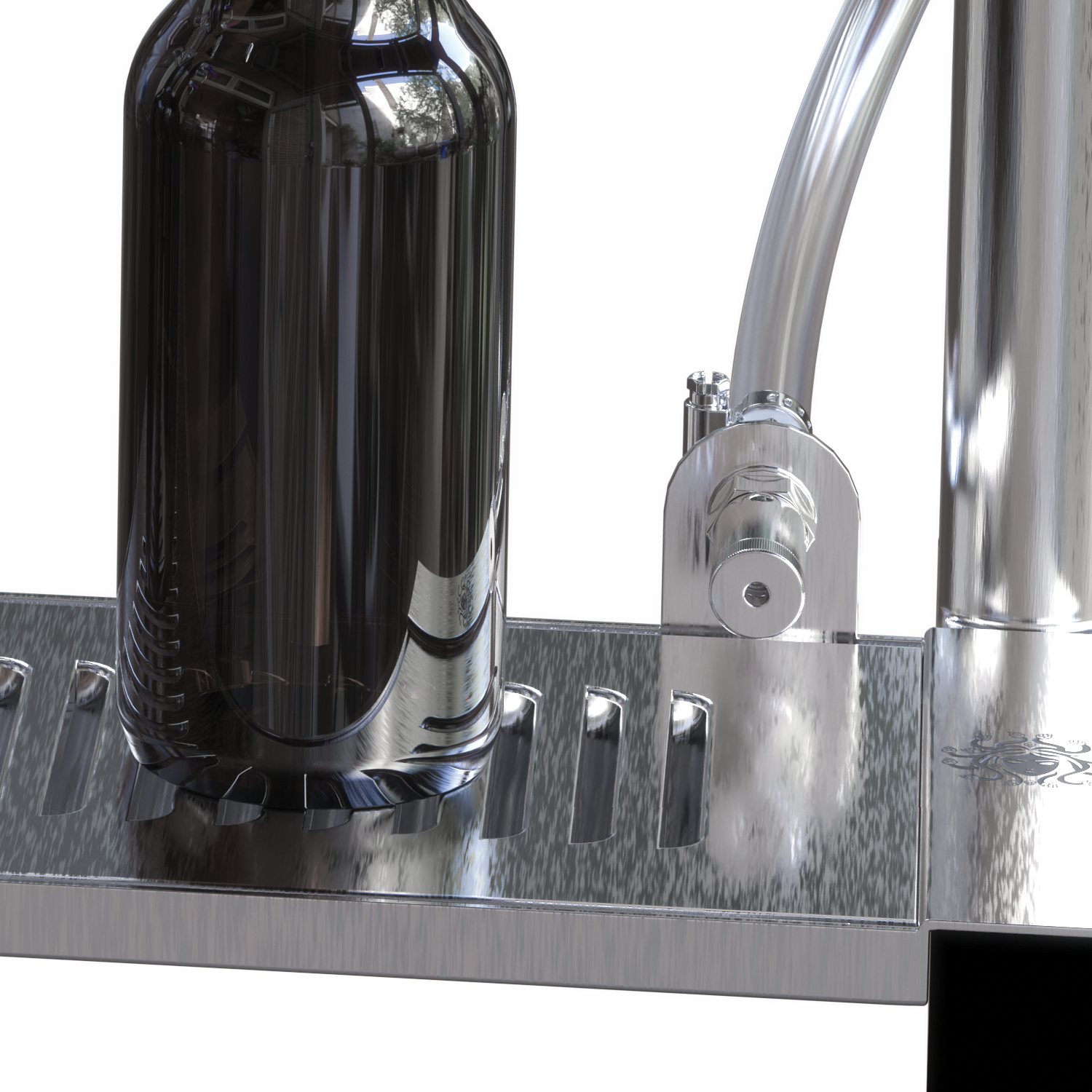

    • The removable drip tray is fully draining with a barbed outlet for constant filling and easy cleaning
    • A purge valve on the reservoir helps make sure that foam never builds up
    • 304 Stainless Steel Construction and easy-to-use functionality, all resulting in a top-of-the-line bottle filler

    Introducing the newly redesigned and updated G2 Medusa Multihead Counter Pressure Bottle Filler!  This unique unit was designed in-house by the MB Pro Engineering team and purpose built for the smaller craft brewer or dedicated homebrewer.  The Medusa will speed up bottling day while also reducing exposure to oxygen during the bottling process, resulting in higher quality beer with a longer shelf life.

    The Medusa Multihead Counter Pressure Bottle Filler can be adjusted to cater all bottling needs.  All four heads can be operated individually, and the height, back pressure, and fill speeds can be adjusted for various bottle styles.  We've done our best to pack this unit with features that will handle all jobs, while keeping costs as low as possible.

    Features:

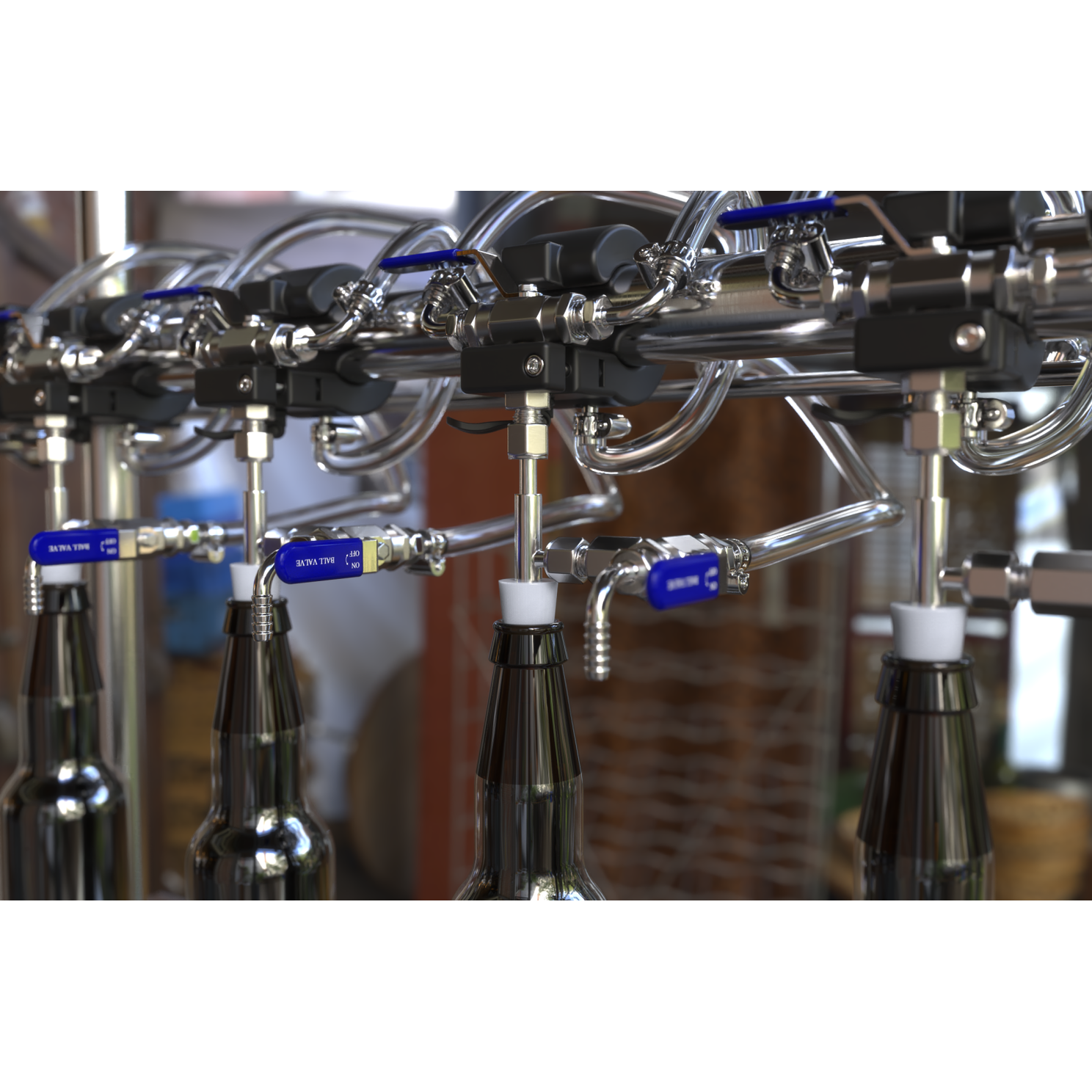

    • 3-way stainless steel valves on both inlet & back pressure sides of all fill heads.

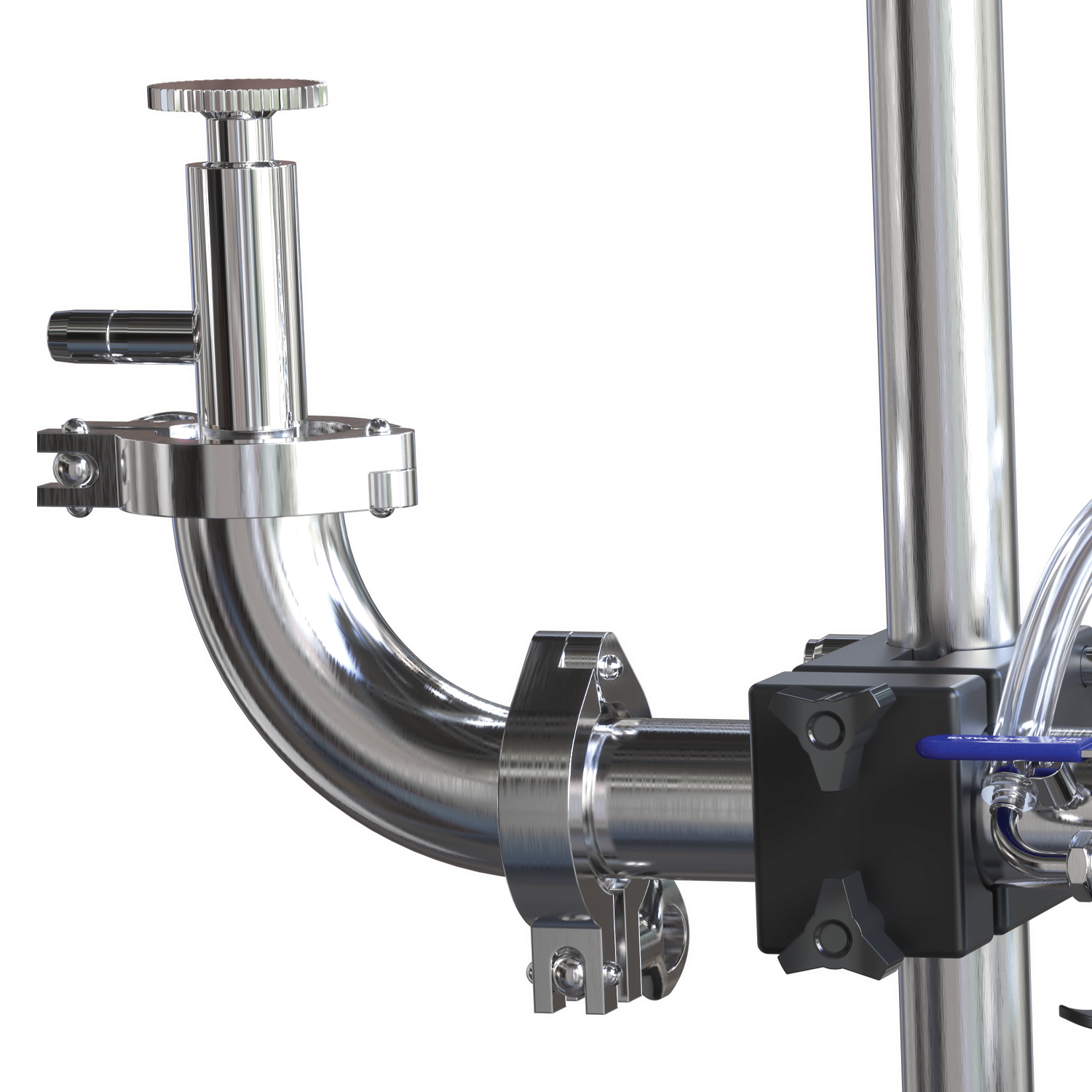

    • Improved Pressure Relief Valve has higher accuracy over fill rates, and directs foam into the drip tray rather than onto your bottles.

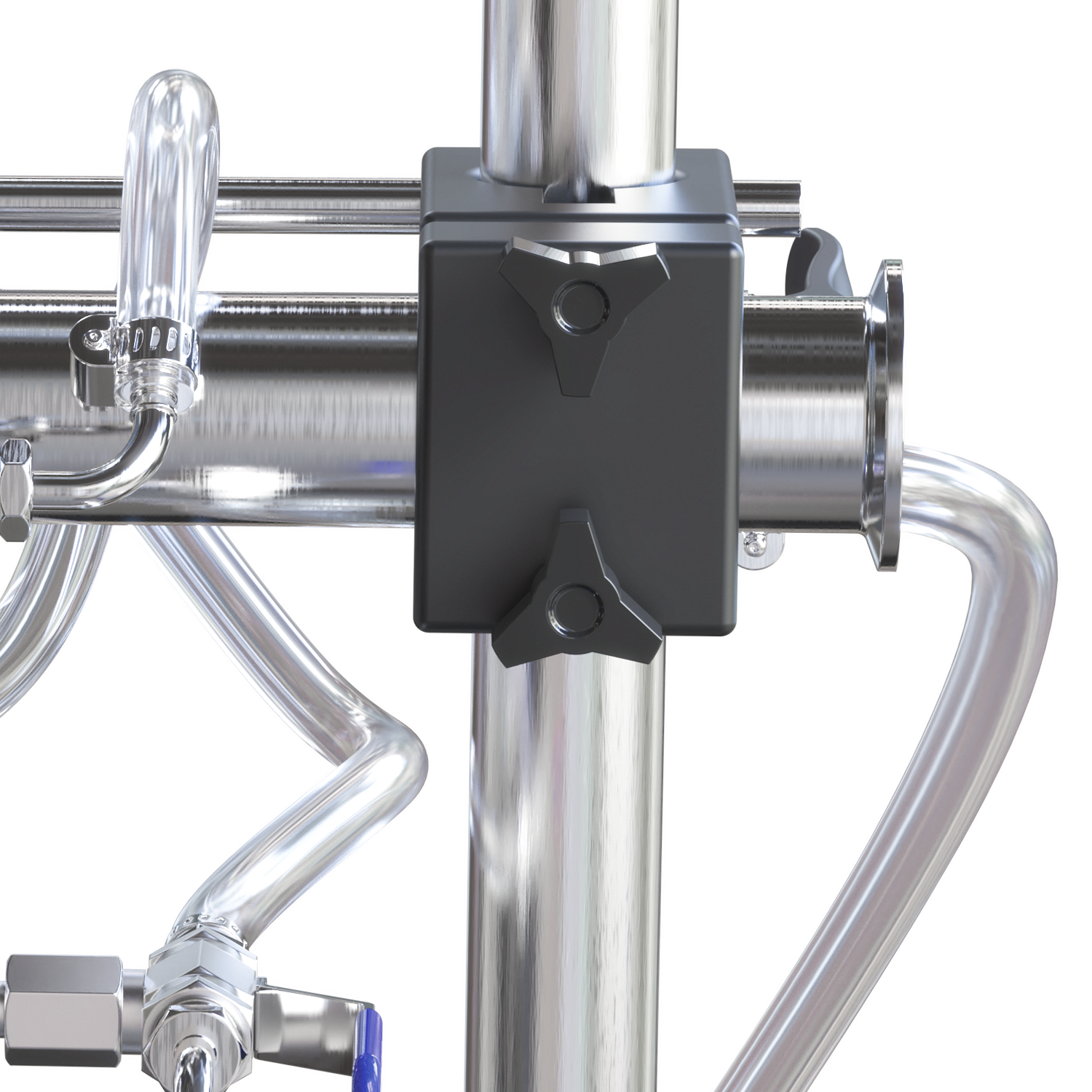

    • Robust stainless steel frame stands on its own or can be easily bolted or clamped to a work surface
    • Stainless steel fill reservoir keeps fill rates equal & reduces foaming
    • Inverted fill tubes & reservoir purge means cleaner filling with even less possibility for foam.

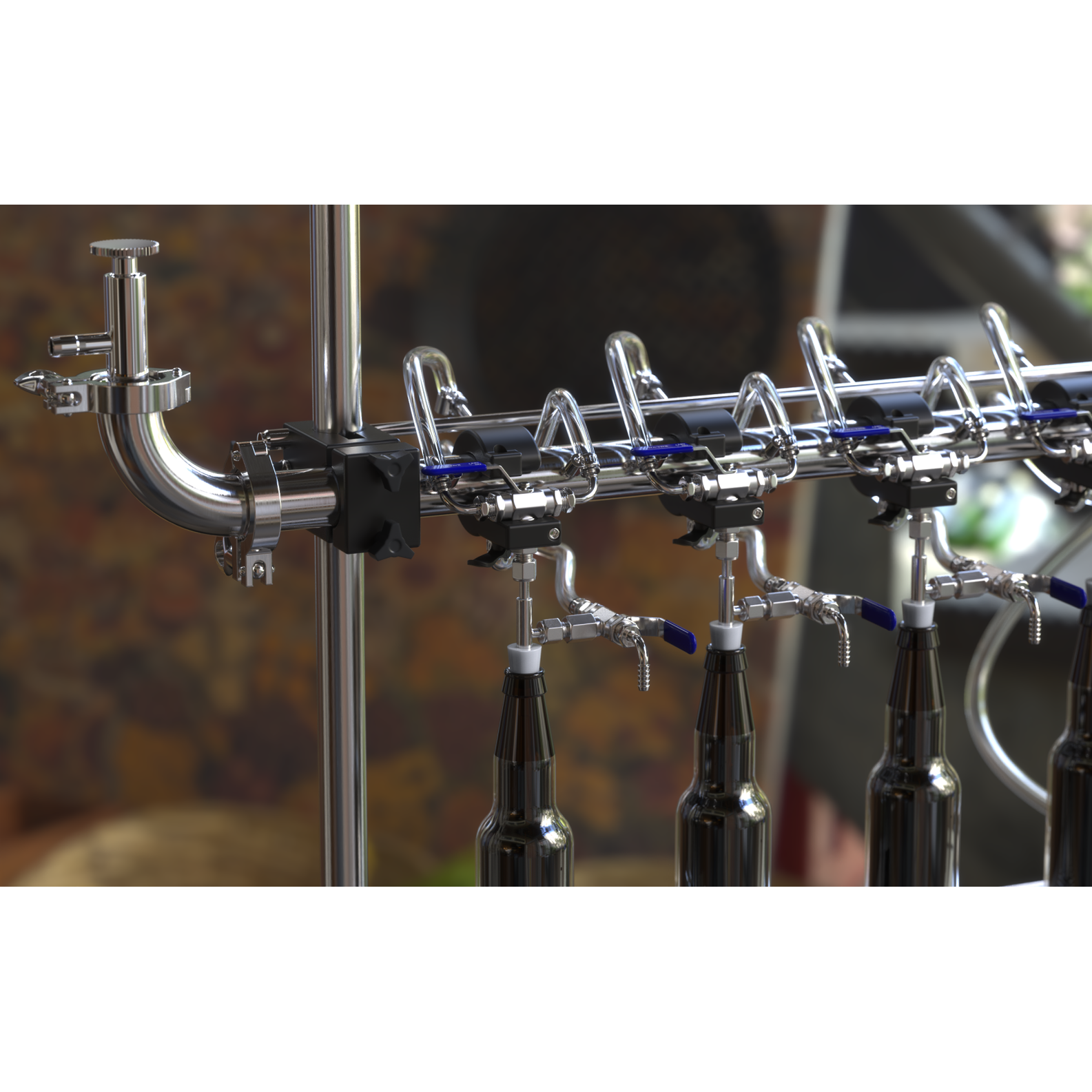

    • Dual TC Fill reservoir is easier to clean & allows for upgrades down the road (as they become available).
    • Easily adaptable to fill from nearly any pressurized vessel.
    • Height is adjustable from shorty bottles to growlers.
    • Easy disassembly for cleaning, storage & maintenance,
    • Sanitary 1.5" TC inlet for beer (Clamp and Gasket sold separately)
    • 3/8" tube connection for CO2.
    • Backpressure Bar allows for a single adjustment point for fill rates. No more adjusting PRVs on each fill head.
    • Minimum Bottle Height: 6.9"
    • Maximum Bottle Height: 16.5"
    • Maximum Working Pressure: 15 PSI

    Dimensions:

    • Footprint: 26-3/8" L x 8" W
    • Drip Tray: 23-1/2" L x 5-1/2" W
    • Overall Height: 25-3/8"



    Please Note: Filler valves include a Teflon gasket. Do not soak the valves in PBW which can corrode Teflon material after prolonged contact.

    MB® Medusa™ MultiHead Counter Pressure Bottle Filler | Gen 2

      Product form

      SKU: KEG823

      $2,399.99

      Calculating shipping time...
      Shipping
      Free Shipping
      Drop Ship
      Drop Ship
      Discount Exclusion
      Discount Exclusion
      Freight
      Freight Only
      Pre-book
      Pre Order

        Prop 65 Warning WARNING : This product can expose you to chemicals including Chromium (hexavalent compounds), which is/are known to the State of California to cause cancer. For more information go to www.p65warnings.ca.gov.

        Description

        • Premium Counter-Pressure Bottle filler that is designed for the smaller craft brewer or dedicated homebrewer to help make bottling day faster and more efficient
        • The four separate filling heads have individual Stainless Steel 3-way control valves that allow for quick fill rates
        • Only requires one person to operate
        • A single PRV provides equal backpressure on all heads resulting in matching flow rates without adjustment
        • Individual purge valves on each fill head allow for nearly all oxygen removal in a bottle, ensuring that the beer stays fresh for longer
        • The removable drip tray is fully draining with a barbed outlet for constant filling and easy cleaning
        • A purge valve on the reservoir helps make sure that foam never builds up
        • 304 Stainless Steel Construction and easy-to-use functionality, all resulting in a top-of-the-line bottle filler

        Introducing the newly redesigned and updated G2 Medusa Multihead Counter Pressure Bottle Filler!  This unique unit was designed in-house by the MB Pro Engineering team and purpose built for the smaller craft brewer or dedicated homebrewer.  The Medusa will speed up bottling day while also reducing exposure to oxygen during the bottling process, resulting in higher quality beer with a longer shelf life.

        The Medusa Multihead Counter Pressure Bottle Filler can be adjusted to cater all bottling needs.  All four heads can be operated individually, and the height, back pressure, and fill speeds can be adjusted for various bottle styles.  We've done our best to pack this unit with features that will handle all jobs, while keeping costs as low as possible.

        Features:

        • 3-way stainless steel valves on both inlet & back pressure sides of all fill heads.
        • Improved Pressure Relief Valve has higher accuracy over fill rates, and directs foam into the drip tray rather than onto your bottles.
        • Robust stainless steel frame stands on its own or can be easily bolted or clamped to a work surface
        • Stainless steel fill reservoir keeps fill rates equal & reduces foaming
        • Inverted fill tubes & reservoir purge means cleaner filling with even less possibility for foam.
        • Dual TC Fill reservoir is easier to clean & allows for upgrades down the road (as they become available).
        • Easily adaptable to fill from nearly any pressurized vessel.
        • Height is adjustable from shorty bottles to growlers.
        • Easy disassembly for cleaning, storage & maintenance,
        • Sanitary 1.5" TC inlet for beer (Clamp and Gasket sold separately)
        • 3/8" tube connection for CO2.
        • Backpressure Bar allows for a single adjustment point for fill rates. No more adjusting PRVs on each fill head.
        • Minimum Bottle Height: 6.9"
        • Maximum Bottle Height: 16.5"
        • Maximum Working Pressure: 15 PSI

        Dimensions:

        • Footprint: 26-3/8" L x 8" W
        • Drip Tray: 23-1/2" L x 5-1/2" W
        • Overall Height: 25-3/8"



        Please Note: Filler valves include a Teflon gasket. Do not soak the valves in PBW which can corrode Teflon material after prolonged contact.

        Documents
        Medusa GEN2 Manual
        Important Warnings & Shipping Info +
        Shipping Icon
        Free Shipping: Fast & Free Shipping over $79
        Drop Ship Icon
        Drop Ship: This product will ship directly from the supplier. Delivery may take 1-4 weeks depending on the vendor.
        Discount Exclusion Icon
        Discount Exclusion: This item is not eligible for sitewide price reductions or percentage discounts. Learn more.
        Freight Icon
        Freight Shipping: This item ships freight only.
        Pre-book Icon
        Pre Order: This item is available for Pre-Order. Full payment is required to reserve stock.

        You Might Also Need

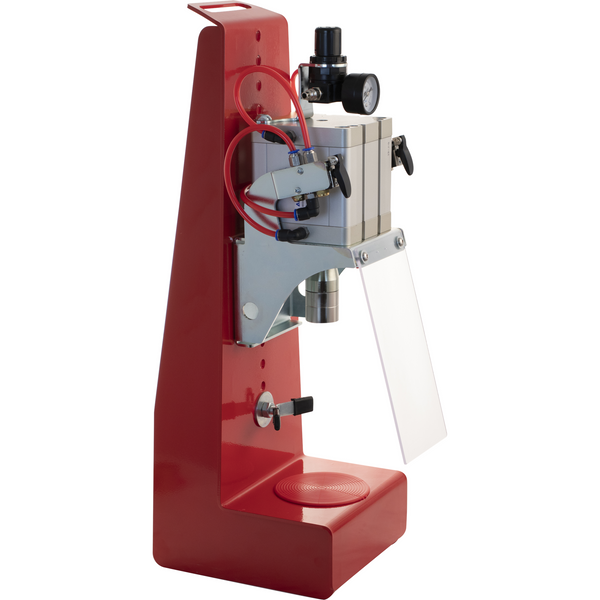

        Ferrari Pneumatic Bottle Capper
        Ferrari Pneumatic Bottle Capper
        $769.99

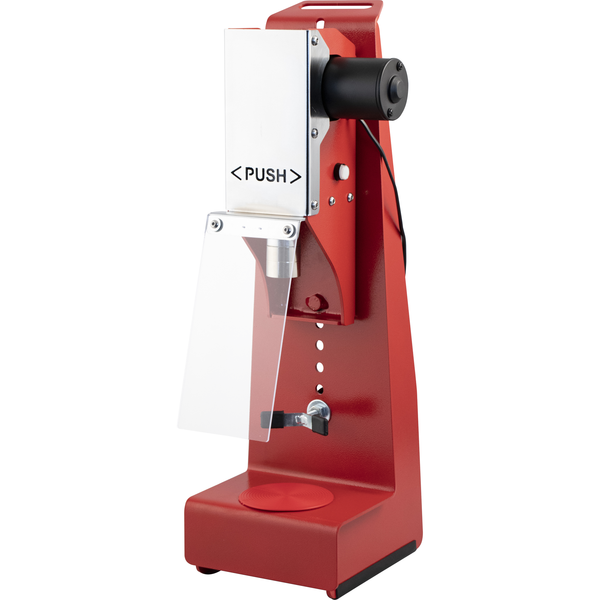

        Ferrari Electric Bottle Capper
        Ferrari Electric Bottle Capper
        $879.99

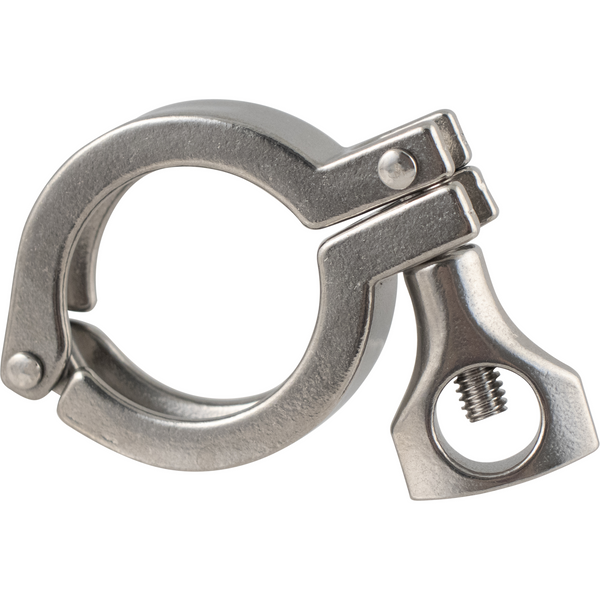

        ForgeFit® Stainless Tri-Clamp | 1.5
        ForgeFit® Stainless Tri-Clamp | 1.5" Clamp
        $7.99

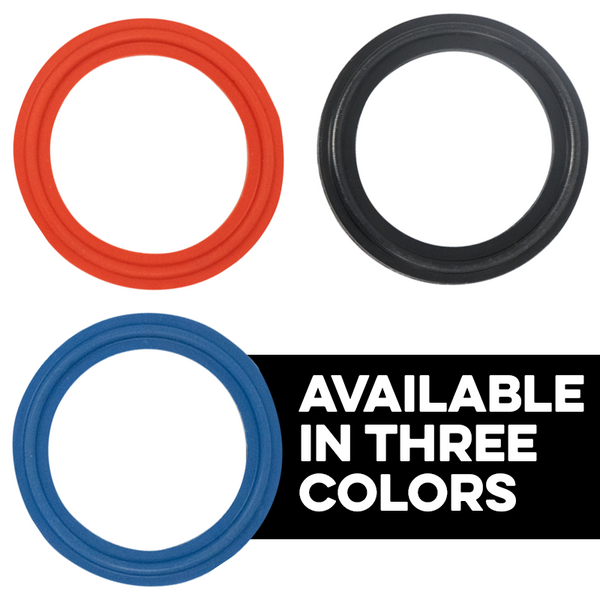

        ForgeFit® Tri-Clamp Gasket | EPDM | 1.5
        ForgeFit® Tri-Clamp Gasket | EPDM | 1.5"
        $1.49

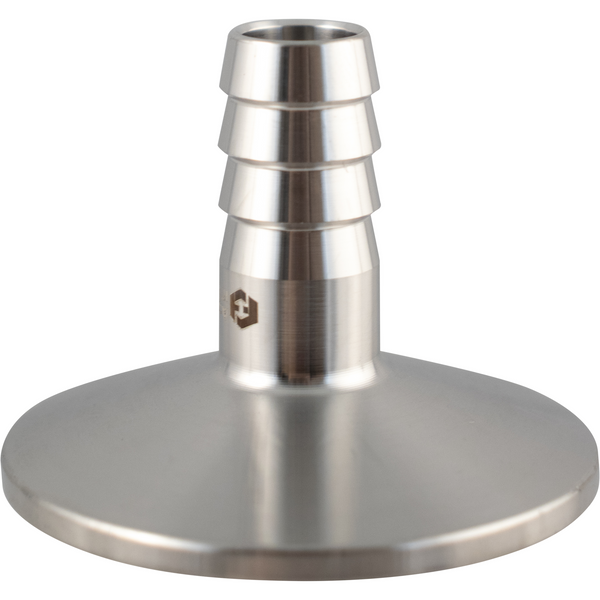

        ForgeFit® Stainless Tri-Clamp Barb | 1/2
        ForgeFit® Stainless Tri-Clamp Barb | 1/2" Barb x 1.5" T.C.
        $20.49

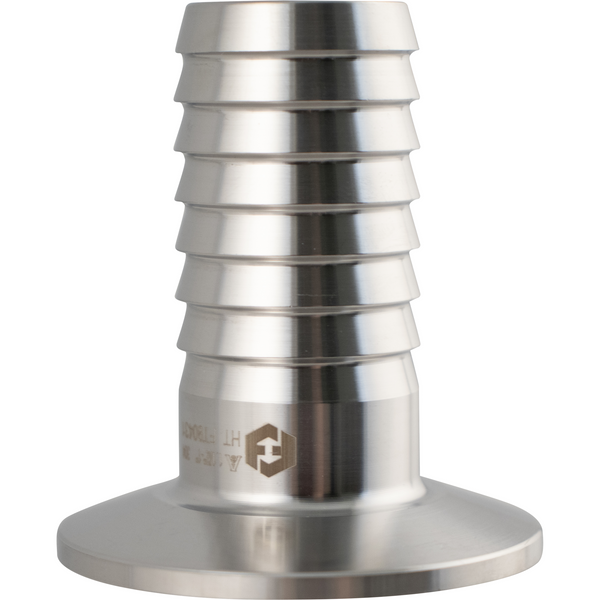

        ForgeFit® Stainless Tri-Clamp Barb | 1
        ForgeFit® Stainless Tri-Clamp Barb | 1" Barb x 1.5" T.C.
        $22.49

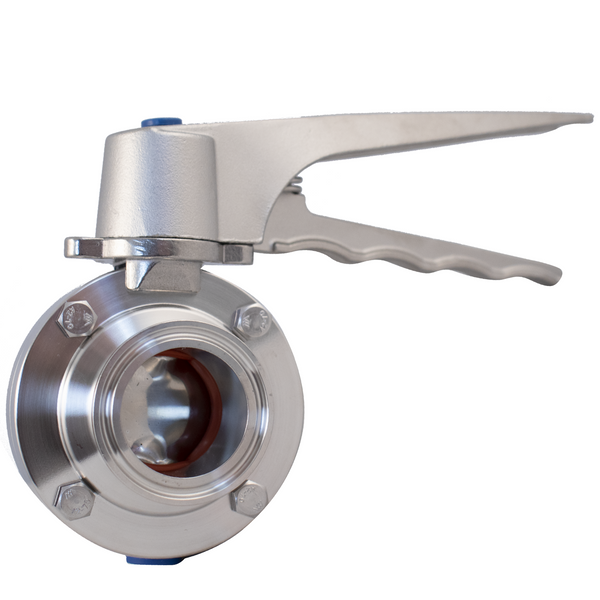

        ForgeFit® Stainless Butterfly Valve | 1.5
