Nothing beats a crystal clear, clean tasting beer. Sure you can greatly reduce the amount of particulates in your beer with brewing clarifiers, but the best way to achieve a crystal clear beer is by filtering it. We offer several beer filtering options to choose from to fit your preference and needs.
16" filter module for use with 16" stainless steel lenticular filter housings
Back flushable module
10 Micron rating provides a rough filtration that removes large particulates, often followed by finer filtration
Rough filtration is necessary on beverages with heavy sedimentation as the finer modules may clog without prefiltering
Manufactured by Filtrox, the world's leading producer of high-quality filtration media
Filtrox filter modules are high-performance filtration solutions designed for use with stainless steel lenticular filter housings. These modules deliver reliable, efficient filtration for a wide range of liquids in food and beverage production including wine, beer, cider, spirits, cold brew coffee, and more.
Compared to plate filters and filter sheets, lenticular filter housings and filter modules offers an airtight, sealed system with no dripping or leakage, ensuring your liquid remains protected and uncontaminated.
Filter modules are easy to install and provide consistent results, making them ideal for demanding filtration applications.
Filtrox Group is a producer of filter media for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter modules are manufactured of specially selected raw materials and conform to FDA and FCC regulations.
Micron Rating: 6 - 15
Micron Mid Point: 10
Filtration Area: 38.7 ft² (3.6 m²)
Number of Lenses: 16
Back Flushable
Max. Backflow Pressure Differential: 7 psi (0.5 Bar) at 77°F (25°C)
Fibradisc AF 21 Plus2 Filter Module
Wine
Use: Prefiltration
Max. Recommended Flow Rate: 668 gal/hr (2,520 L/hr)
Max. Recommended Pressure Differential: 36 psi (2.5 Bar)
Fruit Wine or Fruit Juice
Use: Prefiltration
Max. Recommended Flow Rate: 668 gal/hr (2,520 L/hr)
Max. Recommended Pressure Differential: 36 psi (2.5 Bar)
Spirits
Use: Coarse filtration of liquors, spirits
Max. Recommended Flow Rate: 478 - 668 gal/hr (1,800 - 2,520 L/hr)
Max. Recommended Pressure Differential: 36 psi (2.5 Bar)
16" filter module for use with 16" stainless steel lenticular filter housings
0.45 Micron pads remove 99.999% of bacteria to promote sterility in the bottle
Manufactured by Filtrox, the world's leading producer of high-quality filtration media
Filtrox filter modules are high-performance filtration solutions designed for use with stainless steel lenticular filter housings. These modules deliver reliable, efficient filtration for a wide range of liquids in food and beverage production including wine, beer, cider, spirits, cold brew coffee, and more.
Compared to plate filters and filter sheets, lenticular filter housings and filter modules offers an airtight, sealed system with no dripping or leakage, ensuring your liquid remains protected and uncontaminated.
Filter modules are easy to install and provide consistent results, making them ideal for demanding filtration applications.
Filtrox Group is a producer of filter media for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter modules are manufactured of specially selected raw materials and conform to FDA and FCC regulations.
Micron Rating: 0.4 - 0.6
Micron Mid Point: 0.5
Filtration Area: 38.7 ft² (3.6 m²)
Number of Lenses: 16

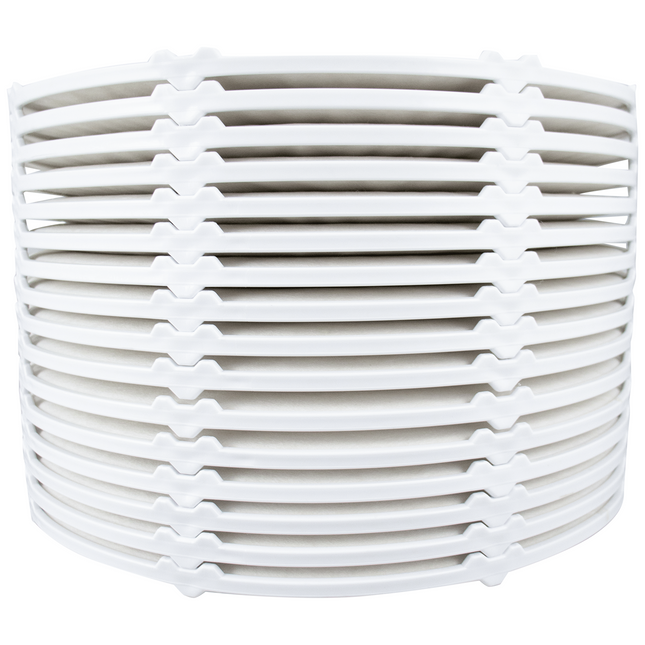

Fibradisc AF 130 Filter Module
Wine
Use: General sterile filtration
Max. Recommended Flow Rate: 334 gal/hr (1,260 L/hr)
Max. Recommended Pressure Differential: 17 psi (1.2 Bar)
Fruit Wine or Fruit Juice
Use: Cold sterile filtration
Max. Recommended Flow Rate: 334 gal/hr (1,260 L/hr)
Max. Recommended Pressure Differential: 17 psi (1.2 Bar)
Beer
Use: Yeast and bacteria removal
Max. Recommended Flow Rate: 114 gal/hr (432 L/hr)
Max. Recommended Pressure Differential: 15 psi (1.0 Bar)
Please Note: The filter module, lacking a PES layer, is for clarification purposes only and does not provide sterile filtration for 100% bacteria removal.
16" filter module for use with 16" stainless steel lenticular filter housings
4 Micron rating are for general clarifying of beverages that do not need to be sterile filtered
Manufactured by Filtrox, the world's leading producer of high-quality filtration media
Filtrox filter modules are high-performance filtration solutions designed for use with stainless steel lenticular filter housings. These modules deliver reliable, efficient filtration for a wide range of liquids in food and beverage production including wine, beer, cider, spirits, cold brew coffee, and more.
Compared to plate filters and filter sheets, lenticular filter housings and filter modules offers an airtight, sealed system with no dripping or leakage, ensuring your liquid remains protected and uncontaminated.
Filter modules are easy to install and provide consistent results, making them ideal for demanding filtration applications.
Filtrox Group is a producer of filter media for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter modules are manufactured of specially selected raw materials and conform to FDA and FCC regulations.
Micron Rating: 3 - 6
Micron Mid Point: 4
Filtration Area: 38.7 ft² (3.6 m²)
Number of Lenses: 16

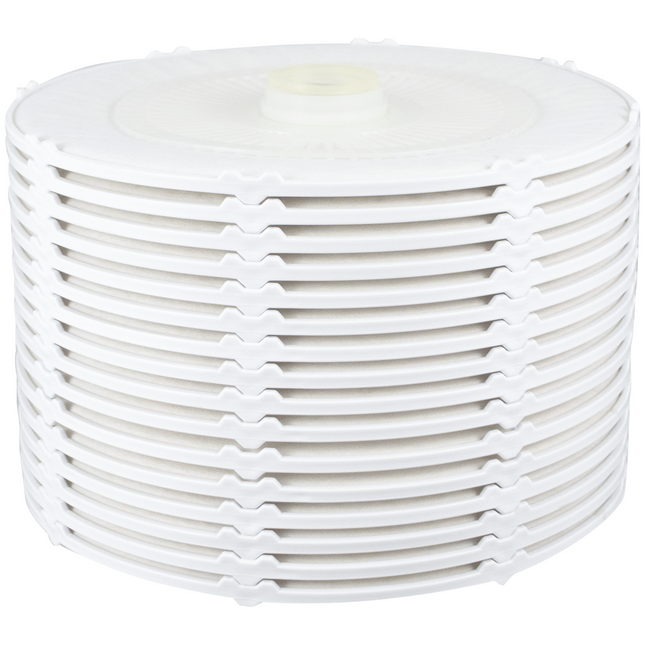

Versadisc XE 44 Filter Module
Wine
Use: Clarifying filtration
Max. Recommended Flow Rate: 572 gal/hr (2,160 L/hr)
Max. Recommended Pressure Differential: 29 - 36 psi (2.0 - 2.5 Bar)
Fruit Wine or Fruit Juice
Use: Clarifying filtration
Max. Recommended Flow Rate: 478 gal/hr (1,800 L/hr)
Max. Recommended Pressure Differential: 22 - 36 psi (1.5 - 2.5 Bar)
Beer
Use: Middle fine filtration, with only a few yeast
Max. Recommended Flow Rate: 190 gal/hr (720 L/hr)
Max. Recommended Pressure Differential: 22 psi (1.5 Bar)
16" filter module for use with 16" stainless steel lenticular filter housings
6 Micron rating provides a rough filtration that removes large particulates, often followed by a finer filtration
Rough filtration is necessary on wines with heavy sedimentation as the finer pads will clog without prefiltering
Manufactured by Filtrox, the world's leading producer of high-quality filtration media
Filtrox filter modules are high-performance filtration solutions designed for use with stainless steel lenticular filter housings. These modules deliver reliable, efficient filtration for a wide range of liquids in food and beverage production including wine, beer, cider, spirits, cold brew coffee, and more.
Compared to plate filters and filter sheets, lenticular filter housings and filter modules offers an airtight, sealed system with no dripping or leakage, ensuring your liquid remains protected and uncontaminated.
Filter modules are easy to install and provide consistent results, making them ideal for demanding filtration applications.
Filtrox Group is a producer of filter media for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter modules are manufactured of specially selected raw materials and conform to FDA and FCC regulations.
Micron Rating: 4 - 9
Micron Mid Point: 6
Filtration Area: 38.7 ft² (3.6 m²)
Number of Lenses: 16
Versadisc XE 34 Filter Module
Wine
Use: Clarifying filtration
Max. Recommended Flow Rate: 572 gal/hr (2,160 L/hr)
Max. Recommended Pressure Differential: 29 - 36 psi (2.0 - 2.5 Bar)
Fruit Wine or Fruit Juice
Use: Clarifying filtration
Max. Recommended Flow Rate: 478 gal/hr (1,800 L/hr)
Max. Recommended Pressure Differential: 22 - 36 psi (1.5 - 2.5 Bar)
Beer
Use: Clarifying filtration of beer, visually clear
Max. Recommended Flow Rate: 286 - 334 gal/hr (1,080 - 1,260 L/hr)
Max. Recommended Pressure Differential: 22 psi (1.5 Bar)
Cold Brew Coffee
Use: Clarifying filtration
Max. Recommended Flow Rate: 478 gal/hr (1,800 L/hr)
Max. Recommended Pressure Differential: 29 psi (2.0 Bar)
16" filter module for use with 16" stainless steel lenticular filter housings
10 Micron rating provides a rough filtration that removes large particulates, often followed by finer filtration
Rough filtration is necessary on beverages with heavy sedimentation as the finer modules may clog without prefiltering
Manufactured by Filtrox, the world's leading producer of high-quality filtration media
Filtrox filter modules are high-performance filtration solutions designed for use with stainless steel lenticular filter housings. These modules deliver reliable, efficient filtration for a wide range of liquids in food and beverage production including wine, beer, cider, spirits, cold brew coffee, and more.
Compared to plate filters and filter sheets, lenticular filter housings and filter modules offers an airtight, sealed system with no dripping or leakage, ensuring your liquid remains protected and uncontaminated.
Filter modules are easy to install and provide consistent results, making them ideal for demanding filtration applications.
Filtrox Group is a producer of filter media for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter modules are manufactured of specially selected raw materials and conform to FDA and FCC regulations.
Micron Rating: 6 - 15
Micron Mid Point: 10
Filtration Area: 38.7 ft² (3.6 m²)
Number of Lenses: 16
Versadisc XE 24 Filter Module
Wine
Use: Prefiltration
Max. Recommended Flow Rate: 668 gal/hr (2,520 L/hr)
Max. Recommended Pressure Differential: 36 psi (2.5 Bar)
Fruit Wine or Fruit Juice
Use: Prefiltration
Max. Recommended Flow Rate: 668 gal/hr (2,520 L/hr)
Max. Recommended Pressure Differential: 36 psi (2.5 Bar)
Spirits
Use: Coarse filtration of liquors, spirits
Max. Recommended Flow Rate: 478 - 668 gal/hr (1,800 - 2,520 L/hr)
Max. Recommended Pressure Differential: 36 psi (2.5 Bar)
12" filter module for use with 12" stainless steel lenticular filter housings
10 Micron rating provides a rough filtration that removes large particulates, often followed by finer filtration
Rough filtration is necessary on beverages with heavy sedimentation as the finer modules may clog without prefiltering
Manufactured by Filtrox, the world's leading producer of high-quality filtration media
Filtrox filter modules are high-performance filtration solutions designed for use with stainless steel lenticular filter housings. These modules deliver reliable, efficient filtration for a wide range of liquids in food and beverage production including wine, beer, cider, spirits, cold brew coffee, and more.
Compared to plate filters and filter sheets, lenticular filter housings and filter modules offers an airtight, sealed system with no dripping or leakage, ensuring your liquid remains protected and uncontaminated.
Filter modules are easy to install and provide consistent results, making them ideal for demanding filtration applications.
Filtrox Group is a producer of filter media for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter modules are manufactured of specially selected raw materials and conform to FDA and FCC regulations.
Micron Rating: 6 - 15
Micron Mid Point: 10
Filtration Area: 19.3 ft² (1.8 m²)
Number of Lenses: 16

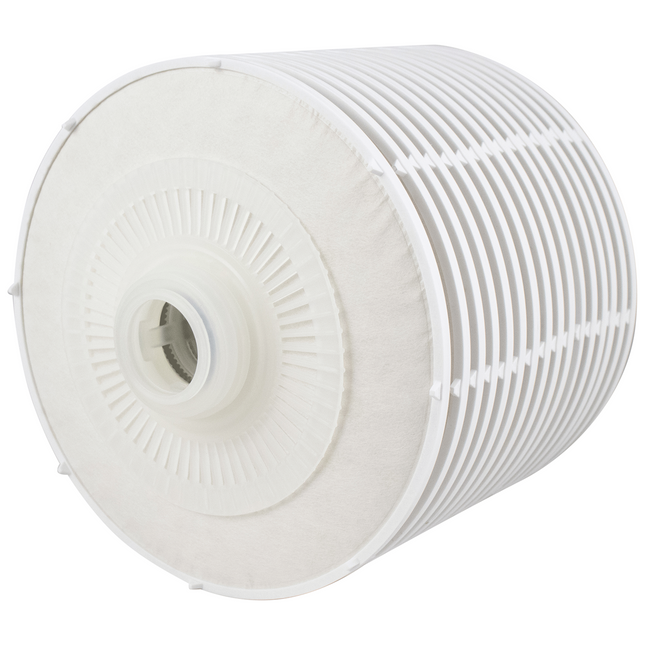

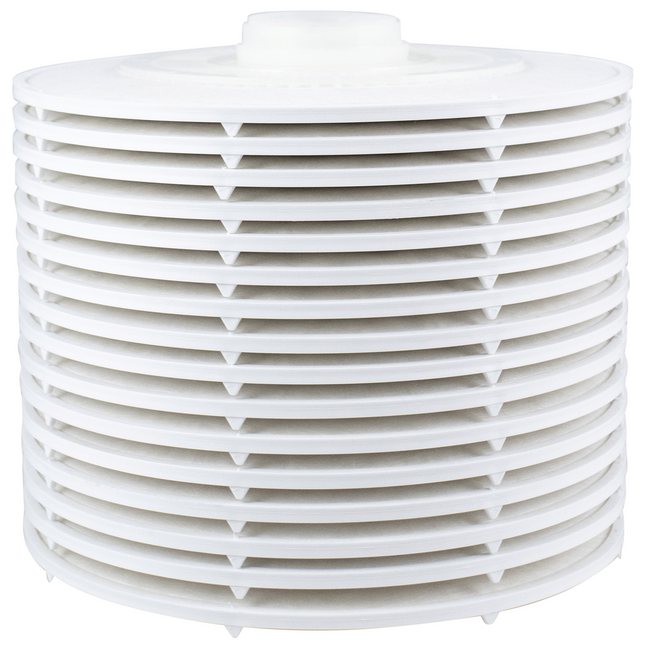

Versadisc XE 24 Filter Module
Wine
Use: Prefiltration
Max. Recommended Flow Rate: 334 gal/hr (1,260 L/hr)
Max. Recommended Pressure Differential: 36 psi (2.5 Bar)
Fruit Wine or Fruit Juice
Use: Prefiltration
Max. Recommended Flow Rate: 334 gal/hr (1,260 L/hr)
Max. Recommended Pressure Differential: 36 psi (2.5 Bar)
Spirits
Use: Coarse filtration of liquors, spirits
Max. Recommended Flow Rate: 239 - 334 gal/hr (900 - 1,260 L/hr)
Max. Recommended Pressure Differential: 36 psi (2.5 Bar)
