Add additional functionality or streamline your process with Brewtools' lineup of brewing accessories for both the Pro Series Brewing Systems and Jacketed Unitank Fermenters.
Trubinator is a product for use in your brewing system or boil kettle. During whirlpool, hops and other particles will gather in the middle of the filter, making it possible to pumpe more clean wort to your fermenter. A single wingnut and bolt holds the filter in place, so it's easy to disassemble for cleaning. Diameter: 420mm (16.5") Height: 90mm (3.5") Standard filter: R2x5 For User Manuals and support, please follow this link to Brewtools Docs.
TC34mm 90° elbow to 3/8" (10 mm) hose barb Fits 8.5x14mm EVA tubes for glycol For more information on building a cooling system for your Brewtools fermenter, click here.

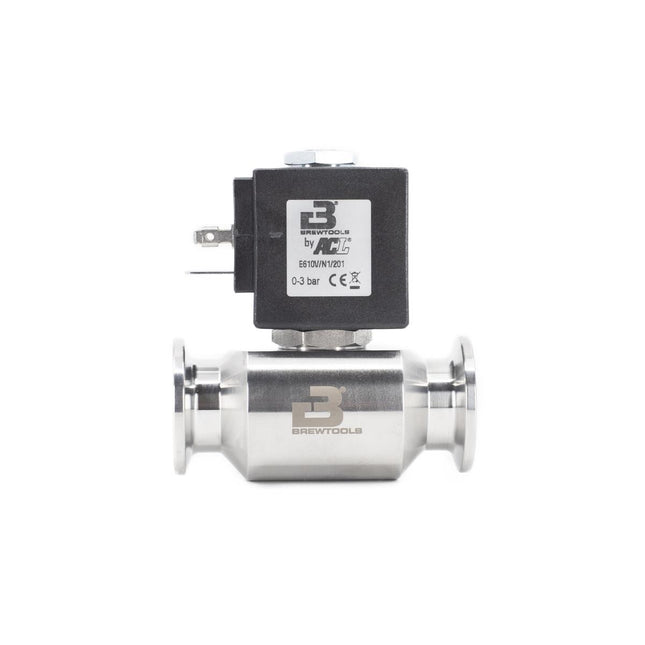

Solenoid valve made from stainless steel. Designed for glycol, water and air/co2. T.C. 34mm ports in both ends for maximum flexibility. Coil and plunger Italian-made by ACL. The valve can easily ble disassembled and cleaned.
Coil has DIN 43650 Type A connector (not included).
Normally used with T.C. 34mm to 3/8" NPT threaded adapter and leak-free quick connectors on one or both sides depending on setup.
Specifications:
Ports: TC34mm / TC34mm
Operation: NC (normally closed)
Power supply: DC24V, 10W
Orifice: Ø4.5mm
Pressure rating: Max 3 bar / 43 PSI

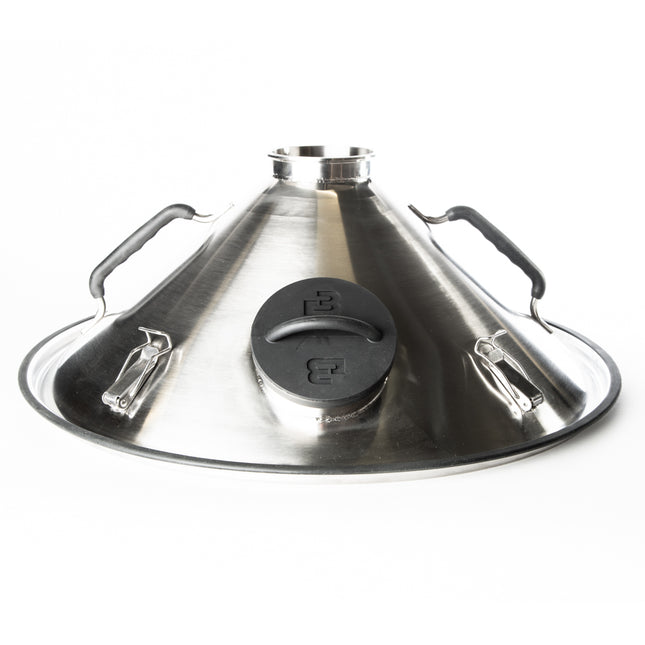

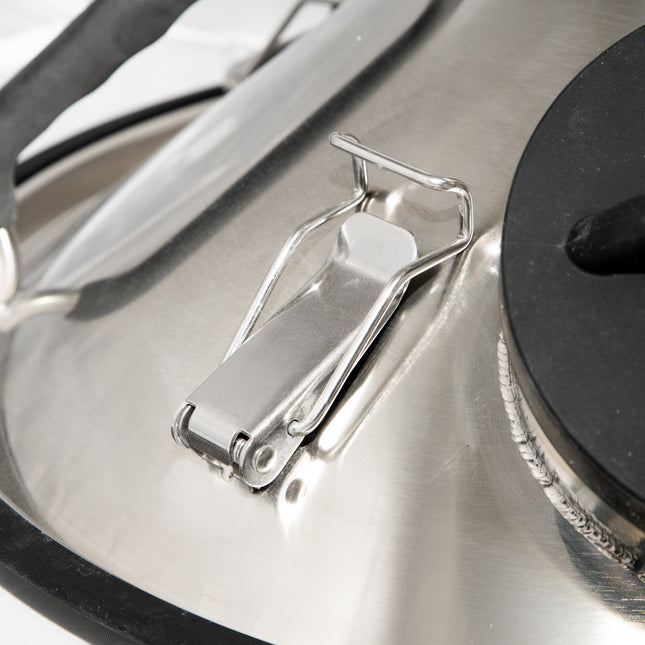

Brewtools pro steam hats are designed for maximum flexibility. They feature a silicone edge seal, 4 clamps to hold it in place on your brewing system, a 110mm inspection hole you can add your hops through when boiling, 2 silicone covered handles and a 4 inch accessory mount on top. The silicone plug for the inspection hole is included. Remember to order clamp and gasket for the top port. For User Manuals and support, please follow this link to Brewtools Docs.

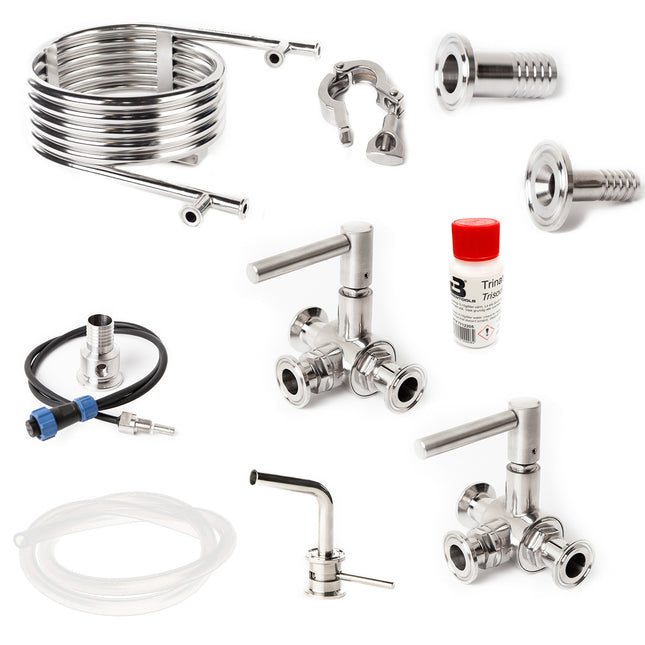

This is the recommended accessories to get you started using the Brewtools pro systems. The package includes an efficient counterflow cooler, an extra 3-way valve to make you able to choose if you return the cooled wort to the tank creating a whirlpool or pump directly to the fermenter. The third 3-way valve makes it possible to clean the system without disconnecting hoses. Our adjustable dip tube is included in this package for optimal control during pumping to fermenter. A third sensor gives you exact measurements of the wort returning from cooling. The necessary fittings and accessories are also included. Fittings for connecting a sparge water heater is not included. Included: 2 pcs 3-way ball valve, TC34mm DN15 1 pcs Dip tube, Adjustable, TC34mm 1 pcs Counterflow Cooler, Pro 3 meter Silicone Tube 16x25mm, clear 3 pcs TC Gasket, 34mm, DN15, 5-pack 2 pcs TC34mm to 12mm hose barb 1 pcs TC34mm to 19mm hose barb, sensor holder 5 pcs TC34mm to 19mm hose barb 1 pcs Temp. Sensor, inline, M10 8 pcs Tri Clamp, 34mm 1 pcs TSP, 100g For User Manuals and support, please follow this link to Brewtools Docs.
Laser cut filters made from steel blasted and electropolished stainless steel. Simple cleaning and maximum durability.
Gap width: 1.3mm
Pre-cut hole for weldless fitting to use with future accessories.

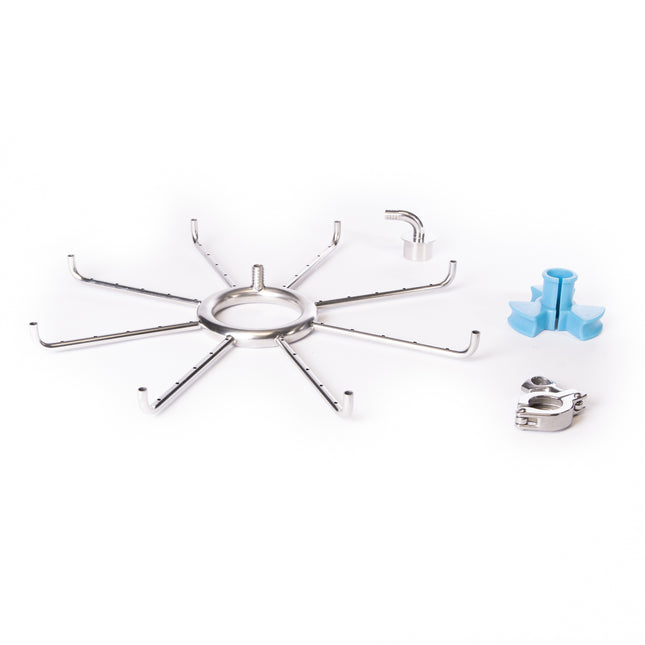

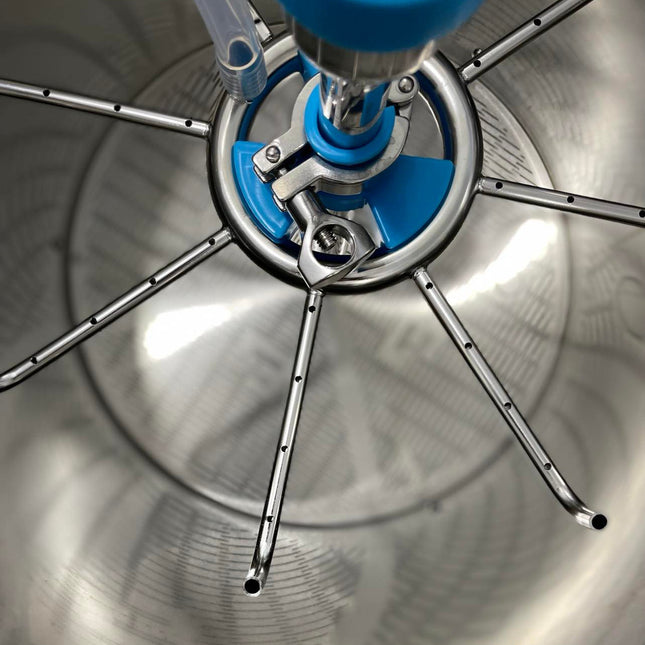

Circulation manifold for mashing and sparging. Fastened around the sparge pipe and can be adjusted to sit at the top of the grain bed.
Included:
Manifold
Sparge adapter with 1/2" (12 mm) hose barb
Silicone core
Silicone tube 3/8" x 5/8", 3.2' (10mm x 16 mm, 1 meter)
Tri Clamp, 34mm

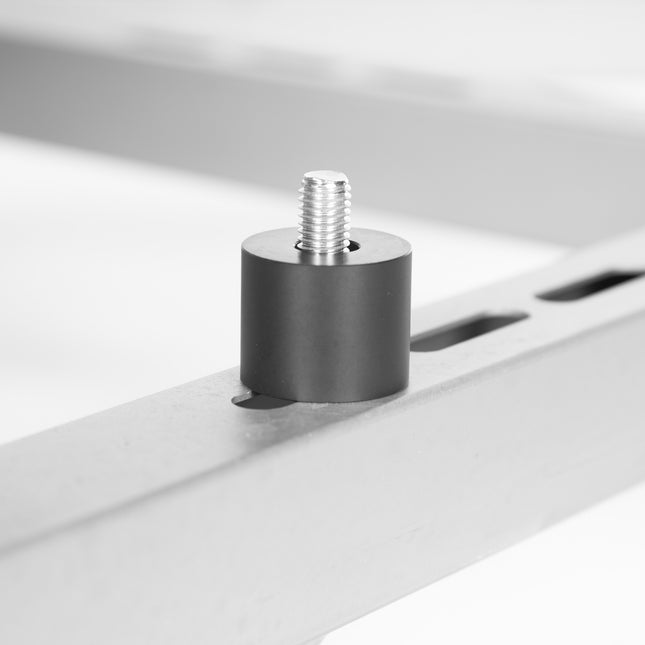

Low frame with wheels for installing Brewtools Unitanks in the Troll Brew Table System.
Fits all Brewtools Unitanks up to and including the F300 Unitank.
Includes bolts and nylon spacers for Unitank installation.
Remember M8 bolt kit for connecting to other modules.
Specifications:
Size: 28.75" x 28.75" x 5.9" (assembled)
Weight assembled: 22 lbs
Material: AISI 304
In the box:
1 pcs unitank frame, 28.75" x 28.75"
2 pcs wheels with brakes
2 pcs wheels without brakes
4 pcs nylon spacers and M10 bolts for Unitank
4 pcs 20-pack silicone plugs for holes
Tools and bolts for assembly

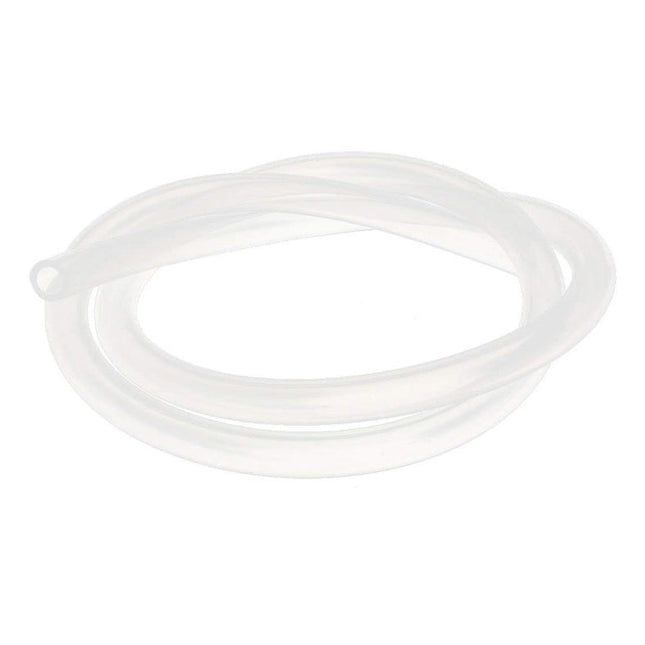

High quality transparent silicone tube. Recommended for dumping yeast. Use with 30mm barb x 2" tri-clamp (BT1074).
Food grade silicone
Inside diameter: 25mm (0.98")
Outside diameter: 34mm (1.3")
Sold in 1.5m lengths (4.9')

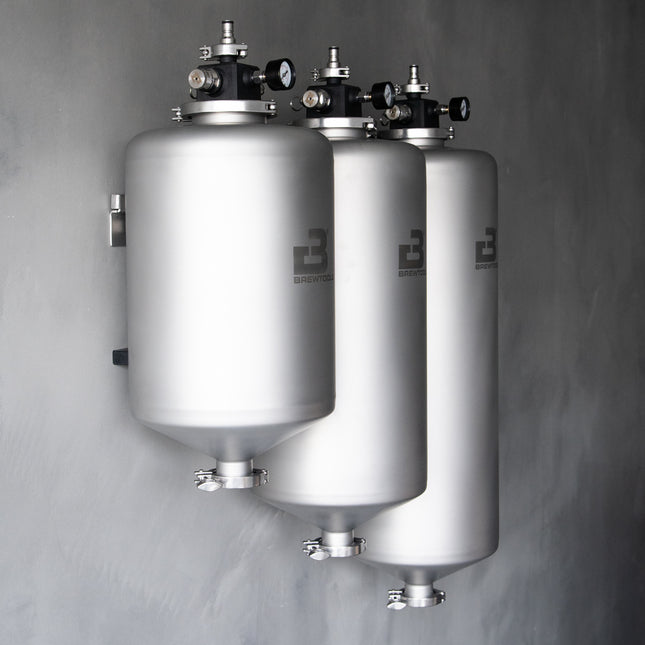

Stainless steel wall bracket for 3x MiniUni in all sizes. 5 double holes with 150mm spacing makes it easy to install in wall beams.
A wall bracket for mounting a single MiniUni is included with each unit as standard.
Brewtools pro steam hats are designed for maximum flexibility. They feature a silicone edge seal, 4 clamps to hold it in place on your brewing system, a 110mm inspection hole you can add your hops through when boiling, 2 silicone covered handles and a 4 inch accessory mount on top. The silicone plug for the inspection hole is included.
Remember to order clamp and gasket for the top port.
For User Manuals and support, please follow this link to Brewtools Docs.
The push-fit sample valve coil reduces foam when drawings samples from a pressurized tank. Made for use with the sample valve included with the Brewtools Unitank Light. You will also need the JG Push-fit Adapter to connect to the sample valve. Outside diameter: 4mm Designed for 4mm pushfit.
This is the recommended accessories to get you started using the Brewtools pro systems. The package includes an efficient counterflow chiller, an extra 3-way valve to make you able to choose if you return the cooled wort to the tank creating a whirlpool or pump directly to the fermenter. A third sensor gives you exact measurements of the wort returning from cooling. The necessary fittings and accessories are also included. Included: 1 pcs 3-way ball valve, TC34mm DN15 1 pcs Dip tube, short 1 pcs Counterflow Cooler, Pro 1 pcs O-ring, Viton, 18x14x2mm 5-pack 3 meter Silicone Tube 16x25mm, clear 2 pcs TC Gasket, 34mm, DN15, 5-pack 2 pcs TC34mm to 12mm hose barb 1 pcs TC34mm to 19mm hose barb, sensor holder 4 pcs TC34mm to 19mm hose barb 1 pcs Temp. Sensor, inline, M10 6 pcs Tri Clamp, 34mm 1 pcs TSP, 100g For User Manuals and support, please follow this link to Brewtools Docs.
Power supply with DIN 43650-connector for solenoid valves.
Made for use with solenoid valves directly from an AC outlet in an Inkbird or equivalent systems.
Adapters for global use included.
Specifications:
Input: 100-240V AC, 50/60 hz
Output: 24V DC, 1.66A (39.84W)
Cord Length: 3m (9.8')
EVA+PE-tube is perfect for glycol and other uses where a strong tube is needed Commonly used as main tubes for glycol where you use multiple tanks on the same line The tube fits 1/2" (12 mm) barbs Food safe up to 140°F (60°C) For more information on building a cooling system for your Brewtools fermenter, click here.
Circulation manifold for mashing and sparging. Fastened around the sparge pipe and can be adjusted to sit at the top of the grain bed.
Included:
Manifold
Sparge adapter with 1/2" (12 mm) hose barb
Silicone core
Silicone tube 3/8" x 5/8", 3.2' (10mm x 16 mm, 1 meter)
Tri Clamp, 34mm
Trubinator is a product for use in your brewing system or boil kettle. During whirlpool, hops and other particles will gather in the middle of the filter, making it possible to pumpe more clean wort to your fermenter. A single wingnut and bolt holds the filter in place, so it's easy to disassemble for cleaning. Diameter: 500mm (19.7") Height: 90mm (3.5") Standard filter: R2x5 For User Manuals and support, please follow this link to Brewtools Docs.

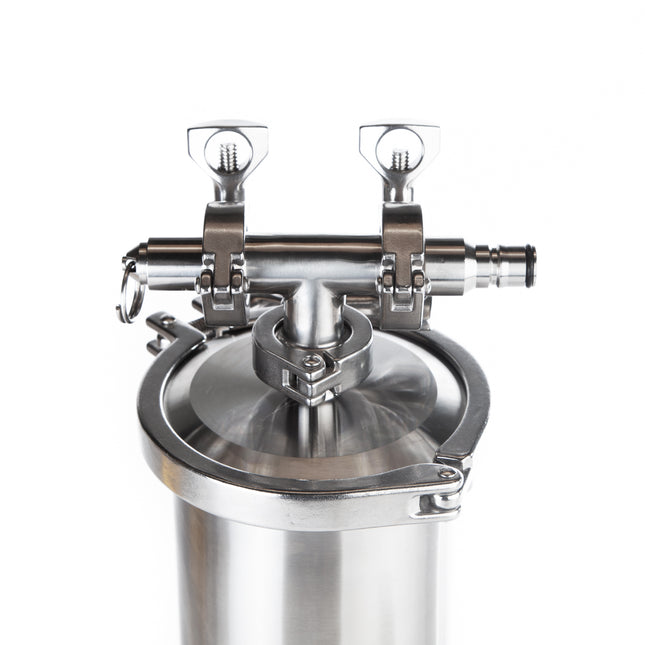

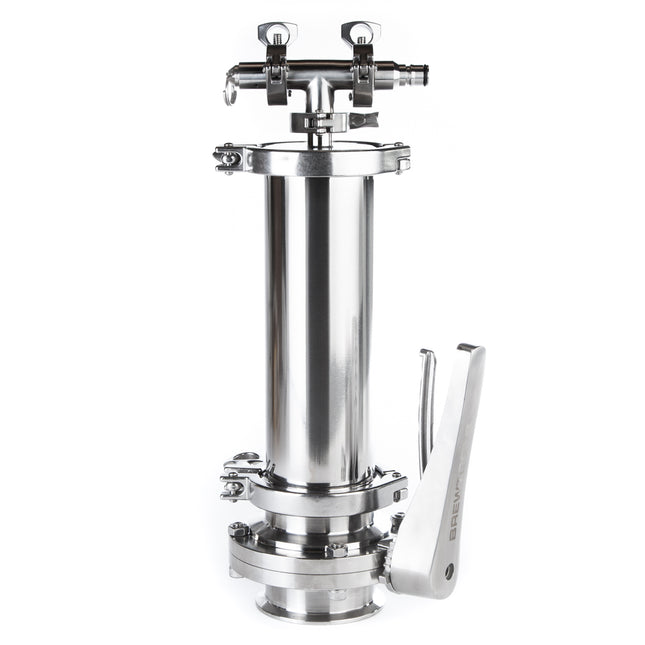

Kit for dryhopping and adding other ingredients to a pressurized fermenter without oxygen. This is the correct size for the Brewtools F150 Unitank.
Included in the box:
Butterfly-valve, TC 4"
TC Adapter, 4" til 34mm
TC Pipe, 4", L=200mm
Tri Clamp, 4" (2 pcs)
Tri Clamp, 34mm (3 pcs)
TC34mm Manual PRV
TC34mm Ball Lock connector, Gas
TC Tee, 34mm, L=60mm
TC Gasket, 4", (3 pcs)
TC Gasket, 34mm DN20, 5-pack
The volume of the HopDrop Kit is 1.5L. Pellet capacity in weight will vary
Digital (DS18B20) Inline sensor with M10 threads.
Used with an inline sensor holder to measure temperature on liquids passing the sensor.
Gasket is included.
Laser cut filters made from steel blasted and electropolished stainless steel. Simple cleaning and maximum durability.
Gap width: 1.3mm
Pre-cut hole for weldless fitting to use with future accessories.

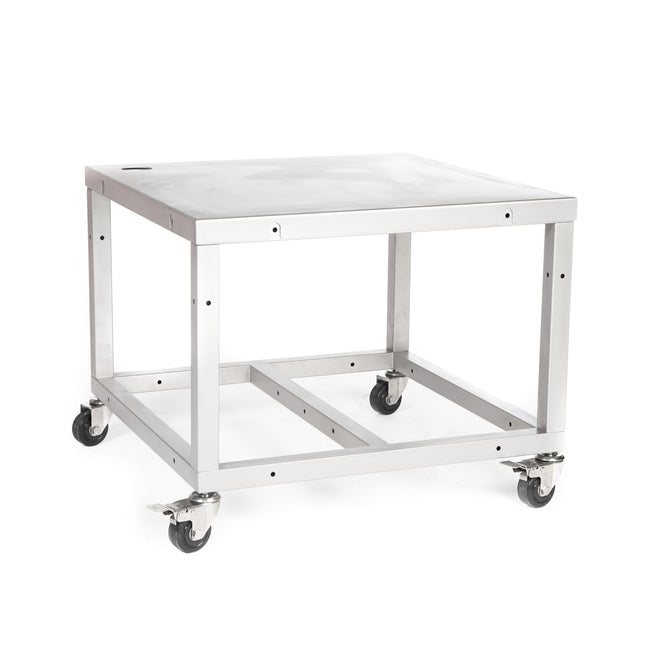

Modular design with the possibility to bolt several frames together Strong 1.5" x 1.5" square frame construction PureBlast™ surface Ready for Troll Brew Crane High quality wheels, 2 of which have brakes The Brewtools Troll Brew Table System is a result of years of development. Brewtools worked hard to keep this simple, modular and flexible, and futureproof for accessories and add-ons. The optional Troll Brew Crane will give you the possibility to handle malt pipes with ease. Specifications: Size: 28.75" x 28.75" x 35" (assembled) Weight assembled: 63.9 lbs Material: AISI 304 In the box: (2) table frames, 28.75" x 28.75" (4) legs (27.5") (1) top plate with folded edges (5) silicone strip to raise top plate above corner bolts (2) wheels with brakes (2) wheels without brakes (4) 20-pack silicone plugs for holes Tools and bolts for assembly
2" TC Sanitary heating element designed for use in santary applications where ease of cleaning is important. The heating element is designed to get the lowest possible watt density and is very easy to clean. Perfect for use with Brewtools Unitanks with kveik yeast or other high temperature fermentation applications.
Can also be used in cominbation with 2" TC pipes for RIMS applications.
Note that the product comes without any temperature or power control. The manufacturer does not take responsibility for incorrect use or use with too much power output. A PID-regulator may be needed to maintain accurate temperatures.
Diameter: Ø42mm (1.65")
Length: ~300mm (~11.8")
Included:
Heating element
Power cable 2 meter

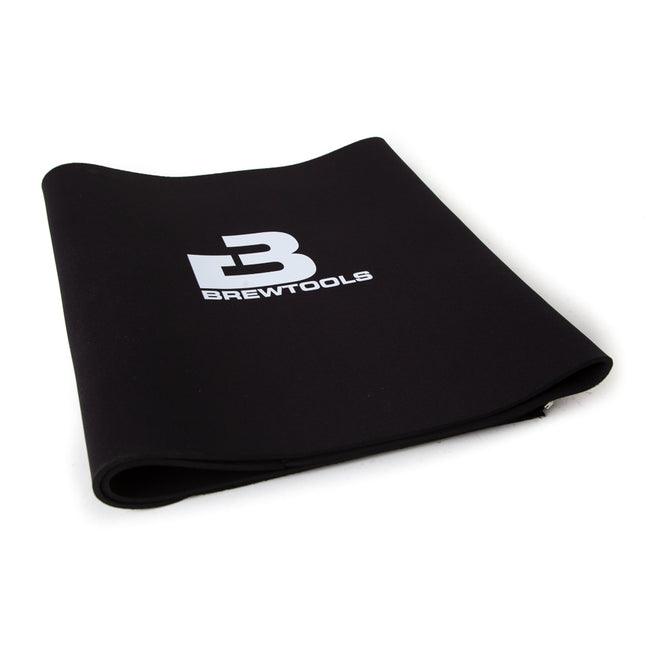

Insulation Jacket for MiniUni™ standard model fermenter.
Reduces condensation on the tank during big differences in temperature.
Made from 5mm neoprene.
The Quantor MiniChilly 17 is highly recommended by Brewtools for chilling their F-series Unitanks. These glycol chillers are compact, high-quality units often used in professional settings. Made from stainless steel components and easy to install. They feature an integrated pump with a stirring function that ensures even temperatures throughout the reservoir. Rather than individual pumps for each fermenter, this unit is intended to be provide cooling solution to a single chilling loop where each fermenter will call for glycol circulation independently via solenoid valves. The MiniChilly 17 is recommended for up to 8 x 150L fermentation tanks of which 3 are cold crashed, or up to 4 x 300L fermentation tanks of which 1 is cold crashed. Check out the Brewtools cooling system page for setup details and recommended accessories for building a chilling loop with the MiniChilly 17. Specifications: Controller: EWplus 961 Power connector: Schuko - C19 Power: 790W (1+ HP) Refrigerant: R290 (Propane) Cooling capacity @ 32°F: 1000W (3412 BTU/hr) Cooling capacity @ 59°F: 1650W (5627 BTU/hr) Tank volume: 12.68 gal Dimensions: 29.5" x 16.5" x 23.6" 115V Manufactured in Germany by Quantor/Kreyer. NOTE: The product must stand still 24 hours before use after installation.
Low frame with wheels and flat top plate for Brewtools Troll Brew Table System.
Used for placing equipment like glycol chillers or handling malt when using the crane.
Remember M8 bolt kit for connecting to other modules.
Troll Frame With Plate only. Does not include Troll Table pictured in example photo.
Specifications:
Size: 28.75" x 28.75" x 5.9" (assembled)
Weight assembled: 37.5 lbs
Material: AISI 304
In the box:
1 pcs table frame, 28.75" x 28.75"
1 pcs flat top plate with hole
2 pcs wheels with brakes
2 pcs wheels without brakes
4 pcs 20-pack silicone plugs for holes
Tools and bolts for assembly
