Add additional functionality or streamline your process with Brewtools' lineup of brewing accessories for both the Pro Series Brewing Systems and Jacketed Unitank Fermenters.

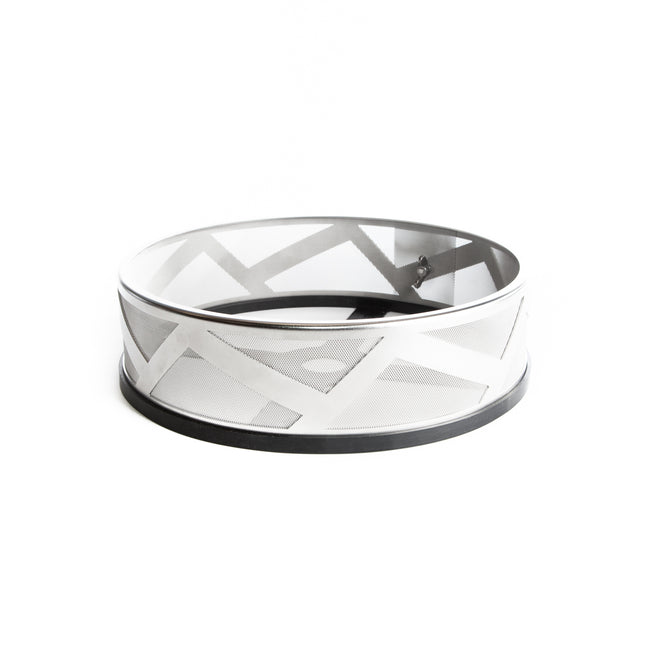

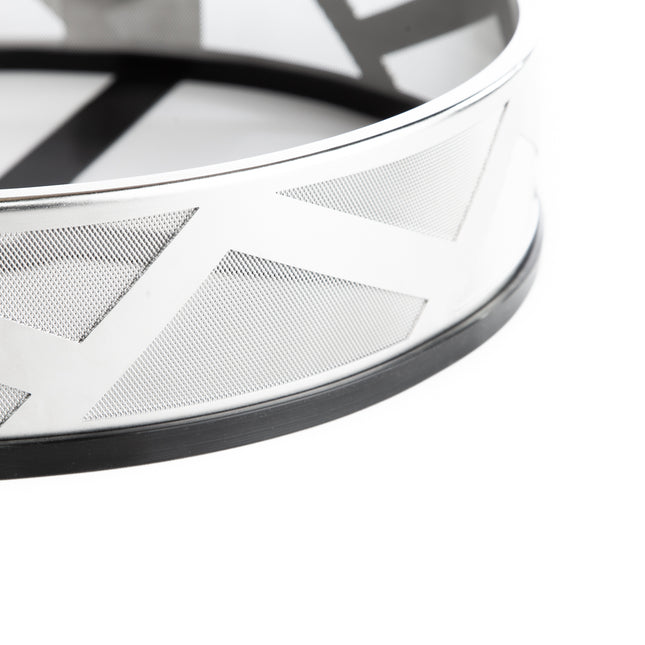

Trubinator is a product for use in your brewing system or boil kettle. During whirlpool, hops and other particles will gather in the middle of the filter, making it possible to pumpe more clean wort to your fermenter.
A single wingnut and bolt holds the filter in place, so it's easy to disassemble for cleaning.
Diameter: 500mm (19.7")
Height: 90mm (3.5")
Standard filter: R2x5
For User Manuals and support, please follow this link to Brewtools Docs.

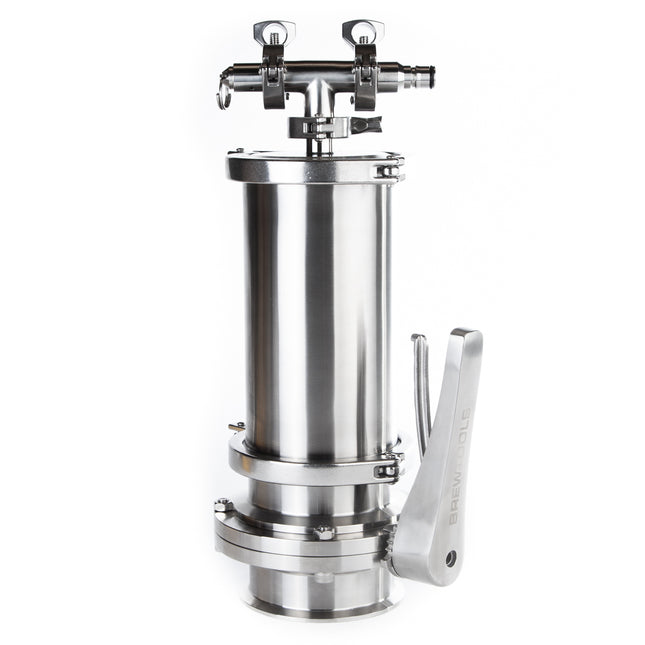

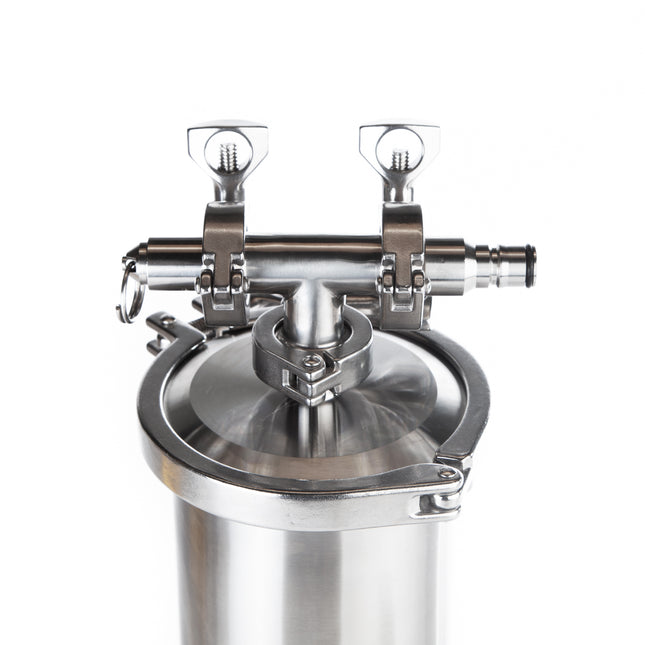

Kit for dryhopping and adding other ingredients to a pressurized fermenter without oxygen. This is the correct size for the Brewtools F150 Unitank.
Included in the box:
Butterfly-valve, TC 4"
TC Adapter, 4" til 34mm
TC Pipe, 4", L=200mm
Tri Clamp, 4" (2 pcs)
Tri Clamp, 34mm (3 pcs)
TC34mm Manual PRV
TC34mm Ball Lock connector, Gas
TC Tee, 34mm, L=60mm
TC Gasket, 4", (3 pcs)
TC Gasket, 34mm DN20, 5-pack
The volume of the HopDrop Kit is 1.5L. Pellet capacity in weight will vary

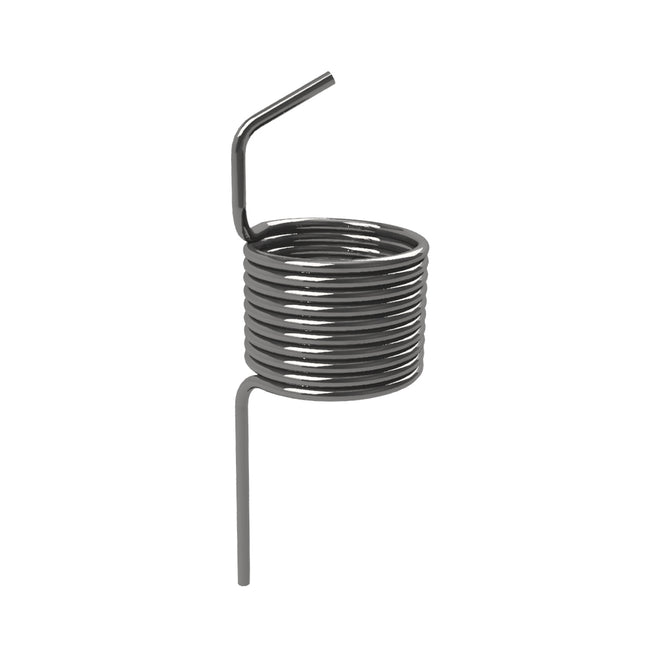

The push-fit sample valve coil reduces foam when drawings samples from a pressurized tank. Made for use with the sample valve included with the Brewtools Unitank Light.

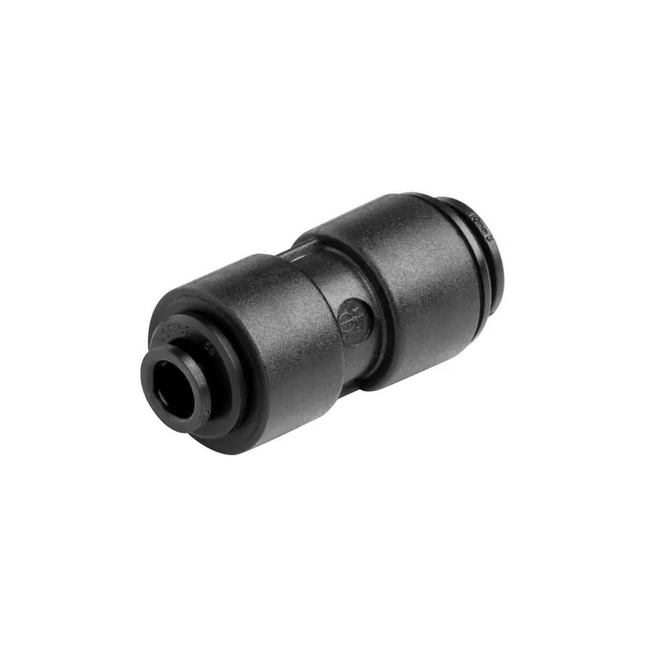

You will also need the JG Push-fit Adapter to connect to the sample valve.
Outside diameter: 4mm
Designed for 4mm pushfit.

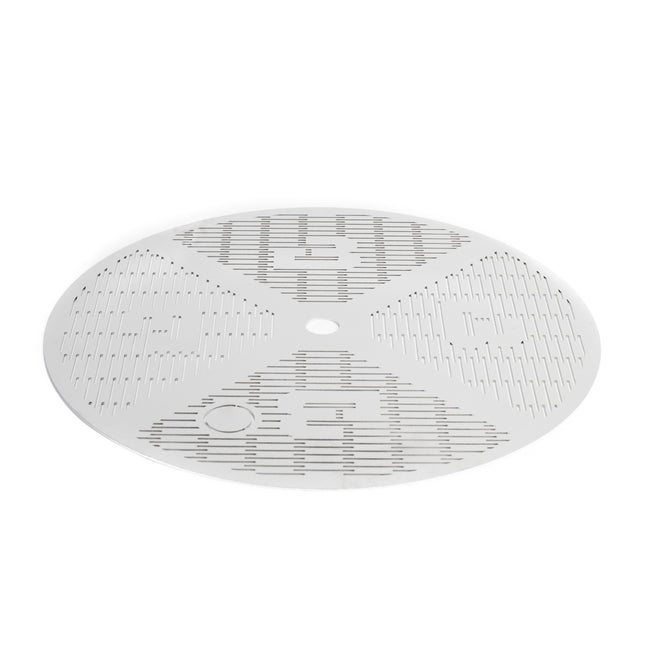

Laser cut filters made from steel blasted and electropolished stainless steel. Simple cleaning and maximum durability.
Gap width: 1.3mm
Pre-cut hole for weldless fitting to use with future accessories.

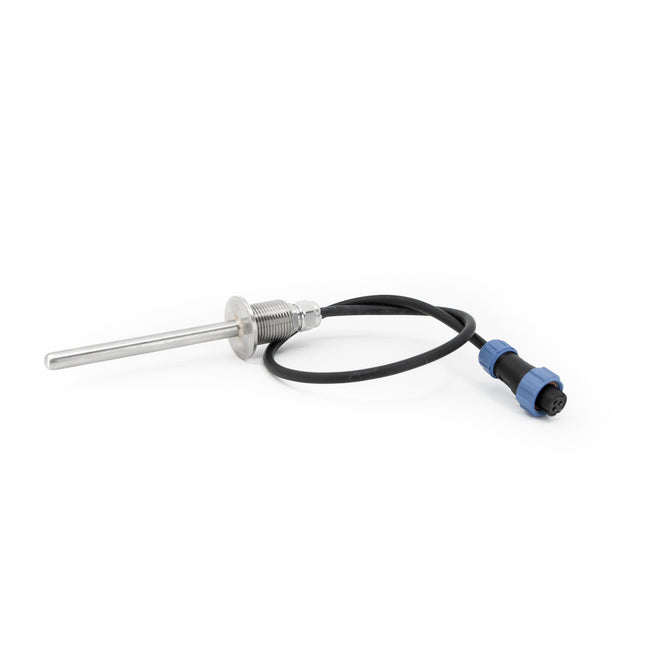

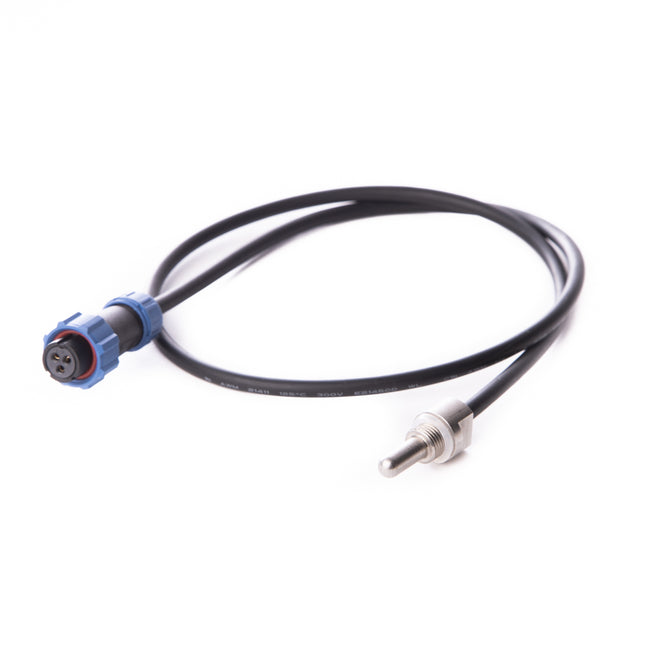

Digital (DS18B20) Inline sensor with M10 threads.
Used with an inline sensor holder to measure temperature on liquids passing the sensor.
Gasket is included.

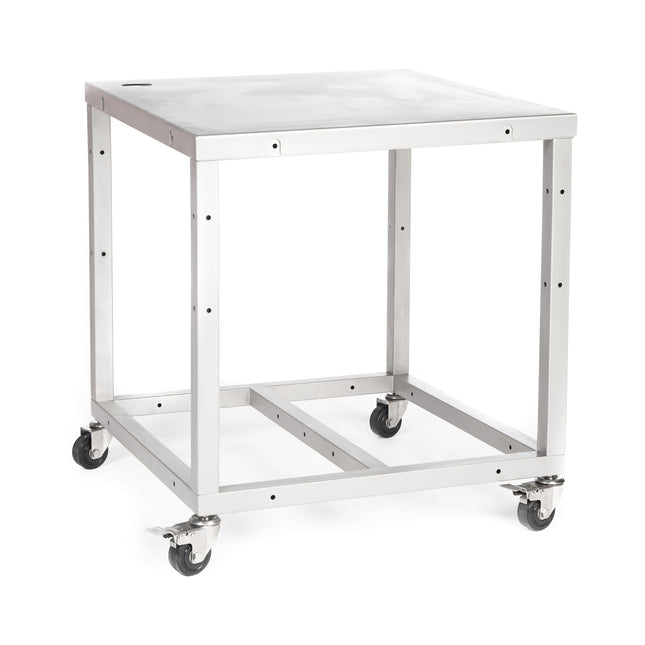

Modular design with the possibility to bolt several frames together
Strong 1.5" x 1.5" square frame construction
PureBlast™ surface
Ready for Troll Brew Crane
High quality wheels, 2 of which have brakes
The Brewtools Troll Brew Table System is a result of years of development. Brewtools worked hard to keep this simple, modular and flexible, and futureproof for accessories and add-ons. The optional Troll Brew Crane will give you the possibility to handle malt pipes with ease.
Specifications:
Size: 28.75" x 28.75" x 35" (assembled)
Weight assembled: 63.9 lbs
Material: AISI 304
In the box:
(2) table frames, 28.75" x 28.75"
(4) legs (27.5")
(1) top plate with folded edges
(5) silicone strip to raise top plate above corner bolts
(2) wheels with brakes
(2) wheels without brakes
(4) 20-pack silicone plugs for holes
Tools and bolts for assembly

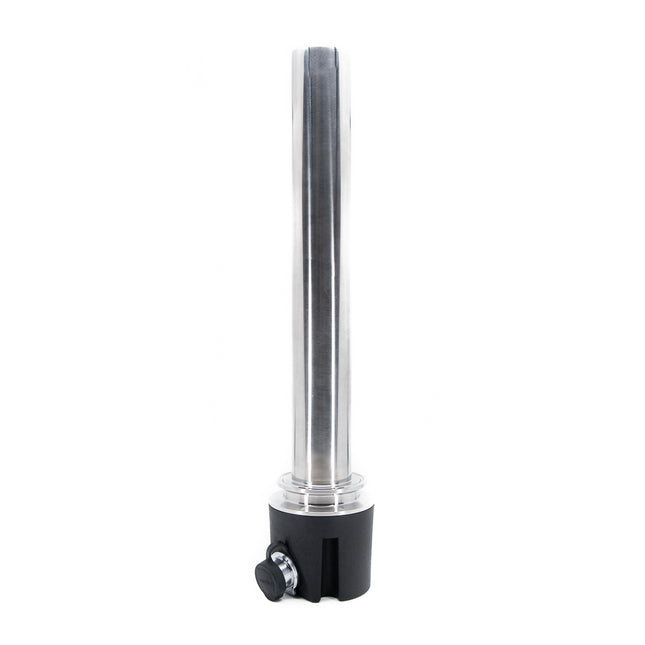

2" TC Sanitary heating element designed for use in santary applications where ease of cleaning is important. The heating element is designed to get the lowest possible watt density and is very easy to clean. Perfect for use with Brewtools Unitanks with kveik yeast or other high temperature fermentation applications.
Can also be used in cominbation with 2" TC pipes for RIMS applications.
Note that the product comes without any temperature or power control. The manufacturer does not take responsibility for incorrect use or use with too much power output. A PID-regulator may be needed to maintain accurate temperatures.
Diameter: Ø42mm (1.65")
Length: ~300mm (~11.8")
Included:
Heating element

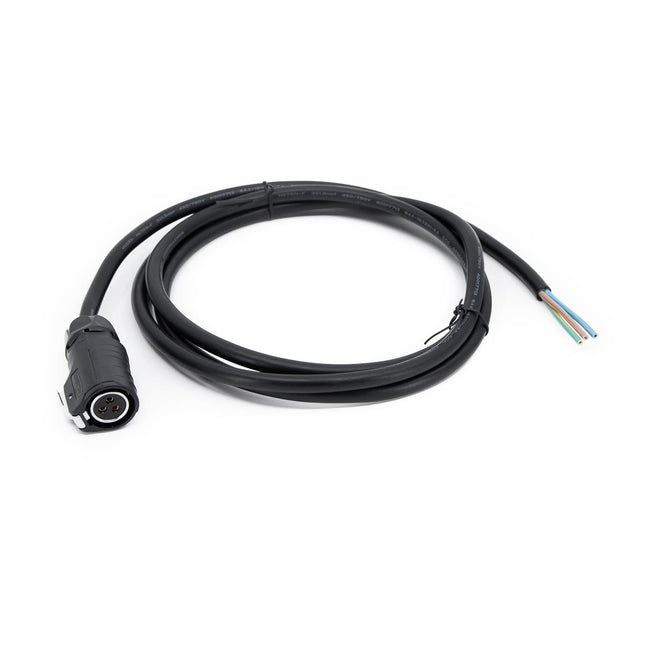

Power cable 2 meter

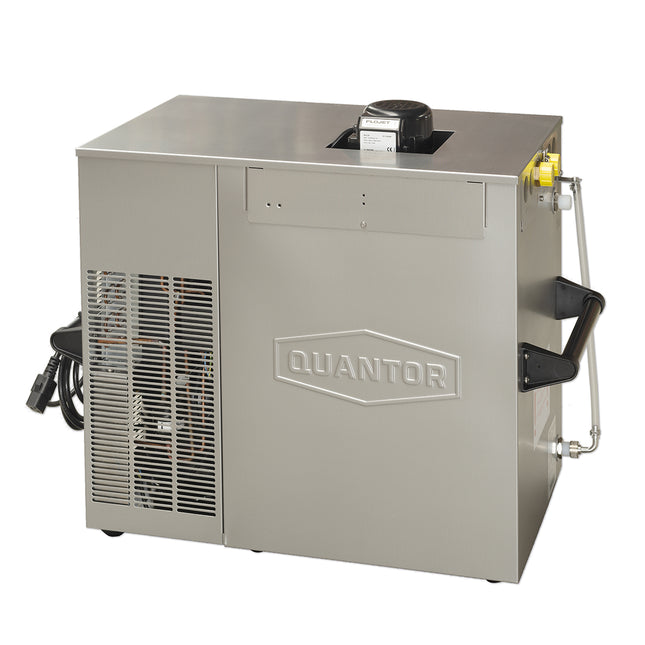

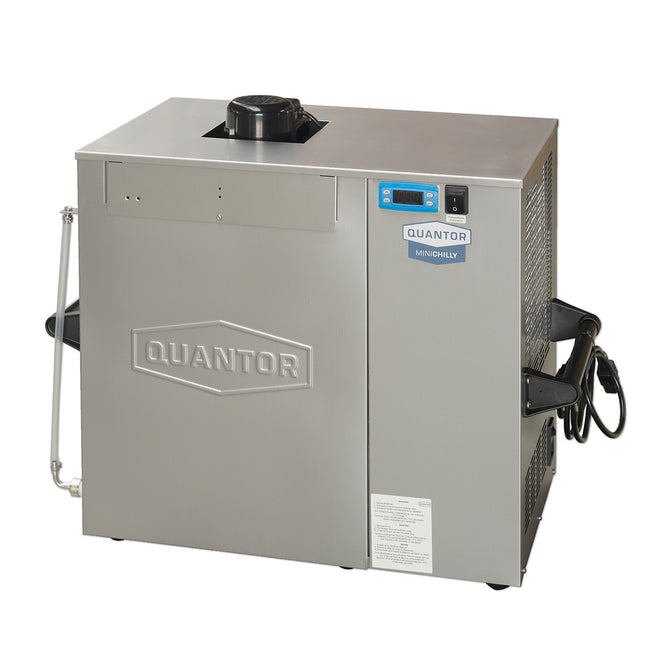

The Quantor MiniChilly 17 is highly recommended by Brewtools for chilling their F-series Unitanks. These glycol chillers are compact, high-quality units often used in professional settings. Made from stainless steel components and easy to install. They feature an integrated pump with a stirring function that ensures even temperatures throughout the reservoir. Rather than individual pumps for each fermenter, this unit is intended to be provide cooling solution to a single chilling loop where each fermenter will call for glycol circulation independently via solenoid valves. The MiniChilly 17 is recommended for up to 8 x 150L fermentation tanks of which 3 are cold crashed, or up to 4 x 300L fermentation tanks of which 1 is cold crashed.
Check out the Brewtools cooling system page for setup details and recommended accessories for building a chilling loop with the MiniChilly 17.
Specifications:
Controller: EWplus 961
Power connector: Schuko - C19
Power: 790W (1+ HP)
Refrigerant: R290 (Propane)
Cooling capacity @ 32°F: 1000W (3412 BTU/hr)
Cooling capacity @ 59°F: 1650W (5627 BTU/hr)
Tank volume: 12.68 gal
Dimensions: 29.5" x 16.5" x 23.6"
115V
Manufactured in Germany by Quantor/Kreyer.
NOTE: The product must stand still 24 hours before use after installation.
Insulation Jacket for MiniUni™ standard model fermenter.
Reduces condensation on the tank during big differences in temperature.
Made from 5mm neoprene.

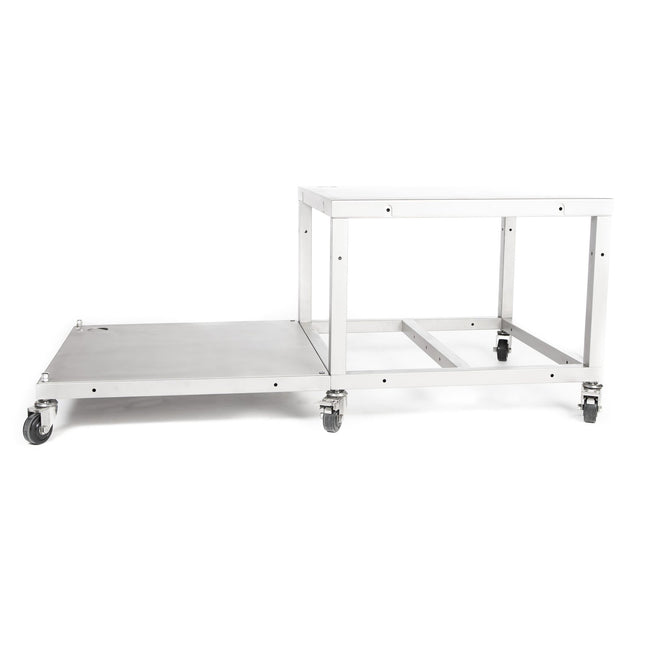

Low frame with wheels and flat top plate for Brewtools Troll Brew Table System.
Used for placing equipment like glycol chillers or handling malt when using the crane.

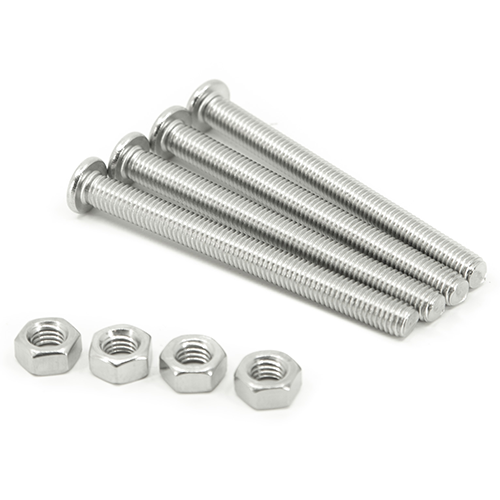

Remember M8 bolt kit for connecting to other modules.
Troll Frame With Plate only. Does not include Troll Table pictured in example photo.
Specifications:
Size: 28.75" x 28.75" x 5.9" (assembled)
Weight assembled: 37.5 lbs
Material: AISI 304
In the box:
1 pcs table frame, 28.75" x 28.75"
1 pcs flat top plate with hole
2 pcs wheels with brakes
2 pcs wheels without brakes
4 pcs 20-pack silicone plugs for holes
Tools and bolts for assembly
