Description
-

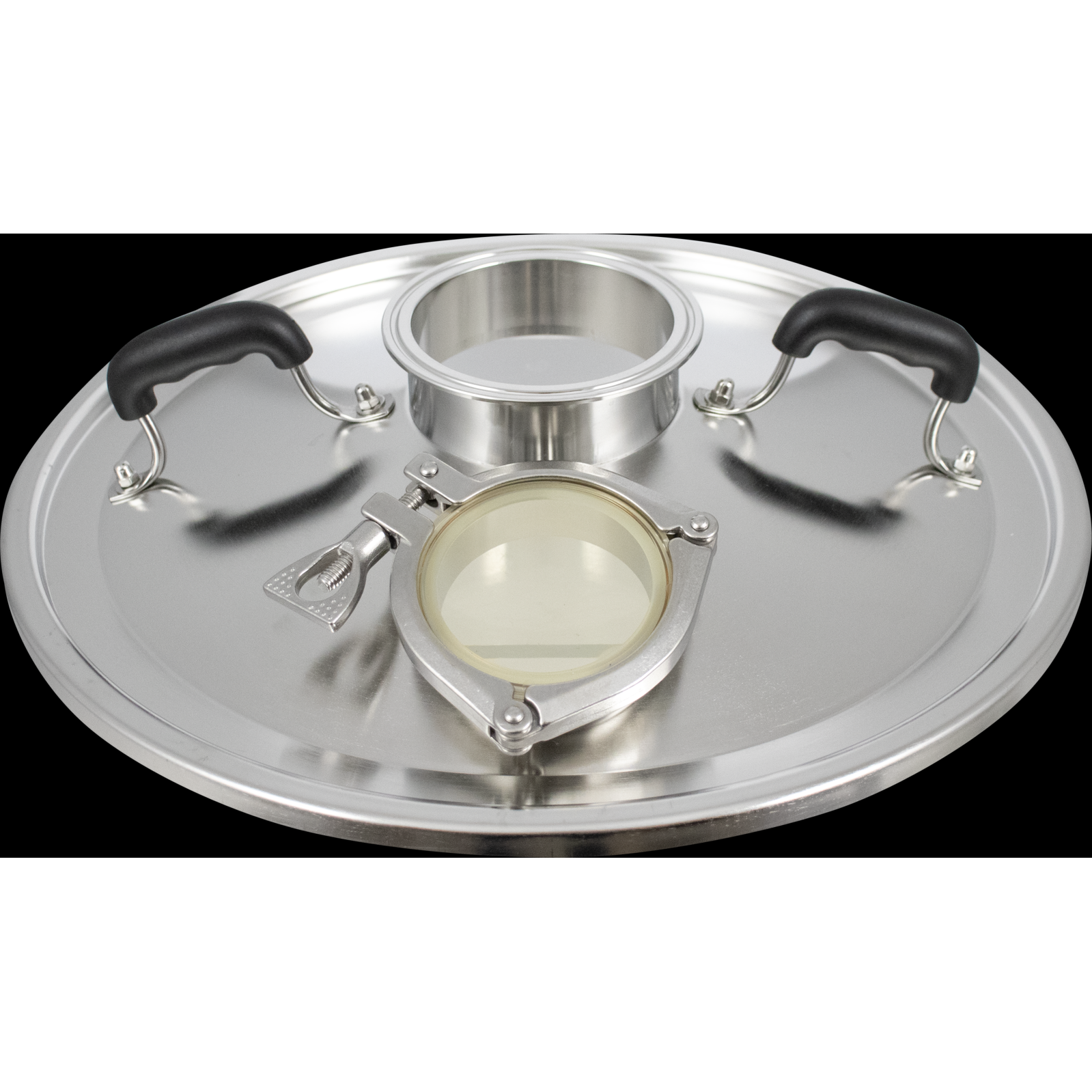

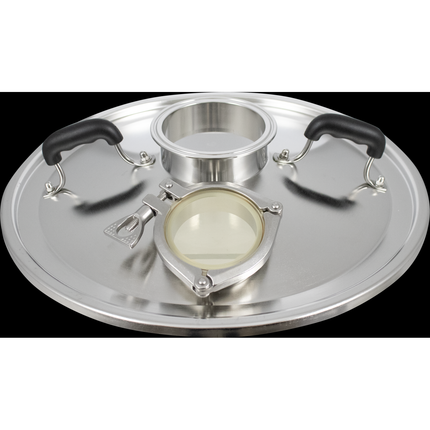

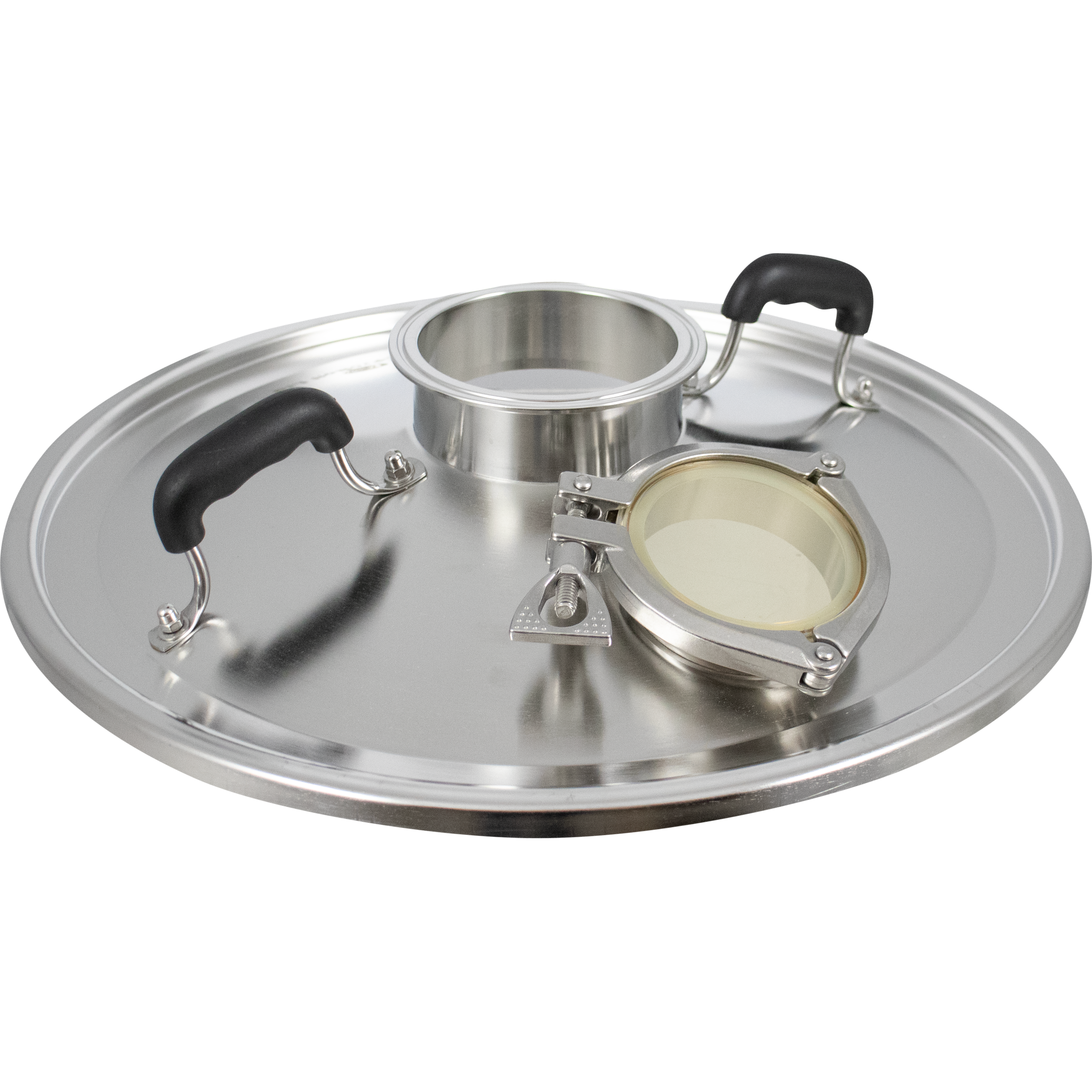

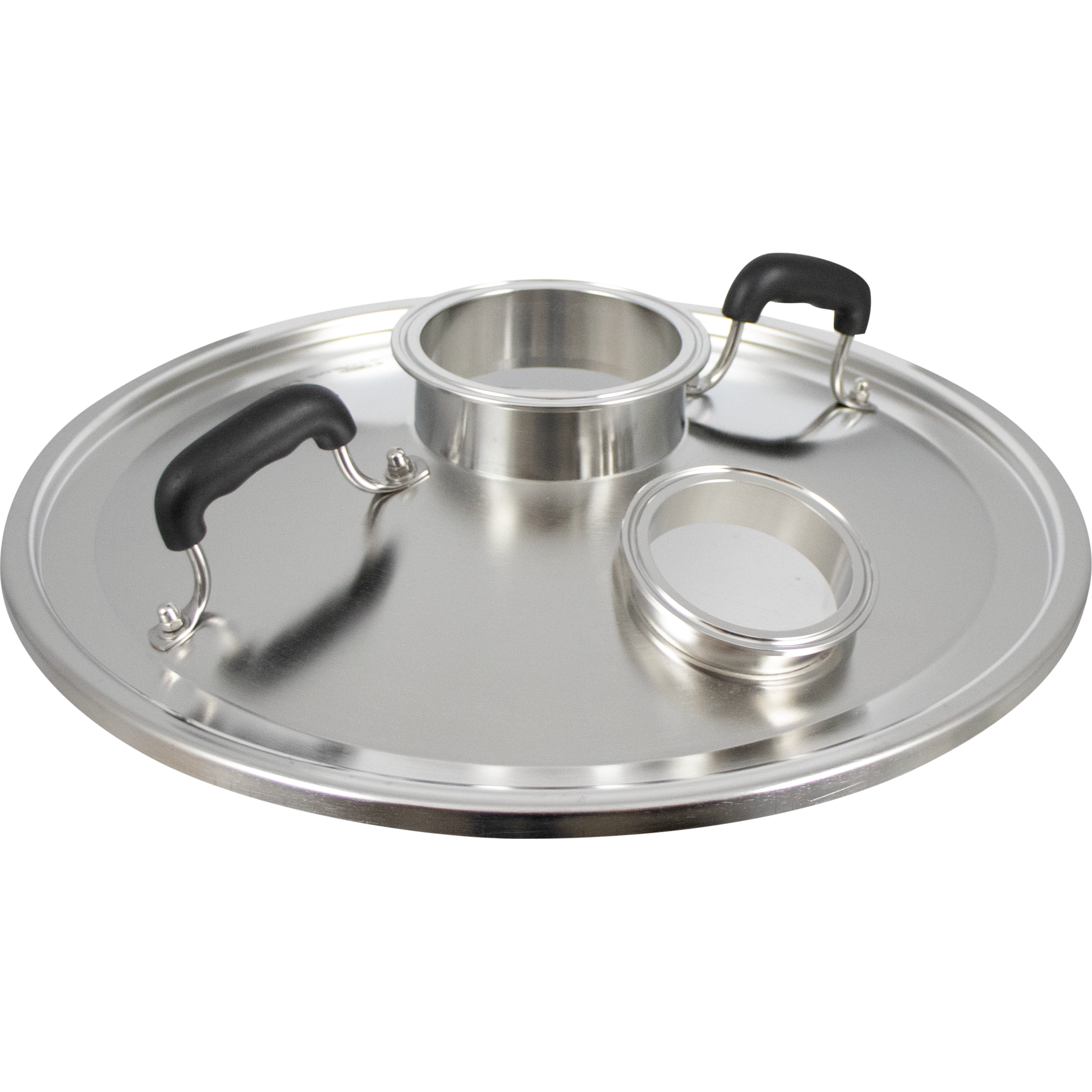

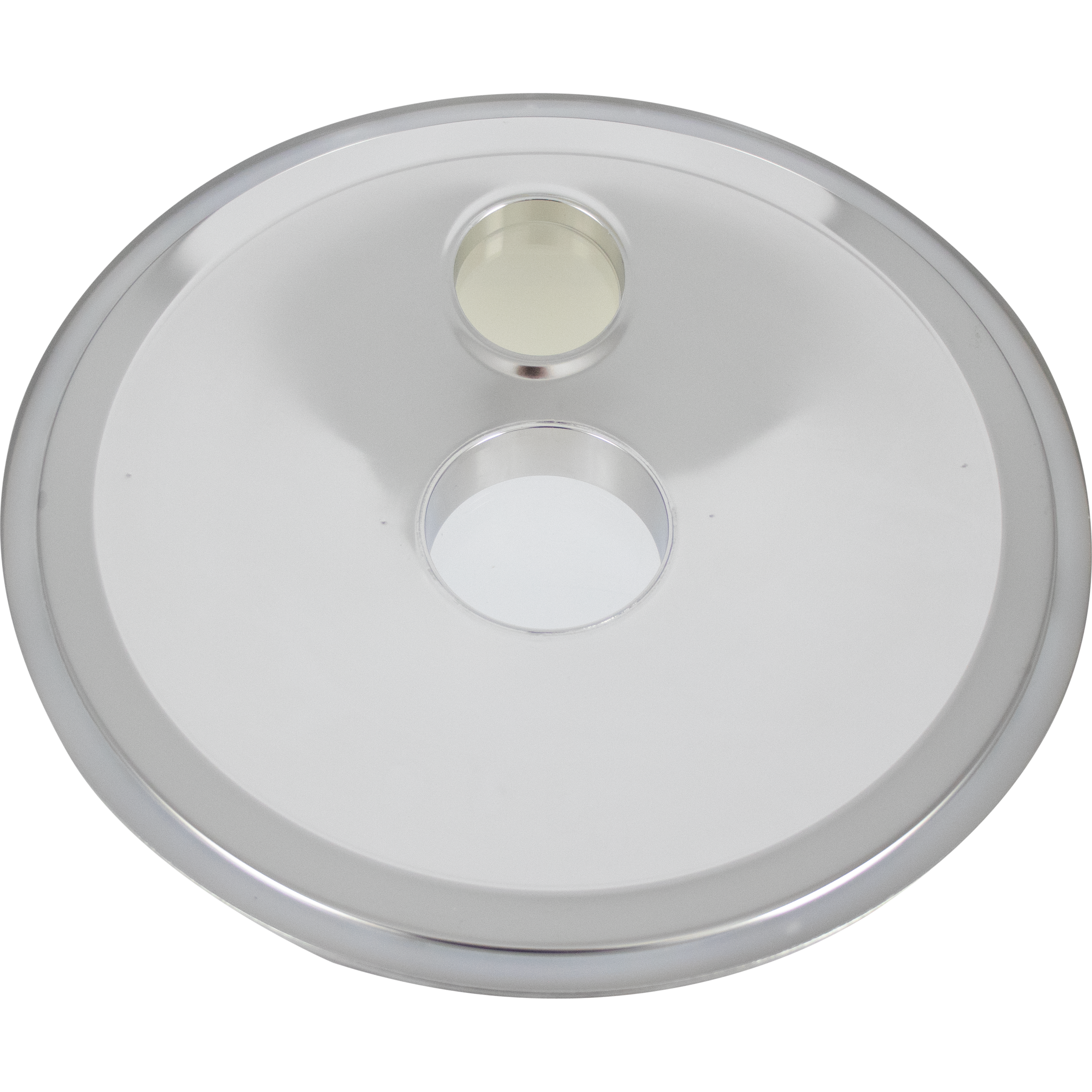

Heavy-duty stainless steel lid can be used with a still top or steam condenser
-

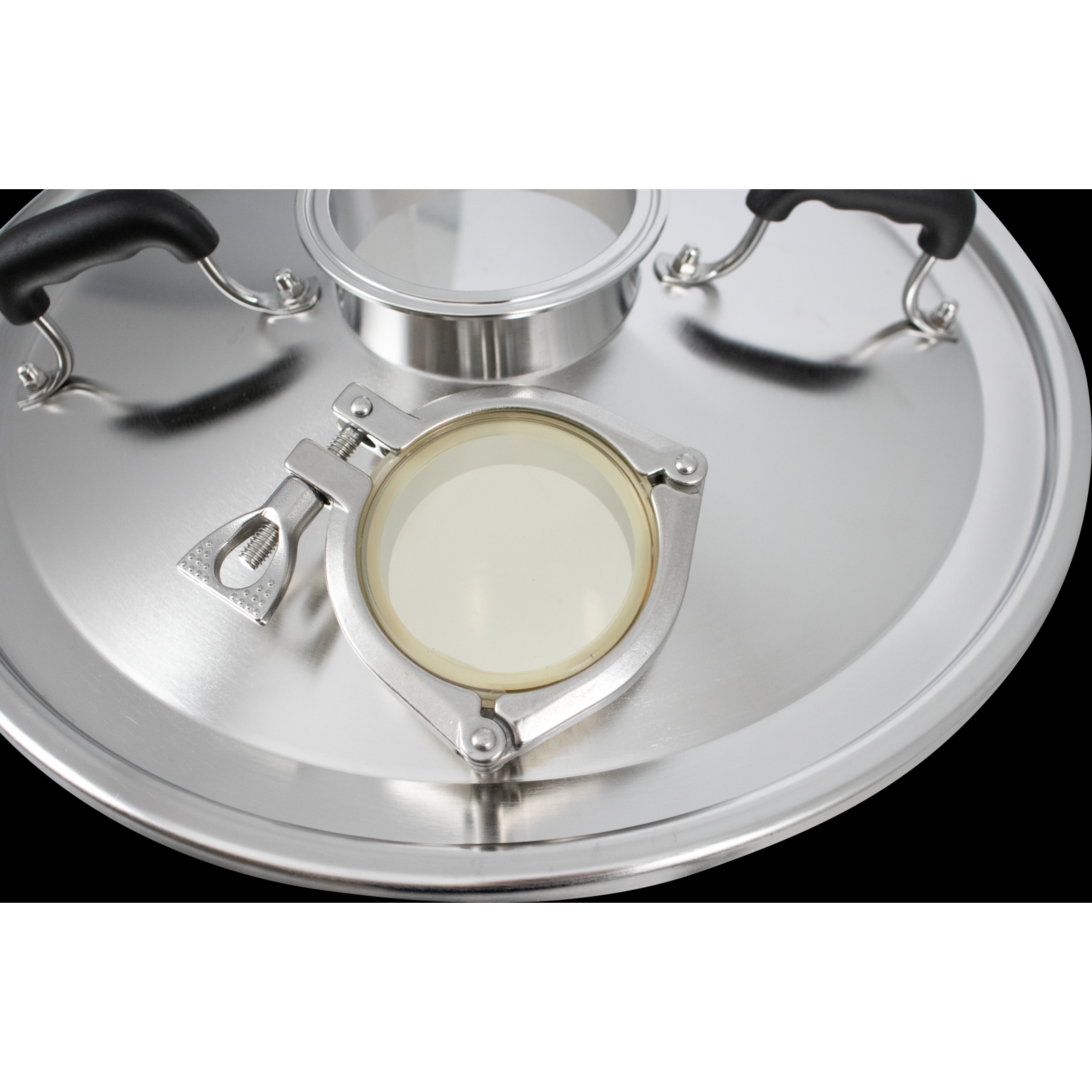

Sight glass disc allows you to watch your boil without having to remove your still or condenser
-
Easily remove the disc during the hot break or to add hops or other boil additions
-

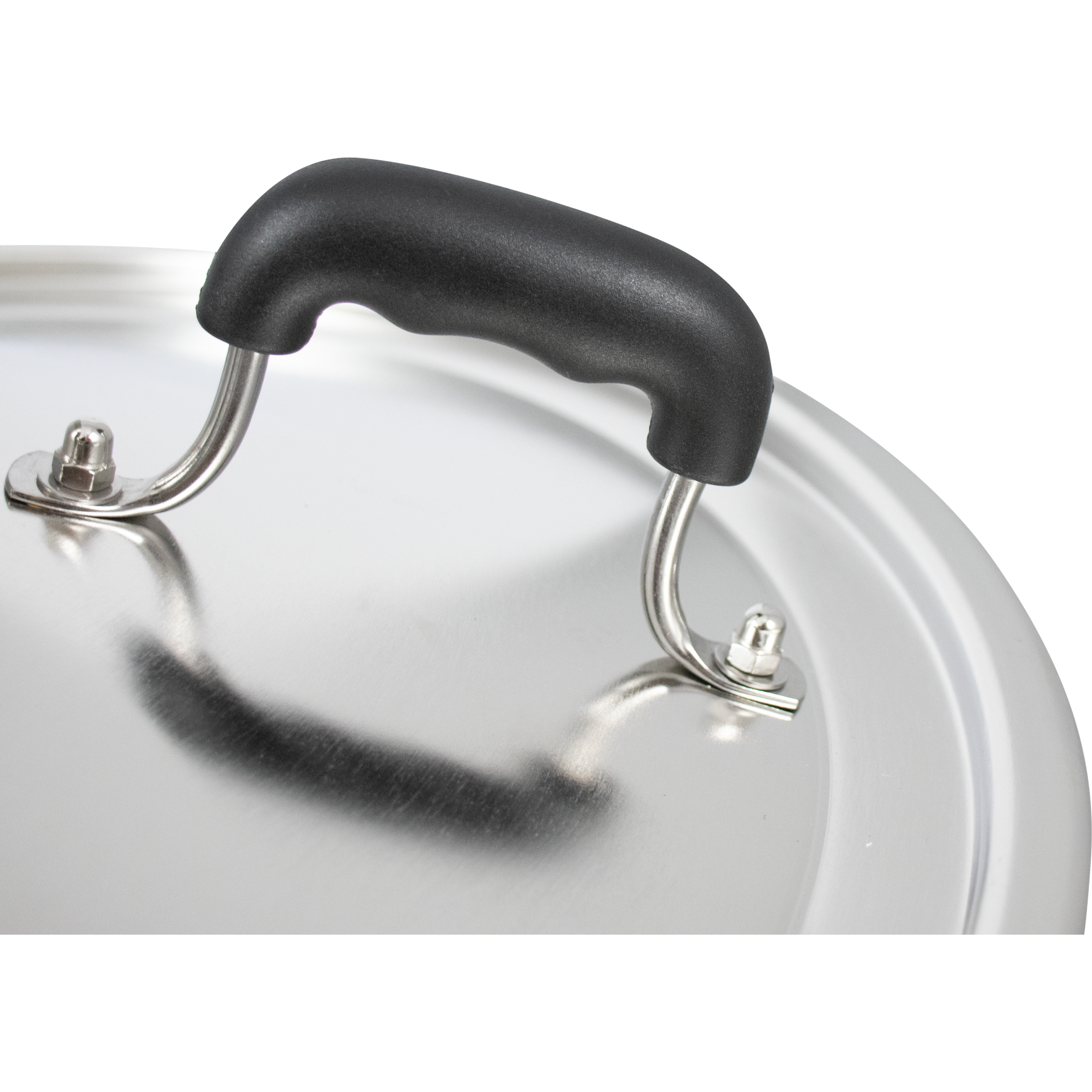

Molded grips for easier handling with the lid is still hot
-
Compatible with 65L BrewZillas and DigiBoils
If you're using an AlcoEngine Still Top or Steam Condenser set with your BrewZilla or DigiBoil, this heavy-duty stainless lid with sight glass is virtually a must-have. Whether distilling or brewing, keeping an eye on your boil will help you stop foaming or boil over issues before they happen. With the standard distillation lid, checking on your wash or wort means removing or tipping the apparatus over to get a peek inside the boiler, which can be a cumbersome (if not dangerous) part of your process. The PPSU sight glass disc can also be easily removed to add hops or other boil additions through the large 3" T.C. ferrule. (Use gloves, it will be hot!)

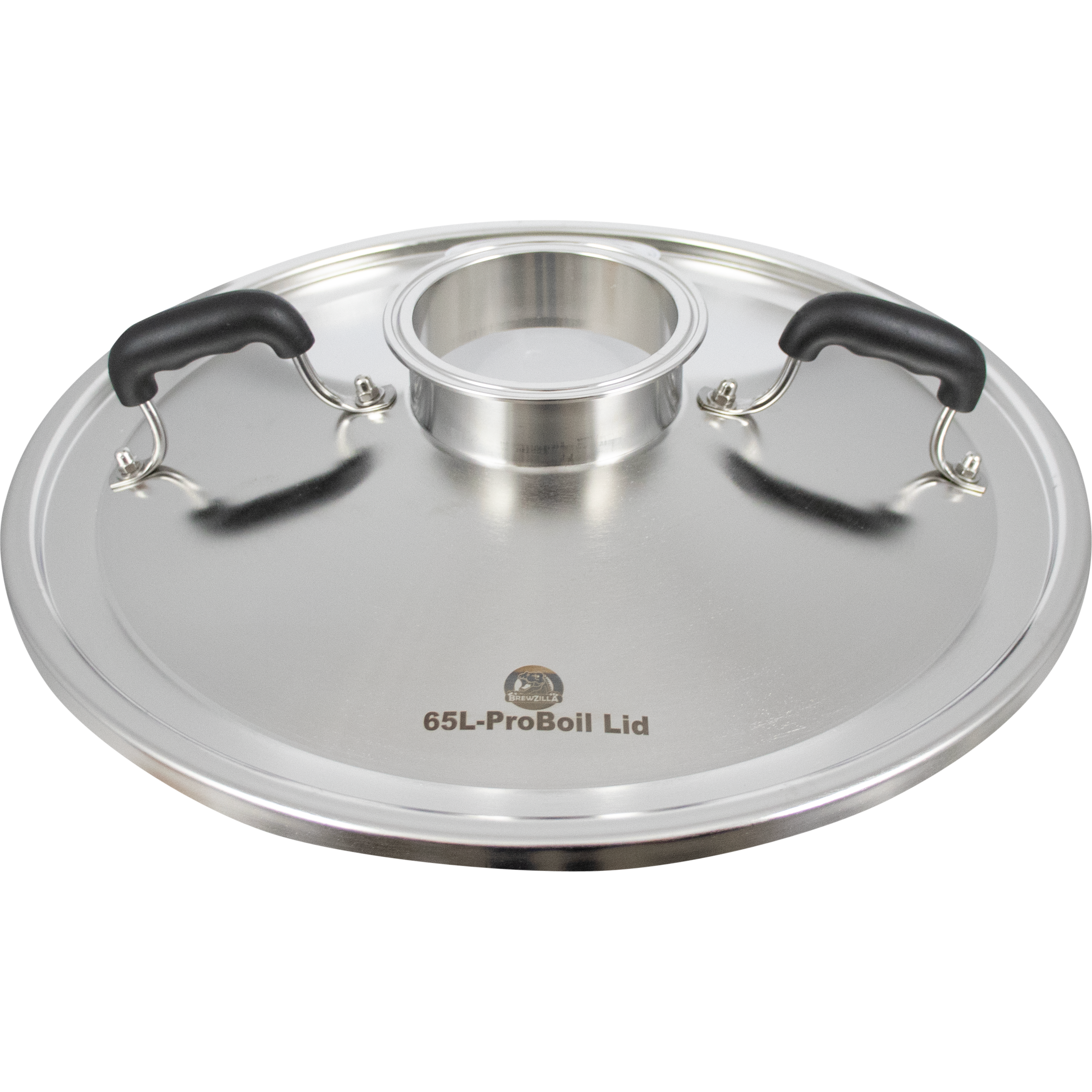

The 65L lid is designed to be extremely sturdy when using heavier stills and is made with a 4" T.C. ferrule top port. To pair the lid with an AlcoEngine Still Top or the BrewZilla Steam Condenser Set, you can use a 2" x 4" T.C. reducer. (The AlcoEngine Still Tops will also need this single sided bead seal for a secure tri-clamp connection.)

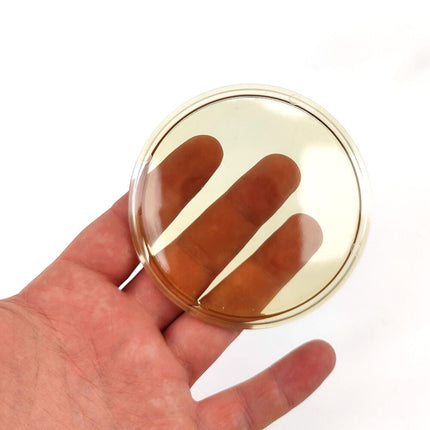

The sight glass disc is made from a special PPSU plastic—an excellent choice for components that are exposed to high temperatures (up to 392°F / 200°C) and corrosive media due to its exceptional chemical resistance, as well as being extremely impact resistant. KegLand decided to use this type of plastic because it also has superior thermal and mechanical properties with the added benefit of being transparent. Intricate parts can be injection molded that would have been near impossible to do with stainless steel or lab-grade glass.
Specs:
-
4" T.C. top ferrule port
-
3" T.C. sight glass ferrule
-
Lid handles with molded grips
-

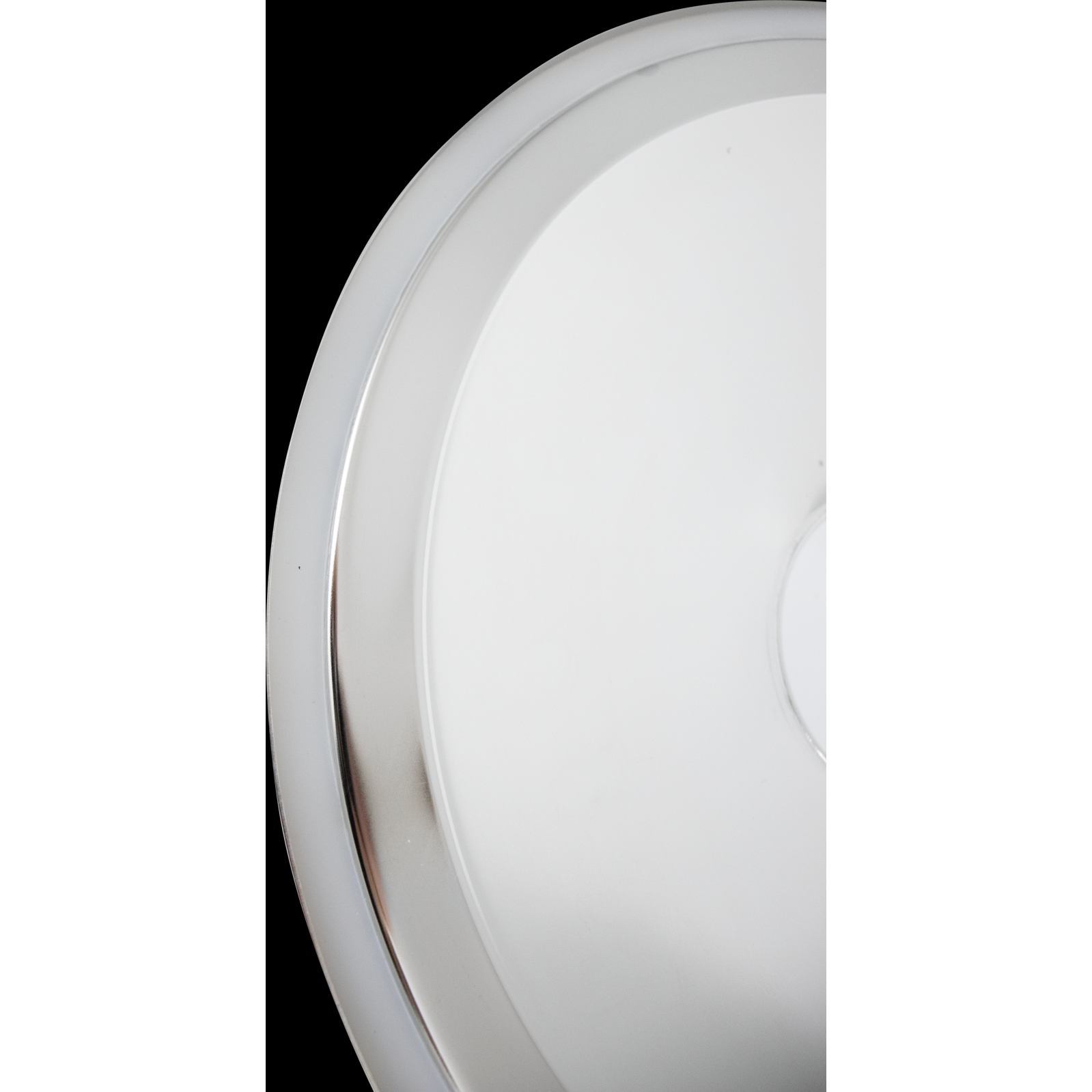

Thicker silicone lid gasket for a tighter seal
Includes:
-
3" PPSU sight glass disc
-
3" tri-clamp
-
3" silicone tri-clamp gasket
-
Silicone lid gasket
KegLand Part Number: KL25829
