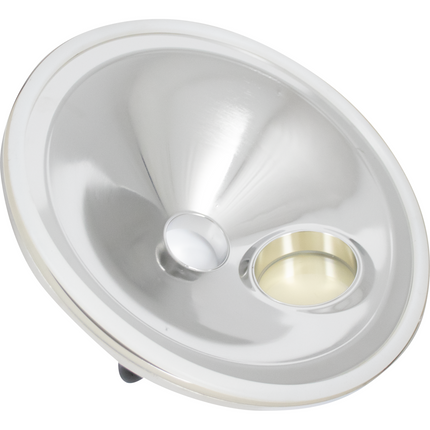

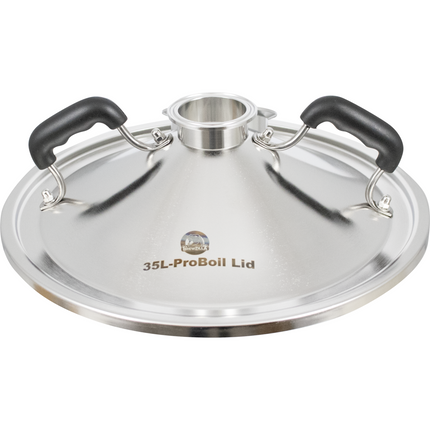

Pro Sight Glass Distillation Lid | Steam Condenser Lid | BrewZilla | DigiBoil | 35L

    Description

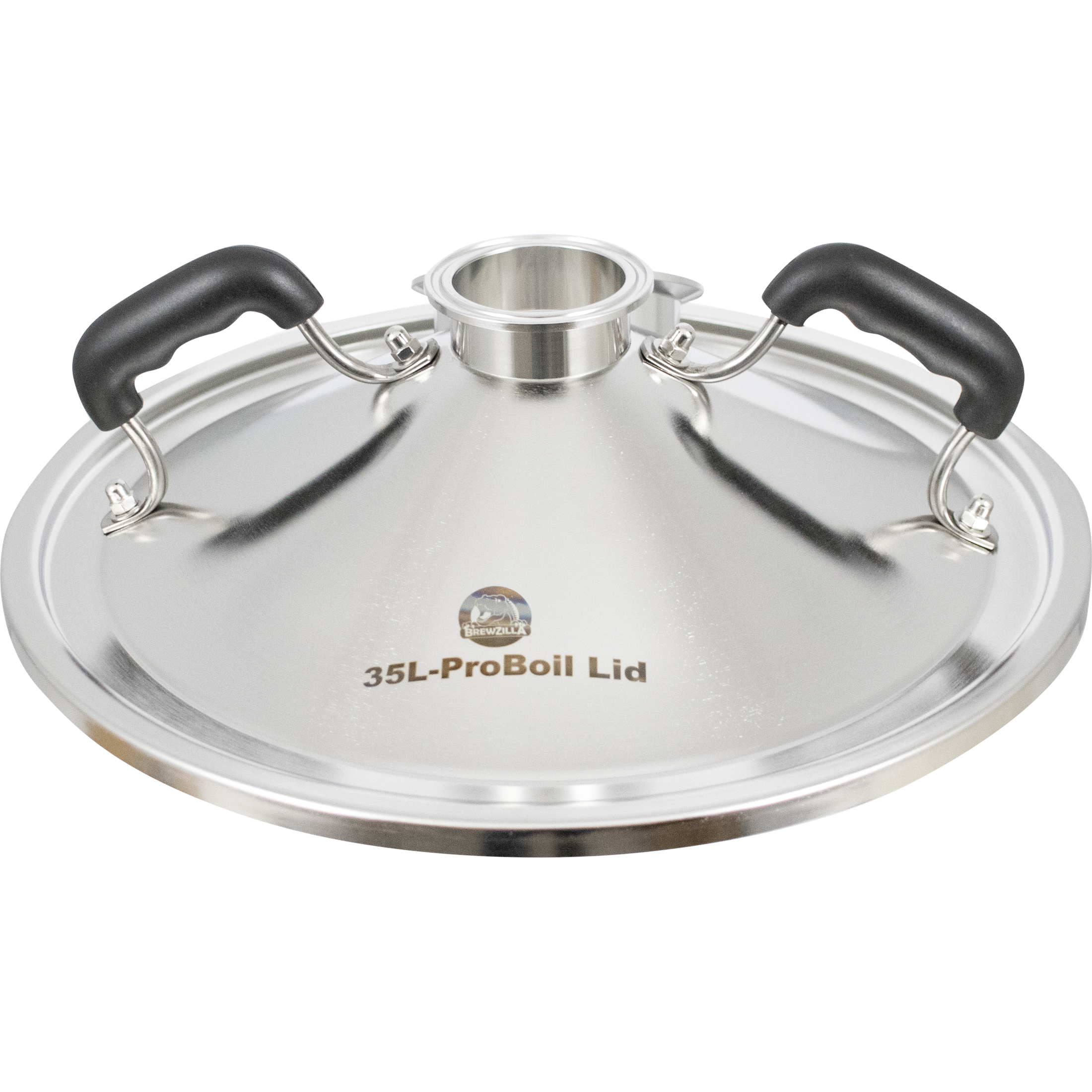

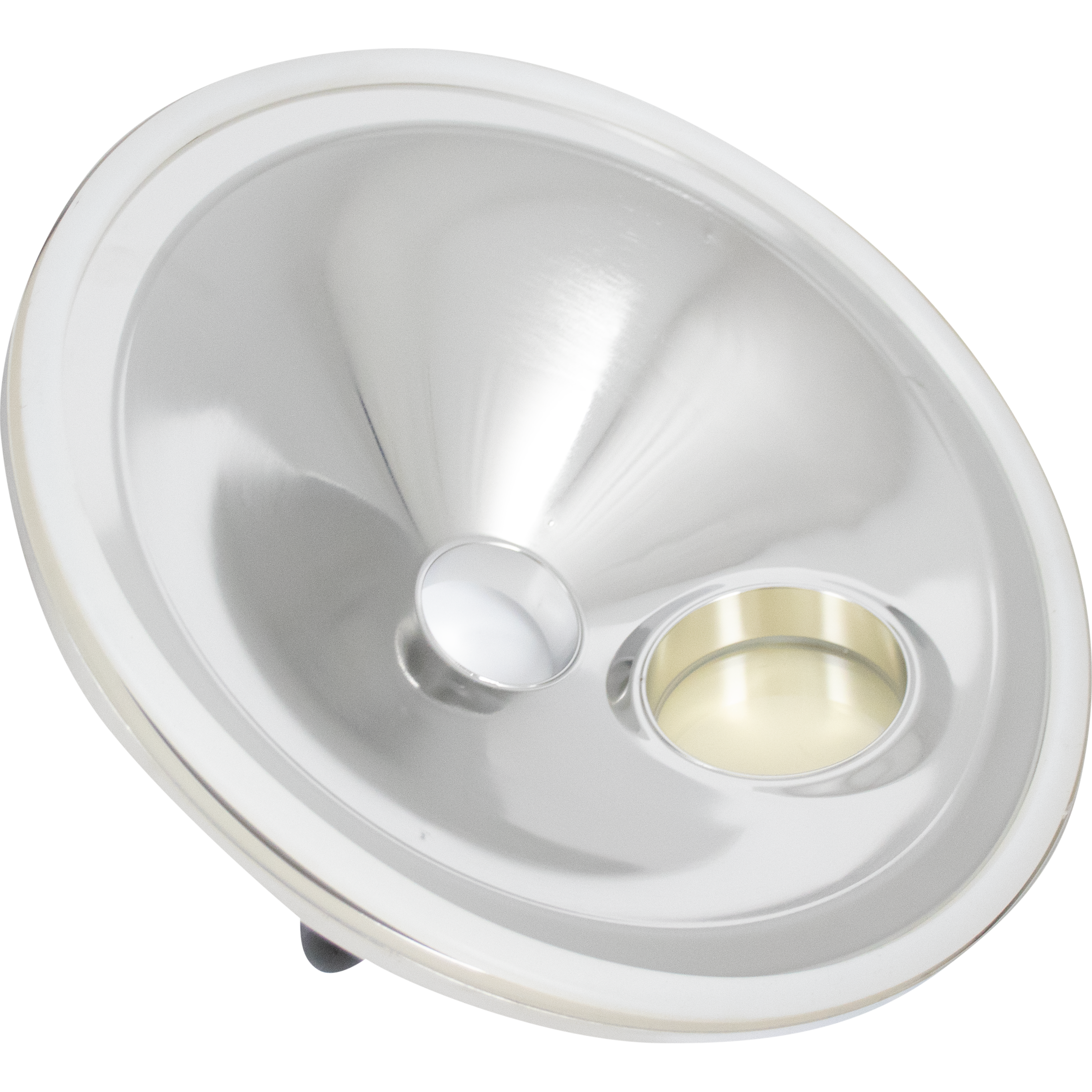

    • Heavy-duty stainless steel lid can be used with a still top or steam condenser

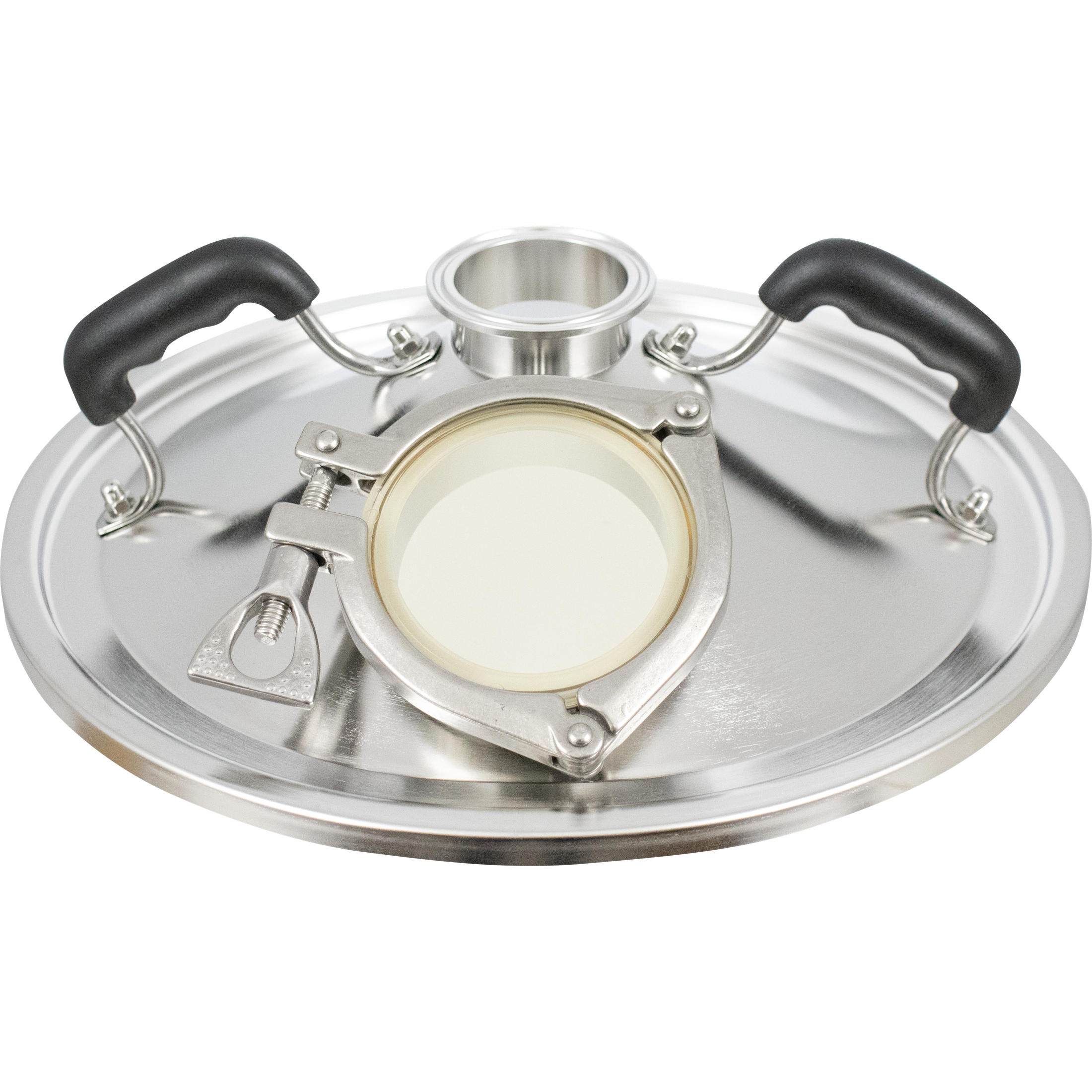

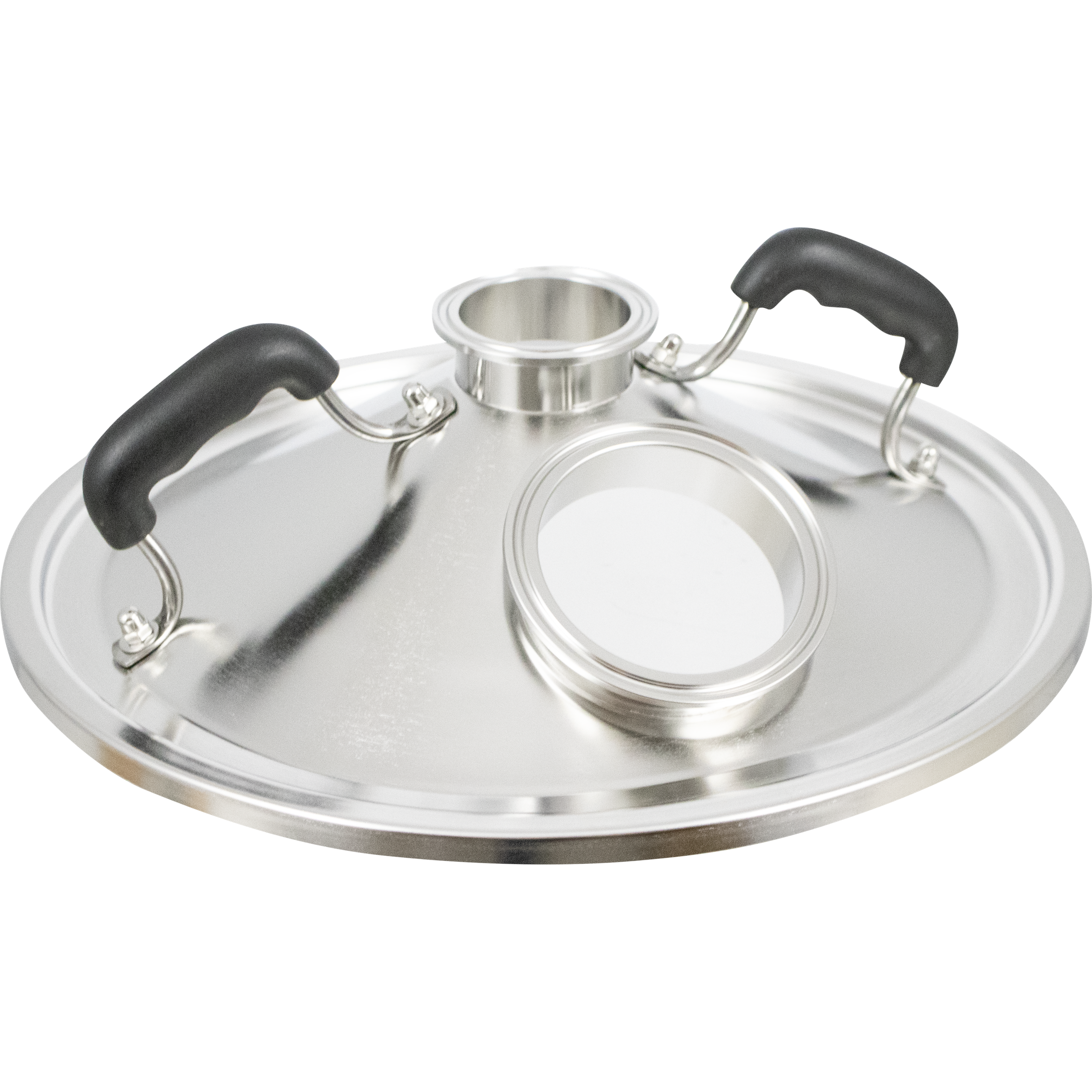

    • Sight glass disc allows you to watch your boil without having to remove your still or condenser
    • Easily remove the disc during the hot break or to add hops or other boil additions

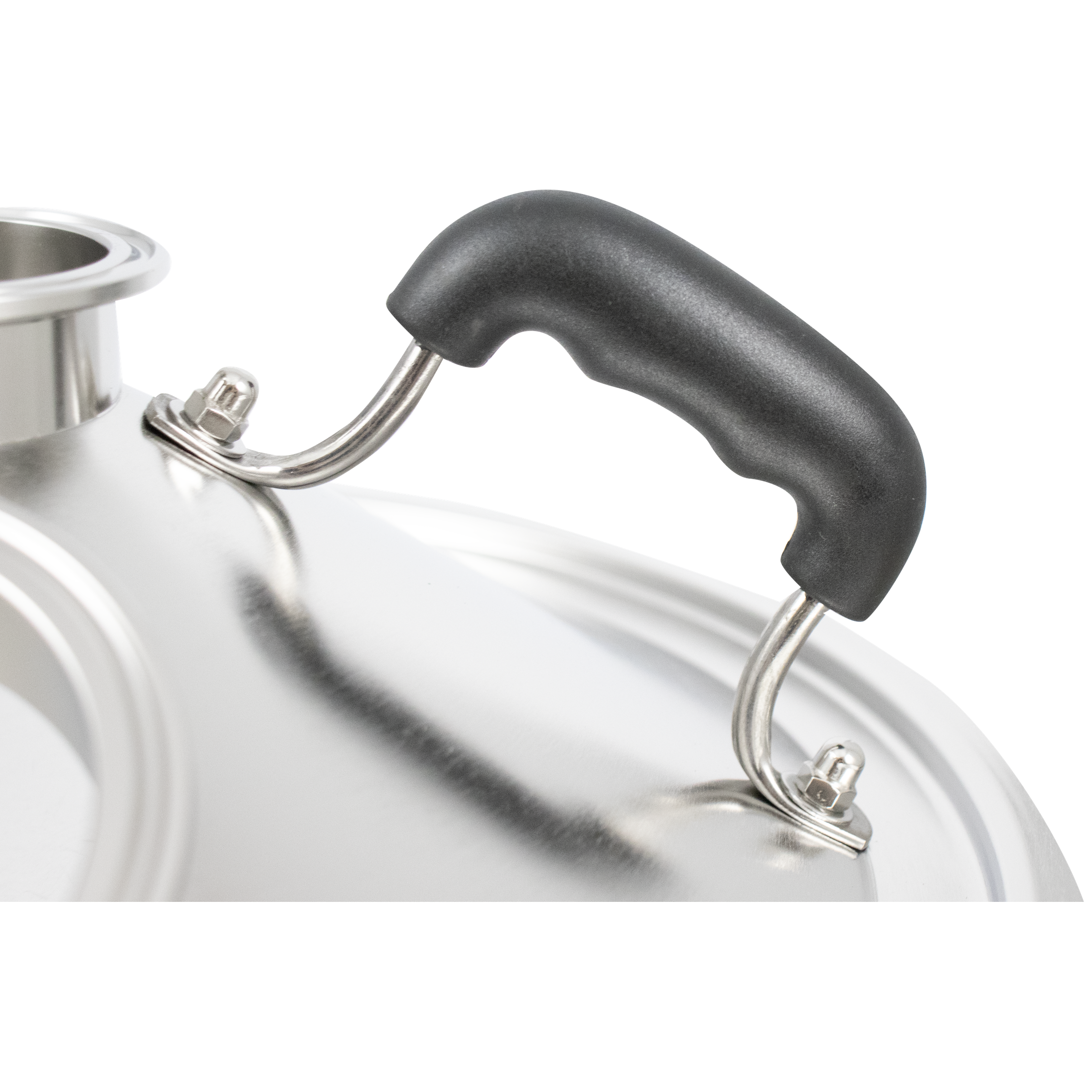

    • Molded grips for easier handling with the lid is still hot
    • Compatible with 35L BrewZillas and DigiBoils

    If you're using an AlcoEngine Still Top or Steam Condenser Set with your BrewZilla or DigiBoil, this heavy-duty stainless lid with sight glass is virtually a must-have. Whether distilling or brewing, keeping an eye on your boil will help you stop foaming or boil over issues before they happen. With the standard distillation lid, checking on your wash or wort means removing or tipping the apparatus over to get a peek inside the boiler, which can be a cumbersome (if not dangerous) part of your process. The PPSU sight glass disc can also be easily removed to add hops or other boil additions through the large 3" T.C. ferrule. (Use gloves, it will be hot!)

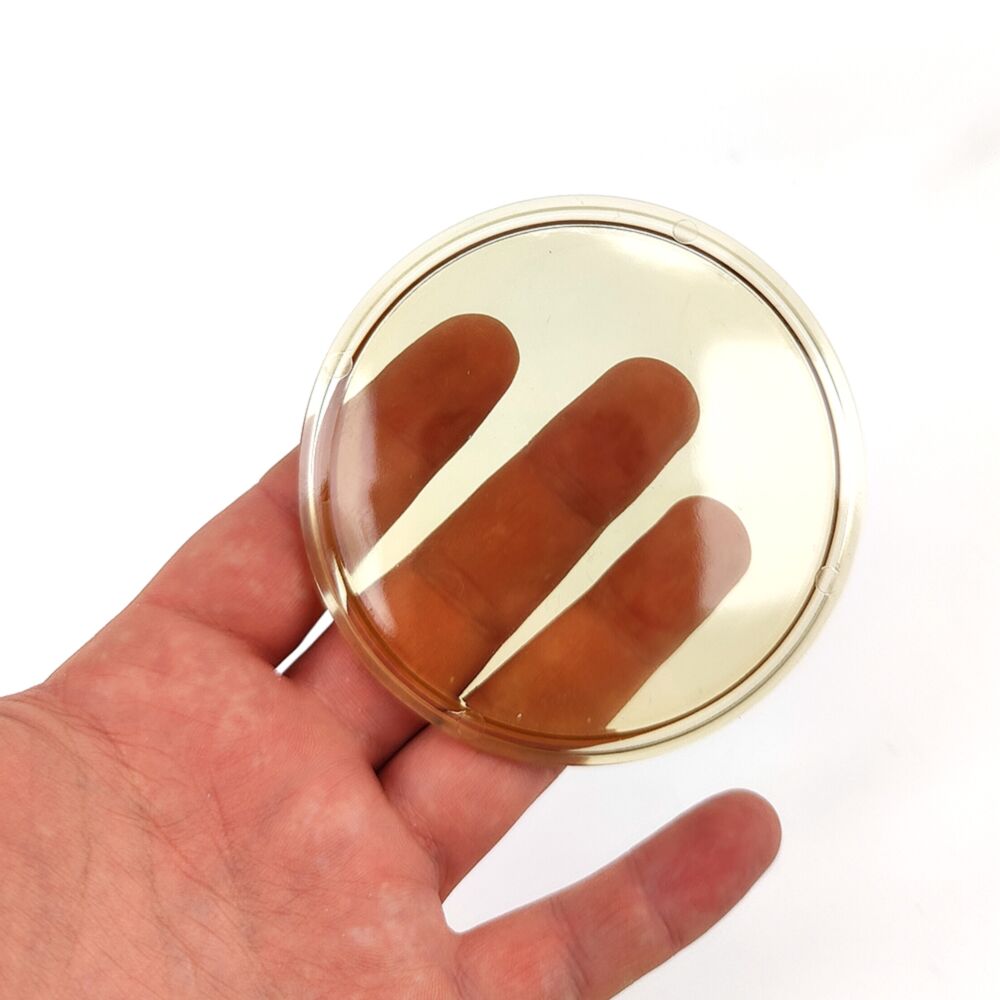

    The sight glass disc is made from a special PPSU plastic—an excellent choice for components that are exposed to high temperatures (up to 392°F / 200°C) and corrosive media due to its exceptional chemical resistance, as well as being extremely impact resistant. KegLand decided to use this type of plastic because it also has superior thermal and mechanical properties with the added benefit of being transparent. Intricate parts can be injection molded that would have been near impossible to do with stainless steel or lab-grade glass.

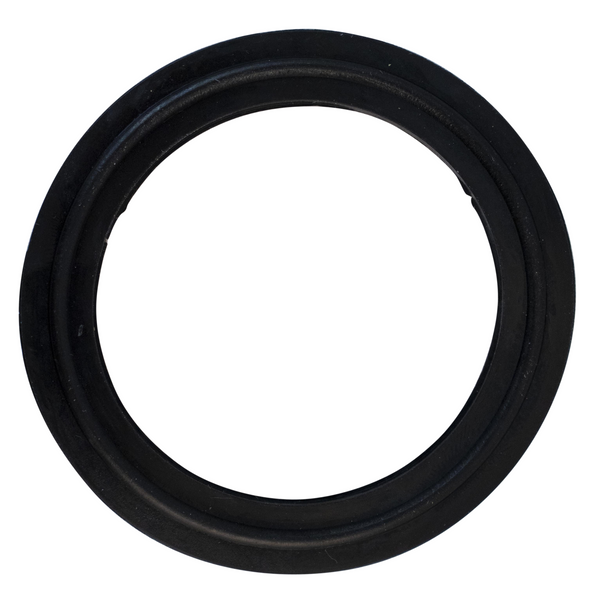

    For use with an AlcoEngine Still Top, you will also need this single sided bead seal.

    Installing AlcoEngine Still:

    • Remove the bottom nut and seal from the column
    • Place the single sided bead seal on the lid's tri-clamp ferrule (beaded side facing down)
    • Pass the threaded bottom section of the column through the ferrule
    • Secure in place with a 2" tri-clamp
    • The column's bottom nut and seal are not needed

    Specs:

    • 2" T.C. top ferrule port
    • 3" T.C. sight glass ferrule
    • Lid handles with molded grips
    • Thicker silicone lid gasket for a tighter seal

    Includes:

    • 3" PPSU sight glass disc
    • 3" tri-clamp
    • 3" silicone tri-clamp gasket

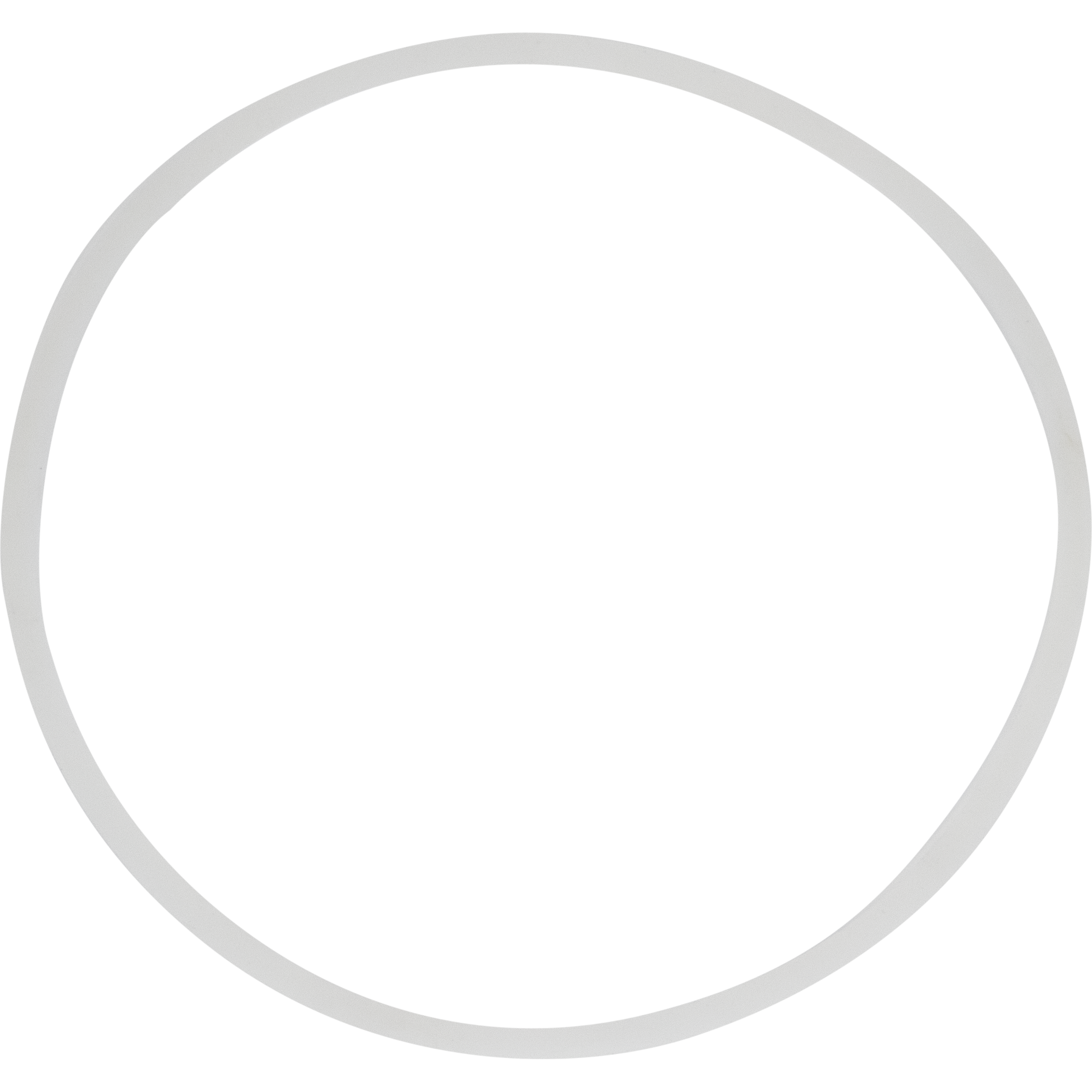

    • Silicone lid gasket

    KegLand Part Number: KL25812

    Pro Sight Glass Distillation Lid | Steam Condenser Lid | BrewZilla | DigiBoil | 35L

      Product form

      SKU: DS136

      $164.99

      Calculating shipping time...
      Shipping
      Free Shipping*
      Shipping
      Paid Shipping
      Drop Ship
      Drop Ship
      Discount Exclusion
      Discount Exclusion
      Freight
      Freight Only
      Pre-book
      Pre Order

        Description

        • Heavy-duty stainless steel lid can be used with a still top or steam condenser
        • Sight glass disc allows you to watch your boil without having to remove your still or condenser
        • Easily remove the disc during the hot break or to add hops or other boil additions
        • Molded grips for easier handling with the lid is still hot
        • Compatible with 35L BrewZillas and DigiBoils

        If you're using an AlcoEngine Still Top or Steam Condenser Set with your BrewZilla or DigiBoil, this heavy-duty stainless lid with sight glass is virtually a must-have. Whether distilling or brewing, keeping an eye on your boil will help you stop foaming or boil over issues before they happen. With the standard distillation lid, checking on your wash or wort means removing or tipping the apparatus over to get a peek inside the boiler, which can be a cumbersome (if not dangerous) part of your process. The PPSU sight glass disc can also be easily removed to add hops or other boil additions through the large 3" T.C. ferrule. (Use gloves, it will be hot!)

        The sight glass disc is made from a special PPSU plastic—an excellent choice for components that are exposed to high temperatures (up to 392°F / 200°C) and corrosive media due to its exceptional chemical resistance, as well as being extremely impact resistant. KegLand decided to use this type of plastic because it also has superior thermal and mechanical properties with the added benefit of being transparent. Intricate parts can be injection molded that would have been near impossible to do with stainless steel or lab-grade glass.

        For use with an AlcoEngine Still Top, you will also need this single sided bead seal.

        Installing AlcoEngine Still:

        • Remove the bottom nut and seal from the column
        • Place the single sided bead seal on the lid's tri-clamp ferrule (beaded side facing down)
        • Pass the threaded bottom section of the column through the ferrule
        • Secure in place with a 2" tri-clamp
        • The column's bottom nut and seal are not needed

        Specs:

        • 2" T.C. top ferrule port
        • 3" T.C. sight glass ferrule
        • Lid handles with molded grips
        • Thicker silicone lid gasket for a tighter seal

        Includes:

        • 3" PPSU sight glass disc
        • 3" tri-clamp
        • 3" silicone tri-clamp gasket
        • Silicone lid gasket

        KegLand Part Number: KL25812

        Important Warnings & Shipping Info +
        Shipping Icon
        Free Shipping: Fast & Free Shipping over $79
        Shipping Icon
        Shipping Rates Apply: Bulk items like grain, bottles, and malt are excluded from our free shipping promotion due to their weight, and often dropship items. Standard shipping rates apply and are calculated at checkout based on your location and order size.
        Drop Ship Icon
        Drop Ship: This product will ship directly from the supplier. Delivery may take 1-4 weeks depending on the vendor.
        Discount Exclusion Icon
        Discount Exclusion: This item is not eligible for sitewide price reductions or percentage discounts. Learn more.
        Freight Icon
        Freight Shipping: This item ships freight only.
        Pre-book Icon
        Pre Order: This item is available for Pre-Order. Full payment is required to reserve stock.
        Shipping Weight: 4.0 lb

        You Might Also Need

        ForgeFit® Stainless Tri-Clamp | 2
        ForgeFit® Stainless Tri-Clamp | 2" Clamp
        $10.99
        ForgeFit® Tri-Clamp Gasket | EPDM | 2
        ForgeFit® Tri-Clamp Gasket | EPDM | 2"
        $2.49
        Steam Condenser Set | 2 in. T.C. | BrewZilla | DigiBoil
        Steam Condenser Set | 2 in. T.C. | BrewZilla | DigiBoil
        $186.99
        BrewZilla | DigiBoil | Adjustable Lid Clamps | Stainless Steel | Set of 4
        BrewZilla | DigiBoil | Adjustable Lid Clamps | Stainless Steel | Set of 4
        $13.49

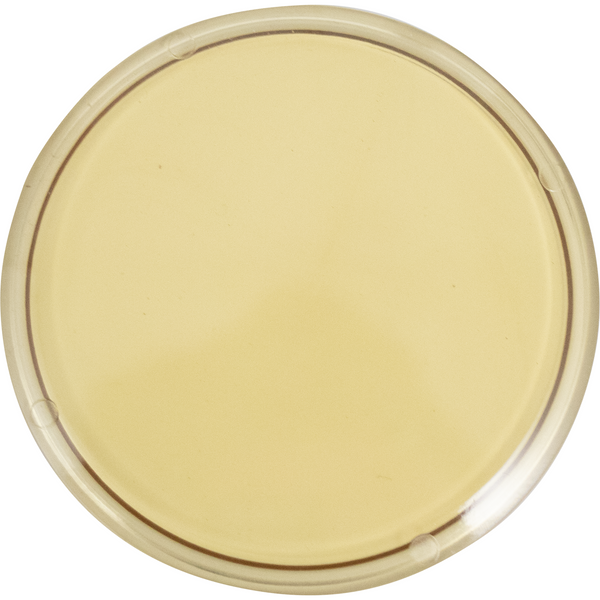

        Plastic Sight Glass Lens | 3
        Plastic Sight Glass Lens | 3" Tri-Clamp | Transparent T.C. End Cap
        $14.49

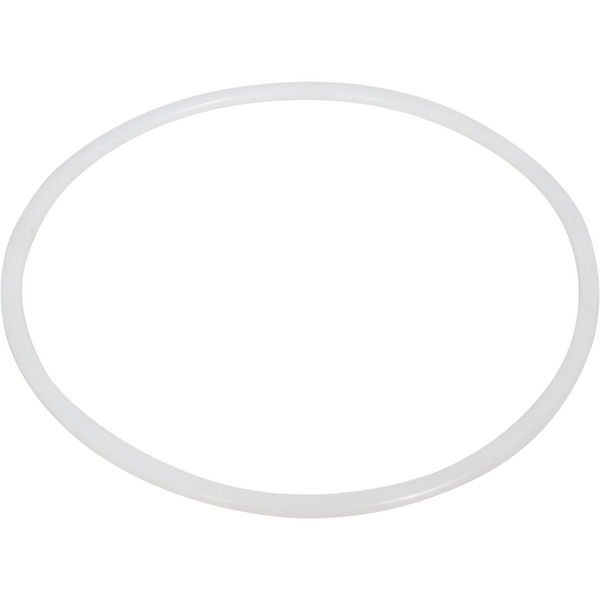

        35L Distillation Lid Replacement Gasket | 6mm
