BrewZilla Replacement Heat Exchanger Dish | HED | Gen 4 | 100L

    Description

    • Reduce heating time during your mash with the Gen 4 BrewZilla
    • Redistribute recirculating wort for longer heating element exposure
    • Improve heat distribution throughout the mash

    Speed up heating times with the Heat Exchanger Dish (HED) for Gen 4 BrewZillas. This optional upgrade accessory redirects the flow of wort so that it spends more time exposed to the heating elements before reaching the center drain at the bottom of the kettle and being recirculated. Due to the concave bottom and central draining hole on the Gen 4 BrewZilla, recirculating wort will pass through the malt pipe and then down through the boiler false bottom following the path of least resistance. This can cause wort to make a B-line for the drainage hole and reduce the wort's exposure to the unit's heating elements. With the HED installed, wort will be directed to the edge of the BrewZilla base and pass over the elements for a longer period and reduce the time needed to heat to your set temperature.

    This piece comes standard with the 100L BrewZilla. It is offered as an optional accessory for the 35L and 65L sizes.

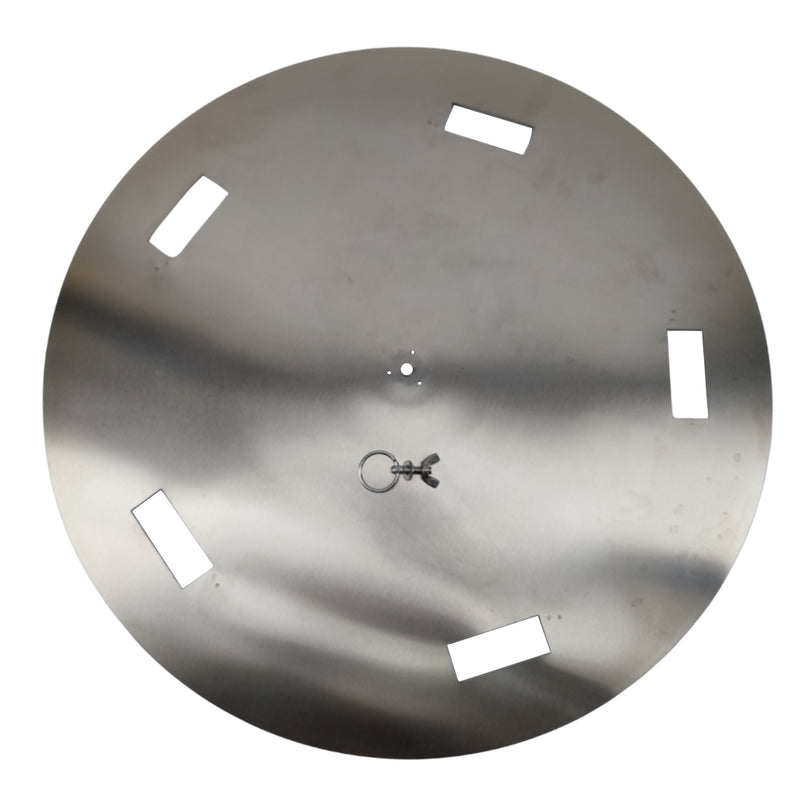

    The HED has been pressed into a slight concave shape to match the curvature of the boiler false bottom. Includes a longer eye bolt assembly than the one included with the false bottom.

    NOTE: The order of bolt to washer to nuts goes as follows. Eye bolt, washer, false bottom, washer, nut, HED, then wing nut. This is so that the eye bolt does not come completely removed when and if you clean underneath the Heat Exchanger Dish.

    KegLand Part Number: KL2937

    BrewZilla Replacement Heat Exchanger Dish | HED | Gen 4 | 100L

      Product form

      SKU: AG570

      $43.99

      Calculating shipping time...
      Shipping
      Free Shipping*
      Shipping
      Paid Shipping
      Drop Ship
      Drop Ship
      Discount Exclusion
      Discount Exclusion
      Freight
      Freight Only
      Pre-book
      Pre Order

        Description

        • Reduce heating time during your mash with the Gen 4 BrewZilla
        • Redistribute recirculating wort for longer heating element exposure
        • Improve heat distribution throughout the mash

        Speed up heating times with the Heat Exchanger Dish (HED) for Gen 4 BrewZillas. This optional upgrade accessory redirects the flow of wort so that it spends more time exposed to the heating elements before reaching the center drain at the bottom of the kettle and being recirculated. Due to the concave bottom and central draining hole on the Gen 4 BrewZilla, recirculating wort will pass through the malt pipe and then down through the boiler false bottom following the path of least resistance. This can cause wort to make a B-line for the drainage hole and reduce the wort's exposure to the unit's heating elements. With the HED installed, wort will be directed to the edge of the BrewZilla base and pass over the elements for a longer period and reduce the time needed to heat to your set temperature.

        This piece comes standard with the 100L BrewZilla. It is offered as an optional accessory for the 35L and 65L sizes.

        The HED has been pressed into a slight concave shape to match the curvature of the boiler false bottom. Includes a longer eye bolt assembly than the one included with the false bottom.

        NOTE: The order of bolt to washer to nuts goes as follows. Eye bolt, washer, false bottom, washer, nut, HED, then wing nut. This is so that the eye bolt does not come completely removed when and if you clean underneath the Heat Exchanger Dish.

        KegLand Part Number: KL2937
