The ultimate control & precision of your fermentation process. Equipped with two built-in temperature controllers and pumps, this advanced chiller enables you to independently regulate the temperature of two separate fermentation vessels simultaneously, ensuring optimal conditions for different batches or styles of beer, making it a game-changer for homebrewers.
2 built-in submersible pumps with independent digital controllers
Control multiple fermentation temperatures independently
Fill with 20% glycol solution for optimal chilling performance
Cold crash with good insulation
Perfect complement to BrewBuilt X-Series Conicals
The IceMaster Max 2 is designed to cool fermentations in small vessels. It features 2 built-in submersible pumps with independent digital temperature controllers and can be used with any vessel that has a glycol jacket or submersed cooling coil/rod. Each controller includes a temperature probe that should be inserted into a thermowell in your vessel or can be taped to the outside of the vessel if you don't have a thermowell. The digital controller then measures the temperature of your tank and turns the submersible pump on or off to cool to your desired set temperature. Up to two tanks can be controlled separately with one IceMaster Max 2.
The Max 2 is the perfect unit for brewers with 1 or 2 fermentation vessels. The IceMaster 100 and IceMaster Max 4 are terrific chillers, but for they have far more cooling capacity than the average homebrewer needs. The Max 2 is the most affordable glycol chiller we offer, and thanks to the built-in submersible pumps and controllers, there's no need to purchase additional pump kits to use with your cooling system(s).
Compatibility
The IceMaster can be used with any fermenter that has a built-in cooling jacket, added CoolStix, or a submersed cooling coil. It works well as the cooling source for the following sytems and fermenters.
BrewBuilt Jacketed Uni Conical - we recommend one Insulated Tubing Kit for each tank. These kits feature "dry break" quick disconnects that prevent glycol loss and the insulated tubing will increase chilling efficiency and eliminate line sweating from condensation.
CoolStix - CoolStix can be added to a wide range of carboys, fermenters, and tanks and the IceMaster works really well in combination. Each CoolStix is available with or without a pump kit; for use with the IceMaster Max 2 you will only need the CoolStix and some tubing to connect it to the chiller.
Ss Brewtech Fermenters and Brites - Ss BME Chronicals, BME Brites, and Unitanks come with cooling coils and neoprene as standard. The optional chilling FTSs will not be needed for use with the Max 2.
Spike Conical with Optional Cooling Coil - the cooling coil for Spike CF series conicals is available for purchase independently from the TC-100 cooling system. For use with the Max 2 you will only need the the coil and some tubing to connect it to the chiller.
Speidel Tanks with Optional Cooling Jackets - You will need two lengths of tubing to connect the chiller to each tank.
Grainfather Fermenters - Grainfather fermenters have standard cooling jackets. You will need two lengths of tubing for each fermenter.
Blichmann Fermenators with Optional Cooling Coil - You will need two lengths of tubing for each Fermenator.
Capacity
It is always difficult to determine exactly how many tanks can be chilled at one time as it depends on what is happening in each tank, if the tank is insulated, and what the ambient temperature is. Cold crashing always requires the most energy and requires tank insulation. We have experimented with capacities and can provide this general guide based on a 75°F ambient and neoprene insulation. Neoprene provides a modest amount of insulation so you would obtain better results using Armaflex or a higher R rated insulation.
At 75°F ambient temperature with neoprene insulation, the Max 2 can cold crash one 1 BBL BrewBuilt Jacketed Uni or two Jacketed Unis up to 15 gallons in size at one time to 38°F.
Set Up
In order to hook up the IceMaster to your fermenter or tank's cooling system, you will need 2 lengths of tubing per vessel. All tubing connections should be secured with hose clamps.
Length 1: Barb of 1st bulkhead (IN) to cooling system outlet
Length 2: Barb of 2nd bulkhead (OUT) to cooling system inlet
Specifications:
2 built-in submersible pumps with independent digital controllers
Pump controller reads in °F / °C
Temperature controller reads in °C
Labeled IN and OUT stainless bulkheads with 3/8" OD barbs
Tank Capacity: 17 L / 4.5 Gal. Water Capacity
Compressor: 3/8 HP
Cooling Capacity: 500 Watt/1700btu/0.14 tons
Refrigerant: R600a
Voltage: 110V
Dimensions: 19" x 12" x 17.5"
Wheels not included
CE Certified
Note: The new model includes a sightglass that is connected via two plastic Duotight tees. The tees can be attached onto the push tubes on the front of the unit. The sight glass can be fitted between the two tees and plugs need to be inserted on the outward facing openings.
Warning: Do not set the reservoir temperature controller lower than 28°F (-2ºC). Running the unit below this temperature may negatively affect the unit's efficiency and has the potential to freeze beer which may impact the finished beer's flavor.
Insulated tubing will improve your chilling efficiency and eliminate the troublesome line sweating. This set includes two 6' lengths of 3/8" ID silicone tubing wrapped in elastomeric insulation. Hose clamps are included to secure connection points with your preferred fittings.
The ultimate control & precision of your fermentation process. Equipped with four built-in temperature controllers and pumps, this advanced chiller enables you to independently regulate the temperature of multiple separate fermentation vessels simultaneously, ensuring optimal conditions for different batches or styles of beer, making it a game-changer for homebrewers.
4 Built-in pumps and digital controllers
Control multiple fermentation temperatures independently
Fill with 20% glycol solution for optimal chilling performance
Cold crash with good insulation
Perfect complement to BrewBuilt X-Series Conicals
The IceMaster Max 4 is designed to cool fermentations in small vessels. It features 4 built-in submersible pumps with independent digital temperature controllers and can be used with any vessel that has a glycol jacket or submersed cooling coil/rod. Each controller includes a temperature probe that should be inserted into a thermowell in your vessel or can be taped to the outside of the vessel if you don't have a thermowell. The digital controller then measures the temperature of your tank and turns the submersible pump on or off to cool to your desired set temperature. Up to four tanks can be controlled separately with one IceMaster Max 4.
Compatibility
The IceMaster can be used with any fermenter that has a built-in cooling jacket, added CoolStix, or a submersed cooling coil. It works well as the cooling source for the following systems and fermenters.
BrewBuilt Jacketed Uni Conical - we recommend one Insulated Tubing Kit for each tank. These kits feature "dry break" quick disconnects that prevent glycol loss and the insulated tubing will increase chilling efficiency and eliminate line sweating from condensation.
CoolStix - CoolStix can be added to a wide range of carboys, fermenters, and tanks and the IceMaster works really well in combination. Each CoolStix is available with or without a pump kit; for use with the IceMaster Max 4 you will only need the CoolStix and some tubing to connect it to the chiller.
Ss Brewtech Fermenters and Brites - Ss BME Chronicals, BME Brites, and Unitanks come with cooling coils and neoprene as standard. The optional chilling FTSs will not be needed for use with the Max 4. The cooling coil for standard Ss Chronicals and Brew Buckets are not sold a la carte and must be purchased with a submersible pump, which is not needed for the Max 4. For standard Chronicals and Brew Buckets you might consider the IceMaster 100 for cost savings.
Spike Conical with Optional Cooling Coil - the cooling coil for Spike CF series conicals is available for purchase independently from the TC-100 cooling system. For use with the Max 4 you will only need the coil and some tubing to connect it to the chiller.
Speidel Tanks with Optional Cooling Jackets - You will need two lengths of tubing to connect the chiller to each tank.
Grainfather Fermenters - Grainfather fermenters have standard cooling jackets. You will need two lengths of tubing for each fermenter.
Blichmann Fermenators with Optional Cooling Coil - You will need two lengths of tubing for each Fermenator.
Capacity
It is always difficult to determine exactly how many tanks can be chilled at one time as it depends on what is happening in each tank, if the tank is insulated, and what the ambient temperature is. Cold crashing always requires the most energy and requires tank insulation. We have experimented with capacities and can provide this general guide based on a 75°F ambient and neoprene insulation. Neoprene provides a modest amount of insulation so you would obtain better results using Armaflex or a higher R rated insulation.
Capacity calculated at cold crashing to a target temperature of 38°F while the ambient temperature is 75°F with neoprene insulation (double tank capacity for ale fermentation temperature control):
2 - 1BBL (31 Gallon) Jacketed Tank
2 - 1/2BBL (15-20 Gallon) Tanks
3 - 10-14 Gallon Tanks
4 - 5-7 Gallon Tanks
Set Up
In order to hook up the IceMaster to your fermenter or tank's cooling system, you will need 2 lengths of tubing per vessel. All tubing connections should be secured with hose clamps.
Length 1: Barb of 1st bulkhead (IN) to cooling system outlet
Length 2: Barb of 2nd bulkhead (OUT) to cooling system inlet
Specifications:
4 built-in submersible pumps with independent digital controllers
Pump controllers read in °F/°C
Temperature controller reads in °C
Labeled IN and OUT stainless bulkheads with 3/8" OD barbs
Tank Capacity: 30L/8 Gal. Water Capacity
Compressor: 3/8 HP
Cooling Capacity: 780 Watt/2600btu/0.26 ton
Refrigerant: R134a
Voltage: 110V (3.6 amps)
Dimensions: 16.1" x 16.1" x 26"
Wheels included
CE Certified
Max Head: 21.3 ft (6.5 m)
Warning: Do not set the reservoir temperature controller lower than 28°F (-2ºC). Running the unit below this temperature may negatively affect the unit's efficiency and has the potential to freeze beer which may impact the finished beer's flavor.
BrewBuilt CIP Spray Ball for use with X-Series Uni Conicals or any stainless steel fermenter with 1.5" tri-clamp fittings. The head emits a 360° fan spray that cleans above and below the spinning ball. The sharp spray easily removes soil inside your tank. The long neck design allows the spray ball to reach through tall fittings and ferrules. With a welded 90° elbow inlet, you won't have any trouble with kinked hosing slowing your pump flow and lowering the spray ball's performance.
A pump capable of 30-45 psi and 11 GPM is recommended for this product to provide a high pressure cleaning radius of 3.6 ft. When used with BrewBuilt conicals, 7 GPM is enough to coat the full interior of the fermenter, but longer CIP runs might be required to fully breakdown stubborn solid deposits.
The IceMaster 100 is a powerful and efficient glycol system that provides precise temperature control of multiple Fermenters, but allows you to expand your capacity as needed!
Temp Control & Cold Crash up to 4 - 5-7 Gallon Jacketed Tanks!
Tank Capacity: 30L/8 Gal. Water Capacity
Cooling Capacity: 780 Watt/2600btu/0.26 ton
Power: 110V (3.6 amps)
The IceMaster 100 is designed to cool fermentations in small vessels. It can be used with any vessel that has a glycol jacket or submersed cooling coil/rod. For each vessel you want to cool you will need to buy one of our BrewBuilt Chilling Pump Kits. Each tank is able to be separately temperature controlled. Each Glycol Pump Kit includes a submersible pump that is placed in the cool bath of this chiller along with a digital controller. The digital controller includes a thermal probe that should be inserted into a thermal well in your vessel or can be taped to the outside of the vessel if you don't have a thermal well. The digital controller then measures the temperature of your tank and turns the submersible pump on or off to cool to your desired set temperature. Up to four tanks can be controlled separately with one IceMaster and four BrewBuilt Chilling Pump Kit (GLY355).
Compatibility
The IceMaster can be used with any fermenter that has a built in cooling jacket, added Coolstix, or a submersed cooling coil. It works well as the cooling source for the following sytems and fermenters.
BrewBuilt Jacketed Uni Conical - You will need one Glycol Pump Kit for each tank.
Coolstix - Coolstix can be added to a wide range of carboys, fermenters, and tanks and the IceMaster works really well in combination. Each Coostix Complete Kit comes with a pump kit and controller.
Ss Brewtech Fermenters and Brites with optional FTS Temperature Control Systems - Because FTS systems include a pump and controller you will not need to buy a separate Glycol Pump Kit.
Spike Conical with Optional Cooling Package - Because the optional Spike cooling system includes a pump and controller you will not need to buy a separate Glycol Pump Kit.
Speidel Tanks with Optional Cooling Jackets - You will need one Glycol Pump Kit for each tank.
Grainfather Fermenters - Grainfather fermenters have standard cooling jackets. You will need one Glycol Pump Kit for each fermenter
Blichmann Fermenators with Optional Cooling Coil - You will need one Glycol Pump Kit for each Fermenator.
Capacity
It is always difficult to determine exactly how many tanks can be chilled at one time as it depends on what is happening in each tank, if the tank is insulated, and what the ambient temperature is. Cold crashing always requires the most energy and requires tank insulation. We have experimented with capacities and can provide this general guide based on a 75°F ambient and neoprene insulation. Neoprene a modest amount of insulation so you would obtain better results using Armaflex or a higher R rated insulation. If only controlling fermentation temps the capacity would be higher. Four BrewBuilt Chilling Pump Kits (GLY355) is the maximum that will fit in the IceMaster. We are working on smaller glycol pump kits, where the pumps have smaller footprints, so the IceMaster right now has the capacity to use 5 pumps through the bulkhead fittings.
Capacity calculated at cold crashing to 38°F at 75°F ambient with neoprene insulation (double for fermentation temperature control):
2 - 1BBL (31 Gallon) Jacketed Tanks
2 - 1/2BBL (15-20 Gallon) Tanks
3 - 10-14 Gallon Tanks
4 - 5-7 Gallon Tanks
Set Up
In order to hook up the IceMaster to your fermenter or tank's cooling system, you will need 4 lengths of tubing. All tubing connections should be secured with hose clamps.
Length 1: Submersible pump outlet to inner barb of 1st bulkhead
Length 2: Outer barb of 1st bulkhead to cooling system inlet
Length 3: Cooling system outlet to outer barb of 2nd bulkhead
Length 4: Inner barb of 2nd bulkhead to IceMaster resevoir (should drain freely, no connection necessary)
Specifications:
Tank Capacity: 30L/8 Gal. Water Capacity
Compressor: 3/8 HP
Cooling Capacity: 780 Watt/2600btu/0.26 ton
Refrigerant: r134a
Voltage: 110V (3.6 amps)
Dimensions: 410mm x 410mm x 660mm
Includes 10 stainless bulkheads with 3/8" OD barbs
Wheels included
CE Certified
Warning: Do not set the reservoir temperature controller lower than 28°F (-2ºC). Running the unit below this temperature may negatively affect the unit's efficiency and has the potential to freeze beer which may impact the finished beer's flavor.
Keep an eye on your temps with the BrewBuilt tri-clamp thermometer. Perfect for stainless conical fermenters or T.C. kettles. The 3" diameter dial face is easy to read and scaled in °F and °C. The 2" probe length will stay clear of other fermentation or brewing accessories.
3" dial face
2" probe
1.5" T.C.
Reads in °F and °C
The BrewBuilt tri-clamp thermowell allows you to monitor temperatures with digital thermal probes. Perfect for controlling fermentation temperatures on a stainless steel conical using a digital temperature controller. Or use it with an electric boil kettle or hot liquor tank to send temp readings to a PID controller to control your heating element.
1.5" T.C.
4" probe
Compatible with 1/4" Ø temp probes
Made from 304 stainless steel
This 2-micron stainless steel air stone threads onto the side port of the X-Series Uni Flex Chamber, allowing you to quickly oxygenate or carbonate wort, or purge the Flex Chamber of oxygen when dry hopping. You can leave the air stone in place during filling and fermentation, and easily connect gas via the Ball Lock Quick Disconnect.
Avoid touching the stone with bare hands, as the oils on your fingers can cause clogging issues. We recommend sanitizing and blowing gas through the stone before and after each use.
Manage your fermentation temperature like a stone-cold pro with the BrewBuilt Chilling Pump Kit! This kit can use either ice water or glycol as a chilling solution, which is then circulated through your chilling coil or cooling jacket by the included submersible pump. Available with either 800 or 1300 gallons per hour flow rate and a max lift height of nearly 10 feet, this unassuming pump is powerful enough to circulate your cold solution with ease. And with the Inkbird Dual Stage Temperature Controller running the show, you can feel confident that your fermenters are getting the chilling power they need, when they need it.
Submersible Pump
If you're searching for an affordable pump to use with your temperature control system, look no further. The BrewBuilt Chilling Pump Kit comes with either a 800 GPH or 1300 GPH submersible pump that can be used with an icebank or glycol chiller. Don't be fooled by the low-profile compact design. With such high flow rates and a max lift height or nearly 10 feet, either of these pumps is sure to keep the solution moving in your chilling system.
In general, we recommend the 800 GPH pump for maintaining the temperature of any batch size fermentation that is less than 10 gallons, and the 1300 GPH pump for maintaining any batch size fermentation that is between 10 gallons and 2 bbl.
Maximum flow rate: 800 GPH or 1300 GPH
Max Lift Height: 9 or 10 ft.
High quality motor provides a quiet environment (60W or 100W)
Stainless steel impeller shaft for long life span and corrosion resistance
6 ft. long power cord
Inkbird Digital Temperature Controller
The Inkbird dual stage temperature controller is an easy to use and economical controller that is perfect for home brewing. Inkbird controllers allow you to control both heating and cooling, and set independent differentials for each to protect your heating and cooling devices.
The Inkbird ITC-308S controller performs many of the same functions as the Ranco or Johnson but at a more affordable price, making it a great alternative for temperature control. Aside from brewing uses, this is a great dual relay output temperature controller for cooking (use in a smoker or BBQ), home growing (heat mats for seedlings, climate control), or any other DIY project you come up with!
Features:
Simple plug and play design with user friendly LED interface
Dual stage ITC-308 - control both heating and cooling
Adjustable Heating/Cooling differential
1000W max power
Celsius or Fahrenheit
High and low temperature and sensor fault alarms
Can control temperatures of -58° F through 210° F (-50° C - 99° C)
Body Dimensions: 5.5 in x 2.7 in x 1.3 in
Chilling Pump Kit Includes:
Submersible Water Pump (PMP601 or PMP602)
Inkbird Dual Stage Digital Temperature Controller (FE640)
2x 5 ft. lengths of 3/8 in. Silicone Tubing (H983)
4x Butterfly Hose Clamps
Stainless 3/8" Barb x 1/2" MPT
Lowest Price Guarantee, this item has MAP pricing so you can be confident you won't find it for less.
Due to high demand, this item is currently out of stock. Be the first to receive your items by placing a pre-order today. We will automatically ship this to you when we receive more inventory.
This is a no compromise, professional level hardware kit that allows for safe pressure fermentation in an X-Series Uni Conical. If you plan to ferment, or to seal/cap an active fermentation, in your BrewBuilt X-Series Conical you must use this Brewbult Kit for Fermenting Under Pressure. During fermentation Krausen can potentially clog the PRV that is built into the lid. The hardware in this kit is the same as what you will find on a commercial Unitank. This is not an all-in-one unit. All-in-one units are cheaper but not as safe.
Component Break Down:
Commercial Grade Spunding Valve - The kit is built around a commercial Spunding Valve that allows you to set your desired fermentation pressure. if that ferementation pressure exceeds your set point, it will blow off any excess pressure from the X-Series Conical. The clear cup holds liquid acting as an airlock and allowing krausen to exit. The Spunding valve is also adjustable.
Pro Grade PRV (Pressure Relief Valve) - On all brewery pro tanks, a tri-clamp PRV is always installed in addition to a Spunding Valve. This is because a Spunding Valve still has the potential to clog. The pro PRV has a very wide interior body as to reduce the risk of clogging. The PRV is non-adjustable and comes preset to relieve pressure at 15 PSI.
Sealed Pressure Gauge - This is a liquid filled, sealed gauge. The bottom of the gauge is a thin plate of stainless that moves up or down in relation to pressure in the tank. That causes the oil in the gauge to compress which is what the gauge reads. When properly sealed, there is no way krausen can get into this gauge and cause a false reading. However, it is important to ensure the guage is sealed, otherwise, there is a risk that krasuen clogs the gauge giving you an inaccurate reading.
Foam Axe - Foam Axe is a silica-based krausen cutter used by commercial breweries to reduce krausen blow off while increasing foam retention in your beer. Using Foam Axe is required for every batch fermented under pressure, but we recommend it for all batches fermented in your X-Series Conical. Foam Axe helps keep krausen out of PRVs and other hardware which is always a good idea.
When your BrewBuilt Uni is outfitted with a Kit for Pressure Fermentation there are three devices for relieving pressure, including the PRV that is always built into the lid, the adjustable Spunding Valve, and the pro grade PRV.
Includes:
Commercial Grade BrewBuilt Spunding Valve
1 BAR (0.3–14.5 psi)
Hand Adjustable Blowoff
1.5" tri-clamp Connection
Made from 304 stainless steel with plastic liquid cup
Tri-Clamp Pressure Relief Valve (PRV)
Calibrated to 1 BAR (14.5 psi)
1.5" tri-clamp connection
Made from 304 stainless steel
Sealed, Liquid Filled Pressure Gauge
Calibrated to 2 BAR (30 psi)
1.5" tri-clamp connection
Made from 304 stainless steel
CellarScience Foam Axe Krausen Reducer
Reduces krausen build up inside the fermenter
Connection Hardware
(3) 1.5" T.C. Clamps
(3) 1.5" EPDM T.C. Gaskets
WARNING! The use of the BrewBuilt Kit for Fermenting Under Pressure is required for performing Pressure Fermentations in your X-Series conical. The PRV built into the lid is not designed to be the only release point during a pressure fermentation.
WARNING! The use of Foam Axe is required to reduce krausen (foam from fermentation) production in the fermenter.
WARNING! Always release pressure, then remove the PRV built into the lid to ensure the conical is completely depressurized before removing fittings or the lid clamp. Failure to do so can result in personal injury.
This insulated tubing kit was developed specifically for the BrewBuilt Jacketed Conical. It has all the fittings needed to connect an IceMaster Glycol Chiller to the conical jacket's 1.5" tri-clamp inlet and outlet—plus premium quick disconnects with shutoff valves that provide a "dry break" when they're disconnected. That means no cooling solution leaking all over your brewery every time you take the system apart for cleaning. The Female QDs are installed on the insulated tubing, and the Male QDs are installed on the T.C. x FPT Adapters that connect to the cooling jacket's inlet and outlet.
Insulated tubing will now only provide increased chilling efficiency, it will also eliminate line sweating so you don't need to wipe up puddles of condensation that might collect on your brewery's floor during fermentation or cold crashing.
Kit Includes:
1 - Insulated Tubing Set (2 x 6' lines)
2 - High Temp Plastic Female QDs w/ 3/8" Barb
2 - High Temp Plastic Male QDs w/ 1/2" MPT
2 - 1.5" Tri-Clamps
2 - 1.5" T.C. Gaskets
2 - 1.5" T.C. x 1/2" FPT Adapters
Add dry hops without introducing oxygen to your fermenting or finished beer!
Load hops into the Hop Bong, fill it with CO2 via the ball lock cap, and pull the PRV to release oxygen
This is the perfect accessory to protect your finished beer from oxygen ingress when it's still in the fermenter
6 oz capacity per "hop drop"—easily repeat the process if you just gotta have More!
Compatible with all BrewBuilt X-Series fermenters and any stainless conical with 1.5" T.C. top port
The Hop Bong is a versatile pressurizable tri-clamp accessory that is perfect for purging oxygen from your dry hops before dropping them into your fermenter. Load up the Hop Bong, flush it with CO2, purge out oxygen with the handy PRV on top, then simply open the Butterfly Valve to inject your beer with a 6 oz payload of dry hops.
This kit is specifically adapted for use with the BrewBuilt X-Series conical fermenters and can be used with any stainless fermenter with 1.5" tri-clamp top port. The 2" T.C. Hop Bong attaches to a stainless 2" butterfly valve that then connects to a 2" x 1.5" T.C. reducer. This allows the largest capacity Hop Bong to be used with any of the 1.5" T.C. accessory ports on the BrewBuilt Conical's lid.
Hop Pellet Capacity: 150–180g (5.2–6.3 oz)
Kit Includes:
2" Hop Bong
Stainless Ball Lock Cap
Red PRV & PCO1881 Cap Combo
2" BrewBuilt Butterfly Valve
2" x 1.5" Tri-Clamp Reducer
(3) 2" Tri-Clamps
(3) 2" T.C. Gaskets
Warning: Always depressurize your system COMPLETELY before removing fittings from your fermenter.
A sealed pressure gauge is the most sanitary and safest solution for your needs. Designed to prevent krousen from plugging the gauge, it ensures longer-lasting performance and unparalleled reliability.
This 1.5" tri-clamp pressure gauge is included with the BrewBuilt™ Kit for Fermenting Under Pressure but can be used with any stainless steel conical fermenter with 1.5" T.C. ports. Liquid filled gauges offer better performance and longer lifespan compared to dry gauges. Dial face reads in both psi and BAR.
Sealed, liquid filled pressure gauge
0-30 psi
0-2.05 BAR
1.5" tri-clamp connection
Made from 304 stainless steel
The BrewBuilt T.C. spunding valve will give you the highest level of accuracy when fermenting under pressure. Designed for use with the BrewBuilt X-Series Uni Conical Fermenter, the spunding valve attaches to the lid's 1.5" tri-clamp port where the blow off fitting is normally installed. It can also be used with any pressurizable stainless steel conical with 1.5" T.C. top ports. The polycarbonate cylinder that surrounds the spunding valve can be filled with water or sanitizer to keep your tank 100% sanitary throughout the fermentation process.
Adjustable from 0.3–14.5 psi
Made from 304 stainless steel
11.75" H x 4" Ø
For Your Safety: Never exceed the maximum rated working pressure of your vessel at any time during operation. The fixed-pressure PRV on your conical should always remain in place while using this spunding valve.
The BrewBuilt Blowoff U Barb was specifically designed to avoid kinking issues with blowoff tubing. Rather than simply pointing the blowoff tubing away from the conical, the U Barb bends outward and over the side of your conical to point tubing straight down. This gives you the same advantage of a stainless steel blowoff cane, but is much easier to clean and sanitize.
The 5/8" OD barb is perfect for forming a tight seal with 1/2" ID silicone tubing. Measures approximately 4" from T.C. to barb.
1.5" T.C.
5/8" OD barb
Made from 304 stainless steel
Due to high demand, this item is currently out of stock. Be the first to receive your items by placing a pre-order today. We will automatically ship this to you when we receive more inventory.
Low watt density heating element gently warms your fermenting beer without scorching
Keep your fermentation temperature consistent during the colder months or raise the temp on command for diacetyl rests
Connect directly to the BrewBuilt X3 Uni Conical via the dedicated 2" tri-clamp port for effective, in-solution heating
Smooth, stainless steel construction is easy to clean after use
Compatible with all sizes of X3 Uni Conicals
Add this Immersion Heater to your BrewBuilt X3 Uni Conical for the ultimate control over your fermentation temperature. Connecting directly to the X3's dedicated 2" T.C. port at the side of the cone, the Immersion Heater will provide gentle, effective heating whenever you need it. A must-have for brewers living in colder climates or if you want the peace of mind that your temperature will never drop too low for your ale or kveik strains regardless of the time of year. Heating your fermenter on command can also come in handy if you need to bring your chilled wort up to temp before pitching, or if you need to perform a diacetyl rest after fermentation is complete.
We recommend pairing the Immersion Heater with a temperature controller like the Inkbird so it will only be powered on as needed. If using the heater alongside the IceMaster Max 2 glycol chiller, you can insert the Max 2 temp probe into the X3's thermowell first and then insert the Inkbird's probe behind it. Both probes will be deep enough to get accurate temp readings and heating & cooling will be regulated by independent controllers.
Another setup option is using the IceMaster 100 and the BrewBuilt Chiller Pump Kit. The IceMaster 100 does not come with built-in pumps so you can add your own submersible pumps as needed. Each Chiller Pump Kit includes an Inkbird controller and a submersible pump. The heater and pump are then both plugged into the Inkbird so heating & cooling are regulated by a single controller.
The element runs at 125 watts when powered with the included IEC x 110V plug adapter (not pictured).
Specs:
125W @ 110-120V (500W @ 220-240V)
Total Length: 16"
Length in Conical: 12"
Cord Length: 5 ft.
KegLand Part Number: KL35941
Please Note: The Warmking Wizard Wand is only compatible with X3 BrewBuilt Conicals. If interested in heating a previous generation conical, see the BrewBuilt Conical Heaters here.
Keep your fermentation temperature stable by pairing the BrewBuilt X-Series Uni Conical with one of these silicone heaters. Designed to wrap around the conical portion of the tank, these pads will gently heat your fermenter from the bottom up to keep your yeast comfortable and working hard. A must-have for brewers living in colder climates or if you want the peace of mind that you can ferment ale or kveik strains no matter the time of year. Having a conical heater also comes in handy if you chilled your wort below yeast pitching temperature and want to warm it back up before pitching.
We always recommend pairing the heating pad with a temperature controller so it will only be powered on as needed. A dual stage temperature controller like the Inkbird is a great option for controlling both heating and cooling with a BrewBuilt CoolStix™.
Compatible with all X-Series Conicals including the new X3!
Notes:
For warmer climates, go one size down
For colder climates, go one size up
Safety Shut off: Stops at 120°F
Excess heat after flocculation can cause off-flavors from autolysis
3M brand adhesive back for permanent installation
Tested by our in-house engineers, we created a recommendation chart to help you choose the heater that best suits your batch size.
X1 Conicals:
Watts
7 Gal
14 Gal
25 Gal
38 Gal
Min. Circumference
Top Curve Length
240
X
X
Recommended
Recommended
46.75"
45.25"
500
X
X
Fits
Fits
57.9"
56.4"
X2 Conicals:
Watts
7 Gal
14 Gal
25 Gal
38 Gal
Min. Circumference
Top Curve Length
240
X
X
Recommended
Recommended
46.75"
45.25"
500
X
X
X
X
57.9"
56.4"
X3 Conicals:
Watts
7 Gal
14 Gal
25 Gal
38 Gal
Min. Circumference
Top Curve Length
240
X
X
Recommended
Recommended
46.75"
45.25"
500
X
X
X
X
57.9"
56.4"
Please note: The 40, 80, and 120 watt units have been discontinued and are sold out.
Keep hops and other flavoring additions in your fermenter where they belong. This filter attachment can be attached to the X-Series Uni Pressure Pack's floating dip tube to prevent vegetal matter and other solids from being pulled into the dip tube. This first line of defense makes the floating dip tube even more effective at transferring only the clearest beer possible from your conical to your keg.
Simply remove the metal tube from the ball float, slip the silicone tubing over the barb, then reattach the ball float to one of three clip locations.
Made from HDPE and 304 stainless steel, the filter can be boiled or sanitized with the full range of cleaners that we sell. The plastic HDPE is over molded onto the stainless mesh to make a seamless finish. The end cap can easily pop off for cleaning.
The pressurizable Flex Chamber Collection Jar can be used for removing trub, harvesting yeast, and many other tasks
Ball lock adapters can be attached to the threaded ports on either side, allowing you to connect oxygenation or carbonation stones
Works perfectly as a sight glass for monitoring fermentation activity
Comes standard with all BrewBuilt X3 Uni Conicals
With multiple Flex Chambers on hand, you can use one for harvesting/storing yeast and another for dry hopping

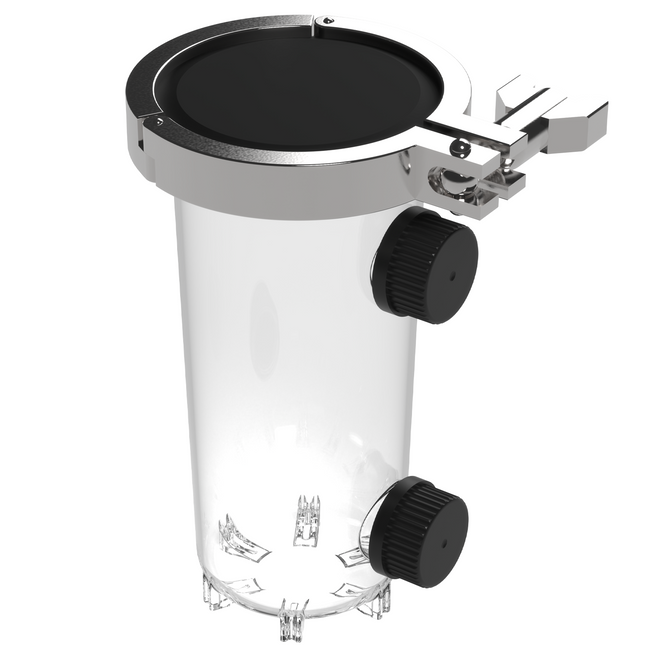

The pressurizable Flex Chamber Collection Jar attaches directly to the 3" butterfly dump valve on the X3 Uni Conical and can be used for removing trub, harvesting yeast, and many other tasks. Designed for the BrewBuilt X3, but compatible with any 3" T.C. dump valve. Since the chamber is made from clear Tritan, it works perfectly as a sight glass for monitoring fermentation activity. Ball lock adapters can be attached to the threaded ports on either side, allowing you to connect oxygenation or carbonation stones, or flush the Flex Chamber with CO2 and use it to inject hops or other ingredients into your conical.
The Flex Chamber is also fully compatible with the Gen 3.2 FermZilla Tri-Conical fermenters.
3" T.C. connection
3" tri-clamp, gasket and end cap included
28 mm PCO 1881 threaded side ports
20 fl oz volume
Chamber made from Tritan
Please note: Never remove the Flex Chamber while your conical is under pressure. Always release pressure before removing the Flex Chamber.
The BrewBuilt Pressure Pack features a unique floating racking tube that can be used for taking samples, keg transfers, or serving finished beer. This innovative feature draws beer from the top down, which means you’re always pulling the clearest, most sediment-free beer possible. And with the included filter attachment, any floating vegetal matter will be blocked from ever entering the dip tube. Using pressure to draw a sample from the floating dip tube will also eliminate the tiny bit of oxygen that would be injected into your beer every time the traditional sample valve is opened.
Pressure transferring from fermenter to keg is the best way to protect your beer from oxygen when it’s at its most vulnerable state. Kegging could be considered the final hurdle in the brewing process, where limiting oxygen exposure is critical. This could mean the difference between your beer tasting great for months or tasting great for a week. Don’t take any chances. Use the Pressure Pack to keg from the top down and leave sediment behind.
Installs on the 4" T.C. port welded into the lid of the BrewBuilt X-Series Uni Conical. The 1.5" T.C. port on the pressure lid can be used for adding dry hops, installing the CoolStix™ for temperature control, or attaching a T.C. pressure relief valve during pressure fermentations. The welded hook underneath the pressure lid can be used to hang bagged hops or other additions.
If you're interested in fermenting under pressure with the X-Series Uni, we recommend pairing the Pressure Pack with the Pressure Fermentation Kit.
4" T.C. Lid w/ 1.5" T.C. Port
Gas In & Bev Out ball lock posts
Clear Float dip tube
Floating Dip Tube Filter Attachment included
Welded hook for hanging drawstring bags
1.5" tri-clamp, gasket and end cap included
Made from 304 stainless steel
Warning! The BrewBuilt Pressure Pack is only designed to be used with BrewBuilt conicals that feature a pressure relief valve built into the lid. Failure to release pressure in the conical before remove fittings or the band clamp could result in injury or death.
There's never enough counterspace on brew day. The heavy-duty stainless steel work table is an excellent companion to carry water for you, and with the swivel rolling casters, it will be happy to follow you from station to station around your brewery. With a 400 lb top shelf weight capacity and 300 lb undershelf weight capacity, this humble work table is more than capable of being the Robin to your Batman.
This is the very same table featured in the BrewBuilt X2 Jacketed Conical Ultimate Chilling Package. The top shelf is the perfect size for a 7 or 14 gallon X2 Conical, and the undershelf is the perfect hangout for an IceMaster Max 2 Glycol Chiller.
The work table will not accommodate a 25 or 38 gallon X2 conical.
Specs:
Top Shelf Dimensions: 24" x 24"
Height: 34"
Top shelf Capacity: 400 lb
Undershelf Capacity: 300 lb
Tabletop made from 18-gauge, 304 stainless steel
Undershelf and legs made from galvanized steel
Go mobile with this heavy-duty caster set for the BrewBuilt X-Series Uni Conical. Your fermenter moves around the brewery a lot, so why not give it some glide? Roll from sanitizing to kettle transfer to keg transfer to cleaning with minimal effort. Moving a stainless conical around can be taxing, give your back a break and upgrade your X-Series Conical with a set of rolling casters.
Simply remove the thread-in adjustable feet from your conical and replace them with the casters. The set includes two locking and two non-locking wheels. In general, we recommend putting the pair of locking wheels at the front of the conical.
Use this barbed fitting to connect 1/2" ID tubing to a 3" tri-clamp fitting. Works seamlessly with the BrewBuilt X3 Conical's 3" butterfly valve bottom port.
Tri-clamp fittings are the gold standard in professional breweries and they've been widely adopted in homebrewing as T.C. kettles, fermenters, and pumps become more widely available. Tri-clamp fittings allow you to make a sanitary connection without any nooks or crannies for contaminants to hide in and they can be cleaned in place.
3" tri-clamp
1/2" OD barb
Made from 304 stainless steel
ForgeFit® is a brand of rugged, high-quality fittings made from certified 304 stainless steel. Each fitting is backed by our 60-day no-hassle return policy and a one-year warranty from MoreBeer!.

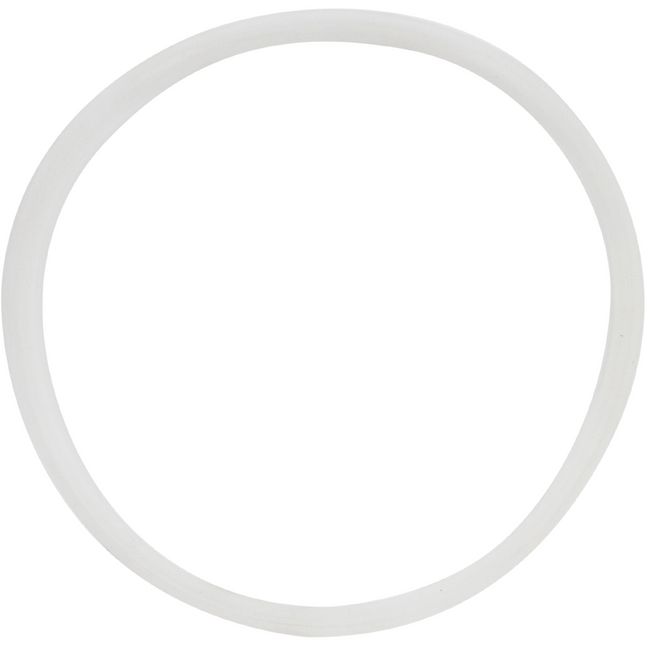

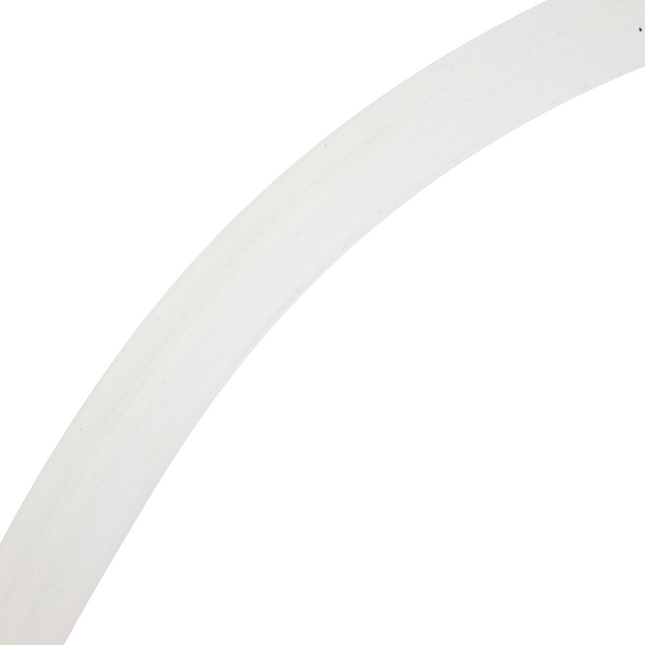

Replacement tri-clamp lid gasket for the BrewBuilt X3 Uni Conical. Compatible with all sizes of X3 via 8" tri-clamp connection.
Not compatible with X2 or X1 Uni Conicals.
Adapt any 3" tri-clamp port or valve to work with an existing 1.5" tri-clamp fitting. The concentric design limits flow resistance as you step down from 3" T.C to 1.5" T.C.
Perfect for pairing with the BrewBuilt X3 Conical's 3" bottom port and attaching 1.5" tri-clamp fittings.
1.5" x 3" tri-clamp
7" tall
Made from 304 stainless steel
ForgeFit® is a brand of rugged, high-quality fittings made from certified 304 stainless steel. Each fitting is backed by our 60-day no-hassle return policy and a one-year warranty from MoreBeer!.
The BrewBuilt Butterfly Valve has all the standard advantages you would expect from a butterfly valve in that they are the most sanitary valve, easy to clean and won't trap wort inside. It has a custom polished stainless steel handle which is designed to fit perfectly with the BrewBuilt conical fermenters and tri-clamp kettles.
1.5" tri-clamp
Stainless steel handle
7 locking positions
Squeeze trigger locking handle
Made from 304 stainless steel
Please Note: 2" valve shown as example photo. Updated images coming soon.

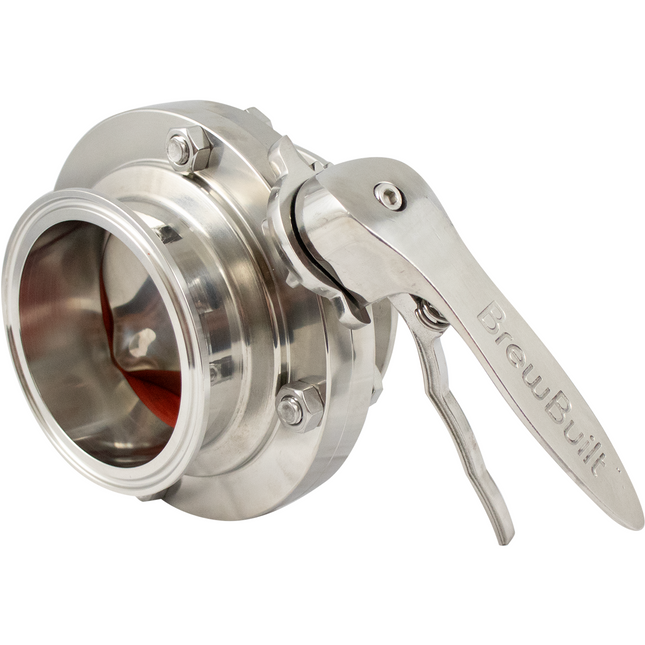

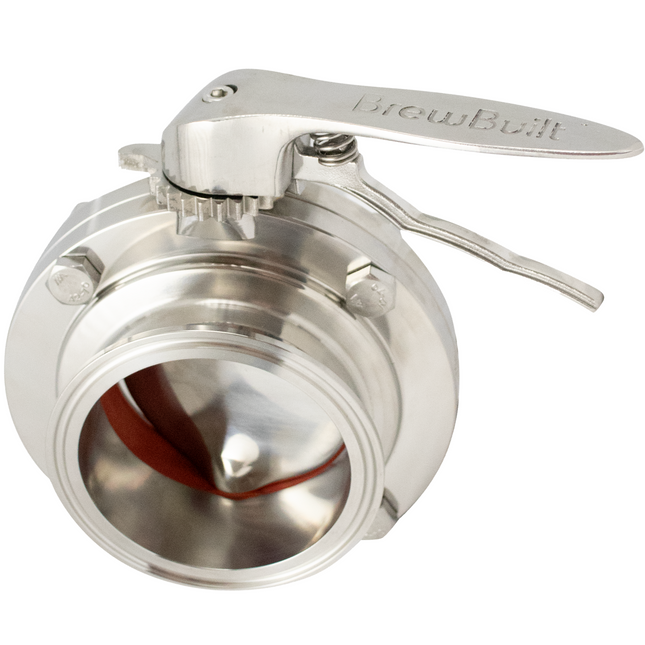

The BrewBuilt Butterfly Valve has all the standard advantages you would expect from a butterfly valve in that they are the most sanitary valve, easy to clean and won't trap wort inside. It has a custom polished stainless steel handle which is designed to fit perfectly with the BrewBuilt X3 Conical's 3" T.C. bottom port.
Not compatible with BrewBuilt X1 or X2 Uni Conicals which feature a 2" bottom port.
3" tri-clamp
Stainless steel handle
7 locking positions
Squeeze trigger locking handle
Made from 304 stainless steel

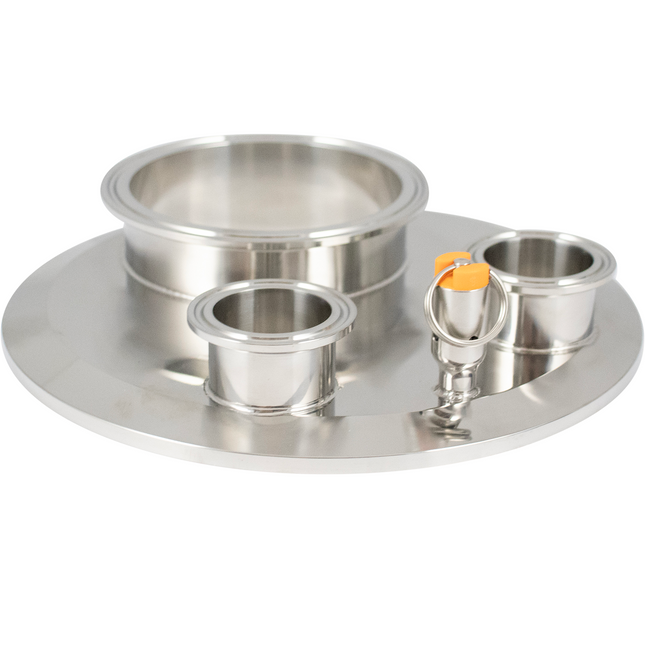

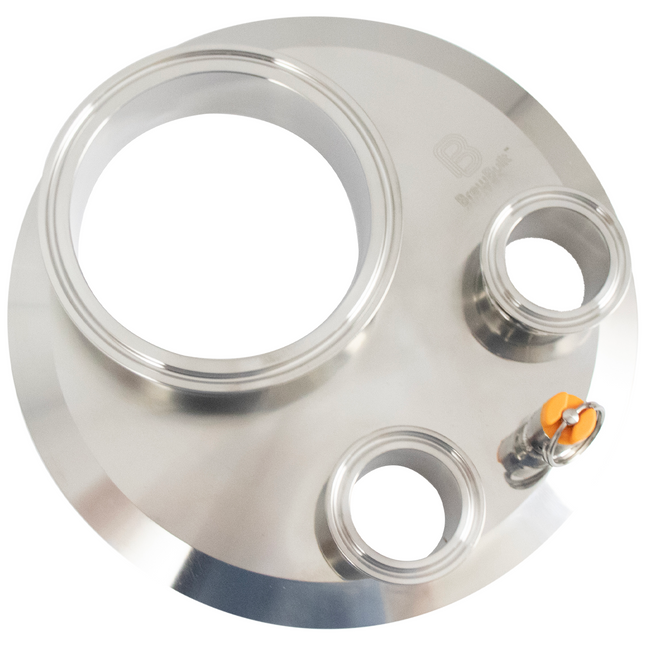

Replacement tri-clamp lid for the BrewBuilt X3 Uni Conical and Brite Tanks. Features a 4" T.C. ferrule, (2) 1.5" T.C. ferrules, and a built-in pull-ring PRV. Compatible with all sizes of X3 Conicals and BrewBuilt Brite Tanks via 8" tri-clamp connection.
Not compatible with X2 or X1 Uni Conicals.
Lid only. The replacement lid comes with the PRV but does not include tri-clamps, gaskets, or other parts & accessories.
This elbow fitting features 3" tri-clamp connections at both ends and is made from high-quality stainless steel. Perfect for pairing with the BrewBuilt X3 Conical's 3" bottom port for routing yeast and trub dumps.
3" tri-clamp
90° bend
Made from 304 stainless steel
ForgeFit® is a brand of rugged, high-quality fittings made from certified 304 stainless steel. Each fitting is backed by our 60-day no-hassle return policy and a one-year warranty from MoreBeer!.

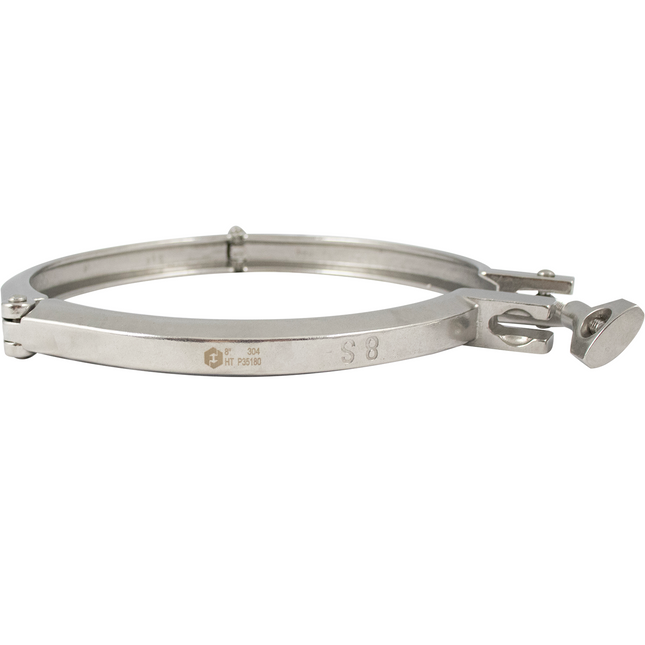

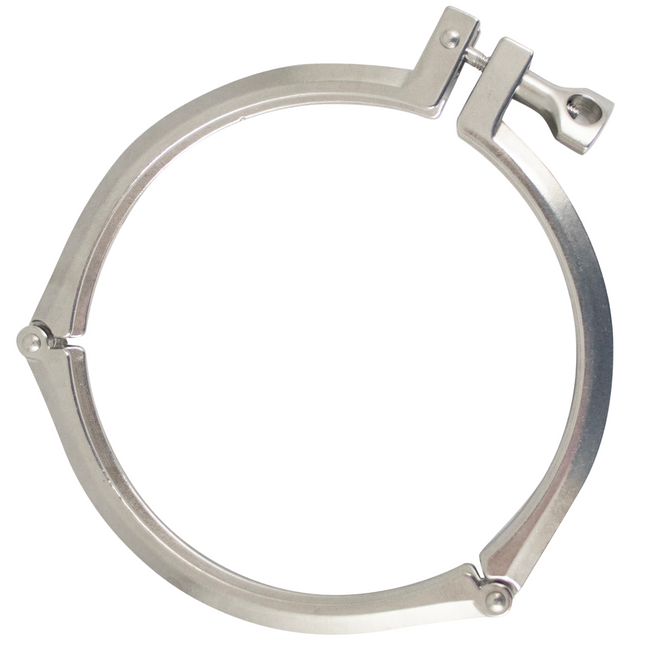

Replacement clamp for the BrewBuilt X3 Uni Conical 8" tri-clamp lid. This 3-piece stainless steel tri-clamp features two hinges which makes the clamp easier to work with on larger fitting sizes.
