Add convenience and reduce the mess of bottling with this bottling wand!
Say goodbye to the days of just running a tube from your bottling bucket's spigot into the bottom of the bottle. A bottling wand starts its flow when you press the wand tip against the bottom of the bottle, and stops when you lower the bottle away from it. No more having to fiddle with the spigot during bottling, and no more mess from the dripping hose between bottles!
What does this bottle filler have that the rest don't? A removable tip and spring that make this model easy to sanitize. Plus, the nozzle spring can be removed if you prefer the action of a springless bottle filler. The actual "wand" on the filler is 12 inches long.
The plastic end fits nicely into our FE346 spigot, or it can be removed to attach 3/8" ID tubing.
The counter pressure bottle filler that sets the standard for filling beer bottles at home. With a unique one way valve and adjustable pressure relief you will be bottling sediment free homebrew with ease.
If you currently carbonate and store your homebrew in kegs, you can use a counter pressure filler to bottle beer directly from your kegs. One huge advantage of this method is that since you are bottling already carbonated, clear beer, there will be no sediment at the bottom of your bottles.
Counter pressure bottle filling is how a brewery bottles beer. The bottle is under pressure while the carbonated beer flows in. Because the interior of the bottle is pressurized there is minimal loss of the CO2 in solution. The opposite of filling under pressure is when you pour a beer into a pint glass where CO2 erupts out of solution creating all that foam. Great in your glass but not good when you are trying to bottle carbonated beer. Our counter pressure filler mimics a single filling head on a professional bottling line, a concept that we all know works very, very well.
Made by Fermentap, the design has two unique features. Number 1 it is the only model made entirely from stainless steel. Number 2 you flush and fill from the bottom of the bottle.
Beer barb is 3/16". Gas barb is 5/16".
Features While some models flush the bottle from the top and fill from the bottom, our unit features a special valve that allows CO2 and beer to flow down the same stainless tube, directly to the bottom of the bottle. First CO2 flows down into the bottom of the bottle to flush from the bottom up. Next you switch the valve position and beer flows down the same tube, filling from the bottom up. The result is a more effective purging of oxygen and no foam during the filling process - not to mention that the whole thing takes one-hand to operate! Why hope that you flushed your bottle properly using a type of beer gun, when you can know for sure that you have created the best environment for your beer to be stored at by using a Counter Pressure Bottle Filler?
More Details
The unit is inserted into the bottle in the off position. The valve is then turned to CO2 to flush the bottle and then to beer for filling. The adjustable pressure relief on the side of the unit allows you control the speed of fill by adjusting the pressure in the bottle. The valve is positioned in such a way that it is easy to use with one hand, while the other holds the bottle. This model is designed for 12oz bottles but can easily be extended to accommodate larger bottles, such as 22oz, with a small piece of 1/4" tubing.
Setting Your PSI Pressure
Before you counter pressure fill a bottle make sure you are satisfied with the carbonation level and flavor. The goal for counter pressure bottle filling is to store your beer in the most sanitary and clean environment possible so when you get ready to share your homebrew its presentation is perfect when you go to pour.
An ideal set point to set your PSI level on your regulator is 10-14 psi. This range is dependent upon the temperature of your beer and the carbonation level. We recommend you start at a lower pressure around 10psi for the first 2-3 bottles to make sure you get everything dialed in before committing to filling a whole case.
Make sure your keg is always kept cold. If your keg warms up you will have foaming issues.
Connects your new Counter-Pressure filler to your existing ball lock kegging system with a convenient, sealing quick-disconnect system. Having everything you need all in this kit makes set-up & use of your counter-pressure filler easier. If you have the Counter-Pressure bottle filler then this set is a must have!
Includes:
Hardware to connect filler to gas system: Gas line tee, quick disconnect set, 6' of gas line.
Hardware to connect filler to keg: Threaded, black Beverage-Out Quick Disconnect, related flare fittings, 5' of beer line.
To Install: Shut off your gas. Cut your existing gas line assembly and clamp the Co2 Tee in that place. Clamp the gas line and beverage line to the Bottle Filler. Gas line on the larger barb fitting, beverage on the smaller barb. Make sure the counter pressure filler is closed by placing the valve handle perpendicular to the valve. Attach the beverage ball lock quick disconnect to your keg. Never attach a beverage out fitting to your keg without it being in a closed system. Connect the gas line quick disconnect. Finally turn your gas back on. You're ready to fill.
Automated Filling System: Fill any beverage into any bottle, can, jar, or glass automatically with this internet-connected, RAPT-enabled Cannular Can and Bottle Filler, offering a more sanitary and user-friendly experience than competitors.
Integrated Pinch Valve and Regulator: The pinch valve allows easy removal of the beer line for cleaning, while the integrated regulator eliminates the need for an external regulator, preventing damage from high-pressure gas sources.
OLED Digital Display and WiFi Connectivity: The OLED display simplifies calibration and allows real-time adjustments, while WiFi connectivity to the RAPT.io portal logs usage data and enables remote management of settings and profiles.
Versatile and Multi-Purpose: With adjustable stainless steel tubes and a height range suitable for bottles up to 11.8" and cans up to 10.6", this filler can handle still or carbonated beverages, making it ideal for various containers including wine bottles, beer cans, and more.
Low Dissolved Oxygen (DO) Pickup: The filler effectively purges oxygen from the container, ensuring substantially lower dissolved oxygen levels, which enhances the quality and longevity of your beverage.
Fill any beverage into any bottle, can, jar, or glass automatically with this internet-connected, RAPT-enabled, Cannular Can and Bottle Filler. Featuring two adjustable stainless steel tubes, the Cannular Filler will use one to purge oxygen out of the vessel and then use the second one to fill the vessel to a precise level based on an internal pressure sensor.
OLED Digital Display
The OLED display makes calibration super easy. It also enables you to keep track of filling speed, number of cycles/fills, purge time, fill height, and also enables you to make on-the-fly adjustments to your filling requirements so you can conveniently tweak the settings while filling.
Integrated Ball Lock Connectors
The integrated ball lock connectors allow you to quickly attach your beer and gas ball lock disconnects. We recommend the use of the Duotight Ball Lock Quick Disconnects in Gas and Liquid to connect to these inputs and outputs.
Integrated Pinch Valve
The integrated pinch valve is one of the things that makes this unit far superior to other filling machines. The pinch valve enables you to easily remove the beer line for cleaning so the stainless tube, silicone hose, and yellow ball lock cap removes completely and can be put into the dishwasher or cleaned in the sink. The pinch valve is mechanically simple and therefore reliable. It is not subject to small particles like hops getting stuck in the device and eliminates the need for pre-filtration. It simply pinches down on the silicone tube to shut off the flow. This design also enables laminar flow that reduces foaming. The pinch valve improves reliability, makes it easier to operate, and a piece of cake to clean.
Integrated Regulator
Other filling machines require an external regulator that may need to drop the pressure lower than your normal keg dispensing pressure. Unlike these other fillers, this filler has an integrated regulator which saves time and setup costs. This integrated regulator means you will not damage your machine by accidentally connecting it to a high-pressure gas source. You can hook up your gas line without the need for another external regulator or to fool around with your gas supply at all. Just set the integrated regulator once during setup and forget about it.
Multi-Purpose
The long stainless tubes and adjustable height make this device useful for pretty much any bottles up to 11.8" (30cm) high or cans up to 10.6" (27cm) high. It can also be used for still or carbonated beverages, so this device is useful for wine bottles, beer cans, champagne, crown seal bottles, and pretty much any other bottle/can/vessel that has a neck opening greater than 0.59" (15mm). It can also be used for filling glasses, jars, or other vessels.
Fill Profiles
Some other machines require a full calibration to change from one vessel type to another. This machine allows you to pre-save fill profiles depending on what you are doing. Save a filling profile for your 12 oz cans and then save a different filling profile for your 750mL wine bottles. Use our pre-saved presets or alternatively make your own fill profiles with different purge times and fill height. These are also synced with the RAPT.io portal so you can save profiles and share them with friends or deploy them to several other devices.
RAPT.io Connected (via WiFi)
As well as all the features above, this filler connects to your WiFi and keeps track of your Cans Per Minute (CPM), fill speed, and even temperature (if you purchase the external Instant Read Temperature Probe separately). It will log all usage information so you can keep track of how your machine is running or even keep track of your staff to make sure they are cycling the machine at an acceptable rate. The connectivity to the RAPT.io portal will enable you to more easily change settings, update profiles, and keep track of your fill days so you can historically keep track of how your fill day went and which day you processed each batch.
Low DO Pickup
The quality and longevity of your beverage are often defined by how well you keep oxygen off your product. This filler purges the oxygen out of the can and will enable you to get substantially lower dissolved oxygen.
Wall Mounted Design
This type of can and bottle filler has primarily been designed for wall-mounting configuration. This allows you to bring a can or bottle up to the filler from the underside of the unit. To wall mount this unit you can download and print this template.
24V DC Power Supply
KegLand Part Number: KL37785
Vacuum pump wine bottle filler with 180 bottle per hour filing capacity
Automatically starts siphon and shuts off when the bottle is filled
Oxygen is evacuated from each bottle before filling
Adjustable fill speed to match your preferred pace
Fill wine bottles directly from your fermenter, storage tank, or barrel
A great bottle filler for small-scale winemakers. Through the use of a vacuum pump, the Enolmatic filler automatically starts a siphon and automatically shuts off when the bottle is filled to the perfect height. The vacuum also serves to evacuate most of the oxygen from your bottle. The fill rate is fast - allowing you to bottle up to 180 bottles per hour.
The Enolmatic creates a vacuum that sucks the wine directly from your fermenter, storage tank, or barrel, which can be located up to 13 feet below the Enolmatic. No need to start a siphon or to have to pump or move your wine above your filling machine.
Fill speed can be adjusted allowing you to bottle at your preferred pace. While the filler is in operation wine is not allowed back into the storage tank or barrel due to a one-way valve located in the fill head. The small amount of excess wine runs into a collection reservoir. The fill height can be adjusted and is designed to be used with any size or type of bottle.
The Enolmatic has a continuous duty cycle, meaning it can run non-stop and is constructed entirely from food-grade materials. Simply run water through the system to clean out the lines. The reservoir for excess overfill can be rinsed out or ran through the dishwasher.
110V 60 Hz 60 W
Includes:
Filling Unit with Overflow Reservoir
5ft. of 1/2"ID Feeder Line
Collapsible 1/2" racking cane for intake, helps leave the lees behind
Detailed Instructions
The Buon Vino Super filler for winemaking is a gravity fed bottle filler that shuts off automatically when the proper fill height is reached in each bottle. Very easy to use and perfect for small quantities. A great choice when you want something more sophisticated than the tube style bottle fillers, but don't need to upgrade to a more expensive electric wine bottle filler.
Usage: To use the filler, place the device on top of the bottle to be filled, insert the intake tube into your vessel containing the liquid, and the small overflow tube into an empty bottle. To begin the siphon, start by pressing down on the center plunger on the flow regulator to open the valve. Suck on the end of the overflow tube until the liquid begins to flow into the bottle. When liquid is flowing into the bottle, put the overflow tube back into the empty bottle. When the liquid reaches the top of the bottle, the valve will shut the flow off automatically.
After the first bottle, check the level of the fill and adjust the level up or down if necessary by moving the rubber bottle seal up or down. Please note that the fill level can be affected by excessive foaming. After one bottle is filled, move the bottle filler to another empty bottle, push down on the plunger lever, and repeat.
Comes with 6 ft. of tubing.
The Ferrari auto bottle filler is a great economical bottle filler option. This unit will automatically stop when the bottle is full. No more messes from accidentally overfilling your bottles. Their patented design is one of the best on the market at a price that can't be beat!
Replacement siphon starter bulb for 3-spout and 5-spout bottle fillers. This is included in our WE602 and WE605 stainless steel bottle fillers, and can be purchased as an option upgrade for the WE604 painted filler. This siphon starter will save you a lot of hassle, and allow you to start a siphon in the fillers tubes while maintaining sanitary conditions.
The siphon starter features a food grade plastic bulb and tubing, and a black rubber "boot" that fits tightly around the end of the bottle filler tubes.
To use:
Connect your bottle filler to the wine source and allow the reservoir to fill.
Sanitize the siphon starter, inside and out
Squeeze the bulb to remove most of the air.
Fit the rubber "boot' or base around the end of the bottle filler tube. The hole in the boot must line up with the hole where the wine will come out.
Gently press down on the filler tube so that the gasket is not touching the inside wall.
Slowly let go of the pressure on the bulb. The bulb will suck the air out of the tube, and wine will follow. Stop when you can hear or feel wine going into the bulb siphon starter.
Repeat for each filler tube you would like to use.
Wash, sanitize, and dry the siphon starter bulb before storage
A replacement lid for the rear overflow reservoir on the Enolmatic filler. Includes the float assembly which breaks the vacuum and stops filling if the reservoir becomes full to prevent messy overflowing.
Adjustable filling height with automatic stop
Stainless steel base, frame, and filling nozzle
Adjustable filling level and filling speed
Vacuum gauge

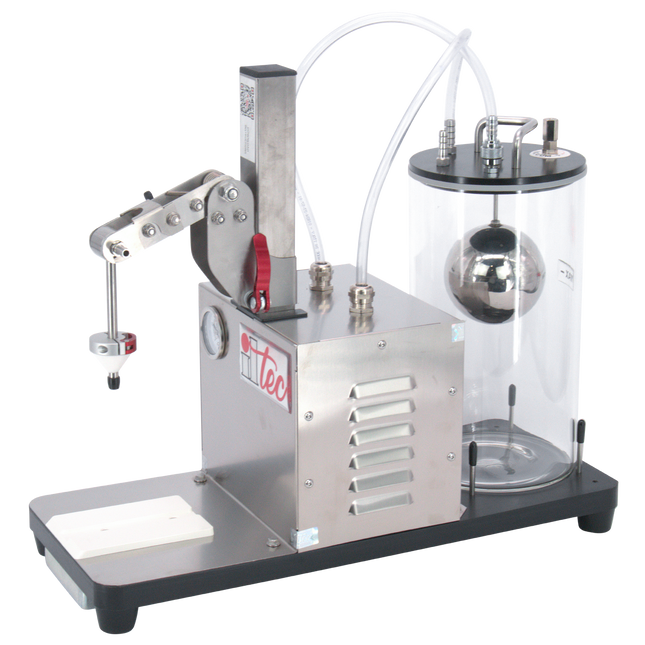

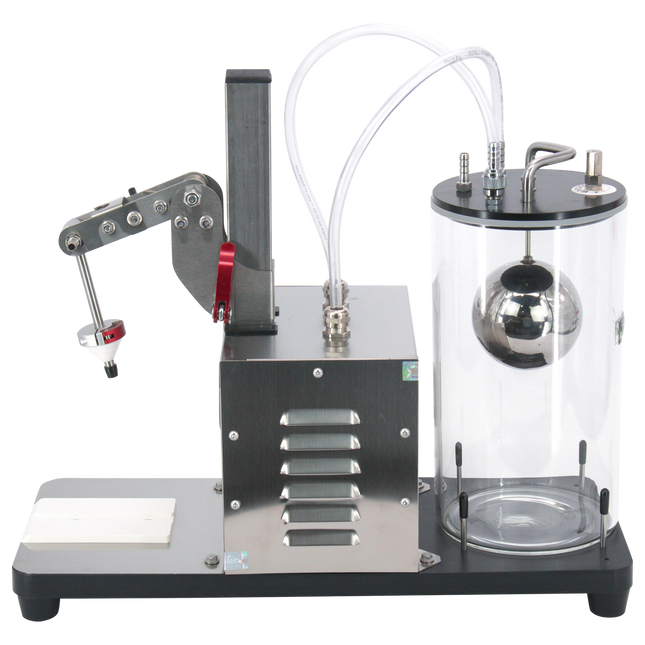

The Ultrafiller 1 is built entirely in stainless steel with PYREX tank, featuring high efficiency and precision stainless steel filling nozzle. This professional bottling machine is perfect for wine, uncarbonated beer or cider, spirits, and oils. When you place the bottle under the Ultrafiller 1, the fluid is sucked into the vacuum created inside it, without any contact between the liquid and the pumps or mechanical components.
Why Choose ILTEC
While the Enolmatic has served as a great economical option, the ILTEC offers a significant step up in overall quality and durability. The key differences speak for themselves:
Stainless Steel Construction: Unlike the Enolmatic's plastic components, the ILTEC boasts a robust stainless steel construction, ensuring long-lasting performance and easy sanitation.
Borosilicate Vacuum Chamber: The ILTEC utilizes a borosilicate vacuum chamber, a superior alternative to the plastic chamber found in the Enolmatic. Borosilicate glass is known for its exceptional resistance to thermal shock and chemical corrosion, guaranteeing a cleaner and more efficient filling process.
The ILTEC filler isn't just about superior materials; it's about delivering consistent, precise, and professional results. Whether you're bottling wine, spirits, oils, or other liquids, the ILTEC provides the performance you demand.
Specs:
Capacity: 250-300 x 750mL bottles per hour*
Bottle Neck Diameter: 16-34mm
Bottle Height: 3.9" to 13.75" (100-350mm)
Tank Alcohol Tolerance: 80% ABV
Max Temperature: 176°F (80°C)
Dimensions: 7.8" x 19" 16.5" (200 x 485 x 420mm)
Weight: 24.5 lbs
Power: 110V, 60hZ, 80W
*Capacity may change depending on liquid and bottle size.
