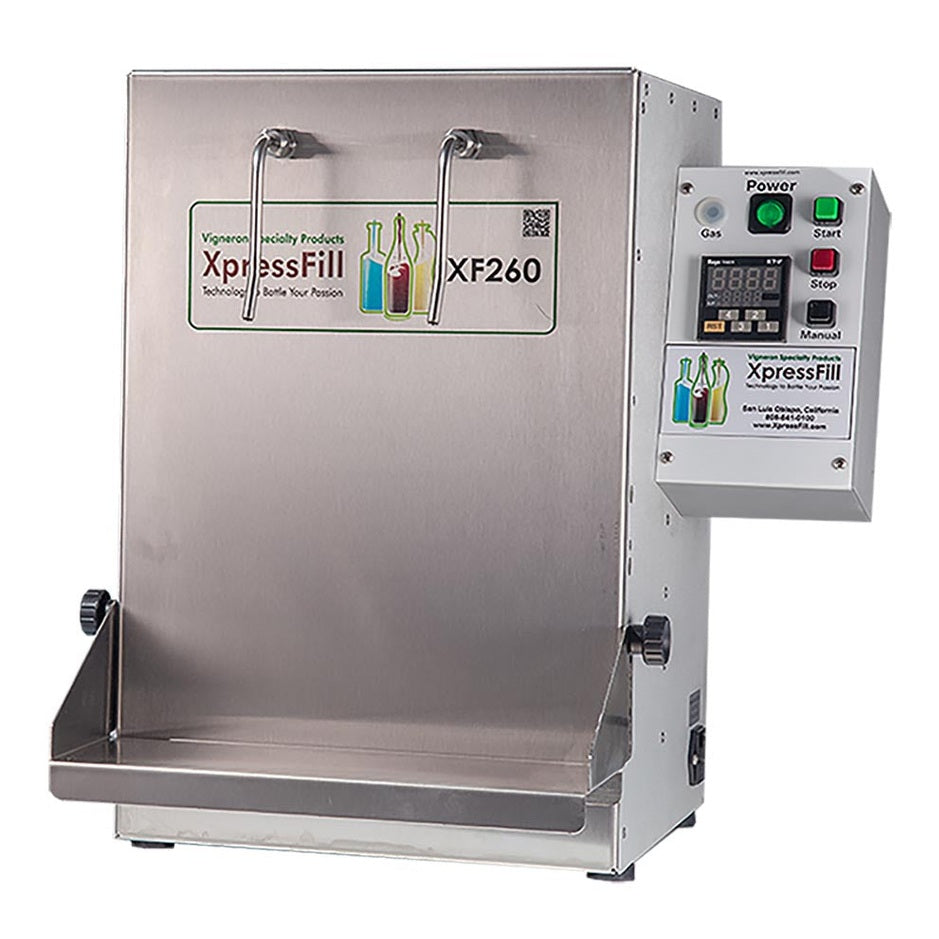

XpressFill XF260HP | Volume Filler | High Proof Spirits | 2 Spout

    Description

    • Eliminate oxidation in your bottling process with the XF260HP volume-based filling system
    • Made specifically for high proof spirits—featuring components with better resistance to high concentrations of ethanol
    • Liquid is pulled from your barrel or storage tank by the built-in self-priming pump
    • Filling volume is programmed and stops automatically
    • Optional gas flush system
    • Made to order in the United States

    Eliminate oxidation in your bottling process by using the XpressFill volume-based filling system!

    The XF260HP two bottle filler is now available specifically for High Proof Spirits. Susceptible components have been replaced with material more resistant to higher concentrations of ethanol.  The XF260HP can easily accommodate very small to very large bottles with its adjustable shelf, allowing great flexibility.  Easy to use, compact in design, precise volume filling, high quality components, hand-crafted in the USA.

    Gravity-based systems usually involve spirits being transferred to a holding tank, and unless your bottles and holding tank are pre-flushed with inert gas, some degree of oxidation is inevitable. Xpress Fill bottling systems have a closed pathway with a self-priming pump. They also have as an optional built-in sparging (pre-flushing) system that uses Nitrogen or Argon to pre-flush your bottles.

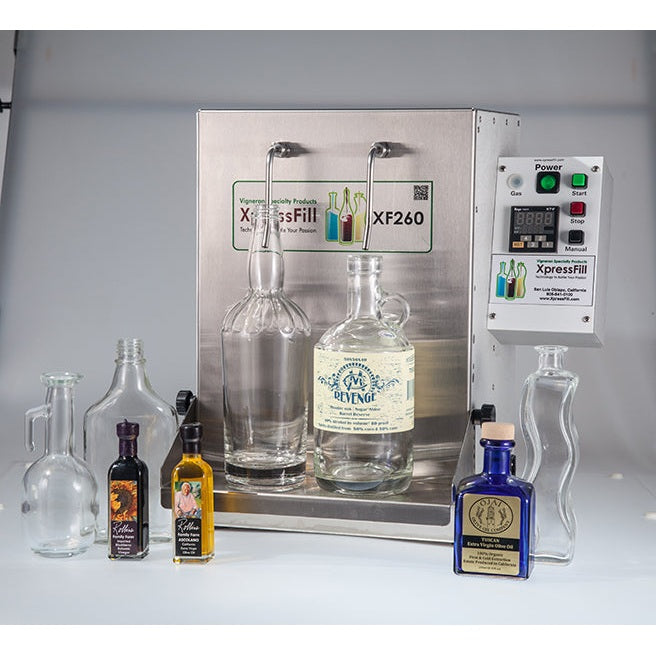

    To use, place two bottles under the filling spouts, push the gas button (optional at additional cost) to flush the bottles with inert gas. Then hit the Fill button which pulls the spirit from your barrel or stainless storage tank, distributes 750ml of spirit to each bottle, and shuts off automatically when done. It is truly that simple. Each fill cycle lasts 20 seconds. When using 750ml bottles you can expect to fill about 250 bottles per hour. There is also a manual mode allowing you to top up bottles or fill odd size bottles.

    The two spout filler features a 3/8" inlet.

    Features:

    • Made to order in the USA
    • 2 Spout fills approximately 250 bottles per hour
    • Bottle shelf is adjustable to accommodate a wide range of bottles
    • Optional Gas Flush System & Filler to automatically gas-purge bottles prior to filling
    • Weight: 23 lbs
    • Dimensions: 11.25" W x 17" H x 15.5" D

    Warning: XpressFill bottle fillers are NOT certified as explosion proof, should be used in a well-ventilated area, and not for use with solvents. It should be noted that 70% alcohol is 140 proof and has a flash point of 70°F, making the product volatile, as well as flammable

    XpressFill XF260HP | Volume Filler | High Proof Spirits | 2 Spout

      Product form

      SKU: XF260HP

      $2,395.00

      Shipping
      Free Shipping*
      Shipping
      Paid Shipping
      Drop Ship
      Drop Ship
      Discount Exclusion
      Discount Exclusion
      Freight
      Freight Only
      Pre-book
      Pre Order

        Prop 65 Warning WARNING : This product can expose you to chemicals including Vinyl Chloride, which is/are known to the State of California to cause cancer. For more information go to www.p65warnings.ca.gov.

        Description

        • Eliminate oxidation in your bottling process with the XF260HP volume-based filling system
        • Made specifically for high proof spirits—featuring components with better resistance to high concentrations of ethanol
        • Liquid is pulled from your barrel or storage tank by the built-in self-priming pump
        • Filling volume is programmed and stops automatically
        • Optional gas flush system
        • Made to order in the United States

        Eliminate oxidation in your bottling process by using the XpressFill volume-based filling system!

        The XF260HP two bottle filler is now available specifically for High Proof Spirits. Susceptible components have been replaced with material more resistant to higher concentrations of ethanol.  The XF260HP can easily accommodate very small to very large bottles with its adjustable shelf, allowing great flexibility.  Easy to use, compact in design, precise volume filling, high quality components, hand-crafted in the USA.

        Gravity-based systems usually involve spirits being transferred to a holding tank, and unless your bottles and holding tank are pre-flushed with inert gas, some degree of oxidation is inevitable. Xpress Fill bottling systems have a closed pathway with a self-priming pump. They also have as an optional built-in sparging (pre-flushing) system that uses Nitrogen or Argon to pre-flush your bottles.

        To use, place two bottles under the filling spouts, push the gas button (optional at additional cost) to flush the bottles with inert gas. Then hit the Fill button which pulls the spirit from your barrel or stainless storage tank, distributes 750ml of spirit to each bottle, and shuts off automatically when done. It is truly that simple. Each fill cycle lasts 20 seconds. When using 750ml bottles you can expect to fill about 250 bottles per hour. There is also a manual mode allowing you to top up bottles or fill odd size bottles.

        The two spout filler features a 3/8" inlet.

        Features:

        • Made to order in the USA
        • 2 Spout fills approximately 250 bottles per hour
        • Bottle shelf is adjustable to accommodate a wide range of bottles
        • Optional Gas Flush System & Filler to automatically gas-purge bottles prior to filling
        • Weight: 23 lbs
        • Dimensions: 11.25" W x 17" H x 15.5" D

        Warning: XpressFill bottle fillers are NOT certified as explosion proof, should be used in a well-ventilated area, and not for use with solvents. It should be noted that 70% alcohol is 140 proof and has a flash point of 70°F, making the product volatile, as well as flammable
