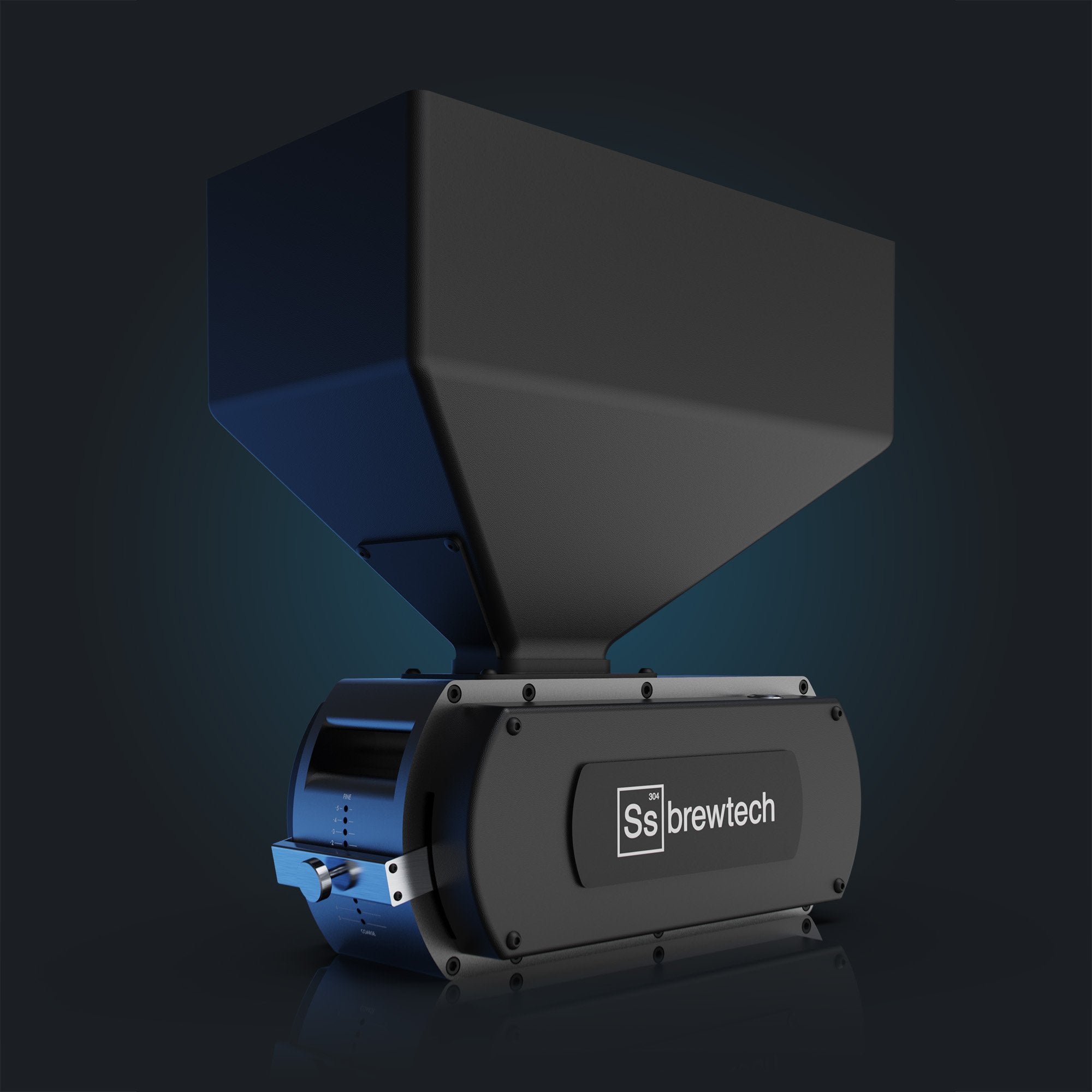

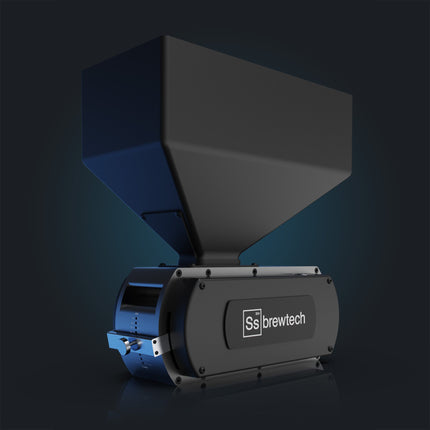

Ss Brewtech Grain Mill

    Description

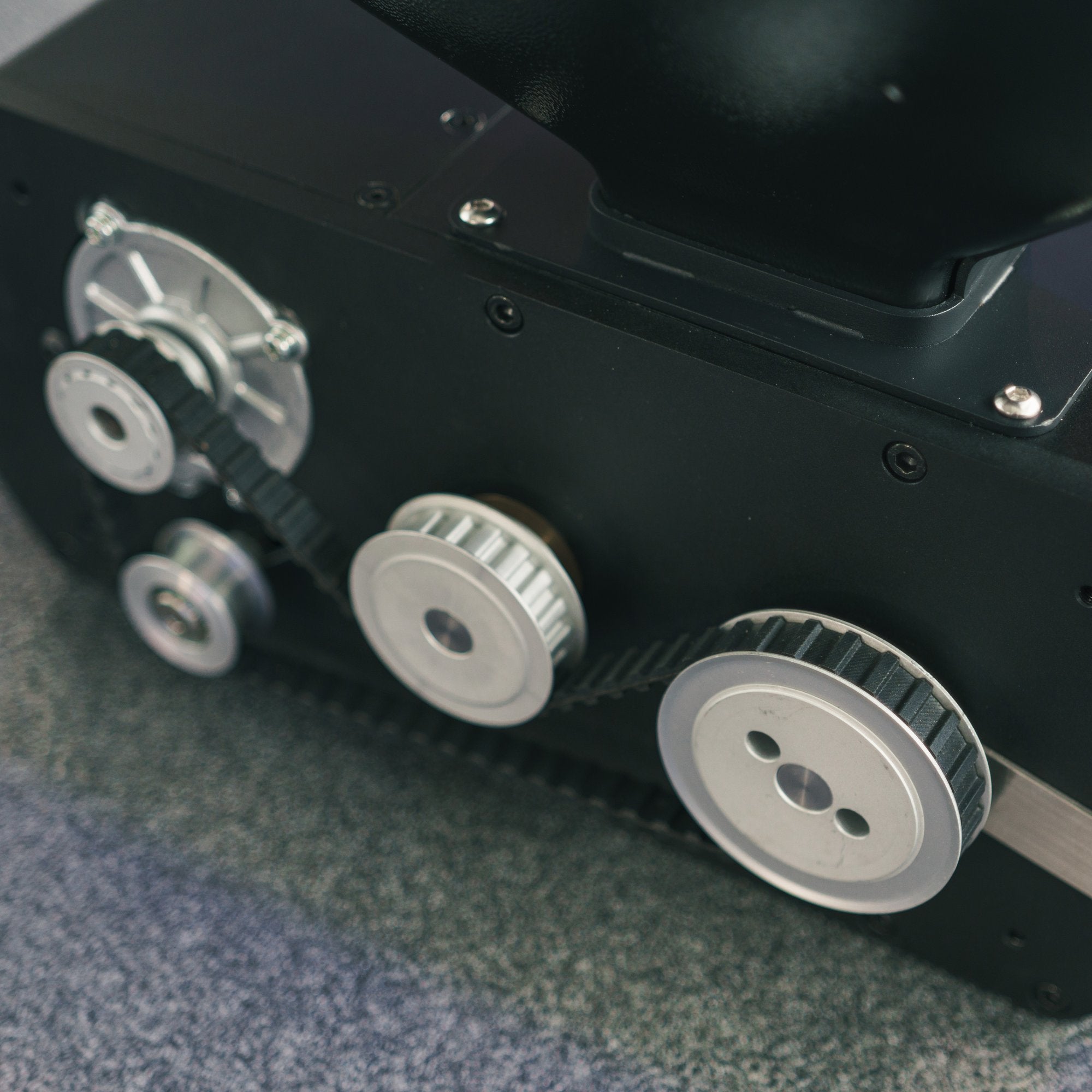

    The Ss Grain Mill sports an all-in-one design, featuring a hi-torque DC motor combined with a leveraged gear reduction system that drives a series of billet aluminum pulleys and high inertia rollers that make easy work of the toughest wheat and rye malts — Capable of up to 350 lb/h

    Differential Speed Rollers
    Dating back to the early days of craft brewing, feed mills were often repurposed in breweries due to the lack of availability of milling equipment designed specifically for processing malt in brewing applications.  Conversely, in a home brew settling, corona mills, and other repurposed mill designs intentioned for processing raw grain in a home kitchen were adopted for their ease and accessibility.

    Naturally, if you're feeding livestock or making grits, you typically want to pulverize the grain.  However, if you're brewing beer it’s preferable to crack the endosperm in several places and then sheer off the husk, keeping it mostly intact.  This shearing and crushing action maximizes both efficiency and lautering performance, reducing or eliminating the need for rice hulls or other lautering aids. The two rollers inside the Ss Grain Mill are both driven by the onboard motor, but designed to rotate at different speeds. This key feature is at the heart of our purpose built mill designed for home and pro brewing.

    Machined Fluted Stainless Steel Rollers
    Other mills that are designed to pulverize grain, often rely on hardened steel knurled rollers to extend their usable life.  The shearing action of the Ss Grain Mill places less stress on the roller to effectively process the grain. We settled on the more professional approach of fluting the rollers, which enhances the ability for the two rollers to engage the malt and effectively shear the husk from the endosperm.  It was also important to us that this mill be functional in either a home or pro-environment, so we decided to cast the rollers in solid 304 stainless steel, with each roller weighing a robust 7.5 lbs.

    Furthermore, the profile of the rollers has been completely rethought.  Most small mills rely on a wide processing envelope and a small, 1.5-2” diameter roller.  We have emulated the design of large production mills, and increased the diameter of the roller to 4”, and narrowed the processing envelope.  This design increases the rotating mass, and stores rotational energy, which ultimately helps to smooth abrupt changes in rotational speed.  Furthermore, the entrance angle is less aggressive with a larger roller, resulting in additional mechanical advantage.

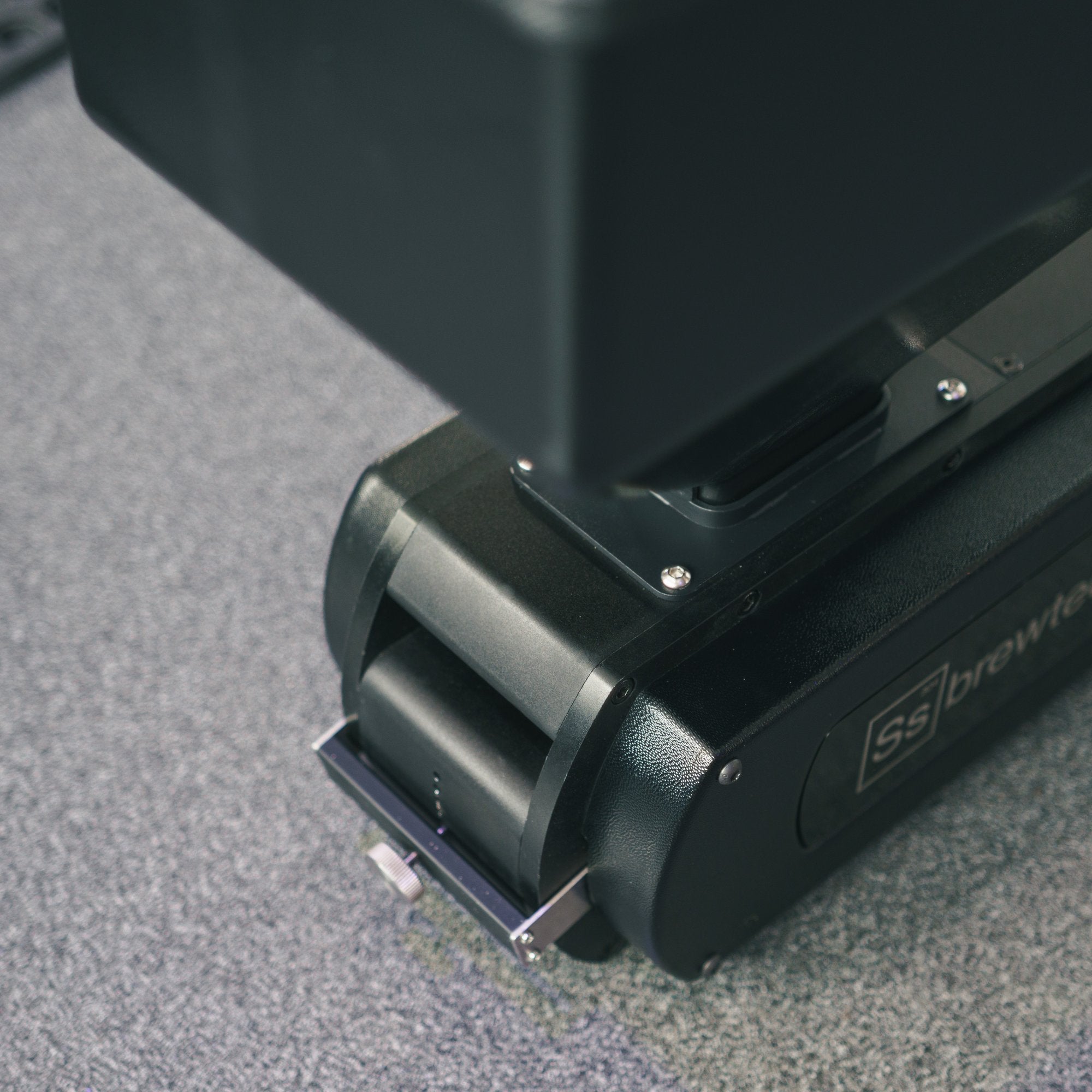

    Precision Gap Adjustment
    Eleven points of adjustment ranging from 0.5mm to 2.0mm open up a wide range of malt products. Gap adjustments are tool-less and can be made without any disassembly, or complicated procedures.

    Extruded Aluminum Chassis
    The two piece extruded 6061 aluminum chassis promotes structural rigidity resulting in a more precise degree of roller alignment.  This is important to retaining consistent roller gap settings from batch-to-batch. Furthermore, the two-piece construction isolates the motor and rollers in separate chambers, preventing the motor and drivetrain from accumulating dust and debris. All rotational pulleys, and rollers have their own dedicated fully sealed ball bearings for low drag and long life.

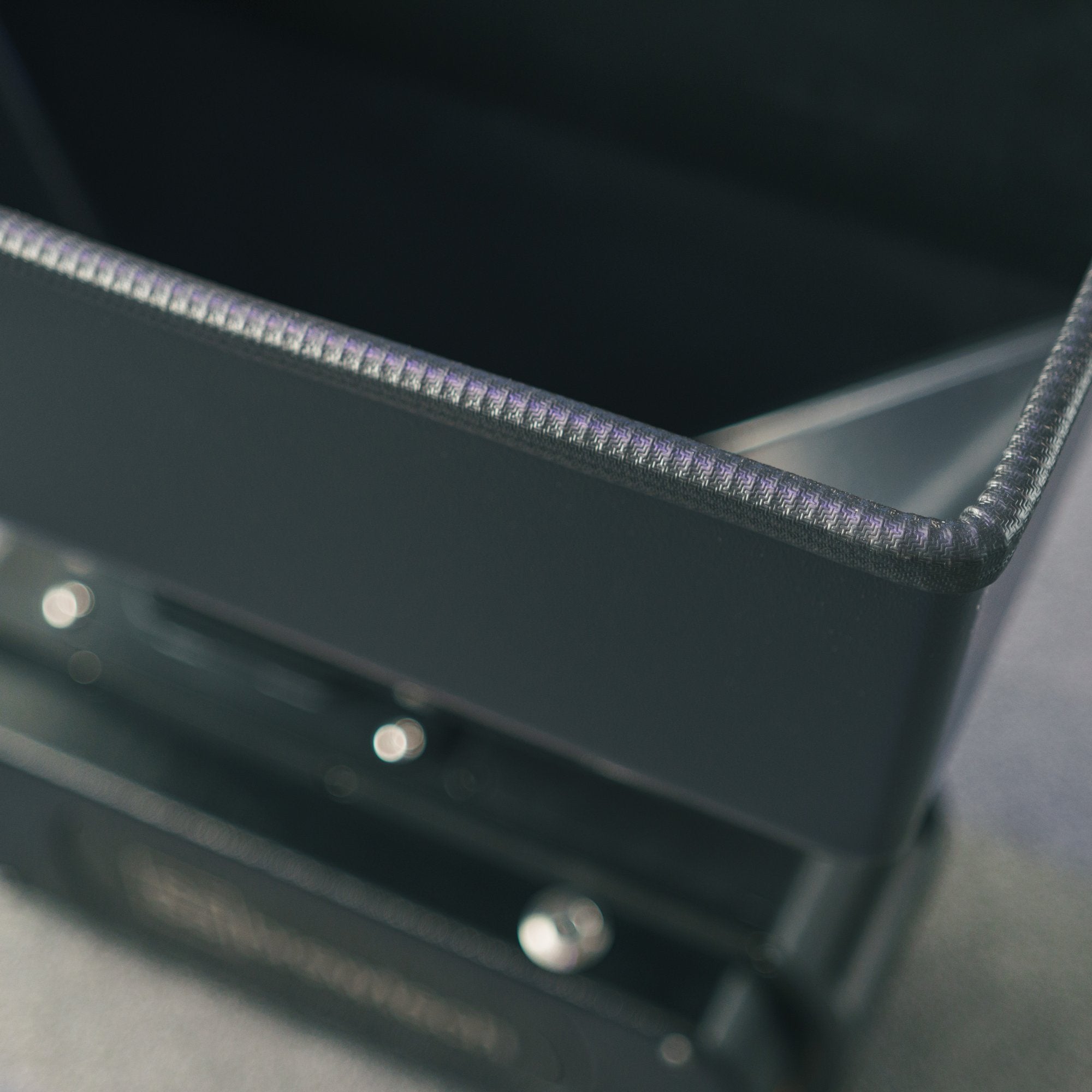

    25 lb. Hopper Capacity
    The Ss Mill will include a custom tooled 4mm thick ABS hopper that is both structurally strong and lightweight. Designed to hold up to 25 lbs. of grain at a time, the Ss Grain Mill has been clocked in prototype testing at processing roughly 350 lbs. per hour of barley malt.  Which is roughly a 50 lb. sack every 8 mins, making it perfect for batch sizes from 5 gallons to 5 BBLs.

    Features:
    • All-In-One Design
    • Differential Speed Rollers
    • Machined Fluted Stainless Steel Rollers
    • Precision Gap Adjustment
    • Extruded Aluminum Chassis
    Specs:
    • 350 lb/h
    • 25 lb Hopper
    • 0.5 - 2.0mm Gap Range
    • 18" Width x 19.5" Height x 9" Depth

    Plugs into standard 110 volt wall socket.

    Please note: This mill is designed for use with brewing grains only. It will not work for cracking whole kernel corn.



    Ss Brewtech Grain Mill

      Product form

      SKU: MILL720

      $799.00

      Shipping
      Free Shipping*
      Shipping
      Paid Shipping
      Drop Ship
      Drop Ship
      Discount Exclusion
      Discount Exclusion
      Freight
      Freight Only
      Pre-book
      Pre Order

        Prop 65 Warning WARNING : This product can expose you to chemicals including Lead and lead compounds, which is/are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.

        Description

        The Ss Grain Mill sports an all-in-one design, featuring a hi-torque DC motor combined with a leveraged gear reduction system that drives a series of billet aluminum pulleys and high inertia rollers that make easy work of the toughest wheat and rye malts — Capable of up to 350 lb/h

        Differential Speed Rollers
        Dating back to the early days of craft brewing, feed mills were often repurposed in breweries due to the lack of availability of milling equipment designed specifically for processing malt in brewing applications.  Conversely, in a home brew settling, corona mills, and other repurposed mill designs intentioned for processing raw grain in a home kitchen were adopted for their ease and accessibility.

        Naturally, if you're feeding livestock or making grits, you typically want to pulverize the grain.  However, if you're brewing beer it’s preferable to crack the endosperm in several places and then sheer off the husk, keeping it mostly intact.  This shearing and crushing action maximizes both efficiency and lautering performance, reducing or eliminating the need for rice hulls or other lautering aids. The two rollers inside the Ss Grain Mill are both driven by the onboard motor, but designed to rotate at different speeds. This key feature is at the heart of our purpose built mill designed for home and pro brewing.

        Machined Fluted Stainless Steel Rollers
        Other mills that are designed to pulverize grain, often rely on hardened steel knurled rollers to extend their usable life.  The shearing action of the Ss Grain Mill places less stress on the roller to effectively process the grain. We settled on the more professional approach of fluting the rollers, which enhances the ability for the two rollers to engage the malt and effectively shear the husk from the endosperm.  It was also important to us that this mill be functional in either a home or pro-environment, so we decided to cast the rollers in solid 304 stainless steel, with each roller weighing a robust 7.5 lbs.

        Furthermore, the profile of the rollers has been completely rethought.  Most small mills rely on a wide processing envelope and a small, 1.5-2” diameter roller.  We have emulated the design of large production mills, and increased the diameter of the roller to 4”, and narrowed the processing envelope.  This design increases the rotating mass, and stores rotational energy, which ultimately helps to smooth abrupt changes in rotational speed.  Furthermore, the entrance angle is less aggressive with a larger roller, resulting in additional mechanical advantage.

        Precision Gap Adjustment
        Eleven points of adjustment ranging from 0.5mm to 2.0mm open up a wide range of malt products. Gap adjustments are tool-less and can be made without any disassembly, or complicated procedures.

        Extruded Aluminum Chassis
        The two piece extruded 6061 aluminum chassis promotes structural rigidity resulting in a more precise degree of roller alignment.  This is important to retaining consistent roller gap settings from batch-to-batch. Furthermore, the two-piece construction isolates the motor and rollers in separate chambers, preventing the motor and drivetrain from accumulating dust and debris. All rotational pulleys, and rollers have their own dedicated fully sealed ball bearings for low drag and long life.

        25 lb. Hopper Capacity
        The Ss Mill will include a custom tooled 4mm thick ABS hopper that is both structurally strong and lightweight. Designed to hold up to 25 lbs. of grain at a time, the Ss Grain Mill has been clocked in prototype testing at processing roughly 350 lbs. per hour of barley malt.  Which is roughly a 50 lb. sack every 8 mins, making it perfect for batch sizes from 5 gallons to 5 BBLs.

        Features:
        • All-In-One Design
        • Differential Speed Rollers
        • Machined Fluted Stainless Steel Rollers
        • Precision Gap Adjustment
        • Extruded Aluminum Chassis
        Specs:
        • 350 lb/h
        • 25 lb Hopper
        • 0.5 - 2.0mm Gap Range
        • 18" Width x 19.5" Height x 9" Depth

        Plugs into standard 110 volt wall socket.

        Please note: This mill is designed for use with brewing grains only. It will not work for cracking whole kernel corn.
