Ageing and Storing Wine

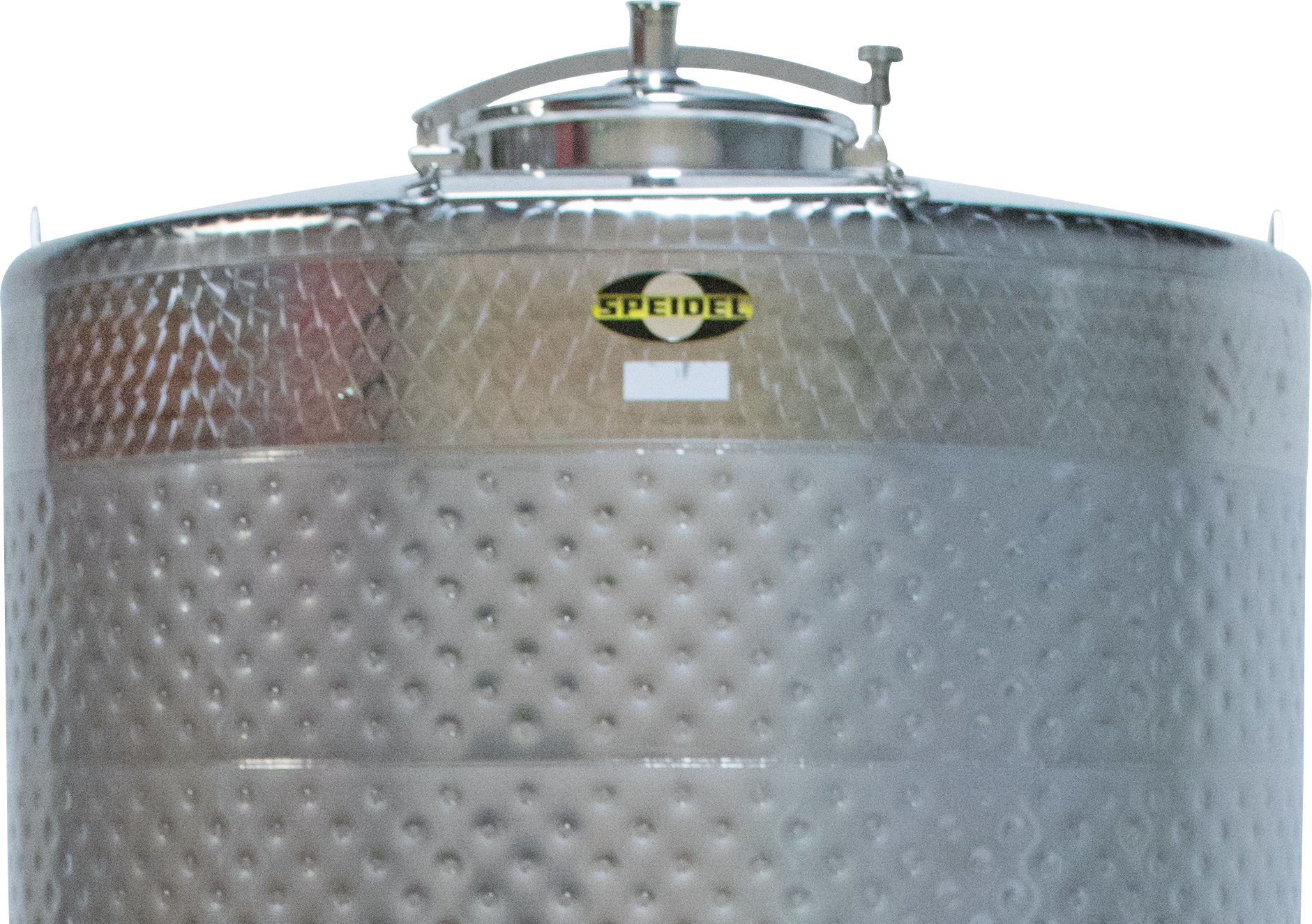

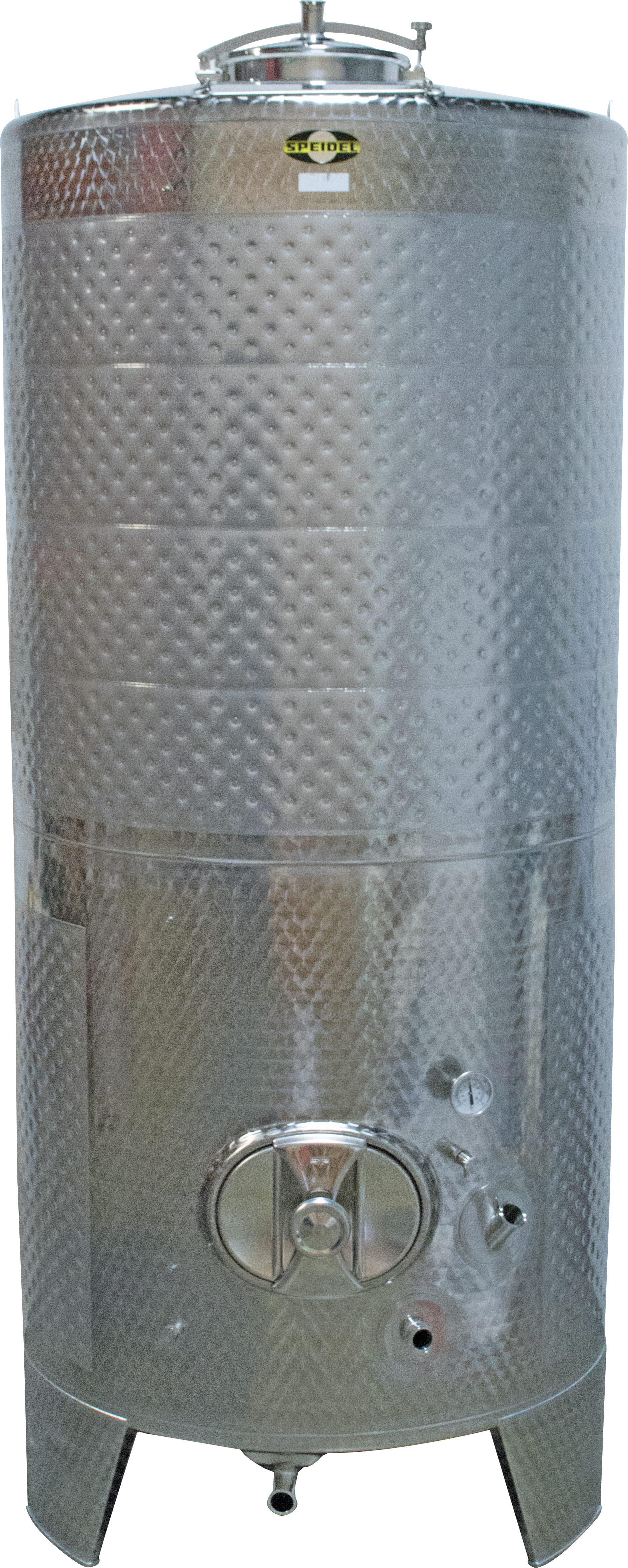

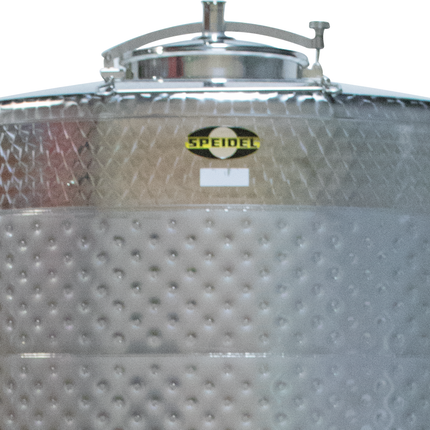

Speidel Sealed Tank | Laser-welded | Cooling Jacket | Stainless Steel | 4400L

    Description

    • Premium quality laser-welded stainless steel sealed tank wine, beer, spirits, cider, kombucha, and other beverages
    • Cooling jacket covers the entire tank of efficient glycol cooling
    • Top hatch provides a large, convenient opening for adding oak or other additions
    • Conical-shaped complete drainage bottom for maximum product yield and easy cleaning
    • Tri-clamp ferrule ports with thermometer and thermowell combo included
    • Made in Germany by Speidel

    We are proud to present our line of premium quality stainless steel tanks. Built in Germany by Speidel, the world-class traditions of German engineering and craftsmanship are reflected in these tanks. And, after examining tanks built by every major manufacturer worldwide, we can safely say that when it comes to features, quality and price, these tanks represent the very best value available in stainless steel beverage storage. We've found that these tanks work well for beer, wine, spirits, cider, and more!

    Convenient top hatch makes cleaning and oaking easy. Heavy duty sealing mechanism and thick gasket ensure an air tight seal. The tanks will support a few p.s.i. of pressure, however they are not pressure rated or designed to be used under pressure. The inside is finished to Speidel quality standards. Bottom drain fittings are 1.5" Tri-Clamp. Flat bottom tanks do not have legs; conical tanks come standard with legs.

    Speidel Quality Features:

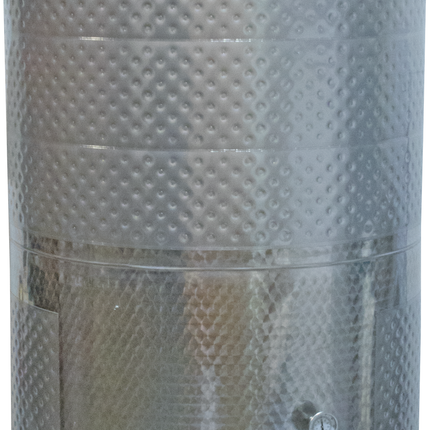

    • Full Jacket - Equipped with a jacket that covers all accessible areas of the tank and is designed for an operating pressure of 2.5 to 6 bar. This will allow you to hook it into a glycol system (see our Kreyer Chilly45, GLY410) for complete temperature control!
    • Interior Finish - Speidel tanks feature an ultra-smooth 2R rated interior surface which effectively resists the build-up of tartrate residues. Clean your tanks with cold water after cold stabilization! Say goodbye to harsh cleaning chemicals and expensive CIP systems!
    • Weld Quality - Speidel's robotic-arm laser welders create flawless stainless to stainless junctions that look and feel more like a taped fabric seam than a traditional weld. Ultra high-quality welds leave no chance for residual product to harbor spoilage organisms.
    • Thickness - Speidel tanks are designed to be the correct thickness for the tank's total volume.

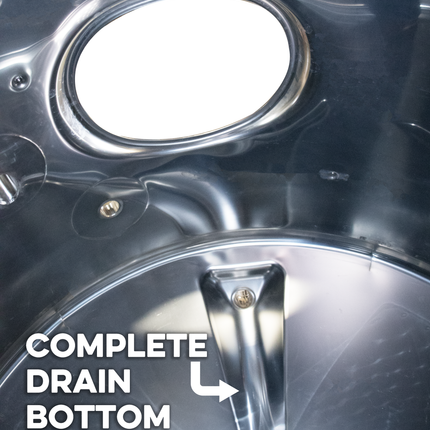

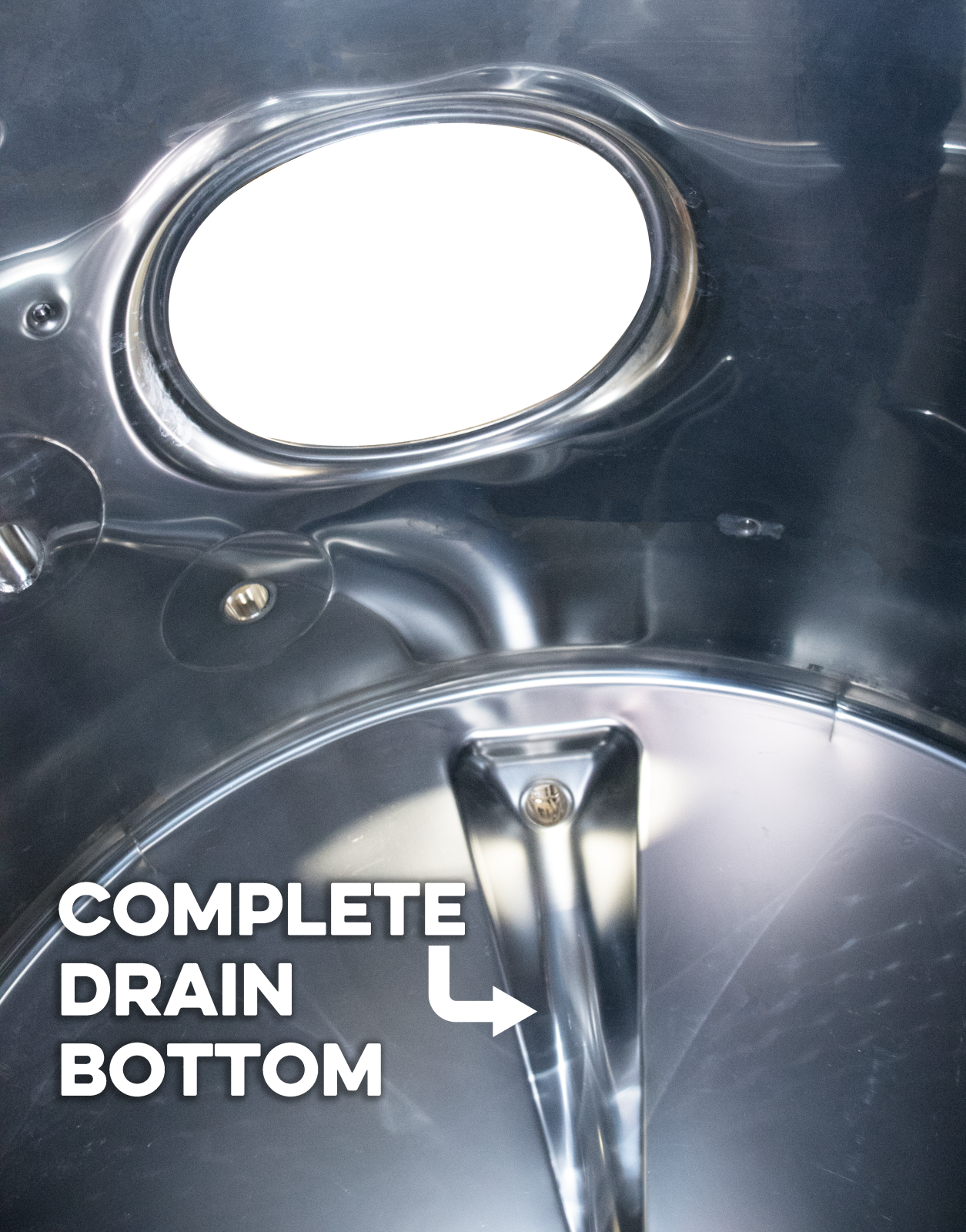

    • Complete Drainage Bottoms - All Speidel tanks are outfitted with conical, pocketed bottoms for total drainage, which maximizes product yield at rackings and makes cleaning a snap. *Please note that smaller, flat-bottomed tanks do not feature total drainage bottoms.
    • Tri-Clamp Valve Ferrules - All Speidel tanks come configured for use with Tri-Clamp (TC) style valves and fittings. Tanks up to 1600L capacity are outfitted for use with 1.5 in TC. Other sizes and custom configurations are available at additional cost upon request. **Please Note: TC valves not included. Please inquire with your sales associate for pricing on TC valves and fittings.
    • Rubber Lid Gaskets - Rubber gaskets are much thicker than the traditional clear vinyl gaskets, which along with their extruded manufacturing process provide a much better seal with the tanks wall. They're seamless and more oxygen resistant than the clear gaskets. That means better protection for your wines!
    • Warranty - Speidel-Behaelter, GMBH backs up each and every tank with an industry-leading 25 year warranty against defects in materials or workmanship. And, as a 5th generation manufacturer, you can be confident they'll be around to honor that warranty should the need arise.


    Tank Features:

    • Volume: Sealed, 4400 L. Open top, 4459 L
    • Manway
    • Lower Jacket: 3.2 m² (4x 1" MPT connections)
    • Upper Jacket: 5.4 m² (2x 1" MPT connections)
    • Complete Drainage Dish Bottom
    • Reinforced Racking valve
    • 2" TC connections
    • Thermometer and Thermowell Combo included
    • Sample Valve included

    Tank Dimensions: 1400mm D x 3465mm H (55.1" D x 136.4" H)

    Speidel Sealed Tank | Laser-welded | Cooling Jacket | Stainless Steel | 4400L

      Product form

      SKU: GER4400

      $11,209.99

      Shipping
      Free Shipping*
      Shipping
      Paid Shipping
      Drop Ship
      Drop Ship
      Discount Exclusion
      Discount Exclusion
      Freight
      Freight Only
      Pre-book
      Pre Order

        Prop 65 Warning WARNING : This product can expose you to chemicals including Lead and lead compounds, which is/are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.

        Description

        • Premium quality laser-welded stainless steel sealed tank wine, beer, spirits, cider, kombucha, and other beverages
        • Cooling jacket covers the entire tank of efficient glycol cooling
        • Top hatch provides a large, convenient opening for adding oak or other additions
        • Conical-shaped complete drainage bottom for maximum product yield and easy cleaning
        • Tri-clamp ferrule ports with thermometer and thermowell combo included
        • Made in Germany by Speidel

        We are proud to present our line of premium quality stainless steel tanks. Built in Germany by Speidel, the world-class traditions of German engineering and craftsmanship are reflected in these tanks. And, after examining tanks built by every major manufacturer worldwide, we can safely say that when it comes to features, quality and price, these tanks represent the very best value available in stainless steel beverage storage. We've found that these tanks work well for beer, wine, spirits, cider, and more!

        Convenient top hatch makes cleaning and oaking easy. Heavy duty sealing mechanism and thick gasket ensure an air tight seal. The tanks will support a few p.s.i. of pressure, however they are not pressure rated or designed to be used under pressure. The inside is finished to Speidel quality standards. Bottom drain fittings are 1.5" Tri-Clamp. Flat bottom tanks do not have legs; conical tanks come standard with legs.

        Speidel Quality Features:

        • Full Jacket - Equipped with a jacket that covers all accessible areas of the tank and is designed for an operating pressure of 2.5 to 6 bar. This will allow you to hook it into a glycol system (see our Kreyer Chilly45, GLY410) for complete temperature control!
        • Interior Finish - Speidel tanks feature an ultra-smooth 2R rated interior surface which effectively resists the build-up of tartrate residues. Clean your tanks with cold water after cold stabilization! Say goodbye to harsh cleaning chemicals and expensive CIP systems!
        • Weld Quality - Speidel's robotic-arm laser welders create flawless stainless to stainless junctions that look and feel more like a taped fabric seam than a traditional weld. Ultra high-quality welds leave no chance for residual product to harbor spoilage organisms.
        • Thickness - Speidel tanks are designed to be the correct thickness for the tank's total volume.
        • Complete Drainage Bottoms - All Speidel tanks are outfitted with conical, pocketed bottoms for total drainage, which maximizes product yield at rackings and makes cleaning a snap. *Please note that smaller, flat-bottomed tanks do not feature total drainage bottoms.
        • Tri-Clamp Valve Ferrules - All Speidel tanks come configured for use with Tri-Clamp (TC) style valves and fittings. Tanks up to 1600L capacity are outfitted for use with 1.5 in TC. Other sizes and custom configurations are available at additional cost upon request. **Please Note: TC valves not included. Please inquire with your sales associate for pricing on TC valves and fittings.
        • Rubber Lid Gaskets - Rubber gaskets are much thicker than the traditional clear vinyl gaskets, which along with their extruded manufacturing process provide a much better seal with the tanks wall. They're seamless and more oxygen resistant than the clear gaskets. That means better protection for your wines!
        • Warranty - Speidel-Behaelter, GMBH backs up each and every tank with an industry-leading 25 year warranty against defects in materials or workmanship. And, as a 5th generation manufacturer, you can be confident they'll be around to honor that warranty should the need arise.


        Tank Features:

        • Volume: Sealed, 4400 L. Open top, 4459 L
        • Manway
        • Lower Jacket: 3.2 m² (4x 1" MPT connections)
        • Upper Jacket: 5.4 m² (2x 1" MPT connections)
        • Complete Drainage Dish Bottom
        • Reinforced Racking valve
        • 2" TC connections
        • Thermometer and Thermowell Combo included
        • Sample Valve included

        Tank Dimensions: 1400mm D x 3465mm H (55.1" D x 136.4" H)
