Speidel CIP System | Clean In Place | Stainless Steel Conical Tanks | Rolling Cart | 110V

    Description

    • Efficient Cleaning: This CIP system is designed for effective cleaning of fermenters and closed systems, equipped with a powerful stainless steel pump that ensures thorough circulation.
    • Precise Temperature Control: Features a temperature display and heating device for caustic, along with a temperature gauge for acid, ensuring optimal conditions for cleaning, acidification, and rinsing processes.
    • Compact and Movable Design: The unit is compact and easily movable with 4 caster wheels, making it flexible and convenient to use in various brewing environments.

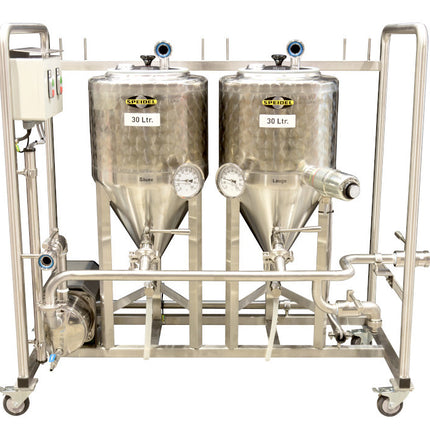

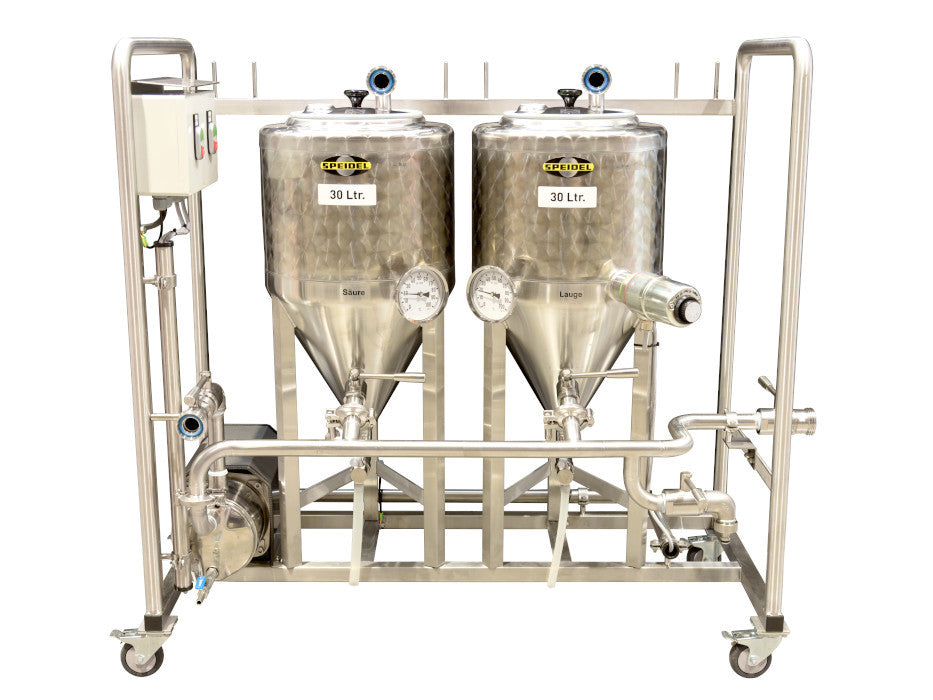

    This Speidel CIP System is designed for efficient and thorough cleaning of fermenters and closed systems like plate chillers. Equipped with a temperature display and heating device for caustic, a temperature gauge for acid, and a powerful stainless steel delivery pump, this system ensures effective cleaning, acidification, and rinsing processes. The unit is compact, movable with caster wheels, and features easy connection options.

    Acid or caustic is pumped into the fermenter to be cleaned, from there it is circulated via a CIP spray ball and then pumped back into the container after use. In a closed system, e.g. plate chiller, from the storage tank in the circuit directly back into the storage tank. Backflow in each case simple via a hose through the open lid back into the respective storage tank.

    Process:

    • Pre-rinse: Remove dirt
    • Cleaning: Caustics are run through the system parts
    • Rinsing 1: The cleaning medium is flushed out with water
    • Acidification: Deposits and scale are removed with the help of acid solutions
      • *Only necessary at certain intervals, not after each fermentation or brewing process
    • Rinsing 2: The acid is flushed out with water

    Product Details:

    • 7.9G (30L) conical tank with temperature display for caustic with heating device
    • 7.9G (30L) conical tank with temperature gauge for acid
    • Connections DIN NW 25 for hose 1" plus connection option water Gardena

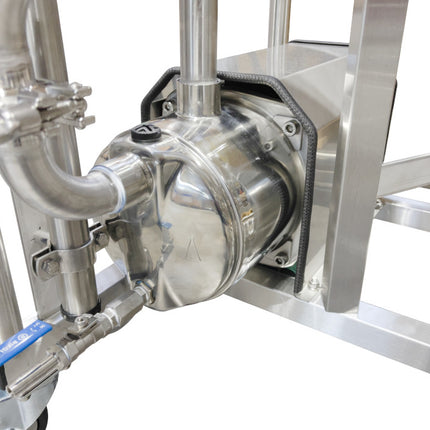

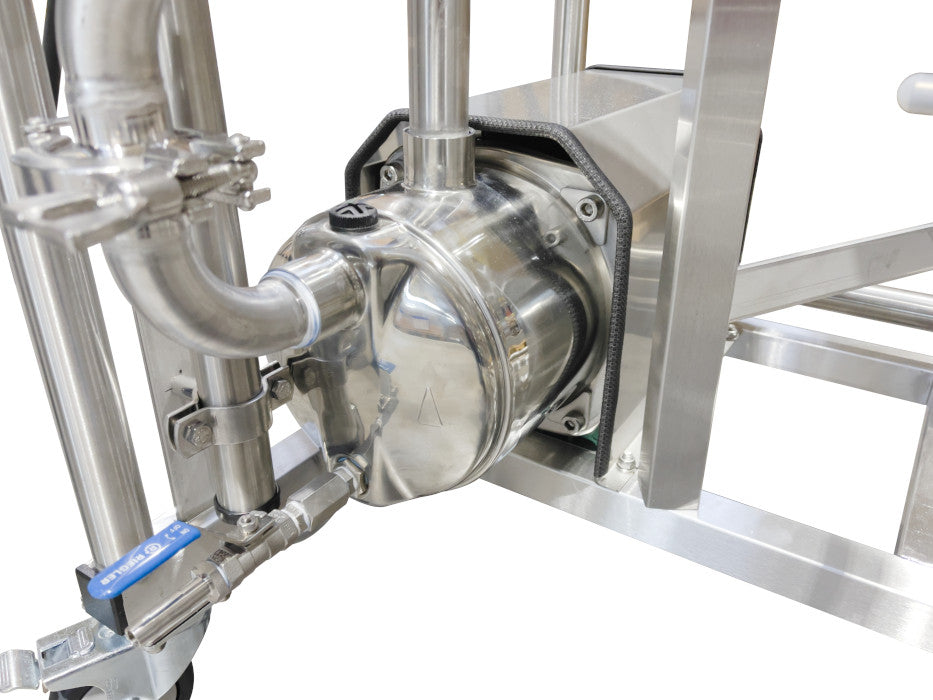

    • Delivery pump made of stainless steel 880W / 4.5bar / 1,188 gal/h / 4,500 L/h

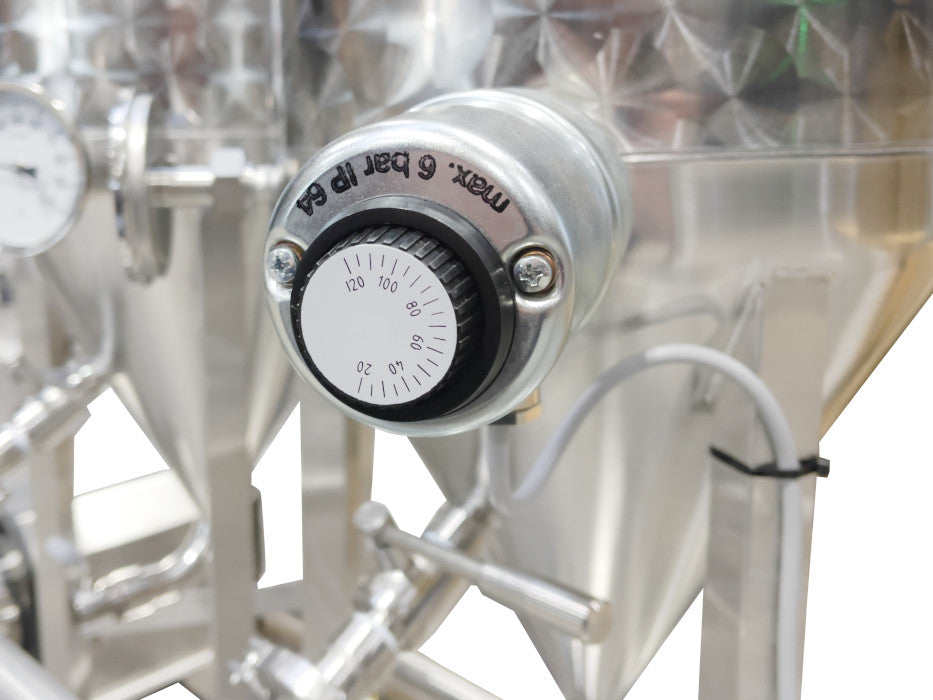

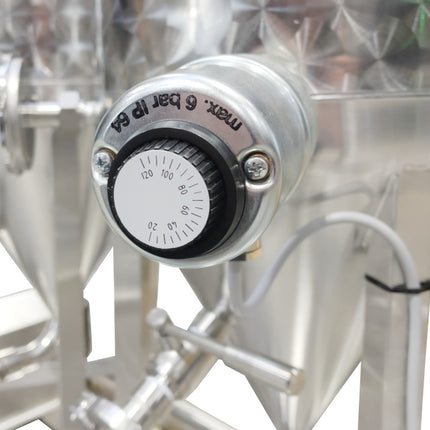

    • Heater in the suds tank - adjustable temperature

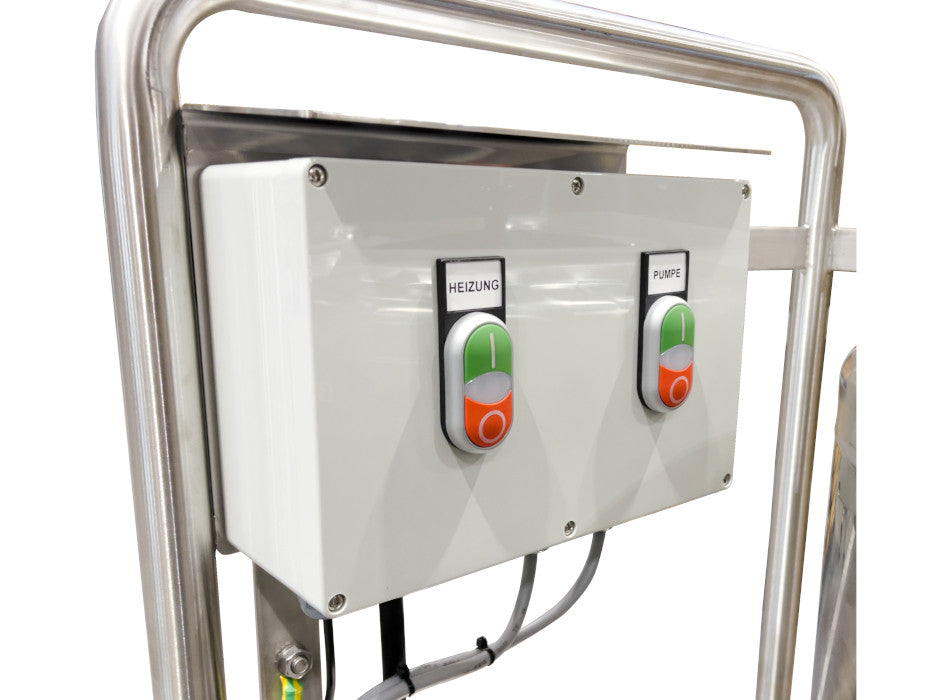

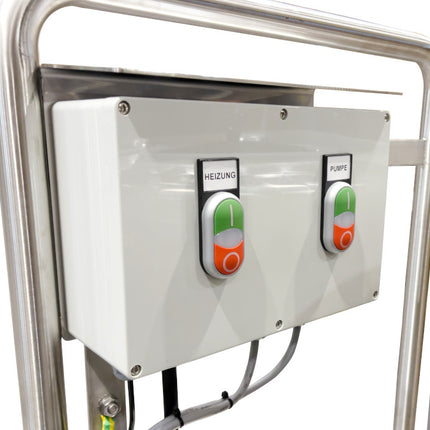

    • E-junction box with on/off for pump and heating
    • Connection voltage: 110V
    • Connection cable 9.8' / 3m
    • Movable with 4 caster wheels
    • Compact and flexible in use

    Dimensions:

    • Height: 43.3" (110cm)
    • Width: 22.4" (57cm)
    • Length: 47.2" (120cm)
    • Weight: 132 lbs (60kg)

    Please Note: This item may come with a bare cord or with a European style plug.  You will need a professional electrician to wire the unit with the appropriate plug.

    Please Note: This unit is not specifically designed for certain mains voltage. It is compatible with both 110V and 230V and 50 or 60 Hz. However, the plaque on the unit may display 230V.



    Speidel CIP System | Clean In Place | Stainless Steel Conical Tanks | Rolling Cart | 110V

      Product form

      SKU: GER007

      $6,709.99

      Shipping
      Free Shipping*
      Shipping
      Paid Shipping
      Drop Ship
      Drop Ship
      Discount Exclusion
      Discount Exclusion
      Freight
      Freight Only
      Pre-book
      Pre Order

        Prop 65 Warning WARNING : This product can expose you to chemicals including Lead and lead compounds, which is/are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.

        Description

        • Efficient Cleaning: This CIP system is designed for effective cleaning of fermenters and closed systems, equipped with a powerful stainless steel pump that ensures thorough circulation.
        • Precise Temperature Control: Features a temperature display and heating device for caustic, along with a temperature gauge for acid, ensuring optimal conditions for cleaning, acidification, and rinsing processes.
        • Compact and Movable Design: The unit is compact and easily movable with 4 caster wheels, making it flexible and convenient to use in various brewing environments.

        This Speidel CIP System is designed for efficient and thorough cleaning of fermenters and closed systems like plate chillers. Equipped with a temperature display and heating device for caustic, a temperature gauge for acid, and a powerful stainless steel delivery pump, this system ensures effective cleaning, acidification, and rinsing processes. The unit is compact, movable with caster wheels, and features easy connection options.

        Acid or caustic is pumped into the fermenter to be cleaned, from there it is circulated via a CIP spray ball and then pumped back into the container after use. In a closed system, e.g. plate chiller, from the storage tank in the circuit directly back into the storage tank. Backflow in each case simple via a hose through the open lid back into the respective storage tank.

        Process:

        • Pre-rinse: Remove dirt
        • Cleaning: Caustics are run through the system parts
        • Rinsing 1: The cleaning medium is flushed out with water
        • Acidification: Deposits and scale are removed with the help of acid solutions
          • *Only necessary at certain intervals, not after each fermentation or brewing process
        • Rinsing 2: The acid is flushed out with water

        Product Details:

        • 7.9G (30L) conical tank with temperature display for caustic with heating device
        • 7.9G (30L) conical tank with temperature gauge for acid
        • Connections DIN NW 25 for hose 1" plus connection option water Gardena
        • Delivery pump made of stainless steel 880W / 4.5bar / 1,188 gal/h / 4,500 L/h
        • Heater in the suds tank - adjustable temperature
        • E-junction box with on/off for pump and heating
        • Connection voltage: 110V
        • Connection cable 9.8' / 3m
        • Movable with 4 caster wheels
        • Compact and flexible in use

        Dimensions:

        • Height: 43.3" (110cm)
        • Width: 22.4" (57cm)
        • Length: 47.2" (120cm)
        • Weight: 132 lbs (60kg)

        Please Note: This item may come with a bare cord or with a European style plug.  You will need a professional electrician to wire the unit with the appropriate plug.

        Please Note: This unit is not specifically designed for certain mains voltage. It is compatible with both 110V and 230V and 50 or 60 Hz. However, the plaque on the unit may display 230V.



        Documents
        Betriebsanleitung-CIP-Anlage-EN-November-2023
