Speidel 1100, 1000mm Diameter FO Dish Bottom Variable Volume Tank w/ Lid | V0580

    Description

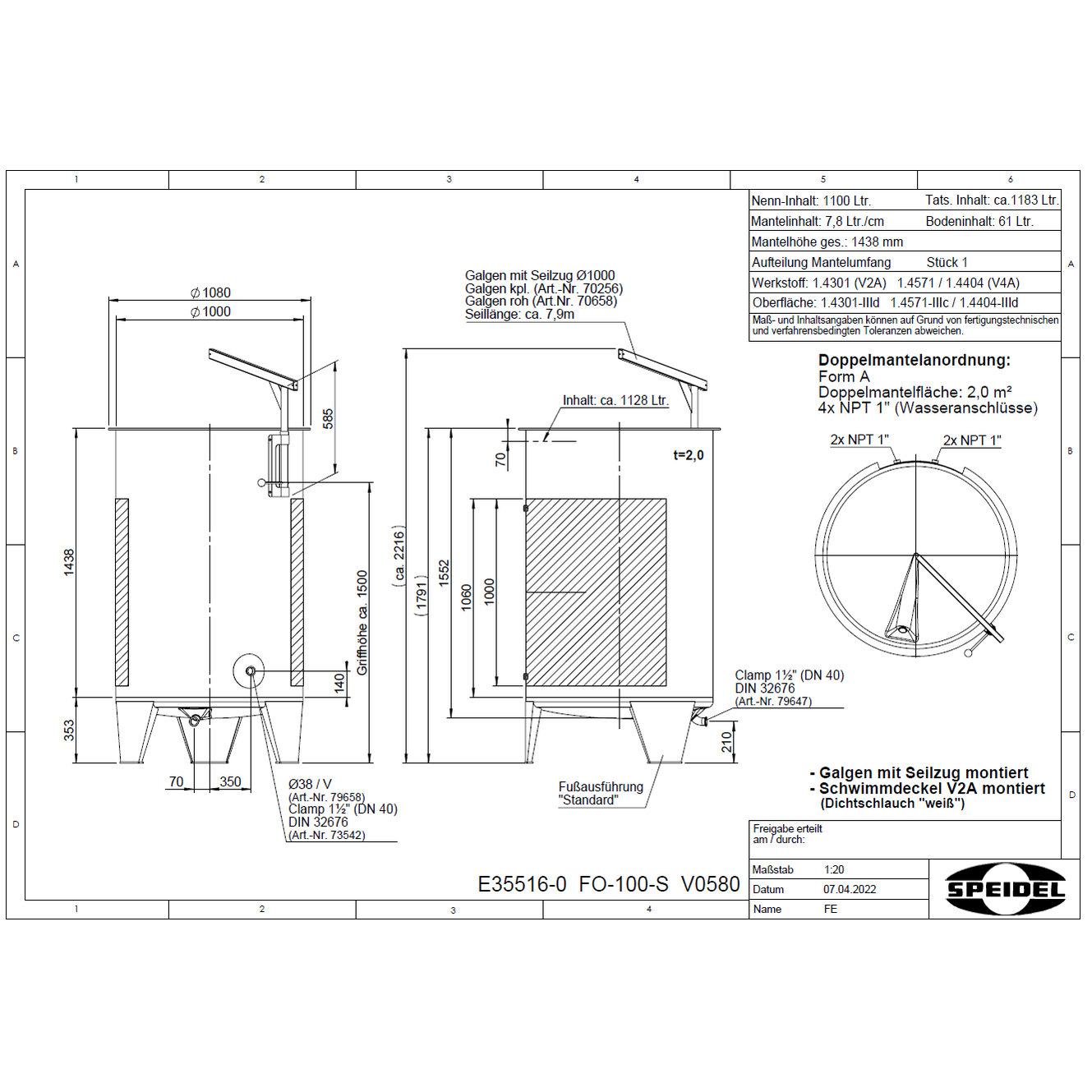

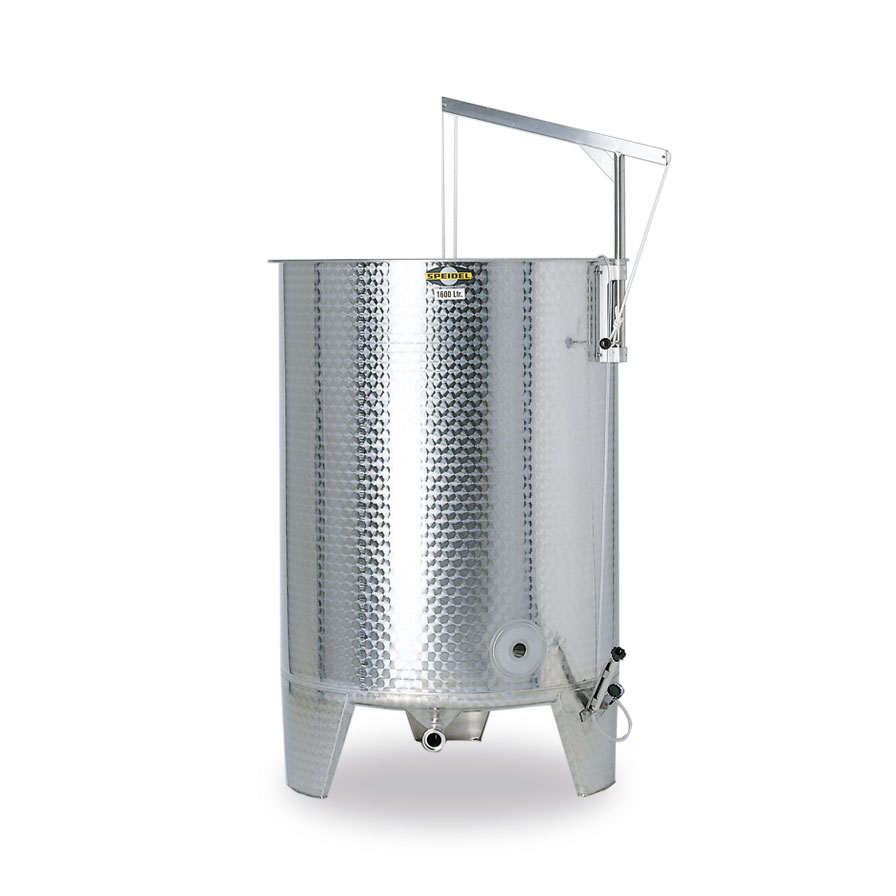

    Please note: the primary image is an example image and does not exactly match this custom tank. See the technical drawing below for exact specifications.

    The FO Variable Volume tank is Speidel's flagship Variable Volume tank for storage. This preconfigured tank comes with:

    • Volume: Sealed, 1100 L. Open top, 1183 L
    • Variable Capacity Tank includes Floating lid and Heavy Duty White Rubber Gasket
    • Max Coverage Jacket: 2.0 m² (4x 1" MPT connections)
    • Complete Drainage Dish Bottom
    • Lifting Arm
    • Reinforced Racking valve
    • 1.5" TC connections
    • Thermometer and Thermowell Combo included
    • NW10 Gland for Sample Valve (Valve not included)

    Key Features

    • Available in 28 sizes covering 6 different tank diameters from 1,100L to 15,200L (larger tanks available with special shipping arrangements)
    • 1,100L & 1,650L Tanks equipped with 1.5" TC racking and drainage ports. All other tanks equipped with 2" TC. Larger fittings available by request
    • Reinforced racking ports prevent tank wall flex and can support the weight of a tank mixer.
    • All tanks have welded-on mounting points for lid lifting arms.
    • Tanks from 1,650L include a lifting arm; from 2,200L up the arm is winch-operated

    View the resource for more information on the key features of all Speidel Tanks.

    Speidel 1100, 1000mm Diameter FO Dish Bottom Variable Volume Tank w/ Lid | V0580

      Product form

      SKU: FO-100-S V0580

      $5,849.99 $4,972.49

      Calculating shipping time...
      Shipping
      Free Shipping*
      Shipping
      Paid Shipping
      Drop Ship
      Drop Ship
      Discount Exclusion
      Discount Exclusion
      Freight
      Freight Only
      Pre-book
      Pre Order

        Description

        Please note: the primary image is an example image and does not exactly match this custom tank. See the technical drawing below for exact specifications.

        The FO Variable Volume tank is Speidel's flagship Variable Volume tank for storage. This preconfigured tank comes with:

        • Volume: Sealed, 1100 L. Open top, 1183 L
        • Variable Capacity Tank includes Floating lid and Heavy Duty White Rubber Gasket
        • Max Coverage Jacket: 2.0 m² (4x 1" MPT connections)
        • Complete Drainage Dish Bottom
        • Lifting Arm
        • Reinforced Racking valve
        • 1.5" TC connections
        • Thermometer and Thermowell Combo included
        • NW10 Gland for Sample Valve (Valve not included)

        Key Features

        • Available in 28 sizes covering 6 different tank diameters from 1,100L to 15,200L (larger tanks available with special shipping arrangements)
        • 1,100L & 1,650L Tanks equipped with 1.5" TC racking and drainage ports. All other tanks equipped with 2" TC. Larger fittings available by request
        • Reinforced racking ports prevent tank wall flex and can support the weight of a tank mixer.
        • All tanks have welded-on mounting points for lid lifting arms.
        • Tanks from 1,650L include a lifting arm; from 2,200L up the arm is winch-operated

        View the resource for more information on the key features of all Speidel Tanks.

        Documents
        E35516-0 FO-100-S V0580
