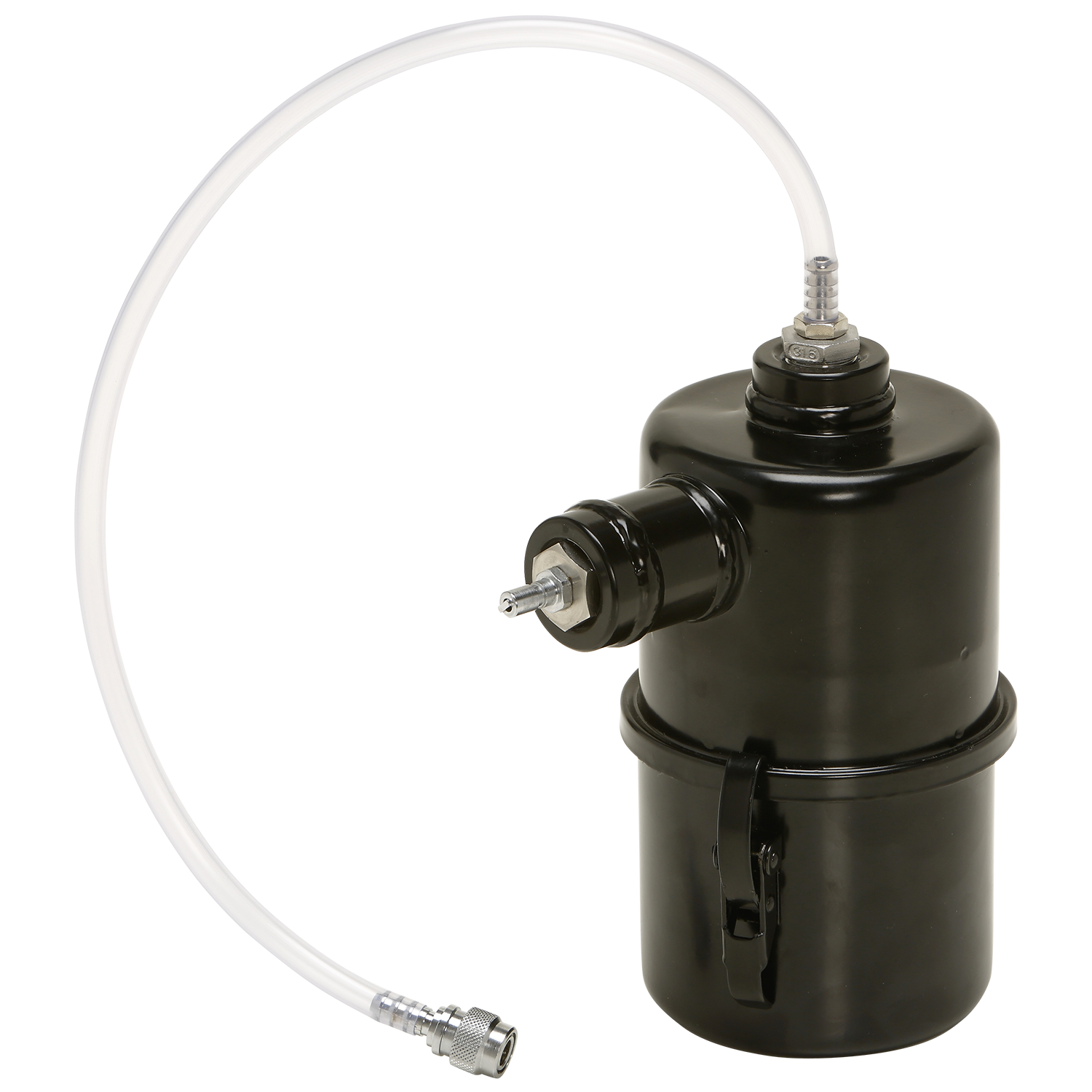

ILTEC Ultrafiller | Oil Bath Filter

    Description

    • Prevents vacuum pump failure when bottling sugary or hot products by effectively filtering impurities.
    • Comes with pre-assembled tubes and adapters for quick and hassle-free setup; designed for vertical mounting.
    • Built to withstand prolonged use in dusty environments, with a metal mesh filter element and easy-to-clean components.

    When using the Ultrafiller to fill liqueurs, spirits, syrups, or other sugary products—as well as hot products such as juices—it is essential to equip the machine with the oil bath filter. This filter protects the vacuum pump, which could fail over time without proper filtration. Please note that the oil bath filter is not included with the Ultrafiller and must be purchased separately.

    Important: Failure to use this filter when bottling the above-mentioned products will void the warranty for the bottling machine.

    Mounting Instructions
    Before using the filter, fill the cup with food-grade mineral oil up to the indicated level. Medium-density oils are recommended for optimal performance.

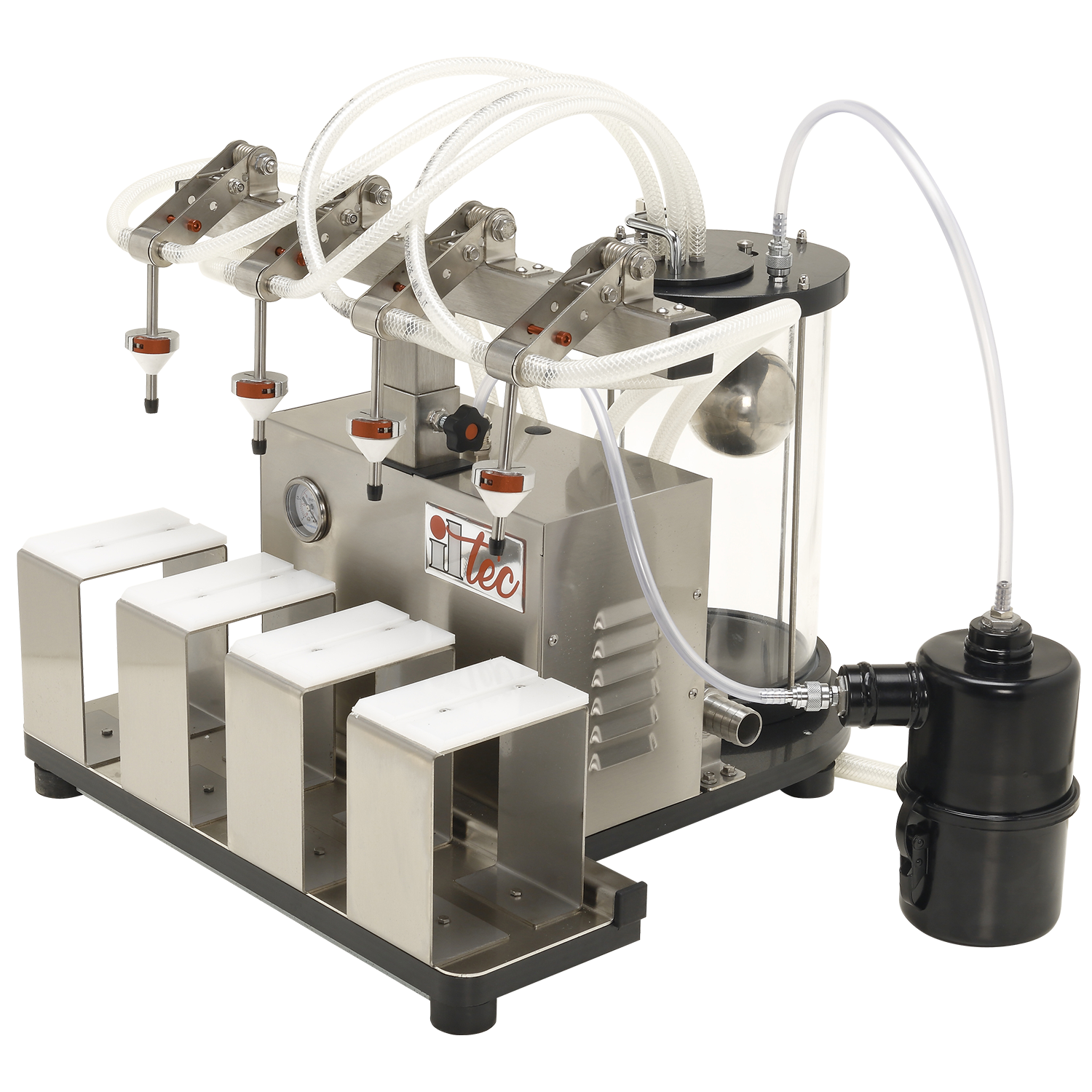

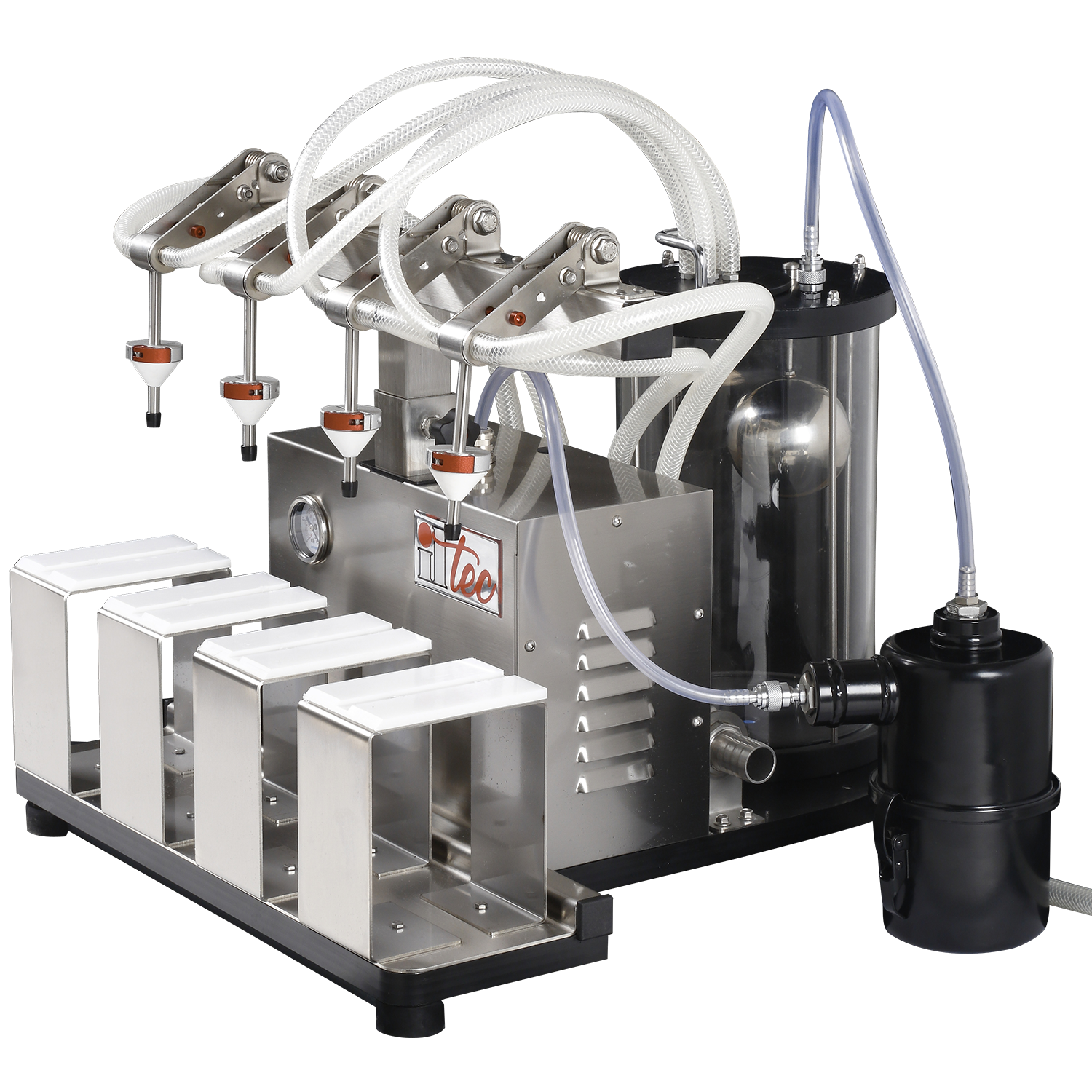

    Install the filter between the vacuum pump and the recovery tank. The kit includes pre-assembled tubes and hose adapters for your convenience. Always mount the filter vertically:

    • Connect the OUT port to the pipe leading from the motor.

    • Connect the IN port to the pipe and quick-release fitting supplied with the tank. (Refer to the detailed instructions for further guidance.)

    Maintenance
    These filters are designed for prolonged use, even in dusty environments, offering excellent filtration and durability. To maintain optimal performance:

    • Regularly change the oil, ensuring the level remains at the indicated mark.

    • Remove impurities that accumulate during operation.

    • For particularly dusty conditions, disassemble and wash the lower parts of the filter daily.

    Materials

    • Painted sheet metal container
    • Metal mesh filter element
    • Operating temperature range: 32°F to 197°F



    ILTEC Ultrafiller | Oil Bath Filter

      Product form

      SKU: WE609

      $199.99

      Calculating shipping time...
      Shipping
      Free Shipping*
      Shipping
      Paid Shipping
      Drop Ship
      Drop Ship
      Discount Exclusion
      Discount Exclusion
      Freight
      Freight Only
      Pre-book
      Pre Order

        Prop 65 Warning WARNING : This product can expose you to chemicals including Di-n-butyl phthalate (DBP), which is known to the State of California to cause birth defects or other developmental harm. For more information, go to www.p65warnings.ca.gov.

        Description

        • Prevents vacuum pump failure when bottling sugary or hot products by effectively filtering impurities.
        • Comes with pre-assembled tubes and adapters for quick and hassle-free setup; designed for vertical mounting.
        • Built to withstand prolonged use in dusty environments, with a metal mesh filter element and easy-to-clean components.

        When using the Ultrafiller to fill liqueurs, spirits, syrups, or other sugary products—as well as hot products such as juices—it is essential to equip the machine with the oil bath filter. This filter protects the vacuum pump, which could fail over time without proper filtration. Please note that the oil bath filter is not included with the Ultrafiller and must be purchased separately.

        Important: Failure to use this filter when bottling the above-mentioned products will void the warranty for the bottling machine.

        Mounting Instructions
        Before using the filter, fill the cup with food-grade mineral oil up to the indicated level. Medium-density oils are recommended for optimal performance.

        Install the filter between the vacuum pump and the recovery tank. The kit includes pre-assembled tubes and hose adapters for your convenience. Always mount the filter vertically:

        • Connect the OUT port to the pipe leading from the motor.

        • Connect the IN port to the pipe and quick-release fitting supplied with the tank. (Refer to the detailed instructions for further guidance.)

        Maintenance
        These filters are designed for prolonged use, even in dusty environments, offering excellent filtration and durability. To maintain optimal performance:

        • Regularly change the oil, ensuring the level remains at the indicated mark.

        • Remove impurities that accumulate during operation.

        • For particularly dusty conditions, disassemble and wash the lower parts of the filter daily.

        Materials

        • Painted sheet metal container
        • Metal mesh filter element
        • Operating temperature range: 32°F to 197°F



        Documents
        Oil-bath-filter
