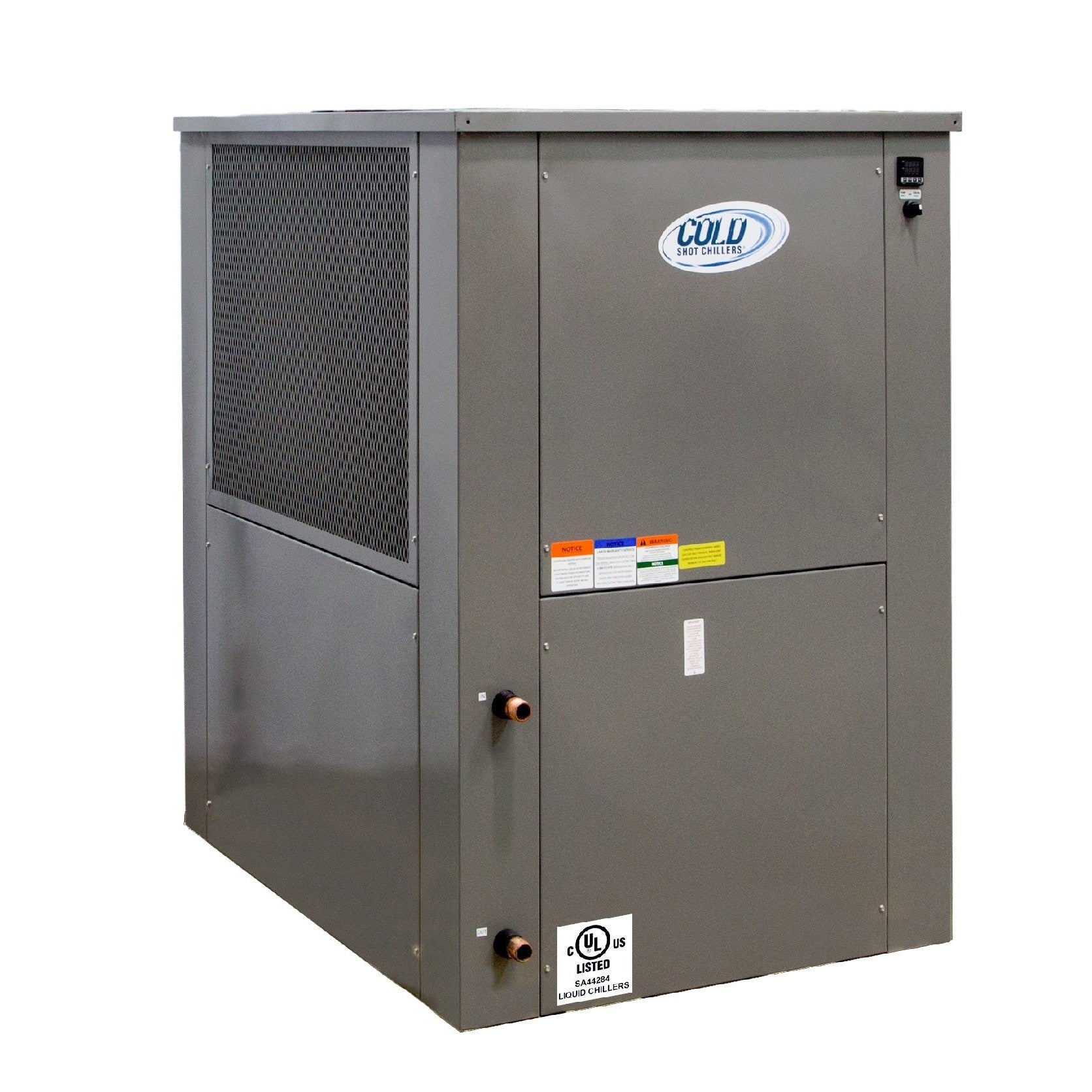

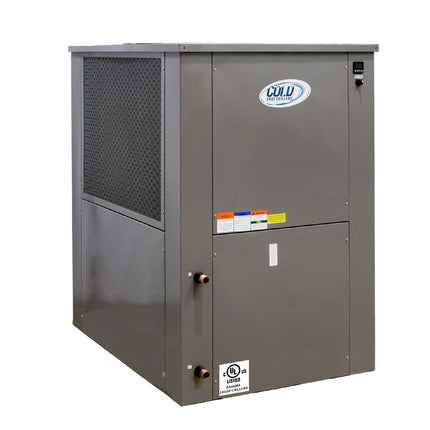

Glycol Chiller - 5 Ton Triple Phase

    Description

    Are you a Pro Brewer? Checkout MoreBeer! Pro

    US Made industrial glycol chillers available in a wide range of tonnages.

    Cold Shot Chillers are some of the most dependable and economical chillers on the market. These portable air-cooled chillers are built in the USA with time-proven components, and are supported 24/7 by a network of techs in the US.

    These chillers are built to provide a lifetime of service, allowing precise temperature control during all aspects of the wine or beer making process. Powerful compressors combined with a large reservoir means huge cooling capacities, able to keep you running through the hottest months.

    Cold Shot Chillers are built with high quality components designed for trouble-free use, but should an issue occur, technical support is available at all times, and if necessary a technician familiar with your unit can come service it on site.

    Uses in Beer Making:

    • Temperature control for fermentation, heating or cooling
    • Temperature control for storage
    • Temperature control for packaging
    • Air conditioner
    • Barrel rooms
    • Cold box

    Uses in Winemaking:

    • Cooling of must for cold soaks, slow starting ferments
    • Cooling must for cold soaking or slow starting / low temp ferments
    • Cold stabilization of wine
    • Controlling fermentation temperatures
    • Maintaining storage temperatures in tanks / barrels
    • Controlling cellar or winery air temperatures with a fan unit

    Features:

    • 5 tons (60,000 BTU/hr)
    • 25 Gallon Stainless Steel Reservoir Tank with Lid
    • This Low Temp Model has a leaving fluid temperature range of 20 - 70° F.
    • Rated to 0°F ambient temperature*
    • 1” MNPT Inlet and Outlet
    • Stainless Steel 1 HP Centrifugal Pump outputs 30 GPM at 30 PSI
    • 230 v 3 phase power
    • Casters Included (two swivel locking and two fixed)
    • Large Reservoir easily filled from outside, and level indicated with sight gauge
    • 1 Year Parts Warranty
    • 5 Year Warranty on Compressor
    • Welded steel powder coated frame and full metal cabinet with copper piping connections
    • Digital Temperature controller with Self-Diagnostic control system
    • Rugged Protection, while still easy to maintain and Wash Down
    • High Flow Pump, Long Life, Dependable units!
    • Stainless Steel Plate Evaporators Vacuum brazed with Copper
    • Dependable Copeland Welded hermetic Scroll Compressors
    • 50.5"x38.5"x57"
    • 500 lb
    • UL Certified

    Please Note: This unit REQUIRES 230 v Three Phase power and will not function on anything else. Please confirm that you have the proper power for this unit before purchasing, and plan to have a qualified electrician wire the necessary plug to the cord.

    *Please Note: This unit is rated for ambient temperatures as low as 0°F. If you require a subzero temperature rating, please contact our customer service department to request a special order.
