Bottling Wine

EnoItalia Bag In Box Filler | BB30 | Automated Valve Removal | Vacuum & Nitrogen System | 220V Single Phase

    Description

    • Semi-Automatic Operation: BB30 vacuums, fills, and nitrogen flushes. Operator installs bag and the machine automatically removes valve, fills, and reinstalls valve.
    • Perfect for wine, olive oil & more
    • Fill within 5cl
    • CIP cleaning with liquid or steam
    • Touch screen control for easy programming

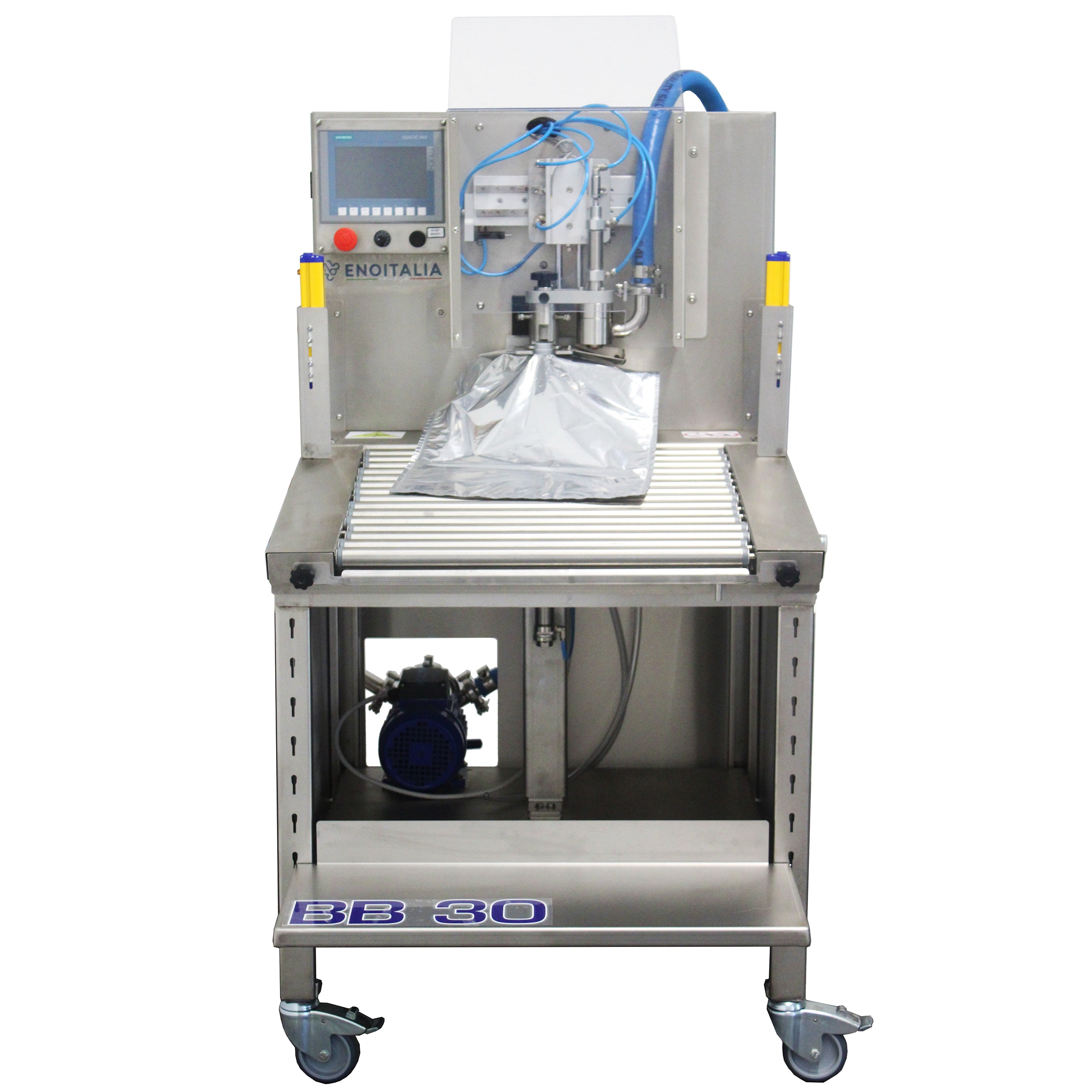

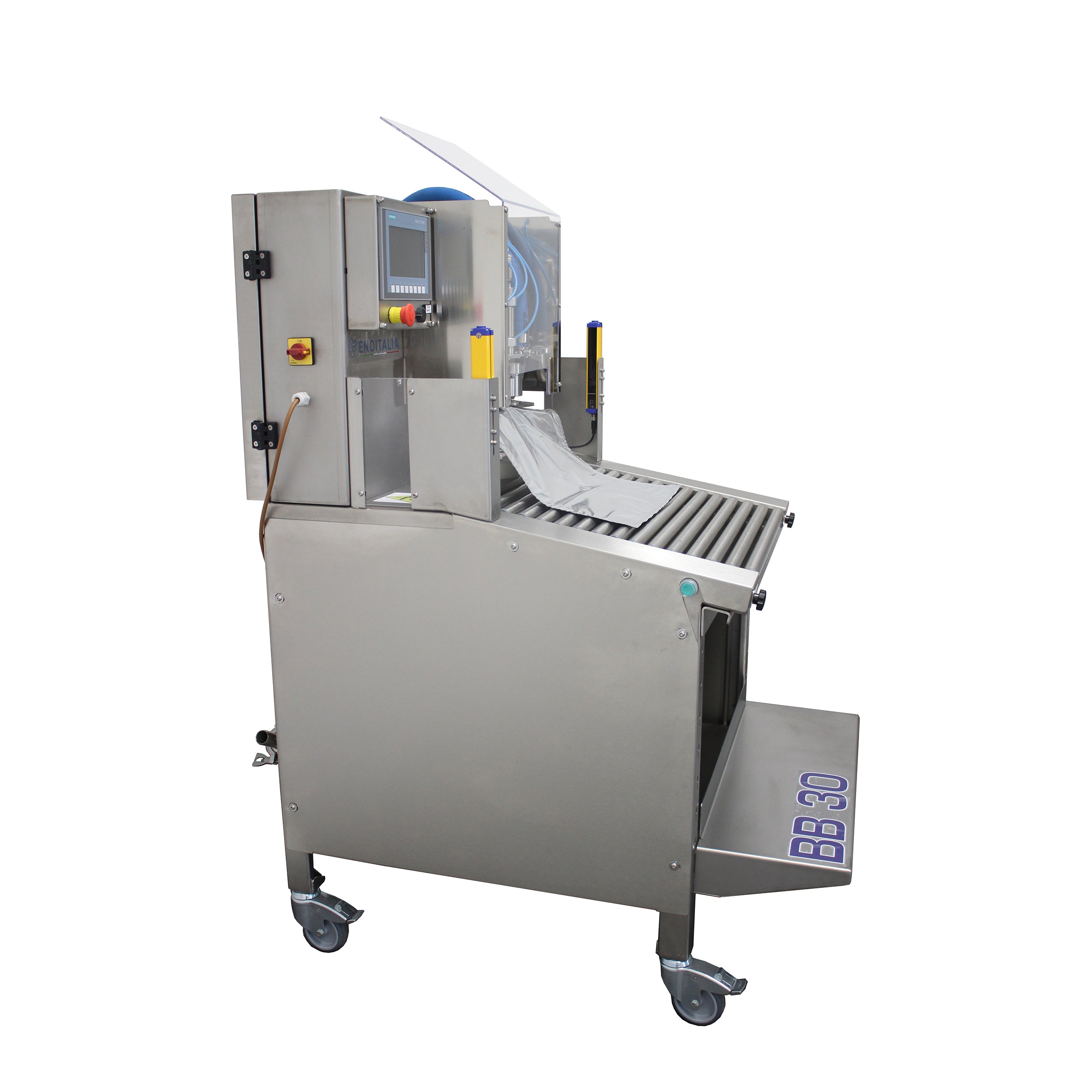

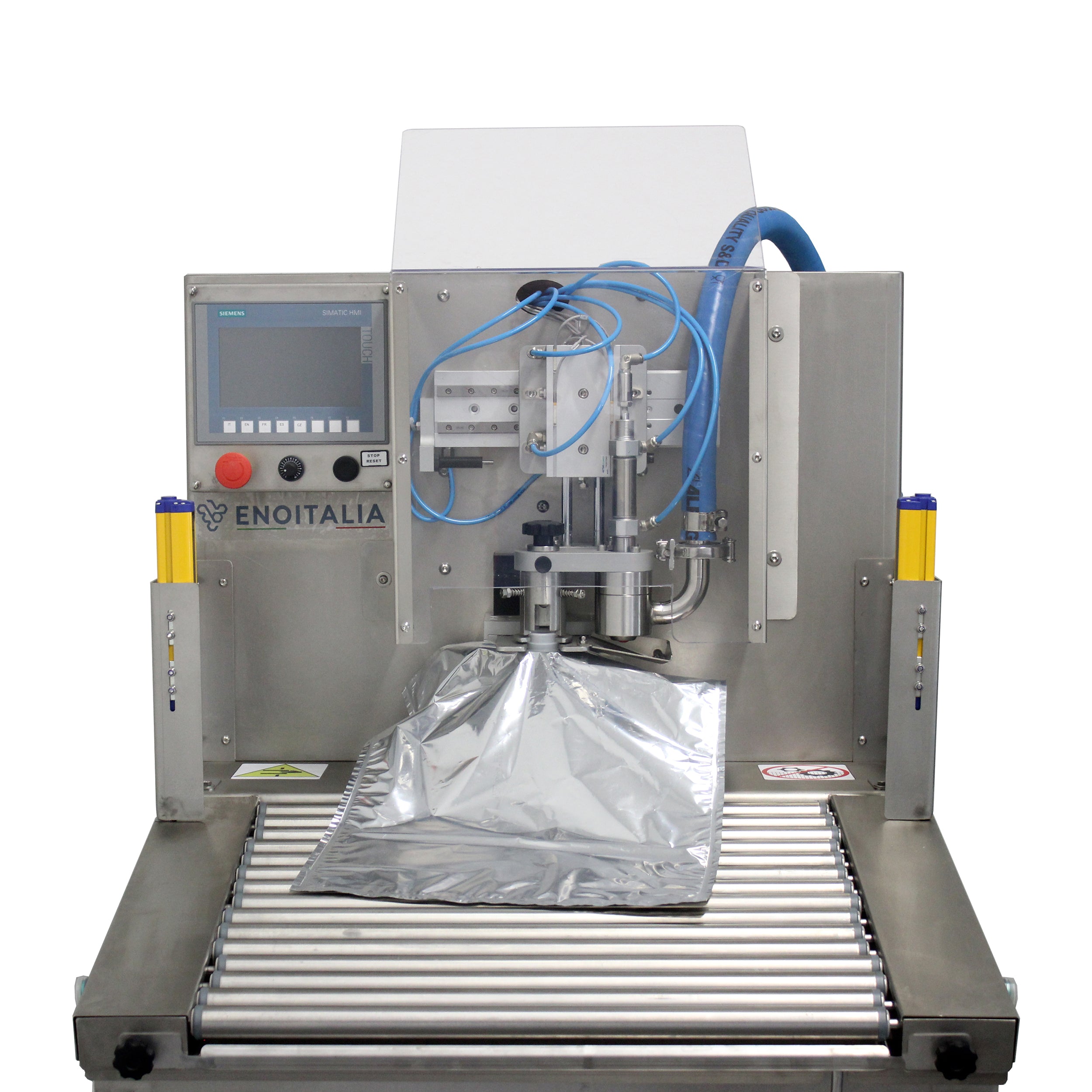

    The BB30 a semi-automatic bag-in-box filler manufactured by Enoitalia in Italy.  The beauty of this machine is the simplicity. The BB30 automatically carries out the cycle of vacuuming the bag, filling, and then finally nitrogen flushing. The operator inserts the bag and activates the machine to remove the valve, fill the bag, and reinstall the valve in one smooth, seamless operation. The possibility to choose between different types of flow sensors allows the BB30 to be used with liquids of different viscosities, including wine, fruit juices, olive oil and more. Filling can be carried out at room temperature or hot up to 212°F / 100°C. In the case of hot filling, specific accessories are available depending on your set up. A self-priming volumetric pump with rubber impeller is installed as standard. This pump offers a high flow rate, the possibility to prime/draw from any container, an anti-pressure by-pass valve and a total drain valve for emptying the filling circuit.

    Precision
    The electric panel allows the control and management of all the filling phases, guaranteeing a repeatability of the volumes filled with an error of ± 5cl. Small corrections can be made if needed.

    Control Panel
    The electronic panel allows the control and management of all the filling phases, including volume to fill, time to fill, vacuum time, nitrogen time, management of calibration, and counting of volume.

    Cleaning

    • Use of a drip-free filling valve
    • Complete emptying of the pipes by means of a drain valve located on the pump
    • Washing CIP circuit with stainless steel tap
    • Preset programs for sanitizing with detergents or for sanitizing with steam 230°F / 110°C (requires the appropriate kit for high temperatures).

    Other Advantages

    • Structural and mechanical components are  made completely in AISI 304 stainless steel
    • Filling head height adjustment with external handwheel
    • Possibility to request adapters for countless types of caps and bags (purch, berker, QCS, QCD, etc.)
    • Inclined stainless steel top to facilitate sanitizing and handling of the bags
    • Multilingual display (Italian, English, French, German, Russian, Spanish, Croatian)

    Components:

    • PLC panel control touch screen type, multilanguage multiprogram
    • Electromagnetic sensor Burkert type, for cold liquid (like wine / water)
    • Vacuum and Nitrogen system
    • Automatic air piston for blocking the filling head
    • Impeller pump HP 1.5 with by-pass, model EURO 30, capacity 4500 lt/h
    • Quiet, oil-less air 1.5hp air compressor
    • Double start switch
    • Capacity of 1 liter up to 30 liter
    • Semiautomatic hand-wheel for adjusting the filling head’s height
    • Automated removal and reinstallation of the bag valve. VITOP standard (other on demand)
    • Stainless steel stand with casters
    • SS fitting for cleaning circuit (CIP). Automatic program fo cleaning
    • Total drain valve installed on pump body
    • Fitting connection 1.5" T.C.

    Specs:

    • 1.5" T.C. connection with 20 mm hose
    • Capacity:
      • 3L bags -- 450 per hour
      • 5L bags -- 300 per hour
      • 10L bags -- 240 per hour
      • 20L bags -- 180 per hour
    • Power: 2 HP, 220V, 50-60hz, single-phase
    • Dimensions: 31.5" x 39.4" x 59" (800 x 1000 x 1500)
    • Weight: 308.6 lbs (140 kg)

    EnoItalia Bag In Box Filler | BB30 | Automated Valve Removal | Vacuum & Nitrogen System | 220V Single Phase

      Product form

      SKU: WE302

      $16,879.99

      Shipping
      Free Shipping*
      Shipping
      Paid Shipping
      Drop Ship
      Drop Ship
      Discount Exclusion
      Discount Exclusion
      Freight
      Freight Only
      Pre-book
      Pre Order

        Prop 65 Warning WARNING : This product can expose you to chemicals including Lead and lead compounds, which is/are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.

        Description

        • Semi-Automatic Operation: BB30 vacuums, fills, and nitrogen flushes. Operator installs bag and the machine automatically removes valve, fills, and reinstalls valve.
        • Perfect for wine, olive oil & more
        • Fill within 5cl
        • CIP cleaning with liquid or steam
        • Touch screen control for easy programming

        The BB30 a semi-automatic bag-in-box filler manufactured by Enoitalia in Italy.  The beauty of this machine is the simplicity. The BB30 automatically carries out the cycle of vacuuming the bag, filling, and then finally nitrogen flushing. The operator inserts the bag and activates the machine to remove the valve, fill the bag, and reinstall the valve in one smooth, seamless operation. The possibility to choose between different types of flow sensors allows the BB30 to be used with liquids of different viscosities, including wine, fruit juices, olive oil and more. Filling can be carried out at room temperature or hot up to 212°F / 100°C. In the case of hot filling, specific accessories are available depending on your set up. A self-priming volumetric pump with rubber impeller is installed as standard. This pump offers a high flow rate, the possibility to prime/draw from any container, an anti-pressure by-pass valve and a total drain valve for emptying the filling circuit.

        Precision
        The electric panel allows the control and management of all the filling phases, guaranteeing a repeatability of the volumes filled with an error of ± 5cl. Small corrections can be made if needed.

        Control Panel
        The electronic panel allows the control and management of all the filling phases, including volume to fill, time to fill, vacuum time, nitrogen time, management of calibration, and counting of volume.

        Cleaning

        • Use of a drip-free filling valve
        • Complete emptying of the pipes by means of a drain valve located on the pump
        • Washing CIP circuit with stainless steel tap
        • Preset programs for sanitizing with detergents or for sanitizing with steam 230°F / 110°C (requires the appropriate kit for high temperatures).

        Other Advantages

        • Structural and mechanical components are  made completely in AISI 304 stainless steel
        • Filling head height adjustment with external handwheel
        • Possibility to request adapters for countless types of caps and bags (purch, berker, QCS, QCD, etc.)
        • Inclined stainless steel top to facilitate sanitizing and handling of the bags
        • Multilingual display (Italian, English, French, German, Russian, Spanish, Croatian)

        Components:

        • PLC panel control touch screen type, multilanguage multiprogram
        • Electromagnetic sensor Burkert type, for cold liquid (like wine / water)
        • Vacuum and Nitrogen system
        • Automatic air piston for blocking the filling head
        • Impeller pump HP 1.5 with by-pass, model EURO 30, capacity 4500 lt/h
        • Quiet, oil-less air 1.5hp air compressor
        • Double start switch
        • Capacity of 1 liter up to 30 liter
        • Semiautomatic hand-wheel for adjusting the filling head’s height
        • Automated removal and reinstallation of the bag valve. VITOP standard (other on demand)
        • Stainless steel stand with casters
        • SS fitting for cleaning circuit (CIP). Automatic program fo cleaning
        • Total drain valve installed on pump body
        • Fitting connection 1.5" T.C.

        Specs:

        • 1.5" T.C. connection with 20 mm hose
        • Capacity:
          • 3L bags -- 450 per hour
          • 5L bags -- 300 per hour
          • 10L bags -- 240 per hour
          • 20L bags -- 180 per hour
        • Power: 2 HP, 220V, 50-60hz, single-phase
        • Dimensions: 31.5" x 39.4" x 59" (800 x 1000 x 1500)
        • Weight: 308.6 lbs (140 kg)
