Easily set and view different pressures downstream from a single CO2 regulator. Serve different beverages at different pressures without the need for expensive regulator manifolds!
-

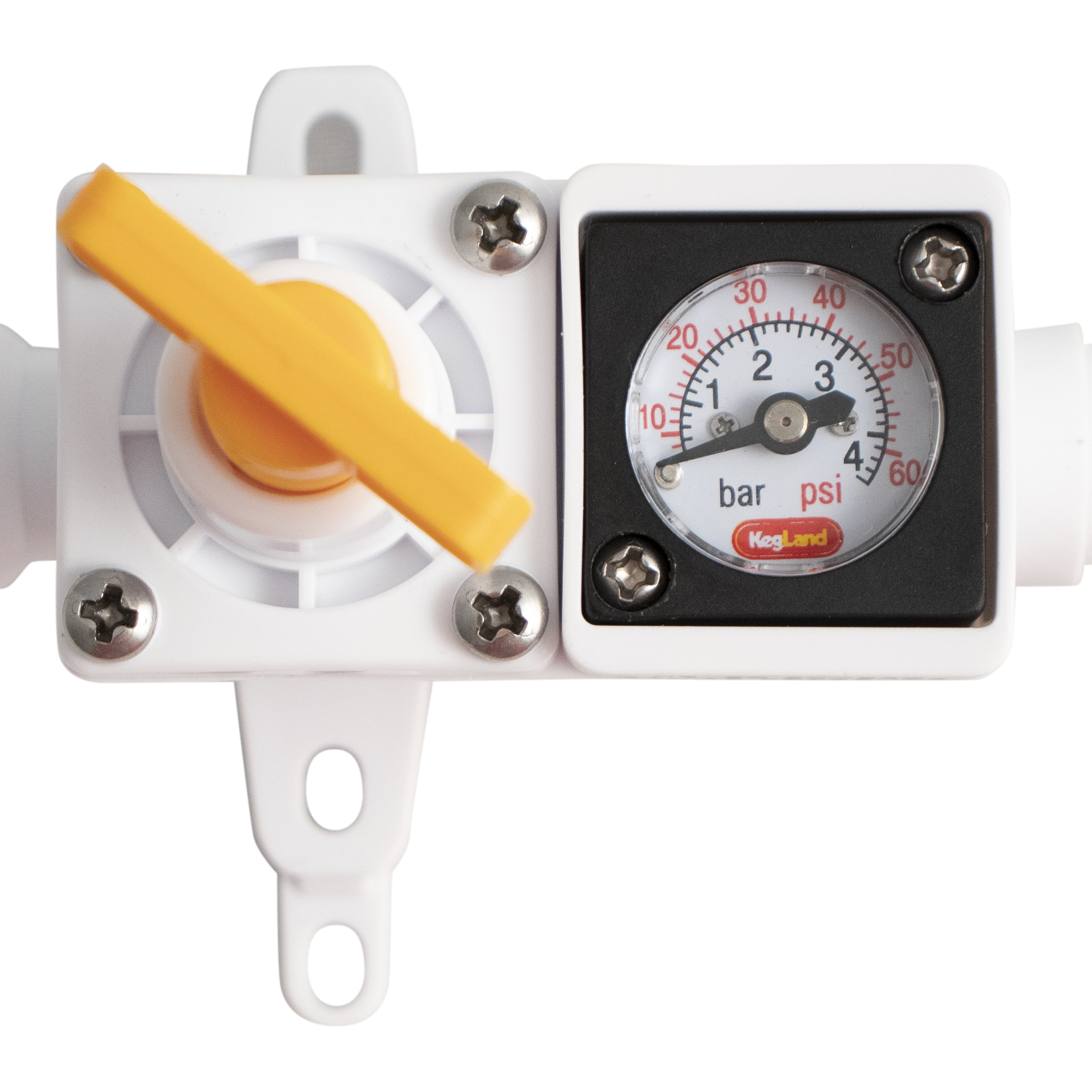

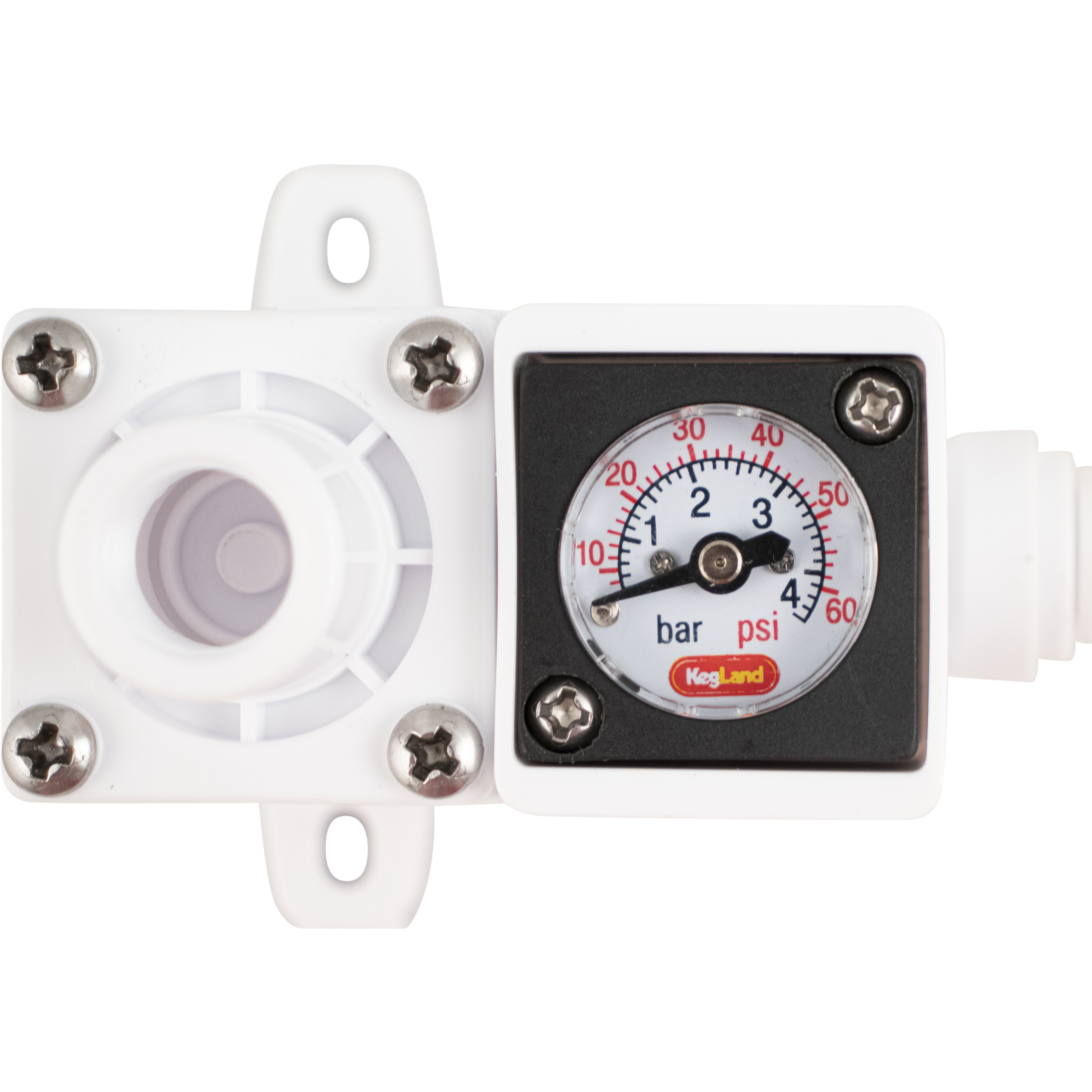

Built-in pressure gauge for easy reference when adjusting pressure settings
-
Pressure gauge is interchangeable—swap to different pressure ranges that better suit your application
-
Compatible with both liquid and gas
-

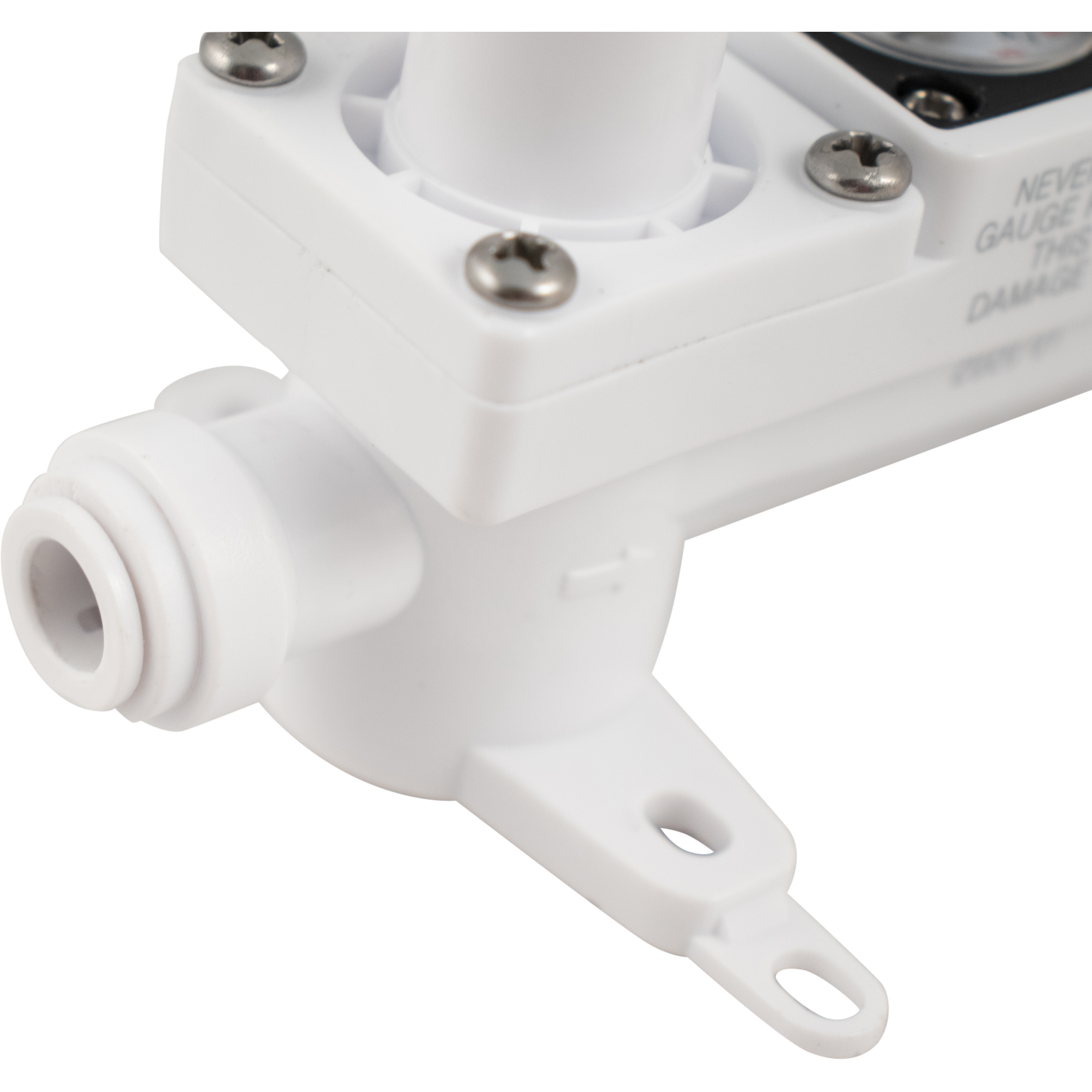

8 mm Duotight inlet/outlet for use with 8 mm OD EVABarrier tubing or 8 mm Rigid Joiners

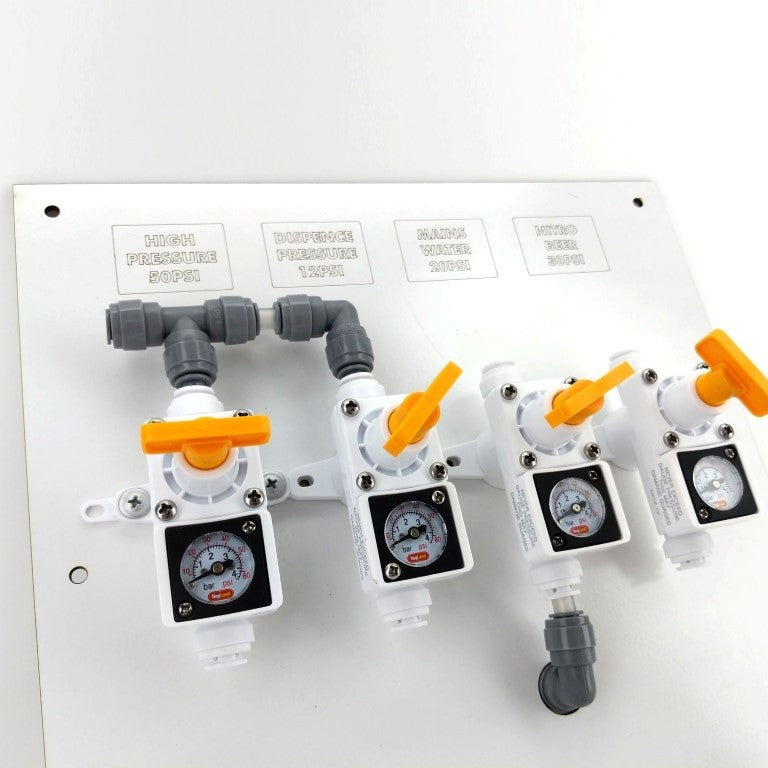

The Duotight In-Line Regulator is an ideal solution if you want to serve different beers at different gas pressures. In a typical multiple line, multiple pressure system you would run a gas line from your main regulator into a secondary regulator where you would set different pressures. While that is ideal, it is a little pricey. This little sweetheart lets you set different pressures at a far lower cost. What we do is set the main regulator at the highest pressure we want in the system - for example a keg of soda that you want to carbonate and serve at 25 psi. Run the gas line into a manifold and then install one of these after the manifold on each line where you want to decrease the pressure, for example lowering to 10psi to serve your British pale ale and 14 psi to serve your summertime lawnmower lager.

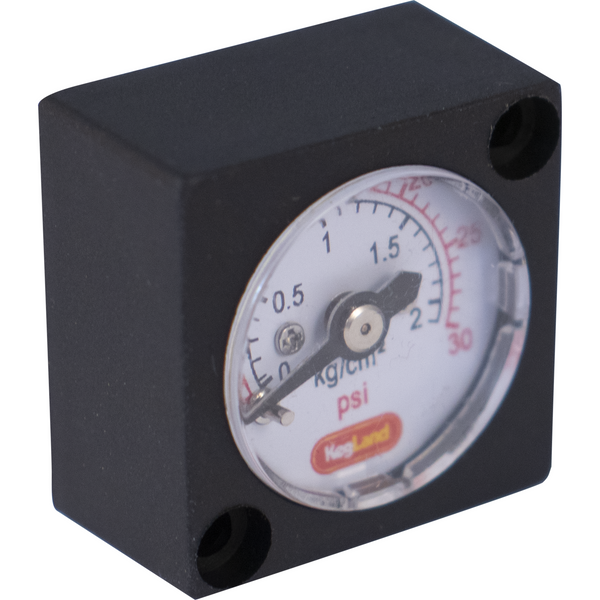

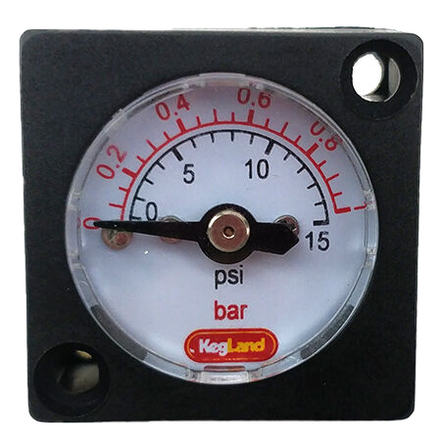

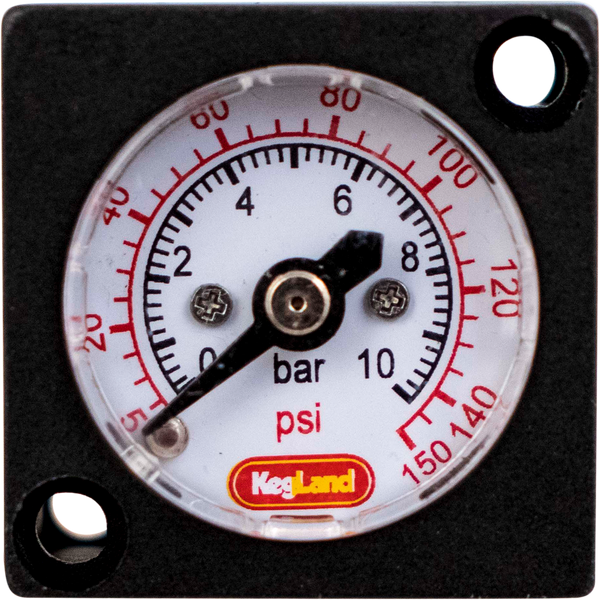

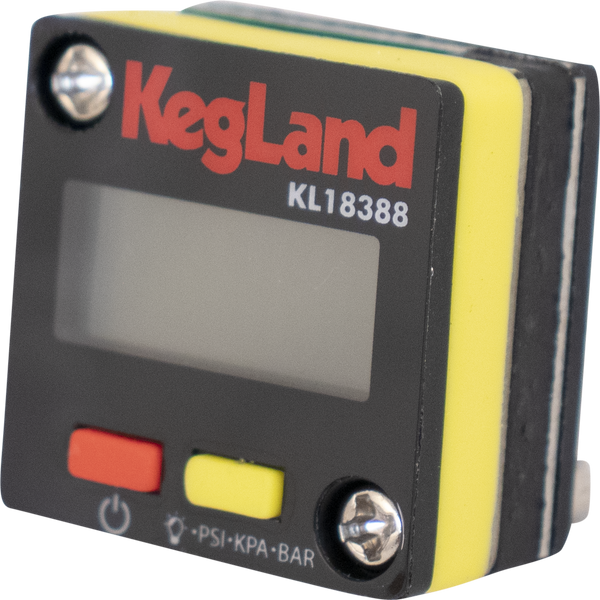

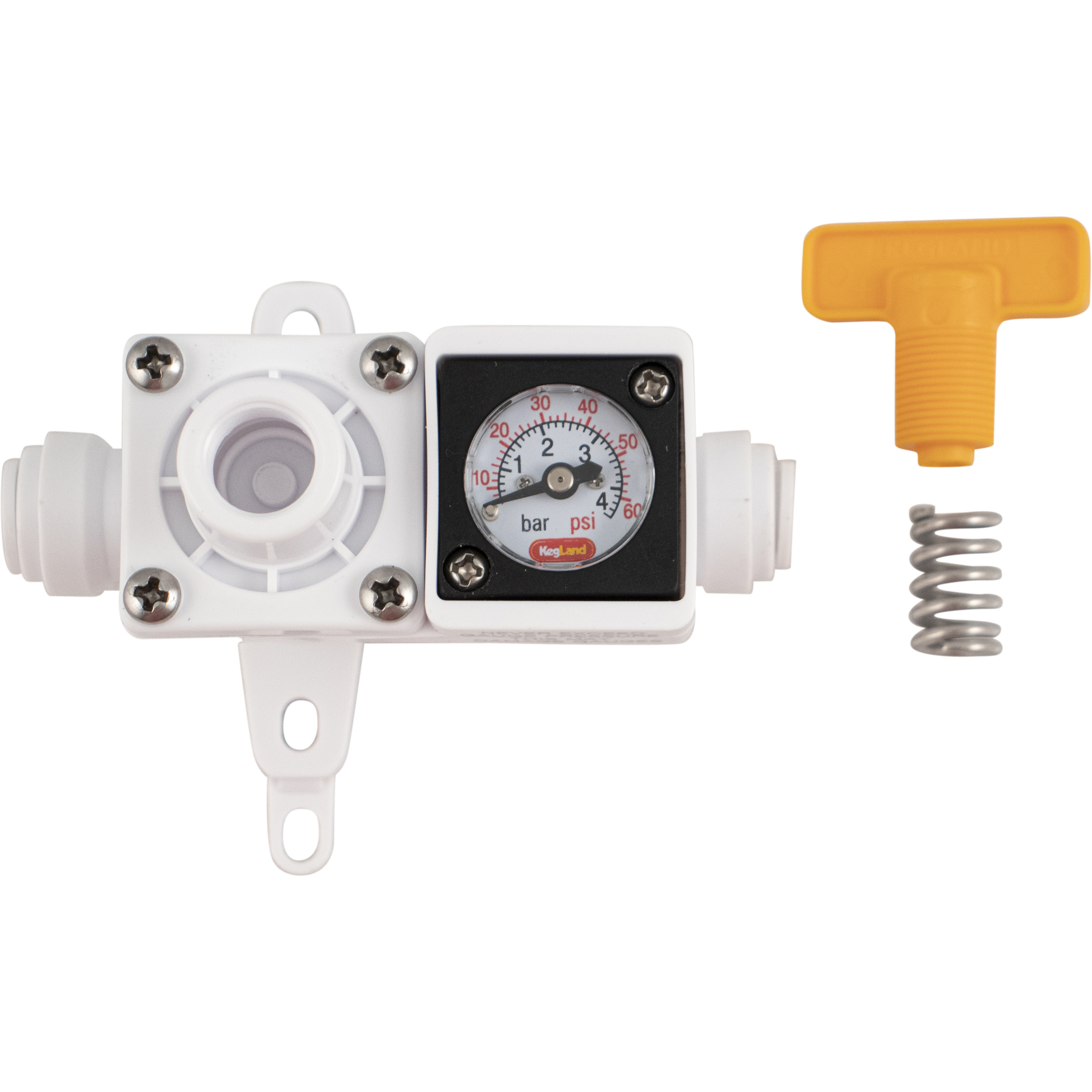

Works with both gas and liquid. Easily adjust the flow can be adjusted with the yellow adjustment knob. 8 mm Duotight fittings at both inlet and outlet make this unit perfect for use with EVABarrier 8 mm OD tubing (D1717 or D1718). Features an integrated pressure gauge so you can quickly and easily dial in your pressure setting. The analog gauge is removable and can be swapped out with a gauge of a different pressure range or it can be swapped out for the Digital Mini Pressure Gauge.
Stepping Down Pressure
The ideal regulation scenario occurs when the inline regulator steps down the output pressure to at least 10 PSI less than the inlet pressure. For example, if the inlet pressure is 30 PSI, the regulator effectively manages a range from 0–20 PSI on the output side ensuring optimal performance and stability.
-
Ideal regulation scenario (10 PSI less than inlet pressure)
-
Example of 30 PSI inlet translating to 0–20 PSI output
Specifications:
-
Made from food grade acetal
-
Stainless screws
-
Easily disassembles for cleaning
-
8mm (5/16") Duotight fittings at both ends
-
Interchangeable pressure gauge
-

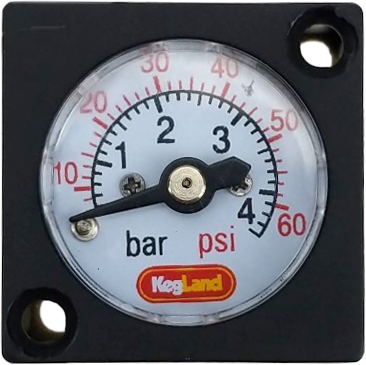

Gauge reads from 0-60 psi
-
Made with quality EPDM seals
-

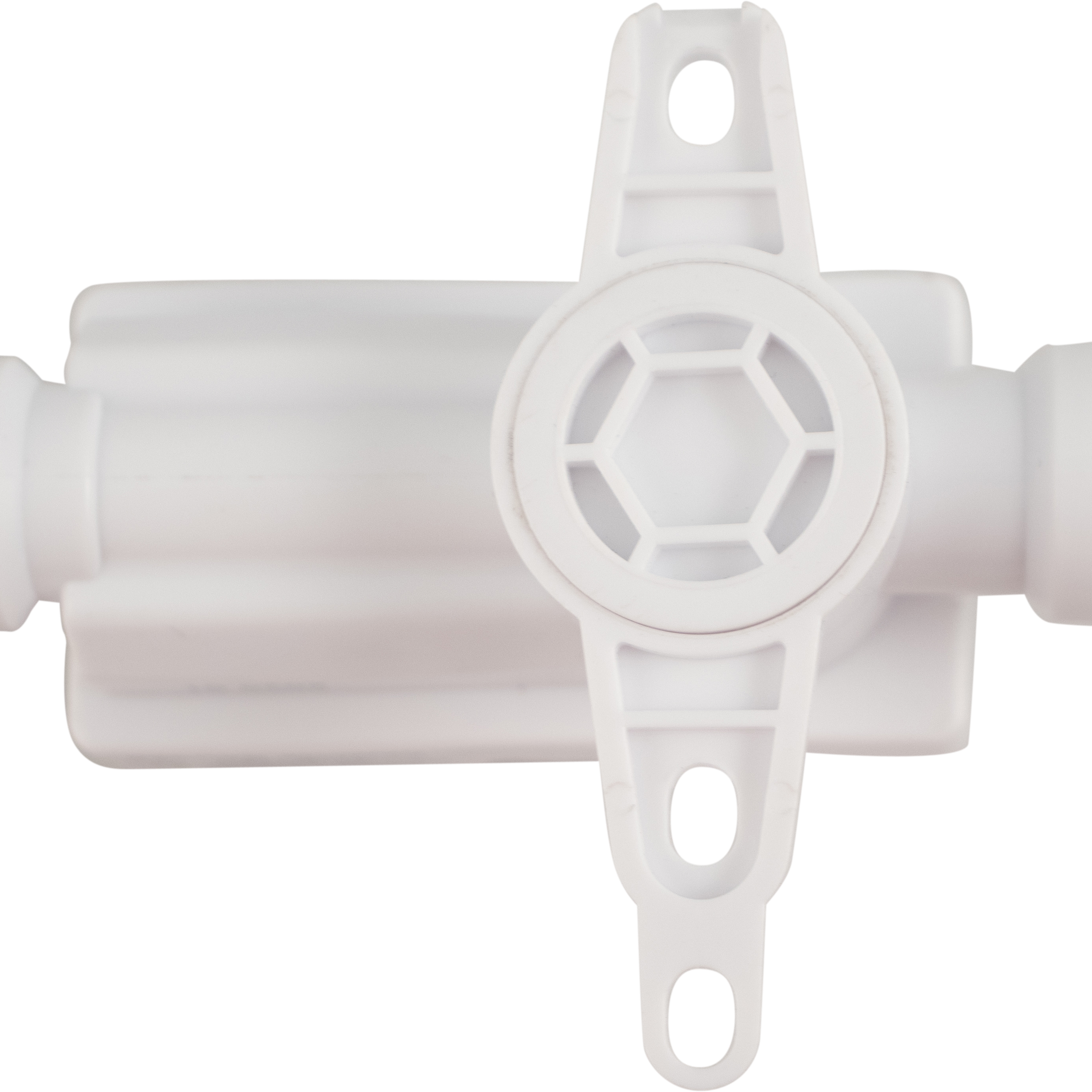

Wall mountable
WARNING: Do not exceed gauge pressure. Exceeding the pressure range will damage the gauge.
Kegland Part number: KL15035
