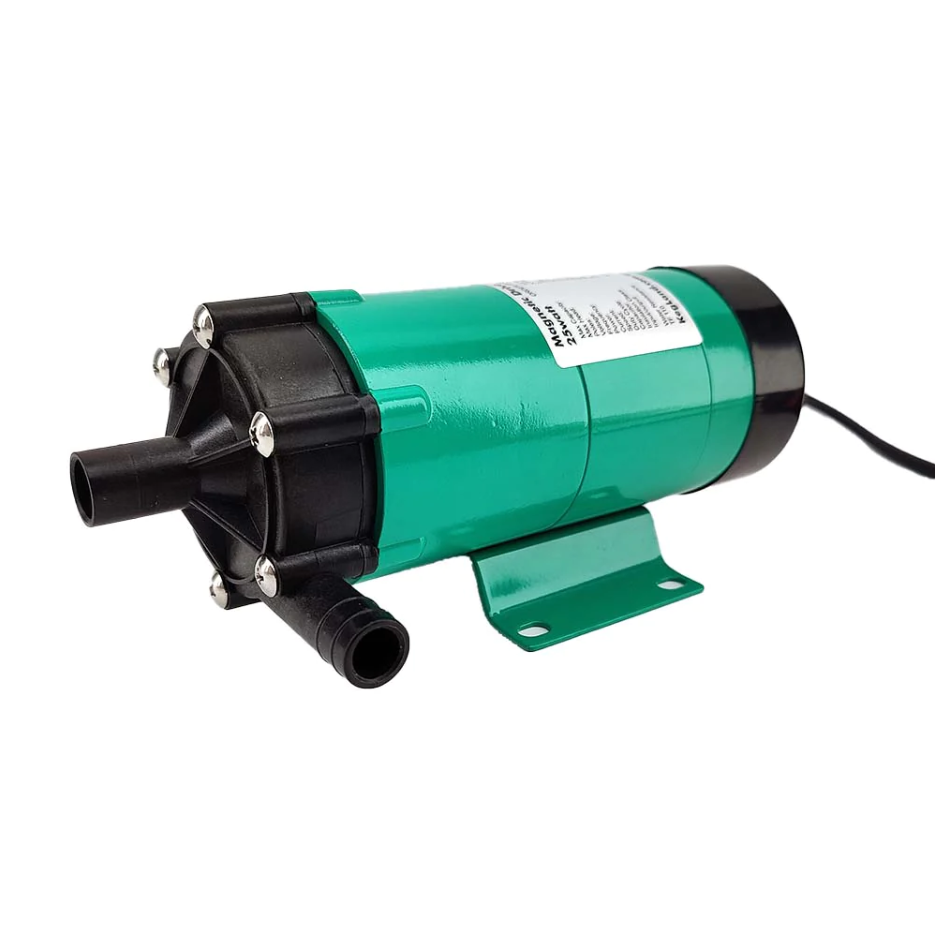

BrewZilla | High Temperature Magnetic Drive Pump | 25 Watt | Replacement Pump for 65L & 100L | Gen 4 | 220V

    Description

    This pump does not have a plug. It comes with the appropriate connectors to wire it to the BrewZilla's circuit board. For a brewery pump with similar performance, please see the MKII Pump. This pump now comes standard on the 65L BrewZilla, but if you have an older Gen 4 model with the original 6W pump, you can upgrade to this more powerful unit.

    The Green Demon

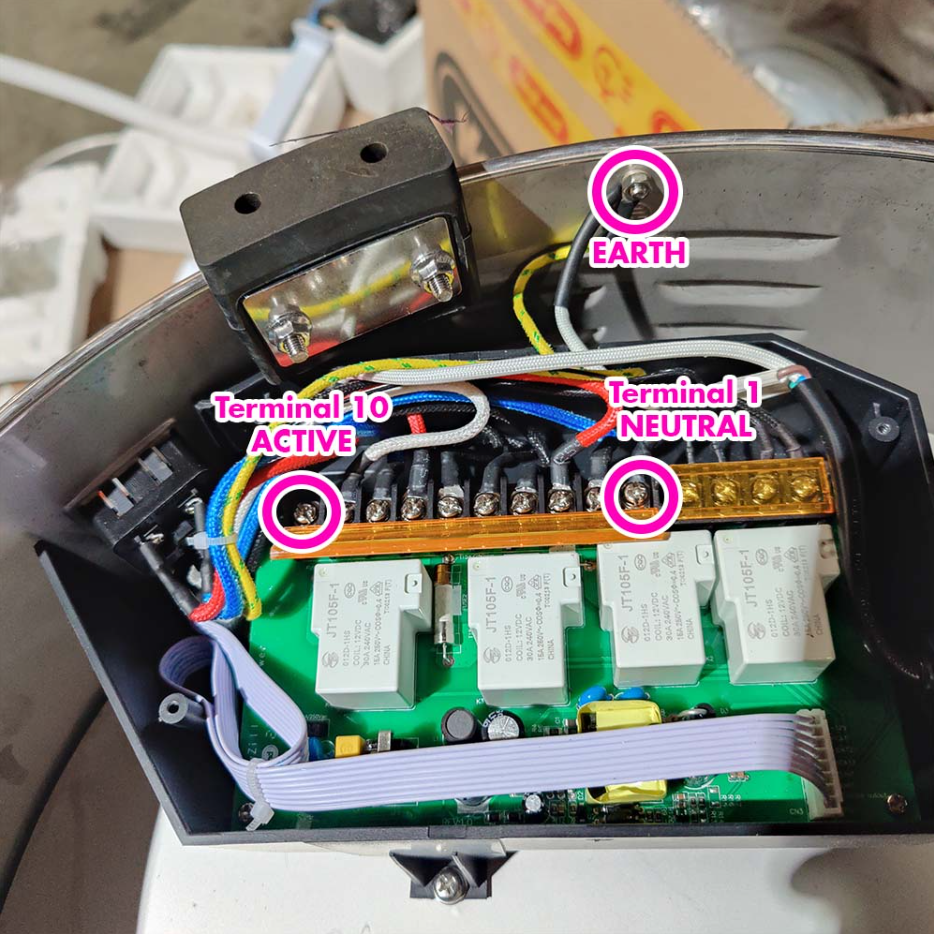

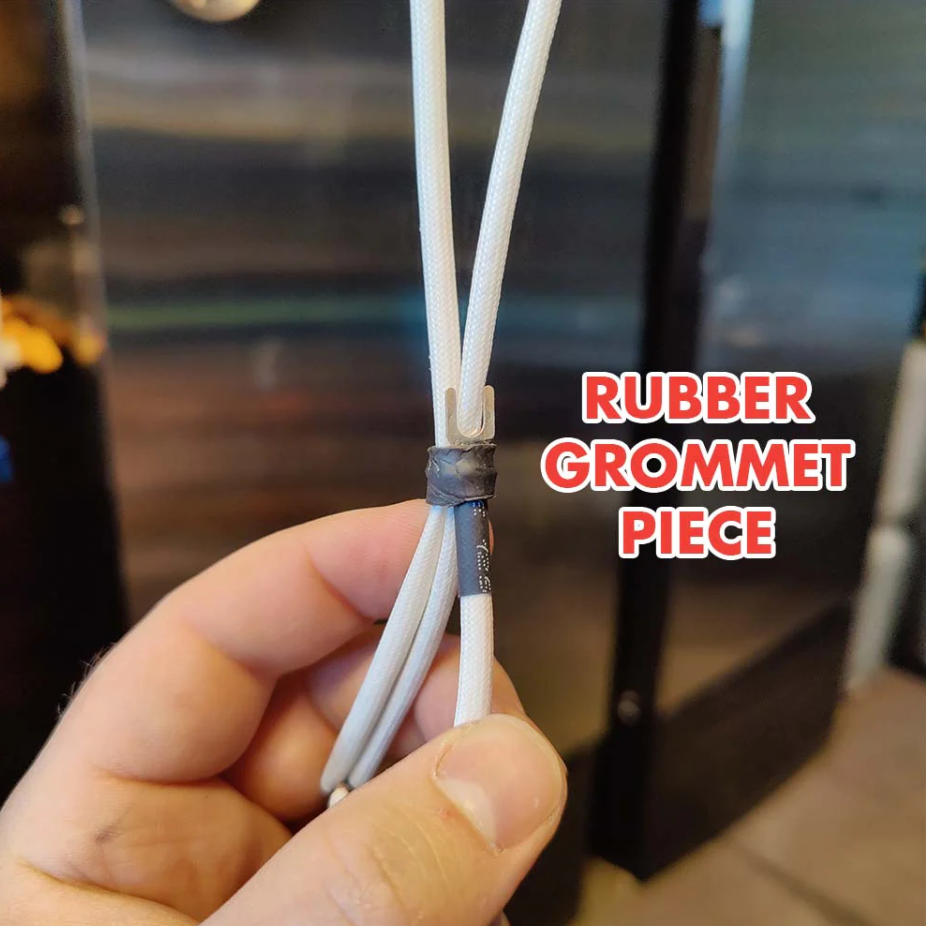

    This pump comes standard with the 100L BrewZilla Gen 4 and the upgraded 65L BrewZilla Gen 4.1. To upgrade older 65L BrewZilla Gen 4 models with the smaller pump, you will need to perform some light electrical terminal rewiring. This pump comes fitted with blade and circle connectors to swap out the standard 6W pump. You will need to re-use the grommet fitting so be gentle when taking it off the 6W pump.

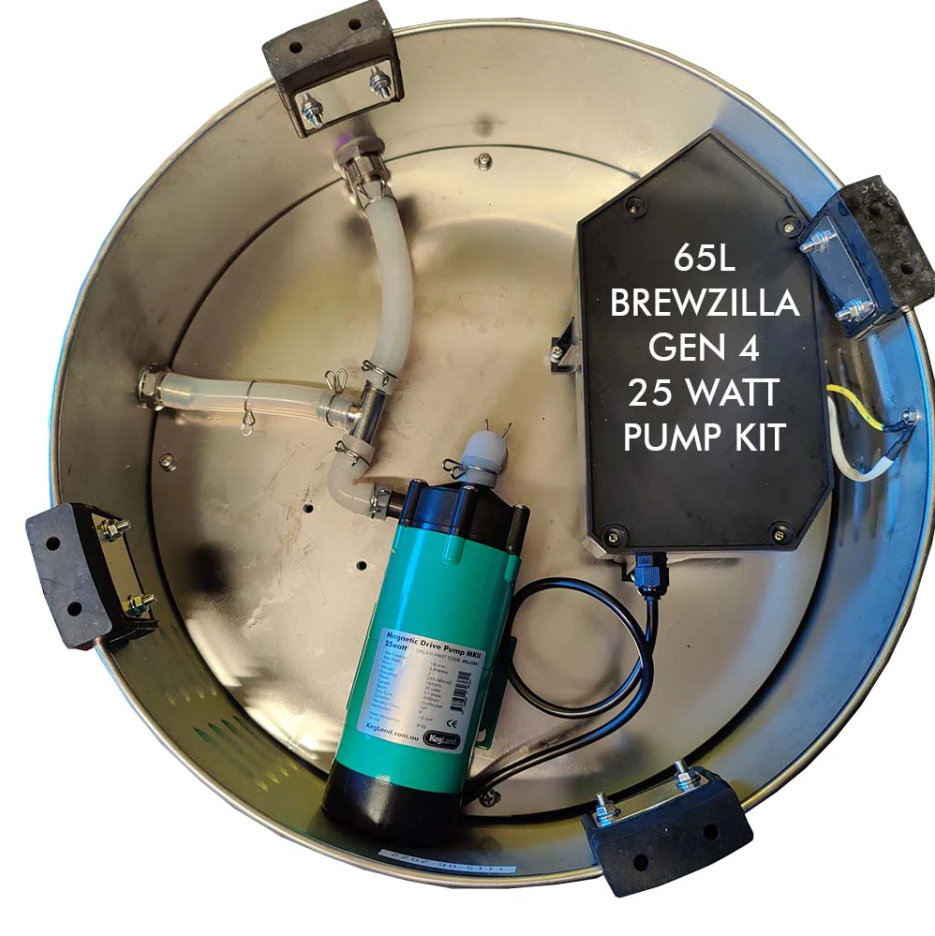

    Standard Configuration – No additional fittings/hoses required

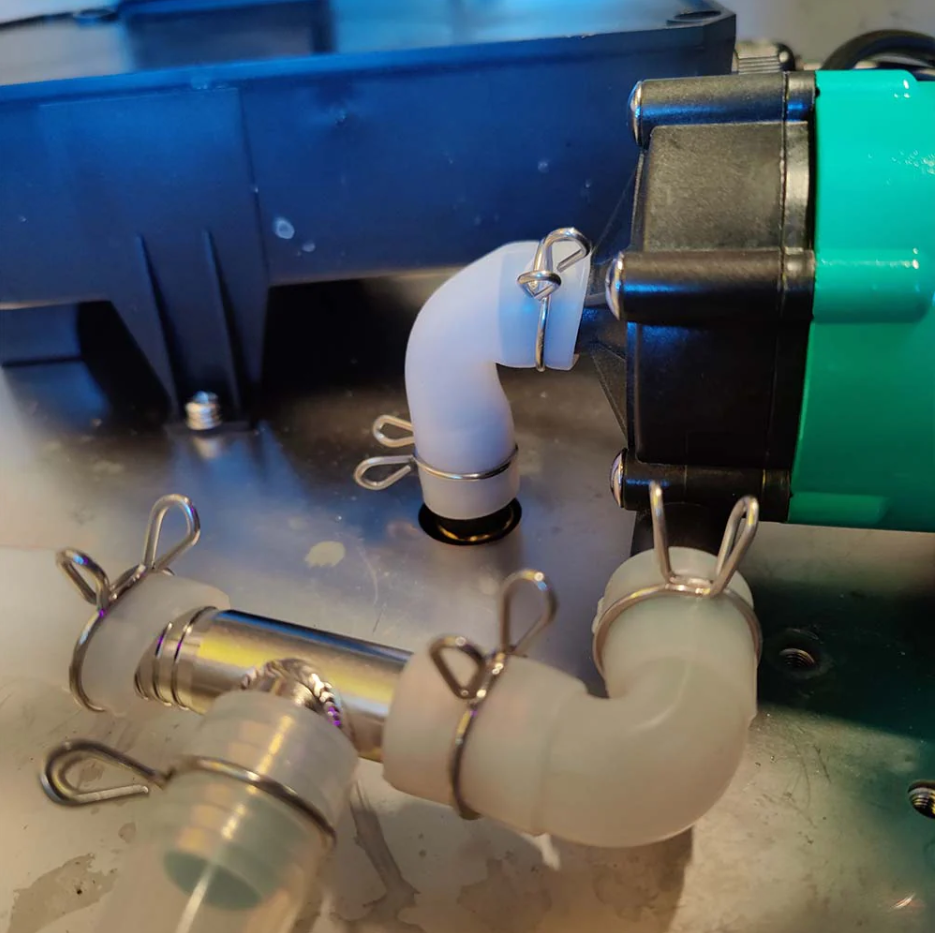

    This configuration is a direct swap out of the 6w pump to the 25w pump. Utilizing the tee splitter and the original hosing that comes with the 65L Gen 4 BrewZilla. It does help a little bit if you use the outlet elbow piece on the inlet, and vice versa as the 25w pump is slightly taller than the 6w stock standard pump.

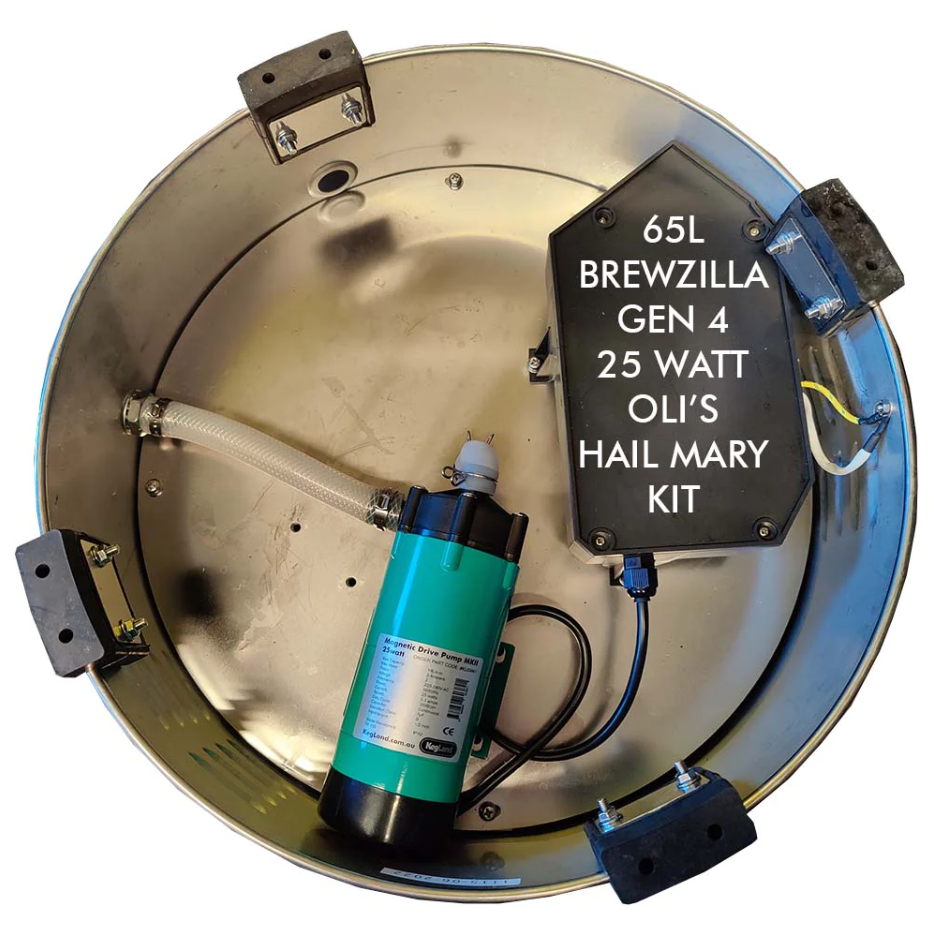

    Alternative Configuration – Oli's Hail Mary
    For this method you will need about 6.5" of 1/2" ID hosing, preferably braided silicone. You cannot use normal silicone hosing for this. This method does not use the tee piece or ball valve. It solely relies on the bigger 25W pump to do all of the transferring and recirculating needs.

    Please see product photos for configuration types.

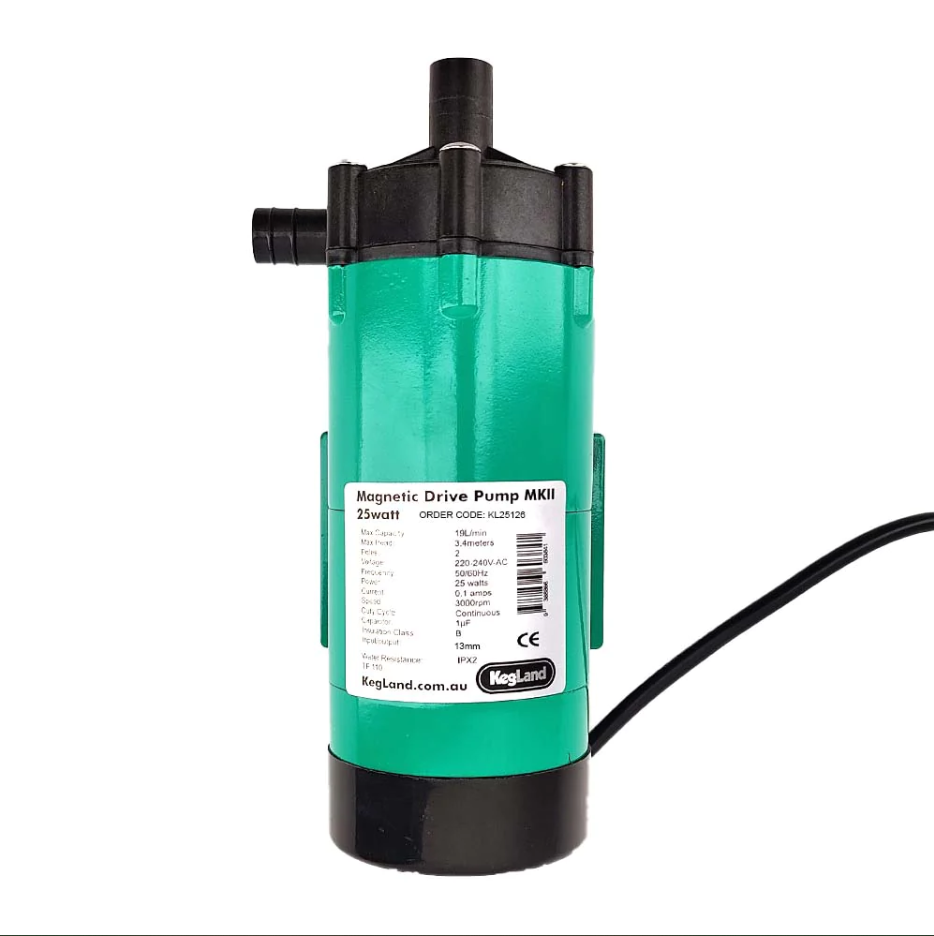

    Specifications:

    • Voltage: 220-240V at 50-60hz
    • Max Head: 11.1 ft
    • Max Flow: 5 gal
    • Wiring: Fork and Ring Connectors fitted with insulation sheath
    • Fittings: 1/2" (13 mm) barbs

    NOTE: Like almost all centrifugal pumps, do not run this pump dry.

    KegLand Part Number: KL25126

    BrewZilla | High Temperature Magnetic Drive Pump | 25 Watt | Replacement Pump for 65L & 100L | Gen 4 | 220V

      Product form

      SKU: AG553

      $74.99

      Calculating shipping time...
      Shipping
      Free Shipping*
      Shipping
      Paid Shipping
      Drop Ship
      Drop Ship
      Discount Exclusion
      Discount Exclusion
      Freight
      Freight Only
      Pre-book
      Pre Order

        Prop 65 Warning WARNING : This product can expose you to chemicals including Lead and lead compounds, which is/are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.

        Description

        This pump does not have a plug. It comes with the appropriate connectors to wire it to the BrewZilla's circuit board. For a brewery pump with similar performance, please see the MKII Pump. This pump now comes standard on the 65L BrewZilla, but if you have an older Gen 4 model with the original 6W pump, you can upgrade to this more powerful unit.

        The Green Demon
        This pump comes standard with the 100L BrewZilla Gen 4 and the upgraded 65L BrewZilla Gen 4.1. To upgrade older 65L BrewZilla Gen 4 models with the smaller pump, you will need to perform some light electrical terminal rewiring. This pump comes fitted with blade and circle connectors to swap out the standard 6W pump. You will need to re-use the grommet fitting so be gentle when taking it off the 6W pump.

        Standard Configuration – No additional fittings/hoses required
        This configuration is a direct swap out of the 6w pump to the 25w pump. Utilizing the tee splitter and the original hosing that comes with the 65L Gen 4 BrewZilla. It does help a little bit if you use the outlet elbow piece on the inlet, and vice versa as the 25w pump is slightly taller than the 6w stock standard pump.

        Alternative Configuration – Oli's Hail Mary
        For this method you will need about 6.5" of 1/2" ID hosing, preferably braided silicone. You cannot use normal silicone hosing for this. This method does not use the tee piece or ball valve. It solely relies on the bigger 25W pump to do all of the transferring and recirculating needs.

        Please see product photos for configuration types.

        Specifications:

        • Voltage: 220-240V at 50-60hz
        • Max Head: 11.1 ft
        • Max Flow: 5 gal
        • Wiring: Fork and Ring Connectors fitted with insulation sheath
        • Fittings: 1/2" (13 mm) barbs

        NOTE: Like almost all centrifugal pumps, do not run this pump dry.

        KegLand Part Number: KL25126
