Brewtools | Steam Condenser

    Description

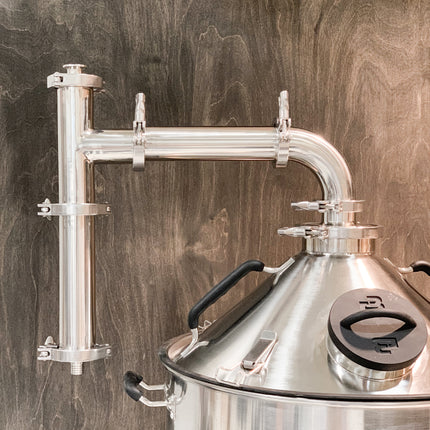

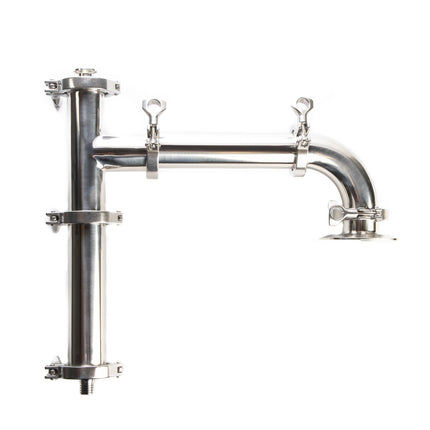

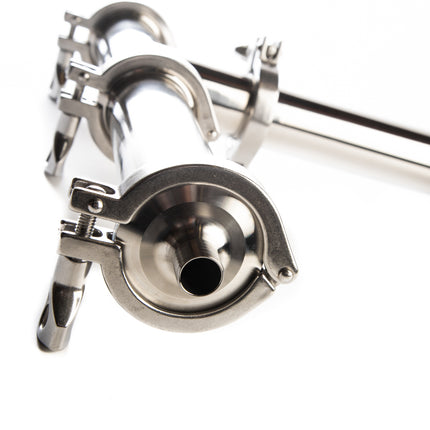

    The Brewtools Steam Condenser fits the Brewtools Steam Hat and uses cold water to cool the steam until it becomes a liquid that runs out of the condenser to a bucket or directly to the drain. The unit is an excellent alternative to a ventilation system.

    The unit ships with a nozzle that supplies 1.1 liters of water per minute at 4 bar pressure. We also offer other nozzles that offers higher or lower flow depending on the water pressure where the system is used and other factors (sold separately).

    Included:

    • TC 4" to TC 2" adapter (1 pcs)
    • 20cm straight TC 2" pipe (2 pcs)
    • TC 2" Tee (1 pcs)
    • TC 2" Elbow (1 pcs)
    • TC 2" 1/8" nozzle adapter with TC34mm input (1 pcs)
    • TC 2" to 19mm hose barb adapter (1 pcs)
    • TC 2" Clamp (6 pcs)
    • TC 2" Gasket (6 pcs)
    • 1/8" BSP-T nozzle, 30 degrees, 1.1 liters per minute @ 4 bar (1 pcs)

    You Will Also Need:

    • Steam hat for your system
    • TC 4" Clamp and gasket
    • Water inlet adapter (TC34mm to hose or garden connector etc)
    • Outlet tube (16x25mm)
    • A TC34mm elbow is recommended for the water inlet

    Please take not that you need much less power to keep the boil going with this device, and the risk of the wort boiling over is high when too much power is used, so make sure to take the necessary precautions. To sustain the vacuum, the drain tube from the condenser must not have any counterpressure. We recommend draining to a bucket where the tube is not submerged in the water, or suspend the tube directly over a floor drain.

    For User Manuals and support, please follow this link to Brewtools Docs.

    Brewtools | Steam Condenser

      Product form

      SKU: BT1019

      $323.00

      Calculating shipping time...
      Shipping
      Free Shipping*
      Shipping
      Paid Shipping
      Drop Ship
      Drop Ship
      Discount Exclusion
      Discount Exclusion
      Freight
      Freight Only
      Pre-book
      Pre Order

        Description

        The Brewtools Steam Condenser fits the Brewtools Steam Hat and uses cold water to cool the steam until it becomes a liquid that runs out of the condenser to a bucket or directly to the drain. The unit is an excellent alternative to a ventilation system.

        The unit ships with a nozzle that supplies 1.1 liters of water per minute at 4 bar pressure. We also offer other nozzles that offers higher or lower flow depending on the water pressure where the system is used and other factors (sold separately).

        Included:

        • TC 4" to TC 2" adapter (1 pcs)
        • 20cm straight TC 2" pipe (2 pcs)
        • TC 2" Tee (1 pcs)
        • TC 2" Elbow (1 pcs)
        • TC 2" 1/8" nozzle adapter with TC34mm input (1 pcs)
        • TC 2" to 19mm hose barb adapter (1 pcs)
        • TC 2" Clamp (6 pcs)
        • TC 2" Gasket (6 pcs)
        • 1/8" BSP-T nozzle, 30 degrees, 1.1 liters per minute @ 4 bar (1 pcs)

        You Will Also Need:

        • Steam hat for your system
        • TC 4" Clamp and gasket
        • Water inlet adapter (TC34mm to hose or garden connector etc)
        • Outlet tube (16x25mm)
        • A TC34mm elbow is recommended for the water inlet

        Please take not that you need much less power to keep the boil going with this device, and the risk of the wort boiling over is high when too much power is used, so make sure to take the necessary precautions. To sustain the vacuum, the drain tube from the condenser must not have any counterpressure. We recommend draining to a bucket where the tube is not submerged in the water, or suspend the tube directly over a floor drain.

        For User Manuals and support, please follow this link to Brewtools Docs.

        Important Warnings & Shipping Info +
        Shipping Icon
        Free Shipping: Fast & Free Shipping over $79
        Shipping Icon
        Shipping Rates Apply: Bulk items like grain, bottles, and malt are excluded from our free shipping promotion due to their weight, and often dropship items. Standard shipping rates apply and are calculated at checkout based on your location and order size.
        Drop Ship Icon
        Drop Ship: This product will ship directly from the supplier. Delivery may take 1-4 weeks depending on the vendor.
        Discount Exclusion Icon
        Discount Exclusion: This item is not eligible for sitewide price reductions or percentage discounts. Learn more.
        Freight Icon
        Freight Shipping: This item ships freight only.
        Pre-book Icon
        Pre Order: This item is available for Pre-Order. Full payment is required to reserve stock.
        Shipping Weight: 10.3 lb

        You Might Also Need

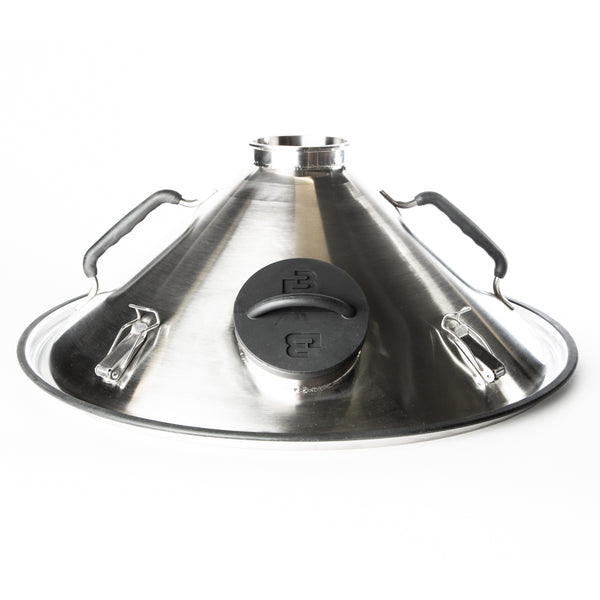

        Brewtools | Steam Hat | B150pro
        Brewtools | Steam Hat | B150pro
        $342.00

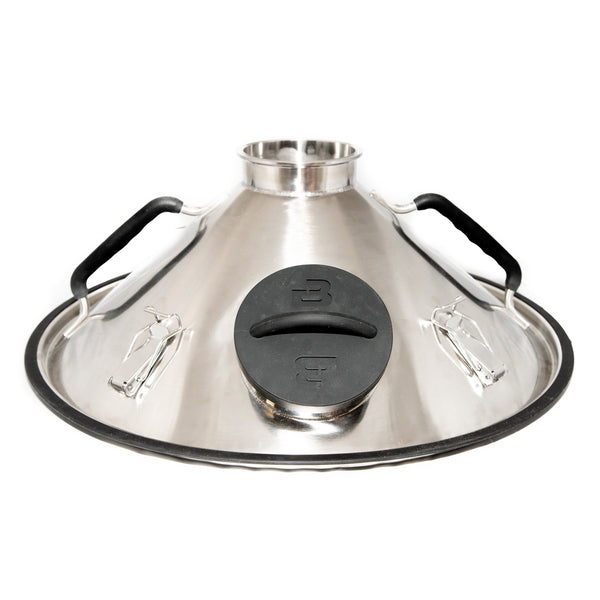

        Brewtools | Steam Hat | B80pro
        Brewtools | Steam Hat | B80pro
        $230.35

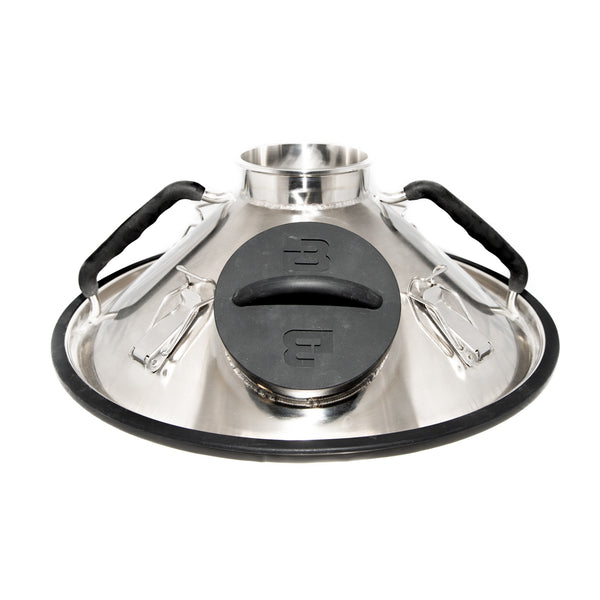

        Brewtools | Steam Hat | B40pro
