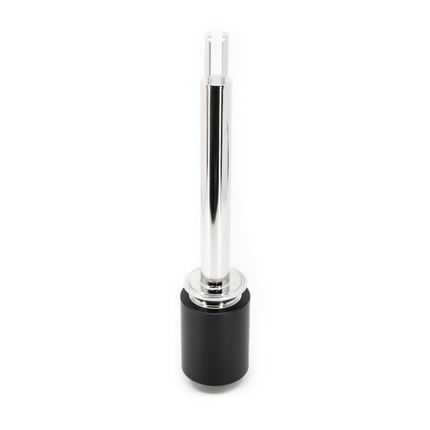

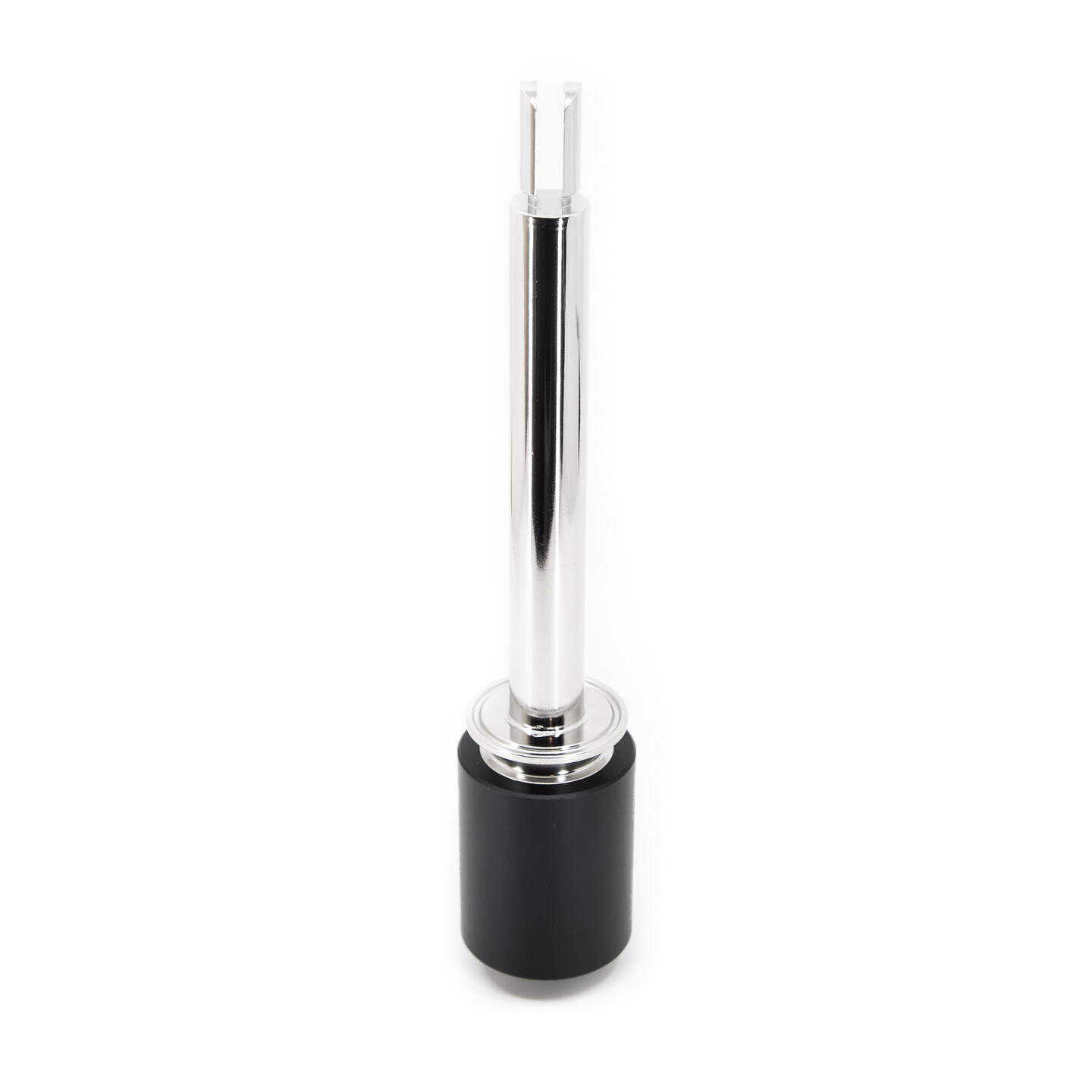

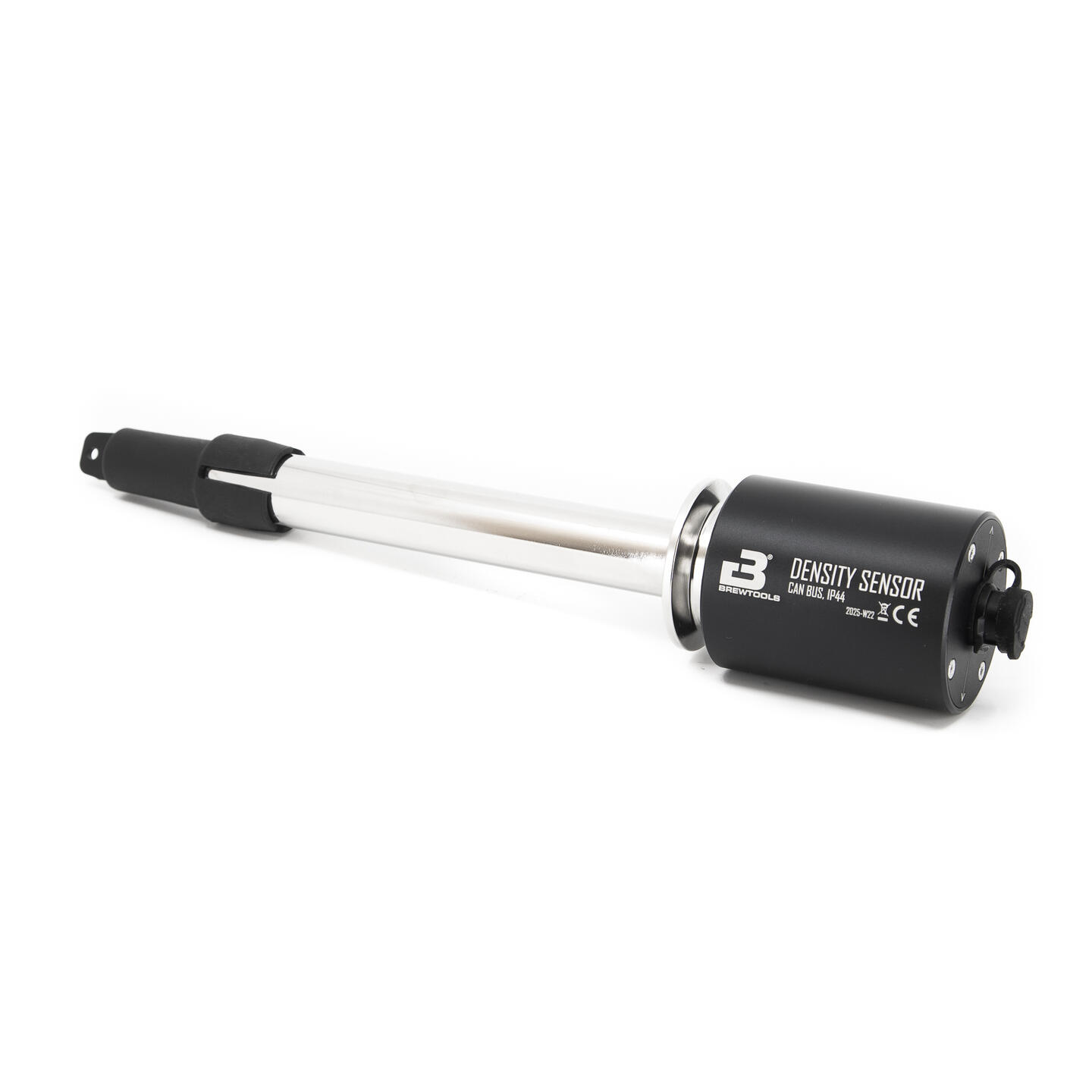

Brewtools | FCS Density / Temperature Sensor

    Description

    • Density sensor with integrated temperature sensor for FCS gives accurate and real-time density and temperature data for your fermentation tank
    • Measures density by inducing a vibration frequency in the fork and listening for the resonant frequency
    • Primarily designed for fermentation tanks like the F40-F300 and similar tanks

    Tuning fork-based measurements gives accurate and real-time density and temperature data for your fermentation tank. The Brewtools density sensor measures density by inducing a vibration frequency in the fork and listening for the resonant frequency.

    Take your fermentation to the next level with data-driven control and logging. Future updates of FCS will enable you to control temperature and pressure steps based on density in the tank, without the need for manual intervention.

    This model is primarily designed for fermentation tanks like our F40-F300 and similar tanks. Accuracy may vary for smaller tanks (like MiniUni+).

    More information: https://docs.brewtools.com/density-sensor

    Specifications:

    • Density accuracy: +-0.002 SG
    • Temperature accuracy: +- 0.3ºC
    • Flange: TC 1.5". Ø25mm minimum
    • Length: 200mm from flange

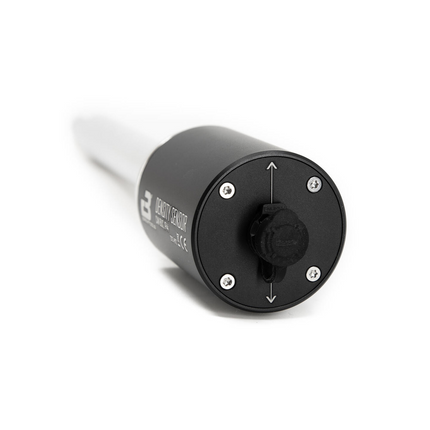

    • Connector: LP12 5-pin (CAN bus + 24V)

    Note: Accuracy and function can vary based on trub, yeast health, yeast flocculation, rapid temperature changes, dry-hopping and other additions and distance to tank wall/heating elements etc. Pressure fermentation can increase accuracy. Accuracy and features will improve over time with software updates.

    Brewtools Product Number: 7713723

    Brewtools | FCS Density / Temperature Sensor

      Product form

      SKU: BT1313

      $323.00

      Calculating shipping time...
      Shipping
      Free Shipping*
      Shipping
      Paid Shipping
      Drop Ship
      Drop Ship
      Discount Exclusion
      Discount Exclusion
      Freight
      Freight Only
      Pre-book
      Pre Order

        Description

        • Density sensor with integrated temperature sensor for FCS gives accurate and real-time density and temperature data for your fermentation tank
        • Measures density by inducing a vibration frequency in the fork and listening for the resonant frequency
        • Primarily designed for fermentation tanks like the F40-F300 and similar tanks

        Tuning fork-based measurements gives accurate and real-time density and temperature data for your fermentation tank. The Brewtools density sensor measures density by inducing a vibration frequency in the fork and listening for the resonant frequency.

        Take your fermentation to the next level with data-driven control and logging. Future updates of FCS will enable you to control temperature and pressure steps based on density in the tank, without the need for manual intervention.

        This model is primarily designed for fermentation tanks like our F40-F300 and similar tanks. Accuracy may vary for smaller tanks (like MiniUni+).

        More information: https://docs.brewtools.com/density-sensor

        Specifications:

        • Density accuracy: +-0.002 SG
        • Temperature accuracy: +- 0.3ºC
        • Flange: TC 1.5". Ø25mm minimum
        • Length: 200mm from flange
        • Connector: LP12 5-pin (CAN bus + 24V)

        Note: Accuracy and function can vary based on trub, yeast health, yeast flocculation, rapid temperature changes, dry-hopping and other additions and distance to tank wall/heating elements etc. Pressure fermentation can increase accuracy. Accuracy and features will improve over time with software updates.

        Brewtools Product Number: 7713723
