Coming soon! The newest Brewing Systems and accessories from Brewtools are now available for pre-order. Place your order now and we will automatically ship it to you when it's available. The current estimated availability is early November.

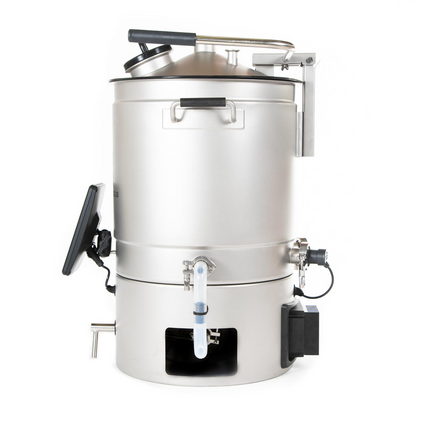

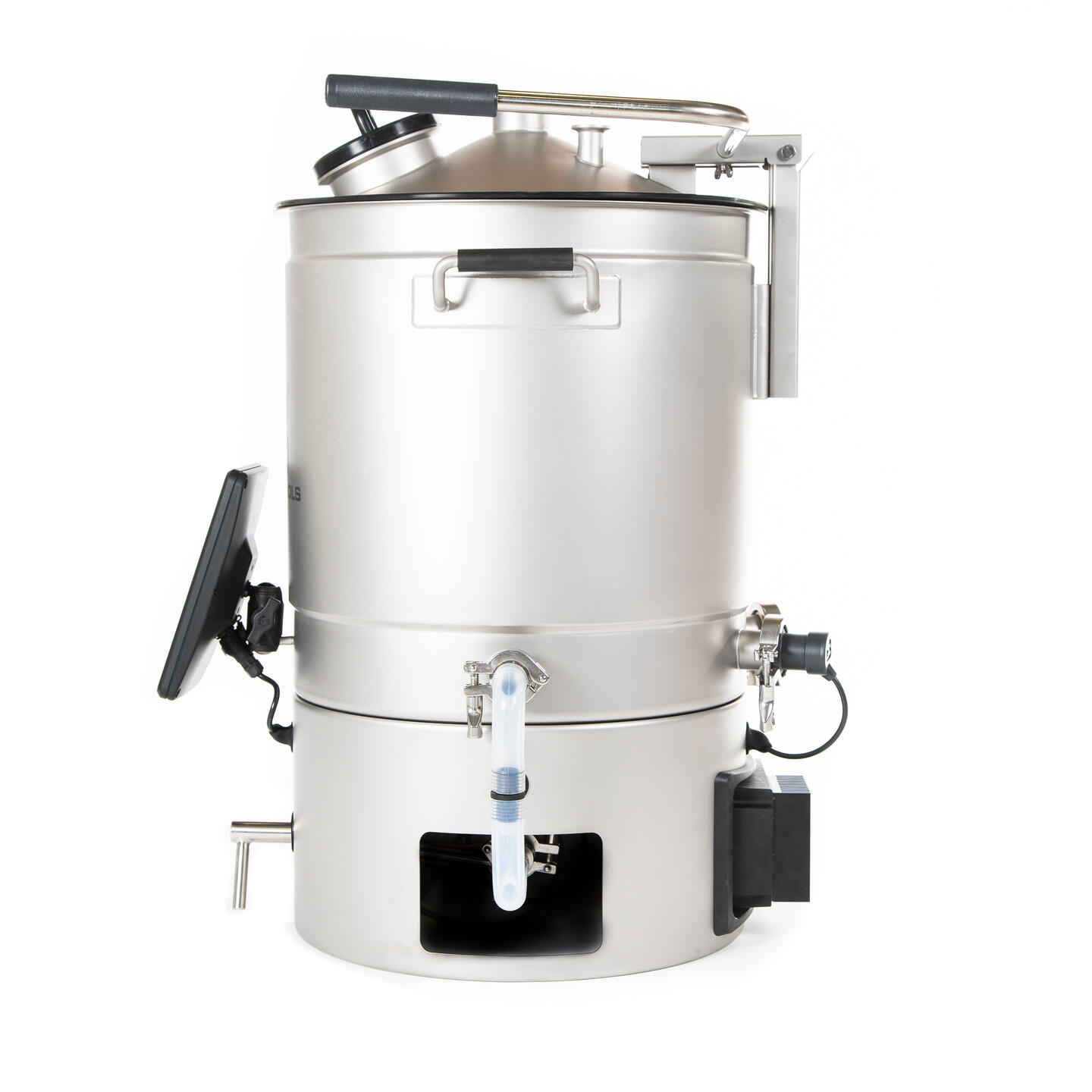

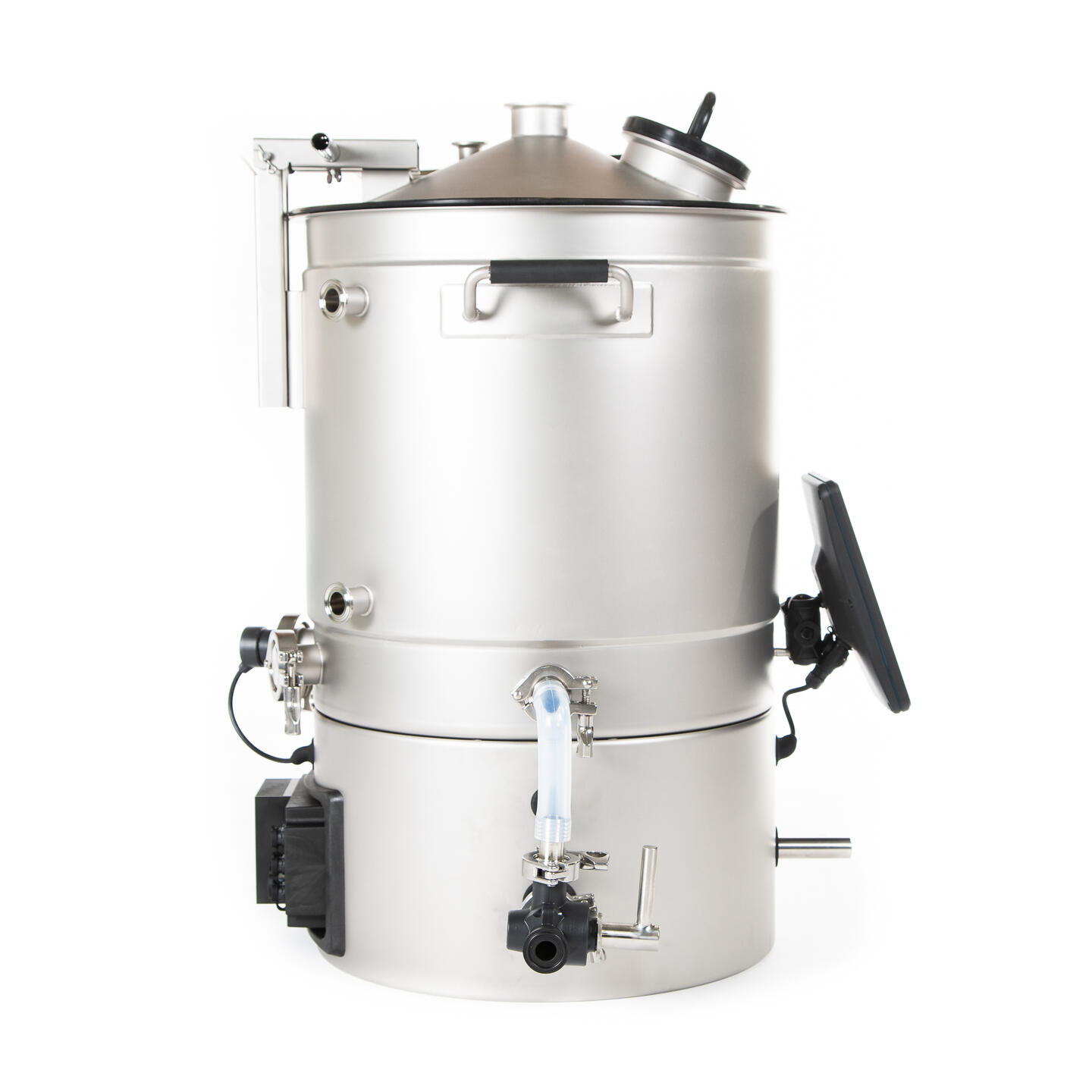

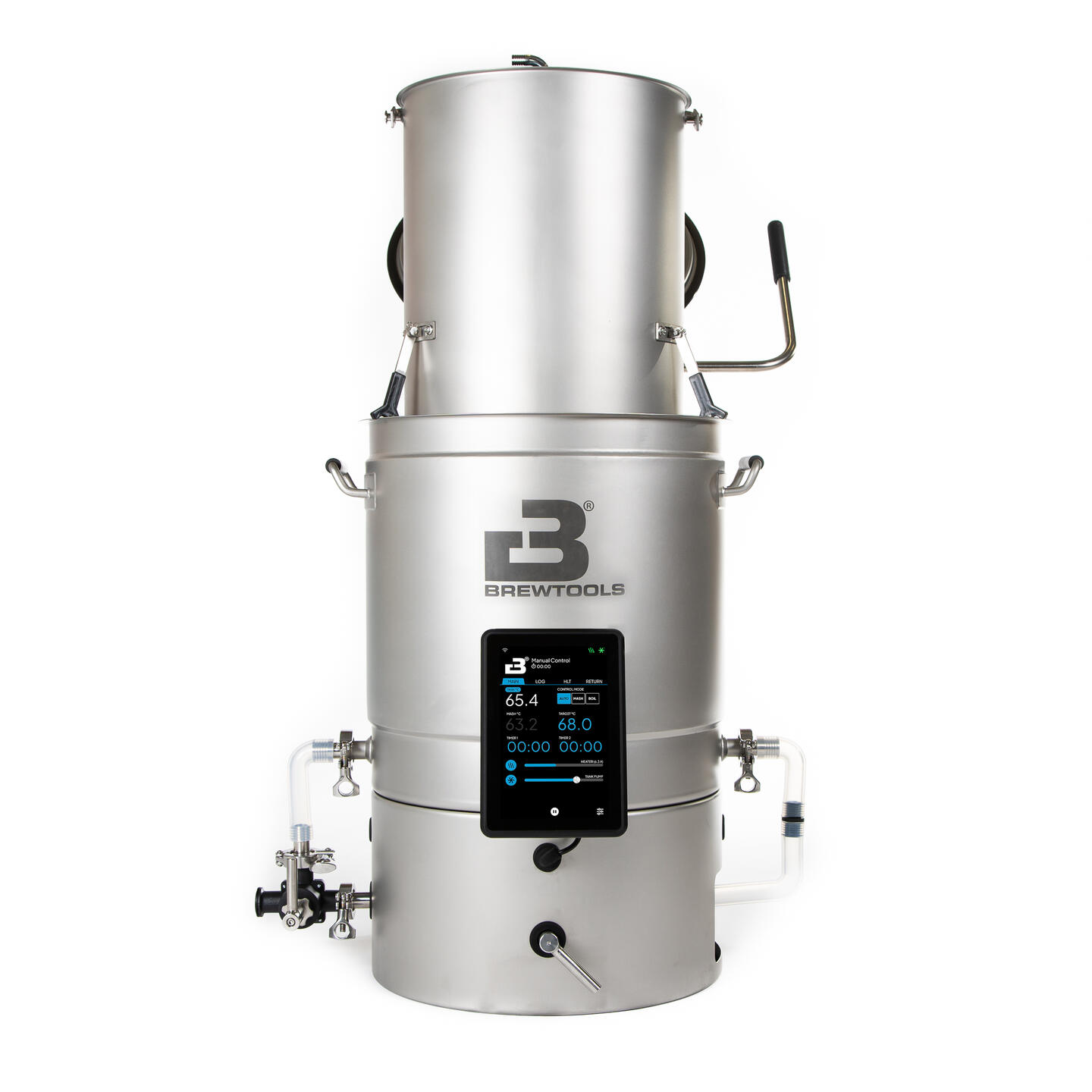

B50 Brewing System
The B50 is the workhorse of homebrewers. It offers simplicity out of the box, whilst keeping the level expansion possibilities.
Indirect heating and included whirlpool setup for maximum yield and fast cooling through the integrated cooling jacket makes cleaning a breeze. The 8" touch display can easily be relocated on the system or externally based on your needs (longer cables are available).
Included whirlpool setup for maximum yield and fast cooling.
The flow of wort through the FCS Brew Pump is controlled via the patented CleanCore™ 3-Way valve operated from the front.
The combined temperature and level switch sensor keeps you safe by automatically switching off the pump and heating if the water level is low.
With TC side ports, you can easily expand the inputs and outputs of the tank with sparge water, external added cooling with bypass etc.

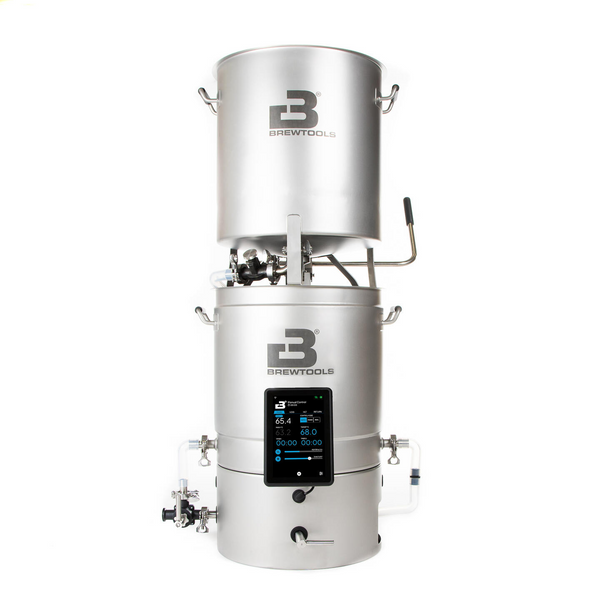

The B50 can also be expanded with a stackable external mash tun that allows for very high gravity brewing and higher efficiency compared to the integrated malt pipe.
If you need a powerful and flexible workhorse without the large volume, the B50 is the perfect match.
-

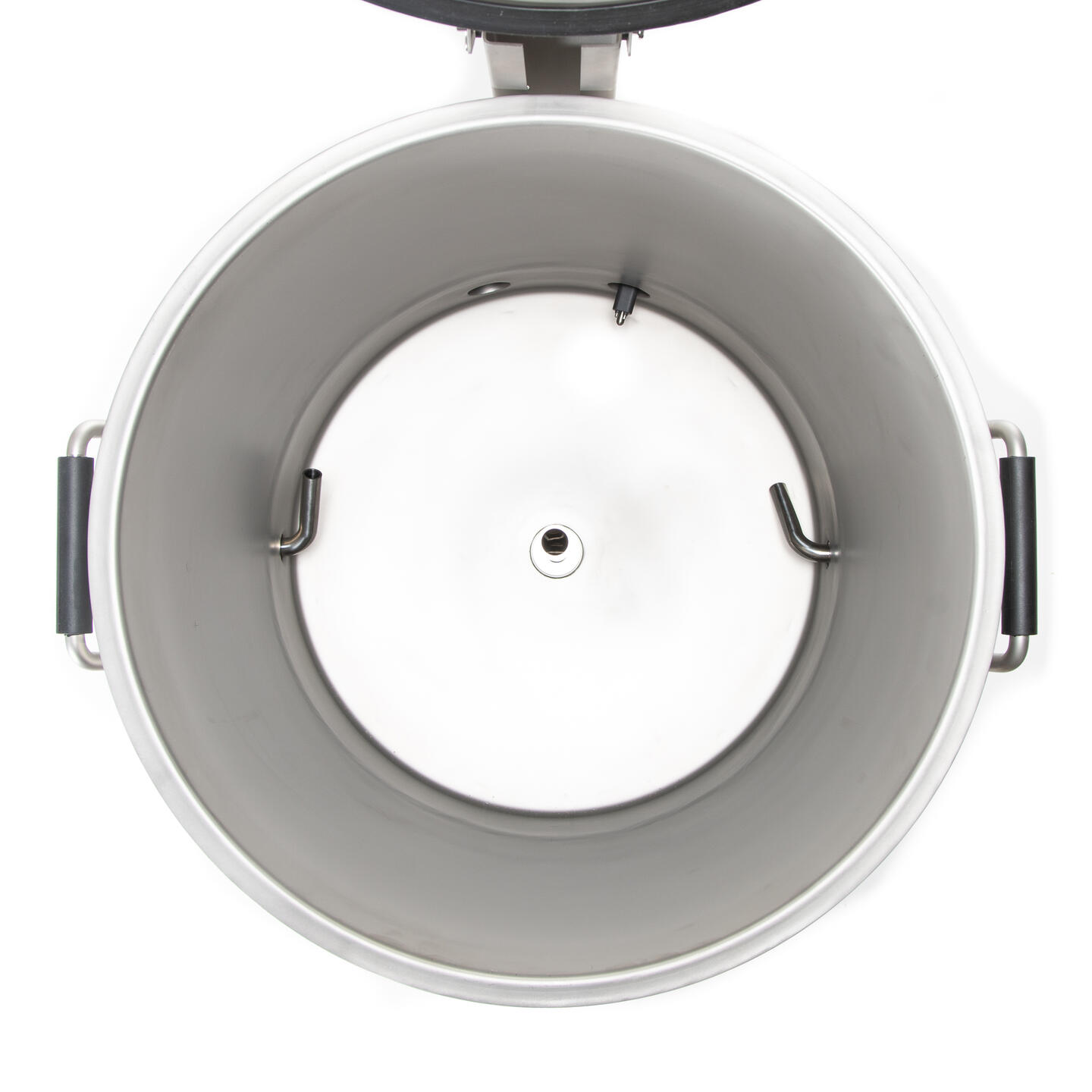

Indirect heating (10-degree conical bottom)
-
Integrated cooling jacket
-
Included whirlpool setup
-

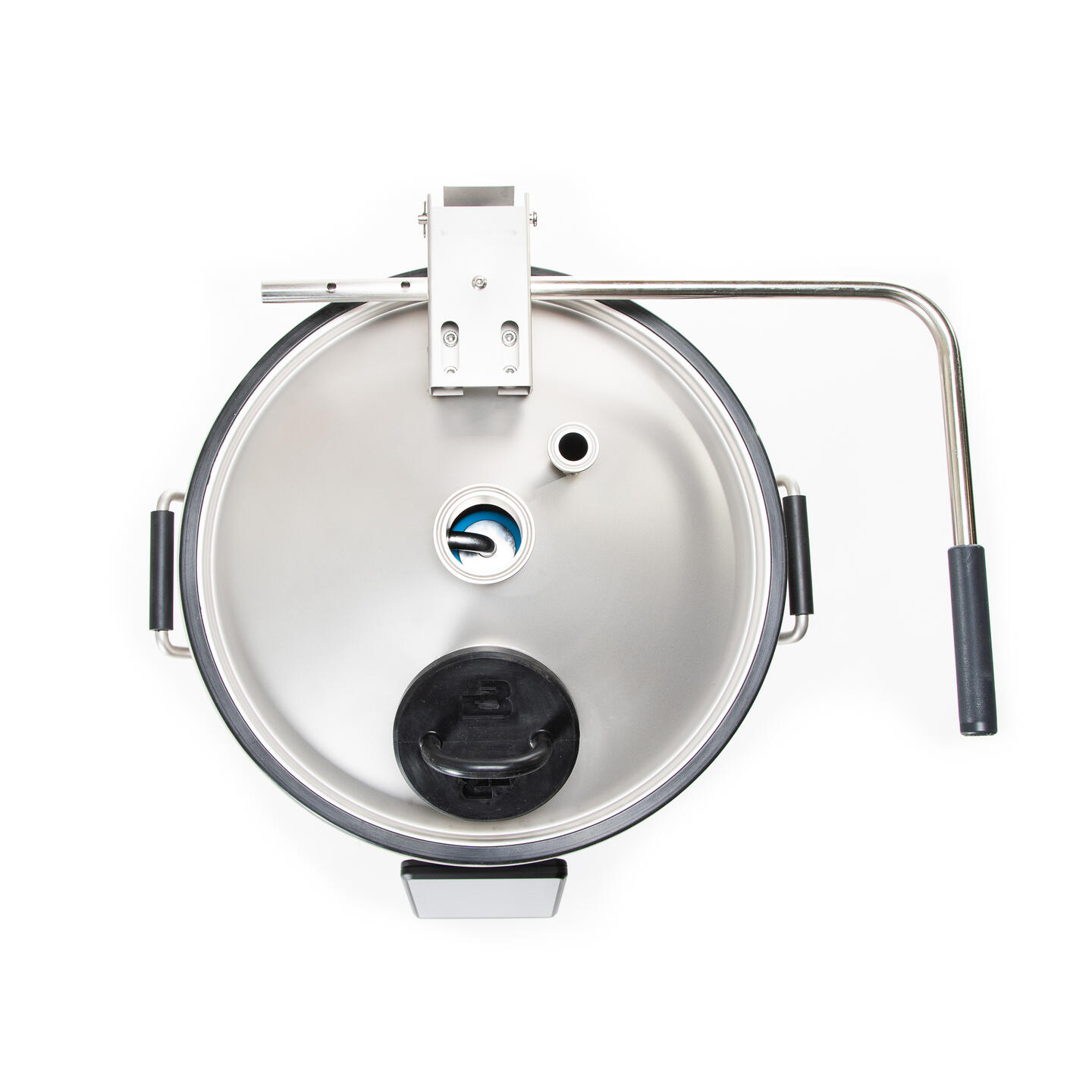

Included hinged steam hat
-

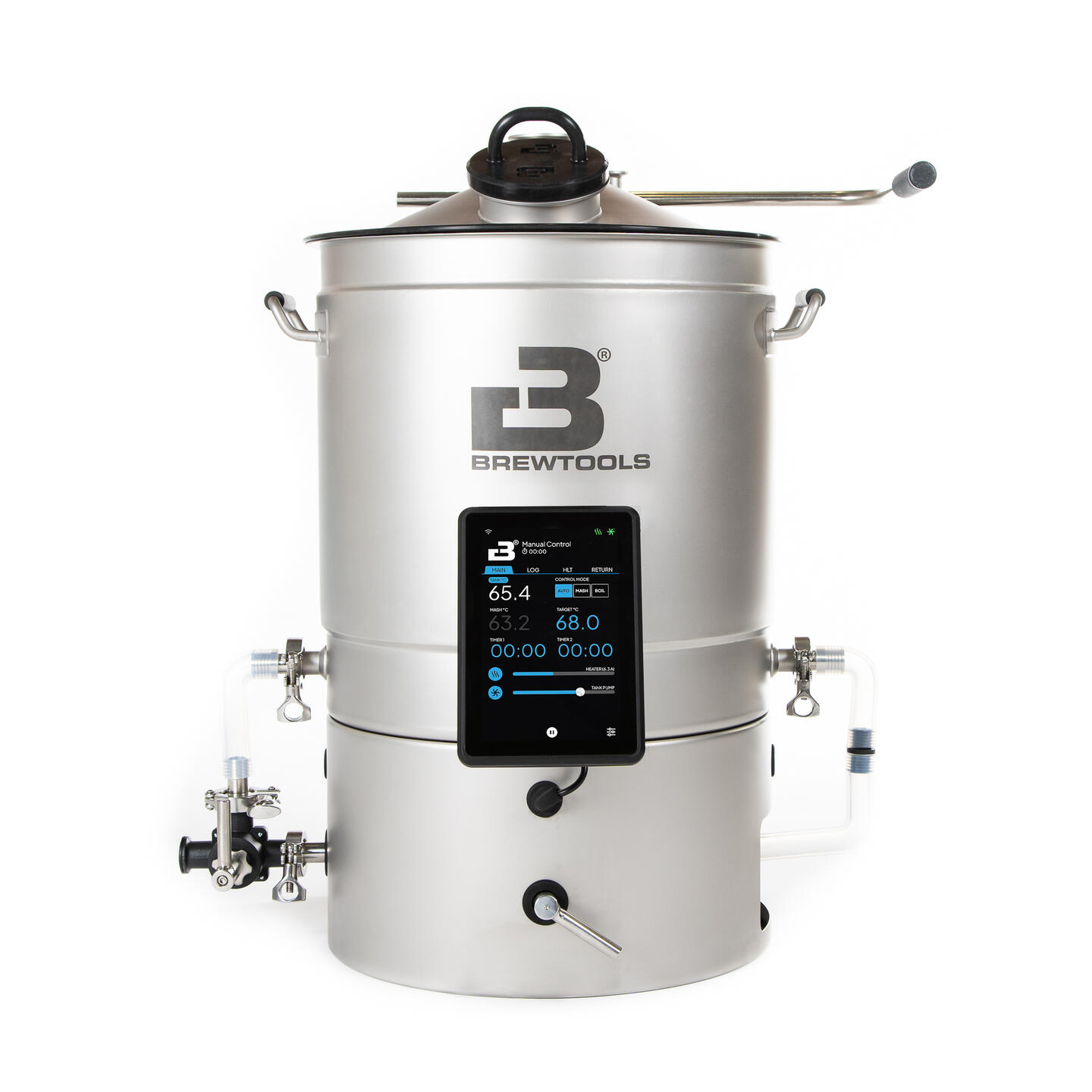

Powered by FCS Brewing with an 8" Touch Screen
-
Patented CleanCore™ sanitary 3-way valves
-
2 side TC ports for expansion
-

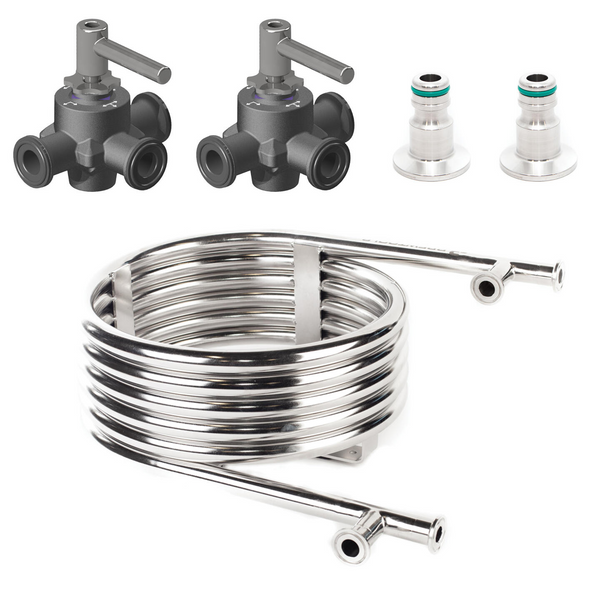

Optional external mash tun and counterflow chiller
-
Included temperature sensor for malt pipe

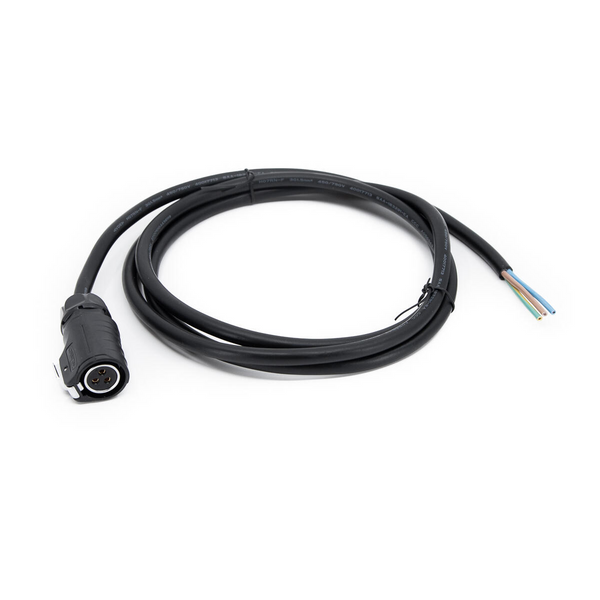

Remember to get power cables for your area (purchased separately).
The B25 needs 1 LP20 power cable (Schuko, UK BS1363 etc.)
Drawings / Schematic for setup

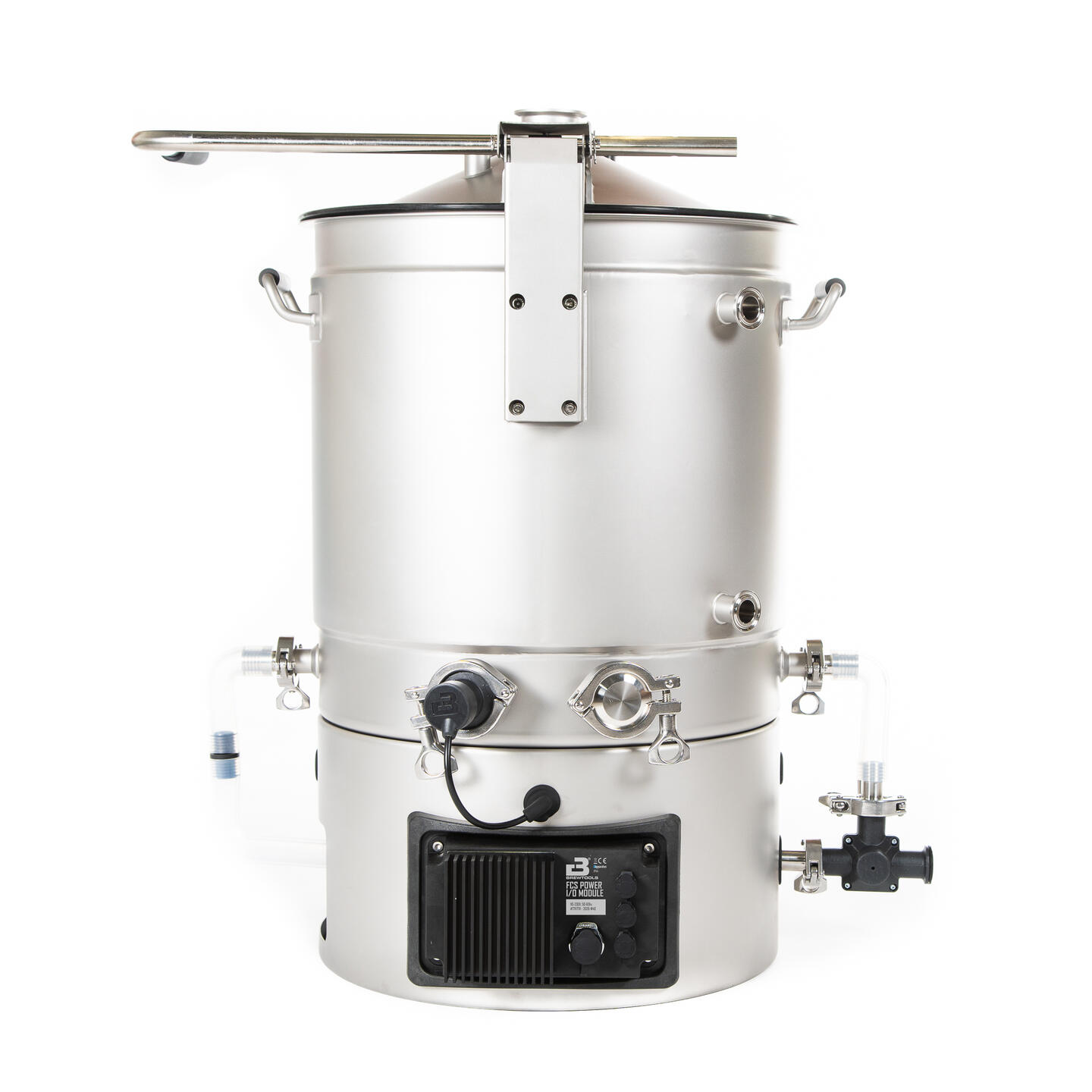

Available controller ports:
-
1 CAN bus ports (+24V)
-
1 external high-level switch (for stackable mash tun)
-
1 mash temp sensor input
In the box:
-

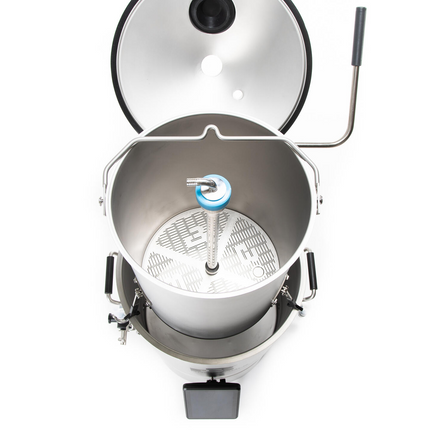

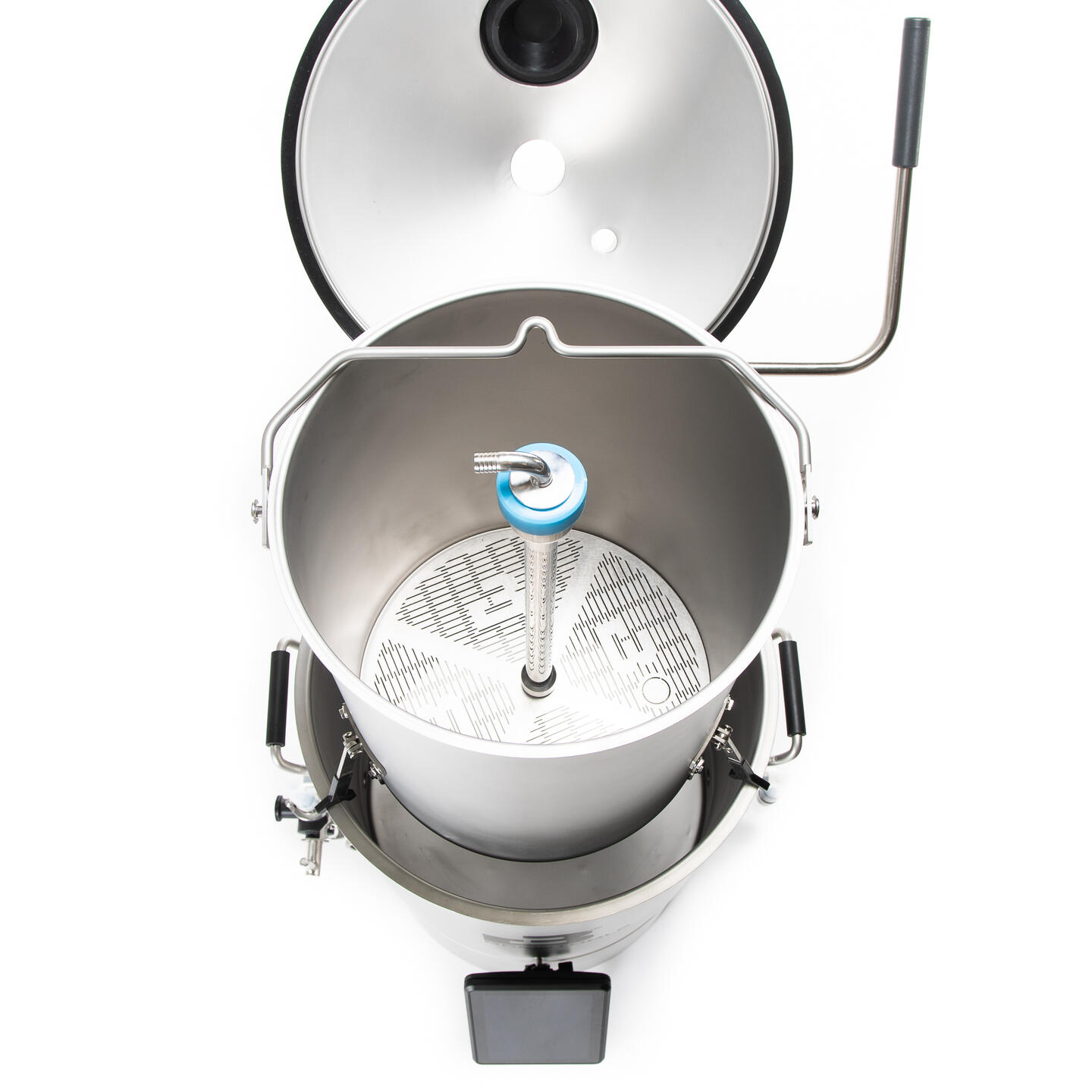

B50 brewing system with malt pipe and steam hat
-

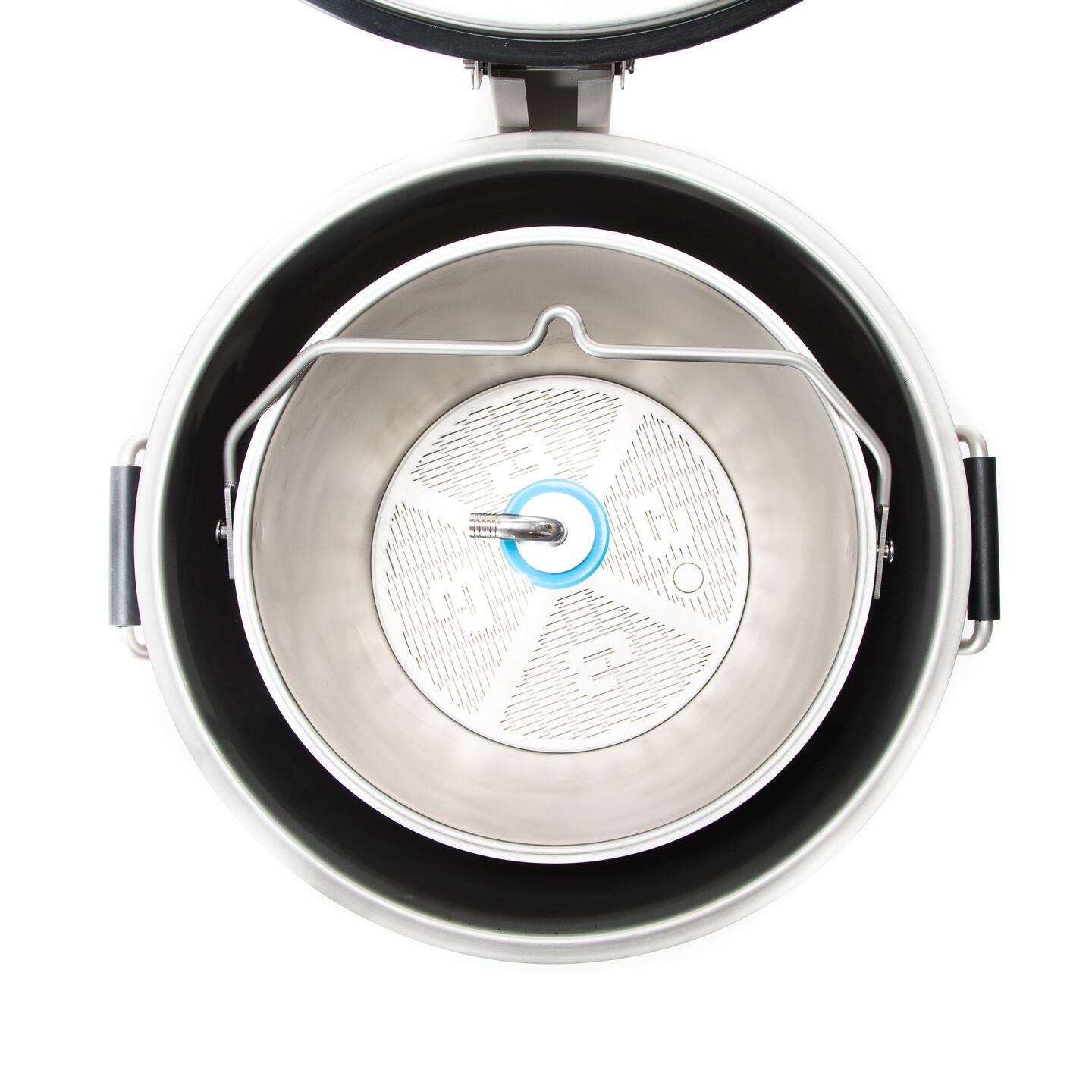

Malt pipe with laser cut filter
-
1 CleanCore™ 3-way valve
-
Silicone tubing for draining and recirculation
-
Parts and accessories for assembly
-
Mash sensor (probe with 2m cable)
Specifications:
-
Batch size: 2.64 - 10.56 gallons
-
Total volume capacity: 13.73 gallons
-
Grain capacity: 22 lbs
-
Heating power: 3300W (230V)
-
Watt density: 24W/in²
-
Control system: FCS Brewing with 8" IPS touch screen
-
Connectivity: Wi-Fi 2.4 GHz 802.11ax/b/g/n
-
Pump: Brewtools FCS Brew Pump, 7.9 gal/min, 14.7 ft. head
-
Materials: 304 Stainless steel, food grade silicone, EPDM, POK (Polyketone)
-
Valves, fittings, and connections: TC34mm
-
System height with steam hat: 28.8"
-
Tank dimensions: Ø15.7", height 16.5" (13.94 gallons)
-
Malt pipe dimensions: Ø12.4", height 15.1" (7.92 gallons)
-
Packing dimensions and weight: 22" x 22" x 31.5"
-
Safety features: Overheat protection, dry-boil protection, liquid detection
-
5 year manufacturer's warranty
Remember:
-
Power cable(s)
-

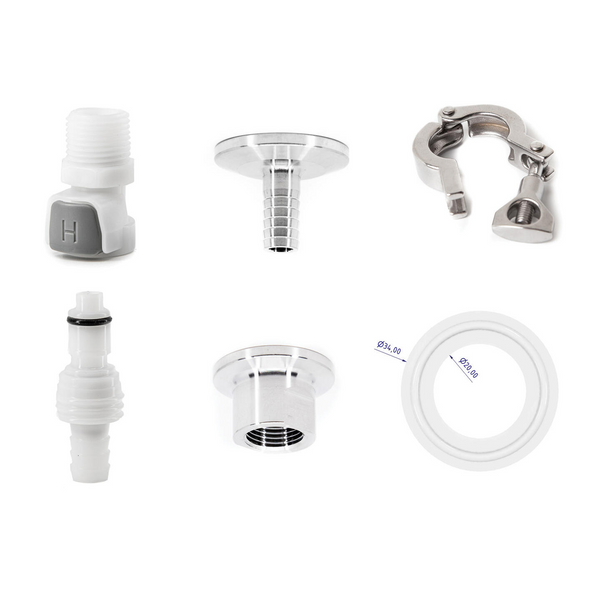

Connectors for cooling jacket (kit or custom setup)
-
Troll table with crane
-

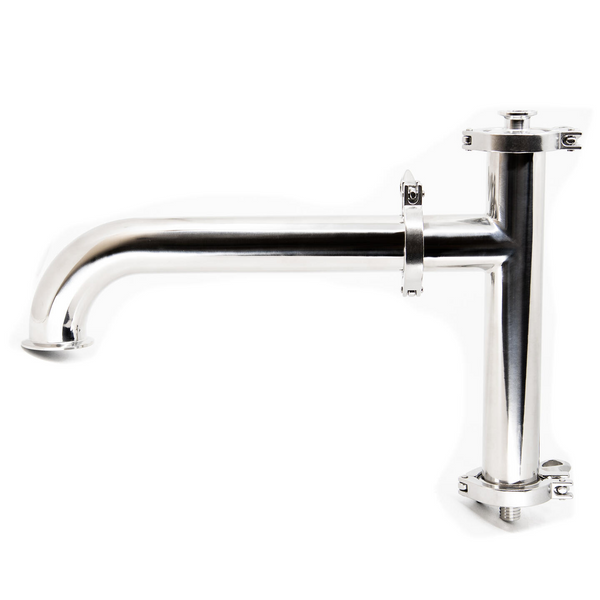

Steam condenser
Models in pictures are prototypes. Changes/improvements may occur.
For User Manuals and support, please follow this link to Brewtools Docs.
