Coming soon! The newest Brewing Systems and accessories from Brewtools are now available for pre-order. Place your order now and we will automatically ship it to you when it's available. The current estimated availability is early November.

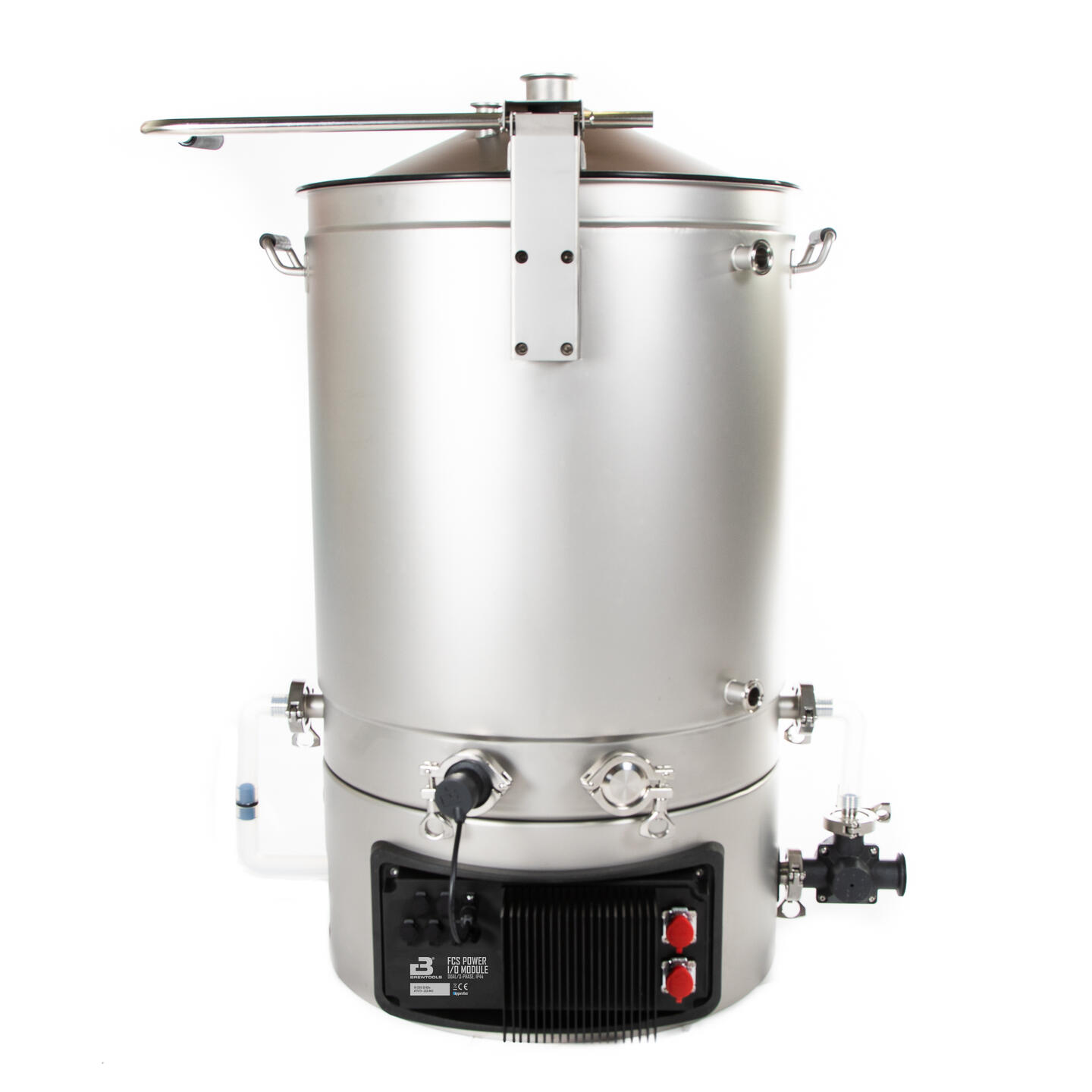

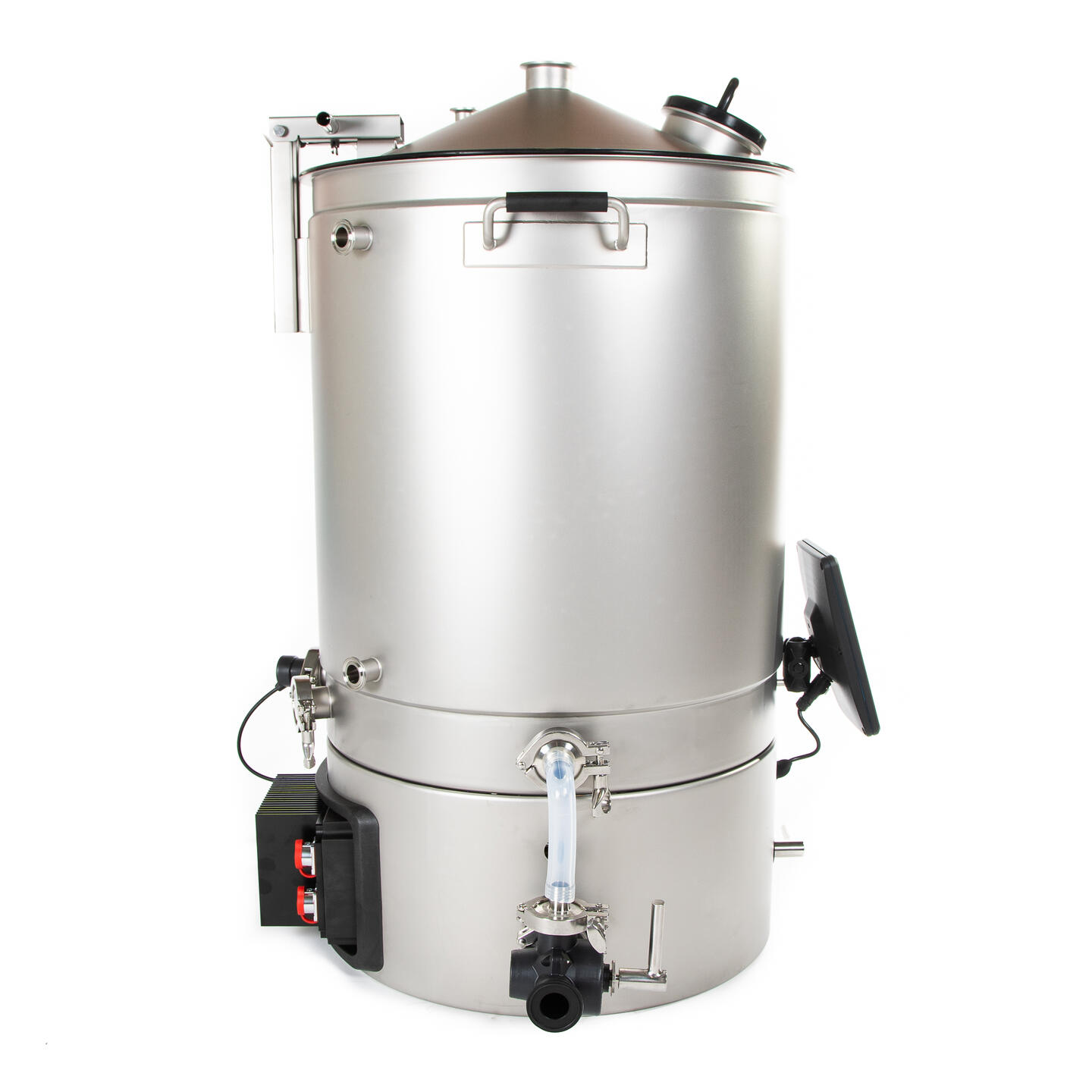

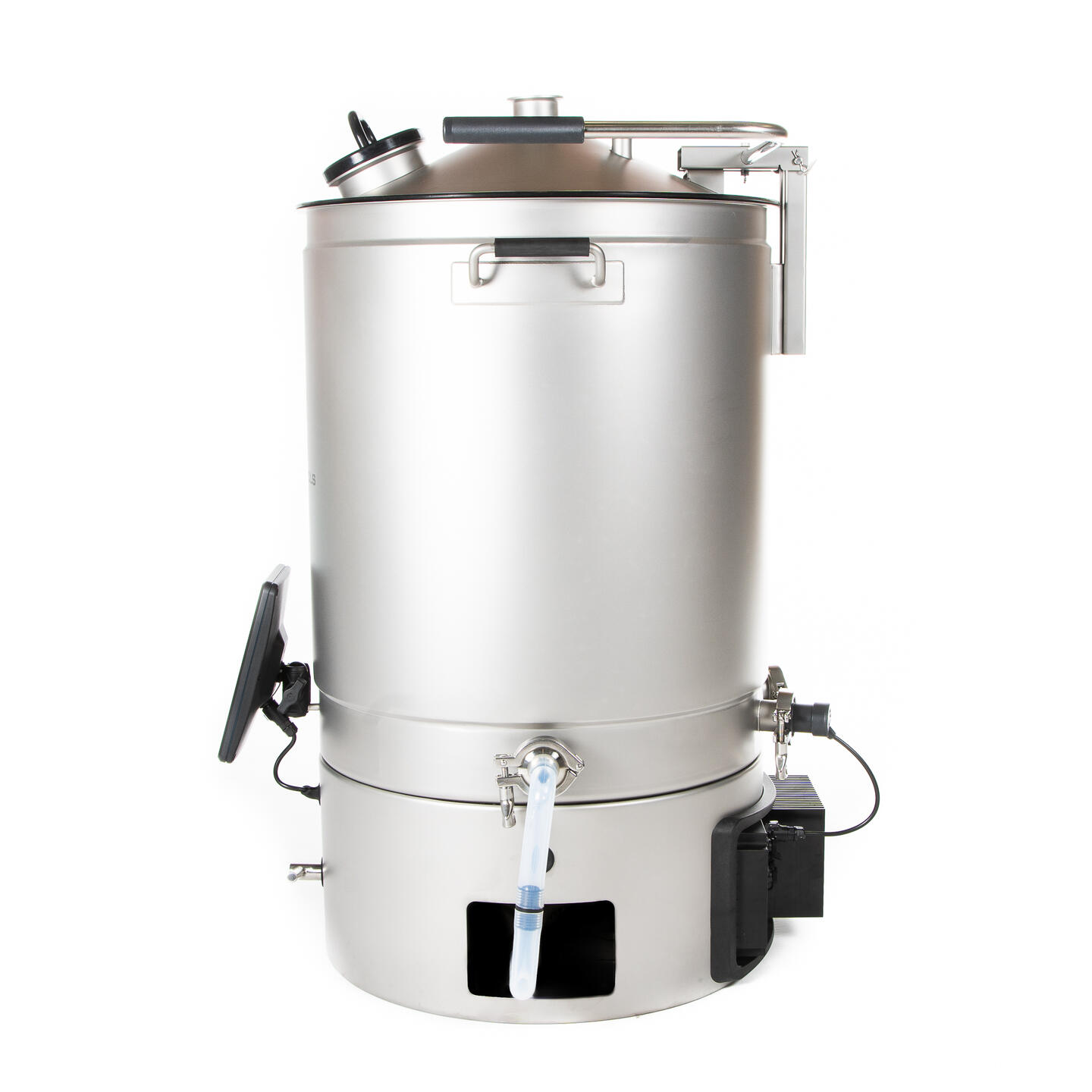

B100 Brewing System
The B100 is a powerful all in one brewing system for serious homebrewers or small breweries. It offers simplicity out of the box, whilst keeping the level expansion possibilities.
Indirect heating and included whirlpool setup for maximum yield and fast cooling through the integrated cooling jacket makes cleaning a breeze. The 8" touch display can easily be relocated on the system or externally based on your needs (longer cables are available).
Included whirlpool setup for maximum yield and fast cooling.

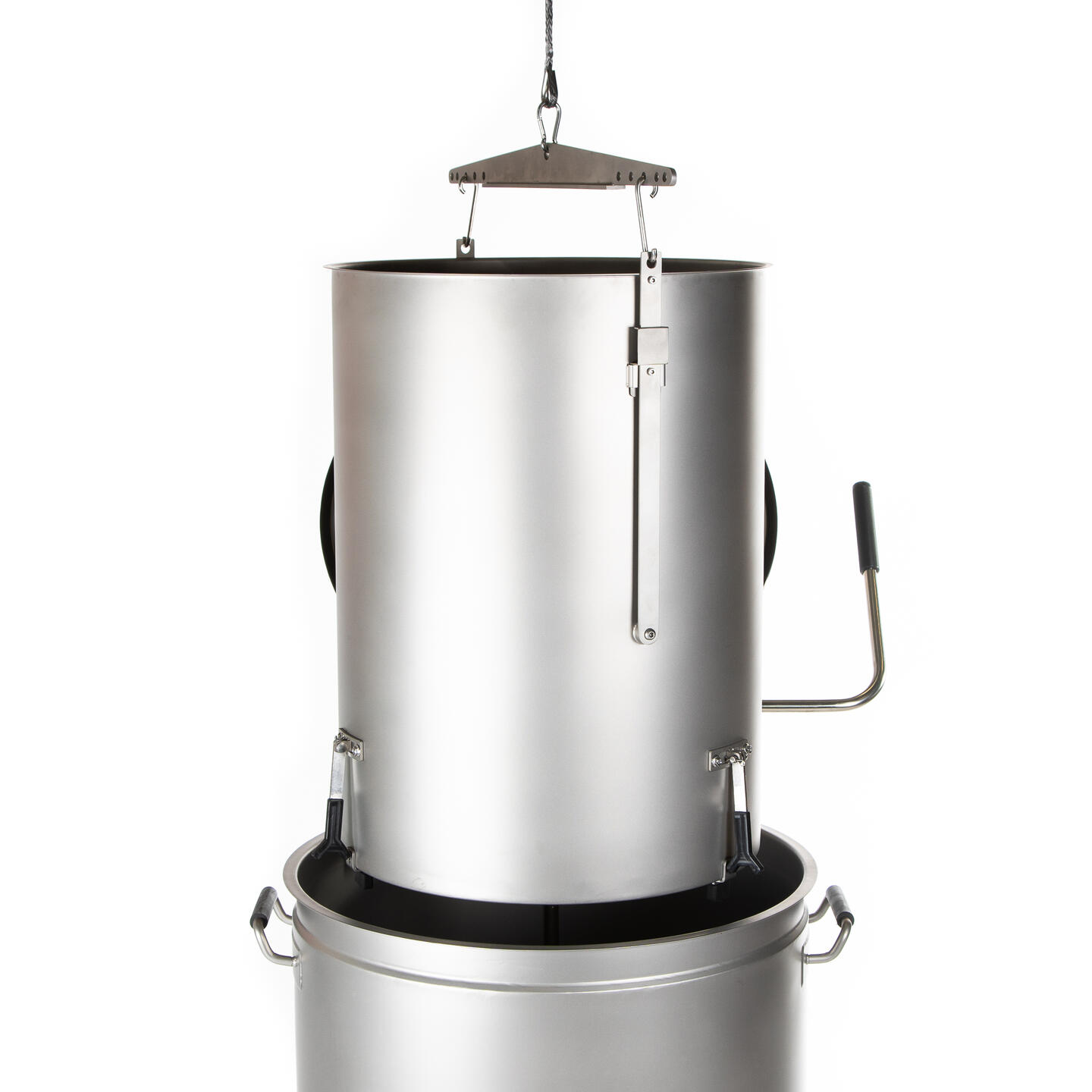

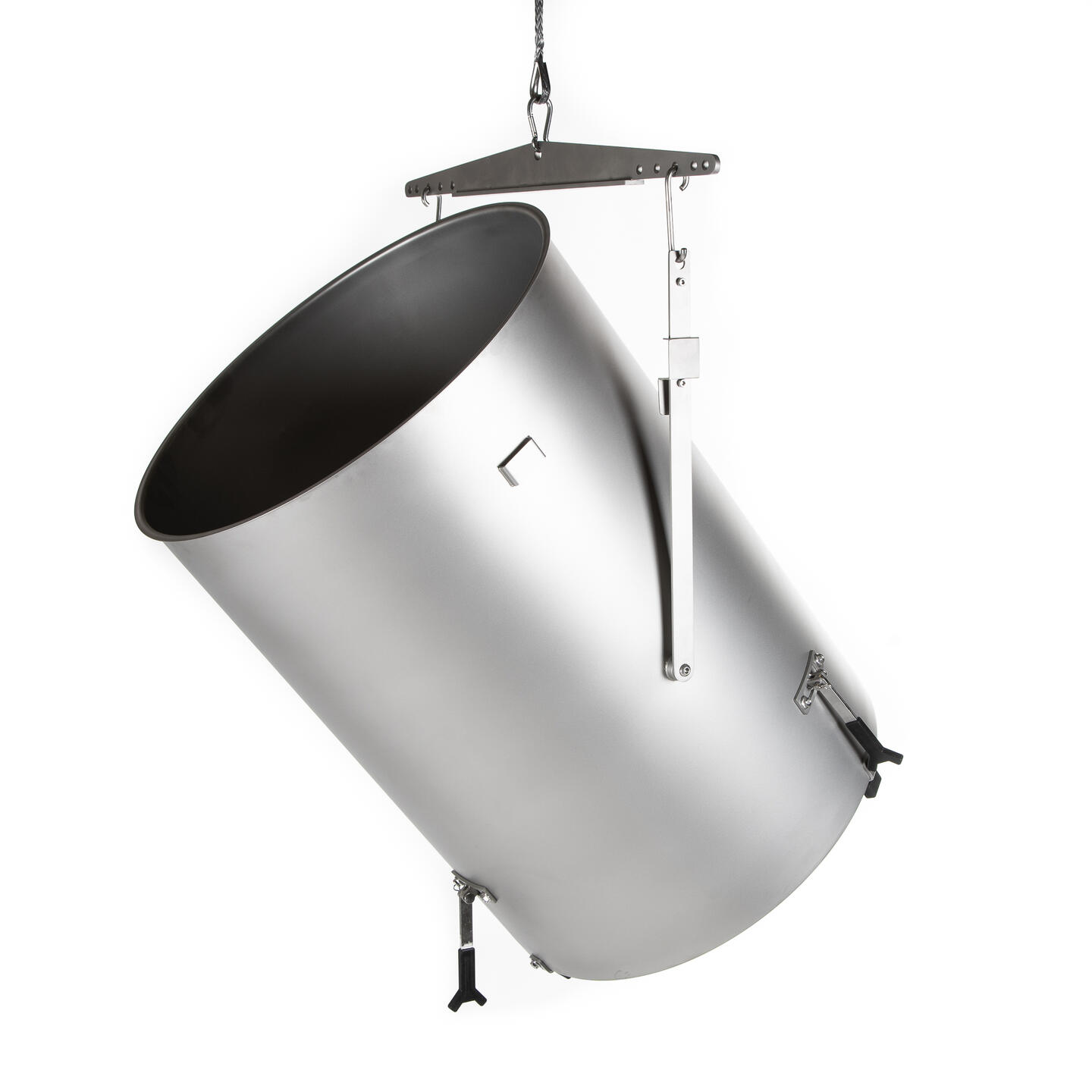

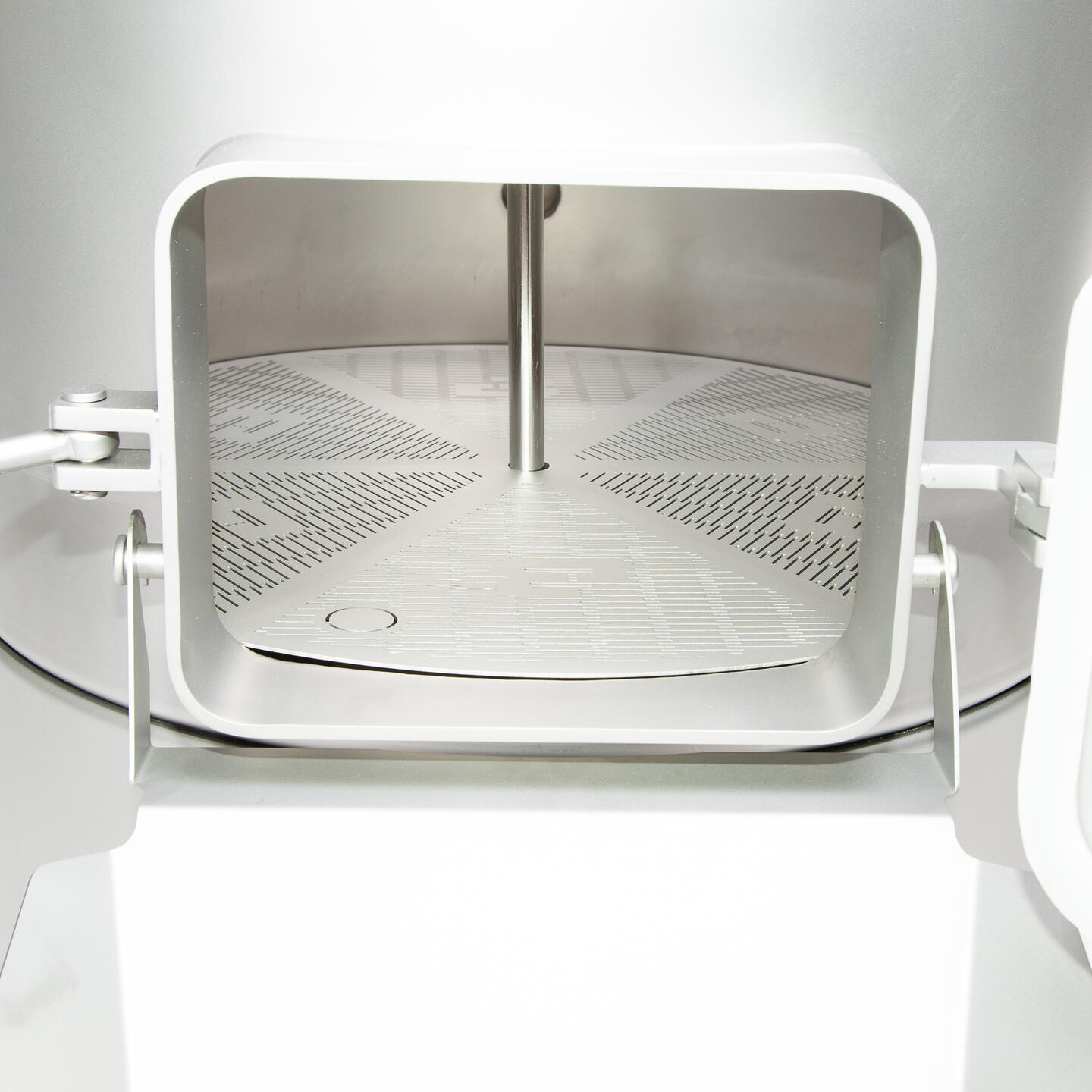

The included malt pipe has a hinge system to allow tilting the malt pipe to empty spent grains easily.
The flow of wort through the FCS Brew Pump is controlled via the patented CleanCore™ 3-Way valve operated from the front.
The combined temperature and level switch sensor keeps you safe by automatically switching off the pump and heating if the water level is low.
With TC side ports, you can easily expand the inputs and outputs of the tank with sparge water, external added cooling with bypass etc.

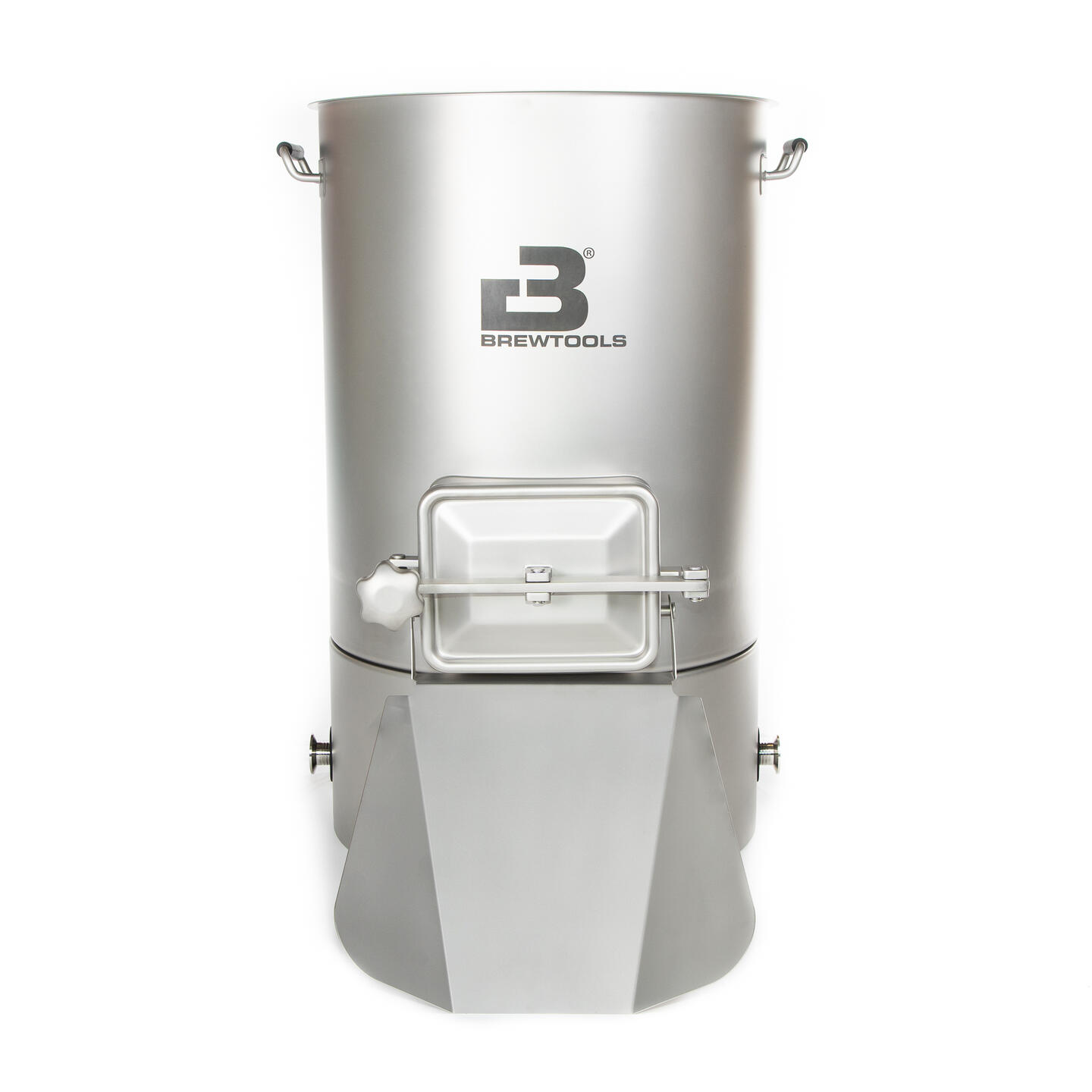

The B100 can be expanded with an external side-by-side mash tun that greatly increases the malt capacity and removes the need for a crane to handle the malt pipe.
If you need a powerful and flexible workhorse for high volume homebrewing or a pilot brewery, the B100 or B180 is the perfect match.
-
Indirect heating (10-degree conical bottom)
-
Integrated cooling jacket
-
Included whirlpool setup
-

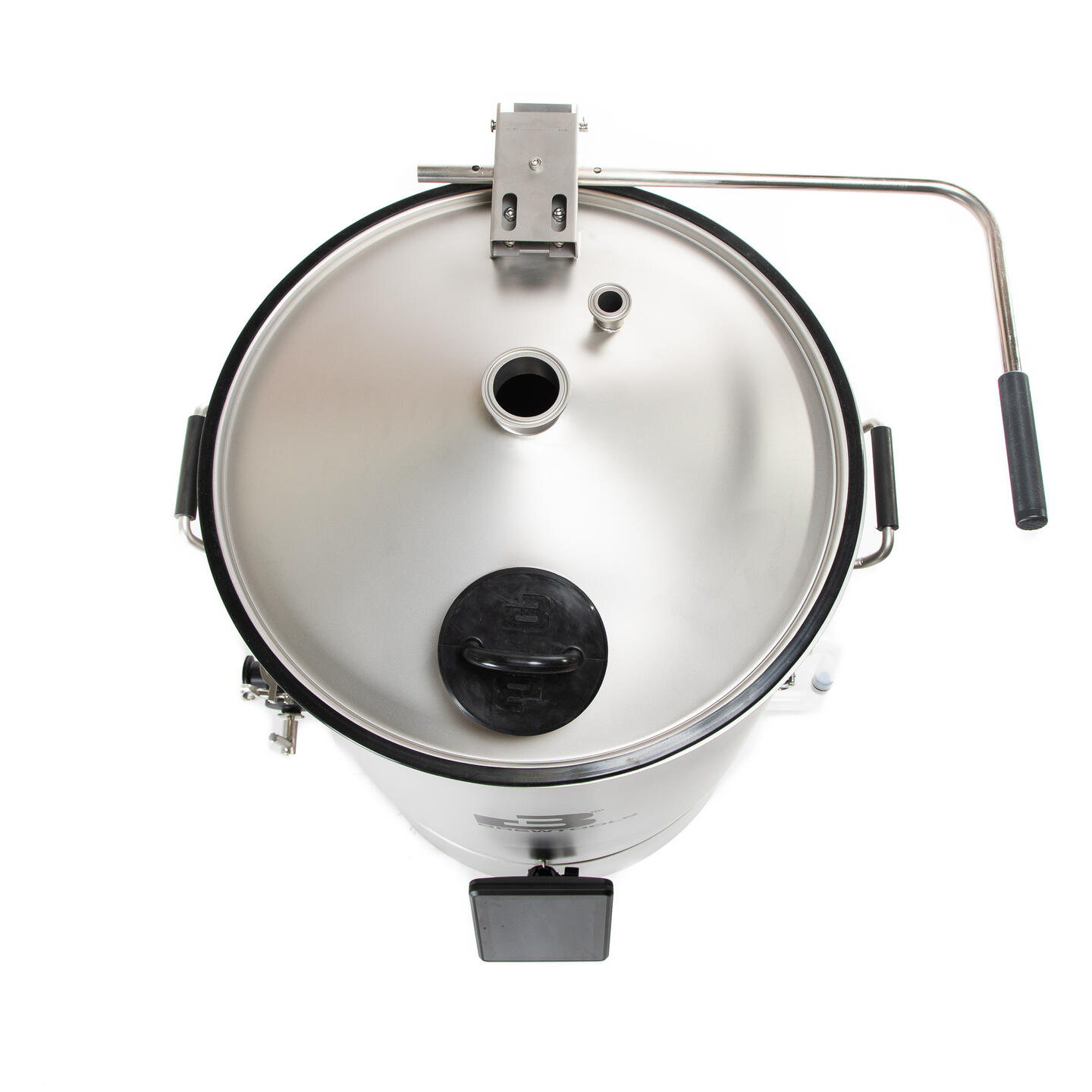

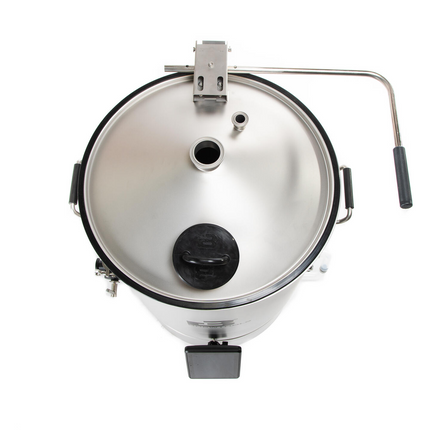

Included hinged steam hat
-
Tiltable malt pipe
-

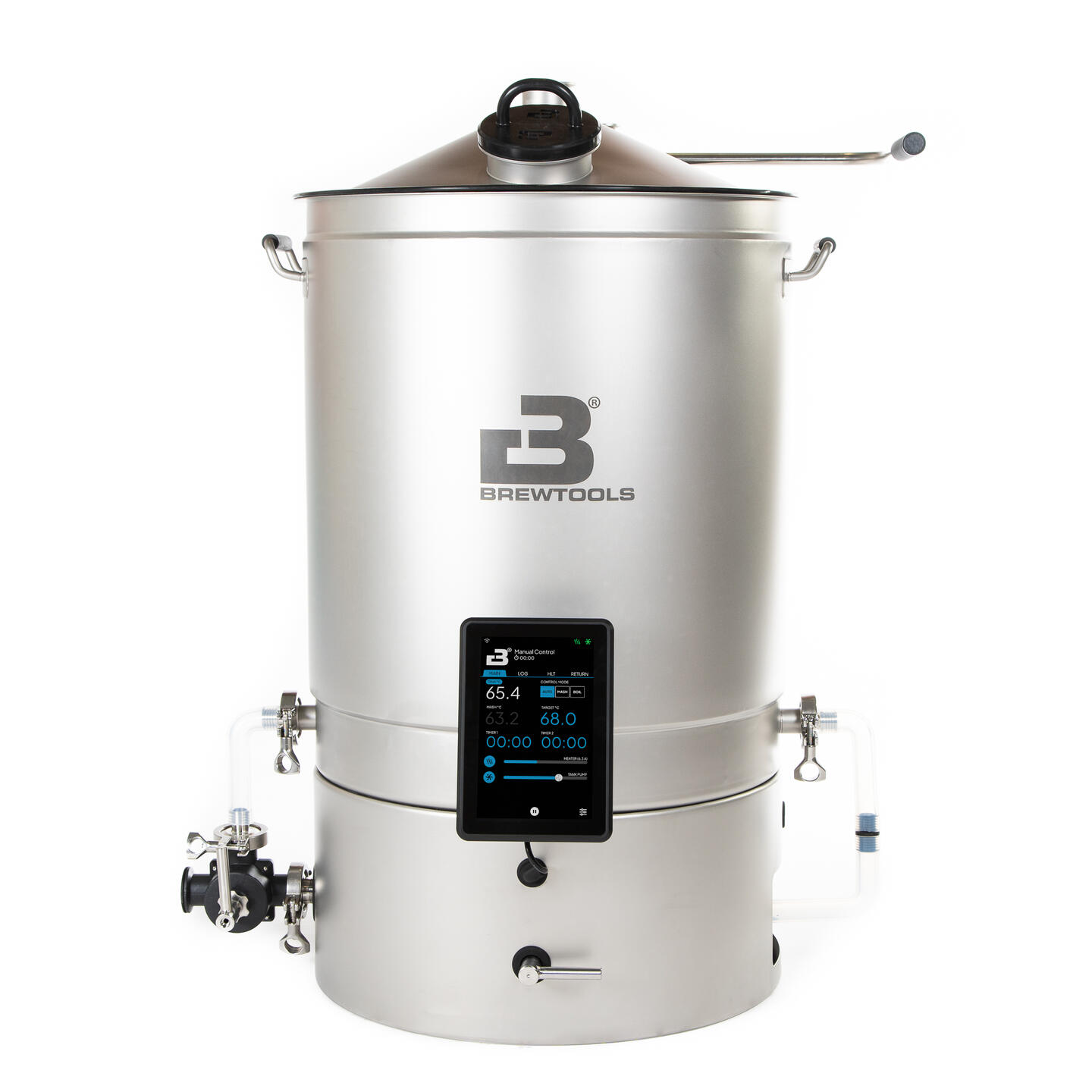

Powered by FCS Brewing with an 8" Touch Screen
-
Patented CleanCore™ sanitary 3-way valves
-
2 side TC ports for expansion
-

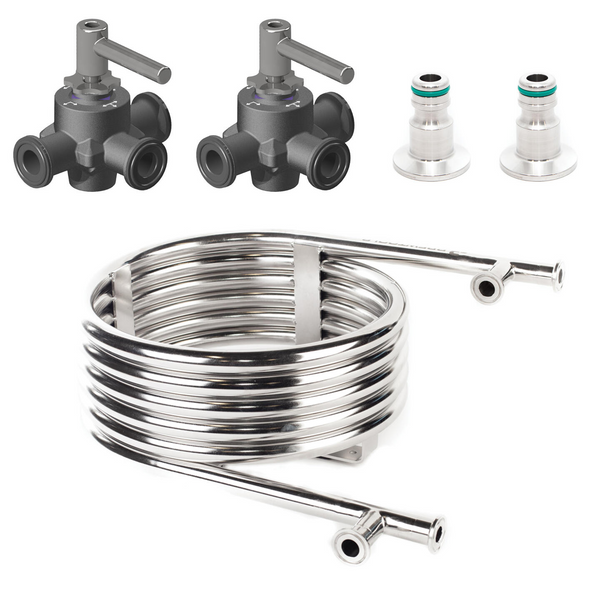

Optional external mash tun and counterflow chiller
-
Included temperature sensor for malt pipe
Remember to get power cables for your area (purchased separately)
B100 2x16A 230V - 2x LP20 (Schuko, UK BS1363 etc.)
Drawings / Schematic for setup
Available controller ports:
-
2 CAN bus ports (+24V)
-
1 High Power CAN bus port for external mash pump
-
1 external high-level switch (for external mash tun)
-
1 mash temp sensor input
-
1 return temp sensor input (optional)
In the box:
-

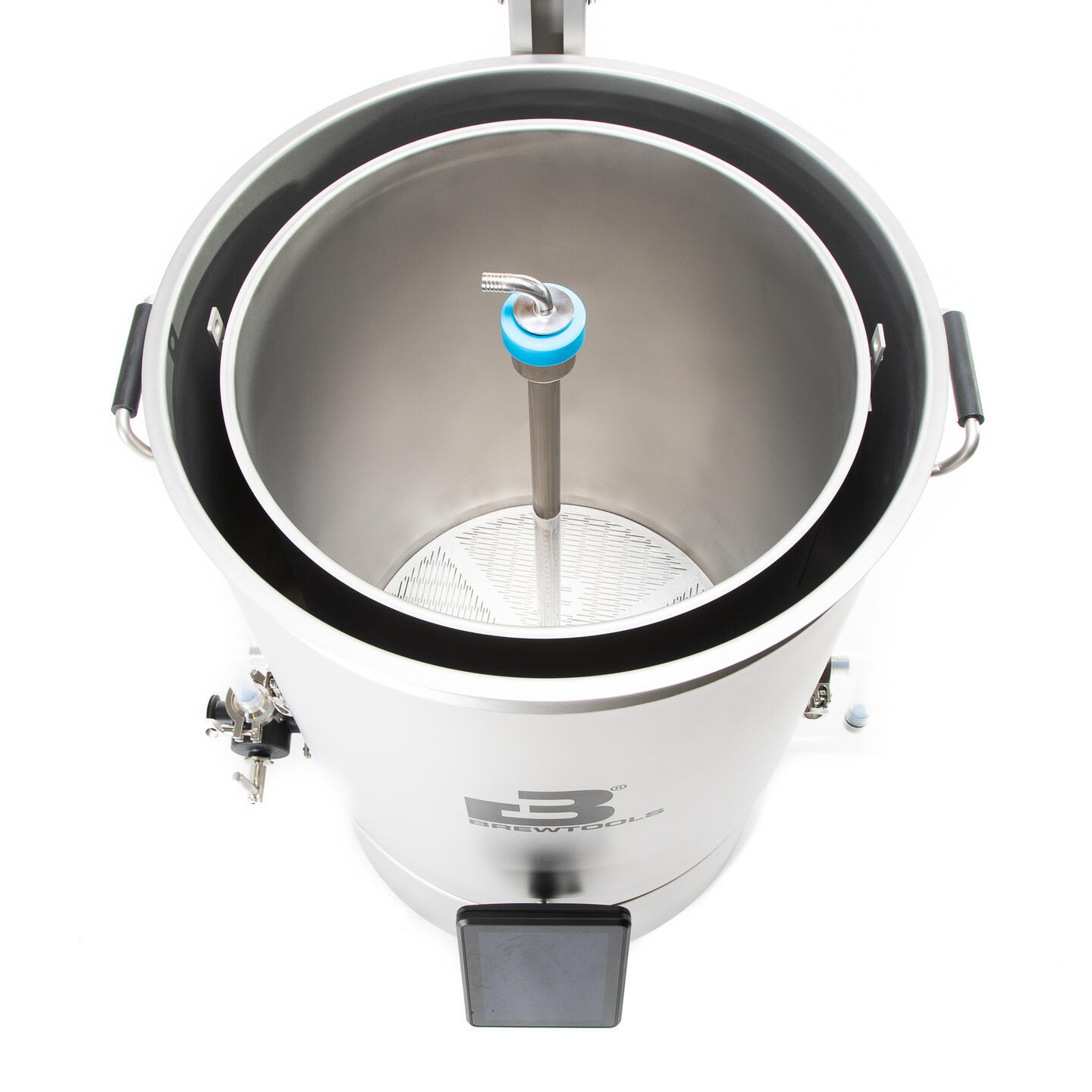

B100 brewing system with malt pipe and steam hat
-

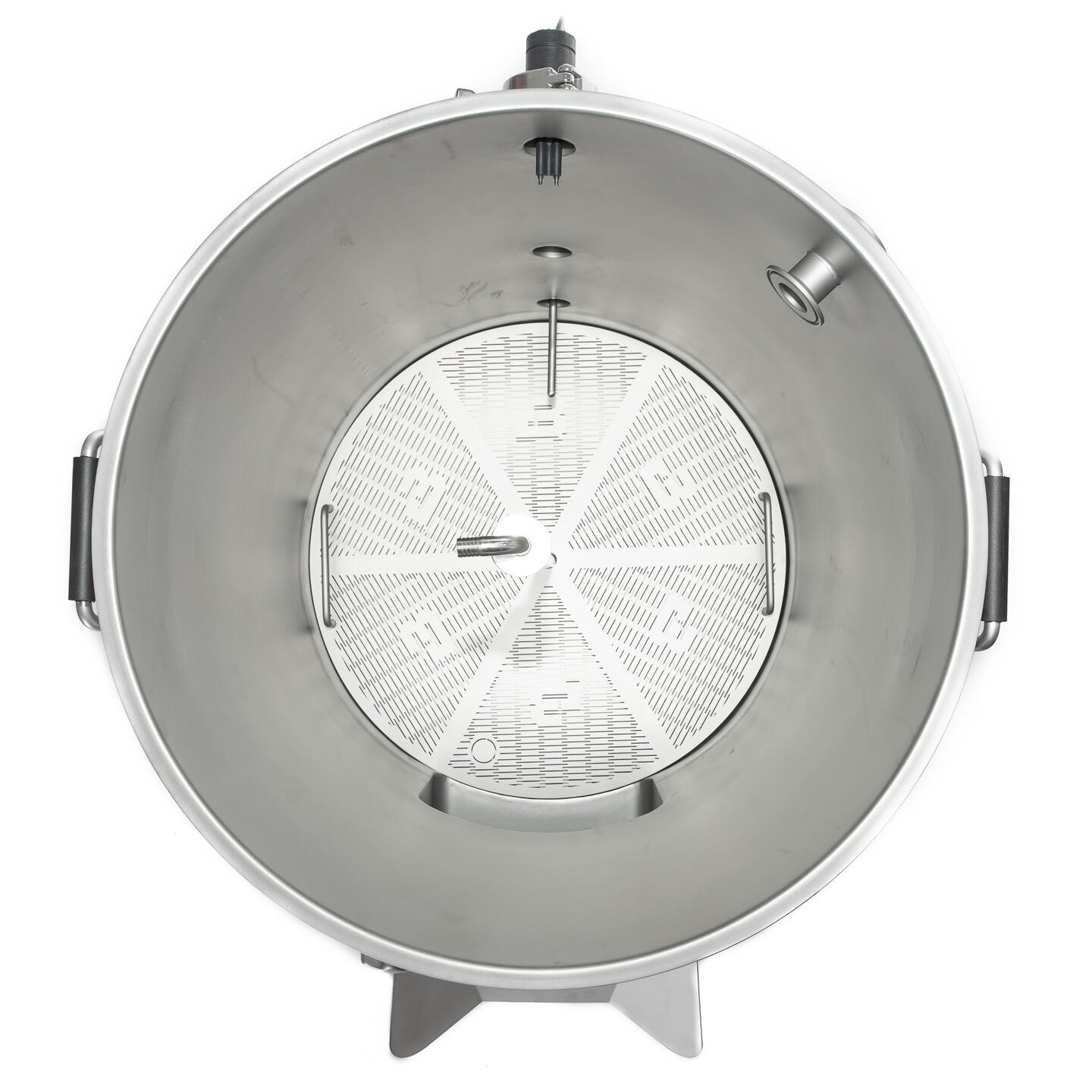

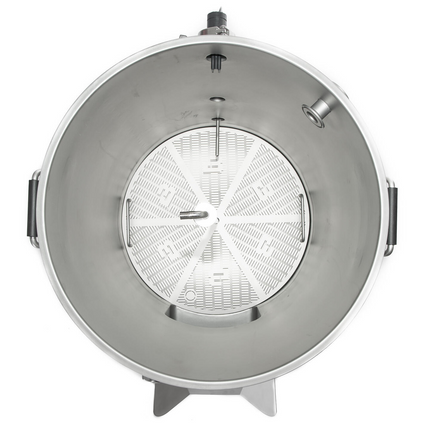

Malt pipe with laser cut filter
-
1 CleanCore™ 3-way valve
-
Silicone tubing for draining and recirculation
-
Parts and accessories for assembly
-
Mash sensor (probe with 2m cable)
Specifications:
-
Batch size: 5.28 - 26.41 gallons
-
Total volume capacity: 30.90 gallons
-
Grain capacity: 57.3 lbs
-
Heating power: 6000W (230V/400V)
-
Watt density: 25.8W/in²
-
Control system: FCS Brewing with 8" IPS touch screen
-
Connectivity: Wi-Fi 2.4 GHz 802.11ax/b/g/n
-
Pump: Brewtools FCS Brew Pump, 7.9 gal/min, 14.7 ft. head
-
Materials: 304 Stainless steel, food grade silicone, EPDM, POK (Polyketone)
-
Valves, fittings, and connections: TC 1.5" (TC34mm for cooling jacket)
-
System height with steam hat: 37.4"
-
Tank dimensions: Ø19.6", height 23.6" (31.1 gallons)
-
Malt pipe dimensions: Ø16.3", height 22.2" (20.1 gallons)
-
Packing dimensions and weight: 26" x 26" x 39.3"
-
Safety features: Overheat protection, dry-boil protection, liquid detection
-
5 year manufacturer's warranty
Remember:
-
Power cable(s)
-
Connectors for cooling jacket (kit or custom setup)
-
Troll table with crane
-
Steam condenser
Models in pictures are prototypes. Changes/improvements may occur.
For User Manuals and support, please follow this link to Brewtools Docs.
