Blichmann Power Controller (120V)

    Description

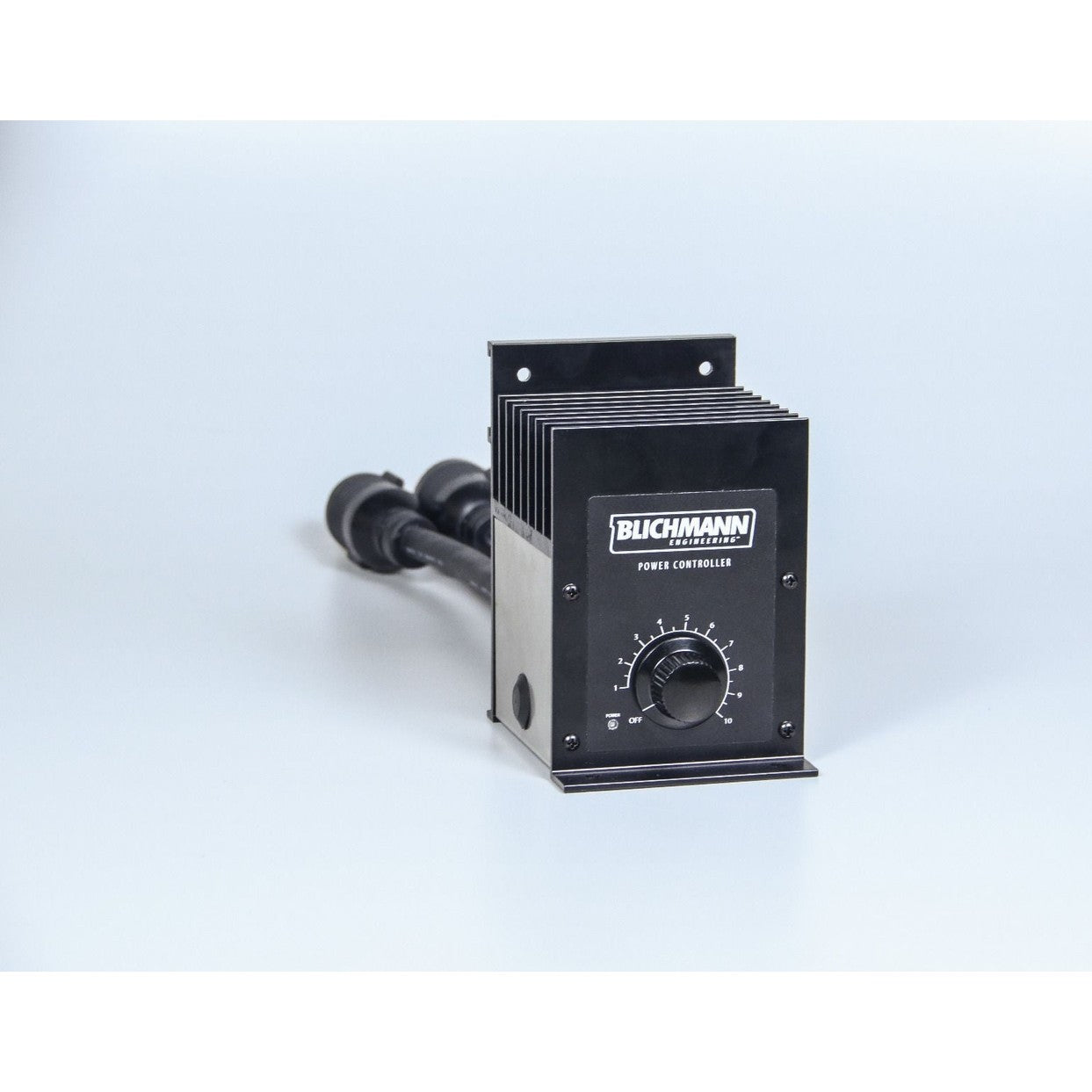

    This amazing product is an ideal companion with Blichmann’s revolutionary BoilCoil™ immersion heaters, but it’ll also work with all manufacturer’s immersion heaters!  Blichmann’s unique modular power controller lets you precisely control the power of your electric heating element from 0-100% power.  Need to control more than one heating element for large kettles?  Simply add up to 4 additional relay modules and drive them all with one power controller.  Unlike cheap "dimmer switch" based power controllers, whose power output is not linear, the modular power controller is much easier to control the perfect boil intensity and heating rate.  This is accomplished using a tried and true industrial technique called Pulse Width Modulation (PWM).  Simply put, it controls the percentage of time the heater is energized over a very short 1 sec interval.  So turning the knob to “6” energizes the heater for 0.6 seconds, and turns it off for the remainder of the 1 sec interval.  This robust reliable technique is gentle on your heater, is extremely linear, and doesn’t create electrical noise like other techniques can.  See below for other great features.

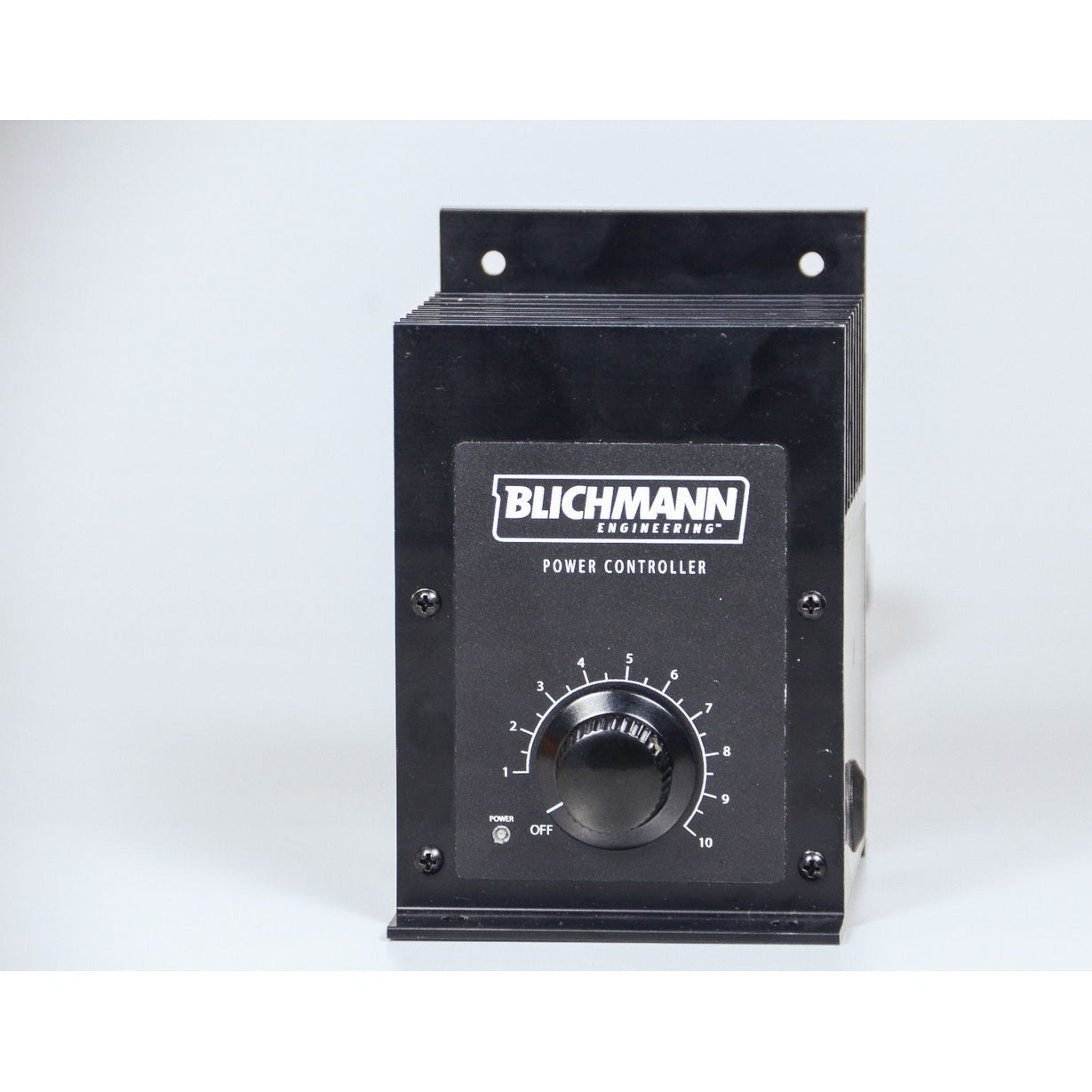

    • Precise linear control of power from 0-100% with a fast-acting intuitive power knob
    • Industrial grade PWM control methodology is reliable, gentle to heating elements, and very linear
    • Ideal for boil kettle and BIAB applications where temperature control is not needed, but precise power control is.  Note that this product does not read or control temperature
    • Allows you to dial in an exact and repeatable boil off rate to hit your final boil volume batch after batch
    • Perfect match for Blichmann’s BoilCoil™ electric heaters, but also works with any manufacturer’s immersion heater
    • 30A 240V (7200W) single phase, and 20A 120V (2400W) models available

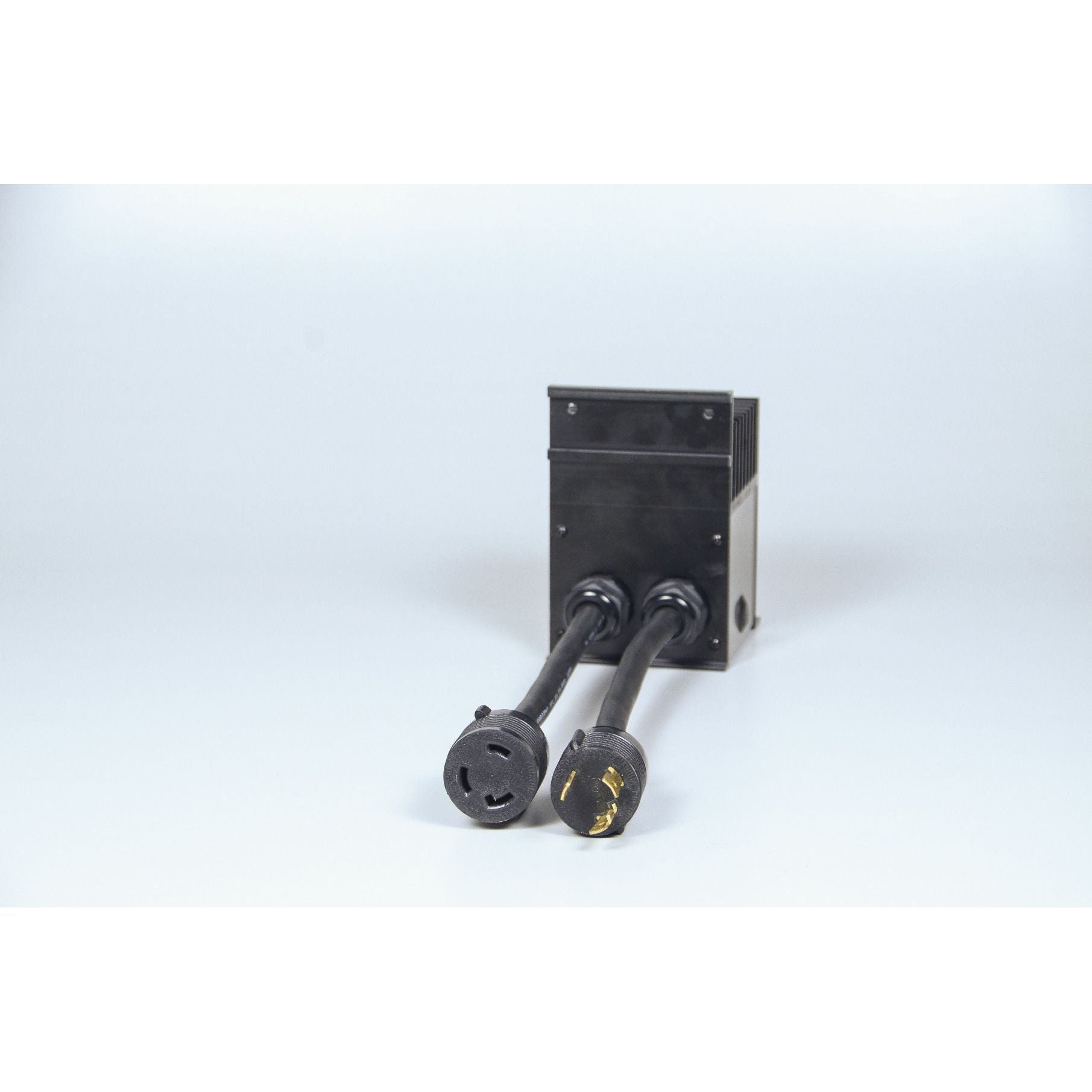

    • L6-30 30A 240V or L6-20 120V with power cable “pigtails” available
    • Have a large kettle with more than on heating element?  Up to 4 optional relay modules can be quickly installed allowing you to drive up to 5 heating elements simultaneously with one power controller

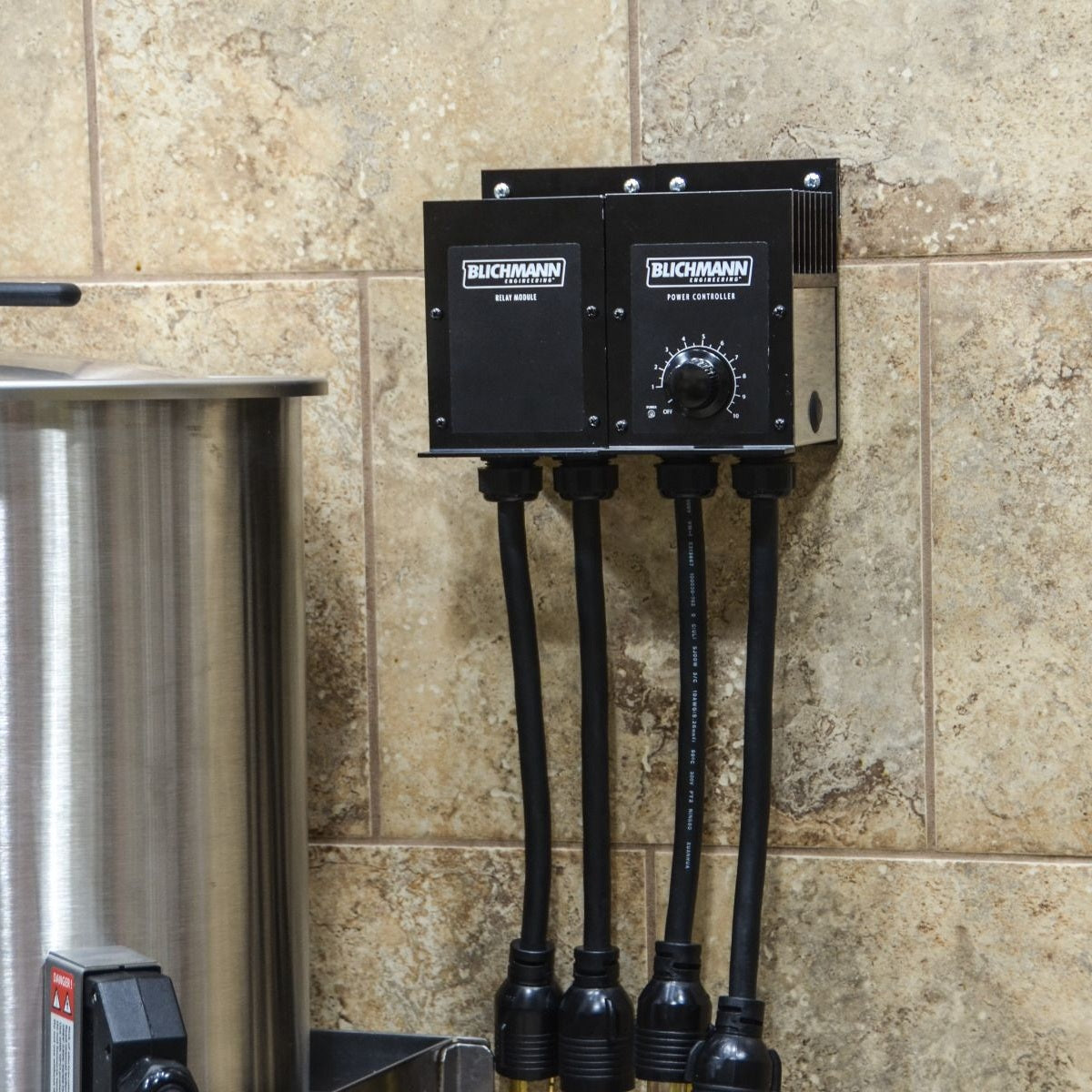

    • Unique enclosure has provisions to route cables out of the back for table mounting, or out of the bottom for wall mounting.  Field changeable
    • Integral DIN rail groove on the back allows connecting multiple controllers and relay modules together for wall or table mounting using readily available DIN mounting channels

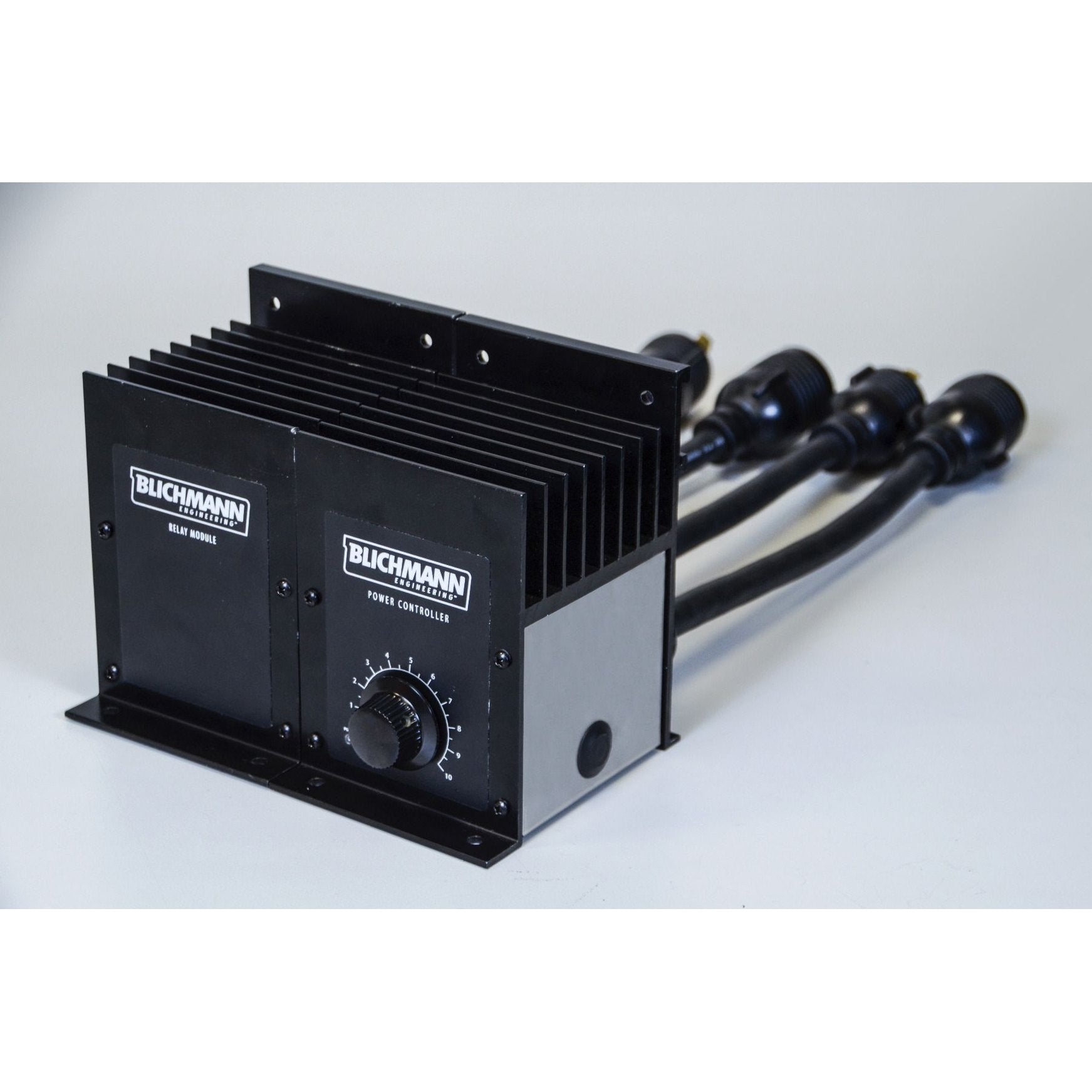

    Note: 240v pictured in reverse image. Power relay sold separately (not currently available in 120v). Mounting bracket sold separately (BL997).

    Blichmann Power Controller (120V)

      Product form

      SKU: BL994

      $262.99

      Shipping
      Free Shipping
      Shipping
      Paid Shipping
      Drop Ship
      Drop Ship
      Discount Exclusion
      Discount Exclusion
      Freight
      Freight Only
      Pre-book
      Pre Order

        Prop 65 Warning WARNING : This product can expose you to chemicals including Lead and lead compounds, which is/are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.

        Description

        This amazing product is an ideal companion with Blichmann’s revolutionary BoilCoil™ immersion heaters, but it’ll also work with all manufacturer’s immersion heaters!  Blichmann’s unique modular power controller lets you precisely control the power of your electric heating element from 0-100% power.  Need to control more than one heating element for large kettles?  Simply add up to 4 additional relay modules and drive them all with one power controller.  Unlike cheap "dimmer switch" based power controllers, whose power output is not linear, the modular power controller is much easier to control the perfect boil intensity and heating rate.  This is accomplished using a tried and true industrial technique called Pulse Width Modulation (PWM).  Simply put, it controls the percentage of time the heater is energized over a very short 1 sec interval.  So turning the knob to “6” energizes the heater for 0.6 seconds, and turns it off for the remainder of the 1 sec interval.  This robust reliable technique is gentle on your heater, is extremely linear, and doesn’t create electrical noise like other techniques can.  See below for other great features.

        • Precise linear control of power from 0-100% with a fast-acting intuitive power knob
        • Industrial grade PWM control methodology is reliable, gentle to heating elements, and very linear
        • Ideal for boil kettle and BIAB applications where temperature control is not needed, but precise power control is.  Note that this product does not read or control temperature
        • Allows you to dial in an exact and repeatable boil off rate to hit your final boil volume batch after batch
        • Perfect match for Blichmann’s BoilCoil™ electric heaters, but also works with any manufacturer’s immersion heater
        • 30A 240V (7200W) single phase, and 20A 120V (2400W) models available
        • L6-30 30A 240V or L6-20 120V with power cable “pigtails” available
        • Have a large kettle with more than on heating element?  Up to 4 optional relay modules can be quickly installed allowing you to drive up to 5 heating elements simultaneously with one power controller
        • Unique enclosure has provisions to route cables out of the back for table mounting, or out of the bottom for wall mounting.  Field changeable
        • Integral DIN rail groove on the back allows connecting multiple controllers and relay modules together for wall or table mounting using readily available DIN mounting channels


        Note: 240v pictured in reverse image. Power relay sold separately (not currently available in 120v). Mounting bracket sold separately (BL997).

        Documents
        Power_Controller_Manual_v1
        Important Warnings & Shipping Info +
        Shipping Icon
        Free Shipping: Fast & Free Shipping over $79
        Shipping Icon
        Shipping Rates Apply: Bulk items like grain, bottles, and malt are excluded from our free shipping promotion due to their weight, and often dropship items. Standard shipping rates apply and are calculated at checkout based on your location and order size.
        Drop Ship Icon
        Drop Ship: This product will ship directly from the supplier. Delivery may take 1-4 weeks depending on the vendor.
        Discount Exclusion Icon
        Discount Exclusion: This item is not eligible for sitewide price reductions or percentage discounts. Learn more.
        Freight Icon
        Freight Shipping: This item ships freight only.
        Pre-book Icon
        Pre Order: This item is available for Pre-Order. Full payment is required to reserve stock.

        You Might Also Need

        Mounting Bracket for Blichmann Power Controllers
        Mounting Bracket for Blichmann Power Controllers
        $14.00

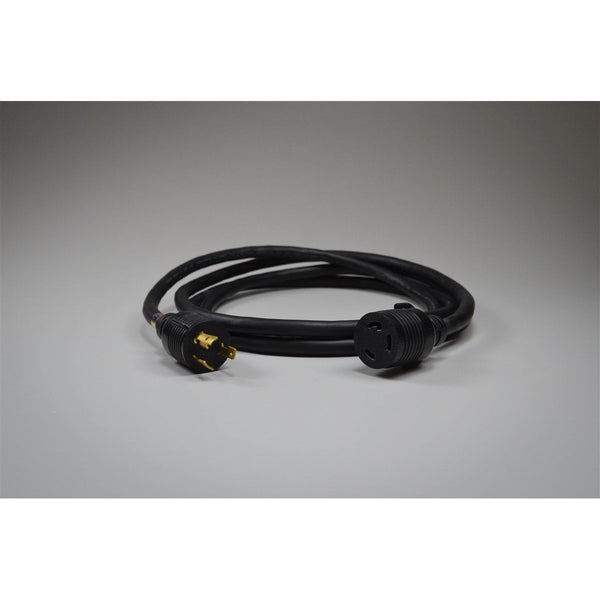

        Extension Cord for Blichmann 120V Power Controller
