Filter your tap water and eliminate that no-win decision of "should I buy expensive bottled water or use the chlorinated water from the tap." This water filter kit features a 10" carbon block filter that removes all chlorine and organic flavor. Kit includes 10" housing, one carbon block filter, garden hose attachment, barbed fittings and 6' of 3/8" vinyl tubing. The carbon block should be replaced after filtering approximately 800 gallons of water or after 1 year of use, whichever comes first. Filter should be disassembled and stored dry when not in use.
NOTE: This product should not be used in hot water applications. Cold water only!
This product includes a carbon filter and is designed to filter water only (Carbon filters should not be used to filter beer or wine).
The beer filter gets installed inline between two ball lock Cornelius kegs using CO2 pressure to push the beer out of the full keg through the filter and into the clean keg. This kit is designed to filter out particles down to 1 micron, which is considered fine filtration. At one micron the beer will be clear after filtration provided you do not have a starch haze. Filtering also accelerates the conditioning process to just a few days. Most of our customers who use the filtering kit find that they; keg beer, chill it overnight, filter the next day, carbonate, and are drinking clear beer in a couple days. For those who want to bottle beer without sediment, filtering combined with the use of a counter pressure bottle filler will allow you to put crystal clear, carbonated beer into bottle. The beer filtering kit comes with one 10" filter housing, a 1 micron 10" spun poly sediment filter, fittings for connection to the filter housing, 3' of beverage line, clamps, and two beverage out ball lock quick disconnects.
Spun-polypropylene filters are disposable filters and cannot be cleaned and used more than once. However, you can filter multiple kegs with one filter. 3 micron will remove most yeast, and 1 micron filtration will remove almost all yeast. All filters are rated nominal (will filter out 80-85% of matter at given rating). Temperature rated to 125°F.

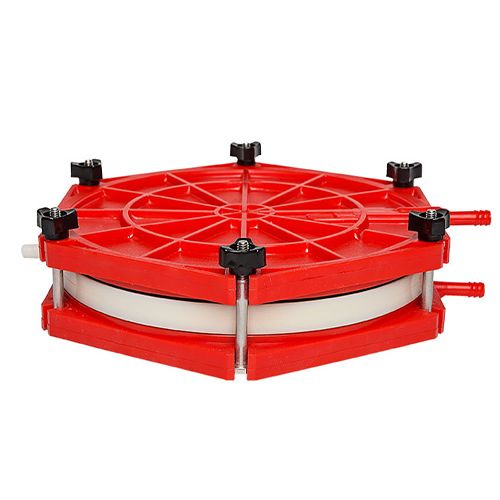

Most breweries and wineries use a large plate filter system to achieve clear product. Now you can do the same at home with two corny kegs. Our Beer and Wine Plate Filter Kit has a larger surface area, which means more yeast and particulate extraction than our cartridge filter, and comes with our plate filter, two disposable filter pads, tubing, flare fittings, and two flare beverage ball locks. This kit works great as either a beer or wine filter, but you may want to use different pads depending on the results you're hoping to achieve
Each filtering session requires two pads at a time, and each pad must be the same micron to work. The beer or wine is pushed out of the keg and into the housing at 5 PSI, where it passes on either side of the filter housing, then gets forced from the center through the pads, where it is then pushed out into your clean keg. The rough sides of both filters should be facing each other on the inside of the filter, so the smooth sides face outward.
Each filter pad set is good for approximately 5 gallons of beer when the beer has been filtered by the previous size pads or you are starting with the rough filters. These pads are not designed to be back flushed and reused and should be used in one session.
Filter beer like the pros, only on a smaller scale. Most small breweries and wineries use a large plate filter system to achieve clear beer or wine. Now you can do the same at home. Our new plate filter has a larger surface area, which means more yeast and particulate extraction.
Each filtering session requires two filter pads at a time, and each pad must be the same micron to work. The product is pushed into the housing at 5 PSI and passes on either side of the plate filter housing, then gets forced through the filter pads to the center, where it is pushed out into your awaiting collection vessel, such as a keg or tank.
Includes 2 X 24" long hoses (5/16" ID x 7/16" OD)
Made from ABS plastic. Temperature rated to 167°F (75°C).
This compact filter is designed for the home wine maker who is filtering 5-10 gallons at a time. Perfect for filtering wine concentrate kits. There is a small built in Flojet pump (self-priming, diaphragm pump) that can be used for racking from container to the next by bypassing the filter pads. You will not want to filter wine which contains solids such as stems or oak chips. This will clog the pump and void the warranty.
Takes three pads to load this filter. Does not come with filter pads.
The intake and outtake tubes are 3/8" and the drip tray tube is 1/4".
This tried and true filter pumps fluid from one container, through three filter pads and back into another container. Designed for home winemakers who will be filtering more than 10 gallons at a time. Has a built in Flojet pump, which can be used to rack wine from one container to another by bypassing the filter pads. The pump is relatively small, drawing .5 amps and is standard 110V. Additional features include a carrying handle, built in pressure gauge, on/off switch and 4' power cord. The pressure gauge will tell you when you need to replace the pads. You will not want to filter wine which contains solids such as stems or oak chips. This will clog the pump and void the warranty. Filter package includes 8' of 1/2 ID tubing on the input side and 4' of 1/2" ID tubing on the output side. Input side includes sediment tip but we recommend our 1/2" Racking set up (R310or R315). The output side comes with a hook for hanging to the side of the carboy. You may also want a racking cane (R373or R376) on this output side so your receiving vessel fills from the bottom instead of the top (to reduce oxidation.) The manufacturer suggests that you wet the pads before inserting them into the filterhousing. Run a couple of gallons of water through the pads before you start filtering the wine. To help neutralize the pads you can use one to two teaspoons of Citric Acid in 2 gallons of water and run that through the filter. We suggest that a stock sanitzing solution of potassium metabisulphite and citric acid (1 tblsp each in a gallon of water) ran through the filter followed by a cold water rinse would be the best way to treat your pads prior to use. Please also read the instructions that are included with the filter prior to operation. Facts from the manufacturer: - 8 feet max on the draw hose - 30-35 feet on the push side - Has a 35 PSI limit beyond which it will reduce the flow Please note the Super Jet Filter does not come with filter pads. The available filter pad options can be found below under "You Might Also Need".

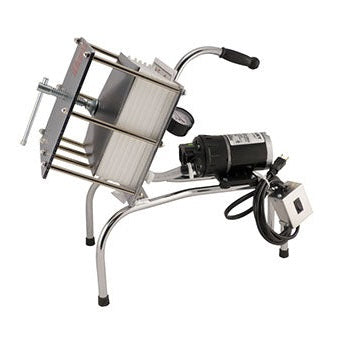

The Buon Vino 6-Pad Wine Filter offers twice the filtering capacity of the Buon Vino 3-pad wine filter. One of the major bummers of filtering is when you are all set up and everything is flowing along nicely and then your filter clogs. You have to stop your operation and change pads. If you are homewinemaker filtering 60 or more gallons we recommend you step up to the Buon Vino 6 from the Buon Vino 3. Filter package includes 8' of 1/2 ID tubing on the input side and 4' of 1/2" ID tubing on the output side. Input side includes sediment tip but we recommend our 1/2" Racking set up (R310or R315). The output side comes with a hook for hanging to the side of the carboy. You may also want a racking cane (R373or R376) on this output side so your receiving vessel fills from the bottom instead of the top (to reduce oxidation.) Technical Specifications:
Delf-priming pump Filtering surface area of 2400 square cm Filtering rate: Approximately 270L per Hour Can utilize 3 grades of pads: coarse, polish, and sterilizing Filter Pads sold separately Dimensions: 51 cm (length) x 26 cm (width) x 46 cm (height) Weight: 14 kilograms
This pressurizable tank is a great accessory for the FIL45 Plate Filter. Pushing beer/wine through the filter using pressure is much more consistent and faster process than using gravity alone. And with this tank you can use pressure to filter without needing a whole CO2 or Nitrogen/Argon setup. Comes with a funnel top and stable base maintaining an excellent balance. Please refer to the manual below for complete instructions.
BPA Free
Made from high density polyethylene
Max Temp Rating: 167°F (75°C)
Includes 35" length of 5/16" ID x 7/16" OD tubing.
Plate filter not included.
Filter wine and fill bottles in one pass by pairing the Tandem Filter Housing with the Enolmaster Bottle Filler
Installs in-line with the Enolmaster. The vacuum will draw wine from the storage tank, through the filters, and into the bottle
Includes tubing to connect to Enolmaster Filling Machine
Alcohol tolerance up to 18% ABV
Filter Cartridges sold separately and listed at the bottom of the page

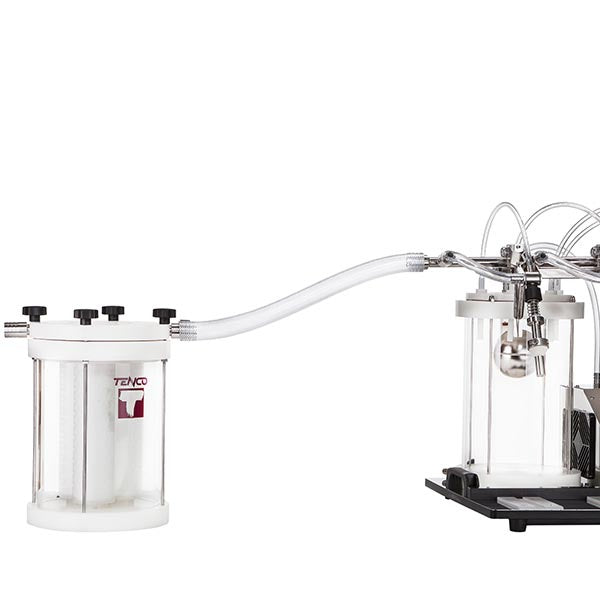

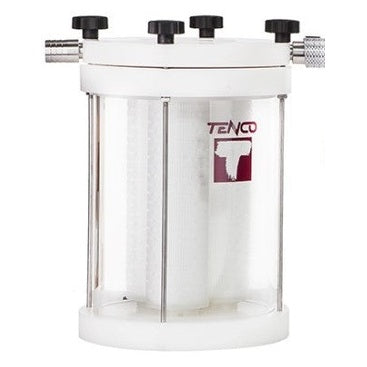

The Enolmaster Tandem Professional Filter Housing is designed to operate in conjunction with the Enolmaster Bottle Filling Machine. Enolmaster Tandem helps you save time by filtering and bottling at the same time.
Place the filters in the housing and attach the hoses, then open the bypass valve on top of the filter housing. Place the Tandem Filter Housing inline between the product and the Enolmaster Filler. The Enolmaster Filling Machine draws the product from your tank and will pull the liquid through your filter housing, into the bottle.
Easy to Use
The Tandem professional filter housing in conjunction with the Enolmaster professional vacuum filler. The machine creates the vacuum inside the bottle by sucking the liquid from the main container. Then the liquid is easily filtered and bottled in a single operation.
Preserves the Product
The filtering system is designed to preserve the integrity of the product. The filtering cartridges retain only the unwanted particles without altering the organoleptic qualities of the product.
Easy to Clean
The Tandem professional filter housing is easily cleaned after each use. In this way you will always have maximum hygiene in the bottling process.
Please note: Recommended for use with wine and beer only. Use with spirits and liqueurs above 18% ABV may result in damage to the filter housing.

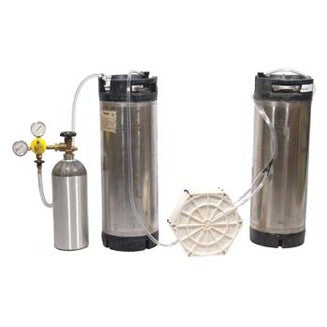

The best way to filter wine at home! Push wine from one keg through a plate filter and into another keg. No pumping, no oxidation, and total control over flow rates. The system can be expanded as needed by adding kegs or additional filter housings. All materials that come in contact with the wine are either stainless steel or food-grade, FDA-approved plastic or rubber. Kegs can be used for wine storage, and the gas system can be used anywhere a blanket of inert gas is needed. Complete filtering system includes one Nitrogen tank, dual gauge Nitrogen regulator, gas line assembly, two 5.5 gallon kegs and our FIL45B Wine & Beer Plate Filtering Kit. The kit includes a set of FIL46 Rough Filter Sheets. Additional sheets and sheets in other micron ratings can be selected from the You Might Also Need section below. Please Note:The Nitrogen tank is shipped empty and will need to be filled at your local welding supply shop. This kit will come with refurbished or converted Ball Lock Kegs
Lenticular filters employ a filtering process similar to plate filters but are significantly easier to use
A sealed system ensures there is no dripping/leakage, unlike what occurs with plate filters
Filters are stacked within cartridges, making loading and replacement much simpler than a plate filter
Housings can be loaded with as few as one filter cartridge with the use of optional center posts
BevBright Lenticular Filter Housings streamline the filtration process, making it as effective as traditional plate filters but with greater ease of use. Their user-friendly design ensures that anyone, from experienced professionals to beginners, can operate them effortlessly. The setup is straightforward and without the complexities associated with plate filters.
One of the key benefits of lenticular filters is their sealed system. This design prevents dripping and leakage, guaranteeing airtight integrity and ensuring that your liquids remain protected and uncontaminated.
Filters stack neatly within the housing, and loading or replacing them is simple. There are no intricate assemblies required. Whether performing maintenance or adjusting filtration levels, the process is seamless and hassle-free.
Optional center posts allow the housings to accommodate as few as one filter cartridge, providing flexibility for various filtration needs, from large-scale production to small-batch operations.
Choose BevBright stainless steel lenticular filter housings for a filtration solution that is efficient, reliable, and easy to use. Each unit comes complete with hardware and instructions, ready for immediate use.
Made from 304 Stainless Steel
Polish: Ra<0.4um
Hardware Included:
(2) 1.5" T.C. Pressure Gauges
(2) 1.5" T.C. Butterfly Valves
(1) 1.5" T.C. Tee
(1) Top Relief Valve
(1) 1.5" T.C. Drain Valve
Clamps & Gaskets
Please Note: Example images of the 12" / 3 High Lenticular Housing shown here. Updated images coming soon.

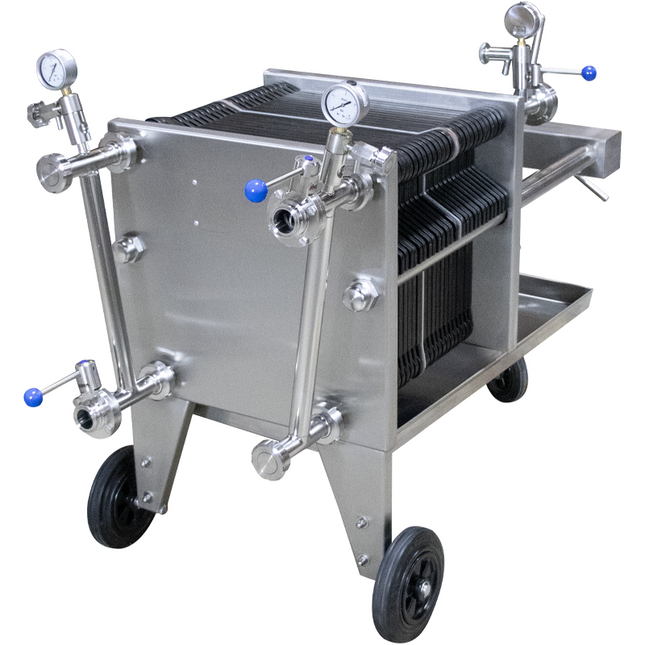

Rolling cart plate filter for wine, beer, cider, and distilling
Plates made of high temperature Noryl plastic capable of being steam sterilized
Double filtration kit included as standard
Built-in pressure gauges, sight glasses, and sample valves
1.5" tri-clamp inlet/outlet w/ butterfly valves
(40) 40cm x 40cm plates
4,000L/h filtering capacity
The BevBright commercial plate filter features external stainless steel piping with built-in pressure gauges, sight glasses, and sample valves. Easily connect hoses to the included 1.5" tri-clamp butterfly valves. Double filtration kit comes standard.
Features:
304 Stainless Steel Construction
Up to 4,000L (1,056 gal) flow rate per hour
Rolling casters for easy movement
Drip collection tray
40 plates included
Double filtration kit included
(2) Built-in pressure gauges, sight glasses, and sample valves
1.5" Tri-Clamp inlet and outlet
67.7" x 26" x x 35.5"
518 lbs
Pads should be placed in the machine rough-smooth-smooth-rough
CE Compliant
Please note: This unit comes with white plates rather than black plates as seen in the example photo. Updated images coming soon.
Warning: You will need to remove the unit from the shipping pallet using a forklift and straps. Do not use a fork lift to directly lift from the bottom of the unit. Doing so may damage the bottom tray.

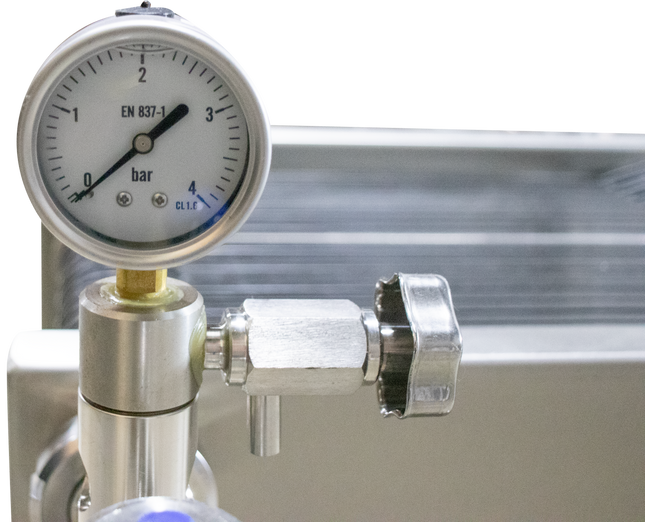

Rolling cart plate filter for wine, beer, cider, and distilling
Plates made of high temperature Noryl plastic capable of being steam sterilized
Double filtration kit included as standard
Built-in pressure gauges, sight glasses, and sample valves
1.5" tri-clamp inlet/outlet w/ butterfly valves
(20) 40cm x 40cm plates
2,000L/h filtering capacity
The BevBright commercial plate filter features external stainless steel piping with built-in pressure gauges, sight glasses, and sample valves. Easily connect hoses to the included 1.5" tri-clamp butterfly valves. Double filtration kit comes standard.
Features:
304 Stainless Steel Construction
Up to 2,000L (528 gal) flow rate per hour
Rolling casters for easy movement
Drip collection tray
20 plates included
Double filtration kit included
(2) Built-in pressure gauges, sight glasses, and sample valves
1.5" Tri-Clamp inlet and outlet
47.5" x 26" x 35.5"
363 lbs
Pads should be placed in the machine rough-smooth-smooth-rough
CE compliant
Please note: This unit comes with white plates rather than black plates as seen in the example photo. Updated images coming soon.

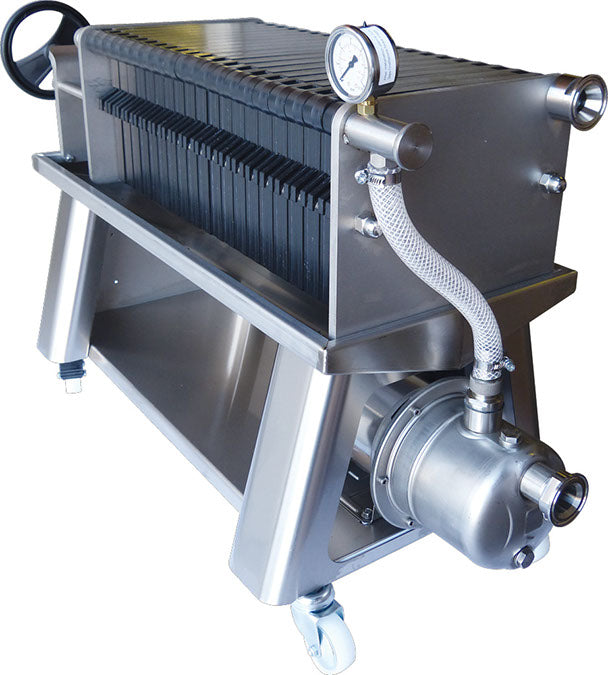

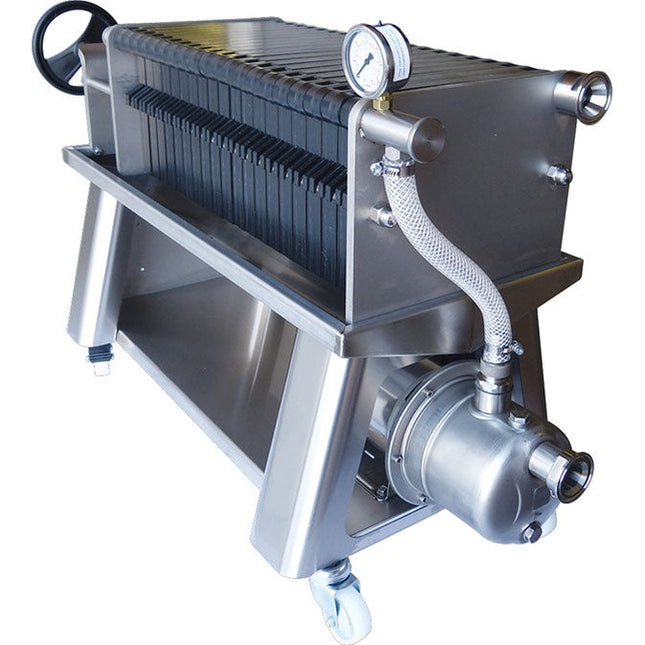

Rolling cart wine plate filter
Plates made from food-grade Noryl
Built-in stainless centrifugal pump
Built-in pressure gauge
1.5" tri-clamp inlet/outlet
1,200L/h wine filtering capacity
Made in Italy by Marchisio
Commercial plate filter featuring 41 20cm x 20cm plates. Included 110v 1/2hp, stainless motor will pump wine from your container and push it through the filter and into your aging tank or bottle filler.
Features:
304 Stainless Steel Construction
Four Casters for easy movement. Two of the casters have locks
Built-in centrifugal stainess steel pump with on/off switch.
41 Food-Grade Noryl plastic plates included.
Double filtration kit available
Built-in pressure gauge
Maximum pump pressure is 2.5 bar (35 p.s.i.)
Up to 1200L (317 gal) Flow rate per hour
940x480x590mm/37x19x23 inches
114 lbs
1.5" Tri-Clamp inlet and outlet
Pads should be placed in the machine rough-smooth-smooth-rough
Minimum number of plates that can be used is 30
Rolling cart plate filter for wine or oil
Plates made from food-grade PPA
Built-in ENOS 20 centrifugal pump
Stainless ball valve and sample tap
280L/h wine filtering capacity
Made in Italy by EnoItalia
Made from AISI 304 stainless steel with 20x20 food-grade PPA filter plates (10 plates). Includes ENOS 20 pump with stainless body and impeller. Mounted to trolley cart with rolling casters.
Features:
Stainless ball valve
Stainless sample tap
Pressure gauge
220V single phase Input Voltage Required
Wired with European-style 2-prong plug*
Wine Capacity: 130-280 L/h (34-73 gal/h)
Oil Capacity: 130 L/h (34 gal/h)
Pump Barbs: 20 mm (0.78")
Dimensions: 23.6" L x 19.7" W x 29.5" H
Weight: 70.5 lbs
*You will need a certified electrician to re-wire the unit with the appropriate 220V plug. 20 Plate unit pictured.

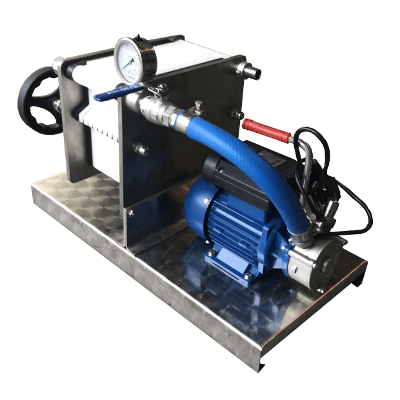

Benchtop plate filter for wine or oil
Plates made from food-grade PPA
Built-in ENOS 20 centrifugal pump
Stainless ball valve and sample tap
280L/h wine filtering capacity
Made in Italy by EnoItalia
Benchtop style wine plate filter made from AISI 304 stainless steel with 20x20 food-grade PPA filter plates (10 plates). Includes ENOS 20 centrifugal pump.
Features:
Stainless ball valve
Stainless sample tap
Pressure gauge
220V single phase Input Voltage Required
Bare Cord for wiring with the appropriate plug
Wine Capacity: 130-280 L/h (34-73 gal/h)
Oil Capacity: 130 L/h (34 gal/h)
Dimensions: 23.6" L x 12.9" W x 17.3" H
Weight: 64 lbs
Please Note: This item may come with a bare cord or with a European style plug. You will need a professional electrician to wire the pump with the appropriate plug.
Rolling cart plate filter for wine or oil
Plates made from food-grade PPA
Built-in ENOS 20 centrifugal pump
Stainless ball valve and sample tap
900L/h wine filtering capacity
Made in Italy by EnoItalia
Made from AISI 304 stainless steel with 20x20 food-grade PPA filter plates (20 plates). Includes ENOS 20 pump with stainless body and impeller. Mounted to trolley cart with rolling casters.
Features:
Stainless ball valve
Stainless sample tap
Pressure gauge
220V single phase Input Voltage Required
Wired with European-style 2-prong plug*
Wine Capacity: 600-900 L/h (158-237 gal/h)
Oil Capacity: 600 L/h (158 gal/h)
Pump Barbs: 20 mm (0.78")
Dimensions: 23.6" L x 19.7" W x 29.5" H
Weight: 79 lbs
*You will need a certified electrician to re-wire the unit with the appropriate 220V plug.
Rolling cart plate filter for wine or oil
Plates made from food-grade PPA
Built-in ENOS 20 centrifugal pump
Stainless ball valve and sample tap
1,500L/h wine filtering capacity
Made in Italy by EnoItalia
Made from AISI 304 stainless steel with 20x20 food-grade PPA filter plates (40 plates). Includes EURO 20 flexible impeller pump. Mounted to trolley cart with rolling casters.
Features:
Stainless ball valve
Stainless sample tap
Pressure gauge
220V single phase Input Voltage Required
Wired with European-style 2-prong plug*
Wine Capacity: 900-1500 L/h (237-396 gal/h)
Oil Capacity: 900 L/h (237 gal/h)
Pump Barbs: 20 mm (0.78")
Dimensions: 23.6" L x 19.7" W x 29.5" H
Weight: 108 lbs
*You will need a certified electrician to re-wire the unit with the appropriate 220V plug. 20 Plate unit pictured.

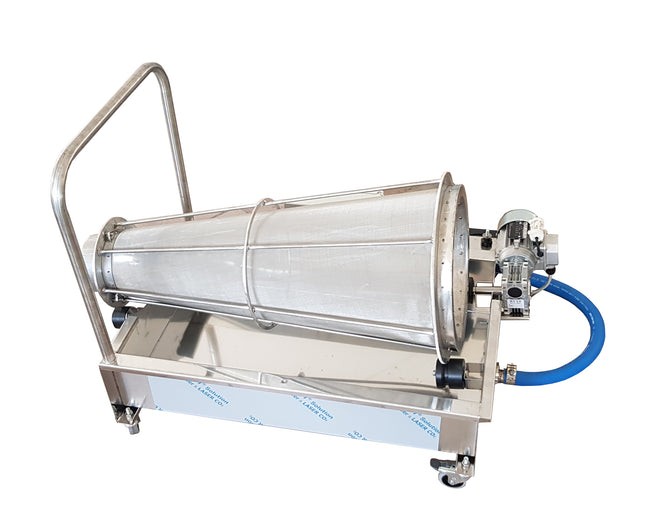

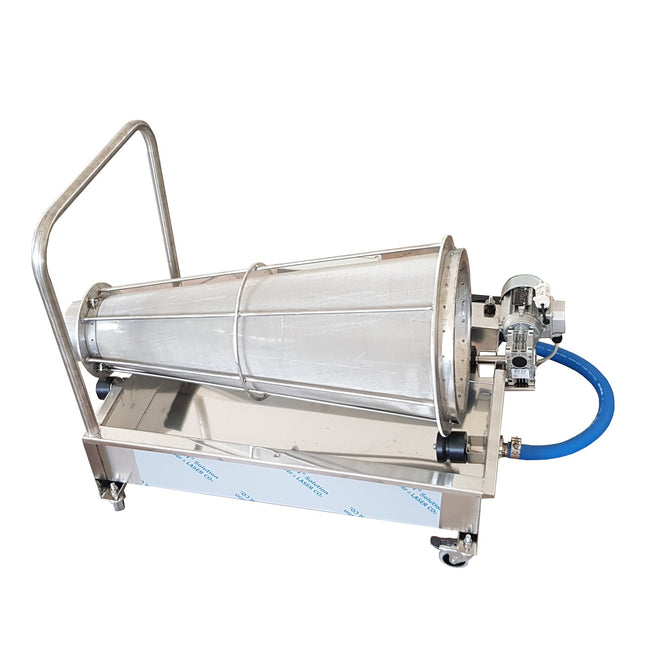

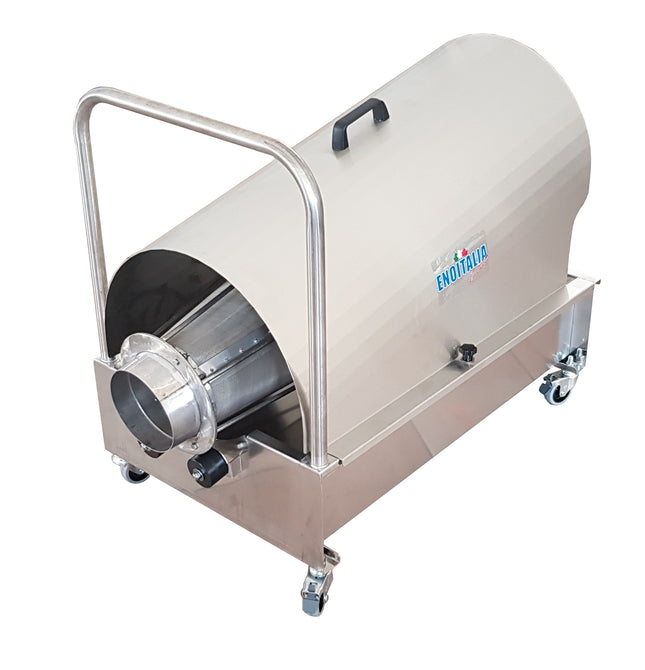

Automatic gravitational rotary filter with stainless steel pump for liquid. The filter is equipped with a 0.3 mm mesh net and a 3-phase pump with level sensor and control panel.
Features:
Made from AISI 304 stainless steel
Stainless support trolley on 4 caster wheels
Conical 0.3 mm filter
3-phase power for filter
Level sensor
Stainlesss steel centrifugal pump
Control panel with emergency stop
3" T.C. pump outlet
Specs:
Engine HP: 0.5
Power: 220V, 3 Phase
Loading Height: 16.1" (410 mm)
Dimension: 27.5" x 27.5" x 33.5" (700 x 700 x 850 mm)
Capacity: 2,200 lbs/h (1,000 kg/h)
Weight: 154 lbs (70 kg)

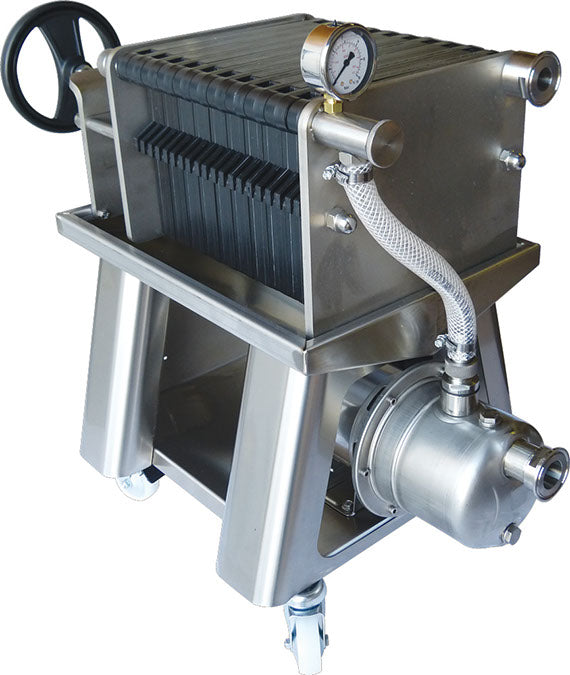

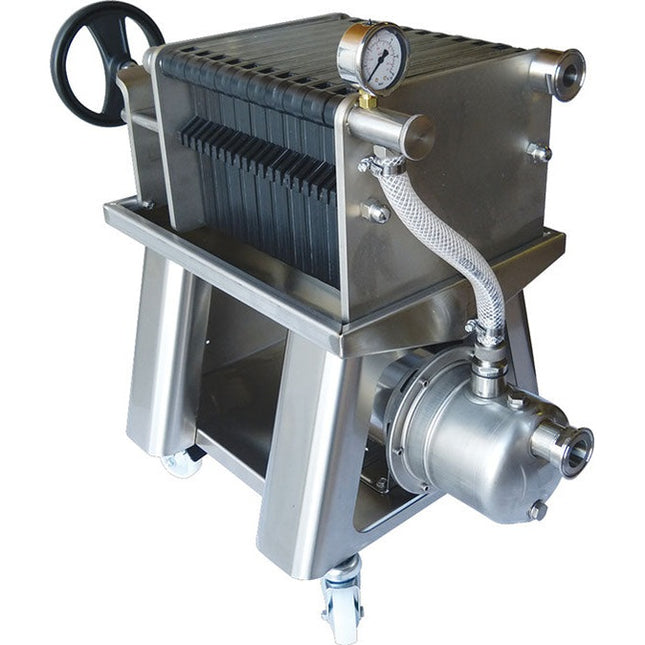

Rolling cart wine plate filter
Plates made from food-grade Noryl
Built-in stainless centrifugal pump
Built-in pressure gauge
1.5" tri-clamp inlet/outlet
600L/h wine filtering capacity
Made in Italy by Marchisio
Small commercial plate filter that will accomodate 20 20cm x 20cm plates. Included 110v 1/2hp, stainless motor will pump wine from your container and push it through the filter and into your aging tank or bottle filler.
Features:
304 Stainless Steel Construction
Four Casters for easy movement. Two of the casters have locks
Built-in centrifugal stainess steel pump with on/off switch
21 Food-Grade Noryl plastic plates included.
Double filtration kit available
Built-in pressure gauge
Maximum pump pressure is 2.5 bar (35 p.s.i.)
Up to 600L (158 gal) Flow rate per hour
620x420x560mm/24x16.5x22 inches
90 lbs
1.5" Tri-Clamp inlet and outlet
Pads should be placed in the machine rough-smooth-smooth-rough

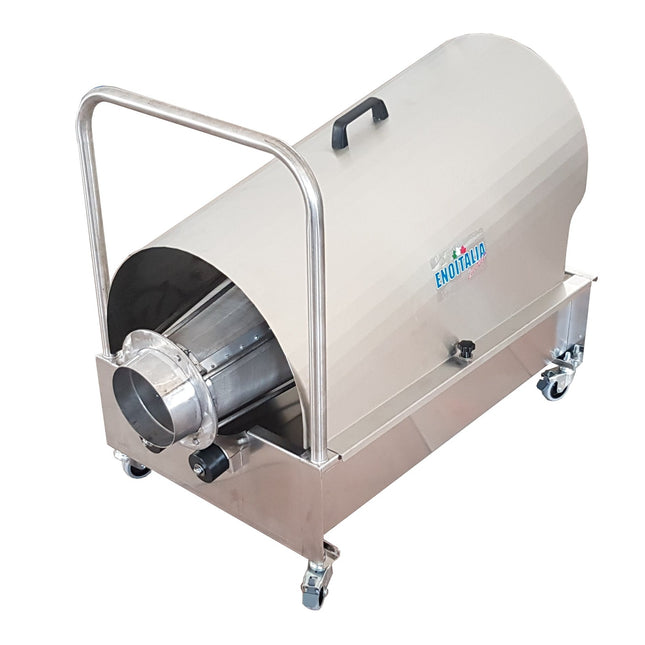

Automatic gravitational rotary filter with stainless steel pump for liquid. The filter is equipped with a 0.3 mm mesh net and a single-phase pump with level sensor and control panel.
Features:
Made from AISI 304 stainless steel
Stainless support trolley on 4 caster wheels
Conical 0.3 mm filter
Single-phase power for filter
Level sensor
Stainlesss steel centrifugal pump
Control panel with emergency stop
3" T.C. pump outlet
Specs:
Engine HP: 0.5
Power: 220V, Single Phase
Loading Height: 16.1" (410 mm)
Dimension: 27.5" x 27.5" x 33.5" (700 x 700 x 850 mm)
Capacity: 2,200 lbs/h (1,000 kg/h)
Weight: 154 lbs (70 kg)

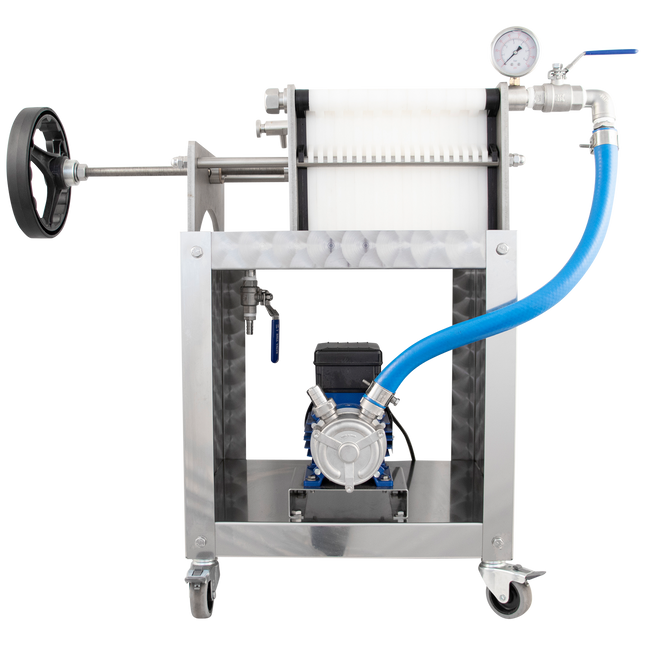

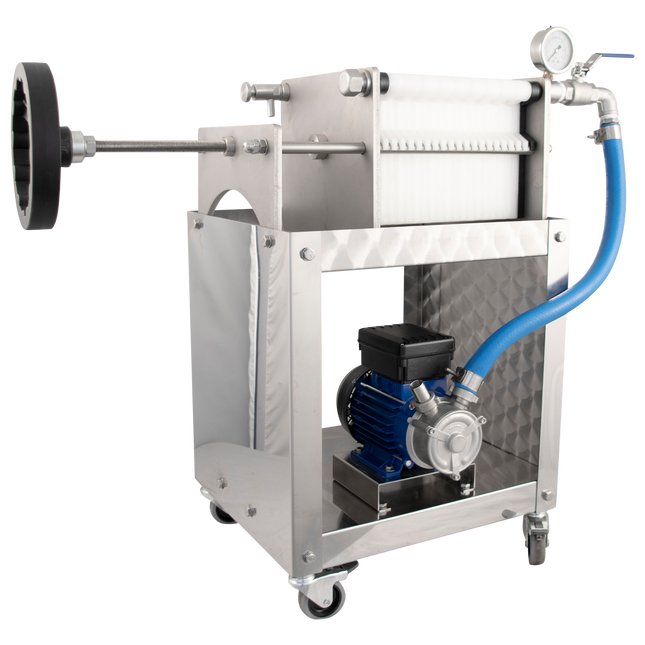

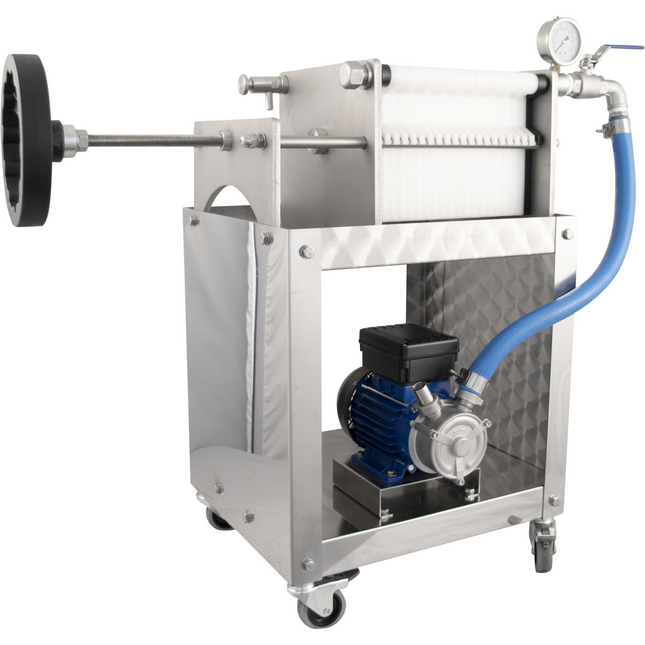

Coming soon! The 40-Plate 20x20 Plate Filter is now available for pre-order. Place your order now and we will automatically ship it to you when it's available. The current estimated availability is June 2026.
Rolling cart plate filter for wine or oil
Plates made from food-grade PPA
Built-in ENOS 20 centrifugal pump
Stainless ball valve and sample tap
1,500L/h wine filtering capacity
Made in Italy by EnoItalia
Made from AISI 304 stainless steel with 20x20 food-grade PPA filter plates (40 plates). Includes EURO 20 flexible impeller pump. Mounted to trolley cart with rolling casters.
Features:
Stainless ball valve
Stainless sample tap
Pressure gauge
Wine Capacity: 900-1500 L/h (237-396 gal/h)
Oil Capacity: 900 L/h (237 gal/h)
Pump Barbs: 20 mm (0.78")
Dimensions: 23.6" L x 19.7" W x 29.5" H
Weight: 108 lbs
110V

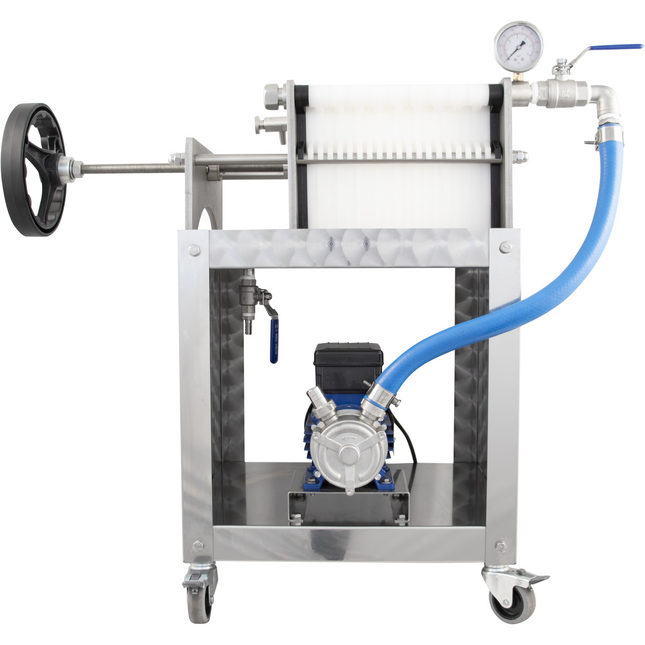

Coming soon! The 10-Plate 20x20 Plate Filter is now available for pre-order. Place your order now and we will automatically ship it to you when it's available. The current estimated availability is June 2026.
Rolling cart plate filter for wine or oil
Plates made from food-grade PPA
Built-in ENOS 20 centrifugal pump
Stainless ball valve and sample tap
280L/h wine filtering capacity
Made in Italy by EnoItalia
Made from AISI 304 stainless steel with 20x20 food-grade PPA filter plates (10 plates). Includes ENOS 20 pump with stainless body and impeller. Mounted to trolley cart with rolling casters.
Features:
Stainless ball valve
Stainless sample tap
Pressure gauge
Wine Capacity: 130-280 L/h (34-73 gal/h)
Oil Capacity: 130 L/h (34 gal/h)
Pump Barbs: 20 mm (0.78")
Dimensions: 23.6" L x 19.7" W x 29.5" H
Weight: 70.5 lbs
110V
Coming soon! The Benchtop Plate Filter is now available for pre-order. Place your order now and we will automatically ship it to you when it's available. The current estimated availability is June 2026.
Benchtop plate filter for wine or oil
Plates made from food-grade PPA
Built-in ENOS 20 centrifugal pump
Stainless ball valve and sample tap
280L/h wine filtering capacity
Made in Italy by EnoItalia
Benchtop style wine plate filter made from AISI 304 stainless steel with 20x20 food-grade PPA filter plates (10 plates). Includes ENOS 20 centrifugal pump.
Features:
Stainless ball valve
Stainless sample tap
Pressure gauge
Wine Capacity: 130-280 L/h (34-73 gal/h)
Oil Capacity: 130 L/h (34 gal/h)
Dimensions: 23.6" L x 12.9" W x 17.3" H
Weight: 64 lbs
110V
Coming soon! The 20-Plate 20x20 Plate Filter is now available for pre-order. Place your order now and we will automatically ship it to you when it's available. The current estimated availability is June 2026.
Rolling cart plate filter for wine or oil
Plates made from food-grade PPA
Built-in ENOS 20 centrifugal pump
Stainless ball valve and sample tap
900L/h wine filtering capacity
Made in Italy by EnoItalia
Made from AISI 304 stainless steel with 20x20 food-grade PPA filter plates (20 plates). Includes ENOS 20 pump with stainless body and impeller. Mounted to trolley cart with rolling casters.
Features:
Stainless ball valve
Stainless sample tap
Pressure gauge
Wine Capacity: 600-900 L/h (158-237 gal/h)
Oil Capacity: 600 L/h (158 gal/h)
Pump Barbs: 20 mm (0.78")
Dimensions: 23.6" L x 19.7" W x 29.5" H
Weight: 79 lbs
110V
Premium 316 stainless steel construction ensures durability and corrosion resistance, ideal for demanding beverage production environments
Wide compatibility with a range of filter cartridges offers adaptability and customization for optimal filtration results in beverage making processes
Multiple housings easily work in tandem for sequential filtration with cartridges of different micron ratings, ensuring thorough removal of bacteria for pristine final products

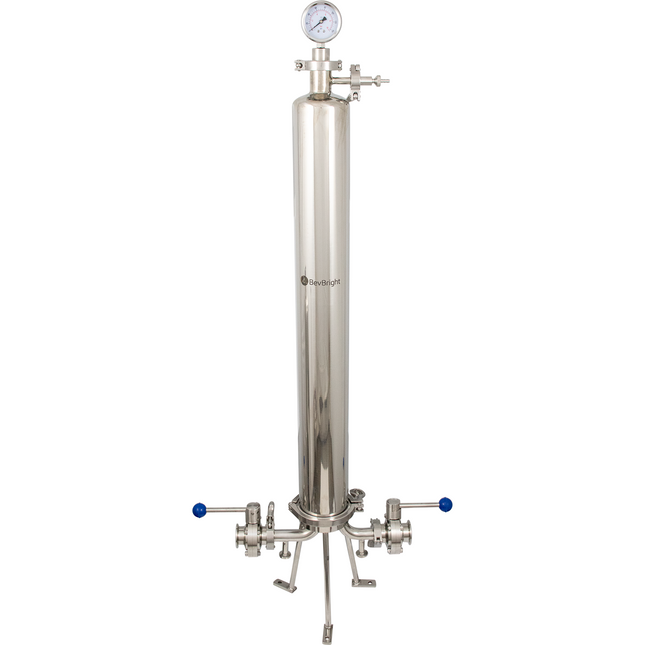

The BevBright 30" Stainless Cartridge Filter Housings are designed to streamline your beverage production with unmatched purity and efficiency.
Made from premium electropolished 316 stainless steel, these filter housings protect against contamination, ensuring your final product meets the highest standards of quality and taste. Engineered to resist corrosion in challenging environments, they offer durability and reliability.
These stainless steel filter housings are essential for precision filtration in beverage production. When used with a sterile filter cartridge, they effectively remove yeast and bacteria, delivering pure, pristine liquid. Tri-clamp ports ensure easy integration into your setup, and the option to daisy-chain filters allows for efficient multi-stage filtration, prolonging the life of your sterile cartridges.
BevBright filter housings are compatible with a wide range of filter cartridges, providing the flexibility to meet your specific filtration needs, from standard to sterile filtration.
Each unit comes complete with hardware and ready for immediate use. Trust BevBright 30" Stainless Cartridge Filter Housings to maintain the purity and excellence of your beverage from start to finish.
Made from 316 Stainless Steel
Polish: Ra<0.4um
Hardware Included:

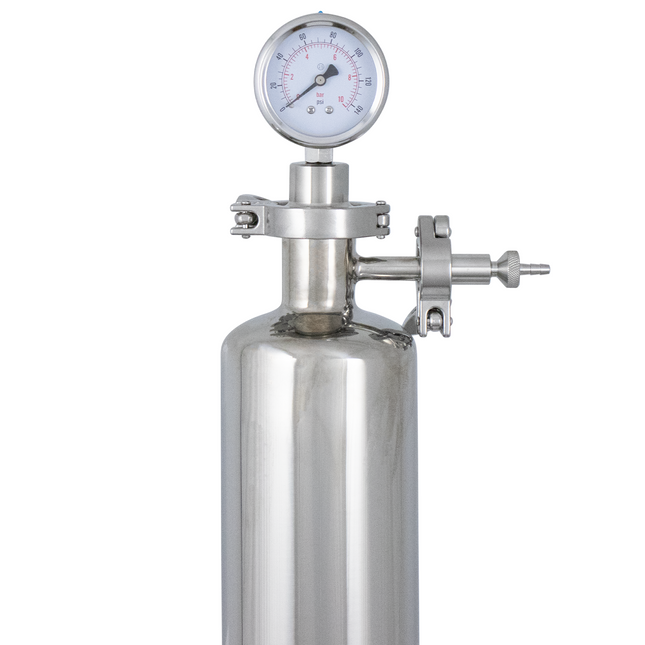

(2) 1.5" T.C. Pressure Gauges
(2) 1.5" T.C. Butterfly Valves
(1) 1.5" T.C. Tee
(1) Top Relief Valve
(2) 1/2" T.C. Drain Valves
Clamps & Gaskets
Compatible with Scott Labs' ScottCart Code 7: 226 Twist & Lock 30" Cartridges
Example images shown. The Filter Housing also includes a 1.5" T.C. Tee & Pressure Gauge and 1/2" T.C.Drain Valves that are not pictured.
Lenticular filters employ a filtering process similar to plate filters but are significantly easier to use
A sealed system ensures there is no dripping/leakage, unlike what occurs with plate filters
Filters are stacked within cartridges, making loading and replacement much simpler than a plate filter
Housings can be loaded with as few as one filter cartridge with the use of optional center posts
BevBright Lenticular Filter Housings streamline the filtration process, making it as effective as traditional plate filters but with greater ease of use. Their user-friendly design ensures that anyone, from experienced professionals to beginners, can operate them effortlessly. The setup is straightforward and without the complexities associated with plate filters.
One of the key benefits of lenticular filters is their sealed system. This design prevents dripping and leakage, guaranteeing airtight integrity and ensuring that your liquids remain protected and uncontaminated.
Filters stack neatly within the housing, and loading or replacing them is simple. There are no intricate assemblies required. Whether performing maintenance or adjusting filtration levels, the process is seamless and hassle-free.
Optional center posts allow the housings to accommodate as few as one filter cartridge, providing flexibility for various filtration needs, from large-scale production to small-batch operations.
Choose BevBright stainless steel lenticular filter housings for a filtration solution that is efficient, reliable, and easy to use. Each unit comes complete with hardware and instructions, ready for immediate use.
Made from 304 Stainless Steel
Polish: Ra<0.4um
Hardware Included:
(2) 1.5" T.C. Pressure Gauges
(2) 1.5" T.C. Butterfly Valves
(1) 1.5" T.C. Tee
(1) Top Relief Valve
(1) 1.5" T.C. Drain Valve
Clamps & Gaskets
Plate Filtering Download print friendly version Congratulations on your purchase of a new MoreWine! Plate Filter. These filters are suitable for the clarification of both still and carbonated wines and beers. With proper care, maintenance and usage, this filtering unit should last you many happy and productive seasons. As with any MoreFlavor product, we welcome and encourage any and all customer feedback – both positive and negative. Let us know how your filter is working for you! The following products are associated with these instructions: WE903 , WE905 , WE906N , and WE908N Section 1: Safety Information Note: Before proceeding with the installation, operation or maintenance of this machine, please carefully review these instructions. At MoreFlavor!, it is of great importance to us that you are around to enjoy your finished product. Please observe all safety precautions completely. 1.1 General Safety Precautions The failure to observe all safety precautions as laid out in this manual can result in a severe risk of injury or death. Please review all safety precautions thoroughly before using your filter. Prior to starting the machine each time; check all structural parts, the motor, the pump head and all connecting hoses and pipes for mechanical cracks or signs of corrosion. Replace any damaged components prior to using the machine. 1.2 Filter Operation This filter should not be used in conjunction with products not specified in this document. This filter should not be used under environmental conditions other than those specified in this document. (Section 3.2) Do not run the filter if any of the components appears to be missing or damaged – serious injury or death could result. Avoid loose fitting clothing and keep long hair tied back while using this machine Do not move the machine while in use. CAUTION: This machine should not be used to filter any inflammable materials or in environments which contain inflammable materials due to the heat put out by the pump and motor. 1.3 Electrical System Note: Before connecting to electrical power, make certain that the electrical system of your facility conforms with the specifications printed on the motor plate. If you are uncertain about this, consult a qualified electrician. Do not operate the electric motor if the cover plates are missing, damaged or incorrectly mounted. Should the motor fail to start or begin to overheat, disconnect it from the power source immediately. 1.4 Cleaning and Maintenance Note: Before carrying out any cleaning or maintenance operation, ensure that the machine is switched off and disconnected from electrical power, that all parts have cooled from usage and that all pressure has been relieved from the system. Check that all switches and electrical connections are in good repair. After long periods of storage, before the first use of the season, ensure that all screws which connect the various parts of the machine are correctly tightened. Do Not alter the structural components of the machine in any way. After each maintenance check, be sure that the machine is correctly assembled, paying particular attention to the pump and motor housings. Before starting the machine again, be certain that all tools used during repair or maintenance have been removed. Be sure to wash the unit with non-toxic, food grade materials only. 1.5 Waste Disposal MoreWine! would like to remind you that waste disposal regulations vary from district to district and are subject to local and Federal regulation. As always, we encourage you to dispose of your waste products in a safe and socially responsible manner. Section 2: Description of Machine 2.1 Parts and Nomenclature The machine can be divided into three functional parts or sections: Stainless steel frame with casters, two of which lock Filtration unit with food grade filter plates Assisted priming electric drive pump which can be equipped with a bypass for more consistent product delivery. Section 3: Specifications & Indications 3.1 Technical Specifications Model 10 Plate 20 Plate 40 Plate Hourly Production (gal/hr, approx.) 79 158 316 Number of Filter Plates 11 21 41 Number of Filter Sheets 10 20 40 Filtering Surface Area (m²) 0.4 0.8 1.6 Motor Output (HP) 0.5 0.5 0.75 Voltage Supply (V) 110 110 110 Frequency (Hz) 50 50 50 3.2 Proper Running and Storage Conditions The machine is designed for indoor use and should be no means be used in or exposed to the rain. Indoors, it should be positioned as far as possible from any running or splashing water. If the electric pump becomes wet, discontinue use and disconnect from the power supply until all electrical components of the machine have dried. The machine’s components have been designed to function between 50 and 104°F (10 – 40° C). 5° variations in temperature will be fine if they are for short periods. The machine should be stored between 23 and 140°F (-5 – 60° C) The temperature of the product being filtered should always be between 23 and 140°F (-5 – 60° C) Section 4: Using the Filter 4.1 Choosing a Filter Sheet Part # Micron Rating Max Pressure During Use (psi) Filtering Capacity (gal/hr/sheet) Application FIL919 9-10 45 (3.0 bar) 15 (20x20cm) 50(40x40cm) Rough filtration of white musts pre-fermentation FIL920 5-7 45 (3.0 bar) 15 (20x20cm) 50(40x40cm) Initial polish of all wine or beer types. FIL921 2-3 45 (3.0 bar) 9 (20x20cm) 35 (40x40cm) Polishing – clear wine or beer filtration. FIL923 0.8 21 (1.5 bar) 5 (20x20cm) 20 (40x40cm) Sterile filtration for removal of yeast. FIL924 0.45 21 (1.5 bar) 5 (20x20cm) 20 (40x40cm) Sterile filtration for removal of bacteria – will remove some flavor & color from the beverage. 4.2 Insertion of Filter Sheets Filter Sheets should be inserted with one sheet between each set of plates. The sheets have a rough and a smooth side. The “smooth” side appears to have a very fine crosshatch pattern to it while the “rough” side appears similar to frothy milk. The sheets need to be inserted into the machine in a rough-smooth-smooth-rough pattern, starting with a rough side facing the end plate at the pump side. Each of the plates has a barb which accepts an included 4 mm rubber gasket to seal the system. There are two thinner, 2 mm gaskets included as well. These gaskets are inserted between the terminal filter plates and the steel endplates which are part of the frame of the filter, at the Pressure Regulator (13, Sec 2.1) and the handwheel-side plug (9). Once everything is in place, tighten the handscrew so that there is sufficient pressure to seal the system while it is running – this will need to be pretty tight. *Note: Do not leave any spaces between the plates empty. If you run short of pads, remove the appropriate number of plates so that the filtering set up runs sheet-plate-sheet-plate all the way through. Failure to “fill” the filter with sheets will result in leakage during use. 4.3 Use of a Double Filtration Plate MoreWine!’s plate filters can be outfitted with a Double Filtration Plate ( WE915 / WE916 ) which allows you to create two “chambers” where filter pads of different micron ratings can be used in serial to one another. Note that due to the need for the extra end plates on either side of the separation plate, it may not be possible to fit as many pads into the filter. Also note how the position of the Plug / Stopper (9, see 2.1) and the Barb for the Outlet Tube (12) have changed position to accommodate the double filtration DO NOT use pads with different micron ratings in the same “chamber” during double filtration. 4.4 Connecting and Running the Filter It may be helpful to you to refer to the diagrams in section 2.1 (p.X) while reading this part of the instructions. The different parts of the machine will be referred to with the same numbers that they are listed as earlier in this paper. It is important to double check that all connections are tight and there are no leaks prior to running your actual product through the filter. Circulating a sanitizing agent is a great way to do this. We recommend the use of SaniClean ( CL27 ) for this procedure. Note that a small amount of seepage is normal during the filtering process, as this is part of how the system stays sealed. Seepage will collect in the drainage tray underneath the filter plates. To connect the filter, attach your hose from the vessel containing the product to be filtered to the Product Inlet (15), and connect a tube leading from the Product Outlet (12) to whatever vessel you wish the filtered product to wind up in. Remove the cap to the Priming Reservoir (14) and fill. Replace and re-tighten the cap. Close the Pressure Regulator (13) about half way. Turn on the motor. Open the Sampling Valve (8) and allow the air to be evacuated from the filter. Close the valve only once there is no more air being discharged. By adjusting the Pressure Regulator (13), set the pressure to about 4 psi (0.3 bar), maintain this pressure for 10–15 sec. Now adjust the regulator until it reads the correct operating pressure for the filter pads you are using During operation, periodically check to ensure that the Pressure Gauge (11) is still reading correctly and consistently. Small adjustments may be necessary and are normal. If the product is not dispersed within a few moments of switching on the pump, double check to make sure that the Inlet Tube is correctly connected and that no air had made its way into the system. When you’re finished filtering, or if the pads become clogged, turn off the pump motor and unplug the machine. Wait at least 3 minutes before loosening the handwheel to ensure that all pressure has dissipated out of the system. Using the Drain Valve (6), empty the collection tray. 4.5 Filtering Carbonated Products One of the attractive features of a plate filtering system is that it is possible to filter carbonated products such as bright beer or sparkling wine. The essential part of this is that the receiving tank needs to be pressurized so that you do not lose too much of the carbonation of the beverage in the process. You will always lose a little bit of the carbonation, but it can be minimized. Here’s an example which lays out the principles – it’s pretty easy to do: Let’s say that your beverage is already carbonated to 15 psi, just pressurize the receiving tank to 10–12psi and make sure that you run the filter at 1 bar (14 psi) or higher. Because the filter assembly seals by positive pressure, your beverage has no lower-pressure place to let its bubbles out into. By keeping the receiving tank at a slightly lower pressure than the delivery tank, you encourage any carbonation which is scrubbed out of the liquid on its way through the filter pad to travel down the pressure gradient and dissolve back into the product. This also encourages good product flow through the system. Once all of the beverage is in the receiving tank, turn the pressure up to whatever level of carbonation you desire in it. It is important to use reinforced tubing for the outlet when filtering a carbonated product. 4.6 Regular Maintenance Before carrying out any maintenance or repair operation, be sure the machine has been turned off, allowed to cool and is disconnected from electrical power. Failure to observe these measures could result in serious injury or death. The filter unit should be cleaned thoroughly after each use to remove any deposits from the product being filtered. MoreWine! recommends the use of hot water and PBW ( CL25 ) for this procedure. Be sure to rinse thoroughly after the administration of a cleaning product. MoreWine! reminds you that observance of strict cleaning protocols in the brewery / winery is the most effective tool in preventing the infection of future batches. It is possible to steam sterilize the system after rinsing it only if you are using NORYL plates. Standard MOPLEN plates cannot be steam sterilized. Section 5: Troubleshooting Issue Cause Remedy The pump does not draw. Air has entered the system The impeller pump is clogged Ensure that the Inlet tube is intact and submerged. Re-fill the Priming Reservoir and re-start system Disassemble and clean pump head The circuit is not pressurized See above See above Excessive seepage during operation The entire unit is not sealed adequately The filter sheets are not suitable for the product, or the seals are worn Using the handscrew, seal the filtering pack more tightly Replace the filter pads or seals as necessary The filter does not reach the expected pressure Incorrect filter pads being used or incorrect product being filtered Replace filter pads. Be sure that unit is used only as specified in this document The filter exceeds the desired pressure Use of incorrect filter pads See 4.1 for filter pad selection Section 6: Warranty This plate filter comes standard with a 1 year MoreWine! warranty, effective from the date of purchase. This warranty covers any manufacturer defects or damage incurred in the delivery of the machine. This warranty DOES NOT cover. Damage caused by incorrect installation or maintenance, Damage caused by inadequate or incorrect electrical or pneumatic supply Damage caused as a result of failing to observe the precautions laid out in this manual Damage caused by modification of the machine MoreWine! reserves the right to repair or replace any parts of the unit deemed to be defective at their discretion. We will always work with you to keep you up and running. MoreWine! takes no responsibility, explicit or implied, for any damage to premises, lack of production, personal injury or death that arise from the use of this plate filter.
