Replacement Inner Nylon Sack for Speidel Bladder Press. This nylon sack fits just inside the Stainless pressing screen prior to loading the press and provides a quick and easy way to manage the pressed pommace.
20L -- GER101S
40L -- GER102S
90L -- GER104 / GER104S
180L -- GER106
Replacement bladder for Speidel Bladder Press.
20L -- GER101S
40L -- GER102S
90L -- GER104 / GER104S
180L -- GER106
Please Note: The bladder may arrive covered in white dust from the manufacturing process. This is normal and does not indicate the bladder was used. Simply wash the bladder with water to remove the dust before first use.
This product was specifically developed to be used only as intended by the manufacturer and we cannot advise its use in any other application as it may cause damage or harm.

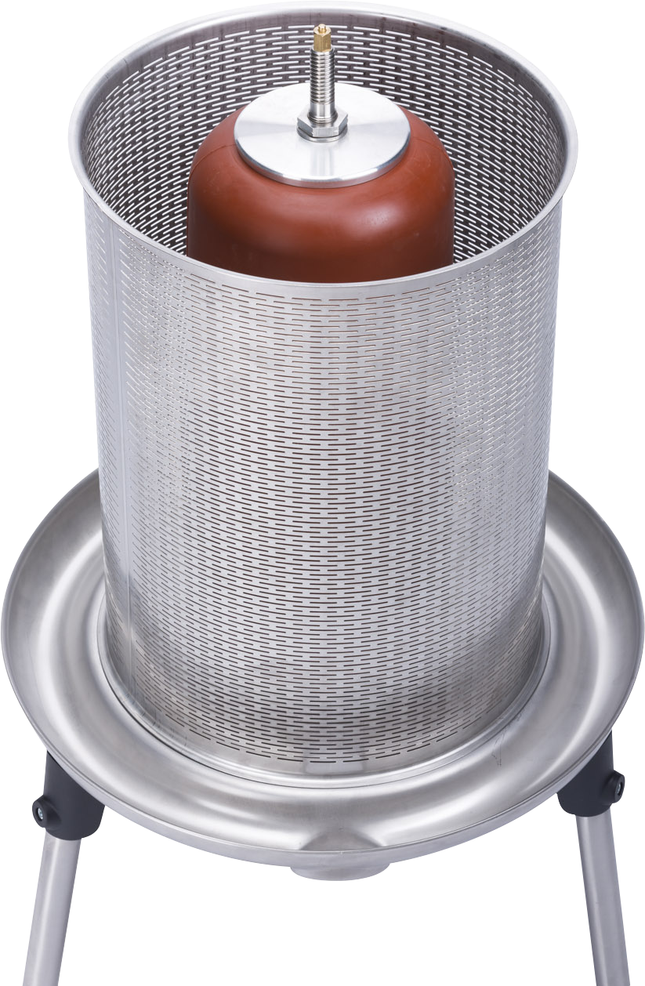

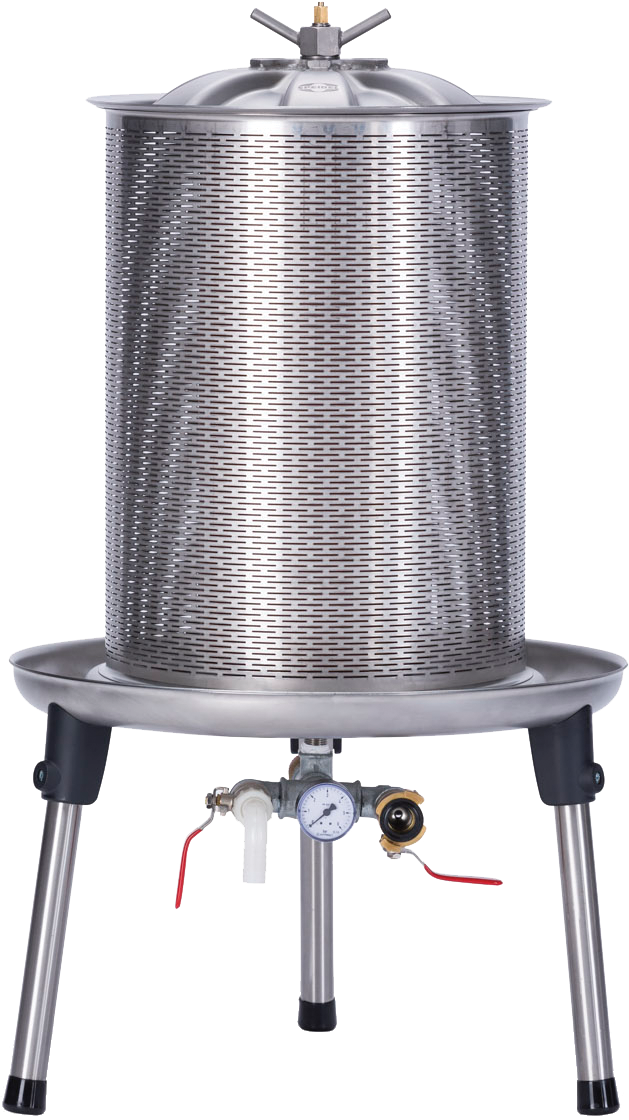

This 40 Liter Hydropress provides a simple, highly effective method of extracting juice from apples, pears, berries or grapes for juice, wine or cider making. It can also be used as a cheese press or for honeycomb. Primarily targeted at the Apple Mead and Cider makers, as this press is hard to beat on a budget. Make the best possible sparkling cider with the Electric Apple Grinder and 40L Hydropress.
Bladder presses work by expanding a rubber bladder using household water pressure via a garden hose. Since the bladder is situated in the center of the press, the grapes/fruit are squeezed from the inside out in a uniform fashion even if the basket is only partially filled. This is a much more effective way of pressing fruit pulp as it allows a wider surface area for the juice to be extracted. Compared to traditional hydraulic top down presses, large amounts of streaming and blockages would be trapped within the bulk matter. The hydropress is also used on a mammoth scale in wineries as it is by far the most effective means of extraction without electrical power.
When pressing normal mains water pressure of 2.5 to 3 bar it will generate around 20 tonnes of pressing power. The pressure applied and the duration of pressing can be regulated simply by opening or closing the water tap.
High-Quality Material
This water-powered press is made of food-grade stainless steel, resistant to rust and corrosion, easy to wash, and wipe clean after use. With three stable steel legs. Best suited to be used outdoors where you can hose away any accidental spills of fruit and juice.
Electricity-Free:
Bladder presses use water to produce pressure for natural juice making, winemaking and cheese making. It’s energy-saving and space-saving. If the pressure gets too high, it will be released automatically, making this unit safe and easy to operate.
Important:
Keep the gray bladder out of direct sunlight for storage. A black garbage bag makes an excellent cover that will protect your gear for years to come.
Features:
40L capacity
Rubber membrane is made of high-quality natural rubber
Food grade stainless steel perforated basket
Press bag included
Make grapes, apple, pears, cherries, tomatoes, berries, or other soft fruit into juice, cider or wine
Made of food grade 304 Stainless Steel
Easy to dismantle and clean
1/2" BSP Female water inlet
KegLand Part Number: KL23313
Expertly crafted stainless steel fruit press made by the original manufacturer of the bladder press
Features a slotted screen which mirrors commercial press designs
Higher juice yield (65-70%) compared to other press models
Can be used with any domestic water supply that provides at least 36 psi of pressure
Easy to clean after use—simply spray down with a hose and towel dry
Made in Germany by Speidel
Speidel was the original manufacturer of the bladder press. While similar to the Italian models in operation, Speidel offers a few quality upgrades. To obtain a better press Speidel uses a slotted screen, similar to what is offered on large commercial presses, instead of a screen with circular perforations. Speidel presses also offer superior hardware and a recessed valve assembly (to reduce accidental breakage). Compared to other presses, the Speidel hydro press has a higher juice yield (~65-70%) and works completely without electricity and with minimal effort.
This press can be used with any domestic water supply the provides at least 2.5 bar (36 psi) of pressure. Pressing pressure and pressing time is simply regulated by the water flow. These units are extremely easy to care for and can be cleaned quickly by simply spraying it down with a hose after use. You will find the quality you'd expect from a product that is 100% German-made.
Speidel has been shifting their bladder presses from painted to all stainless, and we're pretty excited about it. Although the orange painted versions have their own aesthetic appeal, nothing beats the performance and practicality of stainless steel. Stainless is much easier to clean and much more resistant to rust. The painted versions are likely to chip over time through normal wear and tear, creating small crevasses for bacteria to call home. No such worries when working this beautiful, brushed stainless press.
Overall height is 33" and outlet height is 12". A press cycle for this unit averages around 35 minutes.
Includes:
Complete press assembly
Inner mesh bag (to keep fruit from getting in the stainless basket and make cleanup easier)
Plastic "spray-protection bag" to keep juice from squirting out
Fittings to connect garden hose
Instruction manual
Presses ship in a corrugated box. Minor assembly (attaching legs) is required before use
1 Year Warranty on all parts!
Click here for a PDF of the MoreWine Bladder Press Manual.
FAQ:
Can the press be operated with air pressure?
No. These are hydraulic presses that may only be operated with water. When operating with compressed air, there is a risk of explosion and a very high risk of injury if the membrane bursts due to excess pressure or damage.
Is a minimum water pressure required?
In order to ensure the function and the best possible yield, there should be a minimum water pressure of 2-2.5 bar on the press.
What if the water supply delivers more than 3 bar?
In principle, this is not a problem, as if the water pressure inside the press exceeds 3 bar, the pressure relief valve opens and there is no pressure-related damage.
How many apples make how much juice?
On average, 50kg (110 lbs) of apples produce around 30-35L (8-9 gal) of juice, depending on the variety and quality of the apples.
Due to high demand, this item is currently out of stock. Be the first to receive your items by placing a pre-order today. We will automatically ship this to you when we receive more inventory.
Replacement outer plastic cover for Speidel Bladder Press. This cover fits over the closed press during the pressing operation in order to collect any juice spray and direct it down to the trough at the bottom of the press.
20L -- GER101S
40L -- GER102S
90L -- GER104 / GER104S
180L -- GER106
Expertly crafted stainless steel fruit press made by the original manufacturer of the bladder press
Features a slotted screen which mirrors commercial press designs
Higher juice yield (65-70%) compared to other press models
Can be used with any domestic water supply that provides at least 36 psi of pressure
Easy to clean after use—simply spray down with a hose and towel dry
Made in Germany by Speidel
Speidel was the original manufacturer of the bladder press. While similar to the Italian models in operation, Speidel offers a few quality upgrades. To obtain a better press Speidel uses a slotted screen, similar to what is offered on large commercial presses, instead of a screen with circular perforations. Speidel presses also offer superior hardware and a recessed valve assembly (to reduce accidental breakage). Insert bag and outer splash guard included. Compared to other presses, the Speidel hydro press has a higher juice yield (~65-70%) and works completely without electricity and with minimal effort.
This press can be used with any domestic water supply the provides at least 2.5 bar (36 psi) of pressure. Pressing pressure and pressing time is simply regulated by the water flow. These units are extremely easy to care for and can be cleaned quickly by simply spraying it down with a hose after use. You will find the quality you'd expect from a product that is 100% German-made.
Speidel has been shifting their bladder presses from painted to all stainless, and we're pretty excited about it. Although the orange painted versions have their own aesthetic appeal, nothing beats the performance and practicality of stainless steel. Stainless is much easier to clean and much more resistant to rust. The painted versions are likely to chip over time through normal wear and tear, creating small crevasses for bacteria to call home. No such worries when working this beautiful, brushed stainless press.
Overall height is 42" and basket height is 23.5". A press cycle averages around 45 minutes.
Includes:
Complete press assembly
Inner mesh bag (to keep fruit from getting in the stainless basket and make cleanup easier)
Plastic "spray-protection bag" to keep juice from squirting out
Fittings to connect garden hose
Instruction manual
Presses ship in a corrugated box. Minor assembly (attaching legs) is required before use
1 Year Warranty on all parts!
Click here for a PDF of Speidel's Bladder Press Manual
FAQ:
Can the press be operated with air pressure?
No. These are hydraulic presses that may only be operated with water. When operating with compressed air, there is a risk of explosion and a very high risk of injury if the membrane bursts due to excess pressure or damage.
Is a minimum water pressure required?
In order to ensure the function and the best possible yield, there should be a minimum water pressure of 2-2.5 bar on the press.
What if the water supply delivers more than 3 bar?
In principle, this is not a problem, as if the water pressure inside the press exceeds 3 bar, the pressure relief valve opens and there is no pressure-related damage.
How many apples make how much juice?
On average, 50kg (110 lbs) of apples produce around 30-35L (8-9 gal) of juice, depending on the variety and quality of the apples.
Expertly crafted stainless steel fruit press made by the original manufacturer of the bladder press
Features a slotted screen which mirrors commercial press designs
Higher juice yield (65-70%) compared to other press models
Can be used with any domestic water supply that provides at least 36 psi of pressure
Easy to clean after use—simply spray down with a hose and towel dry
Made in Germany by Speidel
Speidel was the original manufacturer of the bladder press. While similar to the Italian models in operation, Speidel offers a few quality upgrades. To obtain a better press Speidel uses a slotted screen, similar to what is offered on large commercial presses, instead of a screen with circular perforations. Speidel presses also offer superior hardware and a recessed valve assembly (to reduce accidental breakage). Insert bag and outer splash guard included. Compared to other presses, the Speidel hydro press has a higher juice yield (~65-70%) and works completely without electricity and with minimal effort.
This press can be used with any domestic water supply the provides at least 2.5 bar (36 psi) of pressure. Pressing pressure and pressing time is simply regulated by the water flow. These units are extremely easy to care for and can be cleaned quickly by simply spraying it down with a hose after use. You will find the quality you'd expect from a product that is 100% German-made.
Speidel has been shifting their bladder presses from painted to all stainless, and we're pretty excited about it. Although the orange painted versions have their own aesthetic appeal, nothing beats the performance and practicality of stainless steel. Stainless is much easier to clean and much more resistant to rust. The painted versions are likely to chip over time through normal wear and tear, creating small crevasses for bacteria to call home. No such worries when working this beautiful, brushed stainless press.
Overall height is 35" and basket height is 18.5". A press cycle averages around 40 minutes.
Please Note: Due to the size of the carton this wine press is packaged in, it ships as an oversized item, which is why the shipping weight below is listed as 75lb. In reality the press weighs closer to 35lb.
Includes:
Complete press assembly
Inner mesh bag (to keep fruit from getting in the stainless basket and make cleanup easier)
Plastic "spray-protection bag" to keep juice from squirting out
Fittings to connect garden hose
Instruction manual
Presses ship in a corrugated box. Minor assembly (attaching legs) is required before use
1 Year Warranty on all parts!
Click here for a PDF of Speidel's Bladder Press Manual
FAQ:
Can the press be operated with air pressure?
No. These are hydraulic presses that may only be operated with water. When operating with compressed air, there is a risk of explosion and a very high risk of injury if the membrane bursts due to excess pressure or damage.
Is a minimum water pressure required?
In order to ensure the function and the best possible yield, there should be a minimum water pressure of 2-2.5 bar on the press.
What if the water supply delivers more than 3 bar?
In principle, this is not a problem, as if the water pressure inside the press exceeds 3 bar, the pressure relief valve opens and there is no pressure-related damage.
How many apples make how much juice?
On average, 50kg (110 lbs) of apples produce around 30-35L (8-9 gal) of juice, depending on the variety and quality of the apples.
Replacement inner mesh bag for Marchisio Stainless Bladder Presses. This nylon sack fits just inside the stainless pressing screen prior to loading the press and provides a quick and easy way to manage the pressed pomace.
300L -- WE170
450L -- WE175
Replacement outer plastic cover for Marchisio Stainless Bladder Presses. This cover fits over the closed press during the pressing operation in order to collect any juice spray and direct it down to the trough at the bottom of the press.
300L -- WE170
450L -- WE175
Replaces entire bottom valve assembly on the 90L Speidel bladder presses. Includes connection for hose inlet, drain valve and safety blow-off valve on a brass tree.
High-capacity, commercial-grade stainless steel fruit press
Bladder press offers an effortless process that is more efficient and gentler on the fruit
Can be used with 3/4 hose and water supply that provides at least 36 psi of pressure
Rotating basket allows for easy disposal of the pressed grapes
Mounted to welded frame with rolling casters for smooth mobility around the winery
Made in Italy by Marchisio
Bladder presses offer a gentler yet more efficient press with less operator effort and the ultimate in press-control. You will extract more juice and less tannins. Attach your water supply line to the 3/4" barbed water inlet at the base of the unit. Water fills up the interior rubber bladder which expands and presses the grapes against the outer stainless steel screen. 35 p.s.i water pressure (2.5 bar) is the maximum pressure you would need to operate. Two sleeves are provided with the press. One a mesh sleeve is placed inside the press and the other is an outer plastic sleeve that is placed over the top of the press to keep the pressed fruit from squirting out. After pressing, the entire stainless basket rotates and the inner mesh sleeve can be pulled out with most of the pressed grapes coming with it. We use this press in our own small production. A platform was built for the press to sit on so that when we rotate the basket we can dump directly into a macrobin. Use a must pump to pump up into the press. In each press load we do approximately 110 gallons of red wine must (letting free run on through) which works out to be about 3/4 of a macrobin. We can press 7 tons of fruit in a long day.
80 gallon capacity (not including bladder.) 85" Overall height with a basket diameter of 25.5". A great press for the small winery. We used this press in 2004 to press 7 tons of cabernet. A local winery used two of them side by side to press over 50 tons. A joy to use.
Click here for a PDF of the MoreWine Bladder Press Manual.
FAQ:
Can the press be operated with air pressure?
No. These are hydraulic presses that may only be operated with water. When operating with compressed air, there is a risk of explosion and a very high risk of injury if the membrane bursts due to excess pressure or damage.
Is a minimum water pressure required?
In order to ensure the function and the best possible yield, there should be a minimum water pressure of 2-2.5 bar on the press.
What if the water supply delivers more than 3 bar?
In principle, this is not a problem, as if the water pressure inside the press exceeds 3 bar, the pressure relief valve opens and there is no pressure-related damage.
How many apples make how much juice?
On average, 50kg (110 lbs) of apples produce around 30-35L (8-9 gal) of juice, depending on the variety and quality of the apples.
Replacement bladder for the 300L & 450L Marchisio Bladder Presses (WE170/WE175).
Please note: the color of the bladder may differ from what's pictured.
Replaces entire bottom valve assembly on the 40L Speidel bladder presses. Includes connection for hose inlet, drain valve and safety blow-off valve on a brass tree.
High-capacity, commercial-grade stainless steel fruit press
Bladder press offers an effortless process that is more efficient and gentler on the fruit
Can be used with any standard garden hose and water supply that provides at least 36 psi of pressure
Rotating basket allows for easy disposal of the pressed grapes
Mounted to welded frame with rolling casters for smooth mobility around the winery
Made in Italy by Marchisio
Bladder presses offer a gentler yet more efficient press with less operator effort and the ultimate in press-control. You will extract more juice and less tannins. Attach a standard garden hose to the included hose fitting. Water fills up the interior rubber bladder which expands and presses the grapes against the outer stainless steel screen. 35 p.s.i water pressure (2.5 bar) is the maximum pressure you would need to operate.
Two sleeves are provided with the press. One a mesh sleeve is placed inside the press and the other is an outer plastic sleeve that is placed over the top of the press to keep the pressed fruit from squirting out. After pressing, the entire stainless basket rotates and the inner mesh sleeve can be pulled out with most of the pressed grapes coming with it.
We use this press in our own small production. A platform was built for the press to sit on so that when we rotate the basket we can dump directly into a macrobin. Use a Must Pump (PMP565) to pump fermented grapes up into the press.
118 gallon capacity (not including bladder.)
Click here for a PDF of the MoreWine Bladder Press Manual.
FAQ:
Can the press be operated with air pressure?
No. These are hydraulic presses that may only be operated with water. When operating with compressed air, there is a risk of explosion and a very high risk of injury if the membrane bursts due to excess pressure or damage.
Is a minimum water pressure required?
In order to ensure the function and the best possible yield, there should be a minimum water pressure of 2-2.5 bar on the press.
What if the water supply delivers more than 3 bar?
In principle, this is not a problem, as if the water pressure inside the press exceeds 3 bar, the pressure relief valve opens and there is no pressure-related damage.
How many apples make how much juice?
On average, 50kg (110 lbs) of apples produce around 30-35L (8-9 gal) of juice, depending on the variety and quality of the apples.
This is the threaded manifold which is used on the bottom of the press to join the water inlet, pressure relief and pressure gauge assemblies to one another and to the main center shaft of the press.
DOES NOT WORK on Speidel presses, which have a different bottom assembly.
This is the automatic pressure relief valve for the bottom assembly on all Speidel bladder presses. This valve prevents you from over-pressurizing the bladder and rupturing it.
Replaces entire bottom valve assembly on the 180L Speidel bladder presses. Includes connection for hose inlet, drain valve and safety blow-off valve on a brass tree.
