Filtering Wine is a key step for some specific styles and can lead to a brilliantly clear & bright finished glass of wine. We carry absolutely everything you need to filter wine and home! Whether you’re looking for wine pumps, plate filters or wine filter pads and More! we got you covered. Take advantage of our excellent customer service and fast & free shipping today!
The Buon Vino 6-Pad Wine Filter offers twice the filtering capacity of the Buon Vino 3-pad wine filter. One of the major bummers of filtering is when you are all set up and everything is flowing along nicely and then your filter clogs. You have to stop your operation and change pads. If you are homewinemaker filtering 60 or more gallons we recommend you step up to the Buon Vino 6 from the Buon Vino 3.
Filter package includes 8' of 1/2 ID tubing on the input side and 4' of 1/2" ID tubing on the output side. Input side includes sediment tip but we recommend our 1/2" Racking set up (R310 or R315). The output side comes with a hook for hanging to the side of the carboy. You may also want a racking cane (R373 or R376) on this output side so your receiving vessel fills from the bottom instead of the top (to reduce oxidation.)
Technical Specifications:
Delf-priming pump
Filtering surface area of 2400 square cm
Filtering rate: Approximately 270L per Hour
Can utilize 3 grades of pads: coarse, polish, and sterilizing
Filter Pads sold separately
Dimensions: 51 cm (length) x 26 cm (width) x 46 cm (height)
Weight: 14 kilograms
Individual Noryl plates, 20cm x 20cm, for adding to one of our existing plate filters. Each filter we sell lists the maximum number of plates that the filter can contain. These are made from heat resistant Noryl type plastic, allowing you to sterilize with steam if you choose.
Replacement o-ring for Enolmatic/Master filters - WE632, WE634, WE636
Please note: the Enolmatic/Master filter has two o-rings. If you need to replace both o-rings please select a quantity of 2.
Filter wine and fill bottles in one pass by pairing the Tandem Filter Housing with the Enolmaster Bottle Filler
Installs in-line with the Enolmaster. The vacuum will draw wine from the storage tank, through the filters, and into the bottle
Includes tubing to connect to Enolmaster Filling Machine
Alcohol tolerance up to 18% ABV

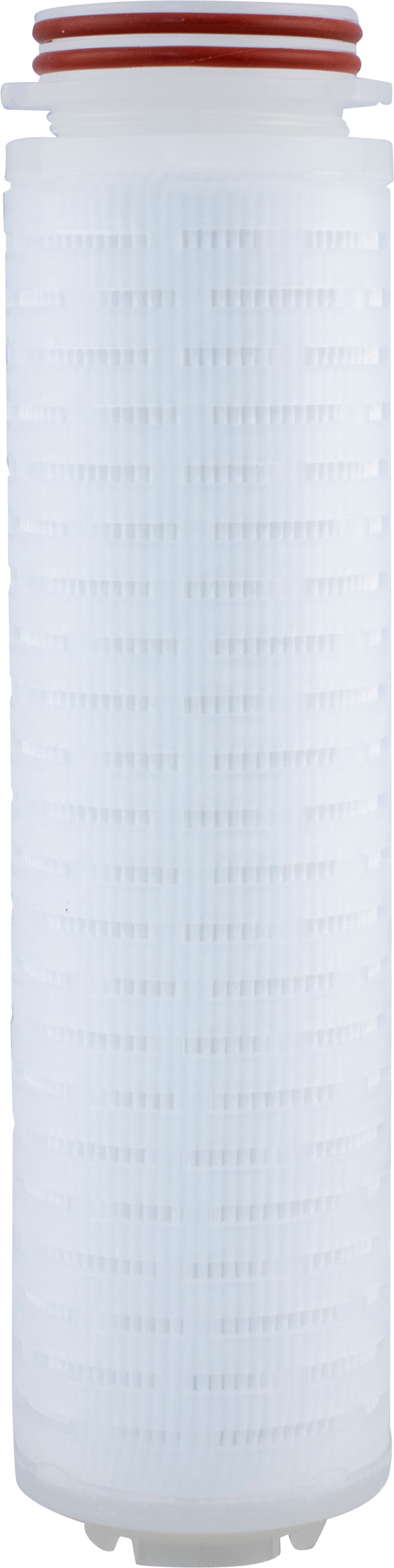

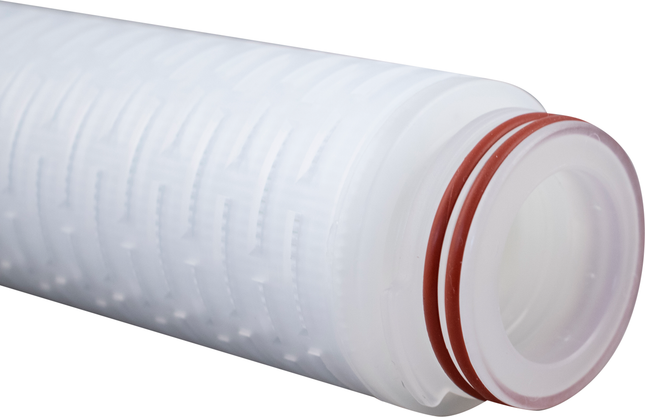

Filter Cartridges sold separately and listed at the bottom of the page
The Enolmaster Tandem Professional Filter Housing is designed to operate in conjunction with the Enolmaster Bottle Filling Machine. Enolmaster Tandem helps you save time by filtering and bottling at the same time.
Place the filters in the housing and attach the hoses, then open the bypass valve on top of the filter housing. Place the Tandem Filter Housing inline between the product and the Enolmaster Filler. The Enolmaster Filling Machine draws the product from your tank and will pull the liquid through your filter housing, into the bottle.
Easy to Use
The Tandem professional filter housing in conjunction with the Enolmaster professional vacuum filler. The machine creates the vacuum inside the bottle by sucking the liquid from the main container. Then the liquid is easily filtered and bottled in a single operation.
Preserves the Product
The filtering system is designed to preserve the integrity of the product. The filtering cartridges retain only the unwanted particles without altering the organoleptic qualities of the product.
Easy to Clean
The Tandem professional filter housing is easily cleaned after each use. In this way you will always have maximum hygiene in the bottling process.
Please note: Recommended for use with wine and beer only. Use with spirits and liqueurs above 18% ABV may result in damage to the filter housing.
This pressurizable tank is a great accessory for the FIL45 Plate Filter. Pushing beer/wine through the filter using pressure is much more consistent and faster process than using gravity alone. And with this tank you can use pressure to filter without needing a whole CO2 or Nitrogen/Argon setup. Comes with a funnel top and stable base maintaining an excellent balance. Please refer to the manual below for complete instructions.
BPA Free
Made from high density polyethylene
Max Temp Rating: 167°F (75°C)
Includes 35" length of 5/16" ID x 7/16" OD tubing.
Plate filter not included.
Due to high demand, this item is currently out of stock. Be the first to receive your items by placing a pre-order today. We will automatically ship this to you when we receive more inventory.
Replacement End Plate for your 20x20cm Plate & Frame filter
Pump side end plate pictured (WE912C). WE912D has nipple on one side, where WE912C is a flat circle on either side.
40cm x 40cm filter pads made for 40x40 plate filters. 9-10 micron pads are considered to be a "very rough" filtration and are typically used to prepare the wine to be filtered by finer pads, usually either 5-7 micron; or also to pre-filter white musts prior to fermentation. Please note that all pad filters are rated 'nominal', meaning that about 90-95% of all particulate matter at the micron rating will be filtered out. There will always be a little bit of smaller material that is also filtered out, as well as some larger material that will make it through.
The filters can be sterilized by in-line steam, auto-claving, dry heat, hot water or chemical methods. We choose to run Saniclean (CL27) solution through the pads followed by sterile water or a small amount of wine that is then discarded. After the solution is run through the pads, and the pads have softened, the filter will need to be re-tightened.
Each pad has an entry side and an exit side, distinguishable by their different textures. The entry side is a billowy type texture, frequently called the "rough" side; and the exit side has a crosshatch pattern and is commonly called the "smooth" side. For more information on how to load filter sheets into your plate and frame filter, see our Guide to Plate Filtering.
40 cm x 40 cm filter pads fit all standard 40x40 plate filters, which are typically used in professional applications
6 Micron rating provides a rough filtration that removes large particulates, often followed by a finer filtration
Rough filtration is necessary on beverages with heavy sedimentation as the finer pads will clog without prefiltering
Easily sterilizable via heat or steam
Manufactured by Filtrox, the world's leading producer of high-quality filtration media
40cm x 40cm filter pads made for 40x40 plate filters. 6 micron pads are considered to be a "rough" filtration and are typically used to prepare the beverage to be filtered by finer pads, usually either 2-3 micron or 1.5 micron depending on tastes and objectives. Please note that all pad filters are rated 'nominal', meaning that about 90-95% of all particulate matter at the micron rating will be filtered out. There will always be a little bit of smaller material that is also filtered out, as well as some larger material that will make it through.
The filters can be sterilized by in-line steam, auto-claving, dry heat, hot water or chemical methods. We choose to run Saniclean solution through the pads followed by sterile water or a small amount of beverage that is then discarded. After the solution is run through the pads, and the pads have softened, the filter will need to be re-tightened.
Each pad has an entry side and an exit side, distinguishable by their different textures. The entry side is a billowy type texture, frequently called the "rough" side; and the exit side has a crosshatch pattern and is commonly called the "smooth" side. For more information on how to load filter sheets into your plate and frame filter, see our Guide to Plate Filtering.
Filtrox Group is a producer of filter sheets for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter sheets are manufactured of specially selected raw materials and conform to FDA and FCC regulations.
Micron Rating: 4 - 9
Micron Mid Point: 6
Versafix XE 34 Filter Sheets
Wine
Use: Clarifying filtration
Max. Recommended Flow Rate: 26 gal/hr (96 L/hr)
Max. Recommended Pressure Differential: 29-36 psi (2.0-2.5 Bar)
Fruit Wine or Fruit Juice
Use: Clarifying filtration
Max. Recommended Flow Rate: 21 gal/hr (80 L/hr)
Max. Recommended Pressure Differential: 22-36 psi (1.5-2.5 Bar)
Beer
Use: Clarifying filtration of beer, visually clear
Max. Recommended Flow Rate: 13-15 gal/hr (48-56 L/hr)
Max. Recommended Pressure Differential: 22 psi (1.5 Bar)
Cold Brew Coffee
Use: Clarifying filtration
Max. Recommended Flow Rate: 21 gal/hr (80 L/hr)
Max. Recommended Pressure Differential: 29 psi (2.0 Bar)
40 cm x 40 cm filter pads fit all standard 40x40 plate filters, which are typically used in professional applications
10 Micron rating provides a rough filtration that removes large particulates, often followed by a finer filtration
Rough filtration is necessary on beverages with heavy sedimentation as the finer pads will clog without prefiltering
Easily sterilizable via heat or steam
Manufactured by Filtrox, the world's leading producer of high-quality filtration media
40cm x 40cm filter pads made for 40x40 plate filters. 10 micron pads are considered to be a "rough" filtration and are typically used to prepare the beverage to be filtered by finer pads, usually either 2-3 micron or 1.5 micron depending on tastes and objectives. Please note that all pad filters are rated 'nominal', meaning that about 90-95% of all particulate matter at the micron rating will be filtered out. There will always be a little bit of smaller material that is also filtered out, as well as some larger material that will make it through.
The filters can be sterilized by in-line steam, auto-claving, dry heat, hot water or chemical methods. We choose to run Saniclean solution through the pads followed by sterile water or a small amount of beverage that is then discarded. After the solution is run through the pads, and the pads have softened, the filter will need to be re-tightened.
Each pad has an entry side and an exit side, distinguishable by their different textures. The entry side is a billowy type texture, frequently called the "rough" side; and the exit side has a crosshatch pattern and is commonly called the "smooth" side. For more information on how to load filter sheets into your plate and frame filter, see our Guide to Plate Filtering.
Filtrox Group is a producer of filter sheets for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter sheets are manufactured of specially selected raw materials and conform to FDA and FCC regulations.
Micron Rating: 6 - 15
Micron Mid Point: 10
Versafix XE 24 Filter Sheets
Wine
Use: Prefiltration
Max. Recommended Flow Rate: 30 gal/hr (112 L/hr)
Max. Recommended Pressure Differential: 36 psi (2.5 Bar)
Fruit Wine or Fruit Juice
Use: Prefiltration
Max. Recommended Flow Rate: 30 gal/hr (112 L/hr)
Max. Recommended Pressure Differential: 36 psi (2.5 Bar)
Spirits
Use: Coarse filtration of liquors, spirits
Max. Recommended Flow Rate: 21-30 gal/hr (80-112 L/hr)
Max. Recommended Pressure Differential: 36 psi (2.5 Bar)
Rolling cart wine plate filter
Plates made from food-grade Noryl
Built-in stainless centrifugal pump

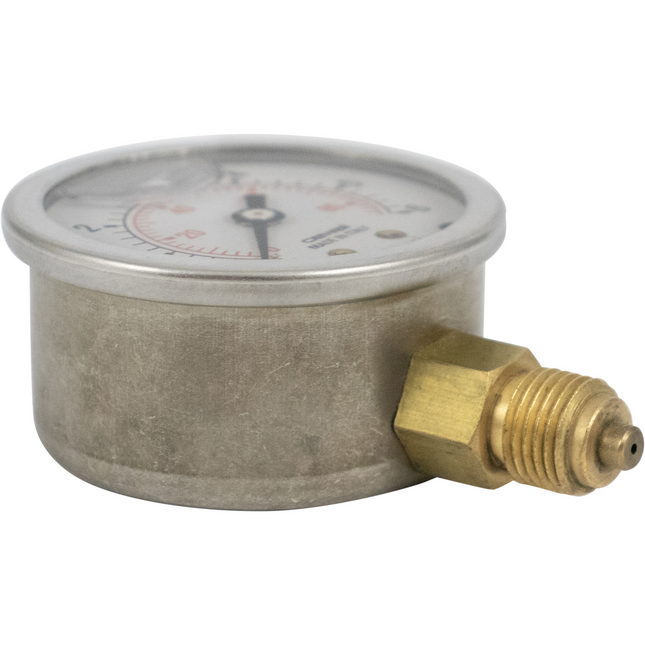

Built-in pressure gauge
1.5" tri-clamp inlet/outlet
600L/h wine filtering capacity
Made in Italy by Marchisio
Small commercial plate filter that will accomodate 20 20cm x 20cm plates. Included 110v 1/2hp, stainless motor will pump wine from your container and push it through the filter and into your aging tank or bottle filler.
Features:
304 Stainless Steel Construction
Four Casters for easy movement. Two of the casters have locks
Built-in centrifugal stainess steel pump with on/off switch
21 Food-Grade Noryl plastic plates included.
Double filtration kit available
Built-in pressure gauge
Maximum pump pressure is 2.5 bar (35 p.s.i.)
Up to 600L (158 gal) Flow rate per hour
620x420x560mm/24x16.5x22 inches
90 lbs
1.5" Tri-Clamp inlet and outlet
Pads should be placed in the machine rough-smooth-smooth-rough

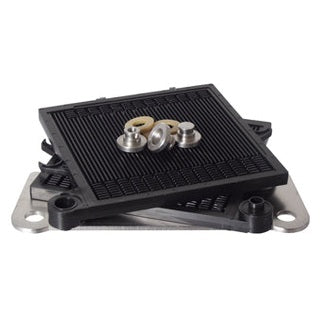

Installs in one of our 20x20 wine plate filter units to allow you to change pore size of your pads halfway through the filter. For example, turn a 20 plate filter into two 10 plate filters for sequential rough (7 micron) then polish (3 micron) filtrations in one unit. Fits all of our 20cm x 20cm plate filters. Includes stainless plate and 2 black noryl end plates that install on each side of the stainless plate.
Rolling cart wine plate filter
Plates made from food-grade Noryl
Built-in stainless centrifugal pump
Built-in pressure gauge
1.5" tri-clamp inlet/outlet
1,200L/h wine filtering capacity
Made in Italy by Marchisio
Commercial plate filter featuring 41 20cm x 20cm plates. Included 110v 1/2hp, stainless motor will pump wine from your container and push it through the filter and into your aging tank or bottle filler.
Features:
304 Stainless Steel Construction
Four Casters for easy movement. Two of the casters have locks
Built-in centrifugal stainess steel pump with on/off switch.
41 Food-Grade Noryl plastic plates included.
Double filtration kit available
Built-in pressure gauge
Maximum pump pressure is 2.5 bar (35 p.s.i.)
Up to 1200L (317 gal) Flow rate per hour
940x480x590mm/37x19x23 inches
114 lbs
1.5" Tri-Clamp inlet and outlet
Pads should be placed in the machine rough-smooth-smooth-rough
Minimum number of plates that can be used is 30

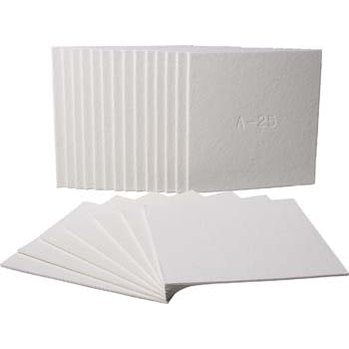

40cm x 40cm filter pads made for 40x40 plate filters. 1.5 micron pads are for fine polishing of the wine, or for preparing wines to go through a sterile cartridge filter. Please note that all pad filters are rated 'nominal', meaning that about 90-95% of all particulate matter at the micron rating will be filtered out. There will always be a little bit of smaller material that is also filtered out, as well as some larger material that will make it through.
The filters can be sterilized by in-line steam, auto-claving, dry heat, hot water or chemical methods. We choose to run Saniclean (CL27) solution through the pads followed by sterile water or a small amount of wine that is then discarded. After the solution is run through the pads, and the pads have softened, the filter will need to be re-tightened.
Each pad has an entry side and an exit side, distinguishable by their different textures. The entry side is a billowy type texture, frequently called the "rough" side; and the exit side has a crosshatch pattern and is commonly called the "smooth" side. For more information on how to load filter sheets into your plate and frame filter, see our Guide to Plate Filtering.
Noryl plates, 40cm x 40cm for adding to middle of filter. 2 gaskets are included and installed on each plate. Usually used to add plates to one of the 40x40 filters we sell. Each filter lists the maximum number of plates it will accept. Made from heat resistant Noryl plastic, allowing you sterilize with steam if you choose.

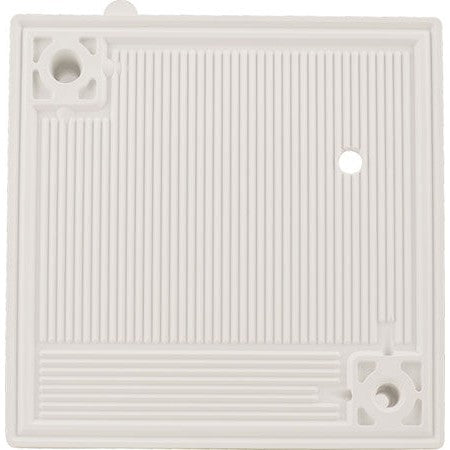

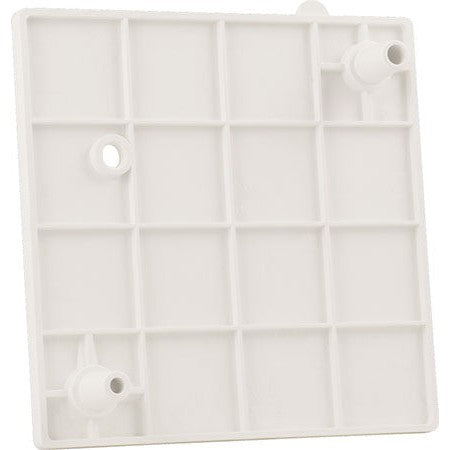

Replacement (wine-in, wine-out) end plate for the Buon Vino Super Jet Filter.
If you love the brilliance you get when you filter with the Buon Vino Super Jet Filter you’ll be thrilled to know that you can get replacements parts for maintenance and repair! This is a replacement end-plate for the Buon Vino Super Jet filter. It features a one-sided filter plate with nozzles for wine in and wine out, and a threaded hole for the pressure gauge.
40 cm x 40 cm filter pads fit all standard 40x40 plate filters, which are typically used in professional applications
2 Micron rating are for general polishing of beverages that do not need to be sterile filtered
Easily sterilizable via heat or steam
Manufactured by Filtrox, the world's leading producer of high-quality filtration media
40cm x 40cm filter pads made for 40x40 plate filters. 2 micron pads are for general polishing of beverages that do not need to be sterile filtered. Please note that all pad filters are rated 'nominal', meaning that about 90-95% of all particulate matter at the micron rating will be filtered out. There will always be a little bit of smaller material that is also filtered out, as well as some larger material that will make it through.
The filters can be sterilized by in-line steam, auto-claving, dry heat, hot water or chemical methods. We choose to run Saniclean solution through the pads followed by sterile water or a small amount of beverage that is then discarded. After the solution is run through the pads, and the pads have softened, the filter will need to be re-tightened.
Each pad has an entry side and an exit side, distinguishable by their different textures. The entry side is a billowy type texture, frequently called the "rough" side; and the exit side has a crosshatch pattern and is commonly called the "smooth" side. For more information on how to load filter sheets into your plate and frame filter, see our Guide to Plate Filtering.
Filtrox Group is a producer of filter sheets for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter sheets are manufactured of specially selected raw materials and conform to FDA and FCC regulations.
Micron Rating: 1.5 - 3.0
Micron Mid Point: 2
Versafix XE 64 Filter Sheets
Wine
Use: Clarifying filtration
Max. Recommended Flow Rate: 26 gal/hr (96 L/hr)
Max. Recommended Pressure Differential: 29-36 psi (2.0-2.5 Bar)
Spirits
Use: Fine filtration of cognac and whiskey chill haze removal
Max. Recommended Flow Rate: 21 gal/hr (80 L/hr)
Max. Recommended Pressure Differential: 22 psi (1.5 Bar)
Beer
Use: Fine filtration, with fewer yeast cells
Max. Recommended Flow Rate: 6.5 gal/hr (24 L/hr)
Max. Recommended Pressure Differential: 22 psi (1.5 Bar)
Seltzer
Use: Fine filtration of seltzer base
Max. Recommended Flow Rate: 30 gal/hr (112 L/hr)
Max. Recommended Pressure Differential: 36 psi (2.5 Bar)
Cold Brew Coffee
Use: Fine filtration
Max. Recommended Flow Rate: 21 gal/hr (80 L/hr)
Max. Recommended Pressure Differential: 29 psi (2.0 Bar)
40 cm x 40 cm filter pads fit all standard 40x40 plate filters, which are typically used in professional applications
4 Micron rating are for general polishing of beverages that do not need to be sterile filtered
Easily sterilizable via heat or steam
Manufactured by Filtrox, the world's leading producer of high-quality filtration media
40cm x 40cm filter pads made for 40x40 plate filters. 4 micron pads are for general polishing of beverages that do not need to be sterile filtered. Please note that all pad filters are rated 'nominal', meaning that about 90-95% of all particulate matter at the micron rating will be filtered out. There will always be a little bit of smaller material that is also filtered out, as well as some larger material that will make it through.
The filters can be sterilized by in-line steam, auto-claving, dry heat, hot water or chemical methods. We choose to run Saniclean solution through the pads followed by sterile water or a small amount of beverage that is then discarded. After the solution is run through the pads, and the pads have softened, the filter will need to be re-tightened.
Each pad has an entry side and an exit side, distinguishable by their different textures. The entry side is a billowy type texture, frequently called the "rough" side; and the exit side has a crosshatch pattern and is commonly called the "smooth" side. For more information on how to load filter sheets into your plate and frame filter, see our Guide to Plate Filtering.
Filtrox Group is a producer of filter sheets for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter sheets are manufactured of specially selected raw materials and conform to FDA and FCC regulations.
Micron Rating: 3 - 6
Micron Mid Point: 4
Versafix XE 44 Filter Sheets
Wine
Use: Clarifying filtration
Max. Recommended Flow Rate: 26 gal/hr (96 L/hr)
Max. Recommended Pressure Differential: 29-36 psi (2.0-2.5 Bar)
Fruit Wine or Fruit Juice
Use: Clarifying filtration
Max. Recommended Flow Rate: 21 gal/hr (80 L/hr)
Max. Recommended Pressure Differential: 22-36 psi (1.5-2.5 Bar)
Beer
Use: Middle fine filtration, with only a few yeast
Max. Recommended Flow Rate: 8.5 gal/hr (32 L/hr)
Max. Recommended Pressure Differential: 22 psi (1.5 Bar)
40cm x 40cm filter pads made for 40x40 plate filters. 5-7 micron pads are considered to be a "rough" filtration and are typically used to prepare the wine to be filtered by finer pads, usually either 2-3 micron or 1.5 micron depending on the winemaker's tastes and objectives. Please note that all pad filters are rated 'nominal', meaning that about 90-95% of all particulate matter at the micron rating will be filtered out. There will always be a little bit of smaller material that is also filtered out, as well as some larger material that will make it through.
The filters can be sterilized by in-line steam, auto-claving, dry heat, hot water or chemical methods. We choose to run Saniclean (CL27) solution through the pads followed by sterile water or a small amount of wine that is then discarded. After the solution is run through the pads, and the pads have softened, the filter will need to be re-tightened.
Each pad has an entry side and an exit side, distinguishable by their different textures. The entry side is a billowy type texture, frequently called the "rough" side; and the exit side has a crosshatch pattern and is commonly called the "smooth" side. For more information on how to load filter sheets into your plate and frame filter, see our Guide to Plate Filtering.
Benchtop plate filter for wine or oil
Plates made from food-grade PPA
Built-in ENOS 20 centrifugal pump
Stainless ball valve and sample tap
280L/h wine filtering capacity
Made in Italy by EnoItalia
Benchtop style wine plate filter made from AISI 304 stainless steel with 20x20 food-grade PPA filter plates (10 plates). Includes ENOS 20 centrifugal pump.
Features:
Stainless ball valve
Stainless sample tap
Pressure gauge
220V single phase Input Voltage Required
Bare Cord for wiring with the appropriate plug
Wine Capacity: 130-280 L/h (34-73 gal/h)
Oil Capacity: 130 L/h (34 gal/h)
Dimensions: 23.6" L x 12.9" W x 17.3" H
Weight: 64 lbs
Please Note: This item may come with a bare cord or with a European style plug. You will need a professional electrician to wire the pump with the appropriate plug.
20 cm x 20 cm filter pads fit all standard 20x20 plate filters, which are typically used by home winemakers
6 Micron rating provides a rough filtration that removes large particulates, often followed by a finer filtration
Rough filtration is necessary on wines with heavy sedimentation as the finer pads will clog without prefiltering
Easily sterilizable via heat or steam
Manufactured by Filtrox, the world's leading producer of high-quality filtration media
20cm x 20cm filter pads made for 20x20 plate filters. 6 micron pads are considered to be a "rough" filtration and are typically used to prepare the wine to be filtered by finer pads, usually either 2-3 micron or 1.5 micron depending on the winemaker's tastes and objectives. Please note that all pad filters are rated 'nominal', meaning that about 90-95% of all particulate matter at the micron rating will be filtered out. There will always be a little bit of smaller material that is also filtered out, as well as some larger material that will make it through.
The filters can be sterilized by in-line steam, auto-claving, dry heat, hot water or chemical methods. We choose to run Saniclean solution through the pads followed by sterile water or a small amount of wine that is then discarded. After the solution is run through the pads, and the pads have softened, the filter will need to be re-tightened.
Each pad has an entry side and an exit side, distinguishable by their different textures. The entry side is a billowy type texture, frequently called the "rough" side; and the exit side has a crosshatch pattern and is commonly called the "smooth" side. For more information on how to load filter sheets into your plate and frame filter, see our Guide to Plate Filtering.
Filtrox Group is a producer of filter sheets for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter sheets are manufactured of specially selected raw materials and conform to FDA and FCC regulations.
Micron Rating: 4 - 9
Micron Mid Point: 6
Versafix XE 34 Filter Sheets

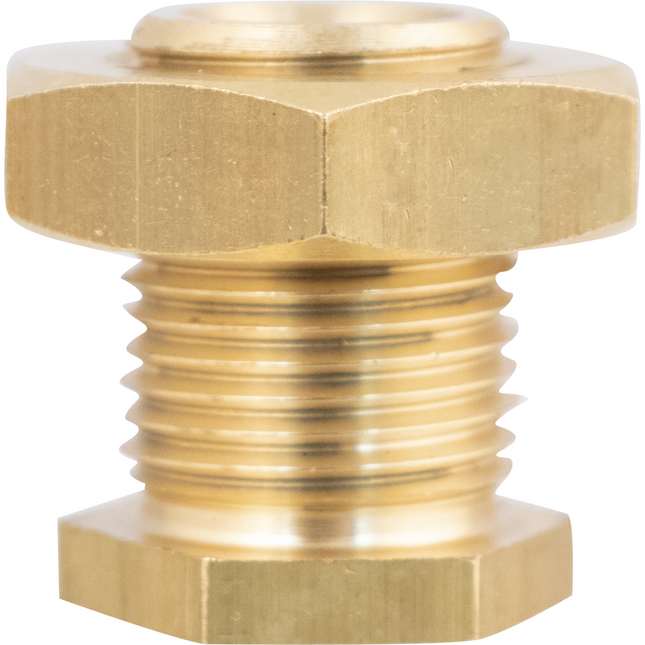

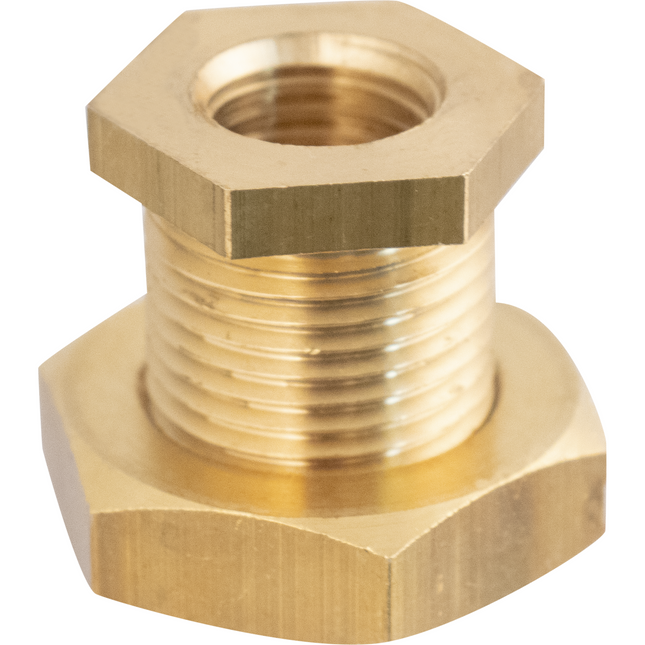

Replacement female threaded brass piece which mounts into the fixed stainless plate (non-pump side) on an OMAC 20x20 plate and frame filter. This is the part of the filter that the spindle threads through in order to push the floating plate inward and close the filter once the pads have been installed. They occasionally strip out due to the force applied when sealing the filter for operation.
This pump is a direct replacement for the standard stainless centrifugal pump that comes included with our 20x20cm plate and frame filters. 110v Single Phase. Please note that while this pump is physically very similar to our PMP100 Stainless Centrifugal Pump, the electric motor is not as powerful and this is not meant to be a substitute for the PMP100.
Compatible with WE903,WE905,WE906N,WE908N
Rolling cart plate filter for wine or oil
Plates made from food-grade PPA
Built-in ENOS 20 centrifugal pump
Stainless ball valve and sample tap
900L/h wine filtering capacity
Made in Italy by EnoItalia
Made from AISI 304 stainless steel with 20x20 food-grade PPA filter plates (20 plates). Includes ENOS 20 pump with stainless body and impeller. Mounted to trolley cart with rolling casters.
Features:
Stainless ball valve
Stainless sample tap
Pressure gauge
220V single phase Input Voltage Required
Wired with European-style 2-prong plug*
Wine Capacity: 600-900 L/h (158-237 gal/h)
Oil Capacity: 600 L/h (158 gal/h)
Pump Barbs: 20 mm (0.78")
Dimensions: 23.6" L x 19.7" W x 29.5" H
Weight: 79 lbs
*You will need a certified electrician to re-wire the unit with the appropriate 220V plug.
40 cm x 40 cm filter pads fit all standard 40x40 plate filters, which are typically used in professional applications
0.5 Micron pads remove 99.999% of bacteria to promote sterility in the bottle
Easily sterilizable via heat or steam
Manufactured by Filtrox, the world's leading producer of high-quality filtration media
40cm x 40cm filter pads made for 40x40 plate filters. Pads rated 0.5 micron remove 99.999% of bacteria. This pad is the right choice when you want to promote sterility in the bottle, although do please note that the pad does not remove 100% of bacteria - only a cartridge filter can do so.
The filters can be sterilized by in-line steam, auto-claving, dry heat, hot water or chemical methods. We choose to run Saniclean solution through the pads followed by sterile water or a small amount of beverage that is then discarded. After the solution is run through the pads, and the pads have softened, the filter will need to be re-tightened.
Each pad has an entry side and an exit side, distinguishable by their different textures. The entry side is a billowy type texture, frequently called the "rough" side; and the exit side has a crosshatch pattern and is commonly called the "smooth" side. For more information on how to load filter sheets into your plate and frame filter, see our Guide to Plate Filtering.
Filtrox Group is a producer of filter sheets for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter sheets are manufactured of specially selected raw materials and conform to FDA and FCC regulations.
Micron Rating: 0.4 - 0.6
Micron Mid Point: 0.5
Fibrafix AF 130 Filter Sheets
Wine
Use: General sterile filtration
Max. Recommended Flow Rate: 15 gal/hr (56 L/hr)
Max. Recommended Pressure Differential: 17 psi (1.2 Bar)
Fruit Wine or Fruit Juice
Use: Cold sterile filtration of fruit juice
Max. Recommended Flow Rate: 15 gal/hr (56 L/hr)
Max. Recommended Pressure Differential: 17 psi (1.2 Bar)
Beer
Use: Yeast and bacteria removal
Max. Recommended Flow Rate: 5 gal/hr (19 L/hr)
Max. Recommended Pressure Differential: 15 psi (1.0 Bar)
20 cm x 20 cm filter pads fit all standard 20x20 plate filters, which are typically used by home winemakers
11 Micron rating provides a rough filtration that removes large particulates, often followed by a finer filtration
Rough filtration is necessary on wines with heavy sedimentation as the finer pads will clog without prefiltering
Easily sterilizable via heat or steam
Manufactured by Filtrox, the world's leading producer of high-quality filtration media
20cm x 20cm filter pads made for 20x20 plate filters. 11 micron pads are considered to be a "rough" filtration and are typically used to prepare the wine to be filtered by finer pads, usually either 2-3 micron or 1.5 micron depending on the winemaker's tastes and objectives. Please note that all pad filters are rated 'nominal', meaning that about 90-95% of all particulate matter at the micron rating will be filtered out. There will always be a little bit of smaller material that is also filtered out, as well as some larger material that will make it through.
The filters can be sterilized by in-line steam, auto-claving, dry heat, hot water or chemical methods. We choose to run Saniclean solution through the pads followed by sterile water or a small amount of wine that is then discarded. After the solution is run through the pads, and the pads have softened, the filter will need to be re-tightened.
Each pad has an entry side and an exit side, distinguishable by their different textures. The entry side is a billowy type texture, frequently called the "rough" side; and the exit side has a crosshatch pattern and is commonly called the "smooth" side. For more information on how to load filter sheets into your plate and frame filter, see our Guide to Plate Filtering.
Filtrox Group is a producer of filter sheets for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter sheets are manufactured of specially selected raw materials and conform to FDA and FCC regulations.
Micron Rating: 5 - 18
Micron Mid Point: 11
Versafix XE 24 Filter Sheets

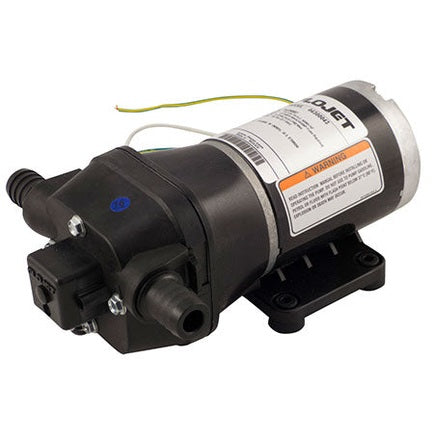

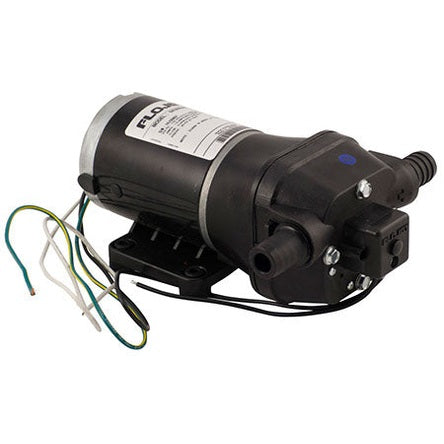

Diaphragm Pump, self priming. 3/4" barbed fittings. Pump is not wired, it requires a plug and/or switch with cord to operate. 4.5 gpm. 140° F max temperature.
Rolling cart plate filter for wine or oil
Plates made from food-grade PPA
Built-in ENOS 20 centrifugal pump
Stainless ball valve and sample tap
280L/h wine filtering capacity
Made in Italy by EnoItalia
Made from AISI 304 stainless steel with 20x20 food-grade PPA filter plates (10 plates). Includes ENOS 20 pump with stainless body and impeller. Mounted to trolley cart with rolling casters.
Features:
Stainless ball valve
Stainless sample tap

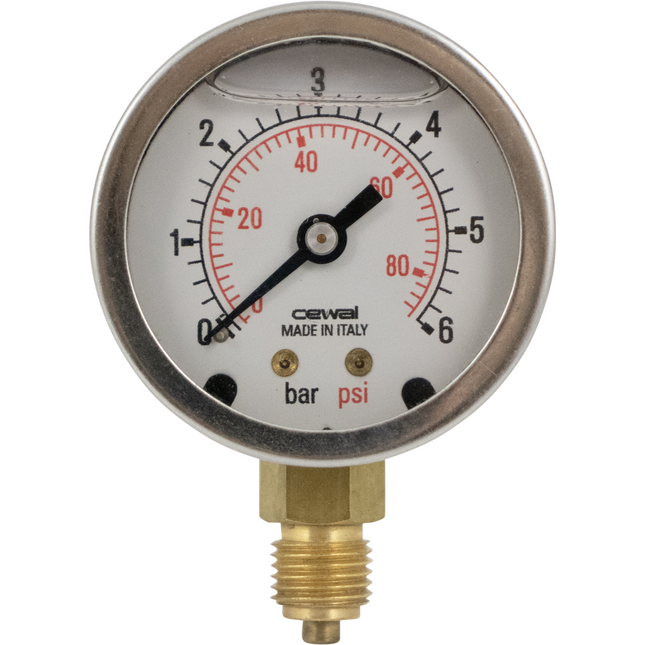

Pressure gauge
220V single phase Input Voltage Required
Wired with European-style 2-prong plug*
Wine Capacity: 130-280 L/h (34-73 gal/h)
Oil Capacity: 130 L/h (34 gal/h)
Pump Barbs: 20 mm (0.78")
Dimensions: 23.6" L x 19.7" W x 29.5" H
Weight: 70.5 lbs
*You will need a certified electrician to re-wire the unit with the appropriate 220V plug. 20 Plate unit pictured.
20 cm x 20 cm filter pads fit all standard 20x20 plate filters, which are typically used by home winemakers
0.5 Micron pads remove 99.999% of bacteria to promote sterility in the bottle
Easily sterilizable via heat or steam
Manufactured by Filtrox, the world's leading producer of high-quality filtration media
20cm x 20cm filter pads made for 20x20 plate filters. Pads rated 0.5 micron remove 99.999% of bacteria. This pad is the right choice when you want to promote sterility in the bottle, although do please note that the pad does not remove 100% of bacteria - only a cartridge filter can do so.
The filters can be sterilized by in-line steam, auto-claving, dry heat, hot water or chemical methods. We choose to run Saniclean solution through the pads followed by sterile water or a small amount of wine that is then discarded. After the solution is run through the pads, and the pads have softened, the filter will need to be re-tightened.
Each pad has an entry side and an exit side, distinguishable by their different textures. The entry side is a billowy type texture, frequently called the "rough" side; and the exit side has a crosshatch pattern and is commonly called the "smooth" side. For more information on how to load filter sheets into your plate and frame filter, see our Guide to Plate Filtering.
Filtrox Group is a producer of filter sheets for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter sheets are manufactured of specially selected raw materials and conform to FDA and FCC regulations.
Micron Rating: 0.4 - 0.6
Micron Mid Point: 0.5
Fibrafix AF 130 Filter Sheets
20 cm x 20 cm filter pads fit all standard 20x20 plate filters, which are typically used by home winemakers
4 Micron rating are for general polishing of wines that do not need to be sterile filtered
Easily sterilizable via heat or steam
Manufactured by Filtrox, the world's leading producer of high-quality filtration media
20cm x 20cm filter pads made for 20x20 plate filters. 4 micron pads are for general polishing of wines that do not need to be sterile filtered. Please note that all pad filters are rated 'nominal', meaning that about 90-95% of all particulate matter at the micron rating will be filtered out. There will always be a little bit of smaller material that is also filtered out, as well as some larger material that will make it through.
The filters can be sterilized by in-line steam, auto-claving, dry heat, hot water or chemical methods. We choose to run Saniclean solution through the pads followed by sterile water or a small amount of wine that is then discarded. After the solution is run through the pads, and the pads have softened, the filter will need to be re-tightened.
Each pad has an entry side and an exit side, distinguishable by their different textures. The entry side is a billowy type texture, frequently called the "rough" side; and the exit side has a crosshatch pattern and is commonly called the "smooth" side. For more information on how to load filter sheets into your plate and frame filter, see our Guide to Plate Filtering.
Filtrox Group is a producer of filter sheets for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter sheets are manufactured of specially selected raw materials and conform to FDA and FCC regulations.
Micron Rating: 3 - 6
Micron Mid Point: 4
Versafix XE 44 Filter Sheets
