This stainless steel thermowell is your best option of monitoring temperatures in the 27L or 55L FermZilla. Since the thermowell installs into the lid, the thermowell will be well positioned in the middle of the fermenter to provide an accurate core temperature reading. On the bottom side of the FermZilla's lid you'll find several convenient drill locations already molded into the plastic. The thermowell is long enough to work with either size FermZilla (or other fermenters!), so if you need to cut the tube down a bit, we recommend using one of these Pipe Cutters. The FermZilla will still be pressurizable after installing the thermowell, just be careful to drill the hole no wider than needed to fit the Duotight bulkheads.
23.6" long (60 cm)
5/16" OD (8 mm)
1/4" ID (7 mm)
Made from 304 stainless steel
Kegland Part number: KL14649
With the FermZilla Pressure Kit you can ferment under pressure, carbonate, and serve without ever needing to move your beer out of the fermenter. The kit inlcudes two stainless female threaded ball lock fittings with barbs, which thread onto the existing openings atop the FermZilla's lid. For the beverage out, you'll have a silicone dip tube with stainless steel float, allowing you to always draw from the clearest beer at the top of the tank. Pick up the Pressure Kit and turn your FermZilla into a true unitank!
The silicone dip tube is 31" long. It will work perfectly as is for the 55L FermZilla. For the 27L model we recommend cutting the dip tube shorter to remove unwanted slack.
With the optional Floating Dip Tube Filter, you can prevent hop material and other solids from ever entering the dip tube. Especially handy when you're pulling samples mid-fermentation!
Fermenting Under Pressure:
The pressure kit allows for fermenting under pressure, which will reduce esters and fusel alcohol production. This means you can ferment at warmer temperatures than you normally would, even making lagers at room temperature. Most commerical beer is fermented under pressure simply due to the size of commercial tanks and the pressure that is created by the column of beer. It is one of the distinct differences between homebrewing and brewing on a commercial scale. The FermZilla's lid already comes with a built-in pressure relief valve that will blow at 35 psi; the pressure kit simply allows you to add CO2 through the ball lock fitting. We strongly recommend that you also purchase an adjustable pressure relief valve, or spunding valve, which allows you to set a lower pressure. It's always a good idea to have two relief valves on the FermZilla anytime the unit is under pressure.
Carbonating, Transferring, and Serving:
When you are fermenting under pressure the beer is already carbonated when you are done fermenting. You can control the level of carbonation by using a spunding valve. This means you can eliminate kegging and serve directly from the fermenter. We love this idea but there will probably still be times that you want to keg. Attach a beer line from the FermZilla's bev out to your keg and enjoy the easiest kegging experience ever. You can also choose to send carbonated beer through a beer filter on the way to your keg. When applying pressure with a CO2 tank also make sure that you have a functional relief valve on your CO2 regulator.
Eliminate Oxidation:
Since the beer always has a CO2 blanket through fermentation and during any transfers out, oxidation is eliminated. When you cold crash you won't be sucking air back in through an airlock.
Key Features:
Ferment beer under pressure to reduce ester and fusel alcohol production
Always draw clear beer with the floating dip tube
Keg beer that has already been carbonated
Use CO2 to push beer into a keg or through a filter into a keg
Eliminate kegging altogether by carbonating and serving directly from the FermZilla
Installation Note: For best performance, ensure there is not an excess amount of slack when the silicone dip tube is installed and shorten it if needed. With the floating dip tube installed on your empty FermZilla, you ideally want the dip tube to hang freely with just enough length for the end of the dup tube to touch the bottom of the tank.
Please note: pressure kit does not include the lid pictured in the example photo. The ball locks and floating dip tube are installed on the FermZilla's existing lid.
The Temp Twister Cooling Coil is the ideal option for maintaining fermentation temperatures in any model FermZilla. Use an IceMaster Glycol Chiller or ice bath with submersible pump to push coolant through the coil when temps get too hot. Designed for the FermZilla but can can be used with virtually any fermenter that has an opening diameter of 4-3/8" or wider. The inlet and outlet are extra long so the coil can be used with every sized FermZilla. In order to cut them to an appropriate length for your application, we recommend this compact pipe cutter.
To install, simply drill two 22 mm (approx. 7/8") holes into the lid of the fermenter and use the included Duotight bulkhead fittings to attach the coil to the lid. The FermZilla will still be pressurizable after installing the Temp Twister, just be careful to drill the holes no wider than needed to fit the Duotight bulkheads.
If you're using the Temp Twister with EVABarrier tubing, we suggest adding 2 x DUO112 to your order to help route your inlet and outlet lines.
Specifications:
Coil Diameter - 4.33"
Coil Height - 14"
Overall Length - 26.75"
Tubing Diameter - 3/8" OD
Made from 304 Stainless Steel
Includes 2 x 9.5 mm Duotight bulkheads
Kegland Part number: KL14618
The lowest price Pressuizable fermentor out there
Prefect for most ales that ferment in 2 weeks or less
Super smooth PET makes cleaning very easy
Transfer to your keg closed and under pressure, oxygen free
PET is a better oxygen barrier than fermentors made of HDPE
Super lightweight yet strong and shatterproof
The FermZilla All Rounder is the most affordable pressurizable fermenter on the market. Although it doesn't feature a dump valve like the FermZilla Conical, the All Rounder carries the same pressure rating, making it an absolute steal if you're looking to ferment under pressure, perform pressure transfers, or want to carbonate and serve directly from the fermenter. The All Rounder is made from super smooth PET that's easy to clean, and the simple design means no nooks or crannies for microbes to hide. With a 4.75" lid opening, you'll have no trouble getting your arm inside to scrub away stubborn krausen rings. As with all FermZilla fermenters, the lid features molded drill locations that make installing accessories like a thermowell or Temp Twister Cooling Coil a breeze.
In order to unlock the full potential of the All Rounder, you'll want to pick up the 55L FermZilla Pressure Kit. The silicone dip tube will be a little long, but you can cut it shorter to the appropriate length. The pressure kit is available with either stainless or plastic ball lock caps.
Why MoreBeer! loves the All Rounder FermZilla:
Super smooth PET makes cleaning very easy.
Pressure rated lid and PET material make for a better oxygen barrier than fermenters made of HDPE.
Lightweight and easy to move around, yet strong enough to be considered shatterproof.
The 4.75" lid opening makes it easy to get your arm inside and clean after use.
The lid is designed for the easy installation of accessories such as a thermowell or cooling coil.
Price! A pressurizable fermenter in this price range is an incredible value, and it opens the door for many cold-side processes that can't be done in a normal carboy or plastic fermenter.
What's Included:
FermZilla 30L All Rounder Fermenter
Stainless Steel Stand
Stainless Steel Handle
Top Lid with PRV (35 psi)
3-Piece Airlock
Adhesive Thermometer
Graduation Sticker
Specs:
30 L (7.9 gal) Total Volume
Pressure Rated to 2.5 Bar (36.2 psi)
Height in Stand - 21.7"
Height w/ Airlock - 24.2"
Tank Diameter - 13.9"
Lid & Collection Container Ports - 28 mm PCO 1881 threads
Temperature Rating:
When not under pressure, do not expose to liquids above 131°F
When under pressure, do not expose to any temperatures above 95°F*
*Please note that the temperature rating for the FermZilla tank is lower when using it under pressure. When not under pressure, it is perfectly safe to transfer wort into the tank below 131°F or to use hot liquids below this temp for cleaning. When under pressure, make sure to keep your fermentation temperature below 95°F and keep the fermenter in an environment that is below 95°F ambient. This is especially important when fermenting with kveik yeast. These strains are known to ferment hot if no temperature control is being used. Exceeding the temperature rating may compromise the tank, leading to a shorter life span or sudden failure to maintain pressure. Even with proper use, we recommend replacing the tank every two years.
Kegland Part number: KL15189
NOTE: FermZilla tanks are marked with a manufacturer’s “expiry date”. This does not indicate that the tank is bad after this date; it simply indicates that a hydro test may be in order. 2 years after production and every 2 years after first use, it is recommended that the tank be hydro tested to ensure the tank is holding pressure. Hydro test instructions are available here. You will also need the D1072 Green PRV to perform the test. If you do not plan to pressurize the fermenter, the test is not necessary.
Grab everything you need to ferment under pressure with the FermZilla All Rounder and we'll toss in the BlowTie Spunding Valve for FREE!
This kit includes the 30L FermZilla All Rounder, ball lock cap adapters for the lid and collection container, floating dip tube with filter attachment, and the BlowTie 2 ball lock spunding valve. Everything you need to ferment under pressure, carbonate in vessel, and pressure transfer.
The FermZilla All Rounder is the most affordable pressurizable fermenter on the market. Although it doesn't feature a dump valve like the FermZilla Conical, the All Rounder carries the same pressure rating, making it an absolute steal if you're looking to ferment under pressure, perform pressure transfers, or want to carbonate and serve directly from the fermenter. The All Rounder is made from super smooth PET that's easy to clean, and the simple design means no nooks or crannies for microbes to hide. With a 4.75" lid opening, you'll have no trouble getting your arm inside to scrub away stubborn krausen rings. As with all FermZilla fermenters, the lid features molded drill locations that make installing accessories like a thermowell or Temp Twister Cooling Coil a breeze.
Why MoreBeer! loves the All Rounder FermZilla:
Super smooth PET makes cleaning very easy.
Pressure rated lid and PET material make for a better oxygen barrier than fermenters made of HDPE.
Lightweight and easy to move around, yet strong enough to be considered shatterproof.
The 4.75" lid opening makes it easy to get your arm inside and clean after use.
The lid is designed for the easy installation of accessories such as a thermowell or cooling coil.
Price! A pressurizable fermenter in this price range is an incredible value, and it opens the door for many cold-side processes that can't be done in a normal carboy or plastic fermenter.
What's Included:
FermZilla 30L All Rounder Fermenter
Stainless Steel Stand
Stainless Steel Handle
Top Lid with PRV (35 psi)
3-Piece Airlock
Adhesive Thermometer
(1) Red Ball Lock Carbonation Cap
(1) Yellow Ball Lock Carbonation Cap
Use one color for gas and one for liquid!
Stainless Steel Float with Silicone Dip Tube
Weighted Mesh Filter Attachment (KEG6571)
All Rounder Stand Harness
FREE BlowTie Spunding Valve
FermZilla All Rounder Specs:
30 L (7.9 gal) Total Volume
Pressure Rated to 2.5 Bar (36.2 psi)
Height in Stand - 21.7"
Height w/ Airlock - 24.2"
Tank Diameter - 13.9"
Lid & Collection Container Ports - 28 mm PCO 1881 threads
Temperature Rating:
When not under pressure, do not expose to liquids above 131°F
When under pressure, do not expose to any temperatures above 95°F*
*Please note that the temperature rating for the PET tank is lower when using it under pressure. When not under pressure, it is perfectly safe to transfer liquid into the tank below 131°F or to use hot liquids below this temp to clean the tank. When under pressure, you should make sure to keep your unit in an environment no hotter than 95°F and to keep your fermentation temperature below this temp as well. If you are using kveik yeast to ferment under pressure, we highly recommend using temperature control.
Installation Note: For best performance with your Floating Dip Tube, ensure there is not an excess amount of slack when the silicone dip tube is installed and shorten it if needed. With the floating dip tube installed on your empty FermZilla, you ideally want the dip tube to hang freely with just enough length for the end of the dup tube to touch the bottom of the tank.
NOTE: FermZilla tanks are marked with a manufacturer’s “expiry date”. This does not indicate that the tank is bad after this date; it simply indicates that a hydro test may be in order. 2 years after production and every 2 years after first use, it is recommended that the tank be hydro tested to ensure the tank is holding pressure. Hydro test instructions are available here. You will also need the D1072 Green PRV to perform the test. If you do not plan to pressurize the fermenter, the test is not necessary.
With the FermZilla Pressure Kit you can ferment under pressure, carbonate, and serve without ever needing to move your beer out of the fermenter. The kit inlcudes two plastic female threaded ball lock fittings with barbs, which thread onto the existing openings atop the FermZilla's lid. For the beverage out, you'll have a silicone dip tube with stainless steel float, allowing you to always draw from the clearest beer at the top of the tank. Pick up the Pressure Kit and turn your FermZilla into a true unitank!
Includes one red and one yellow ball lock cap to help differentiate which one is being used for liquid and which one for gas. Either color can be used for either function.
The silicone dip tube is 31" long. It will work perfectly as is for the 55L FermZilla. For the 27L model we recommend cutting the dip tube shorter to remove unwanted slack.
With the optional Floating Dip Tube Filter, you can prevent hop material and other solids from ever entering the dip tube. Especially handy when you're pulling samples mid-fermentation!
Fermenting Under Pressure:
The pressure kit allows for fermenting under pressure, which will reduce esters and fusel alcohol production. This means you can ferment at warmer temperatures than you normally would, even making lagers at room temperature. Most commerical beer is fermented under pressure simply due to the size of commercial tanks and the pressure that is created by the column of beer. It is one of the distinct differences between homebrewing and brewing on a commercial scale. The FermZilla's lid already comes with a built-in pressure relief valve that will blow at 35 psi; the pressure kit simply allows you to add CO2 through the ball lock fitting. We strongly recommend that you also purchase an adjustable pressure relief valve, or spunding valve, which allows you to set a lower pressure. It's always a good idea to have two relief valves on the FermZilla anytime the unit is under pressure.
Carbonating, Transferring, and Serving:
When you are fermenting under pressure the beer is already carbonated when you are done fermenting. You can control the level of carbonation by using a spunding valve. This means you can eliminate kegging and serve directly from the fermenter. We love this idea but there will probably still be times that you want to keg. Attach a beer line from the FermZilla's bev out to your keg and enjoy the easiest kegging experience ever. You can also choose to send carbonated beer through a beer filter on the way to your keg. When applying pressure with a CO2 tank also make sure that you have a functional relief valve on your CO2 regulator.
Eliminate Oxidation:
Since the beer always has a CO2 blanket through fermentation and during any transfers out, oxidation is eliminated. When you cold crash you won't be sucking air back in through an airlock.
Key Features:
Ferment beer under pressure to reduce ester and fusel alcohol production
Always draw clear beer with the floating dip tube
Keg beer that has already been carbonated
Use CO2 to push beer into a keg or through a filter into a keg
Eliminate kegging altogether by carbonating and serving directly from the FermZilla
Installation Note: For best performance, ensure there is not an excess amount of slack when the silicone dip tube is installed and shorten it if needed. With the floating dip tube installed on your empty FermZilla, you ideally want the dip tube to hang freely with just enough length for the end of the dup tube to touch the bottom of the tank.
Please note: pressure kit does not include the lid pictured in the example photo. The ball locks and floating dip tube are installed on the FermZilla's existing lid.
This handy little strap will make cleaning and transporting your FermZilla All Rounder 30L or 60L an absolute breeze. Instead of picking up the tank with one hand and the stand with the other every time you need to move it, this harness will strap the tank and stand together so they can be moved together as one piece. Simply attach through both sections of the base in the orientation you wish. Slide up and out of the little buckle pieces making sure that the buckle is facing towards you, then strap in and strap down!
Please note that the harness does not include handles. The harness is meant to be used alongside the All Rounder's included stainless handle.
The Strap is long enough for the 60L and 30L All Rounder. We recommend rolling up the excess strap and paper clipping or cutting to suit the 30L.
Stainless handles not included with the carrier harness.
Kegland Part number: KL13567
If you're a FermZilla owner, we highly recommend picking up an additional collection container or two. Use one to harvest and store your yeast, and then a second for your dry hop additions. Or harvest and store multiple yeast cultures in multiple collection containers.
The collection container features threaded ports that are compatible with the KG500 Ball Lock Cap. Attaching the ball lock cap will allow you to purge the container of oxygen before dry hopping. Or attach a small length of tubing with a diffusion stone and you'll be able to oxygenate your wort or carbonate your finished beer from the bottom up.
The container is made from Tritan and the lid from HDPE.
Kegland Part number: KL11365
Use this insulating jacket to regulate the fermentation temperature in your 27L FermZilla Conical or 60L FermZilla All Rounder. The jacket alone will help keep your fermenter warm in the colder months, or you can add a FermWrap heater if the heat fermentation isn't enough to maintain temp. Conversely, you can freeze bottles of water and put them inside the jacket to keep the temperature from getting too hot.
If you're feeling extra fancy, use frozen water bottles and a FermWrap plugged into a temperature controller. The frozen water bottles will provide constant cooling, and if the controller detects that the temperature has dropped too far, it will kick on the FermWrap to heat your fermenter back up to your target temp.
The jacket has the added benefit of protecting your fermenting beer from harmful UV light.
Features a single sided zipper and draw string bottom.
Kegland Part number: KL11488
The Flat Twister Lid comes with 3 pre-drilled holes perfectly sized for the Duotight bulkheads that come with the Temp Twister Cooling Coil and FermZilla Thermowell. Lid o-ring included.
This lid is only recommended for FermZilla users that will be using the Temp Twister and the Thermowell together.
Kegland Part number: KL15059

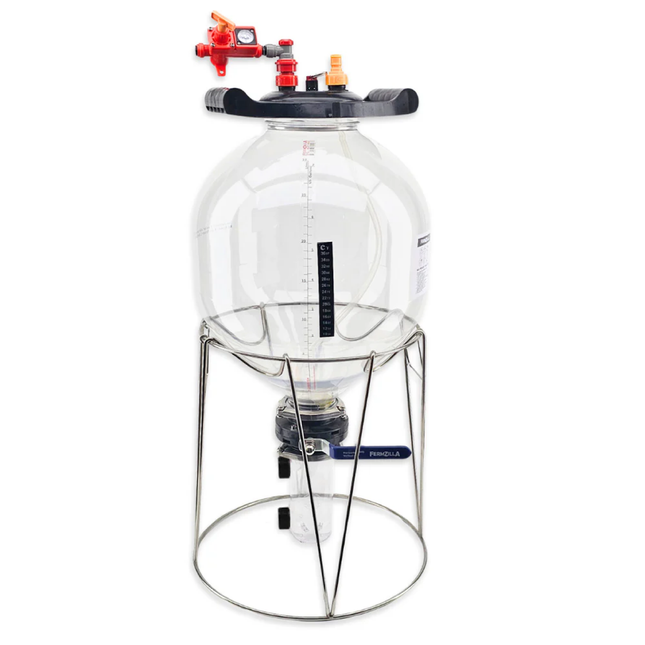

The ultimate plastic pressurized conical
A best seller for a reason! Tons of features at an incredible cost
Crystal Clear super smooth PET makes fermenting and cleaning super easy
3" Butterfly valve at bottom makes removing yeast/trub easy with the 600mL collection jar.
Pressurizable (with accessories) for fermentation and closed transfer to your keg
The Gen 3.2 FermZilla Tri-Conical features a newly designed collection container with top & bottom PCO1881 ports. The collection container has a 3" T.C. opening and installs on the Conical with a 3" T.C. butterfly valve. The molded 3" T.C. ferrule on the tank is a huge improvement over the Gen 2 model—eliminating the complicated dump valve design and simplifying the collection container connection. Brew with confidence on the new Tri-Clover FermZilla!
Out of the box, the FermZilla Conical is an amazing fermenter that will immediately step up your game on the cold side of the brewing process. But what we love most about this unit is how easily it is to upgrade as you go—adding more functionality and gaining more precise control over your fermentation with each new accessory. Below are some of our favorite add-ons for the FermZilla Tri-Conical Fermenter.
Pressure Kit
The FermZilla is the perfect option for brewers that want all the advantages of a conical fermenter without the price tag of a full blown stainless steel unit. It allows you to dump trub, harvest yeast, and with the addition of the FermZilla Pressure Kit, you can carbonate and serve – all in one vessel! The clear PET tank allows you to visually monitor fermentation activity and is pressure rated to 2.4 Bar (34.8 psi), which means you can ferment under pressure, reducing ester and fusel alcohols in your finished beer. This also gives the ability to perform pressure transfers. If you prefer to move your finished beer to a keg or other vessel, you can do so with little to no oxygen exposure.
Tri-Clamp Pressure Lid
Add a 2" T.C. port to your fermenter by replacing the standard lid with the FermZilla Tri-Clamp Pressure Lid. This will give you an opening to add dry hops or other additions without needing to remove the entire lid, or you can upgrade down the road with a Hop Bong sight glass in order to add CO2 and purge your hop charge of oxygen. PCO1881 threaded ports are still there for Ball Lock Caps, as well as undrilled ports for an optional Thermowell and Temp Twister cooling coil.
Hop Bong Pressure Pack
The ultimate upgrade kit! The Hop Bong Pressure Pack has all of the parts included with the Pressure Kit and Tri-Clamp Pressure Lid but fully parted out to remove the guess work. If the Tri-Conical is your first FermZilla fermenter, this accessory kit is for you. Load up the Hop Bong, flush it with CO2, purge out oxygen with the handy PRV on top, then simply open the Butterfly Valve to inject your beer with a 6 oz payload of dry hops.
FermZilla Gen 3 vs Gen 3.2:

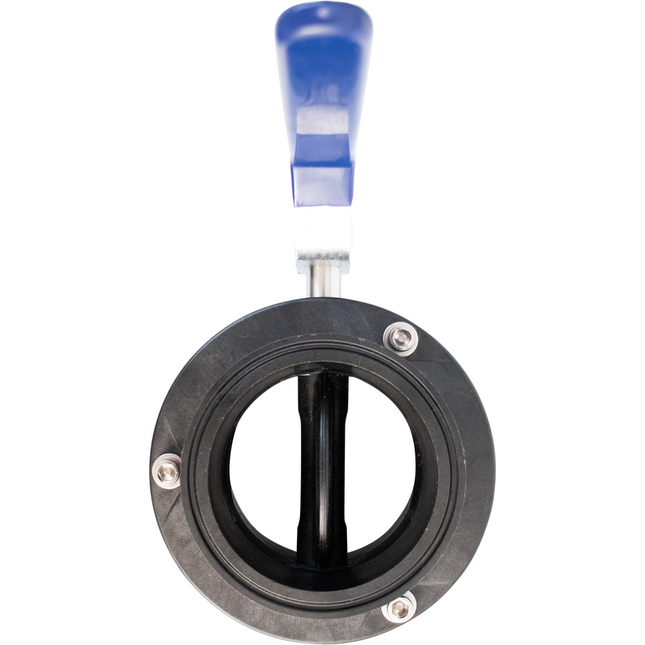

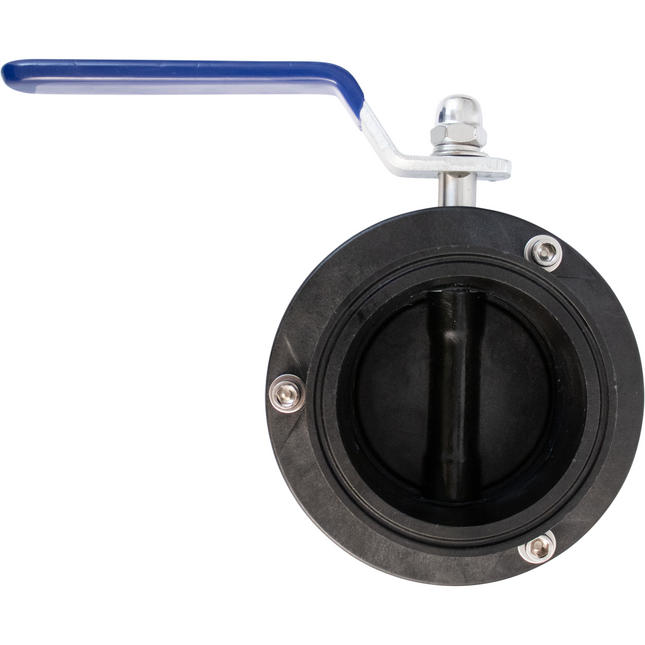

3" x 3" T.C. butterfly dump valve
3" T.C. compatible collection container
600 mL collection container w/ top & bottom PCO1881 threaded ports
What's Included:

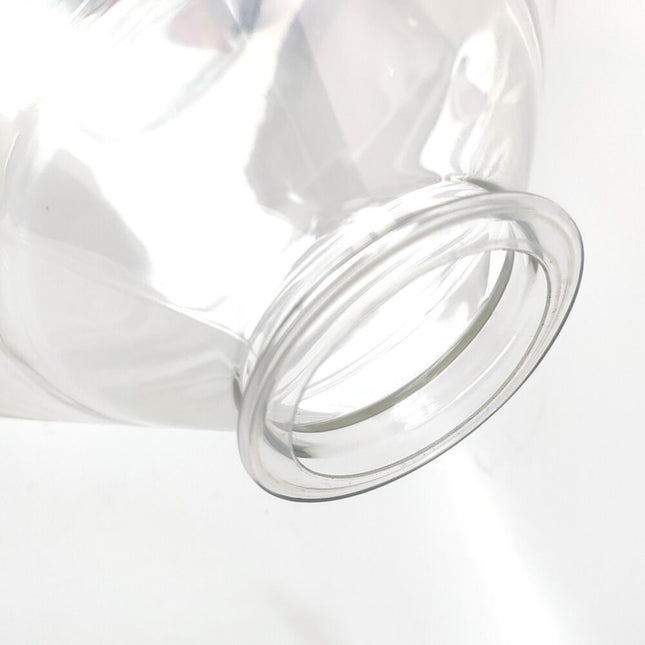

FermZilla 27L Tank with 3" T.C. Bottom Port
3" T.C. Butterfly Valve
600 mL Collection Container with 3" T.C. Connection
Stainless Steel Stand with Swing Handles
Stainless Steel Handle Assembly
Top Lid with PRV (35 psi)
3" tri-clamp with gaskets
3-Piece Airlock
Graduation Sticker
Adhesive Thermometer
Spare Seals
Specs:
27 L (7.1 gal) Total Volume
Pressure Rated to 2.4 Bar (34.8 psi)
Height in Stand - 29.5"
Height w/ Airlock - 33.7"
Tank Diameter - 13.9"
Diameter in Stand - 15.3"
Lid & Collection Container Ports - 28 mm PCO 1881 threads
Temperature Rating:
When not under pressure, do not expose to liquids above 131°F
When under pressure, do not expose to any temperatures above 95°F*
*Please note that the temperature rating for the FermZilla tank is lower when using it under pressure. When not under pressure, it is perfectly safe to transfer wort into the tank below 131°F or to use hot liquids below this temp for cleaning. When under pressure, make sure to keep your fermentation temperature below 95°F and keep the fermenter in an environment that is below 95°F ambient. This is especially important when fermenting with kveik yeast. These strains are known to ferment hot if no temperature control is being used. Exceeding the temperature rating may compromise the tank, leading to a shorter life span or sudden failure to maintain pressure. Even with proper use, we recommend replacing the tank every two years.
Please note: when using the FermZilla under pressure, you must perform a water pressure check to ensure your connections are leak proof. To do this, fill your FermZilla up with water, apply at least 15 psi pressure, and check for leaks around all caps and threads.
Pressure Stress
If you use the FermZilla to ferment under pressure, or you use CO2 to pressure transfer or force carbonate your finished beer, it is very important that you conduct semi-annual inspections of your tank. Even with perfect care, the FermZilla tank may show signs of wear from pressure stress over time. We recommend visually inspecting your tank for stress creases or other signs of wear once or twice a year. A hydro test should be conducted every two years, even if no signs of wear are found. The process is simple:
Fill the tank to the brim with water
Replace the Red PRV with a Green PRV rated to 4.5 BAR or higher
Pressurize the tank to 4 BAR (58 psi)
Check for leaks, then replace the Red PRV when finished
If leaks or potential points of failure are found, replace the tank before you continue using pressure with your FermZilla.
General Care
Taking good care of your FermZilla begins with cleaning and sanitizing the unit before and after use. The tank is made from food-grade PET, which is beautifully clear, but can be sensitive to long soaks in cleaners and acid-based sanitizers. In general, we do not recommend leaving products like PBW or StarSan soaking in the tank for more than an hour. Extended soaks have the potential to degrade the PET material and shorten the lifespan of the tank.
KegLand Part number: KL25898
NOTE: FermZilla tanks are marked with a manufacturer’s “expiry date”. This does not indicate that the tank is bad after this date; it simply indicates that a hydro test may be in order. 2 years after production and every 2 years after first use, it is recommended that the tank be hydro tested to ensure the tank is holding pressure. Hydro test instructions are available here. You will also need the D1072 Green PRV to perform the test. If you do not plan to pressurize the fermenter, the test is not necessary.
Direct replacement of the 31" floating dip tube included with the FermZilla Pressure Kits.
If you're looking for a floating dip tube to use with your homebrew keg, we recommend the Torpedo Buoy™, which includes an appropriately sized metal dip tube and features a higher quality silicone tubing.
Kegland Part number: KL14076
These handles are made from 304 stainless steel and held together with stainless steel bolts. Rated up to 220 lbs. Compatible with all sizes of FermZilla Conical, Flat Bottom, and All Rounder fermenters.
Kegland Part number: KL13079
The lowest price Pressurizable fermentor out there.
Perfect for most ales that ferment in 2 weeks or less
Super smooth PET makes cleaning very easy
Transfer to your keg closed and under pressure oxygen free
PET is better oxygen barrier than fermentors made of HDPE
Super lightweight yet strong and shatterproof
The FermZilla All Rounder is the most affordable pressurizable fermenter on the market. Although it doesn't feature a dump valve like the FermZilla Conical, the All Rounder carries the same pressure rating, making it an absolute steal if you're looking to ferment under pressure, perform pressure transfers, or want to carbonate and serve directly from the fermenter. The All Rounder is made from super smooth PET that's easy to clean, and the simple design means no nooks or crannies for microbes to hide. With a 4.75" lid opening, you'll have no trouble getting your arm inside to scrub away stubborn krausen rings. As with all FermZilla fermenters, the lid features molded drill locations that make installing accessories like a thermowell or Temp Twister Cooling Coil a breeze.
In order to unlock the full potential of the All Rounder, you'll want to pick up the 55L FermZilla Pressure Kit. The pressure kit is available with either stainless or plastic ball lock caps.
Why MoreBeer! loves the All Rounder FermZilla:
Super smooth PET makes cleaning very easy.
Pressure rated lid and PET material make for a better oxygen barrier than fermenters made of HDPE.
Lightweight and easy to move around, yet strong enough to be considered shatterproof.
The 4.75" lid opening makes it easy to get your arm inside and clean after use.
The lid is designed for the easy installation of accessories such as a thermowell or cooling coil.
Price! A pressurizable fermenter in this price range is an incredible value, and it opens the door for many cold-side processes that can't be done in a normal carboy or plastic fermenter.
What's Included:
FermZilla 60L All Rounder Fermenter
Stainless Steel Stand
Stainless Steel Handle
Top Lid with PRV (35 psi)
3-Piece Airlock
Adhesive Thermometer
Specs:
60 L (15.9 gal) Total Volume
Pressure Rated to 2.5 Bar (36.2 psi)
Height in Stand - 34"
Height w/ Airlock - 36.5"
Tank Diameter - 13.9"
Lid Ports - 28 mm PCO 1881 threads
Temperature Rating:
When not under pressure, do not expose to liquids above 131°F
When under pressure, do not expose to any temperatures above 95°F*
*Please note that the temperature rating for the FermZilla tank is lower when using it under pressure. When not under pressure, it is perfectly safe to transfer wort into the tank below 131°F or to use hot liquids below this temp for cleaning. When under pressure, make sure to keep your fermentation temperature below 95°F and keep the fermenter in an environment that is below 95°F ambient. This is especially important when fermenting with kveik yeast. These strains are known to ferment hot if no temperature control is being used. Exceeding the temperature rating may compromise the tank, leading to a shorter life span or sudden failure to maintain pressure. Even with proper use, we recommend replacing the tank every two years.
Kegland Part number: KL15196
NOTE: FermZilla tanks are marked with a manufacturer’s “expiry date”. This does not indicate that the tank is bad after this date; it simply indicates that a hydro test may be in order. 2 years after production and every 2 years after first use, it is recommended that the tank be hydro tested to ensure the tank is holding pressure. Hydro test instructions are available here. You will also need the D1072 Green PRV to perform the test. If you do not plan to pressurize the fermenter, the test is not necessary.
Upgrade your FermZilla Conical or All Rounder with the new 2" Tri-Clamp Lid from KegLand. Add yeast, hops or even take samples from a wine thief from the top and not have to remove the entire lid.
This particular lid was designed in order to suit a growing number of customers desire to dry hop without exposing the batch to oxygen from opening the lid. By using this lid in conjunction with the FermZilla 2" Butterfly Valve and Hop Bong Kit, you will be able to purge CO2 into the tube and expel all the oxygen inside it and dump freely into the vessel.
Features:
(2) PCO1881 Male Ports
Recommended for use with Red (Gas In) & Yellow (Bev Out) Ball Lock Caps
PRV Port with Red 35 psi (2.5 BAR) PRV
2" T.C. Ferrule
Undrilled Ports (for optional accessories):
Thermowell Port (see below for FermZilla Thermowell kit)
(2) Temp Twister Ports
Please Note: Temp Twister will need to be bent on a 20° Angle in order to fit on the curved lid and align vertically in the tank.
Also includes:
2" Tri-Clamp
2" T.C. Gasket
2" T.C. x PCO1881 Male Thread Cap
If you ever need to replace the O-ring attached to the bottom of the Pressure Lid, a Corny Keg Lid O-ring fits perfectly.
KegLand Part Number: KL28219
Warning: Always depressurize your system COMPLETELY before removing fittings from your fermenter.
Warning: Only use Red 35 psi PRV with this lid. Ensure the PRV is cleaned and dried of sticky residue before each fermentation. Failure to do so could cause injury and void warranty.
Due to high demand, this item is currently out of stock. Be the first to receive your items by placing a pre-order today. We will automatically ship this to you when we receive more inventory.
The Hop Bong is a versatile pressurizable tri-clamp accessory, capable of not only dry hopping oxygen purged hops into fermenters, but also as an inline carbonation/oxygenation accessory. Load up the Hop Bong, flush it with CO2, purge out oxygen with the handy PRV on top, then simply open the Butterfly Valve to inject your beer with a 6 oz payload of dry hops.
If you're an existing FermZilla Conical or All Rounder user and you already own the Pressure Kit with 2x Ball Lock Caps and floating dip tube, check out the Hop Bong Upgrade Kit.
The 3 Pieces of the Hop Bong Pressure Pack:
Pressure Kit
The Pressure Kit includes two Ball Lock Caps with the Floating Dip Tube and Filter Attachment. These pieces allow you to pressure transfer finished beer out of the fermenter into kegs or a bottling bucket, or you can carbonate and serve beer directly from the FermZilla.
Tri-Clamp Pressure Lid
Replacing the standard lid with the FermZilla Tri-Clamp Pressure Lid provides you with a 2" T.C. port at the top of your fermenter. This will give you an opening to add dry hops or other additions without needing to remove the entire lid. Take off the butterfly valve to add your yeast pitch, and when you're ready to add flavoring additions when fermentation is complete, drop them in oxygen-free via the Hop Bong. PCO1881 threaded ports are there for your Ball Lock Caps, as well as undrilled ports for an optional Thermowell and/or Temp Twister cooling coil.
Hop Bong
Load up the Hop Bong and add CO2 to purge your hop charge of oxygen. This kit comes with a third Ball Lock Cap to introduce CO2 directly to the Hop Bong, as well as a pull ring PRV to release pressure and purge oxygen. Once you've flushed your hop charge with CO2, open the butterfly valve to inject your beer with up to 6 oz of hop pellets.
Hop Pellet Capacity: 150–180g (5.2–6.3 oz)
Kit Includes:
FermZilla 2" T.C. Pressure Lid Starter Kit
2" Hop Bong
2" FermZilla Tri-Conical Butterfly Valve
Floating Dip Tube
Weighted Mesh Filter Attachment (KEG6571)
Red PRV & PCO1881 Cap Combo
Yellow Ball Lock Cap
(2) Red Ball Lock Caps
(2) 2" Tri-Clamps
(2) 2" Silicone T.C. Gaskets
KegLand Part Number: KB10897
Installation Note: For best performance, ensure there is not an excess amount of slack when the silicone dip tube is installed and shorten it if needed. With the floating dip tube installed on your empty FermZilla, you ideally want the dip tube to hang freely with just enough length for the end of the dup tube to touch the bottom of the tank.
Warning: Always depressurize your system COMPLETELY before removing fittings from your fermenter.
The Ultimate FermZilla Combo Pack! Get the Gen 3.2 FermZilla Tri-Conical & our most highly recommended accessories at an unbeatable price!
Includes some of our favorite accessories for the FermZilla, such as the Pressure Kit with Floating Dip Tube so you're always racking the clearest beer, Duotight BlowTie 2 for pressure fermentations and flow control keg transfers, and Insulating Jacket to help maintain stable fermentation temps
These accessories will help unlock the FermZilla's full potential, so buy them together and enjoy the savings!
Combo Pack Includes:
FermZilla Tri-Conical Fermenter | Gen 3.2 | 7.1G
Plastic Pressure Kit w/ Floating Dip Tube
Duotight BlowTie 2 Spunding Valve
Insulating Jacket
FermZilla Tri-Conical Fermenter
The Gen 3.2 FermZilla Tri-Conical features a newly designed collection container with top & bottom PCO1881 ports. The collection container has a 3" T.C. opening and installs on the Conical with a 3" T.C. butterfly valve. The molded 3" T.C. ferrule on the tank is a huge improvement over the Gen 2 model—eliminating the complicated dump valve design and simplifying the collection container connection. Brew with confidence on the new Tri-Clover FermZilla!
NOTE: The primary example photo shows the collection container from the Gen 3 FermZilla.
Out of the box, the FermZilla Conical is an amazing fermenter that will immediately step up your game on the cold side of the brewing process. But what we love most about this unit is how easily it is to upgrade as you go—adding more functionality and gaining more precise control over your fermentation with each new accessory. Below are some of our favorite add-ons for the FermZilla Tri-Conical Fermenter.
Pressure Kit
The FermZilla is the perfect option for brewers that want all the advantages of a conical fermenter without the price tag of a full blown stainless steel unit. It allows you to dump trub, harvest yeast, and with the addition of the FermZilla Pressure Kit, you can carbonate and serve – all in one vessel! The clear PET tank allows you to visually monitor fermentation activity and is pressure rated to 2.4 Bar (34.8 psi), which means you can ferment under pressure, reducing ester and fusel alcohols in your finished beer. This also gives the ability to perform pressure transfers. If you prefer to move your finished beer to a keg or other vessel, you can do so with little to no oxygen exposure.
Tri-Clamp Pressure Lid
Add a 2" T.C. port to your fermenter by replacing the standard lid with the FermZilla Tri-Clamp Pressure Lid. This will give you an opening to add dry hops or other additions without needing to remove the entire lid, or you can upgrade down the road with a Hop Bong sight glass in order to add CO2 and purge your hop charge of oxygen. PCO1881 threaded ports are still there for Ball Lock Caps, as well as undrilled ports for an optional Thermowell and Temp Twister cooling coil.
Hop Bong Pressure Pack
The ultimate upgrade kit! The Hop Bong Pressure Pack has all of the parts included with the Pressure Kit and Tri-Clamp Pressure Lid but fully parted out to remove the guess work. If the Tri-Conical is your first FermZilla fermenter, this accessory kit is for you. Load up the Hop Bong, flush it with CO2, purge out oxygen with the handy PRV on top, then simply open the Butterfly Valve to inject your beer with a 6 oz payload of dry hops.
FermZilla Gen 3 vs Gen 3.2:
3" x 3" T.C. butterfly dump valve
3" T.C. compatible collection container
600 mL collection container w/ top & bottom PCO1881 threaded ports
What's Included:
FermZilla 27L Tank with 3" T.C. Bottom Port
3" T.C. Butterfly Valve
600 mL Collection Container with 3" T.C. Connection
Stainless Steel Stand with Swing Handles
Stainless Steel Handle Assembly
Top Lid with PRV (35 psi)
3" tri-clamp with gaskets
3-Piece Airlock
Graduation Sticker
Adhesive Thermometer
Spare Seals
Specs:
27 L (7.1 gal) Total Volume
Pressure Rated to 2.4 Bar (34.8 psi)
Height in Stand - 29.5"
Height w/ Airlock - 33.7"
Tank Diameter - 13.9"
Diameter in Stand - 15.3"
Lid & Collection Container Ports - 28 mm PCO 1881 threads
Temperature Rating:
When not under pressure, do not expose to liquids above 131°F
When under pressure, do not expose to any temperatures above 95°F*
*Please note that the temperature rating for the FermZilla tank is lower when using it under pressure. When not under pressure, it is perfectly safe to transfer wort into the tank below 131°F or to use hot liquids below this temp for cleaning. When under pressure, make sure to keep your fermentation temperature below 95°F and keep the fermenter in an environment that is below 95°F ambient. This is especially important when fermenting with kveik yeast. These strains are known to ferment hot if no temperature control is being used. Exceeding the temperature rating may compromise the tank, leading to a shorter life span or sudden failure to maintain pressure. Even with proper use, we recommend replacing the tank every two years.
Installation Note: For best performance with your Floating Dip Tube, ensure there is not an excess amount of slack when the silicone dip tube is installed and shorten it if needed. With the floating dip tube installed on your empty FermZilla, you ideally want the dip tube to hang freely with just enough length for the end of the dup tube to touch the bottom of the tank.
Please note: when using the FermZilla under pressure, you must perform a water pressure check to ensure your connections are leak proof. To do this, fill your FermZilla up with water, apply at least 15 psi pressure, and check for leaks around all caps and threads.
Pressure Stress
If you use the FermZilla to ferment under pressure, or you use CO2 to pressure transfer or force carbonate your finished beer, it is very important that you conduct semi-annual inspections of your tank. Even with perfect care, the FermZilla tank may show signs of wear from pressure stress over time. We recommend visually inspecting your tank for stress creases or other signs of wear once or twice a year. A hydro test should be conducted every two years, even if no signs of wear are found. The process is simple:
Fill the tank to the brim with water
Replace the Red PRV with a Green PRV rated to 4.5 BAR or higher
Pressurize the tank to 4 BAR (58 psi)
Check for leaks, then replace the Red PRV when finished
If leaks or potential points of failure are found, replace the tank before you continue using pressure with your FermZilla.
General Care
Taking good care of your FermZilla begins with cleaning and sanitizing the unit before and after use. The tank is made from food-grade PET, which is beautifully clear, but can be sensitive to long soaks in cleaners and acid-based sanitizers. In general, we do not recommend leaving products like PBW or StarSan soaking in the tank for more than an hour. Extended soaks have the potential to degrade the PET material and shorten the lifespan of the tank.
KegLand Part number: KL25898
NOTE: FermZilla tanks are marked with a manufacturer’s “expiry date”. This does not indicate that the tank is bad after this date; it simply indicates that a hydro test may be in order. 2 years after production and every 2 years after first use, it is recommended that the tank be hydro tested to ensure the tank is holding pressure. Hydro test instructions are available here. You will also need the D1072 Green PRV to perform the test. If you do not plan to pressurize the fermenter, the test is not necessary.
Use this insulating jacket to regulate the fermentation temperature in your 30L FermZilla All Rounder. The jacket alone will help keep your fermenter warm in the colder months, or you can add a FermWrap heater if the heat fermentation isn't enough to maintain temp. Conversely, you can freeze bottles of water and put them inside the jacket to keep the temperature from getting too hot.
If you're feeling extra fancy, use frozen water bottles and a FermWrap plugged into a temperature controller. The frozen water bottles will provide constant cooling, and if the controller detects that the temperature has dropped too far, it will kick on the FermWrap to heat your fermenter back up to your target temp.
The jacket has the added benefit of protecting your fermenting beer from harmful UV light.
Features a single sided zipper and draw string bottom.
Kegland Part number: KL19590
Due to high demand, this item is currently out of stock. Be the first to receive your items by placing a pre-order today. We will automatically ship this to you when we receive more inventory.
The Hop Bong is a versatile pressurizable tri-clamp accessory, capable of not only dry hopping oxygen purged hops into fermenters, but also as an inline carbonation/oxygenation accessory.
This upgrade kit is for existing FermZilla Tri-Conical and All Rounder Fermenter users that already own the Plastic Pressure Kit with 2x Ball Lock Caps and Floating Dip Tube. If you already own these pieces, then you just need the two accessories below for a complete Hop Bong Pressure Pack.
Tri-Clamp Pressure Lid
Replacing the standard lid with the FermZilla Tri-Clamp Pressure Lid provides you with a 2" T.C. port at the top of your fermenter. This will give you an opening to add dry hops or other additions without needing to remove the entire lid. Take off the butterfly valve to add your yeast pitch, and when you're ready to add flavoring additions when fermentation is complete, drop them in oxygen-free via the Hop Bong. PCO1881 threaded ports are there for your Ball Lock Caps, as well as undrilled ports for an optional Thermowell and/or Temp Twister cooling coil.
Hop Bong
Load up the Hop Bong and add CO2 to purge your hop charge of oxygen. This kit comes with a Ball Lock Cap to introduce CO2 directly to the Hop Bong, as well as a pull ring PRV to release pressure and purge oxygen. Once you've flushed your hop charge with CO2, open the butterfly valve to inject your beer with up to 6 oz of hop pellets.
Hop Pellet Capacity: 150–180g (5.2–6.3 oz)
Kit Includes:
FermZilla 2" T.C. Pressure Lid Starter Kit
2" Hop Bong
2" FermZilla Tri-Conical Butterfly Valve
Red PRV & PCO1881 Cap Combo
Red Ball Lock Cap
(2) 2" Tri-Clamps
(2) 2" Silicone T.C. Gaskets
Does Not Include:
Yellow Ball Lock Cap
Secondary Red Ball Lock Cap
Floating Dip Tube with Filter Attachment
KegLand Part Number: KB10921
Warning: Always depressurize your system COMPLETELY before removing fittings from your fermenter.
The ultimate plastic pressurized conical
A best seller for a reason! Tons of features at an incredible price
Cyrstal clear super smooth PET makes fermenting and cleaning super easy
3" Butterfly valve at bottom makes removing yeast / trub easy with the 600mL collection jar
Pressurizable (with accessories) for fermentation and closed transfer to your keg
The Gen 3.2 FermZilla Tri-Conical features a newly designed collection container with top & bottom PCO1881 ports. The collection container has a 3" T.C. opening and installs on the Conical with a 3" T.C. butterfly valve. The molded 3" T.C. ferrule on the tank is a huge improvement over the Gen 2 model—eliminating the complicated dump valve design and simplifying the collection container connection. Brew with confidence on the new Tri-Clover FermZilla!
NOTE: The primary example photo shows the collection container from the Gen 3 FermZilla.
Out of the box, the FermZilla Conical is an amazing fermenter that will immediately step up your game on the cold side of the brewing process. But what we love most about this unit is how easily it is to upgrade as you go—adding more functionality and gaining more precise control over your fermentation with each new accessory. Below are some of our favorite add-ons for the FermZilla Tri-Conical Fermenter.
Pressure Kit
The FermZilla is the perfect option for brewers that want all the advantages of a conical fermenter without the price tag of a full blown stainless steel unit. It allows you to dump trub, harvest yeast, and with the addition of the FermZilla Pressure Kit, you can carbonate and serve – all in one vessel! The clear PET tank allows you to visually monitor fermentation activity and is pressure rated to 2.4 Bar (34.8 psi), which means you can ferment under pressure, reducing ester and fusel alcohols in your finished beer. This also gives the ability to perform pressure transfers. If you prefer to move your finished beer to a keg or other vessel, you can do so with little to no oxygen exposure.
Tri-Clamp Pressure Lid
Add a 2" T.C. port to your fermenter by replacing the standard lid with the FermZilla Tri-Clamp Pressure Lid. This will give you an opening to add dry hops or other additions without needing to remove the entire lid, or you can upgrade down the road with a Hop Bong sight glass in order to add CO2 and purge your hop charge of oxygen. PCO1881 threaded ports are still there for Ball Lock Caps, as well as undrilled ports for an optional Thermowell and Temp Twister cooling coil.
Hop Bong Pressure Pack
The ultimate upgrade kit! The Hop Bong Pressure Pack has all of the parts included with the Pressure Kit and Tri-Clamp Pressure Lid but fully parted out to remove the guess work. If the Tri-Conical is your first FermZilla fermenter, this accessory kit is for you. Load up the Hop Bong, flush it with CO2, purge out oxygen with the handy PRV on top, then simply open the Butterfly Valve to inject your beer with a 6 oz payload of dry hops.
FermZilla Gen 3 vs Gen 3.2:
3" x 3" T.C. butterfly dump valve
3" T.C. compatible collection container
600 mL collection container w/ top & bottom PCO1881 threaded ports
What's Included:
FermZilla 55L Tank with 3" T.C. Bottom Port
3" T.C. Butterfly Valve
600 mL Collection Container with 3" T.C. Connection
Stainless Steel Stand with Swing Handles
Stainless Steel Handle Assembly
Top Lid with PRV (35 psi)
3" tri-clamp with gaskets
3-Piece Airlock
Graduation Sticker
Adhesive Thermometer
Spare Seals
Specs:
55 L (13.2 gal) Total Volume
Pressure Rated to 2.4 Bar (34.8 psi)
Height in Stand - 41.5"
Height w/ Airlock - 45.1"
Tank Diameter - 13.9"
Diameter in Stand - 15.3"
Lid & Collection Container Ports - 28 mm PCO 1881 threads
Temperature Rating:
When not under pressure, do not expose to liquids above 131°F
When under pressure, do not expose to any temperatures above 95°F*
*Please note that the temperature rating for the FermZilla tank is lower when using it under pressure. When not under pressure, it is perfectly safe to transfer wort into the tank below 131°F or to use hot liquids below this temp for cleaning. When under pressure, make sure to keep your fermentation temperature below 95°F and keep the fermenter in an environment that is below 95°F ambient. This is especially important when fermenting with kveik yeast. These strains are known to ferment hot if no temperature control is being used. Exceeding the temperature rating may compromise the tank, leading to a shorter life span or sudden failure to maintain pressure. Even with proper use, we recommend replacing the tank every two years.
Please note: when using the FermZilla under pressure, you must perform a water pressure check to ensure your connections are leak proof. To do this, fill your FermZilla up with water, apply at least 15 psi pressure, and check for leaks around all caps and threads.
Pressure Stress
If you use the FermZilla to ferment under pressure, or you use CO2 to pressure transfer or force carbonate your finished beer, it is very important that you conduct semi-annual inspections of your tank. Even with perfect care, the FermZilla tank may show signs of wear from pressure stress over time. We recommend visually inspecting your tank for stress creases or other signs of wear once or twice a year. A hydro test should be conducted every two years, even if no signs of wear are found. The process is simple:
Fill the tank to the brim with water
Replace the Red PRV with a Green PRV rated to 4.5 BAR or higher
Pressurize the tank to 4 BAR (58 psi)
Check for leaks, then replace the Red PRV when finished
If leaks or potential points of failure are found, replace the tank before you continue using pressure with your FermZilla.
General Care
Taking good care of your FermZilla begins with cleaning and sanitizing the unit before and after use. The tank is made from food-grade PET, which is beautifully clear, but can be sensitive to long soaks in cleaners and acid-based sanitizers. In general, we do not recommend leaving products like PBW or StarSan soaking in the tank for more than an hour. Extended soaks have the potential to degrade the PET material and shorten the lifespan of the tank.
KegLand Part number: KL25904
NOTE: FermZilla tanks are marked with a manufacturer’s “expiry date”. This does not indicate that the tank is bad after this date; it simply indicates that a hydro test may be in order. 2 years after production and every 2 years after first use, it is recommended that the tank be hydro tested to ensure the tank is holding pressure. Hydro test instructions are available here. You will also need the D1072 Green PRV to perform the test. If you do not plan to pressurize the fermenter, the test is not necessary.
Use this insulating jacket to regulate the fermentation temperature in your 55L FermZilla Conical. The jacket alone will help keep your fermenter warm in the colder months, or you can add a FermWrap heater if the heat fermentation isn't enough to maintain temp. Conversely, you can freeze bottles of water and put them inside the jacket to keep the temperature from getting too hot.
If you're feeling extra fancy, use frozen water bottles and a FermWrap plugged into a temperature controller. The frozen water bottles will provide constant cooling, and if the controller detects that the temperature has dropped too far, it will kick on the FermWrap to heat your fermenter back up to your target temp.
The jacket has the added benefit of protecting your fermenting beer from harmful UV light.
Features a single sided zipper and draw string bottom.
Kegland Part number: KL11495
Grab everything you need to ferment under pressure with the FermZilla All Rounder and we'll toss in the BlowTie Spunding Valve for FREE!
This kit includes the 60L FermZilla All Rounder, ball lock cap adapters for the lid and collection container, floating dip tube with filter attachment, and the BlowTie 2 ball lock spunding valve. Everything you need to ferment under pressure, carbonate in vessel, and pressure transfer.
The FermZilla All Rounder is the most affordable pressurizable fermenter on the market. Although it doesn't feature a dump valve like the FermZilla Conical, the All Rounder carries the same pressure rating, making it an absolute steal if you're looking to ferment under pressure, perform pressure transfers, or want to carbonate and serve directly from the fermenter. The All Rounder is made from super smooth PET that's easy to clean, and the simple design means no nooks or crannies for microbes to hide. With a 4.75" lid opening, you'll have no trouble getting your arm inside to scrub away stubborn krausen rings. As with all FermZilla fermenters, the lid features molded drill locations that make installing accessories like a thermowell or Temp Twister Cooling Coil a breeze.
Why MoreBeer! loves the All Rounder FermZilla:
Super smooth PET makes cleaning very easy.
Pressure rated lid and PET material make for a better oxygen barrier than fermenters made of HDPE.
Lightweight and easy to move around, yet strong enough to be considered shatterproof.
The 4.75" lid opening makes it easy to get your arm inside and clean after use.
The lid is designed for the easy installation of accessories such as a thermowell or cooling coil.
Price! A pressurizable fermenter in this price range is an incredible value, and it opens the door for many cold-side processes that can't be done in a normal carboy or plastic fermenter.
What's Included:
FermZilla 60L All Rounder Fermenter
Stainless Steel Stand
Stainless Steel Handle
Top Lid with PRV (35 psi)
3-Piece Airlock
Adhesive Thermometer
(1) Red Ball Lock Carbonation Cap
(1) Yellow Ball Lock Carbonation Cap
Use one color for gas and one for liquid!
Stainless Steel Float with Silicone Dip Tube
Weighted Mesh Filter Attachment (KEG6571)
All Rounder Stand Harness
FREE BlowTie Spunding Valve
FermZilla All Rounder Specs:
60 L (15.9 gal) Total Volume
Pressure Rated to 2.5 Bar (36.2 psi)
Height in Stand - 34"
Height w/ Airlock - 36.5"
Tank Diameter - 13.9"
Lid Ports - 28 mm PCO 1881 threads
Temperature Rating:
When not under pressure, do not expose to liquids above 131°F
When under pressure, do not expose to any temperatures above 95°F*
*Please note that the temperature rating for the PET tank is lower when using it under pressure. When not under pressure, it is perfectly safe to transfer liquid into the tank below 131°F or to use hot liquids below this temp to clean the tank. When under pressure, you should make sure to keep your unit in an environment no hotter than 95°F and to keep your fermentation temperature below this temp as well. If you are using kveik yeast to ferment under pressure, we highly recommend using temperature control.
Installation Note: For best performance with your Floating Dip Tube, ensure there is not an excess amount of slack when the silicone dip tube is installed and shorten it if needed. With the floating dip tube installed on your empty FermZilla, you ideally want the dip tube to hang freely with just enough length for the end of the dup tube to touch the bottom of the tank.
NOTE: FermZilla tanks are marked with a manufacturer’s “expiry date”. This does not indicate that the tank is bad after this date; it simply indicates that a hydro test may be in order. 2 years after production and every 2 years after first use, it is recommended that the tank be hydro tested to ensure the tank is holding pressure. Hydro test instructions are available here. You will also need the D1072 Green PRV to perform the test. If you do not plan to pressurize the fermenter, the test is not necessary.
The redesigned FermZilla Collection Container attaches directly below the fermenter without the need for a screw top adapter piece
Replace your existing 600mL, keep a spare on hand, or upgrade from the original tri-conical collection container with the 3" x 3" Tri-Clamp Butterfly Valve
Made from heat resistant, plasticizer-free Tritan plastic and dishwasher safe
PCO1881 side ports for use with Ball Lock Carbonation Caps and the PRV Cap Combo
3" tri-clamp, gasket, and end cap included
This collection container fits all FermZilla Tri-Conicals with a 3" x 3" Butterfly Valve. No more threads or oil filter removal tools to get this off, simply depressurize and remove the tri-clamp fitting. We recommend placing a towel or upside down frisbee to catch some drips.
The clear body is made from Tritan from Eastman Plastics which is heat tolerant and BPA- and plasticizer-free. The ports on the side are the same as a standard coke bottle or soft drink bottle (PCO1881). These are also the same on the top of the FermZilla lid and the previous model collection container.
Owners of the FermZilla Tri-Conical that came with the 2" T.C. collection container can upgrade to this collection container by swapping their butterfly valve to the 3" x 3" Tri-Clamp Butterfly Valve.
Recommended Accessories:
1 x Ball Lock Carbonation Cap (FE133 or FE146)
1 x Red PRV Cap Combo (KG524)
Includes:
600mL Tritan Plastic Collection Container
3" Tri-Clamp Ferrule
PCO1881 Carbonation Cap Ports
3" Tri-Clamp (3-Piece)
3" Tri-Clamp Silicone Gasket
3" Tri-Clamp Black Polyketone End Cap
Dimensions:
6.7" Tall
Tapers from 3" ferrule down to 2.5" diameter bottom
KegLand Part Number: KL30366
Due to high demand, this item is currently out of stock. Be the first to receive your items by placing a pre-order today. We will automatically ship this to you when we receive more inventory.
Compatible with the 27L and 55L FermZilla Tri-Conical Series or any 2" T.C. fittings. Primarily designed to be used with the FermZilla T.C. Pressure Lid and 2" Hop Bong for oxygen-free dry hopping.
If you're planning on putting your FermZilla Tri-Conical or All Rounder in a Fermentation Chamber, you will want to allow for 420 mm (16.5") of clearance measured from the base of the ring collar to a comfortable level below the chamber ceiling so you can pull the PRV to purge oxygen from the hop bong.
KegLand Part Number: KL27564
Due to high demand, this item is currently out of stock. Be the first to receive your items by placing a pre-order today. We will automatically ship this to you when we receive more inventory.
The Ultimate Grain to Glass Combo Pack! Get the Gen 4 BrewZilla & FermZilla Tri-Conical with all the best accessories at an unbeatable price!
Brew extract or all grain batches on the BrewZilla; ferment, carbonate, and serve from the FermZilla. Everything you need from Grain to Glass!
Comes with all of the most highly recommended accessories for the BrewZilla, including the Neoprene Jacket to speed up heating times, Hop Spider to keep vegetal matter out of your wort, and Chilling Connection kit so you're ready to use the Immersion Chiller out of the box
Includes some of our favorite accessories for the FermZilla, such as the Pressure Kit with Floating Dip Tube so you're always racking the clearest beer and the Duotight BlowTie 2 for pressure fermentations and flow control keg transfers
Over $100 savings when purchasing this kit bundle compared to buying everything piece-by-piece!
Also available in 220V (AG582)
You can search high and low, but you won't find a better deal than the BrewZilla Ultimate Grain to Glass Combo Pack!
Combo Pack Includes:
BrewZilla Brewing System | Gen 4.1 | 9.25G | 110V
Neoprene Jacket
Hop Spider
Wort Chiller Connection Kit
FermZilla Tri-Conical Fermenter | Gen 3.2 | 7.1G
Plastic Pressure Kit w/ Floating Dip Tube
Duotight BlowTie 2 Spunding Valve
Insulating Jacket
Gen 4 BrewZilla All-in-One Brewing System
WiFi / Bluetooth enabled RAPT Controller tracks your brewday and automatically uploads detailed information to the RAPT portal
The top mounted RAPT Controller can be tilted upward for easy viewing, or detached from the unit to mount it on the wall or placed on your bench
Mirror polished dome shaped bottom with center drain — get every last bit of wort into your fermenter while the perforated bottom screen filters out 95% of hot break and hop matter
Make larger batches or higher gravity beers! BrewZilla offers the largest malt pipe capacity for units in its size range, and the Gen 4 unit has a 30% larger malt pipe compared to the previous generation
Perforated bottom on the newly designed malt pipe allows for improved mash recirculation flow without sacrificing efficiency
Element power percentage can be adjusted via the RAPT Controller. Go full power to heat up quickly, or dial it down so you don’t overshoot your strike water temp
The built-in pump is plumbed to both the recirculation and arm and the bottom ball valve. Recirculate wort during your mash, then close the recirculation valve and pump wort to your fermenter via the bottom valve
Pair with the RAPT-enabled Bluetooth Thermometer, allowing your BrewZilla to calculate a core mash temperature reading and more accurately control temperatures and mash steps
More RAPT-enabled accessories are coming, and future firmware updates can be downloaded to the RAPT Controller itself over the internet
WiFi/Bluetooth Enabled RAPT Controller
The RAPT Controller is mounted to the top of the boiler body, allowing for easy operation when you have the unit set on the ground. The controller can be tilted upwards to give you an even better view, or it can be removed from the BrewZilla entirely if you’d prefer to mount the controller on your wall or lay it down on a workbench. From the controller, you’ll orchestrate your entire brew day. Program mash steps, dial in element power, and operate the integrated pump all from one screen.
But the RAPT Controller is much more than a beautiful, full-color display switch board. Once synced to the RAPT Portal, you’ll be able to track, record and monitor your brews online. No need for handwriting notes or punching brew day details into your phone – all of the data from your brew is automatically logged to your portal profile. This information doesn’t just include your mash profile; it also captures detailed information about your element power and pump activity, opening the door for very precise repeatability.
And the RAPT Portal isn’t just a digital archive for your brew days. With your BrewZilla powered on, you can control your brewery from virtually anywhere using your phone’s web browser. Not sure when you’ll be home from work or your kid’s ball game going into extra innings? No problem! Before you head out, simply log into the RAPT Portal from your phone and tell the BrewZilla to start heating your strike water. Along with remote control, the portal enables you to program alarms and push notifications for all of your boil additions. We’ve all been caught up with a side task and failed to throw in that yeast nutrient or clarifying agent at the end of the boil, but the BrewZilla has the back of even the most forgetful brewer!
But wait, there’s more! In addition to WiFi connectivity, the RAPT Controller is also a Bluetooth gateway device. KegLand is currently developing various Bluetooth devices such as the Bluetooth Beacon Thermometer and other sensors which will be compatible with your brewery upon release. The RAPT Controller is able to receive information from Bluetooth Low Energy (BLE) devices, adjusting its processes based on this new stream of information while simultaneously logging it to your RAPT Portal. With the Bluetooth Beacon Thermometer, for example, you’ll be able to feed temperature readings from the top of your mash bed to the controller. The controller will then compare this reading with the main temp probe reading at the base of the kettle and adjust element cycling based on these combined readings.
Finally, the RAPT Controller WiFi connectivity allows you to update the controller’s firmware with a single click. Take advantage of new features and accessories as soon as they become available by simply keeping your BrewZilla connected to your local WiFi network. And again, the WiFi is already built-in! No need to come back for an expensive add-on accessory down the road.
High Capacity Malt Pipe
With an approximately 23.5 lb capacity, the BrewZilla can mash nearly 50% more grain than similar sized models of the Anvil Foundry and Grainfather G30. If you want to fill your fermenter with more than a 5-gallon batch worth of wort, or brew the highest gravity beer recipes, the BrewZilla is the brewhouse for the job. And the included malt pipe is just the beginning. If you want to expand your brewery’s grain capacity even further, KegLand makes Boiler Extension Kits and Extended Malt Pipes for that very purpose. The malt pipe features a perforated section at the bottom which improves mash recirculation flow without sacrificing efficiency.
Concave Base with Center Draining
Leave no wort behind! The concave base with center drain means you’ll be able to extract every last drop of wort to your fermenter. If you’ve brewed in a traditional flat bottom kettle, this center drain may be a bit perplexing at first. Many brewers are used to whirlpooling after the boil to pull hop matter into the center of the kettle, then transfer out using a pick-up tube that pulls from the kettle wall in order to avoid sucking up the solids. But fear not! One of the key features of the BrewZilla is the false bottom protection screen. This screen avoids the need for doing a whirlpool, filtering wort as it transfers and blocking more than 95% of hops and hot break from getting sucked into the pump. This not only prevents blocked pump issues, it also increases the efficiency of your brewhouse by eliminating kettle loss from wort that may have otherwise been left behind.
Ultra Low Watt Density Elements
The concave base on the BrewZilla also allowed for larger heating elements with significantly lower watt density than other breweries. When a lot of energy is coming off of a small element, the local temperature near the element can be so high that it scorches the wort and causes caramelization. Lower watt density essentially means you can produce lighter color beers that would otherwise have fallen victim to caramelization effect. It also reduces that chance of boilovers and reduces stress on the elements which extends their life expectancy.
Easy Access Built-In Pump
The built-in pump allows you to recirculate your wort during the mash for improved efficiency and more even temperature distribution. But it can also be used to transfer your wort from kettle to fermenter rather than relying on a gravity feed, and with the optional CIP Rotar, you can used the pump to clean your BrewZilla (or fermenter) after every use. During your brew day you’ll be able to control the pump from the RAPT Controller with a dedicated button for turning the pump on and off. Another feature you’ll find on the controller is adjusting the pump flow. This doesn’t control the actual volume of the flow (you can do that from the ball valve located on the recirculation arm), but rather cycles the pump on and off automatically based on your setting. At 100%, the pump remains on continuously. But at 80%, the pump will cycle to be on 80% of the time and off 20% of the time. This may not be a feature that every brewer thinks they need, but it’s an excellent way to avoid running the pump dry accidentally, as the time the pump is off allows recirculating wort to filter through the grain bed and back into the pump inlet.
If you flip over the boiler, you’ll find the magnetic drive pump and all the plumbing is right at your fingertips. This means you don’t have to disassemble the base in order to access the pump for cleaning or maintenance if required. It also means the plumbing can be changed more easily too. For instance, the unit comes as standard with the plumbing from the pump feeding both the recirculation arm and the transfer valve, but you change this so the tap outlet bypasses the pump if you prefer.
MoreBeer!'s Final Word
We’ve been selling all-in-one brewing systems ever since they first hit the market, and we have to say that the Gen 4 BrewZilla is not only the most feature-packed unit ever made, it’s also offered at an incredibly competitive price point when compared to other systems. You’ll get all of the cutting edge Bluetooth technology you’d get with the Grainfather and at an exceptionally lower price tag. Plus, you get the WiFi capabilities as standard, rather than as a $100 add-on accessory. When it comes to mash recirculation, that’s yet another built-in feature on the BrewZilla, and the pump can also be used for transferring and CIP cleaning. The Foundry has a great starting price, but if you want to unlock its full potential, you’ll need to spend another $100 for the recirculation pump kit. What’s more, no other system in the same ‘weight class’ has the same grain capacity. And if the standard capacity isn’t quite enough, the BrewZilla can be easily upgraded with a Boiler Body Extension Kit and Extended Malt Pipe. When you purchase the BrewZilla, you can feel confident that you’re investing in a top shelf system and all of the critical features you’re expecting will be included.
Perfect for Distillation
If you want to expand your lineup of homemade libations to offer Spirits in addition to Ales & Lagers, the BrewZilla makes an excellent pot still! Add the Distillation Lid upgrade and pair it with an AlcoEngine Copper Reflux Condenser or Copper Pot Still Top. AlcoEngine Stills have been selling on the home market for years and offer some of the most affordable, beginner-friendly stills you'll find.
Features:
Gen 4.1
Stainless steel construction
9 gallon total capacity with a finished beer output of 5-6 gallons
WiFi/Bluetooth Enabled RAPT digital temperature controller
Automatic step mashing with 6 programmable stages
110-120V power and plug
12.5A
Requires 20A circuit
Dual heating elements (1000 watts and 500 watts)
Stainless steel 1/2" ball valve for gravity draining or transferring via pump
Immersion wort chiller included
Stainless steel malt pipe/basket
Stamped in volume markers
Glass lid
Adjustable lid clamps (do not use with glass lid in place - see below)
Magnetic drive pump for recirculation, transfers, and cleaning
Recirculation arm
PPSU sight glass
Bottom handle for easy lifting and pouring
Rubber feet
Temperature reads in °F or °C
Approximately 32.75" H (with recirculation arm) x 12.5" D
Recommended max. grain bill: 23.5 lbs
AlcoEngine Still ready with the purchase of a Distillation Lid
Pump Specs:
Max Capacity: 2.9–3.1 gal/min
Max Head: 4.9–6.8 ft.
Poles: 2
Voltage: 110–120V-AC
Frequency: 50–60Hz
Power: 6 watts
Current: 60 mA
Speed: 2600–3000rpm
Duty Cycle: Continuous
Capacitor: 2µF
Input/Output: 13mm barb
Water Resistance: IPX2
Please note: due to patent restrictions in the United States, the malt pipe has been redesigned with one set of bottom feet. This model does not include the "two stage" malt pipe as advertised by KegLand and featured in previous MoreBeer! YouTube videos.
Please Note: When removing the malt pipe to drain after mashing, it is important to do so slowly rather than in one swift pull. If the malt pipe is removed all at once when it is full of wort, it is possible for the draining wort to spray out and over the rim of the brewery through the perforated bottom. Remove the malt pipe slowly so that some of the wort can drain out before it is fully removed and set on its bottom feet. This can be done by hand on the 35L unit, but for the 65L and 100L units we highly recommend using the Pulley System for removing the malt pipe.
Warning: Do not engage the adjustable lid clamps when brewing with the BrewZilla's standard glass lid. The clamps are only intended to be used with distillation lids or other metal accessories. With too much tension, it is possible for the lid clamps to break the glass lid when engaged.
Warning: If you are going to use an extension cord with the BrewZilla, you must ensure that the cord is the correct gauge and properly rated to suit the power requirements of your brewery. See the reference chart below for the recommended gauge based on your unit and the length of cord you wish to use.
35L (110V)
35L (220V)
65L (220V)
100L (220V)
10 ft.
14 Gauge
14 Gauge
12 Gauge
10 Gauge
25 ft.
14 Gauge
14 Gauge
12 Gauge
10 Gauge
50 ft.
12 Gauge
12 Gauge
10 Gauge
8 Gauge
FermZilla Tri-Conical Fermenter
The Gen 3.2 FermZilla Tri-Conical features a newly designed collection container with top & bottom PCO1881 ports. The collection container has a 3" T.C. opening and installs on the Conical with a 3" T.C. butterfly valve. The molded 3" T.C. ferrule on the tank is a huge improvement over the Gen 2 model—eliminating the complicated dump valve design and simplifying the collection container connection. Brew with confidence on the new Tri-Clover FermZilla!
NOTE: The primary example photo shows the collection container from the Gen 3 FermZilla.
Out of the box, the FermZilla Conical is an amazing fermenter that will immediately step up your game on the cold side of the brewing process. But what we love most about this unit is how easily it is to upgrade as you go—adding more functionality and gaining more precise control over your fermentation with each new accessory. Below are some of our favorite add-ons for the FermZilla Tri-Conical Fermenter.
Pressure Kit
The FermZilla is the perfect option for brewers that want all the advantages of a conical fermenter without the price tag of a full blown stainless steel unit. It allows you to dump trub, harvest yeast, and with the addition of the FermZilla Pressure Kit, you can carbonate and serve – all in one vessel! The clear PET tank allows you to visually monitor fermentation activity and is pressure rated to 2.4 Bar (34.8 psi), which means you can ferment under pressure, reducing ester and fusel alcohols in your finished beer. This also gives the ability to perform pressure transfers. If you prefer to move your finished beer to a keg or other vessel, you can do so with little to no oxygen exposure.
Tri-Clamp Pressure Lid
Add a 2" T.C. port to your fermenter by replacing the standard lid with the FermZilla Tri-Clamp Pressure Lid. This will give you an opening to add dry hops or other additions without needing to remove the entire lid, or you can upgrade down the road with a Hop Bong sight glass in order to add CO2 and purge your hop charge of oxygen. PCO1881 threaded ports are still there for Ball Lock Caps, as well as undrilled ports for an optional Thermowell and Temp Twister cooling coil.
Hop Bong Pressure Pack
The ultimate upgrade kit! The Hop Bong Pressure Pack has all of the parts included with the Pressure Kit and Tri-Clamp Pressure Lid but fully parted out to remove the guess work. If the Tri-Conical is your first FermZilla fermenter, this accessory kit is for you. Load up the Hop Bong, flush it with CO2, purge out oxygen with the handy PRV on top, then simply open the Butterfly Valve to inject your beer with a 6 oz payload of dry hops.
FermZilla Gen 3 vs Gen 3.2:
3" x 3" T.C. butterfly dump valve
3" T.C. compatible collection container
600 mL collection container w/ top & bottom PCO1881 threaded ports
What's Included:
FermZilla 27L Tank with 3" T.C. Bottom Port
3" T.C. Butterfly Valve
600 mL Collection Container with 3" T.C. Connection
Stainless Steel Stand with Swing Handles
Stainless Steel Handle Assembly
Top Lid with PRV (35 psi)
3" tri-clamp with gaskets
3-Piece Airlock
Graduation Sticker
Adhesive Thermometer
Spare Seals
Specs:
27 L (7.1 gal) Total Volume
Pressure Rated to 2.4 Bar (34.8 psi)
Height in Stand - 29.5"
Height w/ Airlock - 33.7"
Tank Diameter - 13.9"
Diameter in Stand - 15.3"
Lid & Collection Container Ports - 28 mm PCO 1881 threads
Temperature Rating:
When not under pressure, do not expose to liquids above 131°F
When under pressure, do not expose to any temperatures above 95°F*
Installation Note: For best performance with your Floating Dip Tube, ensure there is not an excess amount of slack when the silicone dip tube is installed and shorten it if needed. With the floating dip tube installed on your empty FermZilla, you ideally want the dip tube to hang freely with just enough length for the end of the dup tube to touch the bottom of the tank.
Perhaps your wort was too hot when you transferred from the kettle, or while cleaning you dropped the FermZilla against something sharp that punched a hole, or maybe it's just time to replace the tank after acquiring too many scratches from normal wear-and-tear. Whatever the reason, no need to go buy a whole new FermZilla! Just pick up one of these fresh replacement tanks and your conical fermenter will be good as new!
Pressure Stress
If you use the FermZilla to ferment under pressure, or you use CO2 to pressure transfer or force carbonate your finished beer, it is very important that you conduct semi-annual inspections of your tank. Even with perfect care, the FermZilla tank may show signs of wear from pressure stress over time. We recommend visually inspecting your tank for stress creases or other signs of wear once or twice a year. A hydro test should be conducted every two years, even if no signs of wear are found. The process is simple:
Fill the tank to the brim with water
Replace the Red PRV with a Green PRV rated to 4.5 BAR or higher
Pressurize the tank to 4 BAR (58 psi)
Check for leaks, then replace the Red PRV when finished
If leaks or potential points of failure are found, replace the tank before you continue using pressure with your FermZilla.
General Care
Taking good care of your FermZilla begins with cleaning and sanitizing the unit before and after use. The tank is made from food-grade PET, which is beautifully clear, but can be sensitive to long soaks in cleaners and acid-based sanitizers. In general, we do not recommend leaving products like PBW or StarSan soaking in the tank for more than an hour. Extended soaks have the potential to degrade the PET material and shorten the lifespan of the tank.
KegLand Part Number: KL15219
NOTE: FermZilla tanks are marked with a manufacturer’s “expiry date”. This does not indicate that the tank is bad after this date; it simply indicates that a hydro test may be in order. 2 years after production and every 2 years after first use, it is recommended that the tank be hydro tested to ensure the tank is holding pressure. Hydro test instructions are available here. You will also need the D1072 Green PRV to perform the test. If you do not plan to pressurize the fermenter, the test is not necessary.
Compatible with the 27L and 55L FermZilla Tri-Conical Series or any 3" T.C. fittings. This can be used on the bottom of your conical for a maximized dump valve or it can be used with a FermZilla T.C. Pressure Lid with 2" x 3" reducer and sight glass to make a massive hop injector.
KegLand Part Number: KL27571

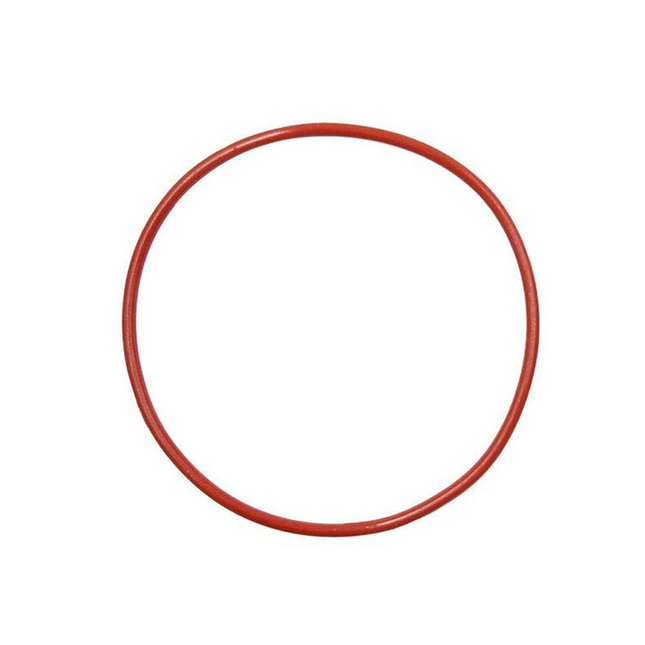

Replacement Lid O-Ring for FermZilla. Fits all models and sizes of FermZilla fermenters.
If you are experiencing leaking from the top lid section, this slightly thicker O-Ring will aid in resolving said leaking. To perform a leak test, please remember to have the unit free of any liquid as that will absorb CO2.
It is also important to remember not to overtighten the stainless steel handles that may have come with your FermZilla. Over-tightening will cause the opening to warp and not seal. The handles should be able to freely rotate around the neck with little resistance.
KegLand Part Number: KL22262

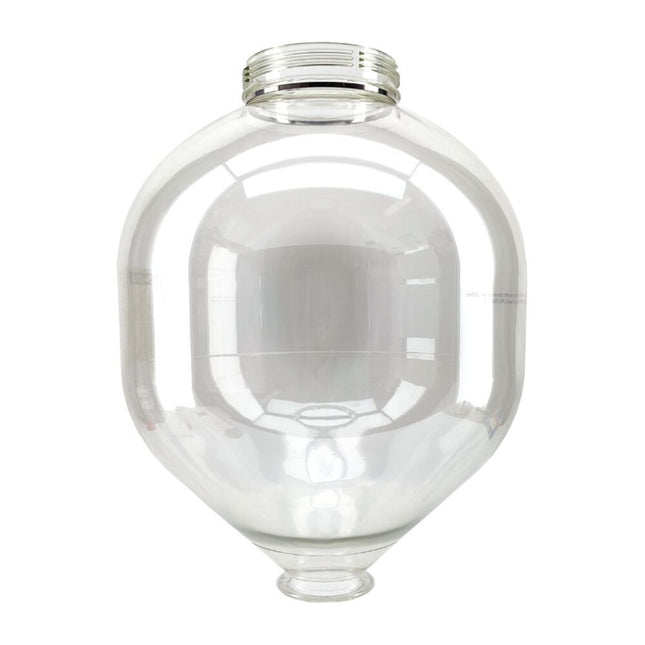

Replacement PET Tank for the 27L Tri-Conical FermZilla with tri-clamp bottom port.
Perhaps your wort was too hot when you transferred from the kettle, or while cleaning you dropped the FermZilla against something sharp that punched a hole, or maybe it's just time to replace the tank after acquiring too many scratches from normal wear-and-tear. Whatever the reason, no need to go buy a whole new FermZilla! Just pick up one of these fresh replacement tanks and your conical fermenter will be good as new!
Pressure Stress
If you use the FermZilla to ferment under pressure, or you use CO2 to pressure transfer or force carbonate your finished beer, it is very important that you conduct semi-annual inspections of your tank. Even with perfect care, the FermZilla tank may show signs of wear from pressure stress over time. We recommend visually inspecting your tank for stress creases or other signs of wear once or twice a year. A hydro test should be conducted every two years, even if no signs of wear are found. The process is simple:
Fill the tank to the brim with water
Replace the Red PRV with a Green PRV rated to 4.5 BAR or higher
Pressurize the tank to 4 BAR (58 psi)
Check for leaks, then replace the Red PRV when finished
If leaks or potential points of failure are found, replace the tank before you continue using pressure with your FermZilla.
General Care
Taking good care of your FermZilla begins with cleaning and sanitizing the unit before and after use. The tank is made from food-grade PET, which is beautifully clear, but can be sensitive to long soaks in cleaners and acid-based sanitizers. In general, we do not recommend leaving products like PBW or StarSan soaking in the tank for more than an hour. Extended soaks have the potential to degrade the PET material and shorten the lifespan of the tank.
KegLand Part Number: KL28240
NOTE: FermZilla tanks are marked with a manufacturer’s “expiry date”. This does not indicate that the tank is bad after this date; it simply indicates that a hydro test may be in order. 2 years after production and every 2 years after first use, it is recommended that the tank be hydro tested to ensure the tank is holding pressure. Hydro test instructions are available here. You will also need the D1072 Green PRV to perform the test. If you do not plan to pressurize the fermenter, the test is not necessary.
