Solenoid valve made from stainless steel. Designed for glycol, water and air/co2. T.C. 34mm ports in both ends for maximum flexibility. Coil and plunger Italian-made by ACL. The valve can easily ble disassembled and cleaned.
Coil has DIN 43650 Type A connector (not included).
Normally used with T.C. 34mm to 3/8" NPT threaded adapter and leak-free quick connectors on one or both sides depending on setup.
Specifications:
Ports: TC34mm / TC34mm
Operation: NC (normally closed)
Power supply: DC24V, 10W
Orifice: Ø4.5mm
Pressure rating: Max 3 bar / 43 PSI

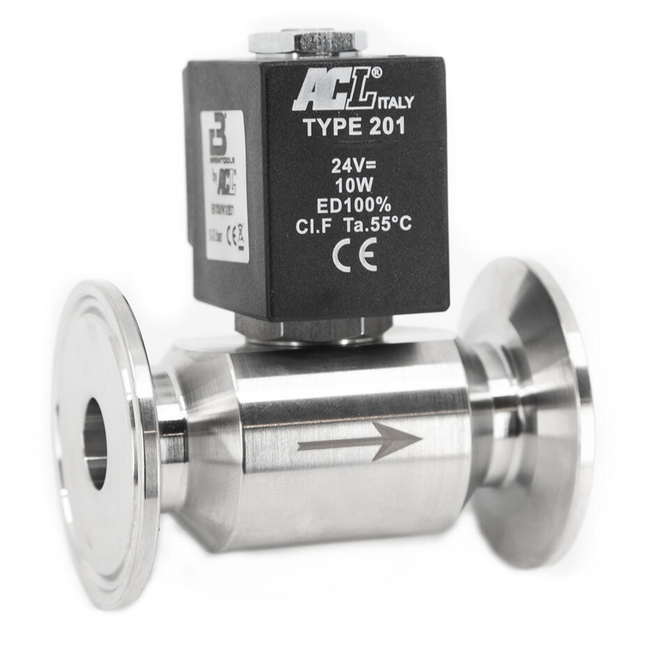

Solenoid valve made from stainless steel. Designed for glycol, water and air/co2.
TC3mm ports in both ends for maximum flexibility.
Coil and plunger Italian-made by ACL.
The valve can easily ble disassembled and cleaned.
Coil has DIN 43650 Type A connector (not included).
Specifications:
Ports: TC 1.5" / TC 1.5"
Operation: NC (normally closed)
Power supply: DC24V, 10W
Orifice: Ø4.5mm
Pressure rating: Max 3 bar / 43 PSI

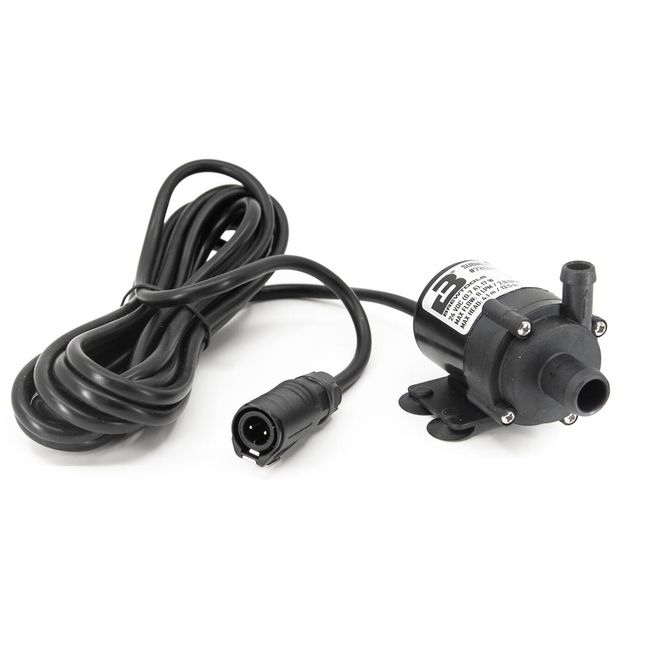

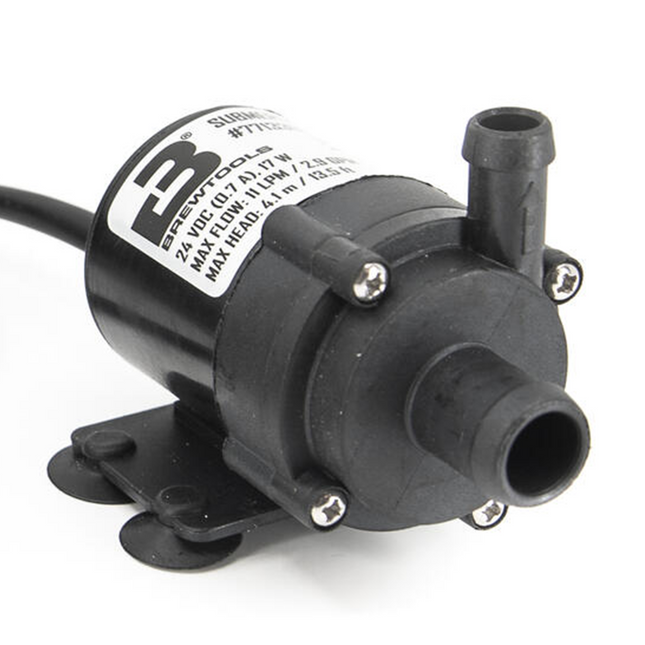

Submersible pump for cooling applications or similar.
A perfect match for FCS to supply cooling liquids to fermentation tanks up to 50 liters.
Very quiet.
Technical Information:
Voltage: 24VDC
Maximum Power: 17W
Maximum Flow: 11 L/min / 2.9 Gal/min
Maximum Height: 4.1m / 13.5 feet
Barb Size (liquid out): Ø=10.28 mm (recommended hose size: 8x12)
Ø=0.40" (recommended hose size: 5/16" ID)
Barb Size (liquid in): Ø=14.68 mm (recommended hose size: 10x14)
Ø=0.57" (recommended hose size: 3/8" ID)
IP rating: IP68
Cable: 3m / 9.8 ft.
Connector: LP12, 2-pin plug (male)
Removable bracket with 4 suction feet is included

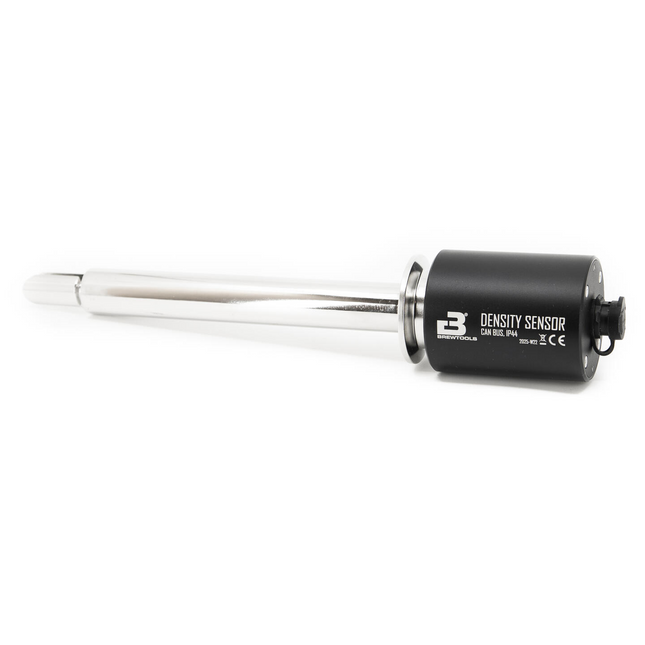

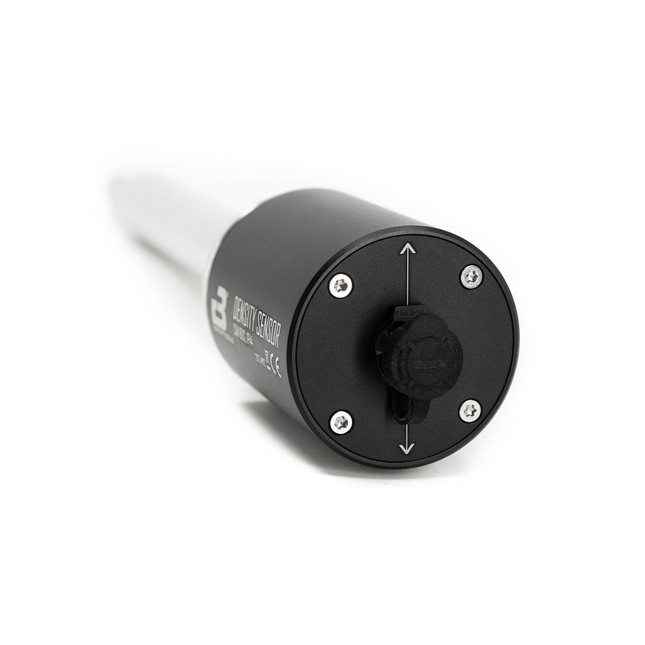

Density sensor with integrated temperature sensor for FCS gives accurate and real-time density and temperature data for your fermentation tank
Measures density by inducing a vibration frequency in the fork and listening for the resonant frequency
Primarily designed for fermentation tanks like the F40-F300 and similar tanks
Tuning fork-based measurements gives accurate and real-time density and temperature data for your fermentation tank. The Brewtools density sensor measures density by inducing a vibration frequency in the fork and listening for the resonant frequency.
Take your fermentation to the next level with data-driven control and logging. Future updates of FCS will enable you to control temperature and pressure steps based on density in the tank, without the need for manual intervention.
This model is primarily designed for fermentation tanks like our F40-F300 and similar tanks. Accuracy may vary for smaller tanks (like MiniUni+).
More information: https://docs.brewtools.com/density-sensor
Specifications:
Density accuracy: +-0.002 SG
Temperature accuracy: +- 0.3ºC
Flange: TC 1.5". Ø25mm minimum
Length: 200mm from flange
Connector: LP12 5-pin (CAN bus + 24V)
Note: Accuracy and function can vary based on trub, yeast health, yeast flocculation, rapid temperature changes, dry-hopping and other additions and distance to tank wall/heating elements etc. Pressure fermentation can increase accuracy. Accuracy and features will improve over time with software updates.
Brewtools Product Number: 7713723

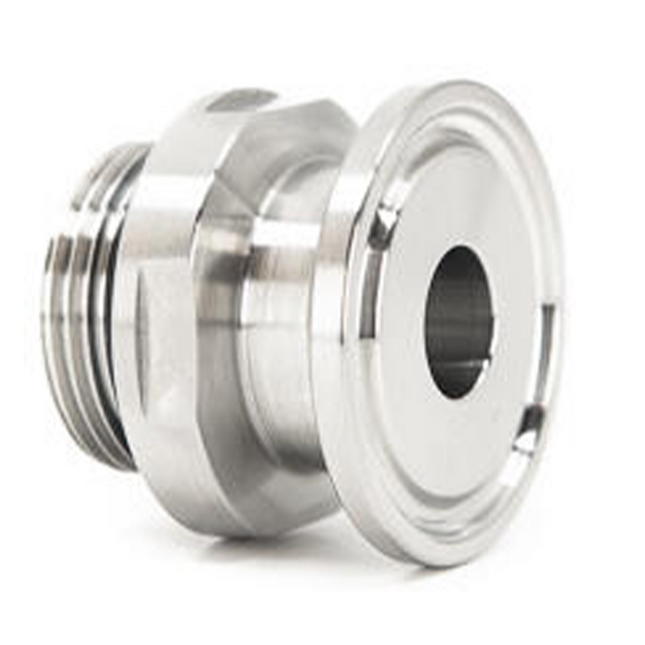

M24 Threads to 34mm T.C. Adapter.
For the MiniUni+, this adapter can be used to replace the Pressure Kit spunding valve with a 34mm T.C. Elbow to install the FCS spunding assembly.
M16 x 1.5mm inside threads for accessories.
The Brewtools Power Supply for Gas Release Solenoid Valve is available for pre-order. Place your order now and we will automatically ship it to you when it becomes available. The current estimated availability is early 2026.
24V, 40W Power supply with LP12 2-pin plug.
The Brewtools Type B Adapter for Gas Release Solenoid Valve is available for pre-order. Place your order now and we will automatically ship it to you when it becomes available. The current estimated availability is early 2026.

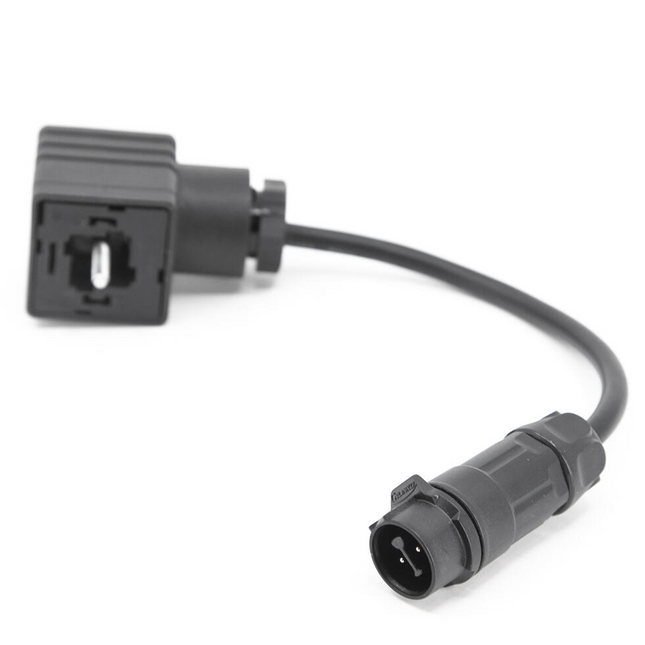

Cable for use between 2-pin cable and 24 VDC solenoid valves (gas).
Connector A: LP12, 2-pin male plug (in-line connector)
Connector B: DIN 43650 Form B
Color: Black
Length: 0.1m (3.9")
The Brewtools Gas Release Solenoid Valve is available for pre-order. Place your order now and we will automatically ship it to you when it becomes available. The current estimated availability is early 2026.
Solenoid valve made from stainless steel. Designed for air/co2.
TC3mm ports in both ends for maximum flexibility.
Coil and plunger Italian-made by ACL.
The valve can easily be disassembled and cleaned.
Coil has DIN 43650 Type B connector (not included).
Specifications:
Ports: TC34mm / TC34mm
Operation: NC (normally closed)
Power supply: DC24V, 6.5W
Orifice: Ø2.0mm
Pressure rating: Max 3 bar / 43 PSI
The Brewtools DIY Power Cable is available for pre-order. Place your order now and we will automatically ship it to you when it becomes available. The current estimated availability is early 2026.
Power cable for FCS relay module (5A) or heaters.
Connector A: None
Connector B: LP20, 3-pin female plug
Color: Black
Length: 2m (6.5 ft.)
The Brewtools LP20-3-Pin Power Cable is available for pre-order. Place your order now and we will automatically ship it to you when it becomes available. The current estimated availability is early 2026.
Power cable for use between FCS relay module (5A) and sanitary heaters or water heater.
Connector A: LP20, 3-pin male plug
Connector B: LP20, 3-pin female plug
Color: Black
Length: 2m (6.5 ft.)
The Brewtools LP12-7-Pin Cable for Relay Modules is available for pre-order. Place your order now and we will automatically ship it to you when it becomes available. The current estimated availability is early 2026.
Cable for use between FCS I/O module and FCS relay module (5A).
Connector A: LP12, 7-pin male plug
Connector B: LP12, 7-pin female plug
Color: Black
Length: 3m (9.8 ft.)
The Brewtools FCS Relay Module is available for pre-order. Place your order now and we will automatically ship it to you when it becomes available. The current estimated availability is early 2026.
Relay Module for use with FCS. Specifically designed for small heating elements.
Control signal is 5V and the devices measures current draw.
The module has a 2-pole relay and several protective circuits for noise, over voltage etc.
For maximum safety, the device also has one fuse per phase.
Specifications:
110-240V AC, Max 5A
Power in: LP20 3-pin male
Power out: LP20 3-pin female
Signal: LP12 7-pin
Fuse: 2x 5x20 6.3A Fast Blow
Installation:
4 screw holes with 5mm diameter. Designed for countersunk screws.
