Put one feed line into this filler from your fermenter or barrel and fill three bottles at once. Unit comes included with a Siphon Bulb for conveniently starting a siphon from the holding tank to each filler spout. Each bottle fills independently of one another to allow for staggered filling (take one bottle off as another is filling). Fill is initiated when bottle is placed onto filling spout and set down on the bottle tray. The flow of liquid will stop automatically when the level of liquid in the bottle reaches the liquid level in the reservoir. The bottle will rest upon the bottle tray during filling. Spouts feature a unique design that eliminates dripping when bottle is removed. A float valve keeps the wine level constant in the wine reservoir at all times. Each spout fills about two bottles per minute. Built-in drain allows for easy cleaning. All metal parts are made from 304-type stainless steel. Replacement fill spout seals are available. 9L reservoir.
16.5" L x 16" W x 21.25" H
Nozzle diameter: 12 mm (0.472441 inch)
Put one feed line into this filler from your fermenter or barrel and fill three bottles at once. Unit comes included with a Siphon Bulb for conveniently starting a siphon from the holding tank to each filler spout. Each bottle fills independently of one another to allow for staggered filling (take one bottle off as another is filling). Fill is initiated when bottle is placed onto filling spout and set down on the bottle tray. The flow of liquid will stop automatically when the level of liquid in the bottle reaches the liquid level in the reservoir. The bottle will rest upon the bottle tray during filling. Spouts feature a unique design that eliminates dripping when bottle is removed. A float valve keeps the wine level constant in the wine reservoir at all times. Each spout fills about two bottles per minute. Built-in drain allows for easy cleaning. All metal parts are made from 304-type stainless steel. Replacement fill spout seals are available. 9L reservoir.
16.5" L x 16" W x 21.25" H
Nozzle diameter: 12 mm (0.472441 inch)
Gravity fillers are the preferred filler for achieving exactly the same fill height in every bottle. Gravity fillers fill to a height you determine and then shut off automatically. They are dependable, simple to operate, have no electrical parts, and few moving parts.
Another a nice feature of these fillers is the adjustable stainless tray that the bottles sit on can be moved up and down to account for different bottle sizes, allowing you to fill 1.5 L, 750 mL or 375 mL bottles. A favorite of small wineries, clubs, and out-of-control home winemakers.
Features:
Each fill nozzle is independently adjusted for fill height
All parts in contact with the wine are made from 304 type stainless steel
There is a drain located on the bottom for draining after use
1.5" Tri-Clamp inlet and reservoir drain
Level gauge located on the side of the reservoir
Approximately 3 bottles can be filled per minute, per nozzle.
36.5" H x 23" W x 18.5" D
Reservoir is approximately 33 liters.
Please Note This filler is not equipped with a float valve in the reservoir, as the majority of our customers supply the filler via a pump, and the float valve will not stop the flow from a running pump.
Put one feed line into this filler from your fermenter or barrel and fill three bottles at once. Unit comes included with a Siphon Bulb for conveniently starting a siphon from the holding tank to each filler spout. Each bottle fills independently of one another to allow for staggered filling (take one bottle off as another is filling). Fill is initiated when bottle is lowered onto filling spout and locked into place with built-in bottle neck clasp. The flow of liquid will stop automatically when the level of liquid in the bottle reaches the liquid level in the reservoir. The clasps around each fill head will hold the bottles in place during filling. Spouts feature a unique design that eliminates dripping when bottle is removed. A float valve keeps the wine level constant in the wine reservoir at all times. Each spout fills about two bottles per minute. Built-in drain allows for easy cleaning. All metal parts are made from 304-type stainless steel. Replacement fill spout seals are available. 15L reservoir.
Gravity fillers are the preferred filler for achieving exactly the same fill height in every bottle. Gravity fillers fill to a height you determine and then shut off automatically. They are dependable, simple to operate, have no electrical parts, and few moving parts.
Another a nice feature of these fillers is the adjustable stainless tray that the bottles sit on can be moved up and down to account for different bottle sizes, allowing you to fill 1.5 L, 750 mL or 375 mL bottles. A favorite of small wineries, clubs, and out-of-control home winemakers.
Features:
Each fill nozzle is independently adjusted for fill height
All parts in contact with the wine are made from 304 type stainless steel
There is a drain located on the bottom for draining after use
1.5" Tri-Clamp inlet and reservoir drain
Level gauge located on the side of the reservoir
Approximately 3 bottles can be filled per minute, per nozzle.
36.5"H x 36"W x 18.5"D
Reservoir is approximately 58 liters.
Please Note This filler is not equipped with a float valve in the reservoir, as the majority of our customers supply the filler via a pump, and the float valve will not stop the flow from a running pump.
This is a complete set of gaskets to replace those inside the fill nozzles of the Marchisio Benchtop Wine Bottle Filler (WE64 / WE645). Contains 8 gaskets / seals. This seal kit is intended for the updated fill nozzles with 16mm diameter. Includes: (1) Pos 5 / Cone (2) Pos 19 (1) Pos 18 (1) Pos 13 (1) Pos 11 (1) Pos 10 (1) Pos 2
Rolling cart wine plate filter
Plates made from food-grade Noryl
Built-in stainless centrifugal pump
Built-in pressure gauge
1.5" tri-clamp inlet/outlet
600L/h wine filtering capacity
Made in Italy by Marchisio
Small commercial plate filter that will accomodate 20 20cm x 20cm plates. Included 110v 1/2hp, stainless motor will pump wine from your container and push it through the filter and into your aging tank or bottle filler.
Features:
304 Stainless Steel Construction
Four Casters for easy movement. Two of the casters have locks
Built-in centrifugal stainess steel pump with on/off switch
21 Food-Grade Noryl plastic plates included.
Double filtration kit available
Built-in pressure gauge
Maximum pump pressure is 2.5 bar (35 p.s.i.)
Up to 600L (158 gal) Flow rate per hour
620x420x560mm/24x16.5x22 inches
90 lbs
1.5" Tri-Clamp inlet and outlet
Pads should be placed in the machine rough-smooth-smooth-rough
Rolling cart wine plate filter
Plates made from food-grade Noryl
Built-in stainless centrifugal pump
Built-in pressure gauge
1.5" tri-clamp inlet/outlet
1,200L/h wine filtering capacity
Made in Italy by Marchisio
Commercial plate filter featuring 41 20cm x 20cm plates. Included 110v 1/2hp, stainless motor will pump wine from your container and push it through the filter and into your aging tank or bottle filler.
Features:
304 Stainless Steel Construction
Four Casters for easy movement. Two of the casters have locks
Built-in centrifugal stainess steel pump with on/off switch.
41 Food-Grade Noryl plastic plates included.
Double filtration kit available
Built-in pressure gauge
Maximum pump pressure is 2.5 bar (35 p.s.i.)
Up to 1200L (317 gal) Flow rate per hour
940x480x590mm/37x19x23 inches
114 lbs
1.5" Tri-Clamp inlet and outlet
Pads should be placed in the machine rough-smooth-smooth-rough
Minimum number of plates that can be used is 30
2.7 °L - Fawcett Malting - Maris Otter has long been the favorite of English brewers for its brewhouse performance and rich, slightly nutty flavor. An excellent malt for any English beer style. All of Fawcett’s Maris Otter malt is still produced in their traditional floor malting fashion.
Typical Malt Analysis:
Moisture % 3.0
FGE (dry)% 80.5
Color (L) 2.3-3.0
If this malt is currently out of stock or you'd like to try out a different maltster, please see the substitution chart below.
Bairds Malt - Maris Otter
GR352
Thomas Fawcett Malting - Maris Otter
GR360
3° L - Bairds Malt - Maris Otter Pale Ale - Maris Otter is a British barley malt variety known for producing beers with a full malty flavor. Plump kernels with great extraction. (2.5-3.5°L) If this malt is currently out of stock or you'd like to try out a different maltster, please see the substitution chart below. Crisp Malt - Maris Otter GR350 Thomas Fawcett Malting - Maris Otter GR360
Mark’s Mark II Keg Washer™ is designed to clean and sanitize large vessels like cornelius kegs and carboys. This keg cleaner is also intended to provide a sanitation container for miscellaneous items such as airlocks, thermometers, tubing, keg fittings, and more.
Quiet, Fun, & Easy to Use
Very quiet when in use and most importantly speeds up the process of cleaning and sanitizing.
Light in weight. Easy to store.
Cleans Kegs
This keg washer cleans and sanitizes a cornelius keg without having to take apart the ball lock fittings, poppets, and dip tubes. You can clean the keg and the dip tube simultaneously using the T adapter.
Cleans Tubing Too
Cleans tube separately utilizing the pump with the additional barb fittings included.
Cleans Parts
Reservoir holds 1.25 gallons of water making it easy to fill and empty with sanitizer.
Saves water and sanitizer.
The keg washer does not have an on/off switch, you can plug it directly into a wall outlet to operate the pump or plug it into an outlet that is controlled by a switch. Never leave the keg washer unattended when in use.
When in use, fill the keg washer up to about 1 inch under the brim. The pump is not self priming, so always make sure the basin is full of water before plugging in the pump.
Owner's Manual is included. Please read thoroughly before using. Dimensions of the inside of the washer's reservoir are: 6"L x 12"W x 4"D.
Please Note: Product does not include the bucket, carboy, or keg pictured above for display purposes.
The pump specs are:
520 GPH
120 Volts AC
40 watts
Ceramic shaft, impeller
Classicly styled hardwood mash paddle for stirring large amounts of grain. This paddle features a "T" handle for better maneuverability. They are made in the USA from white birch. 36 inches long.
No need to spend a ton of money on other paddles! This 24 in. Plastic Mash Paddle will get the job done!
The 24 inch Plastic Mash Paddle is a great and inexpensive way to stir your grain when doughing-in. It easily breaks up any clumps of grain in your mash, preventing dough balls from forming. Homebrewers love it because the durable plastic paddle will not scratch plastic mash tuns. These are 24" in length, a great size for 5 gallon cooler mash tuns!
A great and inexpensive way to stir your grain when doughing-in. Will help prevent doughballs from forming. Made from a durable plastic material that will not scratch plastic mash tuns such as coolers. These are 28" in length, a perfect size for smaller mash tuns. See items below for additional sizes.

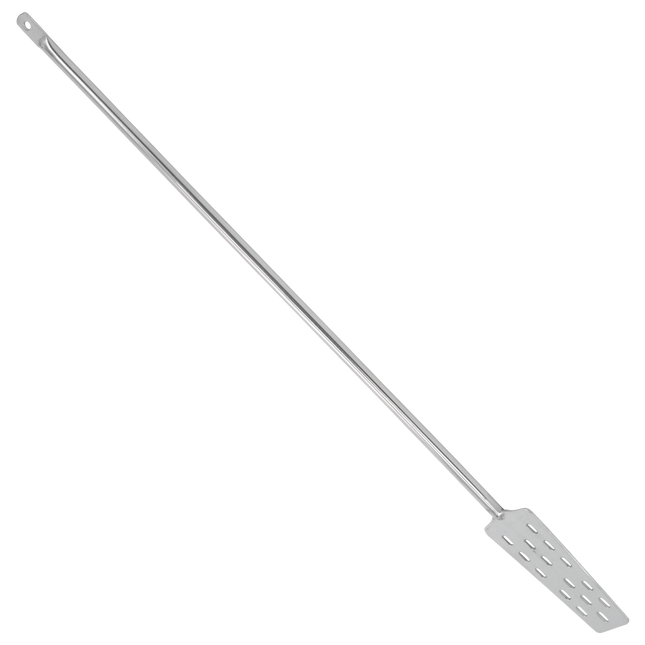

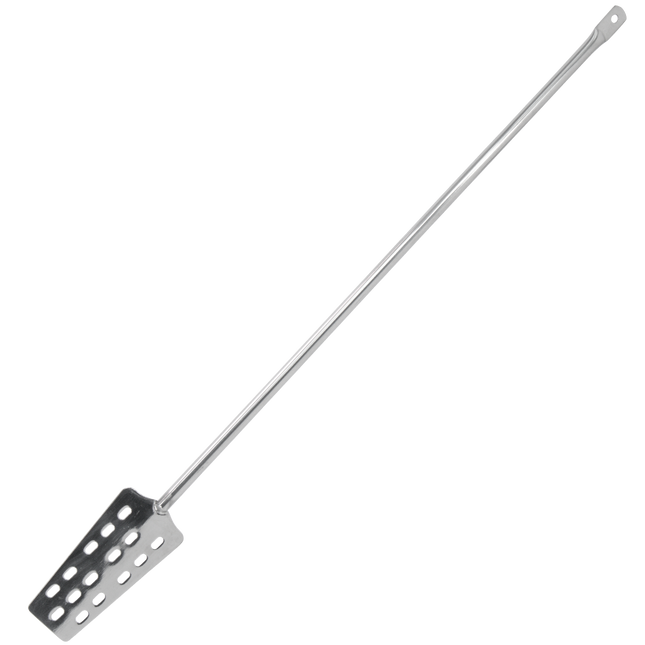

This 24-inch stainless mash paddle is the perfect size for most 5-gallon batch applications, and is well-suited for use with the BrewZilla, DigiBoil, Grainfather or Braumeister brewing units. Slotted paddle face gives you less resistance while stirring in extract or breaking up dough balls. Features a hole located at the handle end so you can hang up the paddle when not in use.
24" overall length, paddle is 4.5" long
Paddle tapers from 2.5" to 1.5" wide
1/4" hanging hole
304 stainless steel construction
Kegland Part Number: KL03810
Let this mash paddle unleash your inner Pro Brewer! This 36 inch, 100% Stainless Steel Mash Paddle is perfect for any size mash tun. It can stir large volumes and it’s a snap to clean and sanitize. The paddle itself is a solid piece of stainless steel with no holes in it. Because there are many different theories about mash paddle design, this paddle is left solid so that you can customize the hole pattern to your preferences. If you like, we do offer one drilled configuration, the AG431A.
Stainless steel mash paddle with 60 inch long stainless steel handle. These paddles are built to last a life time, and are great for doughing-in to deeper mash tuns with ease! Perfect nano-brewery mash paddle.
Affordability meets heavy duty construction with this stainless steel mash paddle. Plastic options are a great economic choice, but don't come with the same level of durability. Stainless paddles are the gold standard, but usually come with a hefty price tag. This 24" paddle offers you the best of both worlds.
Made from food grade stainless steel and BPA free. Perfect for mixing and stirring with very little resistance thanks to the slotted holes. The paddle is 4.7" long and 3.1" wide. The ideal size for 5 gallon mash tuns.
Stacking 10 bbl horizontal lagering tanks. Comes as a set of (2) 10 bbl brite tanks, top and bottom. See technical drawing below for more details.
MB jacketed brite tanks are made from 304 stainless steel and built to high quality standards. All of our brite tanks are pressured tested at the factory, feature 100% sanitary welds, and are backed by the MoreBeer! Pro one year warranty. Every brite tank features an average 15% headspace not stated in the volume, so for example, a 10 bbl brite really has 11.5 bbl of volume.
Features Include:
15 PSI (1 bar) working pressure
Side manway door for cleaning
1.5" Tri-clamp carbonation stone
1.5" Tri-clamp pressure gauge
1.5" Tri-clamp Perlick-style sample valve
1.5" Tri-clamp pressure/vacuum relief
1.5" bottom tri-clamp drain
Dedicated pipe system with 4" Tri-clamp center top opening and 1.5" tri-clamp rotating CIP spray ball for easy cleaning
3/4" NPT glycol ports
Construction
304 stainless steel construction
Double walled with 80 mm thick polyurethane insulation
External Shell: 2 mm thick with brushed finish
Internal tank: 3 mm thick with smooth ground welds, 2B finish and passivated
Glycol Jacket: dual cooling zone, 1.5mm thick
Specifications:
Stacked Tank Height: 105"
Stacked Tank Depth: 91"
Stacked Tank Width: 46"
Stacked Empty Weight: 1,850 lbs
Working Volume per Tank: 10 bbl
Total Volume per Tank: 11.5 bbl
Jacket Surface Area per Tank: 3,543 in² (2.286 m²)
Please Contact our Customer Service department at 1-800-600-0033 to assess shipment costs and place an order.
Stacking 10 bbl horizontal lagering tanks. Comes as a set of (2) 10 bbl brite tanks, top and bottom. See technical drawing below for more details.
MB jacketed brite tanks are made from 304 stainless steel and built to high quality standards. All of our brite tanks are pressured tested at the factory, feature 100% sanitary welds, and are backed by the MoreBeer! Pro one year warranty. Every brite tank features an average 15% headspace not stated in the volume, so for example, a 10 bbl brite really has 11.5 bbl of volume.
Features Include:
15 PSI (1 bar) working pressure
Side manway door for cleaning
1.5" Tri-clamp carbonation stone
1.5" Tri-clamp pressure gauge
1.5" Tri-clamp Perlick-style sample valve
1.5" Tri-clamp pressure/vacuum relief
1.5" bottom tri-clamp drain
Dedicated pipe system with 4" Tri-clamp center top opening and 1.5" tri-clamp rotating CIP spray ball for easy cleaning
3/4" NPT glycol ports
Construction
304 stainless steel construction
Double walled with 80 mm thick polyurethane insulation
External Shell: 2 mm thick with brushed finish
Internal tank: 3 mm thick with smooth ground welds, 2B finish and passivated
Glycol Jacket: dual cooling zone, 1.5mm thick
Specifications:
Stacked Tank Height: 105"
Stacked Tank Depth: 91"
Stacked Tank Width: 46"
Stacked Empty Weight: 1,850 lbs
Working Volume per Tank: 10 bbl
Total Volume per Tank: 11.5 bbl
Jacket Surface Area per Tank: 3,543 in² (2.286 m²)
Please Contact our Customer Service department at 1-800-600-0033 to assess shipment costs and place an order.
Stacking 7 bbl horizontal lagering tanks. Comes as a set of (2) 7 bbl brite tanks, top and bottom. See technical drawing below for more details.
MB jacketed brite tanks are made from 304 stainless steel and built to high quality standards. All of our brite tanks are pressured tested at the factory, feature 100% sanitary welds, and are backed by the MoreBeer! Pro one year warranty. Every brite tank features an average 15% headspace not stated in the volume, so for example, a 10 bbl brite really has 11.5 bbl of volume.
Features Include:
15 PSI (1 bar) working pressure
Side manway door for cleaning
1.5" Tri-clamp carbonation stone
1.5" Tri-clamp pressure gauge
1.5" Tri-clamp Perlick-style sample valve
1.5" Tri-clamp pressure/vacuum relief
1.5" bottom tri-clamp drain
Dedicated pipe system with 4" Tri-clamp center top opening and 1.5" tri-clamp rotating CIP spray ball for easy cleaning
3/4" NPT glycol ports
Construction
304 stainless steel construction
Double walled with 80 mm thick polyurethane insulation
External Shell: 2 mm thick with brushed finish
Internal tank: 3 mm thick with smooth ground welds, 2B finish and passivated
Glycol Jacket: dual cooling zone, 1.5mm thick
Specifications:
Stacked Tank Height: 99"
Stacked Tank Depth: 77"
Stacked Tank Width: 40"
Stacked Empty Weight: 1,410 lbs
Working Volume per Tank: 7 bbl
Total Volume per Tank: 7.9 bbl
Jacket Surface Area per Tank: 3,177 in² (2.05 m²)
Please Contact our Customer Service department at 1-800-600-0033 to assess shipment costs and place an order.
NOTE: Example photo shows 10 bbl stacking tanks.
Increases hopping efficiency by 20–40% with its innovative design, including a wedge wire screen for optimal particle separation and clog prevention
Supports first wort hopping, hop back usage, biotransformation during fermentation, traditional dry hopping, hop charging during the boil, and fresh fruit additions
Allows for easy air purging and wort recirculation, with a straightforward setup for various stages of the brewing process
The MB Hop Gun is engineered for efficient and straightforward hop handling. Equipped with a wedge wire screen, it prevents clogging and ensures effective particle separation. The system allows for air purging and the recirculation of wort, fermenting wort, or beer, delivering a 20 to 40% increase in hopping efficiency.
Versatile in its applications, the MB Hop Gun supports first wort hopping by filtering lautered wort, functions as a hop back when positioned before or after the heat exchanger during kettle knockout, and enables hop biotransformation when used on day three of fermentation. Additionally, it facilitates traditional dry hopping post-fermentation and can even be utilized for hop charging during the boil.
The MB Hop Gun is also compatible with fresh fruit additions, broadening its utility for creative brewing applications. Note: The surface is not insulated, so caution is advised when using the device with hot wort.
Specs:
1.5" tri-clamp hardware included
Top & bottom sight glass
Pressure Gauge (0-30 psi)
PRV (working pressure 30 psi)
Bleed valve
Rolling casters w/ brakes
Made from 304 stainless steel
Size
Net Volume
Total Volume
Height
Tank Diameter*
Hop Capcity (Whole Cone)
50L
13.21 Gal
17.17 Gal
59.00"
13.77"
4 lbs
100L
26.42 Gal
36.98 Gal
84.64"
15.74"
8 lbs
150L
39.63 Gal
47.55 Gal
86.61"
17.71"
12 lbs
200L
52.83 Gal
60.76 Gal
86.61"
19.68"
16 lbs
*Tank Diameter does not account for piping and tri-clamp fittings.
This professional still features a 4" column and sight glasses at each plate to allow you to watch the progress of your distilling run. The modular construction features 4" & 2" tri-clamp parts throughout so you can add accessories or modify the still as you see fit. The heavy-duty kettle comes with analog thermometer, multiple element ports, a shoulder port for pumping in wash, and a bottom dump valve for easy cleaning.
Features:
Heavy Duty Kettle – built to last and will survive for generations
Shotgun Style Condensers for easy cleaning and efficient cooling
Modular Construction – tri-clamp connected parts in the column and condenser allow you to remove or add parts as you see fit. Remove the plate section and dephlegmater (reflux condenser) for fast stripping runs or pot-style spirit distillation
4 Copper Plates provide plenty of surface area to capture (trap or bind) sulfur so that it doesn't make it into your finished spirit
Sight Glasses at each plate allow you to double check that you are keeping every plate loaded for optimal reflux
Solid Column – fewer leak points. No finicky plate gaskets which are prone to twisting and leaking
Large Bubble Cap – each plate has one large bubble cap which makes it easy to clean and maintain
Parrot Dump Valve allows you to drain the Parrot periodically during the run to make sure you are getting an accurate reading with your hydrometer
(3) 2" Tri-Clamp Element Ports – use a combination of heating elements for more control
2" T.C. Dump port with Butterfly Valve
1.5" Shoulder port with Butterfly Valve
1/2" FPT cooling source connections
Designed by MB's in-house engineers with a focus on cleanability, ease of use, and durability Made from 304 stainless steel throughout with passivated 2B polished finished on the interior Sanitary tri-clamp connections from top to bottom with centered bottom drain, top vent/CO2 port with butterfly valve, and 4" hopping port—all fittings included! 20% extra headspace with a working volume of 1 bbl and max volume of 1.2 bbl True domed top and bottom with full length site gauge with sediment trap 1.5 mm thick dimple welded cooling jacket—See related product for the 1 bbl Single Shell Brite
Ships domestically from within the contiguous United States These heavy-duty Beer Tanks are purpose built for longevity, quality, and cost effectiveness, and boast a hefty list of quality features to ease the brewing process. MB brite tanks are made from 304 stainless steel and built to high quality standards. All of our brite tanks are pressured tested at the factory, feature 100% sanitary welds, and are backed by our one year warranty. Every brite tank features an average 15% headspace not stated in the volume, so for example, a 10 bbl brite really has 11.5 bbl of volume. The 1 & 2 bbl Jacketed Brites feature sealed pressure gauge, and plunger-style sample valve to protect against infection. They also feature full length site gauges that extend below the bottom of the tank. This allows you to see when the tank is down to its last couple of pints, rather than its last couple of gallons. Great Quality from MB MB is a brand that we dedicate to crafting and sourcing the equipment pro brewers need to make an exceptional product efficiently and consistently. Our brite tanks between 1 and 60 bbl are designed by our in-house team of engineers with decades of professional brewing experience. Focusing on cleanability, ease of use, and durability, we’ve made sure our tanks have the features that modern brewers expect when purchasing a new tank. While some discount dealers chase down bargain priced tanks from a string of manufacturers, we have maintained a long running relationship with a single manufacturer that ensures the quality of our products never wavers. Great Value from MoreBeer! Pro If you used MoreBeer! as a homebrewer, you may not know that MoreBeer! & MoreBeer! Pro combined is one of the largest brewing supply companies in the world with over 250,000 customers. We’ve seen countless homebrewers turn pro, and there’s nothing that makes us happier than being a part of that transition. As a privately owned brewing supply company that's been in business for over 25 years, we’ve established relationships with suppliers and manufacturers around the world and at every level of the industry. We get a great price and we pass that on to you. Features Include: 304 stainless steel construction Includes a glycol jacket which is dimple welded and 1.5 mm thick True domed top and bottom Full length site gauge with sediment trap Pressure/Vacuum relief valve 1 Bar / 15 PSI Carbonation stone Sealed pressure gauge Analog temperature gauge Sample valve Center bottom tri-clamp drain Top vent/CO2 port with butterfly valve Pt10 Thermocouple interface Specifications: Grade 304 Stainless Steel Internal Finish: #2B Tank Height w/ Fittings: 48" Tank Diameter: 23.6" Empty Weight: 176 lbs Working Volume: 1 bbl Max Volume: 1.2 bbl Working Pressure: 1 Bar (14.5) All ports are 1.5" TC except for 10" TC Dome Port and 4" TC Hopping Port and 1/2" NPT Glycol Ports Please note: the 2 bbl unit is shown in the example photo. Please Contact our Customer Service department at 1-800-600-0033 to assess shipment costs and place an order.
Designed by MB's in-house engineers with a focus on cleanability, ease of use, and durability Made from 304 stainless steel throughout with passivated 2B polished finished on the interior Sanitary tri-clamp connections from top to bottom with centered bottom drain, top vent/CO2 port with butterfly valve, and 4" hopping port—all fittings included! 20% extra headspace with a working volume of 1 bbl and max volume of 1.2 bbl True domed top and bottom with full length site gauge with sediment trap 2mm thick single shell design—See related product for the 1 bbl Jacketed Brite
Ships domestically from within the contiguous United States MB brite tanks are made from 304 stainless steel and built to high quality standards. All of our brite tanks are pressured tested at the factory, feature 100% sanitary welds, and are backed by our one year warranty. Every brite tank features an average 15% headspace not stated in the volume, so for example, a 10 bbl brite really has 11.5 bbl of volume. The standard 1 & 2 bbl MB Brites feature a single shell design, sealed pressure gauge, and plunger-style sample valve to protect against infection. They also feature full length site gauges that extend below the bottom of the tank. This allows you to see when the tank is down to its last couple of pints, rather than its last couple of gallons. Please note: these units do not have a built-in cooling jacket and are intended to be used in a walk-in cold room for temperature control. Great Quality from MB MB is a brand that we dedicate to crafting and sourcing the equipment pro brewers need to make an exceptional product efficiently and consistently. Our brite tanks between 1 and 60 bbl are designed by our in-house team of engineers with decades of professional brewing experience. Focusing on cleanability, ease of use, and durability, we’ve made sure our tanks have the features that modern brewers expect when purchasing a new tank. While some discount dealers chase down bargain priced tanks from a string of manufacturers, we have maintained a long running relationship with a single manufacturer that ensures the quality of our products never wavers. Great Value from MoreBeer! Pro If you used MoreBeer! as a homebrewer, you may not know that MoreBeer! & MoreBeer! Pro combined is one of the largest brewing supply companies in the world with over 250,000 customers. We’ve seen countless homebrewers turn pro, and there’s nothing that makes us happier than being a part of that transition. As a privately owned brewing supply company that's been in business for over 25 years, we’ve established relationships with suppliers and manufacturers around the world and at every level of the industry. We get a great price and we pass that on to you. Features Include: 304 stainless steel construction True domed top and bottom Full length site gauge with sediment trap Pressure/Vacuum relief valve 1 Bar / 15 PSI Carbonation stone Sealed pressure gauge Analog temperature gauge Sample valve Center bottom tri-clamp drain Top vent/CO2 port with butterfly valve Pt10 Thermocouple interface Specifications: Grade 304 Stainless Steel 2mm thick single shell design Internal Finish: #2B Tank Height w/ Blowoff Pipe: 47" Tank Diameter w/ Fittings: 28" Empty Weight: 100 lbs Working Volume: 1 bbl Max Volume: 1.2 bbl Working Pressure: 1 Bar (14.5) All ports are 1.5" TC except 10" TC Dome Port and 4" TC Hopping Port Please Contact our Customer Service department at 1-800-600-0033 to assess shipment costs and place an order.
Designed by MB's in-house engineers with a focus on cleanability, ease of use, and durability Made from 304 stainless steel throughout with passivated 2B polished finished on the interior Sanitary tri-clamp connections from top to bottom with dedicated CIP port, hopping port, and blowoff—all fittings included! 20% extra headspace with a working volume of 1 bbl and max volume of 1.2 bbl Glycol ready with 2" insulated cooling jacket—See related product for the 1 bbl Single Shell Conical
Ships domestically from within the contiguous United States These heavy-duty Beer Tanks are purpose built for longevity, quality, and cost effectiveness, and boast a hefty list of quality features to ease the brewing process. Starting with High Quality 304 grade stainless steel, this jacketed tank comes ready for glycol cooling. Large 10" T.C. dome top port allows easy access for cleaning and sanitizing, and on top of that, a 1.5" T.C. port allows for the attachment of a CIP spray ball. Useful features such as Blowoff Pipe, Hop Ports and Rotating Racking Arms keep you brewing and fermenting at top efficiency. The 1 & 2 bbl MB Conicals feature a sealed pressure gauge, as well as plunger-style sample valve to protect against infection. Great Quality from MB MB is a brand that we dedicate to crafting and sourcing the equipment pro brewers need to make an exceptional product efficiently and consistently. Our conicals between 1 and 120 bbl are designed by our in-house team of engineers with decades of professional brewing experience. Focusing on cleanability, ease of use, and durability, we’ve made sure our fermenters have the features that modern brewers expect when purchasing a new tank. While some discount dealers chase down bargain priced tanks from a string of manufacturers, we have maintained a long running relationship with a single manufacturer that ensures the quality of our products never wavers. Great Value from MoreBeer! Pro If you used MoreBeer! as a homebrewer, you may not know that MoreBeer! & MoreBeer! Pro combined is one of the largest brewing supply companies in the world with over 250,000 customers. We’ve seen countless homebrewers turn pro, and there’s nothing that makes us happier than being a part of that transition. As a privately owned brewing supply company that's been in business for over 25 years, we’ve established relationships with suppliers and manufacturers around the world and at every level of the industry. We get a great price and we pass that on to you. Features: 304 stainless steel construction The outer shell is 2 mm thick with a brushed finish The inner wall is 3 mm thick with smooth ground welds, 2B finish and passivated Includes a glycol jacket which is dimple welded and 1.5 mm thick 2" of internal insulation between tank and outer jacket Oversized for 20% headspace Pressure/Vacuum relief valve 1 Bar / 15 PSI Pt10 Thermocouple interface 60° conical bottom Sample valve Rotating racking arm Analog temperature gauge Yeast dump port Hop port CIP port Carb stone Separate blow-off pipe Specifications: Grade 304 Stainless Steel Internal Finish: #2B Total Height w/ Blowoff Pipe: 58" Tank Diameter w/ Fittings: 31" Empty Weight: 330 lbs Working Volume: 1 bbl Max Volume: 1.2 bbls Working Pressure: 1 Bar (14.5 psi) Jacket Surface area: 795 in² (0.513 m²) All ports are 1.5" TC except for 10" TC Dome Port, 4" TC Hopping Port, 2" TC Racking Arm, and 1/2" NPT Glycol Ports Please note: the 2 bbl unit is shown in the example photo. Please Contact our Customer Service department at 1-800-600-0033 to assess shipment costs and place an order.
Due to high demand, this item is currently out of stock. Be the first to receive your items by placing a pre-order today. We will automatically ship this item to you when we receive more in late July.

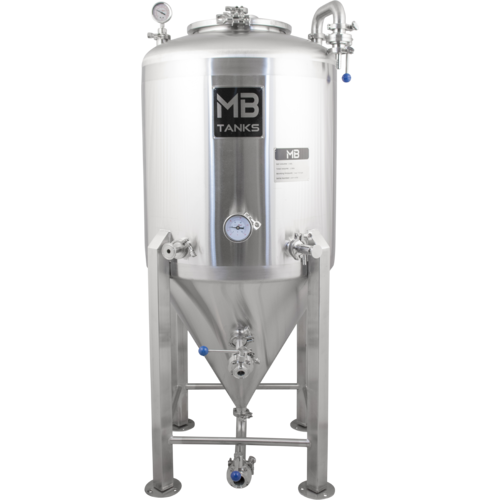

Designed by MB's in-house engineers with a focus on cleanability, ease of use, and durability
Made from 304 stainless steel throughout with passivated 2B polished finished on the interior
Sanitary tri-clamp connections from top to bottom with dedicated CIP port, hopping port, and blowoff—all fittings included!
20% extra headspace with a working volume of 1 bbl and max volume of 1.2 bbl
2mm thick single shell design—See related product for the 1 bbl Jacketed Conical
Ships domestically from within the contiguous United States
These heavy-duty Beer Tanks are purpose built for longevity, quality, and cost effectiveness, and boast a hefty list of quality features to ease the brewing process. Starting with High Quality 304 grade stainless steel, the tank features a 2 mm thick single shell design. Large 10" T.C. dome top port allows easy access for cleaning and sanitizing, and on top of that, a 1.5" T.C. port allows for the attachment of a CIP spray ball. Useful features such as Blowoff Pipe, Hop Ports and Rotating Racking Arms keep you brewing and fermenting at top efficiency.
The 1 & 2 bbl Conicals feature a sealed pressure gauge, as well as plunger style sample port to protect against infection.
Great Quality from MB
MB is a brand that we dedicate to crafting and sourcing the equipment pro brewers need to make an exceptional product efficiently and consistently. Our conicals between 1 and 120 bbl are designed by our in-house team of engineers with decades of professional brewing experience. Focusing on cleanability, ease of use, and durability, we’ve made sure our fermenters have the features that modern brewers expect when purchasing a new tank. While some discount dealers chase down bargain priced tanks from a string of manufacturers, we have maintained a long running relationship with a single manufacturer that ensures the quality of our products never wavers.
Great Value from MoreBeer! Pro
If you used MoreBeer! as a homebrewer, you may not know that MoreBeer! & MoreBeer! Pro combined is one of the largest brewing supply companies in the world with over 250,000 customers. We’ve seen countless homebrewers turn pro, and there’s nothing that makes us happier than being a part of that transition. As a privately owned brewing supply company that's been in business for over 25 years, we’ve established relationships with suppliers and manufacturers around the world and at every level of the industry. We get a great price and we pass that on to you.
Features:
304 stainless steel construction
Single shell design, inner surface is 2B finish and passivated
Oversized for 20% headspace
Pressure/Vacuum relief valve 1 Bar / 15 PSI
60° conical bottom
Sample valve
Rotating racking arm
Analog temperature gauge
Yeast dump port
Hop port
CIP port
Carb stone
Separate blow-off pipe
Specifications:
Grade 304 Stainless Steel
2mm thick single shell design
Internal Finish: #2B
Total Height w/ Blowoff Pipe: 53"
Tank Diameter: 19.75"
Empty Weight: 110 lbs
Working Volume: 1 bbl
Max Volume: 1.2 bbls
Working Pressure: 1 Bar (14.5 psi)
All ports are 1.5" TC except for 10" TC Dome Port and 4" TC Hopping Port
Please Contact our Customer Service department at 1-800-600-0033 to assess shipment costs and place an order.
2 bbl example photo shown.
Designed by MB's in-house engineers with a focus on cleanability, ease of use, and durability
Made from 304 stainless steel throughout with passivated 2B polished finished on the interior
Sanitary tri-clamp connections from top to bottom with centered bottom drain, sight glass, and dedicated CIP pipe system—all fittings included!
15% extra headspace with a working volume of 10 bbl and max volume of 11.5 bbl
Double walled with 80 mm thick polyurethane insulation and 1.5 mm thick dual cooling zone glycol jacket
Ships domestically from within the contiguous United States
MB offers a full range of professional level conical fermenters and brite tanks. Our stainless steel tanks represent an amazing overall value, boasting exquisite construction and a very impressive feature set.
MB jacketed brite tanks are made from 304 stainless steel and built to high quality standards. All of our brite tanks are pressured tested at the factory, feature 100% sanitary welds, and are backed by our one year warranty. Every brite tank features an average 15% headspace not stated in the volume, so for example, a 10 bbl brite really has 11.5 bbl of volume.
Great Quality from MB
MB is a brand that we dedicate to crafting and sourcing the equipment pro brewers need to make an exceptional product efficiently and consistently. Our brite tanks between 1 and 60 bbl are designed by our in-house team of engineers with decades of professional brewing experience. Focusing on cleanability, ease of use, and durability, we’ve made sure our tanks have the features that modern brewers expect when purchasing a new tank. While some discount dealers chase down bargain priced tanks from a string of manufacturers, we have maintained a long running relationship with a single manufacturer that ensures the quality of our products never wavers.
Great Value from MoreBeer! Pro
If you used MoreBeer! as a homebrewer, you may not know that MoreBeer! & MoreBeer! Pro combined is one of the largest brewing supply companies in the world with over 250,000 customers. We’ve seen countless homebrewers turn pro, and there’s nothing that makes us happier than being a part of that transition. As a privately owned brewing supply company that's been in business for over 25 years, we’ve established relationships with suppliers and manufacturers around the world and at every level of the industry. We get a great price and we pass that on to you.
Features Include:
15 PSI (1 bar) working pressure
Side manway door for cleaning
1.5" Tri-clamp carbonation stone
1.5" Tri-clamp pressure gauge
1.5" Tri-clamp dial face bi-metal, easy-read analog thermometer
1.5" Tri-clamp Perlick-style sample valve
2" Tri-clamp pressure/vacuum relief
2" Center bottom tri-clamp drain
4" Hopping Port
Ladder hooks
Sight-glass for reading volumes
Dedicated pipe system with 4" Tri-clamp center top opening and 1.5" tri-clamp rotating CIP spray ball for easy cleaning
3/4" NPT glycol ports
PT100 Thermocouple interface
Shadowless Manway
Construction:
304 stainless steel construction
Double walled with 80 mm thick polyurethane insulation
External Shell: 2 mm thick with brushed finish
Internal tank: 3 mm thick with smooth ground welds, 2B finish and passivated
Glycol Jacket: dual cooling zone, 1.5mm thick
Specifications:
Tank Height: 85"
Tank Diameter: 50"
Empty Weight: 728 lbs
Working Volume: 10 bbl
Total Volume: 11.5 bbl
Jacket Surface Area: 4,047 in² (2.611 m²)
Please Contact our Customer Service department at 1-800-600-0033 to assess shipment costs and place an order.
Due to high demand, this item is currently out of stock. Be the first to receive your items by placing a pre-order today. We will automatically ship this item to you when we receive more in late July.
Designed by MB's in-house engineers with a focus on cleanability, ease of use, and durability
Made from 304 stainless steel throughout with passivated 2B polished finished on the interior
Sanitary tri-clamp connections from top to bottom with dedicated CIP port, hopping port, and blowoff—all fittings included!
Separate cone and tank cooling jackets with 3" of internal insulation
20% extra headspace with a working volume of 10 bbl and max volume of 12 bbl
Ships domestically from within the contiguous United States
MB offers a full range of professional level conical fermenters and brite tanks. Our stainless steel tanks represent an amazing overall value, boasting exquisite construction and a very impressive feature set.
Great Quality from MB
MB is a brand that we dedicate to crafting and sourcing the equipment pro brewers need to make an exceptional product efficiently and consistently. Our conicals between 1 and 120 bbl are designed by our in-house team of engineers with decades of professional brewing experience. Focusing on cleanability, ease of use, and durability, we’ve made sure our fermenters have the features that modern brewers expect when purchasing a new tank. While some discount dealers chase down bargain priced tanks from a string of manufacturers, we have maintained a long running relationship with a single manufacturer that ensures the quality of our products never wavers.
Great Value from MoreBeer! Pro
If you used MoreBeer! as a homebrewer, you may not know that MoreBeer! & MoreBeer! Pro combined is one of the largest brewing supply companies in the world with over 250,000 customers. We’ve seen countless homebrewers turn pro, and there’s nothing that makes us happier than being a part of that transition. As a privately owned brewing supply company that's been in business for over 25 years, we’ve established relationships with suppliers and manufacturers around the world and at every level of the industry. We get a great price and we pass that on to you.
Impressive Features
Built from quality-checked 304 stainless steel, our tanks boast a hefty list of features. Here are some key features that are not always included on all tanks.
3” of internal insulation between tank and outter jacket when the industry standard is 2”
Horizontal racking arm and carbonation stone
Separate cone and tank cooling jackets
DIN Rotating racking arm for safety and ease of use
4” TC top hop port with handle
Carbonation Stone included with all tanks
2” Bottom valve for easier trub removal (3.5 bbl and up)
CIP spinning spray ball and piping built-in (3.5 bbl and up)
25% head-space above stated volume
Industry standard 2b finish
All Features:
304 stainless steel construction
The outer shell is 2 mm thick with a brushed finish
The inner wall is 3 mm thick with smooth ground welds, 2B finish and passivated
Includes a glycol jacket which is dimple welded and 1.5 mm thick
Oversized for 25% average headspace
Pressure Relief/Vacuum Breaker valve rated at 1 Bar / 15 PSI
Pt10 Thermocouple for high accuracy
Perlick style sample valve
Spinning CIP cleaning head and separate piping
Rotating racking arm upgraded with DIN fitting for increased reliability
Analog temperature gauge
Oversized yeast dump port
Sealed Pressure Gauge
Hop port
Carb stone
Separate blow-off pipe
Side man-door
Ladder rack (7 bbl and up)
Shadowless Manway
Specifications for 10 bbl Conical:
Grade 304 Stainless Steel
Internal Finish: #2B
Tank Height: 95", With Blowoff Pipe: 102"
Tank Diameter: 50"
Empty Weight: 750 lbs
Working Volume: 10 bbls
Max Volume: 12 bbls
Working Pressure: 1 Bar (15 psi)
Jacket Surface area: 4,450 in² (2.871 m²)
All ports are 1.5" TC except for 4" TC Lid Hopping Port, 4" TC CIP Port (inner 1.5" TC to CIP ball adapter), 2" TC PVRV, 2" TC Drain Outlet, 2" TC Pressure Gauge, DIN 65 Rotating Racking arm (w/ 1.5" pipe), and 3/4" NPT Glycol Ports
Please Contact our Customer Service department at 1-800-600-0033 to assess shipment costs and place an order.
Designed by MB's in-house engineers with a focus on cleanability, ease of use, and durability Made from 304 stainless steel throughout with passivated 2B polished finished on the interior Sanitary tri-clamp connections from top to bottom with dedicated CIP port, hopping port, and blowoff—all fittings included! Separate cone and tank cooling jackets with 3" of internal insulation Over 20% extra headspace with a working volume of 120 bbl and max volume of 145 bbl Made to order—contact our MoreBeer! Pro sales representatives today!
MB offers a full range of professional level conical fermenters and brite tanks. Our stainless steel tanks represent an amazing overall value, boasting exquisite construction and a very impressive feature set. Great Quality from MB MB is a brand that we dedicate to crafting and sourcing the equipment pro brewers need to make an exceptional product efficiently and consistently. Our conicals between 1 and 120 bbl are designed by our in-house team of engineers with decades of professional brewing experience. Focusing on cleanability, ease of use, and durability, we’ve made sure our fermenters have the features that modern brewers expect when purchasing a new tank. While some discount dealers chase down bargain priced tanks from a string of manufacturers, we have maintained a long running relationship with a single manufacturer that ensures the quality of our products never wavers. Great Value from MoreBeer! Pro If you used MoreBeer! as a homebrewer, you may not know that MoreBeer! & MoreBeer! Pro combined is one of the largest brewing supply companies in the world with over 250,000 customers. We’ve seen countless homebrewers turn pro, and there’s nothing that makes us happier than being a part of that transition. As a privately owned brewing supply company that's been in business for over 25 years, we’ve established relationships with suppliers and manufacturers around the world and at every level of the industry. We get a great price and we pass that on to you. Impressive Features Built from quality-checked 304 stainless steel, our tanks boast a hefty list of features. Here are some key features that are not always included on all tanks. 3” of internal insulation between tank and outter jacket when the industry standard is 2” Horizontal racking arm and carbonation stone Separate cone and tank cooling jackets with individual Pt10 Thermocouples DIN Rotating racking arm for safety and ease of use 6” TC top hop port with handle Carbonation Stone included with all tanks 2” Bottom valve for easier trub removal (3.5 bbl and up) CIP spinning spray ball and piping built-in (3.5 bbl and up) 20% head-space above stated volume Industry standard 2b finish All Features:
304 stainless steel construction The outer shell is 2 mm thick with a brushed finish The inner wall is 3 mm thick with smooth ground welds, 2B finish and passivated Includes a glycol jacket which is dimple welded and 1.5 mm thick Oversized for 25% average headspace Pressure Relief/Vacuum Breaker valve rated at 1 Bar / 15 PSI 2x Pt10 Thermocouple interfaces at top and bottom (3x Pt10 on 30 bbl & up) Perlick style sample valve Spinning CIP cleaning head and separate piping Rotating racking arm upgraded with DIN fitting for increased reliability Analog temperature gauge Oversized yeast dump port Sealed Pressure Gauge Hop port Carb stone Separate blow-off pipe Side man-door Ladder rack (7 bbl and up) Specifications for 120 bbl Conical: Grade 304 Stainless Steel Internal Finish: #2B Tank Height with Blowoff Pipe: 262" Tank Diameter: 83" Empty Weight: 4,607 lbs (approx.) Working Volume: 120 bbls Max Volume: 145 bbls Working Pressure: 1 Bar (15 psi) Jacket Surface area: 26,843 in² (17.318 m²) All ports are 1.5" TC except for 6" TC Lid Hopping Port, 4" TC CIP Port (inner 1.5" TC to CIP ball adapter), 2" TC PVRV, 2" TC Drain Outlet, DIN 65 Rotating Racking arm (w/ 1.5" pipe), and 1" NPT Glycol Ports Please Contact our Customer Service department at 1-800-600-0033 to assess shipment costs and place an order.
Designed by MB's in-house engineers with a focus on cleanability, ease of use, and durability Made from 304 stainless steel throughout with passivated 2B polished finished on the interior Sanitary tri-clamp connections from top to bottom with centered bottom drain, sight glass, and dedicated CIP pipe system—all fittings included! 20% extra headspace with a working volume of 15 bbl and max volume of 18 bbl Double walled with 80 mm thick polyurethane insulation and 1.5 mm thick dual cooling zone glycol jacket Ships domestically from within the contiguous United States MB offers a full range of professional level conical fermenters and brite tanks. Our stainless steel tanks represent an amazing overall value, boasting exquisite construction and a very impressive feature set. MB jacketed brite tanks are made from 304 stainless steel and built to high quality standards. All of our brite tanks are pressured tested at the factory, feature 100% sanitary welds, and are backed by our one year warranty. Every brite tank features an average 15% headspace not stated in the volume, so for example, a 10 bbl brite really has 11.5 bbl of volume. Great Quality from MB MB is a brand that we dedicate to crafting and sourcing the equipment pro brewers need to make an exceptional product efficiently and consistently. Our brite tanks between 1 and 60 bbl are designed by our in-house team of engineers with decades of professional brewing experience. Focusing on cleanability, ease of use, and durability, we’ve made sure our tanks have the features that modern brewers expect when purchasing a new tank. While some discount dealers chase down bargain priced tanks from a string of manufacturers, we have maintained a long running relationship with a single manufacturer that ensures the quality of our products never wavers. Great Value from MoreBeer! Pro If you used MoreBeer! as a homebrewer, you may not know that MoreBeer! & MoreBeer! Pro combined is one of the largest brewing supply companies in the world with over 250,000 customers. We’ve seen countless homebrewers turn pro, and there’s nothing that makes us happier than being a part of that transition. As a privately owned brewing supply company that's been in business for over 25 years, we’ve established relationships with suppliers and manufacturers around the world and at every level of the industry. We get a great price and we pass that on to you. Features Include: 15 PSI (1 bar) working pressure Side manway door for cleaning 1.5" Tri-clamp carbonation stone 1.5" Tri-clamp pressure gauge 1.5" Tri-clamp dial face bi-metal, easy-read analog thermometer 1.5" Tri-clamp Perlick-style sample valve 2" Tri-clamp pressure/vacuum relief 2" Center bottom tri-clamp drain 4" Hopping Port Ladder hooks Sight-glass for reading volumes Dedicated pipe system with 4" Tri-clamp center top opening and 1.5" tri-clamp rotating CIP spray ball for easy cleaning 3/4" NPT glycol ports PT10 Thermocouple interface Shadowless Manway Construction: 304 stainless steel construction Double walled with 80 mm thick polyurethane insulation External Shell: 2 mm thick with brushed finish Internal tank: 3 mm thick with smooth ground welds, 2B finish and passivated Glycol Jacket: dual cooling zone, 1.5mm thick Specifications: Tank Height: 93" Tank Diameter: 58" Empty Weight: 1,014 lbs Working Volume: 15 bbl Total Volume: 18 bbl Jacket Surface Area: 5,965 in² (3.848 m²) Please Contact our Customer Service department at 1-800-600-0033 to assess shipment costs and place an order.
Designed by MB's in-house engineers with a focus on cleanability, ease of use, and durability Made from 304 stainless steel throughout with passivated 2B polished finished on the interior Sanitary tri-clamp connections from top to bottom with dedicated CIP port, hopping port, and blowoff—all fittings included! Separate cone and tank cooling jackets with 3" of internal insulation ~20% extra headspace with a working volume of 15 bbl and max volume of 17.75 bbl Ships domestically from within the contiguous United States MB offers a full range of professional level conical fermenters and brite tanks. Our stainless steel tanks represent an amazing overall value, boasting exquisite construction and a very impressive feature set. Great Quality from MB MB is a brand that we dedicate to crafting and sourcing the equipment pro brewers need to make an exceptional product efficiently and consistently. Our conicals between 1 and 120 bbl are designed by our in-house team of engineers with decades of professional brewing experience. Focusing on cleanability, ease of use, and durability, we’ve made sure our fermenters have the features that modern brewers expect when purchasing a new tank. While some discount dealers chase down bargain priced tanks from a string of manufacturers, we have maintained a long running relationship with a single manufacturer that ensures the quality of our products never wavers. Great Value from MoreBeer! Pro If you used MoreBeer! as a homebrewer, you may not know that MoreBeer! & MoreBeer! Pro combined is one of the largest brewing supply companies in the world with over 250,000 customers. We’ve seen countless homebrewers turn pro, and there’s nothing that makes us happier than being a part of that transition. As a privately owned brewing supply company that's been in business for over 25 years, we’ve established relationships with suppliers and manufacturers around the world and at every level of the industry. We get a great price and we pass that on to you. Impressive Features Built from quality-checked 304 stainless steel, our tanks boast a hefty list of features. Here are some key features that are not always included on all tanks. 3” of internal insulation between tank and outter jacket when the industry standard is 2” Horizontal racking arm and carbonation stone Separate cone and tank cooling jackets DIN Rotating racking arm for safety and ease of use 4” TC top hop port with handle Carbonation Stone included with all tanks 2” Bottom valve for easier trub removal (3.5 bbl and up) CIP spinning spray ball and piping built-in (3.5 bbl and up) 25% head-space above stated volume Industry standard 2b finish All Features:
304 stainless steel construction The outer shell is 2 mm thick with a brushed finish The inner wall is 3 mm thick with smooth ground welds, 2B finish and passivated Includes a glycol jacket which is dimple welded and 1.5 mm thick Oversized for 25% average headspace Pressure Relief/Vacuum Breaker valve rated at 1 Bar / 15 PSI Pt10 Thermocouple for accuracy Perlick style sample valve Spinning CIP cleaning head and separate piping Rotating racking arm upgraded with DIN fitting for increased reliability Analog temperature gauge Oversized yeast dump port Sealed Pressure Gauge Hop port Carb stone Separate blow-off pipe Side man-door Ladder rack (7 bbl and up) Shadowless Manway Specifications for 15 bbl Conical: Grade 304 Stainless Steel Internal Finish: #2B Tank Height: 104", With Blowoff Pipe: 109" Tank Diameter: 58" Empty Weight: 1,058 lbs Working Volume: 15 bbls Max Volume: 17.75 bbls Working Pressure: 1 Bar (15 psi) Jacket Surface area: 5,447 in² (3.514 m²) All ports are 1.5" TC except for 4" TC Lid Hopping Port, 4" TC CIP Port (inner 1.5" TC to CIP ball adapter), 2" TC PVRV, 2" TC Drain Outlet, 2" TC Pressure Gauge, DIN 65 Rotating Racking arm (w/ 1.5" pipe), and 3/4" NPT Glycol Ports Please Contact our Customer Service department at 1-800-600-0033 to assess shipment costs and place an order.
Designed by MB's in-house engineers with a focus on cleanability, ease of use, and durability Made from 304 stainless steel throughout with passivated 2B polished finished on the interior Sanitary tri-clamp connections from top to bottom with dedicated CIP port, hopping port, and blowoff—all fittings included! Separate cone and tank cooling jackets with 3" of internal insulation ~20% extra headspace with a working volume of 15 bbl and max volume of 17.75 bbl Ships domestically from within the contiguous United States MB offers a full range of professional level conical fermenters and brite tanks. Our stainless steel tanks represent an amazing overall value, boasting exquisite construction and a very impressive feature set. Great Quality from MB MB is a brand that we dedicate to crafting and sourcing the equipment pro brewers need to make an exceptional product efficiently and consistently. Our conicals between 1 and 120 bbl are designed by our in-house team of engineers with decades of professional brewing experience. Focusing on cleanability, ease of use, and durability, we’ve made sure our fermenters have the features that modern brewers expect when purchasing a new tank. While some discount dealers chase down bargain priced tanks from a string of manufacturers, we have maintained a long running relationship with a single manufacturer that ensures the quality of our products never wavers. Great Value from MoreBeer! Pro If you used MoreBeer! as a homebrewer, you may not know that MoreBeer! & MoreBeer! Pro combined is one of the largest brewing supply companies in the world with over 250,000 customers. We’ve seen countless homebrewers turn pro, and there’s nothing that makes us happier than being a part of that transition. As a privately owned brewing supply company that's been in business for over 25 years, we’ve established relationships with suppliers and manufacturers around the world and at every level of the industry. We get a great price and we pass that on to you. Impressive Features Built from quality-checked 304 stainless steel, our tanks boast a hefty list of features. Here are some key features that are not always included on all tanks. 3” of internal insulation between tank and outter jacket when the industry standard is 2” Horizontal racking arm and carbonation stone Separate cone and tank cooling jackets DIN Rotating racking arm for safety and ease of use 4” TC top hop port with handle Carbonation Stone included with all tanks 2” Bottom valve for easier trub removal (3.5 bbl and up) CIP spinning spray ball and piping built-in (3.5 bbl and up) 25% head-space above stated volume Industry standard 2b finish All Features:
304 stainless steel construction The outer shell is 2 mm thick with a brushed finish The inner wall is 3 mm thick with smooth ground welds, 2B finish and passivated Includes a glycol jacket which is dimple welded and 1.5 mm thick Oversized for 25% average headspace Pressure Relief/Vacuum Breaker valve rated at 1 Bar / 15 PSI Pt10 Thermocouple for accuracy Perlick style sample valve Spinning CIP cleaning head and separate piping Rotating racking arm upgraded with DIN fitting for increased reliability Analog temperature gauge Oversized yeast dump port Sealed Pressure Gauge Hop port Carb stone Separate blow-off pipe Side man-door Ladder rack (7 bbl and up) Shadowless Manway Specifications for 15 bbl Conical: Grade 304 Stainless Steel Internal Finish: #2B Tank Height: 104", With Blowoff Pipe: 109" Tank Diameter: 58" Empty Weight: 1,058 lbs Working Volume: 15 bbls Max Volume: 17.75 bbls Working Pressure: 1 Bar (15 psi) Jacket Surface area: 5,447 in² (3.514 m²) All ports are 1.5" TC except for 4" TC Lid Hopping Port, 4" TC CIP Port (inner 1.5" TC to CIP ball adapter), 2" TC PVRV, 2" TC Drain Outlet, 2" TC Pressure Gauge, DIN 65 Rotating Racking arm (w/ 1.5" pipe), and 3/4" NPT Glycol Ports Please Contact our Customer Service department at 1-800-600-0033 to assess shipment costs and place an order.
Designed by MB's in-house engineers with a focus on cleanability, ease of use, and durability Made from 304 stainless steel throughout with passivated 2B polished finished on the interior Sanitary tri-clamp connections from top to bottom with centered bottom drain, top vent/CO2 port with butterfly valve, and 4" hopping port—all fittings included! 15% extra headspace with a working volume of 2 bbl and max volume of 2.3 bbl True domed top and bottom with full length site gauge with sediment trap 1.5 mm thick dimple welded cooling jacket—See related product for the 2 bbl Single Shell Brite
Ships domestically from within the contiguous United States These heavy-duty Beer Tanks are purpose built for longevity, quality, and cost effectiveness, and boast a hefty list of quality features to ease the brewing process. MB brite tanks are made from 304 stainless steel and built to high quality standards. All of our brite tanks are pressured tested at the factory, feature 100% sanitary welds, and are backed by our one year warranty. Every brite tank features an average 15% headspace not stated in the volume, so for example, a 10 bbl brite really has 11.5 bbl of volume. The 1 & 2 bbl Jacketed Brites feature sealed pressure gauge, and plunger-style sample valve to protect against infection. They also feature full length site gauges that extend below the bottom of the tank. This allows you to see when the tank is down to its last couple of pints, rather than its last couple of gallons. Great Quality from MB MB is a brand that we dedicate to crafting and sourcing the equipment pro brewers need to make an exceptional product efficiently and consistently. Our brite tanks between 1 and 60 bbl are designed by our in-house team of engineers with decades of professional brewing experience. Focusing on cleanability, ease of use, and durability, we’ve made sure our tanks have the features that modern brewers expect when purchasing a new tank. While some discount dealers chase down bargain priced tanks from a string of manufacturers, we have maintained a long running relationship with a single manufacturer that ensures the quality of our products never wavers. Great Value from MoreBeer! Pro If you used MoreBeer! as a homebrewer, you may not know that MoreBeer! & MoreBeer! Pro combined is one of the largest brewing supply companies in the world with over 250,000 customers. We’ve seen countless homebrewers turn pro, and there’s nothing that makes us happier than being a part of that transition. As a privately owned brewing supply company that's been in business for over 25 years, we’ve established relationships with suppliers and manufacturers around the world and at every level of the industry. We get a great price and we pass that on to you. Features Include: 304 stainless steel construction Includes a glycol jacket which is dimple welded and 1.5 mm thick True domed top and bottom Full length site gauge with sediment trap Pressure/Vacuum relief valve 1 Bar / 15 PSI Carbonation stone Sealed pressure gauge Analog temperature gauge Sample valve Center bottom tri-clamp drain Top vent/CO2 port with butterfly valve Pt10 Thermocouple interface Specifications: Grade 304 Stainless Steel Internal Finish: #2B Tank Height w/ Fittings: 53.5" Tank Diameter: 29.5" Empty Weight: 265 lbs Working Volume: 2 bbl Max Volume: 2.3 bbl Working Pressure: 1 Bar (14.5) All ports are 1.5" TC except for 12" TC Dome Port and 4" TC Hopping Port and 1/2" NPT Glycol Ports Please Contact our Customer Service department at 1-800-600-0033 to assess shipment costs and place an order.
Designed by MB's in-house engineers with a focus on cleanability, ease of use, and durability
Made from 304 stainless steel throughout with passivated 2B polished finished on the interior
Sanitary tri-clamp connections from top to bottom with centered bottom drain, top vent/CO2 port with butterfly valve, and 4" hopping port—all fittings included!
15% extra headspace with a working volume of 2 bbl and max volume of 2.3 bbl
True domed top and bottom with full length site gauge with sediment trap
2mm thick single shell design—See related product for the 2 bbl Jacketed Brite
Ships domestically from within the contiguous United States
Available Ludicrous Coil for glycol-supplied temperature control
MB brite tanks are made from 304 stainless steel and built to high quality standards. All of our brite tanks are pressured tested at the factory, feature 100% sanitary welds, and are backed by our one year warranty. Every brite tank features an average 15% headspace not stated in the volume, so for example, a 10 bbl brite really has 11.5 bbl of volume.
The standard 1 & 2 bbl MB Brites feature a single shell design, sealed pressure gauge, and plunger-style sample valve to protect against infection. They also feature full length site gauges that extend below the bottom of the tank. This allows you to see when the tank is down to its last couple of pints, rather than its last couple of gallons.
Please note: these units do not have a built-in cooling jacket and are intended to be used in a walk-in cold room for temperature control.
Great Quality from MB
MB is a brand that we dedicate to crafting and sourcing the equipment pro brewers need to make an exceptional product efficiently and consistently. Our brite tanks between 1 and 60 bbl are designed by our in-house team of engineers with decades of professional brewing experience. Focusing on cleanability, ease of use, and durability, we’ve made sure our tanks have the features that modern brewers expect when purchasing a new tank. While some discount dealers chase down bargain priced tanks from a string of manufacturers, we have maintained a long running relationship with a single manufacturer that ensures the quality of our products never wavers.
Great Value from MoreBeer! Pro
If you used MoreBeer! as a homebrewer, you may not know that MoreBeer! & MoreBeer! Pro combined is one of the largest brewing supply companies in the world with over 250,000 customers. We’ve seen countless homebrewers turn pro, and there’s nothing that makes us happier than being a part of that transition. As a privately owned brewing supply company that's been in business for over 25 years, we’ve established relationships with suppliers and manufacturers around the world and at every level of the industry. We get a great price and we pass that on to you.
Features Include:
304 stainless steel construction
True domed top and bottom
Full length site gauge with sediment trap
Pressure/Vacuum relief valve 1 Bar / 15 PSI
Carbonation stone
Sealed pressure gauge
Analog temperature gauge
Sample valve
Center bottom tri-clamp drain
Top vent/CO2 port with butterfly valve
Pt10 Thermocouple interface
Specifications:
Grade 304 Stainless Steel
2mm thick single shell design
Internal Finish: #2B
Tank Height w/ Blowoff Pipe: 48.5"
Tank Diameter w/ Fittings: 31"
Empty Weight: 154 lbs
Working Volume: 2 bbl
Max Volume: 2.3 bbl
Working Pressure: 1 Bar (14.5)
All ports are 1.5" TC except 12" TC Dome Port and 4" TC Hopping Port
Please Contact our Customer Service department at 1-800-600-0033 to assess shipment costs and place an order.
Designed by MB's in-house engineers with a focus on cleanability, ease of use, and durability
Made from 304 stainless steel throughout with passivated 2B polished finished on the interior
Sanitary tri-clamp connections from top to bottom with centered bottom drain, top vent/CO2 port with butterfly valve, and 4" hopping port—all fittings included!
15% extra headspace with a working volume of 2 bbl and max volume of 2.3 bbl
True domed top and bottom with full length site gauge with sediment trap
2mm thick single shell design—2 bbl Jacketed Brite also available
Ships domestically from within the contiguous United States
Available Ludicrous Coil for glycol-supplied temperature control
MB brite tanks are made from 304 stainless steel and built to high quality standards. All of our brite tanks are pressured tested at the factory, feature 100% sanitary welds, and are backed by our one year warranty. Every brite tank features an average 15% headspace not stated in the volume, so for example, a 10 bbl brite really has 11.5 bbl of volume.
The standard 1 & 2 bbl MB Brites feature a single shell design, sealed pressure gauge, and plunger-style sample valve to protect against infection. They also feature full length site gauges that extend below the bottom of the tank. This allows you to see when the tank is down to its last couple of pints, rather than its last couple of gallons.
Please note: these units do not have a built-in cooling jacket and are intended to be used in a walk-in cold room for temperature control.
Great Quality from MB
MB is a brand that we dedicate to crafting and sourcing the equipment pro brewers need to make an exceptional product efficiently and consistently. Our brite tanks between 1 and 60 bbl are designed by our in-house team of engineers with decades of professional brewing experience. Focusing on cleanability, ease of use, and durability, we’ve made sure our tanks have the features that modern brewers expect when purchasing a new tank. While some discount dealers chase down bargain priced tanks from a string of manufacturers, we have maintained a long running relationship with a single manufacturer that ensures the quality of our products never wavers.
Great Value from MoreBeer! Pro
If you used MoreBeer! as a homebrewer, you may not know that MoreBeer! & MoreBeer! Pro combined is one of the largest brewing supply companies in the world with over 250,000 customers. We’ve seen countless homebrewers turn pro, and there’s nothing that makes us happier than being a part of that transition. As a privately owned brewing supply company that's been in business for over 25 years, we’ve established relationships with suppliers and manufacturers around the world and at every level of the industry. We get a great price and we pass that on to you.
Features Include:
304 stainless steel construction
True domed top and bottom
Full length site gauge with sediment trap
Pressure/Vacuum relief valve 1 Bar / 15 PSI
Carbonation stone
Sealed pressure gauge
Analog temperature gauge
Sample valve
Center bottom tri-clamp drain
Top vent/CO2 port with butterfly valve
Pt100 Thermocouple interface
Specifications:
Grade 304 Stainless Steel
2mm thick single shell design
Internal Finish: #2B
Tank Height w/ Blowoff Pipe: 48.5"
Tank Diameter w/ Fittings: 31"
Empty Weight: 154 lbs
Working Volume: 2 bbl
Max Volume: 2.3 bbl
Working Pressure: 1 Bar (14.5)
All ports are 1.5" TC except 12" TC Dome Port and 4" TC Hopping Port
Please Contact our Customer Service department at 1-800-600-0033 to assess shipment costs and place an order.
Due to high demand, this item is currently out of stock. Be the first to receive your items by placing a pre-order today. We will automatically ship this item to you when we receive more in late July.
Designed by MB's in-house engineers with a focus on cleanability, ease of use, and durability
Made from 304 stainless steel throughout with passivated 2B polished finished on the interior
Sanitary tri-clamp connections from top to bottom with dedicated CIP port, hopping port, and blowoff—all fittings included!
20% extra headspace with a working volume of 2 bbl and max volume of 2.4 bbl
Glycol ready with 2" insulated cooling jacket—also available in 2 bbl Single Shell Conical
Ships domestically from within the contiguous United States
These heavy-duty Beer Tanks are purpose built for longevity, quality, and cost effectiveness, and boast a hefty list of quality features to ease the brewing process. Starting with High Quality 304 grade stainless steel, this jacketed tank comes ready for glycol cooling. Large 10" T.C. dome top port allows easy access for cleaning and sanitizing, and on top of that, a 1.5" T.C. port allows for the attachment of a CIP spray ball. Useful features such as Blowoff Pipe, Hop Ports and Rotating Racking Arms keep you brewing and fermenting at top efficiency.
The 1 & 2 bbl MB Conicals feature a sealed pressure gauge, as well as plunger-style sample valve to protect against infection.
Great Quality from MB
MB is a brand that we dedicate to crafting and sourcing the equipment pro brewers need to make an exceptional product efficiently and consistently. Our conicals between 1 and 120 bbl are designed by our in-house team of engineers with decades of professional brewing experience. Focusing on cleanability, ease of use, and durability, we’ve made sure our fermenters have the features that modern brewers expect when purchasing a new tank. While some discount dealers chase down bargain priced tanks from a string of manufacturers, we have maintained a long running relationship with a single manufacturer that ensures the quality of our products never wavers.
Great Value from MoreBeer! Pro
If you used MoreBeer! as a homebrewer, you may not know that MoreBeer! & MoreBeer! Pro combined is one of the largest brewing supply companies in the world with over 250,000 customers. We’ve seen countless homebrewers turn pro, and there’s nothing that makes us happier than being a part of that transition. As a privately owned brewing supply company that's been in business for over 25 years, we’ve established relationships with suppliers and manufacturers around the world and at every level of the industry. We get a great price and we pass that on to you.
Features:
304 stainless steel construction
The outer shell is 2 mm thick with a brushed finish
The inner wall is 3 mm thick with smooth ground welds, 2B finish and passivated
Includes a glycol jacket which is dimple welded and 1.5 mm thick
2" of internal insulation between tank and outer jacket
Oversized for 20% headspace
Pressure/Vacuum relief valve 1 Bar / 15 PSI
Pt100 Thermocouple interface
60° conical bottom
Sample valve
Rotating racking arm
Analog temperature gauge
Yeast dump port
Hop port
CIP port
Carb stone
Separate blow-off pipe
Specifications:
Grade 304 Stainless Steel
Internal Finish: #2B
Total Height w/ Blowoff Pipe: 64"
Tank Diameter w/ Fittings: 39"
Empty Weight: 397 lbs
Working Volume: 2 bbl
Max Volume: 2.4 bbls
Working Pressure: 1 Bar (14.5 psi)
Jacket Surface area: 1,188 in² (0.767 m²)
All ports are 1.5" TC except for 12" TC Dome Port, 4" TC Hopping Port, 2" TC Racking Arm, and 1/2" NPT Glycol Ports
Please Contact our Customer Service department at 1-800-600-0033 to assess shipment costs and place an order.
Now available for pre-order. This unit is expected to be available in mid July. Due to it's cosmetic defect the price has been discounted 30% from the standard pricing for the MB® 2 bbl Conical Unitank Fermenter.
Condition: New - Cosmetic Defective
This unit is new. It is in new and good condition but has cosmetic defect(s) such as scratch(es), dent(s), and/or has damaged packaging
Designed by MB's in-house engineers with a focus on cleanability, ease of use, and durability
Made from 304 stainless steel throughout with passivated 2B polished finished on the interior
Sanitary tri-clamp connections from top to bottom with dedicated CIP port, hopping port, and blowoff—all fittings included!
20% extra headspace with a working volume of 2 bbl and max volume of 2.4 bbl
2mm thick single shell design—See related product for the 2 bbl Jacketed Conical
Ships domestically from within the contiguous United States
These heavy-duty Beer Tanks are purpose built for longevity, quality, and cost effectiveness, and boast a hefty list of quality features to ease the brewing process. Starting with High Quality 304 grade stainless steel, the tank features a 2 mm thick single shell design. Large 12" T.C. dome top port allows easy access for cleaning and sanitizing, and on top of that, a 1.5" T.C. port allows for the attachment of a CIP spray ball. Useful features such as Blowoff Pipe, Hop Ports and Rotating Racking Arms keep you brewing and fermenting at top efficiency.
The 1 & 2 bbl MB Conicals feature a sealed pressure gauge, as well as plunger style sample port to protect against infection.
Great Quality from MB
MB is a brand that we dedicate to crafting and sourcing the equipment pro brewers need to make an exceptional product efficiently and consistently. Our conicals between 1 and 120 bbl are designed by our in-house team of engineers with decades of professional brewing experience. Focusing on cleanability, ease of use, and durability, we’ve made sure our fermenters have the features that modern brewers expect when purchasing a new tank. While some discount dealers chase down bargain priced tanks from a string of manufacturers, we have maintained a long running relationship with a single manufacturer that ensures the quality of our products never wavers.
Great Value from MoreBeer! Pro
If you used MoreBeer! as a homebrewer, you may not know that MoreBeer! & MoreBeer! Pro combined is one of the largest brewing supply companies in the world with over 250,000 customers. We’ve seen countless homebrewers turn pro, and there’s nothing that makes us happier than being a part of that transition. As a privately owned brewing supply company that's been in business for over 25 years, we’ve established relationships with suppliers and manufacturers around the world and at every level of the industry. We get a great price and we pass that on to you.
Features:
304 stainless steel construction
Single shell design, inner surface is 2B finish and passivated
Oversized for 20% headspace
Pressure/Vacuum relief valve 1 Bar / 15 PSI
60° conical bottom
Sample valve
Rotating racking arm
Analog temperature gauge
Yeast dump port
Hop port
CIP port
Carb stone
Separate blow-off pipe with 1.5" T.C. x 3/4" barb
Specifications:
Grade 304 Stainless Steel
2mm think single shell design
Internal Finish: #2B
Total Height w/ Blowoff Pipe: 62"
Tank Diameter: 26"
Empty Weight: 152 lbs
Working Volume: 2 bbls
Max Volume: 2.4 bbls
Working Pressure: 1 Bar (14.5 psi)
All ports are 1.5" TC except for 12" TC Dome Port and 4" TC Hop Port
Please Contact our Customer Service department at 1-800-600-0033 to assess shipment costs and place an order.
Due to high demand, this item is currently out of stock. Be the first to receive your items by placing a pre-order today. We will automatically ship this item to you when we receive more in late July.
Designed by MB's in-house engineers with a focus on cleanability, ease of use, and durability
Made from 304 stainless steel throughout with passivated 2B polished finished on the interior
Sanitary tri-clamp connections from top to bottom with dedicated CIP port, hopping port, and blowoff—all fittings included!
20% extra headspace with a working volume of 2 bbl and max volume of 2.4 bbl
2mm thick single shell design—See related product for the 2 bbl Jacketed Conical
Ships domestically from within the contiguous United States
These heavy-duty Beer Tanks are purpose built for longevity, quality, and cost effectiveness, and boast a hefty list of quality features to ease the brewing process. Starting with High Quality 304 grade stainless steel, the tank features a 2 mm thick single shell design. Large 12" T.C. dome top port allows easy access for cleaning and sanitizing, and on top of that, a 1.5" T.C. port allows for the attachment of a CIP spray ball. Useful features such as Blowoff Pipe, Hop Ports and Rotating Racking Arms keep you brewing and fermenting at top efficiency.
The 1 & 2 bbl MB Conicals feature a sealed pressure gauge, as well as plunger style sample port to protect against infection.
Great Quality from MB
MB is a brand that we dedicate to crafting and sourcing the equipment pro brewers need to make an exceptional product efficiently and consistently. Our conicals between 1 and 120 bbl are designed by our in-house team of engineers with decades of professional brewing experience. Focusing on cleanability, ease of use, and durability, we’ve made sure our fermenters have the features that modern brewers expect when purchasing a new tank. While some discount dealers chase down bargain priced tanks from a string of manufacturers, we have maintained a long running relationship with a single manufacturer that ensures the quality of our products never wavers.
Great Value from MoreBeer! Pro
If you used MoreBeer! as a homebrewer, you may not know that MoreBeer! & MoreBeer! Pro combined is one of the largest brewing supply companies in the world with over 250,000 customers. We’ve seen countless homebrewers turn pro, and there’s nothing that makes us happier than being a part of that transition. As a privately owned brewing supply company that's been in business for over 25 years, we’ve established relationships with suppliers and manufacturers around the world and at every level of the industry. We get a great price and we pass that on to you.
Features:
304 stainless steel construction
Single shell design, inner surface is 2B finish and passivated
Oversized for 20% headspace
Pressure/Vacuum relief valve 1 Bar / 15 PSI
60° conical bottom
Sample valve
Rotating racking arm
Analog temperature gauge
Yeast dump port
Hop port
CIP port
Carb stone
Separate blow-off pipe with 1.5" T.C. x 3/4" barb
Specifications:
Grade 304 Stainless Steel
2mm think single shell design
Internal Finish: #2B
Total Height w/ Blowoff Pipe: 62"
Tank Diameter: 26"
Empty Weight: 152 lbs
Working Volume: 2 bbls
Max Volume: 2.4 bbls
Working Pressure: 1 Bar (14.5 psi)
All ports are 1.5" TC except for 12" TC Dome Port and 4" TC Hop Port
Please Contact our Customer Service department at 1-800-600-0033 to assess shipment costs and place an order.
Designed by MB's in-house engineers with a focus on cleanability, ease of use, and durability
Made from 304 stainless steel throughout with passivated 2B polished finished on the interior
Sanitary tri-clamp connections from top to bottom with centered bottom drain, sight glass, and dedicated CIP pipe system—all fittings included!
15% extra headspace with a working volume of 20 bbl and max volume of 23 bbl
Double walled with 80 mm thick polyurethane insulation and 1.5 mm thick dual cooling zone glycol jacket
Ships domestically from within the contiguous United States
MB offers a full range of professional level conical fermenters and brite tanks. Our stainless steel tanks represent an amazing overall value, boasting exquisite construction and a very impressive feature set.
MB jacketed brite tanks are made from 304 stainless steel and built to high quality standards. All of our brite tanks are pressured tested at the factory, feature 100% sanitary welds, and are backed by our one year warranty. Every brite tank features an average 15% headspace not stated in the volume, so for example, a 10 bbl brite really has 11.5 bbl of volume.
Great Quality from MB
MB is a brand that we dedicate to crafting and sourcing the equipment pro brewers need to make an exceptional product efficiently and consistently. Our brite tanks between 1 and 60 bbl are designed by our in-house team of engineers with decades of professional brewing experience. Focusing on cleanability, ease of use, and durability, we’ve made sure our tanks have the features that modern brewers expect when purchasing a new tank. While some discount dealers chase down bargain priced tanks from a string of manufacturers, we have maintained a long running relationship with a single manufacturer that ensures the quality of our products never wavers.
Great Value from MoreBeer! Pro
If you used MoreBeer! as a homebrewer, you may not know that MoreBeer! & MoreBeer! Pro combined is one of the largest brewing supply companies in the world with over 250,000 customers. We’ve seen countless homebrewers turn pro, and there’s nothing that makes us happier than being a part of that transition. As a privately owned brewing supply company that's been in business for over 25 years, we’ve established relationships with suppliers and manufacturers around the world and at every level of the industry. We get a great price and we pass that on to you.
Features Include:
15 PSI (1 bar) working pressure
Side manway door for cleaning
1.5" Tri-clamp carbonation stone
1.5" Tri-clamp pressure gauge
1.5" Tri-clamp dial face bi-metal, easy-read analog thermometer
1.5" Tri-clamp Perlick-style sample valve
2" Tri-clamp pressure/vacuum relief
2" Center bottom tri-clamp drain
4" Hopping Port
Ladder hooks
Sight-glass for reading volumes
Dedicated pipe system with 4" Tri-clamp center top opening and 1.5" tri-clamp rotating CIP spray ball for easy cleaning
3/4" NPT glycol ports
PT10 Thermocouple interface
Shadowless Manway
Construction:
304 stainless steel construction
Double walled with 80 mm thick polyurethane insulation
External Shell: 2 mm thick with brushed finish
Internal tank: 3 mm thick with smooth ground welds, 2B finish and passivated
Glycol Jacket: dual cooling zone, 1.5mm thick
Specifications:
Tank Height: 100"
Tank Diameter: 62"
Empty Weight: 1,102 lbs
Working Volume: 20 bbl
Total Volume: 23 bbl
Jacket Surface Area: 8,291 in² (5.349 m²)
Please Contact our Customer Service department at 1-800-600-0033 to assess shipment costs and place an order.
Designed by MB's in-house engineers with a focus on cleanability, ease of use, and durability
Made from 304 stainless steel throughout with passivated 2B polished finished on the interior
Sanitary tri-clamp connections from top to bottom with centered bottom drain, sight glass, and dedicated CIP pipe system—all fittings included!
15% extra headspace with a working volume of 20 bbl and max volume of 23 bbl
Double walled with 80 mm thick polyurethane insulation and 1.5 mm thick dual cooling zone glycol jacket
Ships domestically from within the contiguous United States
MB offers a full range of professional level conical fermenters and brite tanks. Our stainless steel tanks represent an amazing overall value, boasting exquisite construction and a very impressive feature set.
MB jacketed brite tanks are made from 304 stainless steel and built to high quality standards. All of our brite tanks are pressured tested at the factory, feature 100% sanitary welds, and are backed by our one year warranty. Every brite tank features an average 15% headspace not stated in the volume, so for example, a 10 bbl brite really has 11.5 bbl of volume.
Great Quality from MB
MB is a brand that we dedicate to crafting and sourcing the equipment pro brewers need to make an exceptional product efficiently and consistently. Our brite tanks between 1 and 60 bbl are designed by our in-house team of engineers with decades of professional brewing experience. Focusing on cleanability, ease of use, and durability, we’ve made sure our tanks have the features that modern brewers expect when purchasing a new tank. While some discount dealers chase down bargain priced tanks from a string of manufacturers, we have maintained a long running relationship with a single manufacturer that ensures the quality of our products never wavers.
Great Value from MoreBeer! Pro
If you used MoreBeer! as a homebrewer, you may not know that MoreBeer! & MoreBeer! Pro combined is one of the largest brewing supply companies in the world with over 250,000 customers. We’ve seen countless homebrewers turn pro, and there’s nothing that makes us happier than being a part of that transition. As a privately owned brewing supply company that's been in business for over 25 years, we’ve established relationships with suppliers and manufacturers around the world and at every level of the industry. We get a great price and we pass that on to you.
Features Include:
15 PSI (1 bar) working pressure
Side manway door for cleaning
1.5" Tri-clamp carbonation stone
1.5" Tri-clamp pressure gauge
1.5" Tri-clamp dial face bi-metal, easy-read analog thermometer
1.5" Tri-clamp Perlick-style sample valve
2" Tri-clamp pressure/vacuum relief
2" Center bottom tri-clamp drain
4" Hopping Port
Ladder hooks
Sight-glass for reading volumes
Dedicated pipe system with 4" Tri-clamp center top opening and 1.5" tri-clamp rotating CIP spray ball for easy cleaning
3/4" NPT glycol ports
PT100 Thermocouple interface
Shadowless Manway
Construction:
304 stainless steel construction
Double walled with 80 mm thick polyurethane insulation
External Shell: 2 mm thick with brushed finish
Internal tank: 3 mm thick with smooth ground welds, 2B finish and passivated
Glycol Jacket: dual cooling zone, 1.5mm thick
Specifications:
Tank Height: 100"
Tank Diameter: 62"
Empty Weight: 1,102 lbs
Working Volume: 20 bbl
Total Volume: 23 bbl
Jacket Surface Area: 8,291 in² (5.349 m²)
Please Contact our Customer Service department at 1-800-600-0033 to assess shipment costs and place an order.
Designed by MB's in-house engineers with a focus on cleanability, ease of use, and durability
Made from 304 stainless steel throughout with passivated 2B polished finished on the interior
Sanitary tri-clamp connections from top to bottom with dedicated CIP port, hopping port, and blowoff—all fittings included!
Separate cone and tank cooling jackets with 3" of internal insulation
20% extra headspace with a working volume of 20 bbl and max volume of 24 bbl
Ships domestically from within the contiguous United States
MB offers a full range of professional level conical fermenters and brite tanks. Our stainless steel tanks represent an amazing overall value, boasting exquisite construction and a very impressive feature set.
Great Quality from MB
MB is a brand that we dedicate to crafting and sourcing the equipment pro brewers need to make an exceptional product efficiently and consistently. Our conicals between 1 and 120 bbl are designed by our in-house team of engineers with decades of professional brewing experience. Focusing on cleanability, ease of use, and durability, we’ve made sure our fermenters have the features that modern brewers expect when purchasing a new tank. While some discount dealers chase down bargain priced tanks from a string of manufacturers, we have maintained a long running relationship with a single manufacturer that ensures the quality of our products never wavers.
Great Value from MoreBeer! Pro
If you used MoreBeer! as a homebrewer, you may not know that MoreBeer! & MoreBeer! Pro combined is one of the largest brewing supply companies in the world with over 250,000 customers. We’ve seen countless homebrewers turn pro, and there’s nothing that makes us happier than being a part of that transition. As a privately owned brewing supply company that's been in business for over 25 years, we’ve established relationships with suppliers and manufacturers around the world and at every level of the industry. We get a great price and we pass that on to you.
Impressive Features
Built from quality-checked 304 stainless steel, our tanks boast a hefty list of features. Here are some key features that are not always included on all tanks.
3” of internal insulation between tank and outter jacket when the industry standard is 2”
Horizontal racking arm and carbonation stone
Separate cone and tank cooling jackets
DIN Rotating racking arm for safety and ease of use
4” TC top hop port with handle
Carbonation Stone included with all tanks
2” Bottom valve for easier trub removal (3.5 bbl and up)
CIP spinning spray ball and piping built-in (3.5 bbl and up)
25% head-space above stated volume
Industry standard 2b finish
All Features:
304 stainless steel construction
The outer shell is 2 mm thick with a brushed finish
The inner wall is 3 mm thick with smooth ground welds, 2B finish and passivated
Includes a glycol jacket which is dimple welded and 1.5 mm thick
Oversized for 25% average headspace
Pressure Relief/Vacuum Breaker valve rated at 1 Bar / 15 PSI
Pt100 Thermocouple
Perlick style sample valve
Spinning CIP cleaning head and separate piping
Rotating racking arm upgraded with DIN fitting for increased reliability
Analog temperature gauge
Oversized yeast dump port
Sealed Pressure Gauge
Hop port
Carb stone
Separate blow-off pipe
Side man-door
Ladder rack (7 bbl and up)
Shadowless Manway
Specifications for 20 bbl Conical:
Grade 304 Stainless Steel
Internal Finish: #2B
Tank Height: 117", With Blowoff Pipe: 127"
Tank Diameter: 62"
Empty Weight: 1,146 lbs
Working Volume: 20 bbls
Max Volume: 24 bbls
Working Pressure: 1 Bar (15 psi)
Jacket Surface area: 7,372 in² (4.756 m²)
All ports are 1.5" TC except for 4" TC Lid Hopping Port, 4" TC CIP Port (inner 1.5" TC to CIP ball adapter), 2" TC PVRV, 2" TC Drain Outlet, 2" TC Pressure Gauge, DIN 65 Rotating Racking arm (w/ 1.5" pipe), and 3/4" NPT Glycol Ports
Please Contact our Customer Service department at 1-800-600-0033 to assess shipment costs and place an order.
Oil-based brewing system that closely mimics a large-scale steam-powered system Heated oil is circulated around jacketed tanks to heat with a large surface area. All the benefits of steam without the complexity of a steam generator Lower electrical requirement for installation compared to electric brewhouses with immersion elements Insulated vessels for high heating efficiency Includes grist case, foremash, and mash rake Compact brewing system with no need for additional electrical controllers, components, or extensive wiring. All pumps, piping, and fittings included No heating elements in direct contact with wort. Zero risk of scorching and easy to clean 3 Vessel systems are ideal for breweries that intend to use this unit as their primary brewing system 208V, 3-phase power is the standard configuration for all systems. Customized power configurations available upon request (see below) For detailed power specs, dimensions, and shipping quotes contact our MoreBeer! Pro sales representatives today!
Compared to the traditional steam heating brewhouse, the creative new-tech thermal oil heating avoids the installation of a dangerous and high-maintenance steam boiler. Steam offers more surface area than gas fired, but it requires a generator to create steam, collect it, and reheat it again. Oil heated brewhouses, on the other hand, use a simple oil heater and pump to circulate oil through the tank jackets. Compared to gas fired systems where all heat is directed to the very bottom of the kettle, this system heats from the sides and the bottom rather than the bottom alone. This offers not only greater surface area but faster thermal response. By controlling the oil temperature, you also have more precise boil vigor control and evaporation rate control. For these reasons and more, the Oil Heated Brewhouse makes for an ideal pilot batch system. Control Panel Our control panel features 4 PID controllers for precise control of the HLT, Mash, Boil Kettle and Oil temperature. The control panel also features a delayed start timer, allowing you to preheat your HLT overnight so your strike water will be ready when you arrive on brew day. Hard Piped Distribution Manifold With the distribution manifold, the entire brewing process can be completed by simply opening and closing valves. There’s no need to lug around brewery hoses and swap connections from vessel to vessel. This hard piped system is completely self-contained with dedicated pumps to move wort and hot liquor from tank to tank as needed. Every step of the brew day is a simple valve turn away. The only hose required is from the brewing system to your fermenter. Once the brew is completed this same piping system is used for CIP and rinsing. Installation The systems are delivered on a skid. Simply, move the skid into place, hook up power and water and a drain and you are ready to clean and brew. Our systems also feature rolling casters for easy installation in your brewery, product pump for recirculation and sparging, hard piped manifold, grain out door on the mash tun, and mounted plate chiller. Design Features: 3-Vessel System with dedicated HLT, Mash Tun, and Boil Kettle Compact design and easy installation Mash rake ensures uniform hydration and uniform temperature throughout Foremash achieves rapid and even hydration of grist Grist case for temporary storage of milled grain before mashing in Volume: 108 Gallon / 410L Built-in wort pump Built-in HLT pump Built-in 2-stage heat exchanger Hard piped distribution manifold Built-in control panel PID controls for kettle temperatures and oil temperature Slotted Mash Screen Tangential kettle return for whirlpool Built-in CIP Water inlet & hot water drain in 1.5" T.C. Insulated tanks for heat retention and heating efficiency Boil kettle features steam collector which eliminates the need to install a flue in your brewery Hot oil vessel can operate at higher temperatures, that means 25% higher heating efficiency: Oil temperature set at 302°F (150℃) [available up to 572°F (300℃)] from 82°F to 140°F (28°C to 60℃), heat-up time: 20 min from 140°F to 176°F (60°C to 80℃), heat-up time: 20 min from 176°F to 212°F (80°C to 100℃), heat-up time: 30 min Higher heating efficiency compared to steam heating Simultaneous heating of HLT, mash tun and kettle to save time 100% 304 Stainless Steel TIG welded tanks Laser welded dimple jacket and tank bottom Manufactured in strictly controlled ISO9001 certified facility 208V, 3-phase power* *MB Stainless offers custom voltage oil systems. 240V single-phase systems available up to 5bbl. MB also produces 480V 3-phase systems in all sizes. Contact our sales representatives for pricing, lead time and delivery information. Food-grade thermal oil not included. We recommend PARATHERM™ MR HTF or an equivalent low odor, food grade, thermal transfer fluid.
Due to high demand, this item is currently out of stock. Be the first to receive your items by placing a pre-order today. We will automatically ship this item to you when we receive more in mid July.
Designed by MB's in-house engineers with a focus on cleanability, ease of use, and durability
Made from 304 stainless steel throughout with passivated 2B polished finished on the interior
Sanitary tri-clamp connections from top to bottom with centered bottom drain, sight glass, and dedicated CIP pipe system—all fittings included!
Over 20% extra headspace with a working volume of 3.5 bbl and max volume of 4.25 bbl
Double walled with 80 mm thick polyurethane insulation and 1.5 mm thick dual cooling zone glycol jacket
Ships domestically from within the contiguous United States
MB offers a full range of professional level conical fermenters and brite tanks. Our stainless steel tanks represent an amazing overall value, boasting exquisite construction and a very impressive feature set.
MB jacketed brite tanks are made from 304 stainless steel and built to high quality standards. All of our brite tanks are pressured tested at the factory, feature 100% sanitary welds, and are backed by our one year warranty. Every brite tank features an average 15% headspace not stated in the volume, so for example, a 10 bbl brite really has 11.5 bbl of volume.
Great Quality from MB
MB is a brand that we dedicate to crafting and sourcing the equipment pro brewers need to make an exceptional product efficiently and consistently. Our brite tanks between 1 and 60 bbl are designed by our in-house team of engineers with decades of professional brewing experience. Focusing on cleanability, ease of use, and durability, we’ve made sure our tanks have the features that modern brewers expect when purchasing a new tank. While some discount dealers chase down bargain priced tanks from a string of manufacturers, we have maintained a long running relationship with a single manufacturer that ensures the quality of our products never wavers.
Great Value from MoreBeer! Pro
If you used MoreBeer! as a homebrewer, you may not know that MoreBeer! & MoreBeer! Pro combined is one of the largest brewing supply companies in the world with over 250,000 customers. We’ve seen countless homebrewers turn pro, and there’s nothing that makes us happier than being a part of that transition. As a privately owned brewing supply company that's been in business for over 25 years, we’ve established relationships with suppliers and manufacturers around the world and at every level of the industry. We get a great price and we pass that on to you.
Features Include:
15 PSI (1 bar) working pressure
Side manway door for cleaning
1.5" Tri-clamp carbonation stone
1.5" Tri-clamp pressure gauge
1.5" Tri-clamp dial face bi-metal, easy-read analog thermometer
1.5" Tri-clamp Perlick-style sample valve
2" Tri-clamp pressure/vacuum relief
2" Center bottom tri-clamp drain
4" Hopping Port
Sight-glass for reading volumes
Dedicated pipe system with 4" Tri-clamp center top opening and 1.5" tri-clamp rotating CIP spray ball for easy cleaning
3/4" NPT glycol ports
PT100 Thermocouple interface
Construction
304 stainless steel construction
Double walled with 80 mm thick polyurethane insulation
External Shell: 2 mm thick with brushed finish
Internal tank: 3 mm thick with smooth ground welds, 2B finish and passivated
Glycol Jacket: dual cooling zone, 1.5mm thick
Specifications:
Tank Height: 61"
Tank Diameter: 40"
Empty Weight: 463 lbs
Working Volume: 3.5 bbl
Total Volume: 4.25 bbl
Jacket Surface Area: 2,024 in² (1.306 m²)
Please Contact our Customer Service department at 1-800-600-0033 to assess shipment costs and place an order.
Due to high demand, this item is currently out of stock. Be the first to receive your items by placing a pre-order today. We will automatically ship this item to you when we receive more in mid September.
Designed by MB's in-house engineers with a focus on cleanability, ease of use, and durability
Made from 304 stainless steel throughout with passivated 2B polished finished on the interior
Sanitary tri-clamp connections from top to bottom with dedicated CIP port, hopping port, and blowoff—all fittings included!
Separate cone and tank cooling jackets with 3" of internal insulation
Over 25% extra headspace with a working volume of 3.5 bbl and max volume of 4.8 bbl
Ships domestically from within the contiguous United States
MB offers a full range of professional level conical fermenters and brite tanks. Our stainless steel tanks represent an amazing overall value, boasting exquisite construction and a very impressive feature set.
Great Quality from MB
MB is a brand that we dedicate to crafting and sourcing the equipment pro brewers need to make an exceptional product efficiently and consistently. Our conicals between 1 and 120 bbl are designed by our in-house team of engineers with decades of professional brewing experience. Focusing on cleanability, ease of use, and durability, we’ve made sure our fermenters have the features that modern brewers expect when purchasing a new tank. While some discount dealers chase down bargain priced tanks from a string of manufacturers, we have maintained a long running relationship with a single manufacturer that ensures the quality of our products never wavers.
Great Value from MoreBeer! Pro
If you used MoreBeer! as a homebrewer, you may not know that MoreBeer! & MoreBeer! Pro combined is one of the largest brewing supply companies in the world with over 250,000 customers. We’ve seen countless homebrewers turn pro, and there’s nothing that makes us happier than being a part of that transition. As a privately owned brewing supply company that's been in business for over 25 years, we’ve established relationships with suppliers and manufacturers around the world and at every level of the industry. We get a great price and we pass that on to you.
Impressive Features
Built from quality-checked 304 stainless steel, our tanks boast a hefty list of features. Here are some key features that are not always included on all tanks.
3” of internal insulation between tank and outer jacket when the industry standard is 2”
Horizontal racking arm and carbonation stone
Separate cone and tank cooling jackets
DIN Rotating racking arm for safety and ease of use
4” TC top hop port with handle
Carbonation Stone included with all tanks
2” Bottom valve for easier trub removal (3.5 bbl and up)
CIP spinning spray ball and piping built-in (3.5 bbl and up)
25% head-space above stated volume
Industry standard 2b finish
All Features:
304 stainless steel construction
The outer shell is 2 mm thick with a brushed finish
The inner wall is 3 mm thick with smooth ground welds, 2B finish and passivated
Includes a glycol jacket which is dimple welded and 1.5 mm thick
Oversized for 25% average headspace
Pressure Relief/Vacuum Breaker valve rated at 1 Bar / 15 PSI
1x Pt100 Thermocouple interface
Perlick style sample valve
Spinning CIP cleaning head and separate piping
Rotating racking arm upgraded with DIN fitting for increased reliability
Analog temperature gauge
Oversized yeast dump port
Sealed Pressure Gauge
Hop port
Carb stone
Separate blow-off pipe
Side man-door
Ladder rack (7 bbl and up)
Specifications for 3.5 bbl Conical:
Grade 304 Stainless Steel
Internal Finish: #2B
Tank Height: 72", With Blowoff Pipe: 78"
Tank Diameter: 35.9"
Empty Weight: 485 lbs
Working Volume: 3.5 bbls
Max Volume: 4.8 bbls
Working Pressure: 1 Bar (15 psi)
Jacket Surface area: 1,558 in² (1.005 m²)
All ports are 1.5" TC except for 4" TC Lid Hopping Port, 4" TC CIP Port (inner 1.5" TC to CIP ball adapter), 2" TC PVRV, 2" TC Drain Outlet, 2" TC Pressure Gauge, DIN 65 Rotating Racking arm (w/ 1.5" pipe), and 3/4" NPT Glycol Ports
Please Contact our Customer Service department at 1-800-600-0033 to assess shipment costs and place an order.
Complete electric brewhouse with electric boil kettle & hot liquor tank and insulated mash tun Boil kettle features a tangential whirlpool port, myrcene ring to keep flue condensation from entering the boil, glass manway door, and insulated walls for heating efficiency Oversized HLT large enough for mashing and sparging without needing to top off. Features sight gauge and tapered bottom with center drain Insulated mash tun features a slotted 3-piece false bottom, adjustable height sparge arm, and large grain out manway door with removable chute All tanks ship domestically from within the contiguous United States The MB Pro Brewhouse features an Electric Boil Kettle, Electric Hot Liquor Tank, and Insulated Mash Tun—all perfectly sized for 3.5 bbl batches. MB Pro Brewing Systems are very well constructed and represent an amazing overall value. They also boast a very impressive feature set. Great Quality from MB Our brewing systems are made at a family owned manufacturer in the Ningbo region of China. Ningbo is where most premium beer tanks and brewing vessels come from and represents a known style and level of quality when compared to other areas of China. Our professional brewhouse equipment is designed by our in-house R&D designer Colin Kaminski, a former brewmaster for 15 years. Cleanability, ease of use, and durability are our primary design criteria. Our manufacturing partner in China is a father/son team that takes great pride in what they do. Some discount dealers buy from different manufacturers who offer one-off deals. That can be fine one time but not the next. Great Value from MoreBeer! Pro If you used MoreBeer! as a homebrewer, you may not know that MoreBeer! & MoreBeer! Pro combined is one of the largest brewing supply companies in the world with over 250,000 customers. We’ve seen countless homebrewers turn pro, and there’s nothing that makes us happier than being a part of that transition. As a privately owned brewing supply company that's been in business for over 25 years, we’ve established relationships with suppliers and manufacturers around the world and at every level of the industry. We get a great price and we pass that on to you. Please Note: the electric boil kettle and hot liquor tank are supplied without controls for the electric elements. You will need to supply your own control panel. Electric Boil Kettle Our Pro Electric Boil Kettle features three 9,000W heating elements, dedicated tangential whirlpool port, condensation ring, and a host of other key features guaranteed to satisfy the expectations of today's pro brewer. Boil Kettle Features:
Insulated walls for safety and energy efficiency Condensation ring to keep flue condensation from entering the boil (Myrcene Ring) Tangential port for whirlpool Side drain with hop dam for easy whirlpooling and good trub separation Dished bottom with 2" center drain for easy trub clean up Fill Port for adding dilution water Float Switch to protect the electric elements from running dry (wiring required)
Powered by (3) 9,000-watt 3-phase 208V elements Total Amperage Draw: 75 amps at 3ph 208V The kettle must be grounded
PT10 Temp Sender Analog Temp Gauge for quick reading CIP Ball Glass Manway Door Internal LED Light Boil Kettle Specifications: Grade 304 Stainless Steel Internal Finish: #2B Tank Height: 54" Tank Diameter: 41" Empty Weight: 360 lbs Working Volume: 3.5 bbl Max Volume: 5.1 bbl All ports are 1.5" TC except for DN350 Manway, DN219 Vent Port, DN80 LED Light Port, 2" TC Drain Outlet, 2" TC Element Ports Electric Hot Liquor Tank Our Pro Electric Hot Liquor Tank features three 9,000W heating elements, insulated walls for energy efficiency, condensation ring, and a host of other key features guaranteed to satisfy the expectations of today's pro brewer. A float switch is pre-installed just above the heating elements, which is intended to protect your elements from running dry. The device comes unwired and needs to be included in a circuit in order to function. HLT Features:
Oversized to allow mashing and sparging without having to top off Insulated walls for safety and energy efficiency Condensation Trap so no flue is used Sight Gauge to check volume Fill Port Tapered Bottom w/ Center Drain Float Switch to protect the electric elements from running dry (wiring required)
Powered by (3) 9,000-watt 3-phase 208V elements Total Amperage Draw: 75 amps at 3ph 208V The kettle must be grounded
PT10 Temp Sender Analog Temp Gauge for quick reading Internal LED Light HLT Specifications: Grade 304 Stainless Steel Internal Finish: #2B Tank Height: 61" Tank Diameter: 47" Empty Weight: 375 lb Working Volume: 4.5 bbl Max Volume: 5.1 bbl All ports are 1.5" TC except for DN350 Manway, DN19 Condensation Pipe, 4" TC CIP Port, 2" TC Element Ports, 4" Welded Vent Insulated Mash Tun Our Pro Insulated Mash Tun features slotted 3-piece false bottom, adjustable-height sparge arm, 4" TC port for optional grist hydrator, and a host of other key features guaranteed to satisfy the expectations of today's pro brewer. The mash tun has a slotted plate screen with a large grain out port on the side. The optional hydrator allows you to mix grain with hot liquor if you have your mill or grist case above the mash tun. There is a large top access for manual stirring. The walls of the mash tun are insulated to provide stable mashing temperatures. While intended for a single infusion mash, step mashing can be performed by recirculating through a heat exchanger. The sparge arm is adjustable in height and it is intended to have an inch of water above the grain and have the bottom of the diverted plate resting on top of the grain for low oxygen pickup during recirculating and sparging. We recommend that you use a grant to avoid creating suction on the bottom of the mash screen. It is possible to pull 23,000 lbs of force on the screen with a pump and a fully stuck mash and even partial vacuums can produce significant force. Alternatively, you can install a vacuum breaker ahead of the pump. Replacement screens are available for special order. Mash Tun Features:
Insulated for low heat loss Slotted 3 pieces false bottom Large side grain out door Removable grain out chute 4" TC grain inlet port for optional grist hydrator Adjustable Height Sparge Arm for better HSA performance Sparge Arm has two inlets, HLT and Recirculation. Large top lid for easy stirring PT10 Probe Analog Temp Gauge 250+ lbs Grain Capacity Internal LED Light Mash Tun Specifications: Grade 304 Stainless Steel Internal Finish: #2B Tank Height: 56" Height w/ Hydrator: 72" Tank Diameter: 41" Empty Weight: 360 lbs Working Volume: 3.5 bbl Max Volume: 4.6 bbl Manway: 20.8" x 16.9" All ports are 1.5" TC except for 4" TC Sparge Arm Port, 4" TC Grist Hydrator Port, DN80 LED Light Port Please note: the primary image shows the mash tun with optional grist hydrator (sold separately). Power requirements listed represent actual amperage draw. Please consult a licensed electrician to determine what amperage breaker is required based on your local codes. Please Note: This item requires a professional electrician for installation. Please Contact our Customer Service department at 1-800-600-0033 to assess shipment costs and place an order.
Condition: New - Cosmetic Defective
This unit is new. It is in new and good condition but has cosmetic defect(s) such as scratch(es), dent(s), and/or has damaged packaging
MB Pro Brewing Systems are very well constructed and represent an amazing overall value. They also boast a very impressive feature set.
Our 3.5 bbl Pro Electric Hot Liquor Tank features three 9,000W heating elements, insulated walls for energy efficiency, condensation ring, and a host of other key features guaranteed to satisfy the expectations of today's pro brewer.
A float switch is pre-installed just above the heating elements, which is intended to protect your elements from running dry. The device comes unwired and needs to be included in a circuit in order to function.
Great Quality from MB
Our brewing systems are made at a family owned manufacturer in the Ningbo region of China. Ningbo is where most premium beer tanks and brewing vessels come from and represents a known style and level of quality when compared to other areas of China. Our professional brewhouse equipment is designed by our in-house R&D designer Colin Kaminski, a former brewmaster for 15 years. Cleanability, ease of use, and durability are our primary design criteria. Our manufacturing partner in China is a father/son team that takes great pride in what they do. Some discount dealers buy from different manufacturers who offer one-off deals. That can be fine one time but not the next.
Great Value from MoreBeer! Pro
If you used MoreBeer! as a homebrewer, you may not know that MoreBeer! & MoreBeer! Pro combined is one of the largest brewing supply companies in the world with over 250,000 customers. We’ve seen countless homebrewers turn pro, and there’s nothing that makes us happier than being a part of that transition. As a privately owned brewing supply company that's been in business for over 25 years, we’ve established relationships with suppliers and manufacturers around the world and at every level of the industry. We get a great price and we pass that on to you.
All Features:
Oversized to allow mashing and sparging without having to top off
Insulated walls for safety and energy efficiency
Condensation Trap so no flue is used
Sight Gauge to check volume
Fill Port
Tapered Bottom w/ Center Drain
Float Switch to protect the electric elements from running dry (wiring required)
Powered by (3) 9,000-watt 3-phase 208V elements
Total Amperage Draw: 75 amps at 3ph 208V
The kettle must be grounded
PT100 Temp Sender
Analog Temp Gauge for quick reading
Internal LED Light
Specifications for 3.5 bbl HLT:
Grade 304 Stainless Steel
Internal Finish: #2B
Tank Height: 61"
Tank Diameter: 47"
Empty Weight: 375 lb
Working Volume: 4.5 bbl
Max Volume: 5.1 bbl
All ports are 1.5" TC except for DN350 Manway, DN19 Condensation Pipe, 4" TC CIP Port, 2" TC Element Ports, 4" Welded Vent
Please note: this unit is supplied without controls for the electric elements.
Power requirements listed represent actual amperage draw. Please consult a licensed electrician to determine what amperage breaker is required based on your local codes.
Please Note: This item requires a professional electrician for installation.
Please Contact our Customer Service department at 1-800-600-0033 to assess shipment costs and place an order.
