This premium Polypropylene Base Board is for the Malt Muncher 2 Roller or 3 Roller Grain Mill. Perfect for slotting over a food grade bucket, or building your own little shelf on wheels. This new design is compatible with both MaltMuncher Mills. It has several different holes pre-drilled so either mill can be easily mounted.
Board Dimensions - 17.75" x 13.5" x 3/8"
Please note: Does not come with screws (M6 x 1 mm thread, 20 mm long). 2 roller mill requires 2 screws, 3 roller mill requires 4.
Kegland Part Number: KL09621

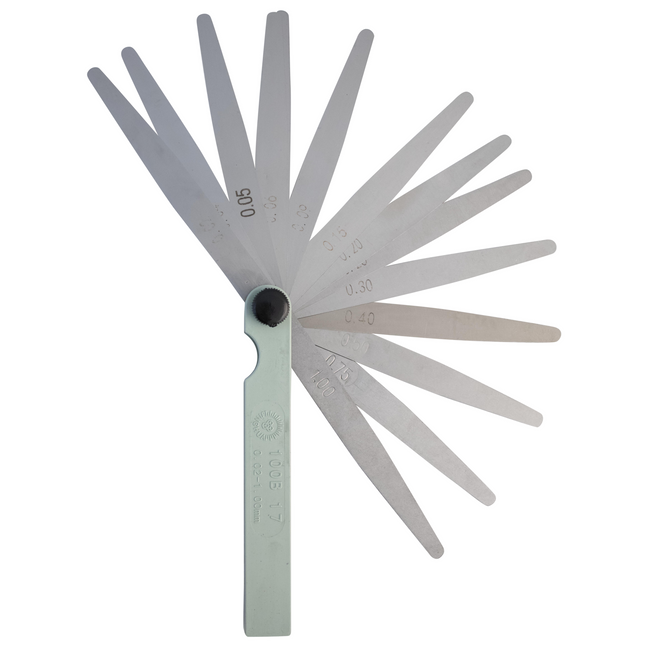

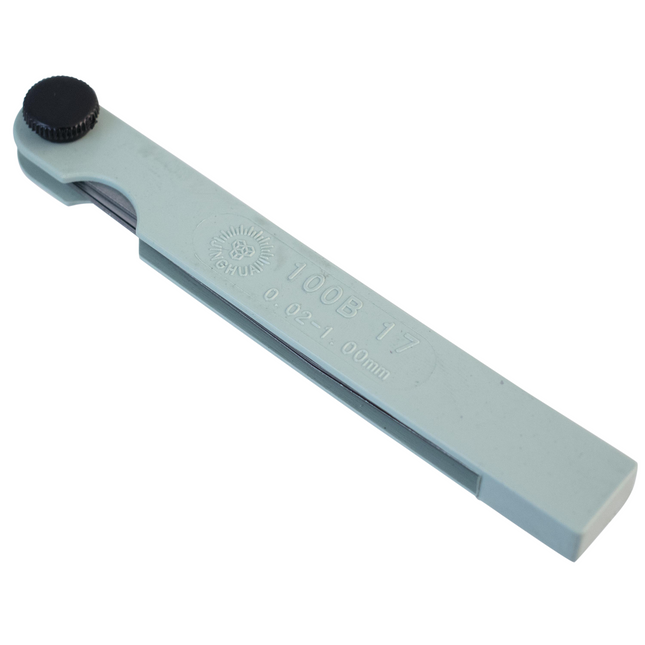

For those that want absolute precision when setting their mill gap, a feeler gauge is a must. Made from carbon steel with 17 blades of various thickness from 0.02 mm to 1.00 mm. Each blade is clearly marked with its thickness. The tool itself measures approximately 107 mm x 13 mm x 8 mm (4.2" x 0.5" x 0.3").
17 Blades:
0.02mm
0.03mm
0.04mm
0.05mm
0.06mm
0.07mm
0.08mm
0.09mm
0.10mm
0.15mm
0.20mm
0.25mm
0.30mm
0.40mm
0.50mm
0.75mm
1.00mm
KegLand Part Number: KL13420
For the savvy DIY homebrewer with mechanical ability and electrical wiring knowledge, this high torque motor is perfect for motorizing your Malt Muncher grain mill. The motor is unique because it is sealed for safety and also features a built in gear reduction to produce the perfect output speed of 180rpm. A spider coupling for connecting mill shaft to motor shaft is included and will fit both 10 and 12 mm shafts. The picture shows how the motor is connected to the mill. Mill is not included. We do not provide wiring diagrams on how to connect electricity or an on/off switch so you may need to contact an electrician to complete your project.
Features:
1 amp
110 v
High Torque (1:7.5 ratio)
Sealed housing making the motor almost maintenance free
Measures 9.25 inches in total length
Kegland Part Number: KL03278

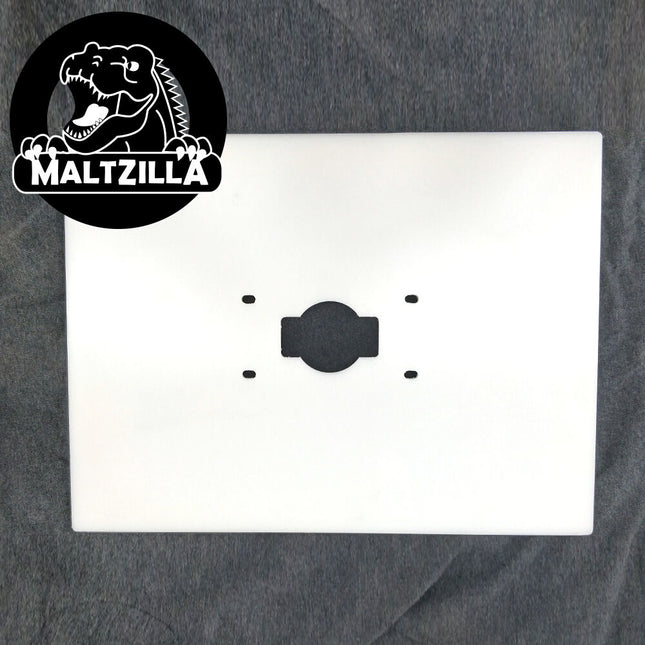

This premium Polypropylene Base Board is for the MaltZilla Motorized Grain Mill. Perfect for slotting over a food grade bucket, or building your own little shelf on wheels.
Board Dimensions - 17.75" x 13.5" x 3/8"
Kegland Part Number: KL17077
Replaces the circular top inlet of the MaltZilla to allow for easier adding of grains. This product is still in development. Details will be added as they become available.
Hopper only. MaltZilla and Base Board sold separately.

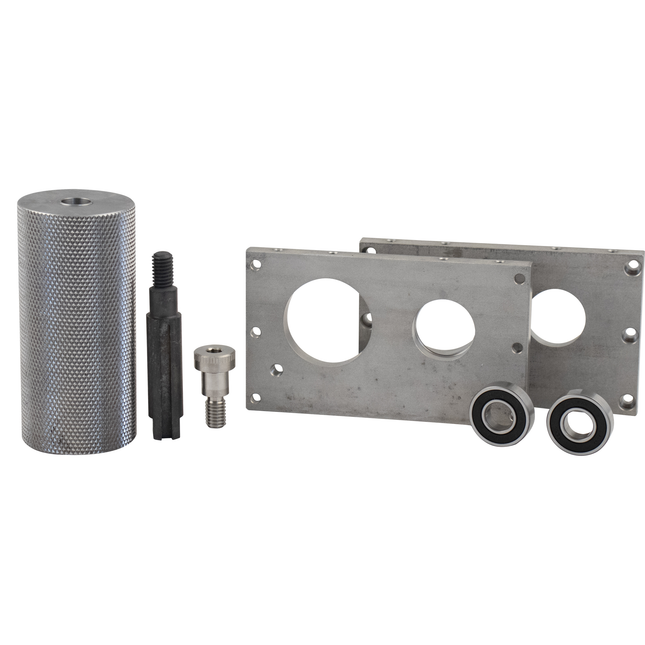

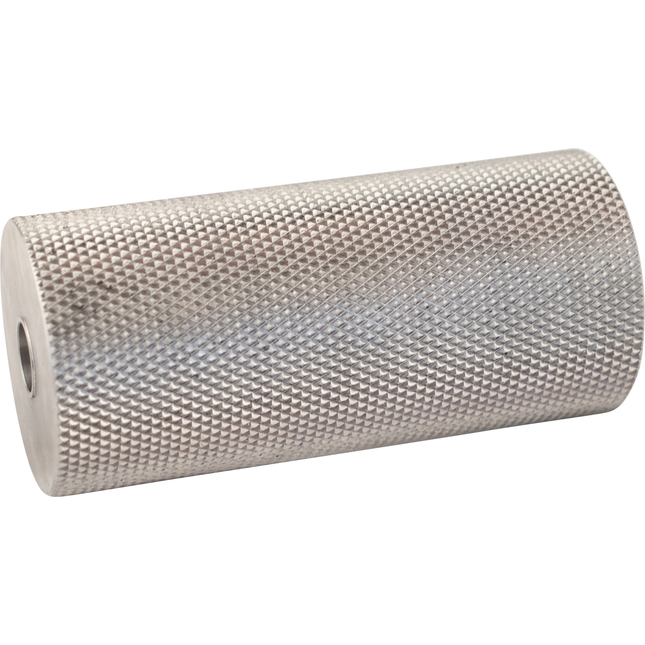

This kit contains all the parts needed to upgrade the MILL1001 to the MILL1001A released in June of 2019. It includes two new side plates, two larger bearings for the driven roller, a new driven roller, a new pulley shaft and a new left hand threaded allen for the roller. This kit is intended for homebrew shops and probrewers that are using their mills continuously. The upgraded bearings last considerably longer.
Kit Includes:
Driven roller
2 Side plates
2 bearings
Pulley shaft
Left-hand threaded roller bolt
The 3-Roller Monster is meant to compete and win against the best milling products available. With all the great features of the already popular MM-2, and the addition of a third roller, you'll be able to achieve the best crush around, at a higher throughput speed. The MM-3 crushes all your grain twice, with one pass through the mill. It starts with a preliminary crush through the initial fixed gap between the top two rollers, and then ends with a pass through the second gap between the drive roller, and the bottom third roller. The initial pass slightly flattens the grain, and gets it ready for the next crush, that breaks apart the grains and loosens the starch with minimal husk damage.
The MM-3 consists of a 6061 aluminum block frame with three 6" long steel rollers riding on SAE 841 oil impregnated bronze bushings. We use a superior grade of steel that is much harder than what is found on most comparable products and should last almost twice as long. The drive shaft, and all the axles are integral to the roller rather than screwed into the ends. This makes it fine to drive the mill clockwise, or counter-clockwise. All the axles are 3/8", with minimal freeplay in the bushings.
One knurled steel roller is driven by a standard electric drill (not included) to feed the grain through the initial fixed gap of approximately .060", and then through the adjustable secondary gap and crush the grist. Both ends of the non-driven top idler roller ride in bronze bushings that are pressed into the frames, while the second idler roller rides in bushings that are offset mounted in an adjustable knob. The knob is held in a fixed position by a set-screw that you can loosen to adjust the mill. This system provides an adjustment range of .065". Our knobs are made from 303 stainless steel for excellent durability, and are larger in diameter than the competition, as well as knurled for a positive grip. We've also added a groove in our newest design knobs with a matching rounded head on the thumbscrew that allows for a much better grip on the knob to avoid gap changes while milling, and also providing knob retention.
While we recommend a complete package (click here!), if you don't purchase our base and hopper, you will need to fabricate one to feed the grist through the mill. The mill can be mounted above or below the base and attached using the included mounting bolts. You'll also need a high quality corded drill to drive this beast.
Features:
Three six-inch steel rollers form two gaps, a preliminary fixed gap of approx .060", and a fully adjustable secondary gap.
Dual eccentric adjusters: 0 to .065" secondary gap - built from STAINLESS STEEL for no galling
8 lbs / minute throughput
3 x 6" hardened steel rollers
Rollers last for 12,000 - 15,000 lbs of grain
Drill-drive - CW, OR CCW
Alloy frame
SAE 841 oil impregnated bronze bushings
1.5" diameter steel rollers
3/8" integral drive shaft w/3 flats for drill driving, 2" long outside frame
1144 alloy steel rollers

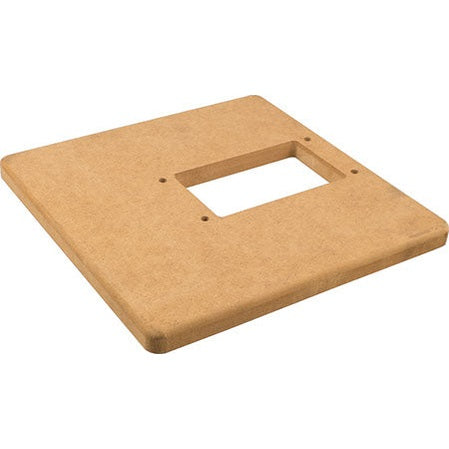

A solid base designed for the Monster Mills. Mounts your Monster Mill securely to simplify your brew day.
Measures just under 12"x 12".
Please Note: This is just the Fiber Board Base Only for Monster Mills. For a complete setup as shown in the picture, see our 3 Roller Monster Mill Packages.
