Nothing beats a crystal clear, clean tasting beer. Sure you can greatly reduce the amount of particulates in your beer with brewing clarifiers, but the best way to achieve a crystal clear beer is by filtering it. We offer several beer filtering options to choose from to fit your preference and needs.
40 cm x 40 cm filter pads fit all standard 40x40 plate filters, which are typically used in professional applications
6 Micron rating provides a rough filtration that removes large particulates, often followed by a finer filtration
Rough filtration is necessary on beverages with heavy sedimentation as the finer pads will clog without prefiltering
Easily sterilizable via heat or steam
Manufactured by Filtrox, the world's leading producer of high-quality filtration media
40cm x 40cm filter pads made for 40x40 plate filters. 6 micron pads are considered to be a "rough" filtration and are typically used to prepare the beverage to be filtered by finer pads, usually either 2-3 micron or 1.5 micron depending on tastes and objectives. Please note that all pad filters are rated 'nominal', meaning that about 90-95% of all particulate matter at the micron rating will be filtered out. There will always be a little bit of smaller material that is also filtered out, as well as some larger material that will make it through.
The filters can be sterilized by in-line steam, auto-claving, dry heat, hot water or chemical methods. We choose to run Saniclean solution through the pads followed by sterile water or a small amount of beverage that is then discarded. After the solution is run through the pads, and the pads have softened, the filter will need to be re-tightened.
Each pad has an entry side and an exit side, distinguishable by their different textures. The entry side is a billowy type texture, frequently called the "rough" side; and the exit side has a crosshatch pattern and is commonly called the "smooth" side. For more information on how to load filter sheets into your plate and frame filter, see our Guide to Plate Filtering.
Filtrox Group is a producer of filter sheets for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter sheets are manufactured of specially selected raw materials and conform to FDA and FCC regulations.
Micron Rating: 4 - 9
Micron Mid Point: 6
Versafix XE 34 Filter Sheets
Wine
Use: Clarifying filtration
Max. Recommended Flow Rate: 26 gal/hr (96 L/hr)
Max. Recommended Pressure Differential: 29-36 psi (2.0-2.5 Bar)
Fruit Wine or Fruit Juice
Use: Clarifying filtration
Max. Recommended Flow Rate: 21 gal/hr (80 L/hr)
Max. Recommended Pressure Differential: 22-36 psi (1.5-2.5 Bar)
Beer
Use: Clarifying filtration of beer, visually clear
Max. Recommended Flow Rate: 13-15 gal/hr (48-56 L/hr)
Max. Recommended Pressure Differential: 22 psi (1.5 Bar)
Cold Brew Coffee
Use: Clarifying filtration
Max. Recommended Flow Rate: 21 gal/hr (80 L/hr)
Max. Recommended Pressure Differential: 29 psi (2.0 Bar)
40 cm x 40 cm filter pads fit all standard 40x40 plate filters, which are typically used in professional applications
10 Micron rating provides a rough filtration that removes large particulates, often followed by a finer filtration
Rough filtration is necessary on beverages with heavy sedimentation as the finer pads will clog without prefiltering
Easily sterilizable via heat or steam
Manufactured by Filtrox, the world's leading producer of high-quality filtration media
40cm x 40cm filter pads made for 40x40 plate filters. 10 micron pads are considered to be a "rough" filtration and are typically used to prepare the beverage to be filtered by finer pads, usually either 2-3 micron or 1.5 micron depending on tastes and objectives. Please note that all pad filters are rated 'nominal', meaning that about 90-95% of all particulate matter at the micron rating will be filtered out. There will always be a little bit of smaller material that is also filtered out, as well as some larger material that will make it through.
The filters can be sterilized by in-line steam, auto-claving, dry heat, hot water or chemical methods. We choose to run Saniclean solution through the pads followed by sterile water or a small amount of beverage that is then discarded. After the solution is run through the pads, and the pads have softened, the filter will need to be re-tightened.
Each pad has an entry side and an exit side, distinguishable by their different textures. The entry side is a billowy type texture, frequently called the "rough" side; and the exit side has a crosshatch pattern and is commonly called the "smooth" side. For more information on how to load filter sheets into your plate and frame filter, see our Guide to Plate Filtering.
Filtrox Group is a producer of filter sheets for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter sheets are manufactured of specially selected raw materials and conform to FDA and FCC regulations.
Micron Rating: 6 - 15
Micron Mid Point: 10
Versafix XE 24 Filter Sheets
Wine
Use: Prefiltration
Max. Recommended Flow Rate: 30 gal/hr (112 L/hr)
Max. Recommended Pressure Differential: 36 psi (2.5 Bar)
Fruit Wine or Fruit Juice
Use: Prefiltration
Max. Recommended Flow Rate: 30 gal/hr (112 L/hr)
Max. Recommended Pressure Differential: 36 psi (2.5 Bar)
Spirits
Use: Coarse filtration of liquors, spirits
Max. Recommended Flow Rate: 21-30 gal/hr (80-112 L/hr)
Max. Recommended Pressure Differential: 36 psi (2.5 Bar)
40 cm x 40 cm filter pads fit all standard 40x40 plate filters, which are typically used in professional applications
2 Micron rating are for general polishing of beverages that do not need to be sterile filtered
Easily sterilizable via heat or steam
Manufactured by Filtrox, the world's leading producer of high-quality filtration media
40cm x 40cm filter pads made for 40x40 plate filters. 2 micron pads are for general polishing of beverages that do not need to be sterile filtered. Please note that all pad filters are rated 'nominal', meaning that about 90-95% of all particulate matter at the micron rating will be filtered out. There will always be a little bit of smaller material that is also filtered out, as well as some larger material that will make it through.
The filters can be sterilized by in-line steam, auto-claving, dry heat, hot water or chemical methods. We choose to run Saniclean solution through the pads followed by sterile water or a small amount of beverage that is then discarded. After the solution is run through the pads, and the pads have softened, the filter will need to be re-tightened.
Each pad has an entry side and an exit side, distinguishable by their different textures. The entry side is a billowy type texture, frequently called the "rough" side; and the exit side has a crosshatch pattern and is commonly called the "smooth" side. For more information on how to load filter sheets into your plate and frame filter, see our Guide to Plate Filtering.
Filtrox Group is a producer of filter sheets for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter sheets are manufactured of specially selected raw materials and conform to FDA and FCC regulations.
Micron Rating: 1.5 - 3.0
Micron Mid Point: 2
Versafix XE 64 Filter Sheets
Wine
Use: Clarifying filtration
Max. Recommended Flow Rate: 26 gal/hr (96 L/hr)
Max. Recommended Pressure Differential: 29-36 psi (2.0-2.5 Bar)
Spirits
Use: Fine filtration of cognac and whiskey chill haze removal
Max. Recommended Flow Rate: 21 gal/hr (80 L/hr)
Max. Recommended Pressure Differential: 22 psi (1.5 Bar)
Beer
Use: Fine filtration, with fewer yeast cells
Max. Recommended Flow Rate: 6.5 gal/hr (24 L/hr)
Max. Recommended Pressure Differential: 22 psi (1.5 Bar)
Seltzer
Use: Fine filtration of seltzer base
Max. Recommended Flow Rate: 30 gal/hr (112 L/hr)
Max. Recommended Pressure Differential: 36 psi (2.5 Bar)
Cold Brew Coffee
Use: Fine filtration
Max. Recommended Flow Rate: 21 gal/hr (80 L/hr)
Max. Recommended Pressure Differential: 29 psi (2.0 Bar)
40 cm x 40 cm filter pads fit all standard 40x40 plate filters, which are typically used in professional applications
4 Micron rating are for general polishing of beverages that do not need to be sterile filtered
Easily sterilizable via heat or steam
Manufactured by Filtrox, the world's leading producer of high-quality filtration media
40cm x 40cm filter pads made for 40x40 plate filters. 4 micron pads are for general polishing of beverages that do not need to be sterile filtered. Please note that all pad filters are rated 'nominal', meaning that about 90-95% of all particulate matter at the micron rating will be filtered out. There will always be a little bit of smaller material that is also filtered out, as well as some larger material that will make it through.
The filters can be sterilized by in-line steam, auto-claving, dry heat, hot water or chemical methods. We choose to run Saniclean solution through the pads followed by sterile water or a small amount of beverage that is then discarded. After the solution is run through the pads, and the pads have softened, the filter will need to be re-tightened.
Each pad has an entry side and an exit side, distinguishable by their different textures. The entry side is a billowy type texture, frequently called the "rough" side; and the exit side has a crosshatch pattern and is commonly called the "smooth" side. For more information on how to load filter sheets into your plate and frame filter, see our Guide to Plate Filtering.
Filtrox Group is a producer of filter sheets for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter sheets are manufactured of specially selected raw materials and conform to FDA and FCC regulations.
Micron Rating: 3 - 6
Micron Mid Point: 4
Versafix XE 44 Filter Sheets
Wine
Use: Clarifying filtration
Max. Recommended Flow Rate: 26 gal/hr (96 L/hr)
Max. Recommended Pressure Differential: 29-36 psi (2.0-2.5 Bar)
Fruit Wine or Fruit Juice
Use: Clarifying filtration
Max. Recommended Flow Rate: 21 gal/hr (80 L/hr)
Max. Recommended Pressure Differential: 22-36 psi (1.5-2.5 Bar)
Beer
Use: Middle fine filtration, with only a few yeast
Max. Recommended Flow Rate: 8.5 gal/hr (32 L/hr)
Max. Recommended Pressure Differential: 22 psi (1.5 Bar)
12" filter module for use with 12" stainless steel lenticular filter housings
2 Micron rating are for general clarifying of wine and fine filtration of beer, seltzer and cold brew
Manufactured by Filtrox, the world's leading producer of high-quality filtration media
Filtrox filter modules are high-performance filtration solutions designed for use with stainless steel lenticular filter housings. These modules deliver reliable, efficient filtration for a wide range of liquids in food and beverage production including wine, beer, cider, spirits, cold brew coffee, and more.
Compared to plate filters and filter sheets, lenticular filter housings and filter modules offers an airtight, sealed system with no dripping or leakage, ensuring your liquid remains protected and uncontaminated.
Filter modules are easy to install and provide consistent results, making them ideal for demanding filtration applications.
Filtrox Group is a producer of filter media for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter modules are manufactured of specially selected raw materials and conform to FDA and FCC regulations.
Micron Rating: 1.5 - 3
Micron Mid Point: 2
Filtration Area: 19.3 ft² (1.8 m²)
Number of Lenses: 16
Versadisc XE 64 Filter Module
Wine
Use: Clarifying filtration
Max. Recommended Flow Rate: 286 gal/hr (1,080 L/hr)
Max. Recommended Pressure Differential: 29 - 36 psi (2.0 - 2.5 Bar)
Spirits
Use: Fine filtration of cognac and whiskey chill haze removal
Max. Recommended Flow Rate: 239 gal/hr (900 L/hr)
Max. Recommended Pressure Differential: 22 psi (1.5 Bar)
Beer
Use: Fine filtration, with fewer yeast cells
Max. Recommended Flow Rate: 71 gal/hr (270 L/hr)
Max. Recommended Pressure Differential: 22 psi (1.5 Bar)
Seltzer
Use: Fine filtration of seltzer base
Max. Recommended Flow Rate: 334 gal/hr (1,260 L/hr)
Max. Recommended Pressure Differential: 36 psi (2.5 Bar)
Cold Brew Coffee
Use: Fine filtration
Max. Recommended Flow Rate: 239 gal/hr (900 L/hr)
Max. Recommended Pressure Differential: 29 psi (2.0 Bar)
20 cm x 20 cm filter pads fit all standard 20x20 plate filters, which are typically used by home winemakers
6 Micron rating provides a rough filtration that removes large particulates, often followed by a finer filtration
Rough filtration is necessary on wines with heavy sedimentation as the finer pads will clog without prefiltering
Easily sterilizable via heat or steam
Manufactured by Filtrox, the world's leading producer of high-quality filtration media
20cm x 20cm filter pads made for 20x20 plate filters. 6 micron pads are considered to be a "rough" filtration and are typically used to prepare the wine to be filtered by finer pads, usually either 2-3 micron or 1.5 micron depending on the winemaker's tastes and objectives. Please note that all pad filters are rated 'nominal', meaning that about 90-95% of all particulate matter at the micron rating will be filtered out. There will always be a little bit of smaller material that is also filtered out, as well as some larger material that will make it through.
The filters can be sterilized by in-line steam, auto-claving, dry heat, hot water or chemical methods. We choose to run Saniclean solution through the pads followed by sterile water or a small amount of wine that is then discarded. After the solution is run through the pads, and the pads have softened, the filter will need to be re-tightened.
Each pad has an entry side and an exit side, distinguishable by their different textures. The entry side is a billowy type texture, frequently called the "rough" side; and the exit side has a crosshatch pattern and is commonly called the "smooth" side. For more information on how to load filter sheets into your plate and frame filter, see our Guide to Plate Filtering.
Filtrox Group is a producer of filter sheets for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter sheets are manufactured of specially selected raw materials and conform to FDA and FCC regulations.
Micron Rating: 4 - 9
Micron Mid Point: 6
Versafix XE 34 Filter Sheets
40 cm x 40 cm filter pads fit all standard 40x40 plate filters, which are typically used in professional applications
0.5 Micron pads remove 99.999% of bacteria to promote sterility in the bottle
Easily sterilizable via heat or steam
Manufactured by Filtrox, the world's leading producer of high-quality filtration media
40cm x 40cm filter pads made for 40x40 plate filters. Pads rated 0.5 micron remove 99.999% of bacteria. This pad is the right choice when you want to promote sterility in the bottle, although do please note that the pad does not remove 100% of bacteria - only a cartridge filter can do so.
The filters can be sterilized by in-line steam, auto-claving, dry heat, hot water or chemical methods. We choose to run Saniclean solution through the pads followed by sterile water or a small amount of beverage that is then discarded. After the solution is run through the pads, and the pads have softened, the filter will need to be re-tightened.
Each pad has an entry side and an exit side, distinguishable by their different textures. The entry side is a billowy type texture, frequently called the "rough" side; and the exit side has a crosshatch pattern and is commonly called the "smooth" side. For more information on how to load filter sheets into your plate and frame filter, see our Guide to Plate Filtering.
Filtrox Group is a producer of filter sheets for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter sheets are manufactured of specially selected raw materials and conform to FDA and FCC regulations.
Micron Rating: 0.4 - 0.6
Micron Mid Point: 0.5
Fibrafix AF 130 Filter Sheets
Wine
Use: General sterile filtration
Max. Recommended Flow Rate: 15 gal/hr (56 L/hr)
Max. Recommended Pressure Differential: 17 psi (1.2 Bar)
Fruit Wine or Fruit Juice
Use: Cold sterile filtration of fruit juice
Max. Recommended Flow Rate: 15 gal/hr (56 L/hr)
Max. Recommended Pressure Differential: 17 psi (1.2 Bar)
Beer
Use: Yeast and bacteria removal
Max. Recommended Flow Rate: 5 gal/hr (19 L/hr)
Max. Recommended Pressure Differential: 15 psi (1.0 Bar)
20 cm x 20 cm filter pads fit all standard 20x20 plate filters, which are typically used by home winemakers
11 Micron rating provides a rough filtration that removes large particulates, often followed by a finer filtration
Rough filtration is necessary on wines with heavy sedimentation as the finer pads will clog without prefiltering
Easily sterilizable via heat or steam
Manufactured by Filtrox, the world's leading producer of high-quality filtration media
20cm x 20cm filter pads made for 20x20 plate filters. 11 micron pads are considered to be a "rough" filtration and are typically used to prepare the wine to be filtered by finer pads, usually either 2-3 micron or 1.5 micron depending on the winemaker's tastes and objectives. Please note that all pad filters are rated 'nominal', meaning that about 90-95% of all particulate matter at the micron rating will be filtered out. There will always be a little bit of smaller material that is also filtered out, as well as some larger material that will make it through.
The filters can be sterilized by in-line steam, auto-claving, dry heat, hot water or chemical methods. We choose to run Saniclean solution through the pads followed by sterile water or a small amount of wine that is then discarded. After the solution is run through the pads, and the pads have softened, the filter will need to be re-tightened.
Each pad has an entry side and an exit side, distinguishable by their different textures. The entry side is a billowy type texture, frequently called the "rough" side; and the exit side has a crosshatch pattern and is commonly called the "smooth" side. For more information on how to load filter sheets into your plate and frame filter, see our Guide to Plate Filtering.
Filtrox Group is a producer of filter sheets for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter sheets are manufactured of specially selected raw materials and conform to FDA and FCC regulations.
Micron Rating: 5 - 18
Micron Mid Point: 11
Versafix XE 24 Filter Sheets
12" filter module for use with 12" stainless steel lenticular filter housings
0.45 Micron pads remove 99.999% of bacteria to promote sterility in the bottle
Manufactured by Filtrox, the world's leading producer of high-quality filtration media
Filtrox filter modules are high-performance filtration solutions designed for use with stainless steel lenticular filter housings. These modules deliver reliable, efficient filtration for a wide range of liquids in food and beverage production including wine, beer, cider, spirits, cold brew coffee, and more.
Compared to plate filters and filter sheets, lenticular filter housings and filter modules offers an airtight, sealed system with no dripping or leakage, ensuring your liquid remains protected and uncontaminated.
Filter modules are easy to install and provide consistent results, making them ideal for demanding filtration applications.
Filtrox Group is a producer of filter media for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter modules are manufactured of specially selected raw materials and conform to FDA and FCC regulations.
Micron Rating: 0.4 - 0.6
Micron Mid Point: 0.5
Filtration Area: 19.3 ft² (1.8 m²)
Number of Lenses: 16
Fibradisc AF 130 Filter Module
Wine
Use: General sterile filtration
Max. Recommended Flow Rate: 167 gal/hr (630 L/hr)
Max. Recommended Pressure Differential: 17 psi (1.2 Bar)
Fruit Wine or Fruit Juice
Use: Cold sterile filtration
Max. Recommended Flow Rate: 167 gal/hr (630 L/hr)
Max. Recommended Pressure Differential: 17 psi (1.2 Bar)
Beer
Use: Yeast and bacteria removal
Max. Recommended Flow Rate: 57 gal/hr (216 L/hr)
Max. Recommended Pressure Differential: 15 psi (1.0 Bar)
Please Note: The filter module, lacking a PES layer, is for clarification purposes only and does not provide sterile filtration for 100% bacteria removal.
20 cm x 20 cm filter pads fit all standard 20x20 plate filters, which are typically used by home winemakers
0.5 Micron pads remove 99.999% of bacteria to promote sterility in the bottle
Easily sterilizable via heat or steam
Manufactured by Filtrox, the world's leading producer of high-quality filtration media
20cm x 20cm filter pads made for 20x20 plate filters. Pads rated 0.5 micron remove 99.999% of bacteria. This pad is the right choice when you want to promote sterility in the bottle, although do please note that the pad does not remove 100% of bacteria - only a cartridge filter can do so.
The filters can be sterilized by in-line steam, auto-claving, dry heat, hot water or chemical methods. We choose to run Saniclean solution through the pads followed by sterile water or a small amount of wine that is then discarded. After the solution is run through the pads, and the pads have softened, the filter will need to be re-tightened.
Each pad has an entry side and an exit side, distinguishable by their different textures. The entry side is a billowy type texture, frequently called the "rough" side; and the exit side has a crosshatch pattern and is commonly called the "smooth" side. For more information on how to load filter sheets into your plate and frame filter, see our Guide to Plate Filtering.
Filtrox Group is a producer of filter sheets for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter sheets are manufactured of specially selected raw materials and conform to FDA and FCC regulations.
Micron Rating: 0.4 - 0.6
Micron Mid Point: 0.5
Fibrafix AF 130 Filter Sheets
20 cm x 20 cm filter pads fit all standard 20x20 plate filters, which are typically used by home winemakers
4 Micron rating are for general polishing of wines that do not need to be sterile filtered
Easily sterilizable via heat or steam
Manufactured by Filtrox, the world's leading producer of high-quality filtration media
20cm x 20cm filter pads made for 20x20 plate filters. 4 micron pads are for general polishing of wines that do not need to be sterile filtered. Please note that all pad filters are rated 'nominal', meaning that about 90-95% of all particulate matter at the micron rating will be filtered out. There will always be a little bit of smaller material that is also filtered out, as well as some larger material that will make it through.
The filters can be sterilized by in-line steam, auto-claving, dry heat, hot water or chemical methods. We choose to run Saniclean solution through the pads followed by sterile water or a small amount of wine that is then discarded. After the solution is run through the pads, and the pads have softened, the filter will need to be re-tightened.
Each pad has an entry side and an exit side, distinguishable by their different textures. The entry side is a billowy type texture, frequently called the "rough" side; and the exit side has a crosshatch pattern and is commonly called the "smooth" side. For more information on how to load filter sheets into your plate and frame filter, see our Guide to Plate Filtering.
Filtrox Group is a producer of filter sheets for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter sheets are manufactured of specially selected raw materials and conform to FDA and FCC regulations.
Micron Rating: 3 - 6
Micron Mid Point: 4
Versafix XE 44 Filter Sheets
16" filter module for use with 16" stainless steel lenticular filter housings
0.7 Micron for ultra-fine polishing of wine or for preparing hard to filter wines to go through a sterile cartridge filter
Manufactured by Filtrox, the world's leading producer of high-quality filtration media
Filtrox filter modules are high-performance filtration solutions designed for use with stainless steel lenticular filter housings. These modules deliver reliable, efficient filtration for a wide range of liquids in food and beverage production including wine, beer, cider, spirits, cold brew coffee, and more.
Compared to plate filters and filter sheets, lenticular filter housings and filter modules offers an airtight, sealed system with no dripping or leakage, ensuring your liquid remains protected and uncontaminated.
Filter modules are easy to install and provide consistent results, making them ideal for demanding filtration applications.
Filtrox Group is a producer of filter media for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter modules are manufactured of specially selected raw materials and conform to FDA and FCC regulations.
Micron Rating: 0.5 - 0.8
Micron Mid Point: 0.7
Filtration Area: 38.7 ft² (3.6 m²)
Number of Lenses: 16
Versadisc XE 104 Filter Module
Wine
Use: Sterile filtration dry wine
Max. Recommended Flow Rate: 334 gal/hr (1,260 L/hr)
Max. Recommended Pressure Differential: 17 - 22 psi (1.2 - 1.5 Bar)
Cold Brew Coffee
Use: Very fine, sterile filtration
Max. Recommended Flow Rate: 334 gal/hr (1,260 L/hr)
Max. Recommended Pressure Differential: 36 psi (2.5 Bar)
16" filter module for use with 16" stainless steel lenticular filter housings
2 Micron rating are for general clarifying of wine and fine filtration of beer, seltzer and cold brew
Manufactured by Filtrox, the world's leading producer of high-quality filtration media
Filtrox filter modules are high-performance filtration solutions designed for use with stainless steel lenticular filter housings. These modules deliver reliable, efficient filtration for a wide range of liquids in food and beverage production including wine, beer, cider, spirits, cold brew coffee, and more.
Compared to plate filters and filter sheets, lenticular filter housings and filter modules offers an airtight, sealed system with no dripping or leakage, ensuring your liquid remains protected and uncontaminated.
Filter modules are easy to install and provide consistent results, making them ideal for demanding filtration applications.
Filtrox Group is a producer of filter media for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter modules are manufactured of specially selected raw materials and conform to FDA and FCC regulations.
Micron Rating: 1.5 - 3
Micron Mid Point: 2
Filtration Area: 38.7 ft² (3.6 m²)
Number of Lenses: 16
Versadisc XE 64 Filter Module
Wine
Use: Clarifying filtration
Max. Recommended Flow Rate: 572 gal/hr (2,160 L/hr)
Max. Recommended Pressure Differential: 29 - 36 psi (2.0 - 2.5 Bar)
Spirits
Use: Fine filtration of cognac and whiskey chill haze removal
Max. Recommended Flow Rate: 478 gal/hr (1,800 L/hr)
Max. Recommended Pressure Differential: 22 psi (1.5 Bar)
Beer
Use: Fine filtration, with fewer yeast cells
Max. Recommended Flow Rate: 142 gal/hr (540 L/hr)
Max. Recommended Pressure Differential: 22 psi (1.5 Bar)
Seltzer
Use: Fine filtration of seltzer base
Max. Recommended Flow Rate: 668 gal/hr (2,520 L/hr)
Max. Recommended Pressure Differential: 36 psi (2.5 Bar)
Cold Brew Coffee
Use: Fine filtration
Max. Recommended Flow Rate: 478 gal/hr (1,800 L/hr)
Max. Recommended Pressure Differential: 29 psi (2.0 Bar)
12" filter module for use with 12" stainless steel lenticular filter housings
0.7 Micron for ultra-fine polishing of wine or for preparing hard to filter wines to go through a sterile cartridge filter
Manufactured by Filtrox, the world's leading producer of high-quality filtration media
Filtrox filter modules are high-performance filtration solutions designed for use with stainless steel lenticular filter housings. These modules deliver reliable, efficient filtration for a wide range of liquids in food and beverage production including wine, beer, cider, spirits, cold brew coffee, and more.
Compared to plate filters and filter sheets, lenticular filter housings and filter modules offers an airtight, sealed system with no dripping or leakage, ensuring your liquid remains protected and uncontaminated.
Filter modules are easy to install and provide consistent results, making them ideal for demanding filtration applications.
Filtrox Group is a producer of filter media for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter modules are manufactured of specially selected raw materials and conform to FDA and FCC regulations.
Micron Rating: 0.5 - 0.8
Micron Mid Point: 0.7
Filtration Area: 19.3 ft² (1.8 m²)
Number of Lenses: 16
Versadisc XE 104 Filter Module
Wine
Use: Sterile filtration dry wine
Max. Recommended Flow Rate: 167 gal/hr (630 L/hr)
Max. Recommended Pressure Differential: 17 - 22 psi (1.2 - 1.5 Bar)
Cold Brew Coffee
Use: Very fine, sterile filtration
Max. Recommended Flow Rate: 167 gal/hr (630 L/hr)
Max. Recommended Pressure Differential: 36 psi (2.5 Bar)
12" filter module for use with 12" stainless steel lenticular filter housings
4 Micron rating are for general clarifying of beverages that do not need to be sterile filtered
Manufactured by Filtrox, the world's leading producer of high-quality filtration media
Filtrox filter modules are high-performance filtration solutions designed for use with stainless steel lenticular filter housings. These modules deliver reliable, efficient filtration for a wide range of liquids in food and beverage production including wine, beer, cider, spirits, cold brew coffee, and more.
Compared to plate filters and filter sheets, lenticular filter housings and filter modules offers an airtight, sealed system with no dripping or leakage, ensuring your liquid remains protected and uncontaminated.
Filter modules are easy to install and provide consistent results, making them ideal for demanding filtration applications.
Filtrox Group is a producer of filter media for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter modules are manufactured of specially selected raw materials and conform to FDA and FCC regulations.
Micron Rating: 3 - 6
Micron Mid Point: 4
Filtration Area: 19.3 ft² (1.8 m²)
Number of Lenses: 16
Versadisc XE 44 Filter Module
Wine
Use: Clarifying filtration
Max. Recommended Flow Rate: 286 gal/hr (1,080 L/hr)
Max. Recommended Pressure Differential: 29 - 36 psi (2.0 - 2.5 Bar)
Fruit Wine or Fruit Juice
Use: Clarifying filtration
Max. Recommended Flow Rate: 239 gal/hr (900 L/hr)
Max. Recommended Pressure Differential: 22 - 36 psi (1.5 - 2.5 Bar)
Beer
Use: Middle fine filtration, with only a few yeast
Max. Recommended Flow Rate: 95 gal/hr (360 L/hr)
Max. Recommended Pressure Differential: 22 psi (1.5 Bar)
12" filter module for use with 12" stainless steel lenticular filter housings
6 Micron rating provides a rough filtration that removes large particulates, often followed by a finer filtration
Rough filtration is necessary on wines with heavy sedimentation as the finer pads will clog without prefiltering
Manufactured by Filtrox, the world's leading producer of high-quality filtration media
Filtrox filter modules are high-performance filtration solutions designed for use with stainless steel lenticular filter housings. These modules deliver reliable, efficient filtration for a wide range of liquids in food and beverage production including wine, beer, cider, spirits, cold brew coffee, and more.
Compared to plate filters and filter sheets, lenticular filter housings and filter modules offers an airtight, sealed system with no dripping or leakage, ensuring your liquid remains protected and uncontaminated.
Filter modules are easy to install and provide consistent results, making them ideal for demanding filtration applications.
Filtrox Group is a producer of filter media for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter modules are manufactured of specially selected raw materials and conform to FDA and FCC regulations.
Micron Rating: 4 - 9
Micron Mid Point: 6
Filtration Area: 19.3 ft² (1.8 m²)
Number of Lenses: 16
Versadisc XE 34 Filter Module
Wine
Use: Clarifying filtration
Max. Recommended Flow Rate: 286 gal/hr (1,080 L/hr)
Max. Recommended Pressure Differential: 29 - 36 psi (2.0 - 2.5 Bar)
Fruit Wine or Fruit Juice
Use: Clarifying filtration
Max. Recommended Flow Rate: 239 gal/hr (900 L/hr)
Max. Recommended Pressure Differential: 22 - 36 psi (1.5 - 2.5 Bar)
Beer
Use: Clarifying filtration of beer, visually clear
Max. Recommended Flow Rate: 143 - 167 gal/hr (540 - 630 L/hr)
Max. Recommended Pressure Differential: 22 psi (1.5 Bar)
Cold Brew Coffee
Use: Clarifying filtration
Max. Recommended Flow Rate: 239 gal/hr (900 L/hr)
Max. Recommended Pressure Differential: 29 psi (2.0 Bar)
Designed for exceptional clarity and stability in beverage production, Filtrox 30" filter cartridges offer a high-performance solution for small to large-scale operations. Engineered with a large filtration surface area and robust construction, these cartridges are ideal for critical stages like pre-filtration and polishing of wine, beer, spirits, juices, and more. Filtrox cartridges ensure the removal of haze-forming particles and yeast, leading to a sparkling final product with a longer shelf life and maintained flavor integrity.
Specs:
Clarox® PL 30
Retention Rate: 3.0 Micron
Efficiency: 99.98%
Maximum Pressure Differential: 72.5 psi (5 Bar) @ 77°F (25°C)
Maximum Continuous Operating Temperature: 149°F (65°C)
Typical Flow Rate:
Beer: 400 gal/h/30" (1,514 L/hr/30")
Wine: 530 gal/h/30" (2,006 L/hr/30")
Water: 920 gal/h/30" (3,482 L/hr/30")
Designed for exceptional clarity and stability in beverage production, Filtrox 30" filter cartridges offer a high-performance solution for small to large-scale operations. Engineered with a large filtration surface area and robust construction, these cartridges are ideal for critical stages like pre-filtration and polishing of wine, beer, spirits, juices, and more. Filtrox cartridges ensure the removal of haze-forming particles and yeast, leading to a sparkling final product with a longer shelf life and maintained flavor integrity.
Specs:
Clarox® PL 10
Retention Rate: 1.0 Micron
Efficiency: 99.98%
Maximum Pressure Differential: 72.5 psi (5 Bar) @ 77°F (25°C)
Maximum Continuous Operating Temperature: 149°F (65°C)
Typical Flow Rate:
Beer: 160 gal/h/30" (605 L/hr/30")
Wine: 240 gal/h/30" (908 L/hr/30")
Water: 660 gal/h/30" (2,498 L/hr/30")
Lenticular filters employ a filtering process similar to plate filters but are significantly easier to use
A sealed system ensures there is no dripping/leakage, unlike what occurs with plate filters
Filters are stacked within cartridges, making loading and replacement much simpler than a plate filter
Housings can be loaded with as few as one filter cartridge with the use of optional center posts

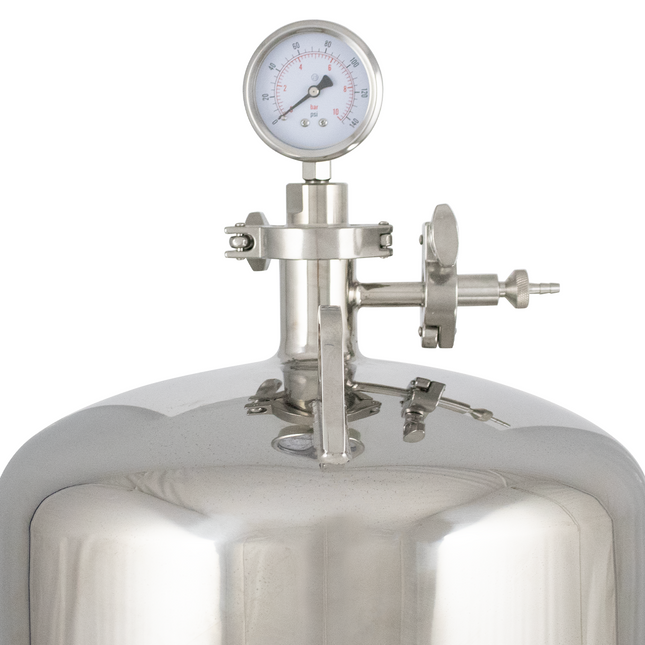

BevBright Lenticular Filter Housings streamline the filtration process, making it as effective as traditional plate filters but with greater ease of use. Their user-friendly design ensures that anyone, from experienced professionals to beginners, can operate them effortlessly. The setup is straightforward and without the complexities associated with plate filters.
One of the key benefits of lenticular filters is their sealed system. This design prevents dripping and leakage, guaranteeing airtight integrity and ensuring that your liquids remain protected and uncontaminated.
Filters stack neatly within the housing, and loading or replacing them is simple. There are no intricate assemblies required. Whether performing maintenance or adjusting filtration levels, the process is seamless and hassle-free.
Optional center posts allow the housings to accommodate as few as one filter cartridge, providing flexibility for various filtration needs, from large-scale production to small-batch operations.
Choose BevBright stainless steel lenticular filter housings for a filtration solution that is efficient, reliable, and easy to use. Each unit comes complete with hardware and instructions, ready for immediate use.
Made from 304 Stainless Steel
Polish: Ra<0.4um
Hardware Included:
(2) 1.5" T.C. Pressure Gauges
(2) 1.5" T.C. Butterfly Valves
(1) 1.5" T.C. Tee
(1) Top Relief Valve
(1) 1.5" T.C. Drain Valve
Clamps & Gaskets
Please Note: Example images of the 12" / 3 High Lenticular Housing shown here. Updated images coming soon.
20 cm x 20 cm filter pads fit all standard 20x20 plate filters, which are typically used by home winemakers
0.7 Micron for ultra-fine polishing of wine or for preparing hard to filter wines to go through a sterile cartridge filter
Easily sterilizable via heat or steam
Manufactured by Filtrox, the world's leading producer of high-quality filtration media
20cm x 20cm filter pads made for 20x20 plate filters. 0.7 micron pads are for ultra-fine polishing of the wine, or for preparing hard to filter wines to go through a sterile cartridge filter. Please note that all pad filters are rated 'nominal', meaning that about 90-95% of all particulate matter at the micron rating will be filtered out. There will always be a little bit of smaller material that is also filtered out, as well as some larger material that will make it through.
The filters can be sterilized by in-line steam, auto-claving, dry heat, hot water or chemical methods. We choose to run Saniclean solution through the pads followed by sterile water or a small amount of wine that is then discarded. After the solution is run through the pads, and the pads have softened, the filter will need to be re-tightened.
Each pad has an entry side and an exit side, distinguishable by their different textures. The entry side is a billowy type texture, frequently called the "rough" side; and the exit side has a crosshatch pattern and is commonly called the "smooth" side. For more information on how to load filter sheets into your plate and frame filter, see our Guide to Plate Filtering.
Filtrox Group is a producer of filter sheets for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter sheets are manufactured of specially selected raw materials and conform to FDA and FCC regulations.
Micron Rating: 0.5 - 0.8
Micron Mid Point: 0.7
Versafix XE 104 Filter Sheets
16" filter module for use with 16" stainless steel lenticular filter housings
6 Micron rating provides a rough filtration that removes large particulates, often followed by a finer filtration
Rough filtration is necessary on wines with heavy sedimentation as the finer pads will clog without prefiltering
Manufactured by Filtrox, the world's leading producer of high-quality filtration media
Filtrox filter modules are high-performance filtration solutions designed for use with stainless steel lenticular filter housings. These modules deliver reliable, efficient filtration for a wide range of liquids in food and beverage production including wine, beer, cider, spirits, cold brew coffee, and more.
Compared to plate filters and filter sheets, lenticular filter housings and filter modules offers an airtight, sealed system with no dripping or leakage, ensuring your liquid remains protected and uncontaminated.
Filter modules are easy to install and provide consistent results, making them ideal for demanding filtration applications.
Filtrox Group is a producer of filter media for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter modules are manufactured of specially selected raw materials and conform to FDA and FCC regulations.
Micron Rating: 4 - 9
Micron Mid Point: 6
Filtration Area: 38.7 ft² (3.6 m²)
Number of Lenses: 16
Versadisc XE 34 Filter Module
Wine
Use: Clarifying filtration
Max. Recommended Flow Rate: 572 gal/hr (2,160 L/hr)
Max. Recommended Pressure Differential: 29 - 36 psi (2.0 - 2.5 Bar)
Fruit Wine or Fruit Juice
Use: Clarifying filtration
Max. Recommended Flow Rate: 478 gal/hr (1,800 L/hr)
Max. Recommended Pressure Differential: 22 - 36 psi (1.5 - 2.5 Bar)
Beer
Use: Clarifying filtration of beer, visually clear
Max. Recommended Flow Rate: 286 - 334 gal/hr (1,080 - 1,260 L/hr)
Max. Recommended Pressure Differential: 22 psi (1.5 Bar)
Cold Brew Coffee
Use: Clarifying filtration
Max. Recommended Flow Rate: 478 gal/hr (1,800 L/hr)
Max. Recommended Pressure Differential: 29 psi (2.0 Bar)

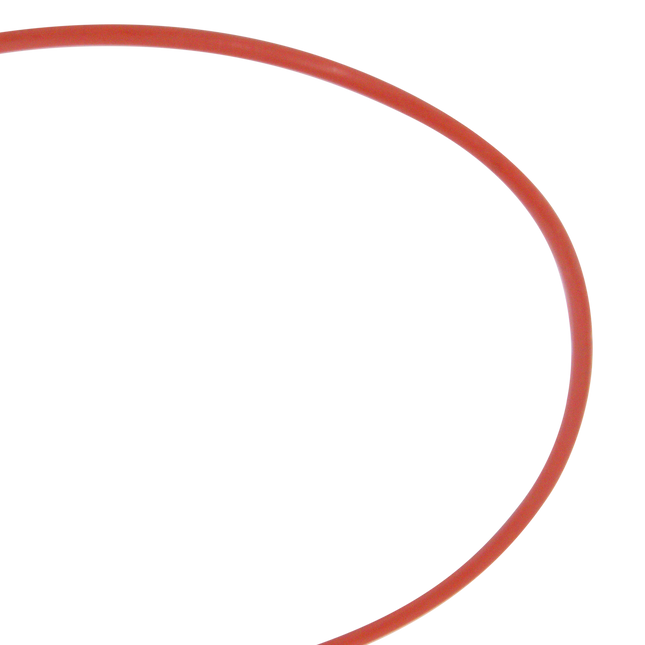

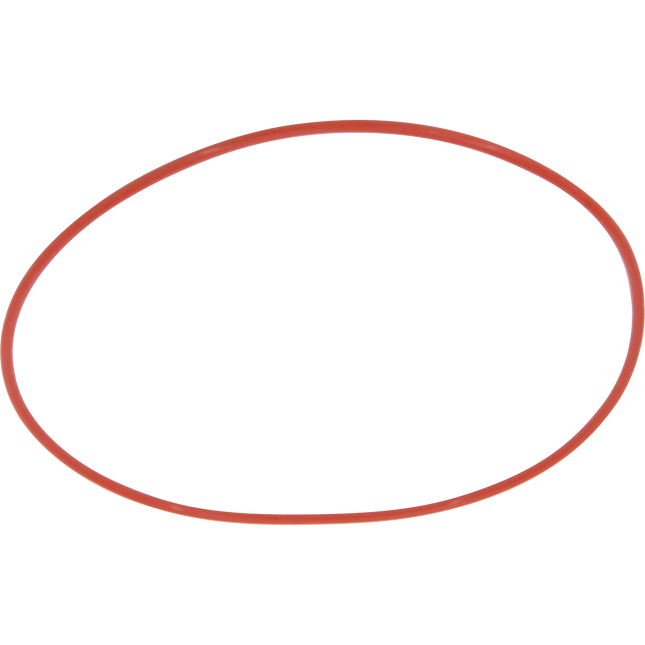

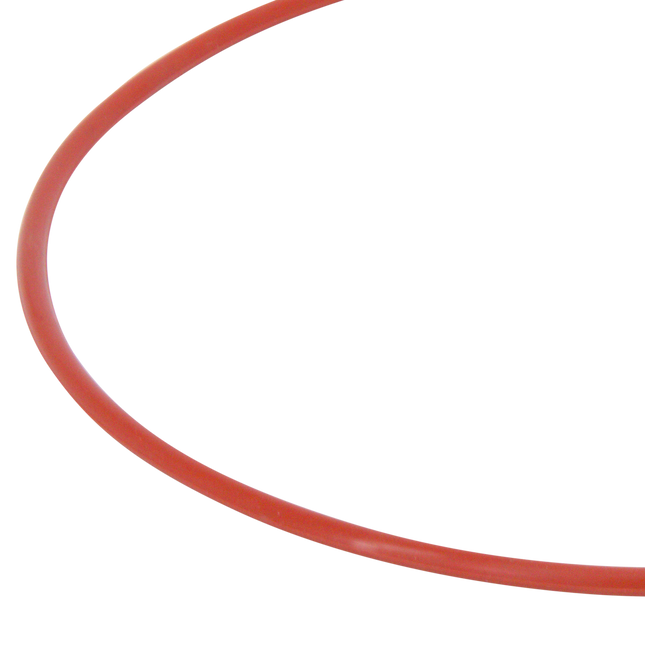

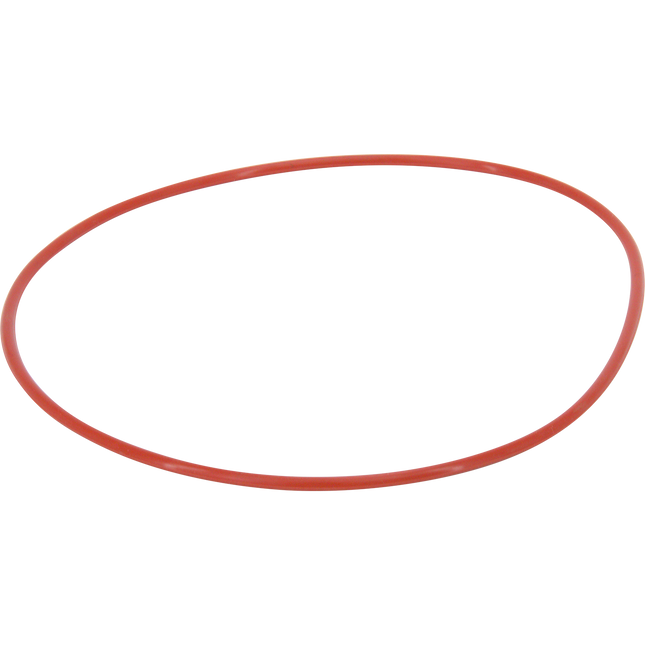

Replacement base O-ring for 12" BevBright Lenticular Filter Housings.
Depending on when your 12" housing was purchased, you may require the 325mm diameter or the 350mm diameter O-ring. Please measure the O-ring that came with your unit to confirm which size you need.
Replacement base O-ring for 12" BevBright Lenticular Filter Housings.
Depending on when your 12" housing was purchased, you may require the 325mm diameter or the 350mm diameter O-ring. Please measure the O-ring that came with your unit to confirm which size you need.

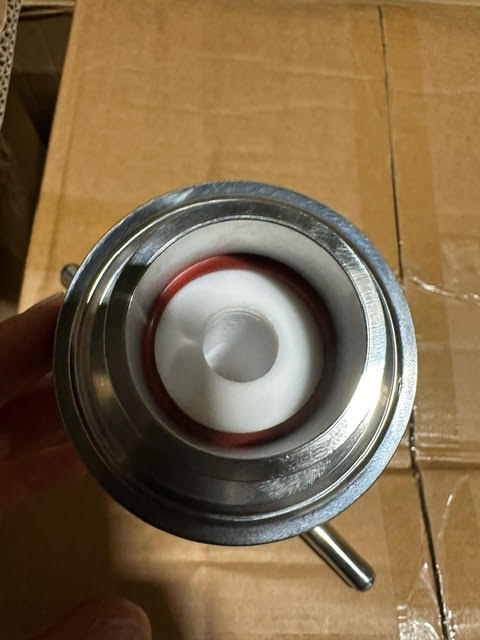

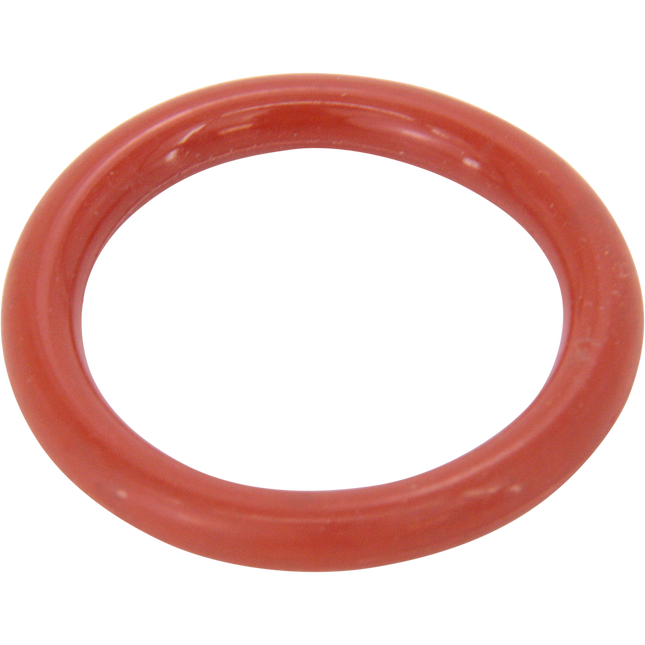

Replacement lock nut assembly O-ring for BevBright Lenticular Filter Housings. This circular O-ring gasket is located in the lock nut assembly between the white delrin and the stainless steel. Keep a spare on hand.
Adjustable Capacity: Easily swap posts to run 1, 2, or 3 filter modules in one housing.
Batch Size Versatility: Perfect for small pilot runs up to full large-scale production volumes.
Optimized Flow: Choose the post (1, 2, or 3-High) to match your desired filtration capacity and speed.

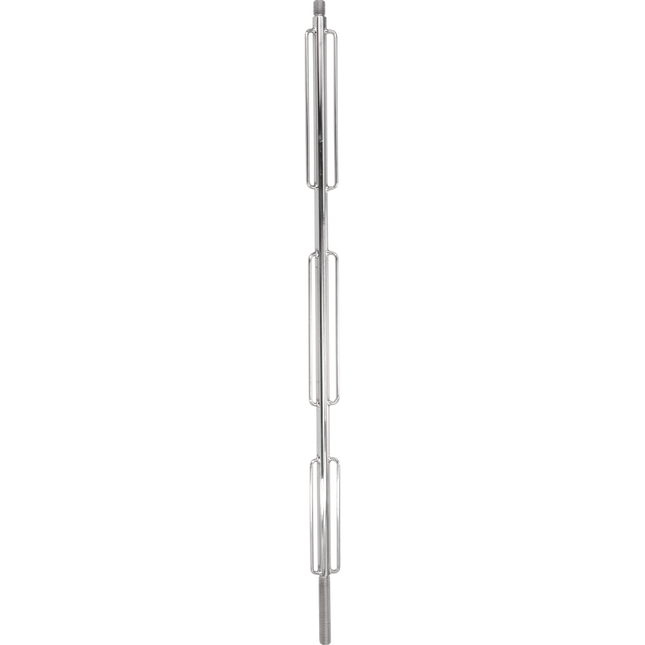

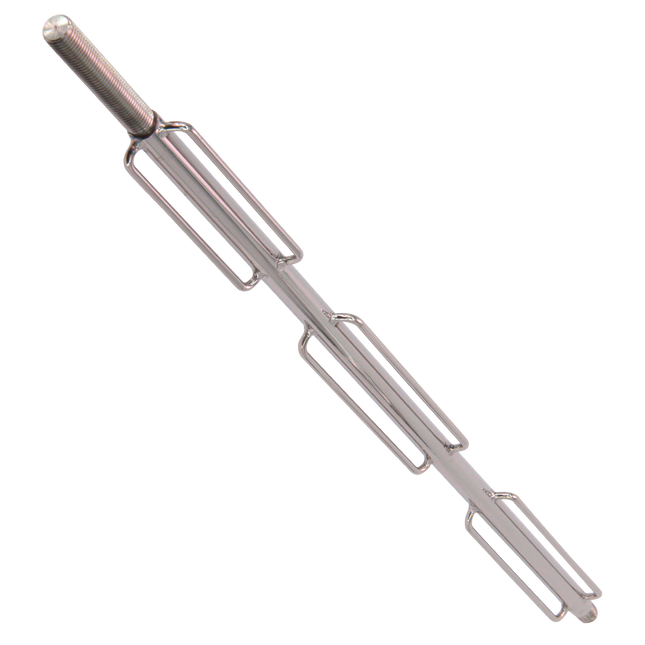

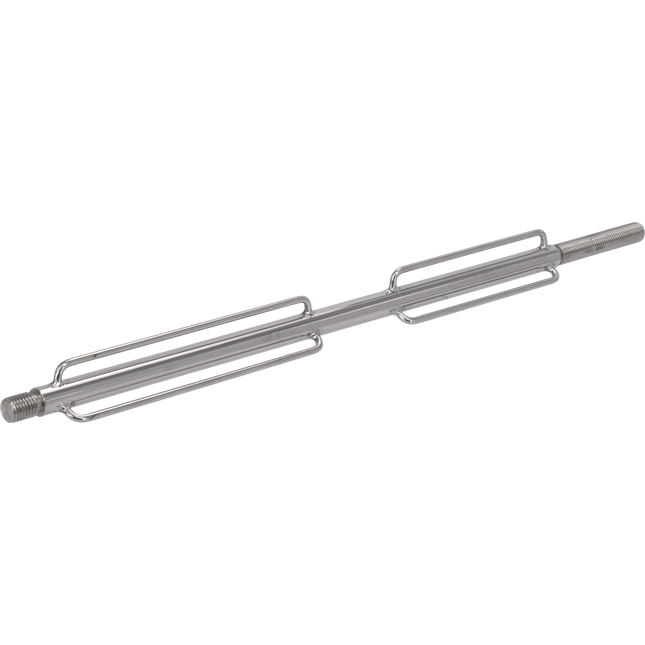

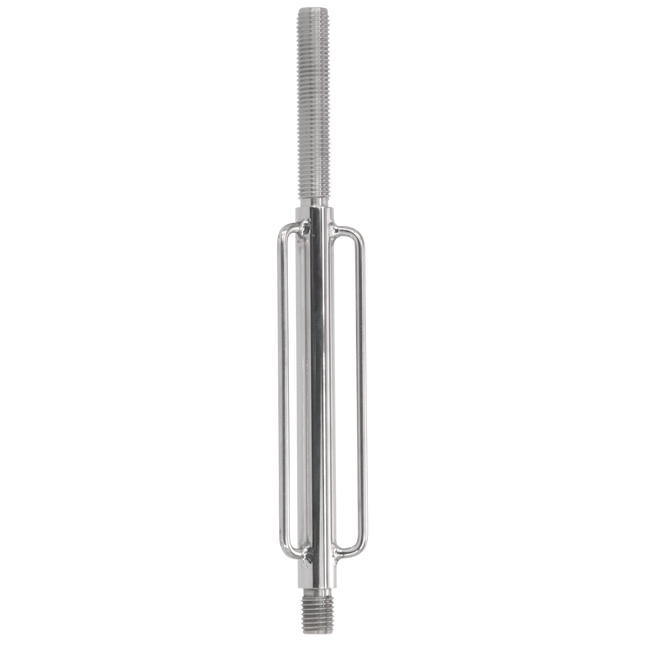

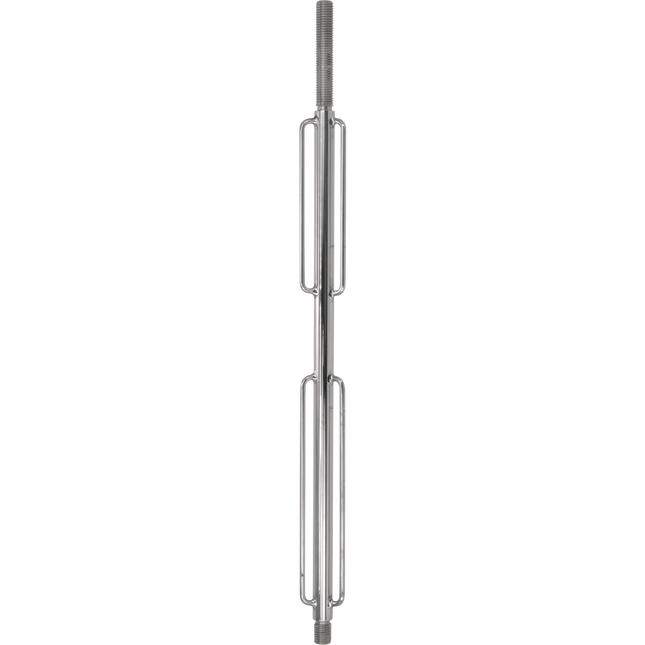

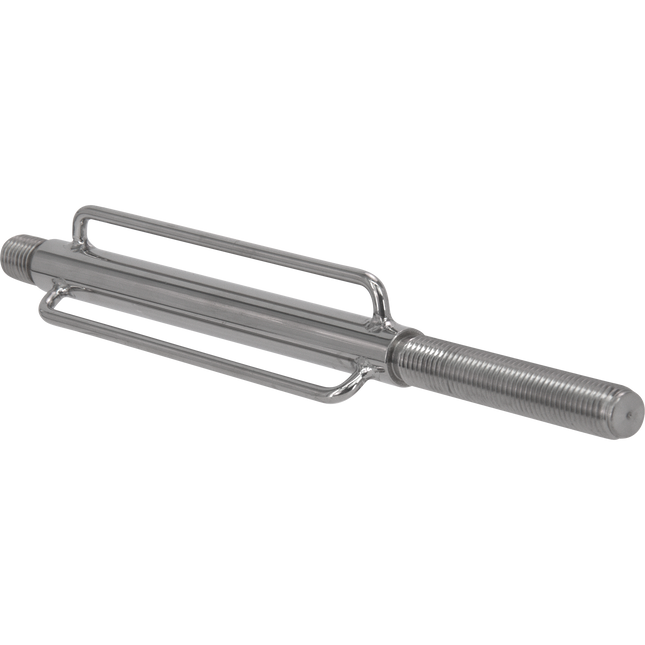

BevBright Interchangeable Center Posts
Optimize your filtration capacity for any batch size. These interchangeable center posts allow you to run 1, 2, or 3 filter modules within a single BevBright Lenticular Housing. Whether you are running a pilot batch or a full production run, simply swap the post to match your volume.
Specifications:
Compatibility: Fits 12" and 16" filter modules.
Function: Enables variable capacity within a single housing unit.
Selecting Your Size:
1-High Post: Best for small batches, pilot runs, and fine polishing.
2-High Post: Ideal for medium-sized batches and general filtration.
3-High Post: Maximizes flow and capacity for large-scale production.
Adjustable Capacity: Easily swap posts to run 1, 2, or 3 filter modules in one housing.
Batch Size Versatility: Perfect for small pilot runs up to full large-scale production volumes.
Optimized Flow: Choose the post (1, 2, or 3-High) to match your desired filtration capacity and speed.
BevBright Interchangeable Center Posts
Optimize your filtration capacity for any batch size. These interchangeable center posts allow you to run 1, 2, or 3 filter modules within a single BevBright Lenticular Housing. Whether you are running a pilot batch or a full production run, simply swap the post to match your volume.
Specifications:
Compatibility: Fits 12" and 16" filter modules.
Function: Enables variable capacity within a single housing unit.
Selecting Your Size:
1-High Post: Best for small batches, pilot runs, and fine polishing.
2-High Post: Ideal for medium-sized batches and general filtration.
3-High Post: Maximizes flow and capacity for large-scale production.
Adjustable Capacity: Easily swap posts to run 1, 2, or 3 filter modules in one housing.
Batch Size Versatility: Perfect for small pilot runs up to full large-scale production volumes.
Optimized Flow: Choose the post (1, 2, or 3-High) to match your desired filtration capacity and speed.
BevBright Interchangeable Center Posts
Optimize your filtration capacity for any batch size. These interchangeable center posts allow you to run 1, 2, or 3 filter modules within a single BevBright Lenticular Housing. Whether you are running a pilot batch or a full production run, simply swap the post to match your volume.
Specifications:
Compatibility: Fits 12" and 16" filter modules.
Function: Enables variable capacity within a single housing unit.
Selecting Your Size:
1-High Post: Best for small batches, pilot runs, and fine polishing.
2-High Post: Ideal for medium-sized batches and general filtration.
3-High Post: Maximizes flow and capacity for large-scale production.
Designed for exceptional clarity and stability in beverage production, Filtrox 30" filter cartridges offer a high-performance solution for small to large-scale operations. Engineered with a large filtration surface area and robust construction, these cartridges are ideal for critical stages like pre-filtration and polishing of wine, beer, spirits, juices, and more. Filtrox cartridges ensure the removal of haze-forming particles and yeast, leading to a sparkling final product with a longer shelf life and maintained flavor integrity.
Specs:
Clarox® PL 50
Retention Rate: 5.0 Micron
Efficiency: 99.98%
Maximum Pressure Differential: 72.5 psi (5 Bar) @ 77°F (25°C)
Maximum Continuous Operating Temperature: 149°F (65°C)
Typical Flow Rate:
Beer: 400 gal/h/30" (1,514 L/hr/30")
Wine: 530 gal/h/30" (2,006 L/hr/30")
Water: 920 gal/h/30" (3,482 L/hr/30")
Designed for exceptional clarity and stability in beverage production, Filtrox 30" filter cartridges offer a high-performance solution for small to large-scale operations. Engineered with a large filtration surface area and robust construction, these cartridges are ideal for critical stages like pre-filtration and polishing of wine, beer, spirits, juices, and more. Filtrox cartridges ensure the removal of haze-forming particles and yeast, leading to a sparkling final product with a longer shelf life and maintained flavor integrity.
Specs:
Clarox® MP/W 06
Retention Rate: 0.65 Micron
Bacterial Retention: >1.0 × 1011/cm2
Saccharomyces cerevisiae
Maximum Pressure Differential: 72.5 psi (5 Bar) @ 77°F (25°C)
Maximum Continuous Operating Temperature: 149°F (65°C)
Typical Flow Rate: 198-277 gal/h/30" (750-1050 L/h/30")
Designed for exceptional clarity and stability in beverage production, Filtrox 30" filter cartridges offer a high-performance solution for small to large-scale operations. Engineered with a large filtration surface area and robust construction, these cartridges are ideal for critical stages like pre-filtration and polishing of wine, beer, spirits, juices, and more. Filtrox cartridges ensure the removal of haze-forming particles and yeast, leading to a sparkling final product with a longer shelf life and maintained flavor integrity.
What is the PES Layer?
The Polyethersulfone (PES) layer is a high-performance membrane designed to deliver absolute filtration and exceptional product clarity.
Key Benefits for Beverage Production
Absolute Filtration: The PES layer provides a precise and reliable barrier, capturing 99.99% of haze-forming particles, yeast, and bacteria to guarantee a consistent, sparkling final product.
Maintains Quality: With its low protein-binding properties, the PES membrane ensures that the color, flavor, and aroma of your beverage remain unchanged.
Durable & Efficient: Resistant to high temperatures and chemicals, this layer is built for demanding production environments. Its high flow rate and large dirt-holding capacity extend the life of each cartridge, reducing downtime and replacement costs.
Specs:
Clarox® MP/W 04
Retention Rate: 0.45 Micron
Bacterial Retention: >1.0 × 1010/cm2
Leuconostoc oenos
Maximum Pressure Differential: 72.5 psi (5 Bar) @ 77°F (25°C)
Maximum Continuous Operating Temperature: 149°F (65°C)
Typical Flow Rate: 198 gal/h/30" (750 L/h/30")
Lenticular filters employ a filtering process similar to plate filters but are significantly easier to use
A sealed system ensures there is no dripping/leakage, unlike what occurs with plate filters
Filters are stacked within cartridges, making loading and replacement much simpler than a plate filter
Housings can be loaded with as few as one filter cartridge with the use of optional center posts
BevBright Lenticular Filter Housings streamline the filtration process, making it as effective as traditional plate filters but with greater ease of use. Their user-friendly design ensures that anyone, from experienced professionals to beginners, can operate them effortlessly. The setup is straightforward and without the complexities associated with plate filters.
One of the key benefits of lenticular filters is their sealed system. This design prevents dripping and leakage, guaranteeing airtight integrity and ensuring that your liquids remain protected and uncontaminated.
Filters stack neatly within the housing, and loading or replacing them is simple. There are no intricate assemblies required. Whether performing maintenance or adjusting filtration levels, the process is seamless and hassle-free.
Optional center posts allow the housings to accommodate as few as one filter cartridge, providing flexibility for various filtration needs, from large-scale production to small-batch operations.
Choose BevBright stainless steel lenticular filter housings for a filtration solution that is efficient, reliable, and easy to use. Each unit comes complete with hardware and instructions, ready for immediate use.
Made from 304 Stainless Steel
Polish: Ra<0.4um
Hardware Included:
(2) 1.5" T.C. Pressure Gauges
(2) 1.5" T.C. Butterfly Valves
(1) 1.5" T.C. Tee
(1) Top Relief Valve
(1) 1.5" T.C. Drain Valve
Clamps & Gaskets
