Elevate your brewing game with the 220V 17 Gallon Gen 4 BrewZilla. This cutting-edge system combines more power & capcity with innovative features like wireless connectivity via WiFi & Bluetooth, allowing you to heat faster while you control and monitor your brew day, ensuring precision, convenience, and exceptional beer batch after batch!
WiFi / Bluetooth enabled RAPT Controller tracks your brewday and automatically uploads detailed information to the RAPT portal
The top mounted RAPT Controller can be tilted upward for easy viewing, or detached from the unit to mount it on the wall or placed on your bench
Mirror polished dome shaped bottom with center drain — get every last bit of wort into your fermenter while the perforated bottom screen filters out 95% of hot break and hop matter
Make larger batches or higher gravity beers! BrewZilla offers the largest malt pipe capacity for units in its size range, and the Gen 4 unit has a 30% larger malt pipe compared to the previous generation
Perforated bottom on the newly designed malt pipe allows for improved mash recirculation flow without sacrificing efficiency
Element power percentage can be adjusted via the RAPT Controller. Go full power to heat up quickly, or dial it down so you don’t overshoot your strike water temp
The built-in pump is plumbed to both the recirculation and arm and the bottom ball valve. Recirculate wort during your mash, then close the recirculation valve and pump wort to your fermenter via the bottom valve
Pair with the RAPT-enabled Bluetooth Thermometer, allowing your BrewZilla to calculate a core mash temperature reading and more accurately control temperatures and mash steps
More RAPT-enabled accessories are coming, and future firmware updates can be downloaded to the RAPT Controller itself over the internet
WiFi/Bluetooth Enabled RAPT Controller
The RAPT Controller is mounted to the top of the boiler body, allowing for easy operation when you have the unit set on the ground. The controller can be tilted upwards to give you an even better view, or it can be removed from the BrewZilla entirely if you’d prefer to mount the controller on your wall or lay it down on a workbench. From the controller, you’ll orchestrate your entire brew day. Program mash steps, dial in element power, and operate the integrated pump all from one screen.
But the RAPT Controller is much more than a beautiful, full-color display switch board. Once synced to the RAPT Portal, you’ll be able to track, record and monitor your brews online. No need for handwriting notes or punching brew day details into your phone – all of the data from your brew is automatically logged to your portal profile. This information doesn’t just include your mash profile; it also captures detailed information about your element power and pump activity, opening the door for very precise repeatability.
And the RAPT Portal isn’t just a digital archive for your brew days. With your BrewZilla powered on, you can control your brewery from virtually anywhere using your phone’s web browser. Not sure when you’ll be home from work or your kid’s ball game going into extra innings? No problem! Before you head out, simply log into the RAPT Portal from your phone and tell the BrewZilla to start heating your strike water. Along with remote control, the portal enables you to program alarms and push notifications for all of your boil additions. We’ve all been caught up with a side task and failed to throw in that yeast nutrient or clarifying agent at the end of the boil, but the BrewZilla has the back of even the most forgetful brewer!
But wait, there’s more! In addition to WiFi connectivity, the RAPT Controller is also a Bluetooth gateway device. KegLand is currently developing various Bluetooth devices such as the Bluetooth Beacon Thermometer and other sensors which will be compatible with your brewery upon release. The RAPT Controller is able to receive information from Bluetooth Low Energy (BLE) devices, adjusting its processes based on this new stream of information while simultaneously logging it to your RAPT Portal. With the Bluetooth Beacon Thermometer, for example, you’ll be able to feed temperature readings from the top of your mash bed to the controller. The controller will then compare this reading with the main temp probe reading at the base of the kettle and adjust element cycling based on these combined readings.
Finally, the RAPT Controller WiFi connectivity allows you to update the controller’s firmware with a single click. Take advantage of new features and accessories as soon as they become available by simply keeping your BrewZilla connected to your local WiFi network. And again, the WiFi is already built-in! No need to come back for an expensive add-on accessory down the road.
High Capacity Malt Pipe
With an approximately 41.5 lb capacity, the BrewZilla can mash nearly 20% more grain than similar sized models of the Anvil Foundry and Grainfather G70. If you want to fill your fermenter with more than a 5-gallon batch worth of wort, or brew the highest gravity beer recipes, the BrewZilla is the brewhouse for the job. And the included malt pipe is just the beginning. If you want to expand your brewery’s grain capacity even further, KegLand makes Boiler Extension Kits and Extended Malt Pipes for that very purpose. The malt pipe features a perforated section at the bottom which improves mash recirculation flow without sacrificing efficiency.
Concave Base with Center Draining
Leave no wort behind! The concave base with center drain means you’ll be able to extract every last drop of wort to your fermenter. If you’ve brewed in a traditional flat bottom kettle, this center drain may be a bit perplexing at first. Many brewers are used to whirlpooling after the boil to pull hop matter into the center of the kettle, then transfer out using a pick-up tube that pulls from the kettle wall in order to avoid sucking up the solids. But fear not! One of the key features of the BrewZilla is the false bottom protection screen. This screen avoids the need for doing a whirlpool, filtering wort as it transfers and blocking more than 95% of hops and hot break from getting sucked into the pump. This not only prevents blocked pump issues, it also increases the efficiency of your brewhouse by eliminating kettle loss from wort that may have otherwise been left behind.
Ultra Low Watt Density Elements
The concave base on the BrewZilla also allowed for larger heating elements with significantly lower watt density than other breweries. When a lot of energy is coming off of a small element, the local temperature near the element can be so high that it scorches the wort and causes caramelization. Lower watt density essentially means you can produce lighter color beers that would otherwise have fallen victim to caramelization effect. It also reduces that chance of boilovers and reduces stress on the elements which extends their life expectancy.
Easy Access Built-In Pump
The built-in pump allows you to recirculate your wort during the mash for improved efficiency and more even temperature distribution. But it can also be used to transfer your wort from kettle to fermenter rather than relying on a gravity feed, and with the optional CIP Rotar, you can used the pump to clean your BrewZilla (or fermenter) after every use. During your brew day you’ll be able to control the pump from the RAPT Controller with a dedicated button for turning the pump on and off. Another feature you’ll find on the controller is adjusting the pump flow. This doesn’t control the actual volume of the flow (you can do that from the ball valve located on the recirculation arm), but rather cycles the pump on and off automatically based on your setting. At 100%, the pump remains on continuously. But at 80%, the pump will cycle to be on 80% of the time and off 20% of the time. This may not be a feature that every brewer thinks they need, but it’s an excellent way to avoid running the pump dry accidentally, as the time the pump is off allows recirculating wort to filter through the grain bed and back into the pump inlet.
If you flip over the boiler, you’ll find the magnetic drive pump and all the plumbing is right at your fingertips. This means you don’t have to disassemble the base in order to access the pump for cleaning or maintenance if required. It also means the plumbing can be changed more easily too. For instance, the unit comes as standard with the plumbing from the pump feeding both the recirculation arm and the transfer valve, but you change this so the tap outlet bypasses the pump if you prefer.
MoreBeer!'s Final Word
We’ve been selling all-in-one brewing systems ever since they first hit the market, and we have to say that the Gen 4 BrewZilla is not only the most feature-packed unit ever made, it’s also offered at an incredibly competitive price point when compared to other systems. You’ll get all of the cutting edge Bluetooth technology you’d get with the Grainfather and at an exceptionally lower price tag. Plus, you get the WiFi capabilities as standard, rather than as a $100 add-on accessory. When it comes to mash recirculation, that’s yet another built-in feature on the BrewZilla, and the pump can also be used for transferring and CIP cleaning. The Foundry has a great starting price, but if you want to unlock its full potential, you’ll need to spend another $100 for the recirculation pump kit. What’s more, no other system in the same ‘weight class’ has the same grain capacity. And if the standard capacity isn’t quite enough, the BrewZilla can be easily upgraded with a Boiler Body Extension Kit and Extended Malt Pipe. When you purchase the BrewZilla, you can feel confident that you’re investing in a top shelf system and all of the critical features you’re expecting will be included.
Perfect for Distillation
If you want to expand your lineup of homemade libations to offer Spirits in addition to Ales & Lagers, the BrewZilla makes an excellent pot still! Add the Distillation Lid upgrade and pair it with an AlcoEngine Copper Reflux Condenser or Copper Pot Still Top. AlcoEngine Stills have been selling on the home market for years and offer some of the most affordable, beginner-friendly stills you'll find.
Features:
Gen 4.1
Stainless steel construction
17.1 gallon total capacity with a finished beer output of 10-12 gallons
WiFi/Bluetooth Enabled RAPT digital temperature controller
Automatic step mashing with 6 programmable stages
220-240V power
NEMA 6-30P plug
Requires NEMA 6-30R receptacle
Requires 16 amps from 30 amp circuit
Triple heating elements (2000, 1000 and 500 watts)
Stainless steel 1/2" ball valve for gravity draining or transferring via pump
Immersion wort chiller included
Stainless steel malt pipe/basket
Stamped in volume markers
Glass lid
Adjustable lid clamps (do not use with glass lid in place - see below)
Magnetic drive pump for recirculation, transfers, and cleaning
Recirculation arm
PPSU sight glass
Bottom handle for easy lifting and pouring
Rubber feet
Temperature reads in °F or °C
Approximately 36" H (with recirculation arm) x 16" D
Recommended max. grain bill: 41.5 lbs
AlcoEngine Still ready with the purchase of a Distillation Lid
Pump Specs:
Max Flow: 5 gal/min
Max Head: 11 ft.
Voltage: 220–240V-AC
Frequency: 50–60Hz
Power: 25 watts
Fittings: 1/2" (13 mm) barbs
You Will Need:
2' of H985 1/2" ID Silicone tubing for sparging and draining.
To connect included Chiller: (20') of D1710 1/2" ID beverage tubing (or whatever length required, (3) H950hose clamps and (1) brass hose by thread adaptor (H508).
These items come in the Wort Chiller Connection Kit, add the kit to your cart and use code ZILLAKIT at checkout.
KegLand Part Number: KL27458
Please note: due to patent restrictions in the United States, the malt pipe has been redesigned with one set of bottom feet. This model does not include the "two stage" malt pipe as advertised by KegLand and featured in previous MoreBeer! YouTube videos.
Please Note: When removing the malt pipe to drain after mashing, it is important to do so slowly rather than in one swift pull. If the malt pipe is removed all at once when it is full of wort, it is possible for the draining wort to spray out and over the rim of the brewery through the perforated bottom. Remove the malt pipe slowly so that some of the wort can drain out before it is fully removed and set on its bottom feet. This can be done by hand on the 35L unit, but for the 65L and 100L units we highly recommend using the Pulley System for removing the malt pipe.
Warning: Do not engage the adjustable lid clamps when brewing with the BrewZilla's standard glass lid. The clamps are only intended to be used with distillation lids or other metal accessories.
Warning: If you are going to use an extension cord with the BrewZilla, you must ensure that the cord is the correct gauge and properly rated to suit the power requirements of your brewery. See the reference chart below for the recommended gauge based on your unit and the length of cord you wish to use.
35L (110V)
35L (220V)
65L (220V)
100L (220V)
10 ft.
14 Gauge
14 Gauge
12 Gauge
10 Gauge
25 ft.
14 Gauge
14 Gauge
12 Gauge
10 Gauge
50 ft.
12 Gauge
12 Gauge
10 Gauge
8 Gauge
RAPT Gen 4 BrewZilla | User Manual
Elevate your brewing game with the Gen 4 BrewZilla. This cutting-edge system combines innovative features like wireless connectivity via WiFi & Bluetooth, allowing you to control and monitor your brew day, ensuring precision, convenience, and exceptional beer batch after batch!
WiFi / Bluetooth enabled RAPT Controller tracks your brewday and automatically uploads detailed information to the RAPT portal
The top mounted RAPT Controller can be tilted upward for easy viewing, or detached from the unit to mount it on the wall or placed on your bench
Mirror polished dome shaped bottom with center drain -- get every last bit of wort into your fermenter while the perforated bottom screen filters out 95% of hot break and hop matter
Make larger batches or higher gravity beers! BrewZilla offers the largest malt pipe capacity for units in its size range, and the Gen 4 unit has a 30% larger malt pipe compared to the previous generation
Perforated bottom on the newly designed malt pipe allows for improved mash recirculation flow without sacrificing efficiency
Element power percentage can be adjusted via the RAPT Controller. Go full power to heat up quickly, or dial it down so you don't overshoot your strike water temp
The built-in pump is plumbed to both the recirculation and arm and the bottom ball valve. Recirculate wort during your mash, then close the recirculation valve and pump wort to your fermenter via the bottom valve
Pair with the RAPT-enabled Bluetooth Thermometer, allowing your BrewZilla to calculate a core mash temperature reading and more accurately control temperatures and mash steps
More RAPT-enabled accessories are coming, and future firmware updates can be downloaded to the RAPT Controller itself over the internet
WiFi/Bluetooth Enabled RAPT Controller
The RAPT Controller is mounted to the top of the boiler body, allowing for easy operation when you have the unit set on the ground. The controller can be tilted upwards to give you an even better view, or it can be removed from the BrewZilla entirely if you'd prefer to mount the controller on your wall or lay it down on a workbench. From the controller, you'll orchestrate your entire brew day. Program mash steps, dial in element power, and operate the integrated pump all from one screen.
But the RAPT Controller is much more than a beautiful, full-color display switch board. Once synced to the RAPT Portal, you'll be able to track, record and monitor your brews online. No need for handwriting notes or punching brew day details into your phone -- all of the data from your brew is automatically logged to your portal profile. This information doesn't just include your mash profile; it also captures detailed information about your element power and pump activity, opening the door for very precise repeatability.
And the RAPT Portal isn't just a digital archive for your brew days. With your BrewZilla powered on, you can control your brewery from virtually anywhere using your phone's web browser. Not sure when you'll be home from work or your kid's ball game going into extra innings? No problem! Before you head out, simply log into the RAPT Portal from your phone and tell the BrewZilla to start heating your strike water. Along with remote control, the portal enables you to program alarms and push notifications for all of your boil additions. We've all been caught up with a side task and failed to throw in that yeast nutrient or clarifying agent at the end of the boil, but the BrewZilla has the back of even the most forgetful brewer!
But wait, there's more! In addition to WiFi connectivity, the RAPT Controller is also a Bluetooth gateway device. KegLand is currently developing various Bluetooth devices such as the Bluetooth Beacon Thermometer and other sensors which will be compatible with your brewery upon release. The RAPT Controller is able to receive information from Bluetooth Low Energy (BLE) devices, adjusting its processes based on this new stream of information while simultaneously logging it to your RAPT Portal. With the Bluetooth Beacon Thermometer, for example, you'll be able to feed temperature readings from the top of your mash bed to the controller. The controller will then compare this reading with the main temp probe reading at the base of the kettle and adjust element cycling based on these combined readings.
Finally, the RAPT Controller WiFi connectivity allows you to update the controller's firmware with a single click. Take advantage of new features and accessories as soon as they become available by simply keeping your BrewZilla connected to your local WiFi network. And again, the WiFi is already built-in! No need to come back for an expensive add-on accessory down the road.
High Capacity Malt Pipe
With an approximately 23.5 lb capacity, the BrewZilla can mash nearly 50% more grain than similar sized models of the Anvil Foundry and Grainfather G30. If you want to fill your fermenter with more than a 5-gallon batch worth of wort, or brew the highest gravity beer recipes, the BrewZilla is the brewhouse for the job. And the included malt pipe is just the beginning. If you want to expand your brewery's grain capacity even further, KegLand makes Boiler Extension Kits and Extended Malt Pipes for that very purpose. The malt pipe features a perforated section at the bottom which improves mash recirculation flow without sacrificing efficiency.
Concave Base with Center Draining
Leave no wort behind! The concave base with center drain means you'll be able to extract every last drop of wort to your fermenter. If you've brewed in a traditional flat bottom kettle, this center drain may be a bit perplexing at first. Many brewers are used to whirlpooling after the boil to pull hop matter into the center of the kettle, then transfer out using a pick-up tube that pulls from the kettle wall in order to avoid sucking up the solids. But fear not! One of the key features of the BrewZilla is the false bottom protection screen. This screen avoids the need for doing a whirlpool, filtering wort as it transfers and blocking more than 95% of hops and hot break from getting sucked into the pump. This not only prevents blocked pump issues, it also increases the efficiency of your brewhouse by eliminating kettle loss from wort that may have otherwise been left behind.
Ultra Low Watt Density Elements
The concave base on the BrewZilla also allowed for larger heating elements with significantly lower watt density than other breweries. When a lot of energy is coming off of a small element, the local temperature near the element can be so high that it scorches the wort and causes caramelization. Lower watt density essentially means you can produce lighter color beers that would otherwise have fallen victim to caramelization effect. It also reduces that chance of boilovers and reduces stress on the elements which extends their life expectancy.
Easy Access Built-In Pump
The built-in pump allows you to recirculate your wort during the mash for improved efficiency and more even temperature distribution. But it can also be used to transfer your wort from kettle to fermenter rather than relying on a gravity feed, and with the optional CIP Rotar, you can used the pump to clean your BrewZilla (or fermenter) after every use. During your brew day you'll be able to control the pump from the RAPT Controller with a dedicated button for turning the pump on and off. Another feature you'll find on the controller is adjusting the pump flow. This doesn't control the actual volume of the flow (you can do that from the ball valve located on the recirculation arm), but rather cycles the pump on and off automatically based on your setting. At 100%, the pump remains on continuously. But at 80%, the pump will cycle to be on 80% of the time and off 20% of the time. This may not be a feature that every brewer thinks they need, but it's an excellent way to avoid running the pump dry accidentally, as the time the pump is off allows recirculating wort to filter through the grain bed and back into the pump inlet.
If you flip over the boiler, you'll find the magnetic drive pump and all the plumbing is right at your fingertips. This means you don't have to disassemble the base in order to access the pump for cleaning or maintenance if required. It also means the plumbing can be changed more easily too. For instance, the unit comes as standard with the plumbing from the pump feeding both the recirculation arm and the transfer valve, but you change this so the tap outlet bypasses the pump if you prefer.
MoreBeer!'s Final Word
We've been selling all-in-one brewing systems ever since they first hit the market, and we have to say that the Gen 4 BrewZilla is not only the most feature-packed unit ever made, it's also offered at an incredibly competitive price point when compared to other systems. You'll get all of the cutting edge Bluetooth technology you'd get with the Grainfather and at an exceptionally lower price tag. Plus, you get the WiFi capabilities as standard, rather than as a $100 add-on accessory. When it comes to mash recirculation, that's yet another built-in feature on the BrewZilla, and the pump can also be used for transferring and CIP cleaning. The Foundry has a great starting price, but if you want to unlock its full potential, you'll need to spend another $100 for the recirculation pump kit. What's more, no other system in the same 'weight class' has the same grain capacity. And if the standard capacity isn't quite enough, the BrewZilla can be easily upgraded with a Boiler Body Extension Kit and Extended Malt Pipe. When you purchase the BrewZilla, you can feel confident that you're investing in a top shelf system and all of the critical features you're expecting will be included.
Perfect for Distillation
If you want to expand your lineup of homemade libations to offer Spirits in addition to Ales & Lagers, the BrewZilla makes an excellent pot still! Add the Distillation Lid upgrade and pair it with an AlcoEngine Copper Reflux Condenser or Copper Pot Still Top. AlcoEngine Stills have been selling on the home market for years and offer some of the most affordable, beginner-friendly stills you'll find.
Features:
Gen 4.1
Stainless steel construction
9 gallon total capacity with a finished beer output of 5-6 gallons
WiFi/Bluetooth Enabled RAPT digital temperature controller
Automatic step mashing with 6 programmable stages
110-120V power and plug
12.5A
Requires 20A circuit
Dual heating elements (1000 watts and 500 watts)
Stainless steel 1/2" ball valve for gravity draining or transferring via pump
Immersion wort chiller included
Stainless steel malt pipe/basket
Stamped in volume markers
Glass lid
Adjustable lid clamps (do not use with glass lid in place - see below)
Magnetic drive pump for recirculation, transfers, and cleaning
Recirculation arm
PPSU sight glass
Bottom handle for easy lifting and pouring
Rubber feet
Temperature reads in °F or °C
Approximately 32.75" H (with recirculation arm) x 12.5" D
Recommended max. grain bill: 23.5 lbs
AlcoEngine Still ready with the purchase of a Distillation Lid

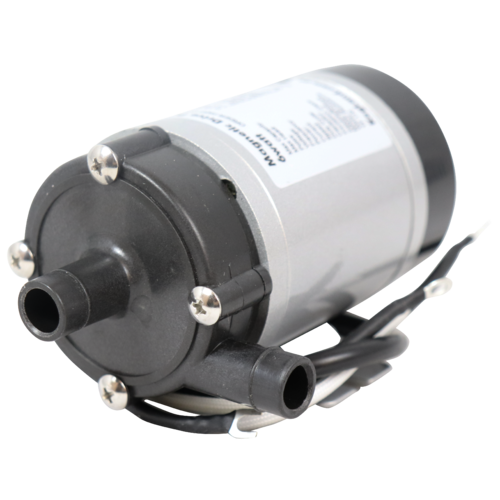

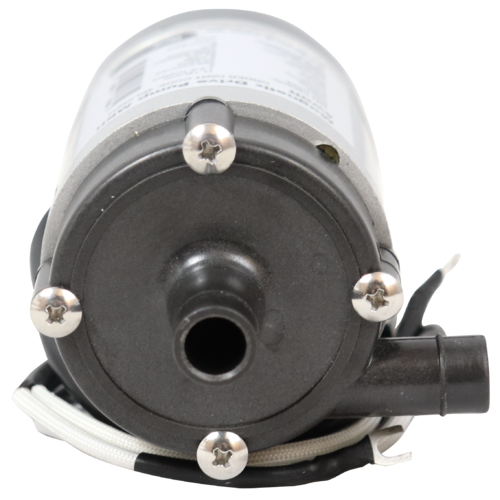

Pump Specs:
Max Capacity: 2.9–3.1 gal/min
Max Head: 4.9–6.8 ft.
Poles: 2
Voltage: 110–120V-AC
Frequency: 50–60Hz
Power: 6 watts
Current: 60 mA
Speed: 2600–3000rpm
Duty Cycle: Continuous
Capacitor: 2µF
Input/Output: 13mm barb
Water Resistance: IPX2
You Will Need:
2' of H985 1/2" ID Silicone tubing for sparging and draining.
To connect included Chiller: (20') of D1710 1/2" ID beverage tubing (or whatever length required, (3) H950hose clamps and (1) brass hose by thread adaptor (H508).
These items come in the Wort Chiller Connection Kit, add the kit to your cart and use code ZILLAKIT at checkout.
KegLand Part Number: KL3276
Please note: due to patent restrictions in the United States, the malt pipe has been redesigned with one set of bottom feet. This model does not include the "two stage" malt pipe as advertised by KegLand and featured in previous MoreBeer! YouTube videos.
Please Note: When removing the malt pipe to drain after mashing, it is important to do so slowly rather than in one swift pull. If the malt pipe is removed all at once when it is full of wort, it is possible for the draining wort to spray out and over the rim of the brewery through the perforated bottom. Remove the malt pipe slowly so that some of the wort can drain out before it is fully removed and set on its bottom feet. This can be done by hand on the 35L unit, but for the 65L and 100L units we highly recommend using the Pulley System for removing the malt pipe.
Warning: Do not engage the adjustable lid clamps when brewing with the BrewZilla's standard glass lid. The clamps are only intended to be used with distillation lids or other metal accessories. With too much tension, it is possible for the lid clamps to break the glass lid when engaged.
Warning: If you are going to use an extension cord with the BrewZilla, you must ensure that the cord is the correct gauge and properly rated to suit the power requirements of your brewery. See the reference chart below for the recommended gauge based on your unit and the length of cord you wish to use.
35L (110V)
35L (220V)
65L (220V)
100L (220V)
10 ft.
14 Gauge
14 Gauge
12 Gauge
10 Gauge
25 ft.
14 Gauge
14 Gauge
12 Gauge
10 Gauge
50 ft.
12 Gauge
12 Gauge
10 Gauge
8 Gauge
RAPT Gen 4 BrewZilla | User Manual
Due to high demand, this item is currently out of stock. Be the first to receive your items by placing a pre-order today. We will automatically ship this to you when we receive more inventory.
We've seen a lot of all-in-one systems over the years, but none are as feature-packed and affordable as the BrewZilla. While other units simply maintain your set temperature, the BrewZilla features a sophisticated digital controller which can be programmed with a full mash schedule, executing each step automatically. The built-in pump will continuously recirculate wort during the mash for more even heat distribution and higher efficiency, but thanks to the integrated camlock fitting, it has even more functionality. Add the optional whirlpool arm to make your late hop additions pop and speed up chilling time, or connect a camlock fitting and tubing to transfer wort to your fermenter. These are just a couple of reasons why MoreBeer! loves the BrewZilla, but there are so many More!
Our Top 10 Favorite Features:
Sophisticated digital controller capable of programmed mash steps, boil addition timers and delayed start
Built-in pump for constant recirculation during mash or whirlpooling and transferring with optional accessories
Full depth malt pipe for higher mash efficiency and capable of running small batches without a pricey adapter
Multiple power modes to cover each step of the brew day – low power to gently heat your mash up to full power for a rolling boil
Wort chiller included! Perfectly sized for this system and adds even more value to your purchase of the BrewZilla
High capacity brewhouse – with a volume of over 9 gallons, you can fit more grain and more wort to make MoreBeer!
Single wall design doesn't trap in heat – chill your wort quickly after the boil!
Super convenient bottom handle makes lifting/pouring a breeze
Rubber feet keep the boiler lifted off the ground and safely above any spills that may occur
Affordable! This is the best price for an all-in-one brewing system you'll find, period.
If you want to jump into all grain brewing right from your first batch, or as an upgrade from malt extract brewing, the BrewZilla is a complete turn key solution. The BrewZilla is an all-in-one electric brewery that has built-in elements for heating and boiling, programmable mash schedule and delayed start, a built-in pump for recirculation, an onboard water resistant control panel for setting and monitoring temperatures, a removable grain basket, and a built-in spigot for transferring. It is extremely portable and uses 110V power so it can be used nearly anywhere.
The V3.1.1 unit features an upgraded main circuit board that changes how the automatic step mashing functions. Now when moving from step to step, the timer for each step will not begin counting down until the programmed temperature is reached. This means more accurate mash schedules than ever before! The new board also introduces boil addition timers so you'll never miss the mark for hop additions.
To get the Wort Chiller Connection Kit for free, add the item to your cart along with the BrewZilla and use code ZILLAKIT at checkout.
New accessory! Check out the BrewZilla Whirlpool Arm, which uses the unit's internal pump to recirculate and spin the wort, improving hop extraction and chill times. No more stirring!
Automatic Step Mashing & Delayed Start!
One of the coolest features of the BrewZilla is the ability to program the unit with up to 6 individual temperatures and durations so you can step mash precisely how you desire. Simply press the "S1-S6" button to select the stage you want to adjust, and use the temp, time and +/- buttons to program the stage. If you have less than 6 stages in your mash schedule, program the stages you want to skip with 00:00 as the time and the controller will automatically move on to the next step. When all the stages are complete, the unit will sound an alarm and hold the last set temperature.
The programmable stages can also be used to set a delayed start of up to 23 hours in advance so that you can have your water hot and ready to go when you get home from work or wake up in the morning. In order to do this, fill the unit with strike water and program the controller with two steps. Step 1 should be programmed at a temperature lower than the unheated strike water (so the elements will remain off), and the duration should be programmed for however long you want the delay. Then program Step 2 with your desired strike water temperature and a duration of 1-2 hours, giving the BrewZilla ample time to heat up and giving you a margin of error in case you hit the snooze button the morning of brew day.
Recirculating Mash with Full Depth Malt Pipe
The built-in magnetic drive pump easily recirculates wort during the mash. We recommend getting some silicone tubing to go with the recirculation arm. This allows you more control over the recirculation and you can then use the pump to transfer your wort to your fermenter. As with any mash, be sure to stir your grain very thoroughly after mashing-in so you start out with an even temperature throughout the grain bed.
Some competing models advertise their perforated malt pipes as "high flow", but what they don't mention is how this affects efficiency. When recirculating the mash, wort will escape through the side perforations rather than passing through the grain at the bottom-most end of the malt pipe which can lead to lower efficiency. The BrewZilla's malt pipe is designed so that recirculating wort must pass through the entire grain bed before escaping through the false bottom and being pumped over the top of the grain bed again. If you're worried about the flow rate, simply add a pound or two of rice hulls to your grain bill. This is especially recommended when brewing with a high level of wheat, oat, or flaked grains.
Power & Heating Control
Dual heating elements run off of a single 110 volt plug and have individual switches allowing for more control over the heating process. One element is 1000 watts and the other is 500 for a combined 1500 watts! Use both when you need to ramp up the temperature quickly either at the start to get to your mash temp or to go from your mash temp to boiling. Use only one of the elements when you want to hold a temperature.
We highly recommend adding the optional BrewZilla Neoprene Jacket to help reduce heating times and maintain a more vigorous boil. The extra thick neoprene jacket is custom designed to insulate the entire kettle portion of the BrewZilla while staying out of the way of the ball valve and handles. The jacket can help you acheive up to 10% faster heat up times and cut heat loss from the boiler in half. And when it comes time to cool your wort after the boil, simply remove the jacket! While other units boast a double wall design for better heat retention, this actually becomes a disadvantage when it comes to chilling.
The digital control panel makes it easy to see the current temperature and set the temperature you want. The digital controller is also water resistant so don't worry about spills or some water dripping down the side. This controller is built for brewing!
The brewery also includes a stainless steel malt pipe with false bottom allowing you to easily shift from mash tun to boil kettle during your brew day. The malt pipe includes a handle to lift it out and tabs at the base so you can set the malt pipe over the kettle to let the wort drain out. It also has feet at its base to raise the malt pipe slightly off the base and help prevent clogging.
The included stainless steel wort chiller is shipped with bare ends so you can set it up for your situation. We list below the most common tubing and fittings to connect to a hose, hose bib, or faucet.
What MoreBeer! loves about this product: Homebrewing is trending in the direction of all-in-one, all-grain brewing systems and the BrewZilla is the ultimate value. The cost is half of the next comparable system with programmable mash steps and nearly the same as buying converted coolers and a kettle. We've brewed on all the systems and we can truly say the BrewZilla is the easiest to use. We feel confident that a lot of first time brewers could buy this and use it with ease. At the same time quite a few of our experienced, all-grain brewing staff are buying it to brew at home. The unit is extremely compact because the pump is built-in to the bottom of the unit. You can move it around with ease which makes it perfect for guys and gals that have space constraints. Someone on the team also mentioned how they like that you can drain it via gravity without having to use the pump. All in all a great buy and highly recommended. Please note you will need a few extra pieces of hardware to connect the wort chiller and at least 2' of silicone tubing for the sparge.
Use the Pump for More Than Just Recirculation!
One of the surprisingly handy features of the BrewZilla is that the recirculation pipe features a female camlock. This allows you to hook up other accessories and use the unit's pump for more than just recirculating wort. With a male camlock and silicone tubing, for example, you can use the internal pump to push wort through a plate chiller or counterflow chiller. Check out our selection of camlock fittings here.
Features:
Gen 3.1.1
Stainless steel construction
9 gallon total capacity with a finished beer output of 5-6 gallons
Digital temperature controller
Automatic step mashing with 6 programmable stages
110V power and plug
Dual heating elements for total control (1000 watts and 500 watts)
Stainless steel 1/2 inch ball valve for draining (dont have to use the pump)
Immersion wort chiller included
Stainless steel malt pipe/basket
Stamped in volume markers
Glass lid
Magnetic drive pump for recirculation
Recirculation arm
Bottom handle for easy lifting and pouring
Upgraded rocker switches
Rubber feet
Temperature reads in °F or °C (press and hold temp button for several seconds to adjust)
32.75 in H (with recirculation arm) x 12.5 in D
Recommended max. grain bill - 18 lbs
Recommended min. grain bill - 8 lbs
AlcoEngine Still ready with the purchase of a Distillation Lid
You Will Need:
2' of H985 1/2" ID Silicone tubing for sparging and draining.
To connect included Chiller: (20') of D1710 1/2" ID beverage tubing (or whatever length required, (3) H950hose clamps and (1) brass hose by thread adaptor (H508).
These items come in the Wort Chiller Connection Kit, add the kit to your cart and use code ZILLAKIT at checkout.
Note: The manual references an element for a different market. This unit comes with two heating elements for a total of 1,500 watts.
Kegland Part Number: KL05838
Stop stirring your wort with a spoon and allow the BrewZilla's internal pump to do the work with this new Whirlpool Arm accessory. Fits all sizes of BrewZilla. The whirlpool arm fits onto the existing recirculation pipe with a stainless steel male camlock fitting. The BrewZilla's internal magnetic pump will aid in circulating your wort for better hop extraction in the whirlpool stage, as well as help collect the hot break into the center of the false bottom. Whirlpooling while cooling with the immersion heat exchanger will also speed up chilling times.
Specifications:
304 Stainless Steel
Fitted Male Camlock fitting
Soft Safety Grip
Length 520mm (20.5")
Kegland Part Number: KL14199
The wort chiller that is included with the BrewZilla comes with bare ends and no tubing. This simple kit has everything you'll need to use the wort chiller right out of the box. Includes 2x 10-foot lengths of 1/2" ID vinyl tubing, female garden hose adapter with 1/2" barb, and 3 hose clamps to secure your connections.
If purchasing this item along with a BrewZilla, use code ZILLAKIT at checkout to get the kit for free!
Add this neoprene jacket to your BrewZilla or DigiBoil to speed up heating!
Heating is 10% faster and heat loss from the boiler is reduced by 50%
Remove the jacket after the boil to speed up chilling
Thick, insulating neoprene is secured to the boiler body with a sewn-on hook and loop fastener strap
Add some insulation to your BrewZilla or DigiBoil to get better boils! This jacket will fit all 35 L sizes and help keep the heat in for quicker and more vigorous boils. Slap it on to speed up heating; take it off to speed up chilling.
This jacket will fit Gen 3.1.1 and older BrewZilla models. It is not compatible with Gen 4 BrewZillas.
Features:
10% faster heat up time
50% less heat loss from boiler
Fits the 35L Brewzilla and DigiBoil
Left cut out for the valve
Right cut out for the bottom handle
Made from thick neoprene, which is easy to wash after use
Kegland Part Number: KL04831
Reduce heating time during your mash with the Gen 4 BrewZilla
Redistribute recirculating wort for longer heating element exposure
Improve heat distribution throughout the mash
Speed up heating times with the Heat Exchanger Dish (HED) for Gen 4 BrewZillas. This optional upgrade accessory redirects the flow of wort so that it spends more time exposed to the heating elements before reaching the center drain at the bottom of the kettle and being recirculated. Due to the concave bottom and central draining hole on the Gen 4 BrewZilla, recirculating wort will pass through the malt pipe and then down through the boiler false bottom following the path of least resistance. This can cause wort to make a B-line for the drainage hole and reduce the wort's exposure to the unit's heating elements. With the HED installed, wort will be directed to the edge of the BrewZilla base and pass over the elements for a longer period and reduce the time needed to heat to your set temperature.
For use with the Gen 4 35L BrewZilla. It is not compatible with any previous generations of BrewZillas or DigiBoils.
The HED has been pressed into a slight concave shape to match the curvature of the boiler false bottom. Includes a longer eye bolt assembly than the one included with the false bottom.
NOTE: The order of bolt to washer to nuts goes as follows. Eye bolt, washer, false bottom, washer, nut, HED, then wing nut. This is so that the eye bolt does not come completely removed when and if you clean underneath the Heat Exchanger Dish.
KegLand Part Number: KL29353
Replacement Rocker Switch for BrewZilla / DigiBoil. Compatible with all DigiBoils and Gen 3.1 or older BrewZillas.
Compatible with 110-120V and 220-240V.
KegLand Part Number: KL05968
Ever wanted to punch out a few more gallons of wort with your 65L BrewZilla? Maybe you wanted more strike water for a super sticky batch. Maybe you get boil overs a lot and would like a bit of extra protection. Now there's a solution! The all new 65L BrewZilla Boiler Extension adds 6.3 gallons of headroom. Turn that 17G BrewZilla or DigiMash system into a 23G behemoth! The extension kit is also great for distilling! Extend the height of your pot still by attaching one or more boiler extensions. For distillation, we recommend upgrading to the Adjustable Lid Clamps which allow you to dial in the tension for a better seal. If you're struggling to get an airtight seal when using the Distillation Lid or Steam Condenser Set, these clamps can help provide more tension. Compatible with Gen 3 / Gen 4 BrewZillas. You Might Also Need: 65L Extended Malt Pipe 65L Wire Support Ring Recirculation Arm Extension KegLand Part Number: KL22248
Clean-in-place your BrewZilla by using the built-in low volume pump Recirculate brewery wash and let the CIP Spray Rotor do the work! Only requires a 6W pump to spin the rotating head and get full effectiveness Easily adapted for use to clean fermenters and other vessels Finally! A CIP spray head designed specifically for use with smaller homebrew pumps. There are a lot of stainless steel CIP Spray Balls readily available for homebrewers but they require a fairly beefy pump to spin the head and make it effective. The new Low Volume CIP Spray Rotor can provide full spray coverage with as little flow rate as 3 gallons per minute. This makes cleaning your BrewZilla an absolute breeze by simply recirculating cleaning chemicals and letting the CIP Rotor spray down the inside of your brewery. Also a great option for brewers using the MKII Magnetic Drive Pump as the spray head can easily be adapted to clean all sorts of fermenters. What Can it Do? Clean-in-place your 35L, 65L or 100L BrewZilla. Simply cut your recirculation hosing, or purchase additional silicone hosing to get the right length for your setup. You will be able to find the optimum length required by testing with water first. We found great success using the glass lid to start with to see if it is coating everything that you need it to. Recommended for low voltage pumps as low as 6W up to 25W (roughly 3–5 GPM). If using a more powerful pump, you may need to throttle back the flow rate so you don't overpower the spray rotor. Includes: Custom molded rotating spray head with 1/2" BSP thread 11.8" (300mm) length of silicone tubing suitable for your BrewZilla recirculation arm Stainless nut and barb Please note: The rotating spray head can only be used in the downwards position, it cannot be tilted or mounted sideways or upside down. KegLand Part Number: KL04329
Secure silicone hose to your mash tun during recirculation
Large circular center of the clamp leaves room for tubing without pinching
Excellent chemical resistance to common brewing cleaners and sanitizers
Able to withstand boiling temperatures
This handy spring clamp features a heavy-duty muslin spring which ensures your silicone hose never accidentally pops out of your mash tun and spills your precious nectar over your brewery floor. The large circular space between the arms of the clamp is perfect for passing 1/2" silicone tubing through without pinching. Rounded handles for a comfortable grip and a PE end grip to ensure your hosing is kept secure. Made from Polypropylene and Polyethylene which have good chemical resistance so it will stand up to the task for use around common brewing cleaners and sanitizers.
Temperature Rating: 32-248°F
KegLand Part Number: KL24686
Use this lid along with the 65L BrewZilla or DigiBoil and a copper still top (DS120or DS130) to make your own easy-to-use distillery. The lid gasket has two distinct sides, one that is rounded and one that is completely flat. When installing the gasket the flat side should be facing up. Use one hand to stretch the gasket around the lid and the other to push the gasket into the channel. This lid has a 1.85" (47mm) hole for the still top. Lid gasket included. Note: This lid uses a 6mm gasket to better fit the Gen 4 BrewZilla and Gen 2 DigiBoil. It is also backwards compatible with Gen 3 and older BrewZillas and Gen 1 DigiBoils. To improve the seal further, we highly recommend using the Adjustable Lid Clamps with the Distillation Lid if your unit does not have them. Made from 304 stainless steel Measures 16.25" in diameter KegLand Part Number: KL10962
Keep your beer taps clean and the fruit flies away with this beer faucet plug! Fits most standard beer faucets Made of highly resistant silicone These unique faucet plugs are designed to fit any faucet from 10 mm all the way up to 17 mm in diameter. These plugs are an economical solution to any fruit fly, yeast, or bacteria buildup when the faucet is not in use. The silicone is resistant to caustic and acid based cleaners as well as high temperature so they are dishwasher safe. This cap also functions as the stopper for the malt extension tube on the BrewZilla System. This cap will prevent grain from going down the tube. Kegland Part number: KL04220
Add this neoprene jacket to your Gen 4 BrewZilla to speed up heating!
Heating is 10% faster and heat loss from the boiler is reduced by 50%
Remove the jacket after the boil to speed up chilling
Thick, insulating neoprene is secured to the boiler body with a sewn-on hook and loop fastener strap
Sparge arm sleeve included to reduce heat loss during mash recirculation
Add some insulation to your BrewZilla to get better boils! This neoprene jacket will help keep the heat in for quicker and more vigorous boils. Slap it on to speed up heating; take it off to speed up chilling. Also includes a neoprene sleeve for the recirculation arm to reduce heat loss during the mash.
This jacket will fit Gen 4 BrewZilla models. It is not compatible with older generations of BrewZillas and DigiBoils due to where the cutouts on the jacket are located.
Features:
10% faster heat up time
50% less heat loss from boiler
Fits the 65L BrewZilla Gen 4
Made from 8 mm thick neoprene which is easy to wash after use
KegLand Part Number: KL24372

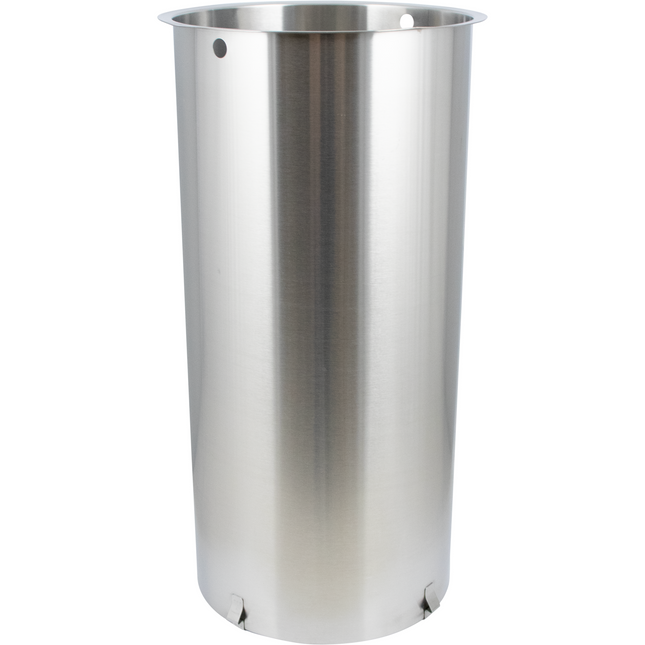

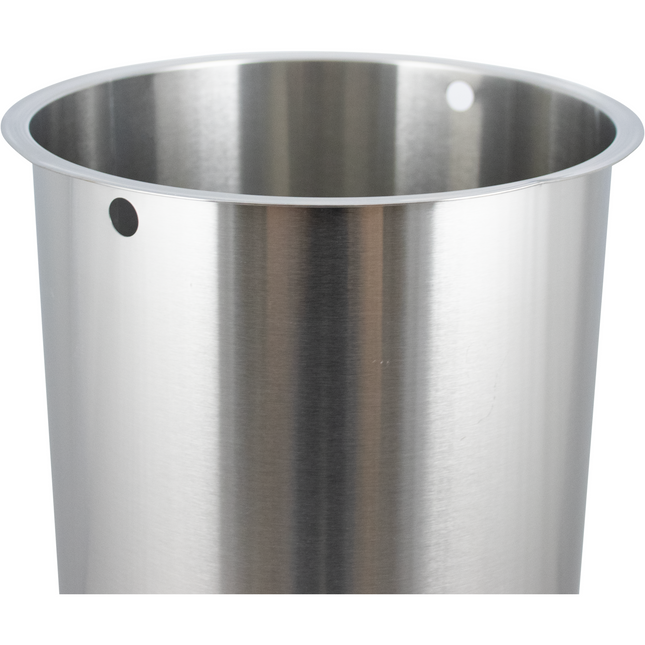

For use with the 65L BrewZilla Boiler Extension Kit. It does not come with an extra Wire Malt Pipe Support Ring. If you're using the extended malt pipe with the 65L DigiBoil, you will need to purchase the ring separately. If you're using the malt pipe with the 65L BrewZilla you can either move your ring up to the boiler extension, or buy an additional ring so you can remove the malt pipe in two steps.
You will also need the Ricirculation Arm Extension to continue using the BrewZilla's recirculation arm.
Compatible with 65L Gen 3 / Gen 4 BrewZillas.
Example image of the 35L model shown here.
KegLand Part Number: KL32834
Adjust clamp tension as needed for a better seal with metal BrewZilla or DigiBoil accessories If you're struggling to get an airtight seal when using the Distillation Lid or Steam Condenser Set, these clamps can help provide more tension Easily spin to adjust clamp height and then tighten hex nuts to lock in adjustment Compatible with 35L / 65L BrewZillas and DigiBoils Made from 304 Stainless Steel Get the exact tension you need with your BrewZilla or DigiBoil with KegLand's Stainless Steel Adjustable Clamp Set. Permanently replace the standard lid clamps and adjust the tension to your needs. These clamps are only intended for use with the metal Distillation Lid or Boiler Extension Kits. If you are having trouble getting the correct tension to form a good seal with those accessories, these adjustable clamps can help you dial in the fit. They should never be used with the standard glass lid. Compatible with 35L and 65L BrewZillas (Gen 3 / Gen 4), DigiBoils (Gen 1 / Gen 2), and Boiler Extensions. Installation Instructions: You will need a pair of bolt cutters or tin snips to cut the standard clamp off. (Please see product photos for optimum cut location). Remove the nut and bolt and thread it through the clamp. Ensure that the grooved part is facing outwards (photo for reference). If you do not have the grooved part facing outwards, the clamp will be blocked by the round lip of the boiler. Loosen the bolts and spin the clamp up or down to adjust the tension. Use the nuts to lock the desired tension. It is always best to start looser than you think, then adjust tighter. Warning: Do not use the adjustable clamps with a glass lid, the clamps are only designed for distillation lids or other metal accessories. Please note: The adjustable clamps will eventually phase out the standard lid clamps on all Gen 4 BrewZillas. They are not necessary when brewing with the standard glass lid. You should only swap to the adjustable clamps if you are using the metal distillation lid or boiler extensions and are having issues with getting the correct tension when using those accessories. KegLand Part Number: KL30649

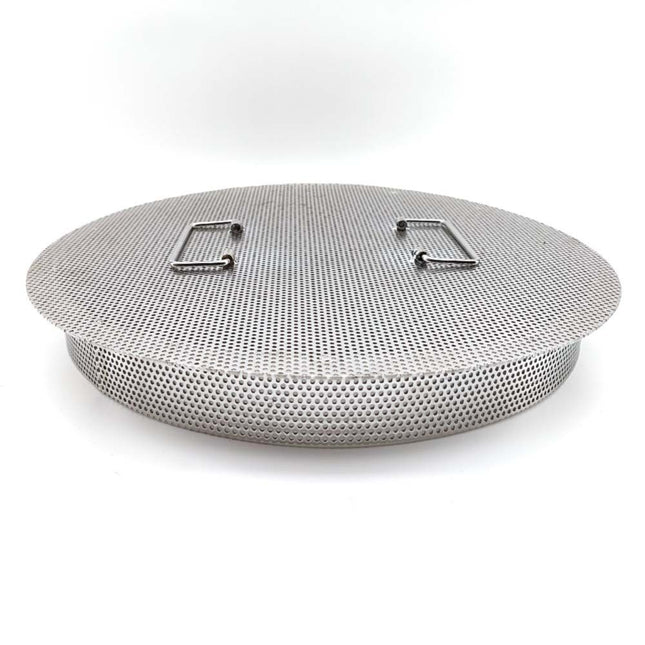

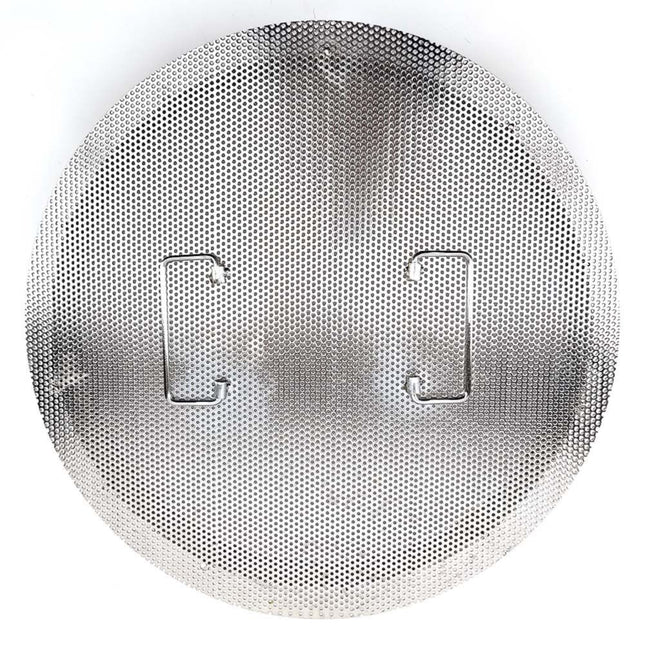

NOTE: This accessory is designed exclusively for 3-vessel brewers who want to use the BrewZilla or DigiBoil as a mash tun. It is not meant to be used alongside a malt pipe, and it is not intended to be an upgrade or replacement to the BrewZilla's standard false bottom protection screen.
If you're a 3-vessel brewer and want to use the BrewZilla or DigiBoil purely as a mash tun, this is false bottom will give you more volume compared to mashing with a malt pipe. Designed for use with DigiBoil electric kettles or BrewZilla all-in-one systems. Unlike two-piece false bottoms you may find, this unit is welded together for maximum strength. It will easily withstand as much grain weight as you could possibly fit in the vessel. Features welded handles to easily remove the false bottom when cleaning.
Compatible with 65L DigiBoils and Gen 3/4 65L BrewZillas.
Dimensions:
Diameter: 15.35" (390 mm)
Height: 1.88 (48 mm)
Approximate Dead Space: 1.5 gal (5.7 L)
KegLand Part Number: KL27717
Replacement Ball Valve for the Gen 3 BrewZilla / DigiBoil. Silicone washer and stainless nut included, but not pictured.
Not compatible with BrewZilla Gen 4.
1/2" MPT
13.5 mm barb (apprx. 1/2")
304 stainless steel construction
KegLand Part Number: KL03728
Make your Gen 4 BrewZilla even smarter by pairing it with the RAPT Bluetooth Thermometer
Take mash temp readings from the top and bottom of your grain bed simultaneously
Set a temperature diffential between the readings to enable the BrewZilla RAPT controller to more accurately maintain temps and perform mash steps
Monitor coolant water temps during distillation runs and set alarms to alert you if the temperature is too high
Automatically log brew days with detailed information to your RAPT Portal account
Huge temperature range from -4°F to 572°F is easy to read on the backlit digital display
Orange backing plate can clip to the rim of your BrewZilla and is also magnetic
AAA batteries included
This low energy, RAPT-enabled Bluetooth Thermometer is compatible with the Gen 4 BrewZilla, RAPT Temperature Controller, and RAPT Fermentation Chamber. It will not work without one or more of these devices.
By receiving multiple BLE (Bluetooth Low Energy) thermometer sensors, the BrewZilla can make smarter and more automated decisions on how to control the brewing or distillation process. For example, the BLE thermometer probe can be put into the middle of the malt pipe so the BrewZilla can more accurately control elements switching on/off to achieve a core malt pipe temperature, or the thermometer can be placed into your coolant water during distillation runs so you get an alarm if the temperature is too high.
RAPT Connectivity
The new Bluetooth thermometer can connect up to your BrewZilla Gen 4, RAPT Temperature Controller, or RAPT Fermentation Chamber and log that temperature data and manipulate fermentation/brewing and distillation profiles in the RAPT Portal. This greatly reduces the need for handwritten records of your brew day as it's all done automatically. The RAPT portal also allows you to see every brew you have done in the past with logged temperatures from the main unit's probe and this digital thermometer. This unit can also be set up to send push notifications to your mobile phone of when it's time to begin sparging or begin other steps in your brewing process.
Along with this ease of access and control, the RAPT BrewZilla will also allow you to fully customize your brew day with profiles specifically tuned to your style of brewing or your recipe. For example, you could set up step mash profiles using the core temperature of your mash instead of the cavity below where the BrewZilla's main temp probe is located. Greater accuracy for a more repeatable recipe that results in much better beer!
Specifications:
Temp Range: -4°F – 572°F (-20°C – 300°C)
Probe Length: 8" (20 cm)
Note that the probe tip is very sharp
Remove black plastic tip before use
Plastic tip should be used for storage to avoid punctures / injury
Cable Length: 39" (100 cm)
Magnetized Backing Plate (Orange)
2 x AAA Batteries (included)
KegLand Part Number: KL24334
RAPT Bluetooth Thermometer | User Guide
Add this neoprene jacket to your Gen 4 BrewZilla to speed up heating!
Heating is 10% faster and heat loss from the boiler is reduced by 50%
Remove the jacket after the boil to speed up chilling
Thick, insulating neoprene is secured to the boiler body with a sewn-on hook and loop fastener strap
Sparge arm sleeve included to reduce heat loss during mash recirculation
Add some insulation to your BrewZilla to get better boils! This neoprene jacket will help keep the heat in for quicker and more vigorous boils. Slap it on to speed up heating; take it off to speed up chilling. Also includes a neoprene sleeve for the recirculation arm to reduce heat loss during the mash.
This jacket will fit Gen 4 BrewZilla models. It is not compatible with older generations of BrewZillas and DigiBoils due to where the cutouts on the jacket are located.
Features:
10% faster heat up time
50% less heat loss from boiler
Fits the 35L BrewZilla Gen 4
Made from 8 mm thick neoprene which is easy to wash after use
KegLand Part Number: KL24365
Swap out the standard BrewZilla recirculation arm with this flexible upgrade Perfectly position your recirculating wort or sparge water over the grain bed Use the BrewZilla's built-in pump to easily transfer wort to fermenter or clean the kettle with a CIP head This simple upgrade for the BrewZilla is perfect for positioning your recirculating wort or sparge water over the grain bed and makes it even easier to use the unit's built-in pump for transferring wort to your fermenter or for CIP at the end of the brew day. Pairs perfectly with the Sergeant Sparge Head for mashing and sparging, as well as the BrewZilla Spinning Spray Rotor to clean your kettle. Please note: Camlocks sold separately. You will need a Male Camlock x 1/2" Male Thread adapter in order to attach the Flexi Arm to your BrewZilla recirculation piping. Specifications: 304 Stainless Steel Fitted Female 1/2" Hex Nut Ends Silicone Washers Included Length 31.5" KegLand Part Number: KL15097
This is a replacement 175°C (347°F) thermal cut out switch for the 110V BrewZilla 35L & DigiBoil 35L Units.
This thermal cut out switch is mounted directly to the heating element so as soon as the heating element gets too hot the bi-metal switch will activate and cut the power to the element. It can also trigger an E3 or E4 error when this happens on the display.
Designed to offer a sturdy connection point when using medium-heavy stills or off-center steam condenser units. To attach an AlcoEngine Still Top, remove the locking ring and gasket, replace the gasket with this single sided bead seal, pass the bottom threaded portion of the still through the ferrule, and secure in place with a 2" tri-clamp.
Sized for 35L BrewZillas and DigiBoils.
Compatible with the AlcoEngine Copper Pot Still and Copper Reflux Still and the BrewZilla Steam Condenser.
Installing AlcoEngine Still:
Remove the bottom nut and seal from the column
Place the single sided bead seal on the lid's tri-clamp ferrule (beaded side facing down)
Pass the threaded bottom section of the column through the ferrule
Secure in place with a 2" tri-clamp
The column's bottom nut and seal are not needed
KegLand Part Number: KL32629
Add this neoprene jacket to your BrewZilla or DigiBoil to speed up heating!
Heating is 10% faster and heat loss from the boiler is reduced by 50%
Remove the jacket after the boil to speed up chilling
Thick, insulating neoprene is secured to the boiler body with a sewn-on hook and loop fastener strap
Add some insulation to your BrewZilla or DigiBoil to get better boils! This jacket will fit all 65 L sizes and help keep the heat in for quicker and more vigorous boils. Slap it on to speed up heating; take it off to speed up chilling.
This jacket will fit Gen 3.1.1 and older BrewZilla models. It is not compatible with Gen 4 BrewZillas.
Features:
10% faster heat up time
50% less heat loss from boiler
Fits the 65L Brewzilla and DigiBoil
Left cut out for the valve
Right cut out for the bottom handle
Made from thick neoprene, which is easy to wash after use
Kegland Part Number: KL08921

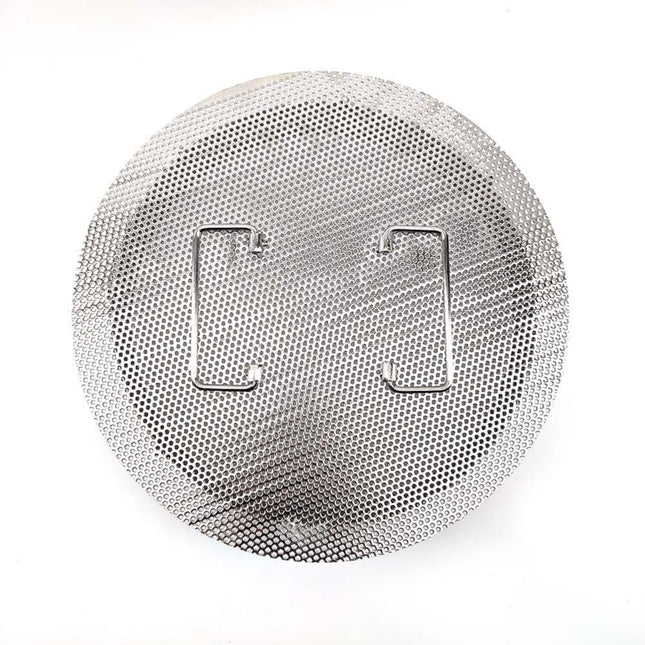

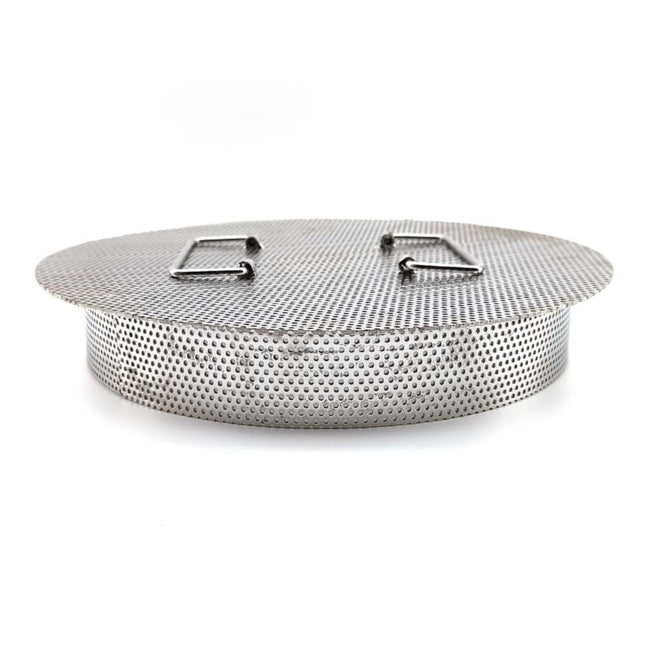

NOTE: This accessory is designed exclusively for 3-vessel brewers who want to use the BrewZilla or DigiBoil as a mash tun. It is not meant to be used alongside a malt pipe, and it is not intended to be an upgrade or replacement to the BrewZilla's standard false bottom protection screen.
If you're a 3-vessel brewer and want to use the BrewZilla or DigiBoil purely as a mash tun, this is false bottom will give you more volume compared to mashing with a malt pipe. Designed for use with DigiBoil electric kettles or BrewZilla all-in-one systems. Unlike two-piece false bottoms you may find, this unit is welded together for maximum strength. It will easily withstand as much grain weight as you could possibly fit in the vessel. Features welded handles to easily remove the false bottom when cleaning.
Compatible with 35L DigiBoils and Gen 3/4 35L BrewZillas.
Dimensions:
Diameter: 11.61" (295 mm)
Height: 1.77 (45 mm)
Approximate Dead Space: 0.79 gal (3 L)
KegLand Part Number: KL27700
For all-in-one brewers and BIAB brewers, lifting the grains from your vessel can be daunting task. Give your back a rest and use the Lift-N-Lock pulley system to effortlessly lift up your grain bag or malt pipe and while your sweet wort drains into the kettle. This heavy-duty pulley is made from strong nylon strapping, laser cut 304 grade stainless steel and is capable of lifting large heavy loads with ease. It's the perfect pulley for lifting the heavy malt pipe from your BrewZilla or other all-in-one system, especially when brewing high gravity beers with a massive grain bill. It's a bit more expensive than other pulley systems, but there's no comparison when it comes to easily lifting or lowering the malt pipe. The included strap is 10m long by 25mm wide (32.8 ft. x 1 in.).
The pulley system enables you to multiply your pulling force by 4 times. If you apply 60 lbs of pulling force, the pulley can lift 240 lbs with relative ease. Be sure that the beam you mount the pulley to is rated for the total amount of force being applied i.e. pulling force plus load weight, so for this example 300+ lbs.
KegLand Item Number: KL30885
This arm extension allows you to continue using the BrewZilla's recirculation arm after adding a boiler extension kit. Compatible with both 35L and 65L models.
Compatible with Gen 3 / Gen 4 BrewZillas.
KegLand Part Number: KL26413
Replacement Wire Malt Pipe Support for 35L BrewZilla. Made from 304 stainless steel.
This is the "Gen 2" version of the wire support ring. It has been slightly modified from the previous version to be compatible with all generations of BrewZillas and DigiBoils.
KegLand Part Number: KL88020
Reduce heating time during your mash with the Gen 4 BrewZilla
Redistribute recirculating wort for longer heating element exposure
Improve heat distribution throughout the mash
Speed up heating times with the Heat Exchanger Dish (HED) for Gen 4 BrewZillas. This optional upgrade accessory redirects the flow of wort so that it spends more time exposed to the heating elements before reaching the center drain at the bottom of the kettle and being recirculated. Due to the concave bottom and central draining hole on the Gen 4 BrewZilla, recirculating wort will pass through the malt pipe and then down through the boiler false bottom following the path of least resistance. This can cause wort to make a B-line for the drainage hole and reduce the wort's exposure to the unit's heating elements. With the HED installed, wort will be directed to the edge of the BrewZilla base and pass over the elements for a longer period and reduce the time needed to heat to your set temperature.
For use with the Gen 4 65L BrewZilla. It is not compatible with any previous generations of BrewZillas or DigiBoils.
The HED has been pressed into a slight concave shape to match the curvature of the boiler false bottom. Includes a longer eye bolt assembly than the one included with the false bottom.
NOTE: The order of bolt to washer to nuts goes as follows. Eye bolt, washer, false bottom, washer, nut, HED, then wing nut. This is so that the eye bolt does not come completely removed when and if you clean underneath the Heat Exchanger Dish.
KegLand Part Number: KL29360
Replacement 6 Watt high temperature magnetic drive pump for 110V Gen 4 BrewZillas.
This pump is not backwards compatible with Gen 3 or older units.
KegLand Part Number: KL24358
The BrewZilla Polycarbonate Sight Glass comes assembled with stepless clamps and fits both the 35L and 65L units. This piece is installed in place of the stainless recirculation tube and allows you to check your fill level or watch your wort clarify during mash recirculation.
Intended for use with BrewZilla model 3.1.1 or earlier. Not compatible with the Gen 4 BrewZilla. Support brackets on older models may be too small for the 0.59" OD polycarbonate tube.
Includes:
Stainless 1/2" Male BSP threaded post with o-rings
Stainless 1/2" Female BSP threaded post with o-rings
360 mm long polycarbonate tube (13 mm ID x 15 mm OD)
Please note: you may need to use varying amounts of plumber's tape to get it to seal in the right position once it has been tightened back down on the female bottom end.
Warning: if using PBW, it is recommended to not have an extended contact time at temperatures above 120°F or exceeding the recommended dilution ratio.
KegLand Part Number: KL17114
